Submersible Pressure Transmitter

Submersible Pressure Transmitter for Level and Depth Measurement

4-20 mA Output 0-275 mbar to 0-35 bar

Submersible Pressure Transmitter, also called Hydrostatic submersed level transmitters,

is a submersible transducer suitable for liquid level and depth measurement.

The SI-PCM260 Submersible Pressure Transmitter provides a reliable platform for accurate pressure,

level control and monitoring.

An ideal sensor when durability and performance are crucial for proper process management.

Features of SI-PCM260 Submersible Pressure Transmitter:

SI-PCM260 Submersible Pressure Transmitter
SI-PCM260 Submersible Pressure Transmitter

  • Predefined and custom cable lengths
  • Small OD diameter designed to fit narrow bore applications
  • Robust
  • Reliable
  • Economical

Specifications of SI-PCM260 Submersible Pressure Transmitter

  • Accuracy: ±0.25% for ranges >1.5 psi, ±0.5% for 1.5 psi
  • Pressure Ranges: 1.5 to 300 psi or equivalent units
  • Housing: NEMA 6P IP68
  • Wetted materials: 316L SS housing and sensor with polyurethane cable
  • Output signal: 4-20 mA

Applications of Submersible Pressure Transmitter

  • Level measurement in rivers and lakes
  • Level measurement in vessel and storage systems
  • Control of sewage lift and pumping stations
  • Monitoring of sewage, settling and stormwater retention basins

For simple measuring tasks

The model SI-PCM260 submersible pressure transmitter

has been optimized for simple measuring requirements in level measurement.

It offers excellent quality, is cost-effective and reliable.

It has been designed to the current demands of the industry and has a 4 … 20 mA output as standard,

an accuracy of 0.5% and PUR cable.

With IP 68 ingress protection,

it is suitable for permanent level measurement up to 100 m water column.

Reliable and long-lasting

The submersible pressure transmitter features a hermetically-sealed and exceptionally robust stainless steel case.

The proven, fully-welded construction ensures a long service life and permanent sealing.

Submersible pressure transmitter for level measurement

By videos below, you can know more about submersible pressure transmitter for level measurement:

Sino-Instrument offers over 50 Submersible Pressure Transmitter products.

About 50% of these are Submersible level Transmitter, 40% are water meters, and 40% are level meters.

A wide variety of Submersible Pressure Transmitter options are available to you, such as free samples, paid samples.

Sino-Instrument is a globally recognized supplier and manufacturer of
Submersible Pressure Transmitter , located in China.

The top supplying country is China (Mainland), which supply 100% of
Submersible Pressure Transmitter  respectively.

Sino-Instrument sells through a mature distribution network that reaches all 50 states and 30 countries worldwide.

Submersible Pressure Transmitter products are most popular in Domestic Market, Southeast Asia, and Mid East.

You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.

Request a Quote

Please provide your measurement parameters or details. Sino-Instrument support customer customization and OEM

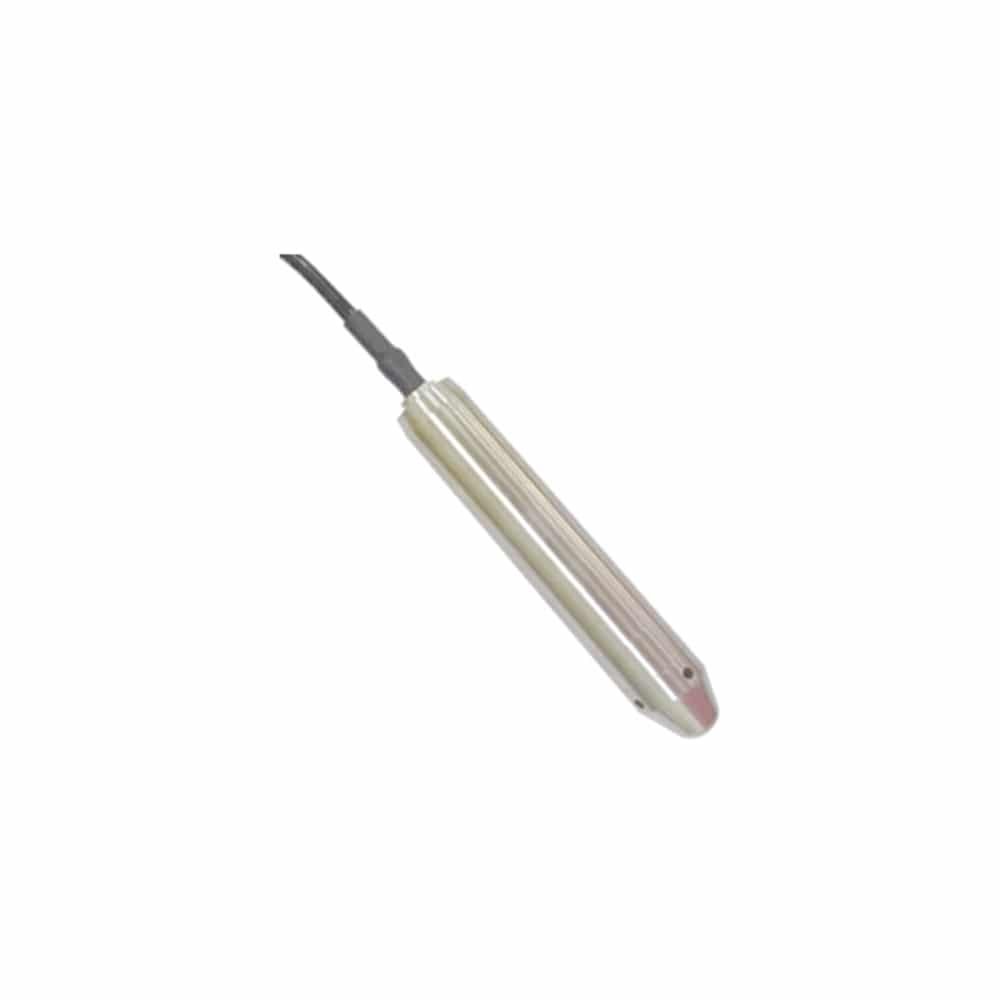

product image
Author Rating
Aggregate Rating
5 based on 2 votes
Brand Name
Product Name
Submersible Pressure Transmitter
USD 70
Product Availability
Available in Stock
