2 inch water flow meter is also written as 2″ flow meter. If you are planning to buy a 2 inch water flow meter, please be sure to read this article.
How much is a 2 inch water flow meter? And which type of water flow meter should you buy? We all analyze.
Commonly used 2 inch water flow meters mainly include electromagnetic, ultrasonic, and mechanical water meters.
Here, we mainly introduce these three types of water flow meters.
2 inch Water Flow Meter types

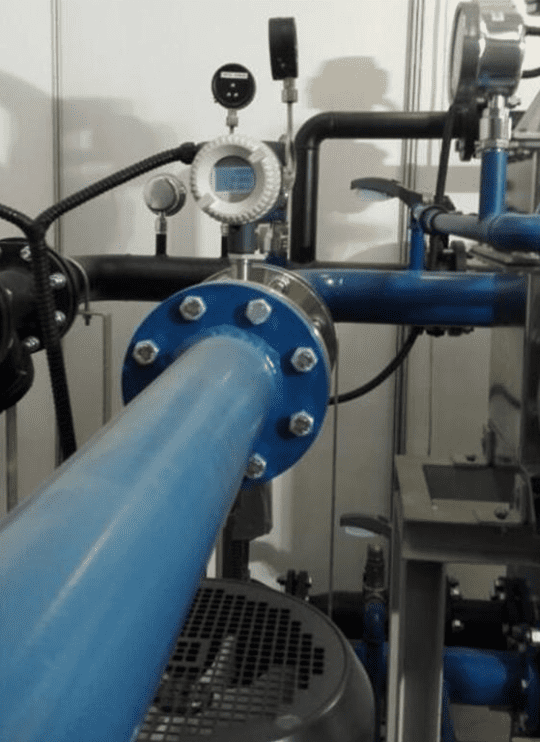

2 inch magnetic flow meter
Magnetic Water Flow Meter is an electromagnetic flowmeter used to measure conductive fluids. Conductive liquids such as drinking water, sewage, wastewater, seawater, ammonia, cement slurry, etc.
Magnetic Water Flowmeters provide highly accurate flow measurements for a wide variety of conductive fluid applications. Magnetic Water Flow Meter is a volumetric flow meter that measures liquids or liquid slurries that have a minimum conductivity of 5 µS/cm. Based on Faraday’s law of electromagnetic induction. Magnetic Water Flow Meter is ideal for wastewater applications or any dirty liquid which is conductive or water-based. It is widely used in water treatment, environmental protection sewage measurement and control, papermaking, and other industrial and agricultural production processes for flow measurement and control.
2 inch magnetic flow meter reference price: USD 500.00/pc.
|Caliber||2 inch (DN50)|
|Excitation method||Square wave constant current excitation|
|Installation form||One-piece flange, split flange|
|lining||Neoprene, polyurethane rubber, PTFE, F46|
|Electrode material||316L, Hc, Hb, titanium, tantalum, platinum iridium, tungsten carbide|
|Ground||Built-in ground electrode (DN25 and above)|
|level of accuracy||0.5, 1.0|
|Dielectric conductivity||＞ 5 μS/cm|
|Flow rate||≤ 10 m/s|
|Flow range||0.71~2.12~35.35~70.68 m³/h|
|Pipe connection flange||GB 81～59|
|Pipe connection||Flange connection; Tri-clamp|
|Medium temperature||Chloroprene rubber: -10℃～60℃; PTFE: -10℃～120℃|
Polyurethane rubber: -10℃～80℃; F46: -10℃～150℃
|preset pressure||4.0 MPa; 1.6 MPa; 1.0 MPa|
|Protection level||IP65; IP68|
|output signal||4mA ～ 20mA DC current; pulse/frequency; upper and lower limit alarm|
|Cable interface||M20×1.5 internal thread|
|Communication||RS 485 communication protocol (Modbus protocol)|
RS 232 communication protocol (optional)
|Display||Instantaneous flow, alarm display, percentage, flow rate, forward and reverse cumulative flow and total cumulative|
|power supply||220V AC, 24V DC, 3.6 V battery power supply|
|Use type||Ordinary type, waterproof type|
|High pressure||custom made|
Guess you like: How to Select Hydraulic flow meter for Hydraulic oil flow?
2-inch ultrasonic flow meter
The ultrasonic flowmeter measures water and can be used as an industrial pipeline type. External clamp installation.
The clamp-on ultrasonic flowmeter is the most popular. Because the installation is simple.
|Item||Performance and Parameter|
|Convertor||Principle||transit-time ultrasonic flowmeter|
Flow: over 1%-2%(battery-powered supply over ±2% )，Heat: over ±2%，Repeatability: over 0.2%
2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm
|Operation||Support 16 key light touch keyboard and the Simulation keyboard software|
1 way 4~ 20mA output, electric resistance 0~ 1K，accuracy0. 1%
1 way OCT pulse output ( Pulse width 6 ~ 1 0 0 0 ms，default is 2 0 0 ms)
|1 way Relay output|
3 way 4~ 20mA input, accuracy 0. 1%，acquisition signal such as temperature, press and liquid level
Connect the temperature transducer Pt100, can finish the heat/energy measurement
Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
|Other Function||Automatically remember the previous flow/energy data of 512 days, 128 months and 10 years|
|Automatically remember the previous flow/energy data of 512 days working condition and check it|
|Automatically remember the previous 32 times power on/off time and flow rate|
Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m.
|Pipe Installation Condition||Pipe Material||
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
|Straight length pipe||
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
|Measuring Medium||Type of Liquid||
Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids
More about: Sewage Flow Meter Selection
Standard Transducer: -30–90℃; High-temperature transducer: -40–160℃
|Turbidity||No more than 10000ppm and less bubble|
|Flow rate||0–±12 m/s|
|Working Environment||Temperature||Main Unit: -20–60℃|
|Flow transducer: -40–160℃;|
|Temperature transducer: according to the customer’s demands.|
Main Unit: 85% RH; Flow Transducer: Ip67
|Power Supply||DC 24V or AC 85-264V|
2-inch ultrasonic flow meter, if configured according to the lowest cost. Price is USD 340.00/set
Extended reading: Advantages and disadvantages of ultrasonic water meters
2-inch mechanical water flow meter
It is used to measure the consumption of drinking water flowing through a water pipe in a household or a residential unit.
- Simple structure
- Convenient manufacturing and maintenance, low cost
- Durable, low water quality requirements
- Errors are easy to adjust
- Relatively large flow ratio
- Better sensitivity
- Lower requirements for straight pipes
Conditions of Use:
- Water pressure is not more than 1MPa
- The water temperature of the cold water meter does not exceed 30℃
- The water temperature of the hot water meter does not exceed 90℃
Extended reading: Hot Water Flow Meters Improve Heating-Boiler System
2-inch mechanical water flow meter, bulk purchase, the cost can be reduced to USD 15.00/pc
Of course, in addition to the three 2inch water flow meters introduced here. There are other types of flow meters that can also be used to measure the water flow rate.
Extended reading: Featured Cheap flow meters for Sale
2 Inch Digital Flow Meter
A Digital flow meter is a flow meter that can display the flow rate, and have the output for the flow rate. Like 4-20mA output, HART, RS 485, and so on. Digital Flow Meter is also called Electronic Water Flow Meter. Digital Flow Meter is widely used in industrial water and household water measurement. Most of the Sino-Inst flow meters are digital flow meters. Like the electromagnetic flowmeter, Portable ultrasonic flow meter, Turbine flow meter…..
Read more about Digital Water Flow Meters.
2 Inch Chemical Flow Meter
A chemical flow meter is a flowmeter used to measure common chemical fluid media. In chemical production control and metering, between chemical reaction storage tanks. As an important monitoring instrument, the flow meter is also used as an instrument for internal cost accounting and foreign trade measurement.
You may often hear about ultrasonic flow meters, electromagnetic flow meters, turbine flow meters, volumetric flow, or mass flow. Chemical flow meters are common in industries like petrochemical plants and refineries. Sino-Inst offers a wide range of liquid and gas flow meters to help you regulate the flow of water, petroleum products, fuels, chemicals, and more.
Read more about Chemical flow meters types.
More Featured Water Flow Meters
2 Inch Water Flow Meter Price
On the whole, Water Flow Meter Price, the cost of a mechanical water flow meter will be lower than that of a digital water flow meter.
The prices of 2 inch turbine flowmeters, electromagnetic flowmeters, and ultrasonic flowmeters are all similar.
As a manufacturer. Sino-Inst is more willing to provide better prices for your bulk purchases. If you are interested, please contact our sales engineer as soon as possible.
Check more 1 Inch Flow Meters.
Extended reading: Industrial VS Residential inline water flow meters
You can refer to the following:

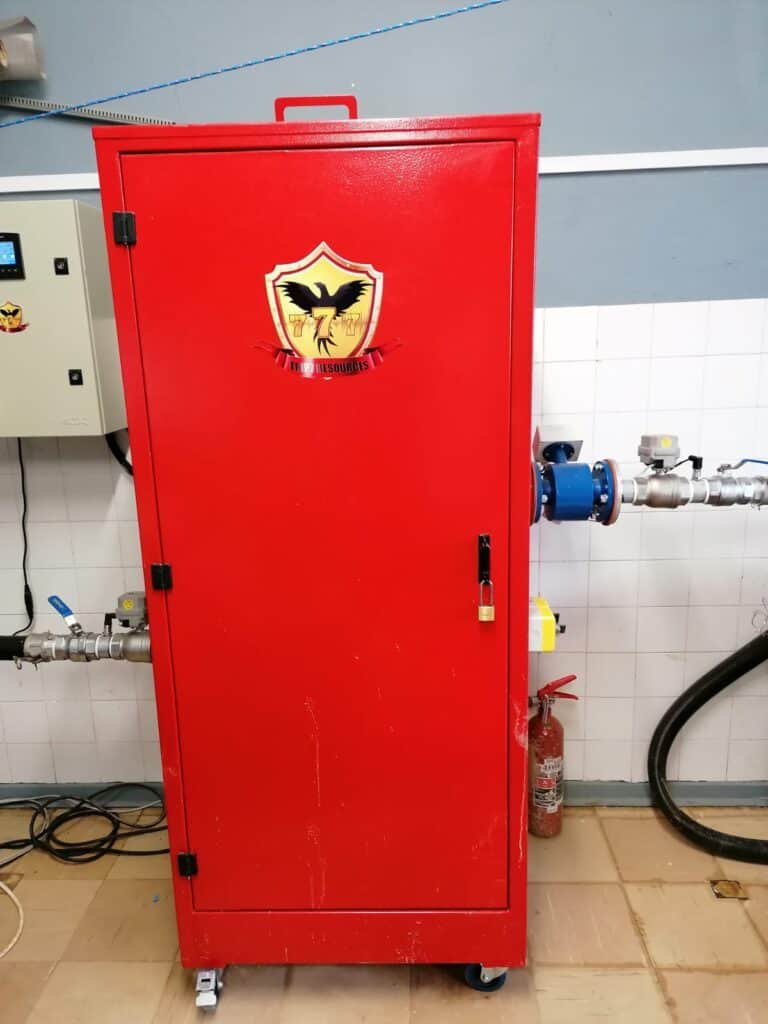

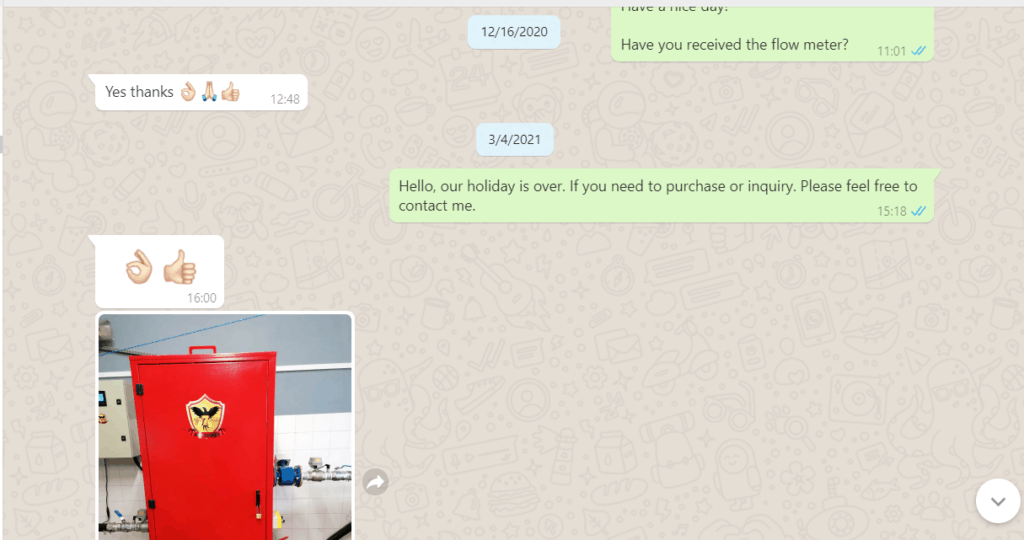

2 inch Water Flow Meter supplied by Sino-Inst, customer feedback:
Read more about: What is an inline flow meter?
Sino-Inst offers over 20 2 inch Water Flow Meters, with the Best Price.
A wide variety of flow meter options are available to you, such as free samples, paid samples.
About 13% of these are magnetic flow meters, 14% are Insertion Magnetic Flow Meter, 25% are ultrasonic flow meters, 13% are Handheld ultrasonic flow meters, and others are Liquid Turbine Flow Meters.
Sino-Inst is a Water Flow Meters supplier, located in China.
Wastewater flow meter products are most popular in North America, Mid East, and Eastern Europe.
The United States, and India, which export 99%, 1%, and 1% of ultrasonic level transmitters respectively.
You can ensure product safety by selecting from a certified supplier, with ISO9001, ISO14001 certification.
