Category Archives: HART Communicators

Sino-Instrument supplies HART communicators.
Hart communicators( portable devices with more than one function ),
also called hart kommunikator.
Normally, we say hart communicators,
which means hart 475 field communicator, hart 375 field communicator.
We supply regular hart instruments.
Like the HART 475 communicator,
can totally work with pressure transmitter, which with 4-20ma, HART.
Through the hart field communication protocol,
our hart communicators can remotely control our instruments,
like pressure transmitters, DP transmitters, and other instruments with 4-20ma, hart.
Our hand-held HART communicator, produced in China,
has a good price advantage and a higher quality.
If you don’t know what kind of hart communicator should you purchase,
You can just contact us for advice.

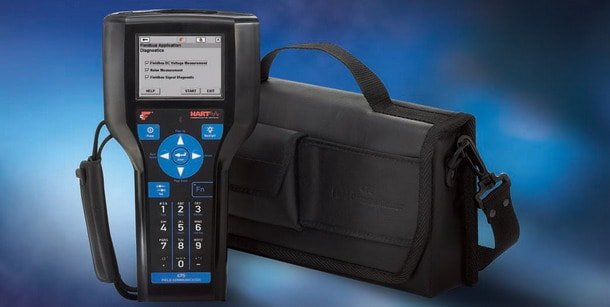

Rosemount HART 475 Field Communicator

Posted on by

Rosemount 475 Field Communicator — Emerson-Rosemount handheld HART / FOUNDATION Fieldbus configurator. Limited original stock available.

The Rosemount 475 is the handheld field communicator used worldwide to configure, commission, and troubleshoot HART and FOUNDATION Fieldbus devices — pressure transmitters, flowmeters, level gauges, temperature transmitters, valves, and positioners. Sino-Inst supplies original Emerson 475 units plus all compatible HART instruments and accessories.

Features of the Rosemount 475 Field Communicator

  • Dual protocol support — Works with all HART® and FOUNDATION Fieldbus devices from 300+ manufacturers, covering 1,000+ device types.
  • Field-upgradeable — Download the latest HART and FOUNDATION Fieldbus DD files over the internet and upgrade the unit on-site without shipping it back.
  • Intrinsically safe certification — Only handheld that meets ATEX, CENELEC, FM, CSA, and FISCO intrinsic safety requirements for use in Zone 0/1/2 hazardous areas.
  • Color touchscreen — 8.9 cm 1/4 VGA (240 × 320) color display with automatic dimming for outdoor readability.
  • Rugged design — IP51 front rating, survives 1 m drop onto concrete, rated for -10 °C to 50 °C operation.
  • AMS Device Manager compatible — Transfers configuration data directly to and from Emerson AMS software via infrared or USB.
  • Easy Upgrade Option — 3-year subscription includes unlimited system-card upgrades as new device drivers are released.

Technical Parameters

Processor80 MHz Hitachi SH3
Display1/4 VGA (240 × 320), 8.9 cm color touchscreen, auto-dimming
Built-in memory / RAM32 MB / 32 MB
System card1 GB or higher SD card
Interface3 × 4 mm banana jacks (HART / Fieldbus)
Infrared port115 kbs/s, max 30 cm
Keyboard25 keys (4 operation, 12 alpha, 4 shoulder, 4 function, power)
BatteryRechargeable lithium-ion, ~20 h runtime, 100–240 VAC charger
Charger socketMini DIN 6-pin
Operating temperature-10 °C to +50 °C
Storage temperature-20 °C to +55 °C (with battery); -20 °C to +60 °C (without)
Humidity0–95 % non-condensing
Ingress protectionIP51 (front)
Drop resistance1 m onto concrete
Weight~0.9 kg (incl. battery)
Hazardous area approvalATEX, CENELEC, FM, CSA, FISCO (intrinsically safe)

Rosemount 475 Working Principle

The 475 connects in parallel to a 4–20 mA loop carrying a HART-compatible instrument, or to a FOUNDATION Fieldbus segment. HART signalling superimposes a 1200 / 2200 Hz FSK waveform on top of the analog current, letting the communicator read and write device parameters without disturbing the primary measurement.

Once connected, the 475 loads the device’s DD (Device Description) from its system card, displays the live readings, and lets the technician configure range, damping, units, tag, and all device-specific settings. Configuration data can be saved, copied between identical devices, or exported to AMS Device Manager.

Compatible with HART 275, HART 375, and all imported / domestic devices running HART protocol on 1151, 3051, EJA, ABB, and similar platforms.

Models and Configuration Options

The most commonly supplied 475 part numbers:

Model numberDescription
475HP1ENA9GM9Basic — HART only, English, no certification
475HP1ENAUGM9HART only, English, 3-year Easy Upgrade
475HP1EKL9GM9HART, intrinsically safe (FM/CENELEC/ATEX/CSA + FISCO)
475HP1EKLUGM9HART, intrinsically safe + 3-year Easy Upgrade
475FP1EKLUGM9HART + FOUNDATION Fieldbus, intrinsically safe, 3-year upgrade

The 475 part number is built up from digit groups — use this legend to decode any variant:

PositionCodeMeaning
ProtocolH / FHART only / HART + FOUNDATION Fieldbus
BatteryPRechargeable Li-ion pack
Power supply1 / 9Charger included (0–24 VAC, US/UK/EU plugs) / excluded
LanguageE / D / J / REnglish / German / Japanese / Russian
CertificationKL / NAFM + CENELEC/ATEX + CSA IS (incl. FISCO) / No certification
UpgradeU / 93-year Easy Upgrade / excluded
ModeGMGraphics Enhanced + Configuration Management
BluetoothT / 9With Bluetooth / without
AccessoryA / SSpare Li-ion battery / Standard rubber boot

Applications

The Rosemount 475 is used across process industries wherever HART or FOUNDATION Fieldbus instruments are deployed:

  • Commissioning new pressure, level, flow, and temperature transmitters — range setting, zero/span trim, tag and LRV/URV configuration.
  • Routine plant maintenance and fault diagnosis on HART instrument loops.
  • Calibration support: reading primary variable, injecting simulated outputs, verifying loop integrity.
  • Valve and positioner configuration on HART- and Fieldbus-based control valves.
  • Bulk cloning of configuration from one transmitter to many identical spares.
  • Fieldbus segment diagnostics: signal level, noise, and wiring checks on FF H1 networks.

Frequently Asked Questions

Is the Rosemount 475 still manufactured?

Emerson discontinued new 475 production and shifted its handheld roadmap to the AMS Trex. Sino-Inst holds original Rosemount 475 stock in limited quantities. For long-term support, we also supply the AMS Trex and the HART 375 as direct alternatives.

What is included in a standard 475 order?

Each unit ships with the Rosemount 475 communicator, Li-ion battery pack, charger with US/UK/EU plug options, system card loaded with current DD files, test leads with 4 mm banana connectors, rubber protective boot, and quick-start guide. Calibration certificate on request.

Lead time and shipping?

In-stock units ship in 3 business days via DHL/FedEx to 80+ countries. Lithium battery regulations require air freight. Each unit comes with a 6-month workmanship warranty; Easy Upgrade licences (where applicable) are transferred to the buyer’s name.

Related HART Communicator Products

HART 375 Field Communicator

HART 375 Field Communicator

Earlier-generation HART-only handheld. Direct budget alternative when FOUNDATION Fieldbus support is not required.

Emerson AMS Trex Device Communicator

Emerson’s current successor to the 475 with Bluetooth, WiFi, and power-over-loop. Recommended when long-term firmware support is needed.

HART Pressure Transmitter

HART-compatible pressure transmitter family from Sino-Inst — the most common device configured with a 475 in the field.

Request a Quote

Send us your required 475 part number (or describe the protocols and hazardous-area rating you need) and we will respond within one business day with availability, pricing, and lead time. Contact support@drurylandetheatre.com or use the form below.

Request a Quote

Please enable JavaScript in your browser to submit the form

Emerson AMS TREX Device Communicator

Posted on by

Emerson AMS TREX Device Communicator，Drive Reliability Goals with Your Handheld Communicator

Enables HART or Fieldbus Module device communications,

5.7-inch touchscreen display,

intrinsically safe

The AMS Trex Device Communicator delivers a modern user experience in a rugged,

intrinsically safe package,

providing the experience of consumer devices in a tool,

built to withstand harsh industrial environments.

Problems with Foundation Fieldbus and HART devices

can be diagnosed in the field while the devices are still installed.

Simple issues can be addressed on the spot,

avoiding unnecessary, and potentially destructive,

an invasive physical investigation of the problem.

SEND RFQ

The Trex communicator streamlines activities in the field,

allowing technicians to isolate and repair problems while devices continue to run.

Segment and loop diagnostic tools quickly validate loop and

Fieldbus segment characteristics for easy troubleshooting.


With numerous communication options,

your communicator has never been more connected.

To the Magnetostrictive level sensor

To the Coriolis mass flow meter

To the Wastewater Flow Meter

To the Insertion Magnetic Flow Meter

Emerson TREX Device Communicator Highlights

  1. Commission and validate devices faster
  2. Quickly fix issues in the field with advanced device diagnostics
  3. Configure and test valves inline
  4. Improve efficiency with a modern, intuitive user interface
  5. Intrinsically safe; usable anywhere you need to go

Competitive Price of Emerson AMS Trex Communicator

Are you looking for Emerson AMS Trex Communicator?

And do we have A competitive price?

Why buy the AMS Trex from us?

Contact us, you may get your answers.

We have AMS Trex communicator in stock.

Inquiry now and you will get Emerson AMS Trex price 20% off.

By the way, the price starts at $6,000.00 this moment,

please noticed that we guarantee that 100% Germany origin and brand new.

We offer many models of  Emerson AMS Trex Communicator with different price, hope to receive your inquiry email right now.

Sino-Instrument can offer the best price FOR AMS Trex communicator price in India, Pakistan and Middle East Africa, Asia.

Each TREX Device Communicator Includes

  1. AC Adapter
  2. USB Cable
  3. Lead Set with connectors
  4. Hand Strap
  5. Quick Start Guide and Resource DVD
  6. ValveLink Mobile application available at no charge once Trex unit is activated
AMS TREX Device Communicator
AMS TREX Device Communicator
AMS TREX Device Communicator
AMS TREX Device Communicator
AMS TREX Device Communicator

AMS TREX Device Communicator Key Features:

  • Microprocessor: 800 MHZ ARM Cortex A8/NXP
  • Memory: Internal Flash 2 GB NAND and 32 GB extended flash
  • RAM: 512 MB DDR3 SDRAM
  • Display: 5.7 in color VGA resistive touchscreen
  • Battery Operating Time: 8+ hours of typical use
  • Operating Temperature: -4 to 122°F
  • Enclosure Rating: IP54
  • Shock Tested to survive a 1-meter drop test onto concrete
  • Power the loop functionality
  • Quickly resolve field devices issues with advanced diagnostics
  • Configure and test valves inline
  • Intrinsically safe
  • Automatically synchronize field data with AMS Device Manager
  • Upgrade software and apps online

Order Information-AMS TREX Device Communicator

Configuration Guide
ModelProduct Description
TREXBase Trex Platform (1)
CodeCommunication Protocol
CDevice Communicator communication module
LDevice Communicator Plus communication module (2)
CodeApplications
HHART Application
FHART + Foundation Fieldbus Applications (3)
CodePower Module Type
PRechargeable Lithium-Ion Power Module
CodeProduct Certifications
KLATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)
NANo Approval
CodeRadio Options
WWireless(4)
9None
CodeSupport (5)
S1Standard Support (1 Year)(6)
S3Standard Support (3 Year)(6)
P1Premium Support (1 Year)(7)
P3Premium Support (3 Year)(8)
CodeCarrying Case
SCarrying Case(9)
Typical HART Model Number: TREX-L-H-P-KL-W-S3-S
Typical HART/Fieldbus Model Number: TREX-L-F-P-KL-W-S3-S
Configuration Notes
(1)Includes AC Adapter, USB Cable, Lead Set with connectors, Hand Strap, Quick Start Guide and Resource DVD. ValveLink Mobile application available at no charge once Trex unit is activated.
(2)Includes additional Lead Set with connectors.
(3)Includes Foundation Fieldbus Power Plug when ordered with Device Communicator Plus communication module (L).
(4)Includes Bluetooth, WiFi, and NFC radios. Available only in countries where spectrum approval has been obtained.
(5)Includes 1-year warranty against manufacturing defects unless otherwise stated.
(6)Includes technical support and software updates.
(7)Includes Standard Support and coverage against accidental damage.
(8)Includes Standard Support, extended coverage against manufacturing defects, and accidental damage.
(9)Leave blank for no carrying case.

Order #: TREXLFPKL9P3

TREXLHPKLWS3S

Technical Documents

Emerson AMS TREX Device Communicator Datasheet.pdf

Emerson AMS Trex Device Communicator Quick Start Guide.pdf

Emerson AMS Trex Device Communicator User Manual.pdf

Emerson-Three Strategies to Drive Reliability with Handheld Communicators Article.pdf

KNOW MORE ABOUT AMS TREX Device Communicator Features

A Rugged and Reliable Device Communicator

For a communicator to be useful in the field,

it must be built to last and ready for anything.

The Trex communicator is designed to withstand the harsh conditions,

in and around manufacturing facilities.

The rugged device is easy to hold,

yet designed to take the bumps and drops that come from normal use in the plant.

Besides, the Trex communicator is protected against moisture and extreme temperatures,

allowing you to work regardless of environmental conditions.

The sturdy exterior is designed by Intrinsic Safety standards,

to limit the buildup of static electrical energy.

Unlike consumer-grade mobile devices,

the Trex communicator will withstand the abuse of a harsh field environment.

Designed based on user feedback and with field use in mind,

the carrying case features an access window,

that allows you to use the communicator

and contains pockets large enough to carry the charger,

extra lead sets, or other tools you may need in the field.

Touchscreen Display for the Field

The Trex communicator features a 5.7” resistive touchscreen display,

for easy use with bulky work gloves.

The adjustable backlit screen can be easily changed to save power,

or adapt to dark environments or bright sunlight,

ensuring a crisp display that can always be read – no matter the external conditions.

Software and Application Upgrades

The Trex communicator includes Upgrade Studio,

a PC application to help keep the Trex unit up-to-date with new software and apps.

Upgrade Studio can even connect to multiple devices at once,

allowing you to simultaneously upgrade,

and perform installs on your entire fleets of AMS Trex Device Communicators.

With Upgrade Studio, add critical diagnostic tools to your toolkit,

and push them out to any number of Trex communicators.

With multiple apps available and many more in development,

Upgrade Studio will make the Trex communicator your go-anywhere, do-anything device:

Field Communicator

Loop Diagnostics

Fieldbus Diagnostics

Valvelink Mobile

Trex Help

Engineered with You in Mind

Designed for comfortable, one-handed,

all-day operation in the field,

the Trex communicator is packaged in an evenly-balanced form factor,

with a rugged hand strap so you can easily hold it,

even when working in tight spaces.

It comes standard with 32 GB of application memory,

providing plenty of space to customize it with the apps of your choice.

With built-in Bluetooth, USB, and WiFi connectivity,

you can move data to and from the communicator,

using the connectivity option that is most convenient.

With numerous communication options,

your communicator has never been more connected.

The communicator’s robust lithium-ion power module will keep it running for hours, well over a full shift,

even when it is being used to power other devices in the field.

Intrinsic Safety to Follow You Anywhere

The Trex communicator is built to go wherever you may need to be.

Unlike consumer mobile devices that cannot be taken into hazardous areas,

without shutting down the processor pulling a hot work permit,

the Trex unit meets global Intrinsic Safety requirements:

  • ATEX
  • CSA (US/Canada)
  • IECEx
  • FISCO

Gain freedom and flexibility with a communicator,

that can go anywhere you need to, when you need to,

without worrying if the device will put you at risk.

Power the Loop

The Trex communicator includes built-in functionality to power a device.

Simply connect the communicator to an instrument to power it.

Technicians no longer waste time rounding up a power supply or confirming adequate loop resistance before testing,

speeding configuration on the bench.

Power the loop functionality allows device configuration in the field on new projects
—even before power and I/O infrastructure are in place.

Transmitter configuration no longer needs to be the last step of new projects.

Configure transmitters before the host system, wiring, piping,
and other project elements arrive,

keeping transmitter configuration from being a critical path item,

allowing more flexibility in new project scheduling and leading to faster startups.

Powering devices from the communicator,
allows you to isolate the device from the rest of the system,

helping you identify installation problems like power supply,
wiring, I/O card, and configuration issues.

Powerful Valve Diagnostics

Valve problems are particularly costly to diagnose and repair.

Field technicians are often required to pull a valve to investigate a problem,

and removing valves for inspection usually means shutting down the process.

Further complicating troubleshooting, technicians often need to disassemble the valve,

to determine the root cause of the problem.

This frequently leads to further damage to the valve,

ending in a more time consuming and expensive repair.

Using the ValveLink Mobile app on the Trex unit,

you can perform valve diagnostics in the field,

including valve signature, dynamic error band, PD one button sweep,

and step response,

without having to pull the valve or perform invasive troubleshooting steps.

ValveLink Mobile works with HART and Foundation Fieldbus Fisher® FIELDVUE™ digital valve controllers

and provides an intuitive user interface that is easy to understand and use.

The large touchscreen on the Trex communicator makes it easier

than ever to see all valve diagnostic details.

Diagnose Communication Problems

The Trex communicator can configure and troubleshoot Foundation Fieldbus devices,

and segments in your plant.

Use the communicator to create a quality segment,

by diagnosing the network DC voltage and average noise.

Detect power supply problems using the communicator’s power the loop functionality,

or by monitoring low-frequency noise on a segment.

You can also verify whether the DC voltage is correct in HART loops.

What is the default level of support for Trex units?

A support option must be included with every unit sale.

Standard Support is the default option,

which provides a limited warranty to cover the Trex unit against defects,

in materials and workmanship under normal use and care.

Support also includes access to the Global Service Center (GSC) phone support,

firmware updates, and automated Device Driver (DD) updates.

Does the customer have the option to sign up for multi-year Standard Support?

Customers have the option to buy three-year standard support,

which will provide customers access to GSC phone support,

firmware updates, and automated DD updates.

Note that addition standard support does not extend hardware warranty.

How can the Trex unit be protected against accidental damage?

Customers may purchase either one-year or three-year Premium Support,

that will include accidental damage support.

To the Magnetostrictive level transmitter

What is the coverage of the accidental damage?

The following items are covered:

  • Liquid spilled on or in unit
  • Drops fall and other collisions
  • damage caused by an electrical surge
  • Damaged or broken LCD due to a drop or fall
  • Blown fuse in the ammeter
  • The following items are NOT covered:
  • Intentional damage (such as hammer marks)
  • Normal wear
  • Cosmetic damage
  • Theft

How many times can one unit be fixed under “accidental damage” per year?

Only one incident in a given 12-month period is allowed per unit under Premium Support.

Can a customer upgrade Trex support from Standard to Premium?

Yes, if a customer signed up for Standard Support,

they will have the option to upgrade to Premium Support upon inspection,

by a primary service center.

Can a customer renew Premium Support on a Trex unit?

Yes, if a customer signed up for Premium Support,

they have the option to renew it for additional years.

Standard Support can be purchased at any time.

Premium Support can be initially be purchased with new units only.

Both Standard Support and Premium Support can be renewed after support expires.

Sino-Instrument offer all kinds of pressure transducers, DP transmitters, magnetic flow meters, and other automated instruments,

which can work with HART.

Sino-Instrument offers over 10 Emerson AMS TREX Device Communicator.

A wide variety of Emerson AMS TREX Device Communicator options are available to you, such as free samples, paid samples.

Sino-Instrument is a globally recognized supplier of
Emerson AMS TREX Device Communicator, located in China.

The top supplying country is China (Mainland), which supply 100% of
Emerson AMS TREX Device Communicator respectively.

Sino-Instrument sells through a mature distribution network that reaches all 50 states and 30 countries worldwide.

Emerson AMS TREX Device Communicator products are most popular in Domestic Market, Southeast Asia, and Mid East.

You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.

Sino-Instrumen is a reliable supplier, for:

Steam flow meter-Inline Vortex Flow Meters

DP flowmeters

tri-clamp pressure transmitter

insertion electromagnetic flow-meter

diaphragm pressure gauge

Gauge Pressure Transmitter SMT3151 TGP

Request a Quote

Please enable JavaScript in your browser to submit the form

Beginner’s Guide for HART Protocol

Posted on by
RFQ

The HART protocol is the most trusted communication protocol in recent years. It combines the characteristics of analog systems and digital control systems.

Field instruments in process plants are beginning to be subject to more complex metrology regulations. Most new field instruments are now smart digital instruments. HART is widely used in process and instrumentation systems, such as smart HART pressure transmitters.

What is the HART protocol?

The full name of HART protocol is Highway Addressable Remote Transducer Protocol. This open standard for fieldbus communication was introduced by Fisher-Rosemount in the 1980s.

In order to solve the communication problem between industrial field intelligent instruments and control systems. The FSK (Frequency Shift Keying) frequency shift keying signal based on the Bell202 standard is used to superimpose an audio digital signal with an amplitude of 0.5mA on the traditional 4-20mA analog signal for two-way digital communication.

HART communication will not interfere with the analog signal transmitted to the control system. It ensures compatibility with existing analog systems. It is a transitional product in the process of transforming from analog systems to digital systems.

Benefits of HART protocol

Compatibility: HART protocol can be used to connect all types of field instruments, including temperature, liquid level, pressure, flow, analyzer, etc.

Reliability: HART protocol has full-duplex communication capability. The device can send and receive at the same time, ensuring the reliability of communication.

Ease of use: HART protocol can be transmitted through the existing 4-20mA signal. No additional hardware and cables are required, which is easy to use.

Working principle of HART protocol

HART protocol usually uses 4-20mA signal for two types of communication: analog signal and digital signal.

In analog signal, 4mA corresponds to the minimum value of instrument signal. 20mA corresponds to the maximum value of instrument signal.

In digital signal, the device can send digital instructions to the instrument. The instrument can also send complete measurement data and fault diagnosis information.

Digital signals can be separated and analyzed through HART system, which improves the performance of the system and reduces the cost of field instruments.

Application examples of HART protocol

  • Equipment adjustment: Through HART protocol, the parameters of field instruments can be adjusted remotely to achieve rapid adjustment of equipment.
  • Fault detection and diagnosis: HART protocol allows equipment to obtain the measurement data and fault diagnosis information of the instrument, which helps to find and solve equipment faults in time.
  • Valve control: According to the measurement data, the state of the inlet (outlet) valve can be controlled through HART protocol to achieve precise flow control.

If this article still can not explain the HART PROTOCOL for you, you can learn more about Highway Addressable Remote Transducer Protocol

HART protocol specification

As an open, compatible, stable and reliable communication protocol, HART protocol has been widely recognized and applied in the industrial field.

After decades of continuous evolution, multiple versions have been updated and improved. Each revision brings new technologies and functions while being compatible with previous versions to meet the ever-changing development needs of industrial automation.

The main functions and differences of the current mainstream versions HART 5, HART 6 and HART 7 are as follows:

①Protocols before HART 5:
Physical layer: RS485;
Link layer: Token master-slave question and answer mode;
Application layer: define some simple general commands.

②HART 5 version protocol:
Physical layer: analog current + FSK, 1200bps;
Link layer: token master-slave question and answer mode, adding a second master device and a slave device burst mode;
Application layer: further enriches general commands, ordinary commands, special commands, and short address range 0 to 15.

③HART 6 version protocol:
Physical layer: Added current C8PSK, 9600bps specification;
Application layer: Expanded command content, used extended user identification, added device cluster command, short address range 0~63.

④HART 7 version protocol:
Physical layer: Added 2.4G DSSS O-QPSK 10dBm 250kbps specification;
Link layer: Added time division multiple access (TDMA) link control mode;
Network layer: Added self-organization, multipath, mesh network specifications;
Application layer: Expanded device cluster command, added mesh network maintenance command.

Version567
Analog loop check√√√
Tag (8 characters)√√√
Device calibration√√√
Device configuration√√√
Broadcast message (burst)√√√
Multivariable communication (4)√√√
Primary variable with status√√√
Device status√√√
Long tag (32 characters)√√
Locate device√√
Digital loop check√√
HART software lock√√
Multivariable status√√
Wireless√
Extended manufacturer ID√
Time stamp√
Trending√
Synchronous sampling√
Enhanced broadcast message – exception reporting√
Enhanced broadcast message – event notification√

Featured HART Communicators and Smart Meters

HART 375 Field Communicator
HART475 Field Communicator
Emerson AMS TREX Device Communicator
HART Pressure Transmitter
Mass Flow Meters
Magnetic Flow Meters
Smart DP Transmitter
Differential pressure(DP) level transmitter

hART protocol vs modbus

Modbus protocol and HART protocol are two different industrial communication protocols, which have the following differences:

Modbus protocol is a request/response protocol. That is, a master device can send request information or write data to multiple slave devices. The slave device will reply or execute only when it receives the request from the master device. HART protocol is a hybrid protocol that combines analog and data signals. That is, a digital signal is superimposed on the 4-20mA analog signal to achieve two-way data transmission and remote control.

Modbus protocol supports multiple physical layers and transmission modes, such as RS232/RS485/RS422, TCP/IP, wireless, etc. HART protocol mainly uses RS485 physical layer, and can also use wireless physical layer, but does not support TCP/IP transmission mode.

Modbus protocol can transmit multiple variables and information. The data type is limited and the number of nodes is limited. HART protocol can only transmit one primary variable and some secondary variables, device status and configuration data, with rich data types and unlimited number of nodes.

Modbus protocol is an open, compatible, flexible, easy-to-use protocol with no security guarantee. The HART protocol is an open, compatible, stable and reliable protocol with certain security guarantees.

More Measurement Solutions

HART is one of the most widely used bus protocols for industrial field devices. In addition, there are also common modbust protocols, Profibus protocols, FF Foundation bus protocols, etc.

Our simple introduction here cannot fully summarize such a protocol. There are still many details that are not included. For example, variable management, diagnostic definitions, etc. Please refer to the HART standard for specific development.

We Sino-Inst supply various process instruments with HART protocol. Including HART pressure transmitters, flow meters, level meters, etc. If you need to purchase, or have related technical questions, please feel free to contact our sales engineers!

Request a Quote

Please enable JavaScript in your browser to submit the form

HART 375 Field Communicator

Posted on by

HART 375 Field Communicator is a handheld communicator that supports HART protocol devices. It can configure, manage and maintain all devices that comply with the HART protocol.

This intelligent handheld operator can communicate with 11513351, 3851, 1851, 3051, EJA and other HART protocol instruments. It is fully compatible with various intelligent pressure transmitters produced in China.

RFQ

Features of HART 375 Field Communicator

  1. Easy operation: Large display screen (4 lines, 18 characters per line);
  2. Online monitoring and communication: During communication, the modulated signal will not interrupt the 4~20mA DC signal;
  3. Can be used with instruments using the HART communication protocol: Used with all instruments using the HART communication protocol;
  4. Information self-diagnosis/protection function: self-check function, formatting password protection, low voltage alarm display;

Applications

  • Fully supports all standard HART communications;
  • Siemens intelligent pressure transmitter;
  • Lanlian LSⅢ intelligent pressure transmitter;
  • 3051 intelligent pressure transmitter;
  • 1151, 3151 intelligent pressure transmitter;
  • Fairbus CDS-3151 intelligent pressure transmitter;
  • Yokogawa EJA intelligent pressure transmitter (supports new version)
  • Russian METRAN-49, 100 intelligent pressure transmitter
  • Rosemount 1151, 3051 intelligent pressure transmitter (supports new version)

Function

  • HART intelligent devices can be tested, diagnosed and inspected in production;
  • HART intelligent devices can be configured, calibrated, diagnosed, maintained and monitored during field operation;
  • Obtain manufacturer information of HART instruments on site;
  • Understand the working status and fault information of HART instruments;
  • Read the output current and process variables of the instrument;
  • Obtain parameters and output values ​​of related sensors;

Specifications of 375 HART Communicator

Microprocessor:80MHZ
RAM:32M
Built-in memory:32M
System card:128M or higher
Expansion module:32M
Protection:IP51 (front)
Working environment:-10～50 degrees Celsius
Anti-vibration:1m landing on concrete floor is no problem
Weight:0.9KG, including battery
Humidity:0～95% (no condensation)
Display:1/4VGA (240*320 pixels)
Storage:-20～55 degrees Celsius (with battery)
-20～60 degrees Celsius (without battery)
Keyboard:25 keys, 4 operation keys, 12 letter keys, 4 shoulders, 4 function keys and power key
Battery:Rechargeable NiMH battery, can be used for 10 hours, 85～240vac charging
Dimensions:228mm×98mm×60mm

Working Principle of HART 375 communicator

HART 375 Field Communicator is a portable terminal that is used with instruments that use the HART communication protocol to set, change and display them. It can monitor input/output values ​​and self-diagnosis results. Set constant current output and zero adjustment.

When the system is started or maintained, just connect the HART375 HART communicator to the 4~20mA communication signal line and it can be used.

With the Video below, you will know more about: The Working Principle of HART 375 communicator, and what is HART Protocol?

HART 375 Field Communicator Vs HART 475 Field Communicator

Rosemount HART375 and HART475 handheld operators have been discontinued. Sino-Inst’s HART375 and HART475 are affordable.

Functional difference

The range of supported products is different. In fact, the functions and supported range of HART375 and HART475 are similar. In terms of function, the HART protocol library of 475 is continuously upgraded, so it supports the widest range of products.

Speed ​​difference

It is reflected in the convenience of operation. The data operation processor of HART475 is much faster than that of HART375.

Read More about: HART475 Field Communicator

Now, Emerson stopped all the services of the 375.
You can consider buying a new version-Emerson AMS TREX Device Communicator.

Our 375 Communicator is suitable for most transmitters with HART protocol. For example:

Diffused silicon Gauge Pressure Transmitter
Capacitive Gauge Pressure Transmitter
Explosion-proof Pressure Transmitter
High-Temperature Pressure Transmitter
Hydrostatic pressure transmitter
64-80GHz FMCW Level Radar
U-Series Liquid Mass Flow Meter
Magnetic Water Flow Meter

You may like:


How to calibrate pressure transmitter with hart communicator

If you need the datasheet, price, or more information about HART 375 Field Communicator,

Just Contact Us.

Sino-Inst offers over 100 Level Sensors (like the ultrasonic level transmitter), pressure transducers (like the Low-Pressure Transducer, capacitive pressure transducer), Flowmeters ( like the Portable Ultrasonic Flowmeter, Magnetic flow meters ).

About 50% of these are Submersible Level Sensors, 40% are water Sanitary Pressure Transmitter, and 40% are 4-20mA/ Voltage Pressure Transducer . A wide variety of Industrial Pressure Transmitters options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of  wireless pressure transmitters instrumentation, located in China. We sells through a mature distribution network that reaches all 50 states and 30 countries worldwide.

HART 375 products are most popular in Domestic Market, Southeast Asia, and Mid East.  You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

HART475 Field Communicator

Posted on by
RFQ

The HART475 Field Communicator is a handheld communicator that supports HART protocol devices. It is mainly used for configuring, managing, maintaining, adjusting HART intelligent instruments in industrial sites and monitoring instruments during operation.

The HART475 Field Communicator can communicate with 1151, 3051, EJA, ABB, and other HART protocol instruments. It is fully compatible with various intelligent pressure (temperature) transmitters, and can also communicate with electromagnetic flowmeters, V-cone flowmeters, target flowmeters, vortex flowmeters, and other flowmeters that support HART protocol.

Features of HART475 Field Communicator

  • During online monitoring and communication, the modulated signal will not interrupt the 4~20mA DC signal;
  • The HART communicator can be shared with instruments using HART communication protocol and can be used with all instruments using HART communication protocol;
  • Easy to operate Large display screen, users can see at a glance, easy to set and change;
  • Information self-diagnosis/protection function;
  • Full-featured communication: communication supports flow meters, temperature meters, and transmitters carrying HART protocol;
  • Large-screen display: the display interface is larger and clearer, using LCD screen;
  • Production testing, diagnosis and inspection of HART smart devices;
  • It can configure, calibrate, diagnose, maintain and monitor HART intelligent equipment in field operation;
  • Obtain the manufacturer information of the field HART instrument;
  • Understand the working status and fault information of the HART instrument;
  • Read the output current and process variables of the instrument;
  • Obtain the parameters and output values of related sensors;
  • Self-checking function;
  • format password protection;
  • Low voltage alarm display;
  • Standard technical specifications;

What’s in the Box

  • The device is equipped with:
  • A manual operator
  • A Battery
  • A Pack
  • A charger
  • A communication cable
  • A 250-ohm resistor

Configuration parameters

Product name:HART475 English Communicator (Field Communicator)
Protocol version:HART475
Compatible Versions:HART275/HART375/HART475
Communication object:It can communicate with 1151,3051, EJA, ABB, and HART protocol imported instruments in terms of flow and various smart transmitters made in China with HART protocol
Accuracy class:0.05%F.S
Battery storage:-20~50℃
Operating temperature:-10~50℃
Relative humidity:0~95%RH (no condensation)
Product Weight:0.48Kg
Dimensions:230*130*45mm
Power supply:Built-in rechargeable battery
Packing:With carrying case
Accessories:Charger,test lead,alligator clip,2500 resistor

More Featured Products can work with HART Communicators:

Sanitary Pressure Transmitter
Diaphragm Seal Pressure Transmitter
Remote Seal Differential Pressure Transmitter
Magnetic Water Flow Meter
Liquid Turbine Flow Meter
ULT-100 Explosion-proofUltrasonic Level Indicator
Low temperature Turbine Flowmeter-Liquid Nitrogen Flow Meter
Vortex Shedding Flow Meter
Ultrasonic Clamp on Flow Meter
Gear flow meter for Micro flow

Now, Emerson stopped all the services of the 375. You can consider buying a new version-Emerson AMS TREX Device Communicator.

If you need the datasheet, price, or more information about HART 375 Field Communicator,

Just Contact Us.

Sino-Inst offers over 100 Level Sensors (like the ultrasonic level transmitter), pressure transducers (like the Low-Pressure Transducer ), and Flowmeters (like the verabar and annular).

About 50% of these are Submersible Level Sensors, 40% are water Sanitary Pressure Transmitters, and 40% are 4-20mA/ Voltage Pressure Transducer.

A wide variety of Industrial Pressure Transmitters options are available to you, such as free samples, and paid samples.

Sino-Inst sells through a mature distribution network that reaches all 50 states and 30 countries worldwide. HART475 Field Communicators are most popular in the Domestic Market, Southeast Asia, and Mid East.  You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form
