Dew Point Transmitter 608 Series

Dew Point Transmitter, referred to as dew point analyzer, is an instrument for measuring the moisture content in gas. Dew Point Transmitter 608 Series uses polymer material resistance capacitive dew point sensor. It can measure trace moisture content in various gases. It is suitable for various online analysis occasions that require strict control of moisture content.

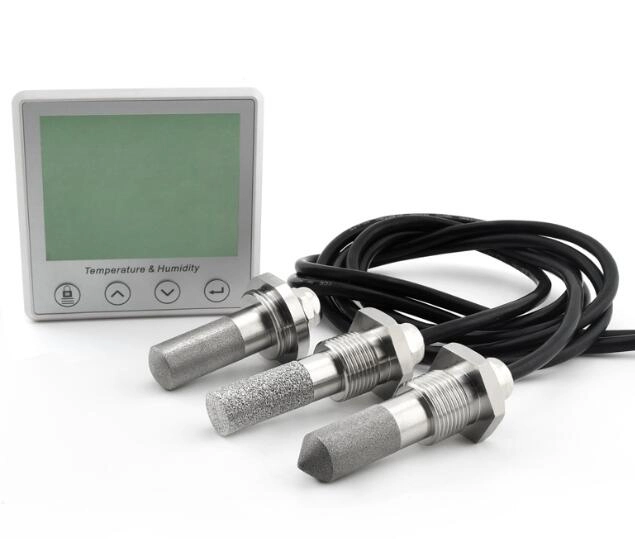

Dew Point Transmitter 608 Series

Features of Dew Point Transmitter 608 Series

  • Original ultra-small and integrated high temperature and humidity sensor module. Simple installation, convenient for system networking and wiring;
  • SHT series temperature and humidity sensors imported from Switzerland SENSIRION are adopted. The acquisition accuracy is high and the consistency is good;
  • Onboard CR2450 wide-temperature button battery. External power failure still ensures the normal operation of the module, and the data will not be lost;
  • Integrated large-capacity flash chip. Allows storage of up to 65,000 records. Meets long-term recording requirements;
  • Ultra-low power consumption design. When powered by on-board button battery, the average power consumption is only tens of microamperes;
  • Simultaneously output temperature and humidity, dew point temperature, wet bulb temperature.
  • With Smart Logger host computer software, the data can be downloaded and professionally analyzed.
  • Adopt standard Modbus-RTU protocol. It can easily realize the interface with PLC, DCS and various configuration software;
  • Communication protection: RS485 communication signal output interface adopts double overvoltage and overcurrent protection;
  • 4.5V~12V ultra-wide voltage input;
  • Power polarity protection, with anti-reverse connection function.

Technical Parameters

ItemTechnical Specifications and Features
Powered byDC 4.5V~12V, onboard CR2450 3V button battery
power consumption<0.1W
Range-30~80℃, 0~99%RH
The accuracyTemperature ±0.1°C(@20-60°C)
Humidity ±1.5%RH(@0-80%RH,@25℃)
Long-term stabilityHumidity: <1%RH/Y Temperature: <0.1°C/Y
Dew point range-60°C~60°C (-76 to 140°F)
Response time10S(1m/s wind speed)
Communication InterfaceRS485/MODBUS-RTU
Records and SoftwareSupport 65,000 records, equipped with Smart Logger professional data management and analysis software
Communication baud rate1200, 2400, 4800, 9600, 19200, 115200 can be set, the default is 9600pbs
Byte format8 data bits, 1 stop bit, no parity

Dew Point Transmitter 608 Series Advantages

  • Quick response
  • Can measure humidity, temperature, wet bulb temperature, temperature. the
  • Good stability, small annual drift
  • Rugged IP65 protection grade
  • The measurement data is automatically stored, and 65,000 pieces of data can be stored, and users can browse historical data at any time
  • Built-in large-capacity lithium battery, it can continue to work even when the power is off

Dew Point Transmitter Application

  • Dew point management for compressed air Drying dryers for plastic raw materials
  • Installed in a freeze dryer
  • Installed in the important position of the pipeline
  • Plastic raw material drying dryer
  • In heat treatment furnace
  • Installation in electroplating furnace
  • Installed in a plastic firing furnace
  • Purity Control for Gas Generators
  • Installed in an oxygen generator
  • Installed in a nitrogen generator

FAQ

While the Dew Point Transmitter 608 Series is a highly sophisticated device designed to offer precise and reliable measurements, it’s important to note that like any instrument, it can be sensitive to extreme temperature fluctuations and may require periodic calibration to ensure sustained accuracy. However, at Sino-Inst, we’ve incorporated advanced technology and robust design features to mitigate these challenges, setting the 608 Series apart as a reliable solution in the industry.

The purpose of the Dew Point Transmitter is to accurately measure the moisture content in various gases. This information is critical for industries and applications that require strict control over humidity levels, such as the pharmaceutical, food and beverage, HVAC, and electronics sectors, to name a few.

The Dew Point Transmitter 608 Series is a specific tool designed to measure dew point. It’s an essential piece of equipment for any operation looking to accurately monitor and control the moisture content in gases. With its advanced polymer material resistance capacitive dew point sensor, the 608 Series offers top-tier accuracy and reliability.

The range of the dew point sensor in the 608 Series can vary, as it’s designed to be adaptable for a variety of industrial applications. This series offers a wide measurement range, which allows for highly accurate monitoring of trace moisture content in various gases. For detailed specifications and individual requirements, please don’t hesitate to contact us.

For any other questions or further information about our Dew Point Transmitter 608 Series, we are always here to assist. Reach out to us today!

More Gas Measurement Solutions

What Is a Doppler Flow Meter?

Doppler Flow Meter is a new type of non-contact ultrasonic flow meter. Installs completely outside the pipe, eliminating the need…

What Is Zirconia Oxygen Sensor?

Welcome to the world of Zirconia Oxygen Sensors, a cornerstone of precision in process control and industrial efficiency. Oxygen plays…

As we reach the culmination of our introduction to the Dew Point Transmitter 608 Series, it’s time to summarize the exceptional features of this innovative product:

  • A comprehensive measuring range of -60 to +60°C.
  • A compact design encased in robust stainless steel.
  • Sensors with remarkable long-term stability.
  • A rapid response time, and
  • An impressive accuracy of ±2°C at an ambient temperature of 25°C.
  • All these features make the 608 Series a reliable solution for all your temperature and humidity data collection needs.

At Sino-Inst, we don’t just supply products; we offer solutions backed by extensive industry experience. We understand that your needs are unique, and so is our approach to fulfilling them. Our commitment to precision, reliability, and customer satisfaction drives us to offer customization services that ensure our product fits seamlessly into your operations.

Take the next step towards better control and superior accuracy. Embrace the Sino-Inst difference with the Dew Point Transmitter 608 Series today. Your journey towards precise environmental data collection and control is just a click away. Reach out to us now!
