Sanitary Pressure Transmitter is also called a Hygienic pressure sensor or tri-clamp pressure transmitter. Sanitary Pressure Transmitter is used for food &beverage or pharmaceutical application.
Sanitary Pressure Transmitter, also called tri-clamp pressure transmitter. It is the pressure transducer with the flush diaphragm (flat membrane) as the pressure sensor. Sanitary Pressure Transmitter uses a flat membrane to directly sense the pressure. The sensor interface is available in clamp type, M27 × 2, and flange type.
The sanitary pressure transmitter is designed especially for the requirements of the food and beverage, pharmaceutical and biotechnology industries.
It is particularly suitable for the special conditions of CIP/SIP cleaning processes. Such as chemical stability towards cleaning liquids and high temperatures
Sino-Inst offers a variety of Sanitary Pressure Transmitters for industrial pressure measurement. If you have any questions, please contact our sales engineers.
Features of Sanitary Pressure Transmitter
- Pressure interface with 316L flat diaphragm structure
- Hygienic, anti-fouling
- Wide measuring range for absolute pressure, gauge pressure and sealed reference pressure
- Good sealing and stable work for a long time
- With heat sink, high temperature media application performance
- Output signal can be selected, can be customized according to customer requirements

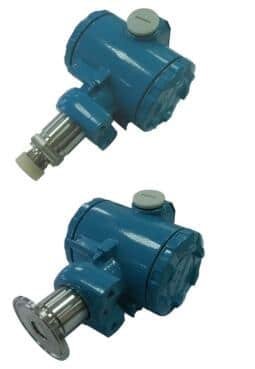

No Liquid Fill Diaphragm, Sanitary Clamp Fitting
The SI-350 sanitary pressure transmitter uses a flat membrane to directly sense the pressure signal. The diffused silicon pressure core acts as a sensitive component. Standard silicone oil is used as the pressure transmission medium.
The measuring end is made of 316L stainless steel and is specially welded and processed. Compact structure, corrosion resistance, vibration resistance, and wide temperature compensation.
SI-350 Sanitary Pressure Transmitter Type prevents fouling, unsanitary and sticky pressure blocking. Due to the pressure felt directly at the exposed end of the threaded diaphragm. It is particularly suitable for pressure measurement of viscous fluids with hygienic requirements in the medical and food industries.
Widely used in food, medicine, brewing, and other health industries. And stress tests that can scale the measurement medium.
Specifications of SI-350 Sanitary Pressure Transmitter
|Sanitary pressure transmitter, range 0- 10kPa, 300％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0- 20kPa, 300％FS overpressure, 1-1/2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0- 400kPa, 200％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0- 600kPa, 200％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0-1MPa, 200％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0-1.6MPa, 200％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0-2.5MPa, 200％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0-6MPa, 150％FS overpressure, 2″ sanitary clamp connection.
|Sanitary pressure transmitter, range 0-10MPa, 150％FS overpressure, 2″ sanitary clamp connection.
|gauge pressure, absolute pressure, sealing pressure
| 4 to 20 mA (12 to 30 VDC)
0 to 5V, 1 to 5V, 0.5 to 4.5V, 0 to 10V (12 to 24VDC)
|Hysteresis and repeatability
|1.5% FS (@-20 °C ~ 85 °C)
|≤ 1ms (up to 90% FS)
| ≥10x 10^6
|-20 ° C ~ 85 ° C
|-40 ° C ~ 85 ° C
| -40～85°C (without heat sink)
-40～150°C (three heat sinks), -40°C～250°C (five heat sinks)
| Sinusoidal: 20g, 25Hz~2kHz; IEC 60068-2-6
Random: 7.5grms, 5Hz ~ 1kHz; IEC 60068-2-64
|with a variety of media compatible with 316L stainless steel
|Intrinsically safe explosion-proof ExiaIICT6
Guess You’ll Like: Explosion Proof Pressure Transmitter
Applications of Sanitary Pressure Transmitter
Ideal for applications where sanitary conditions are of high priority (i.e. dairy, food processing, pharmaceutical, etc.)
Medical and health, food, wine, dairy, beverages, etc. thick and easy to block, high hygienic requirements, easy to clean occasions.
Environmentally friendly chemical coatings, polyurethane equipment, paint inspection systems, etc.
Extended reading: Vortex Hygienic Flow Meter
- Sanitary process applications
- Food and beverage processing
- Water processing
- Dairy processing
- Pharmaceutical processing
Extended reading: Food grade flow meters for Food & Beverage industry

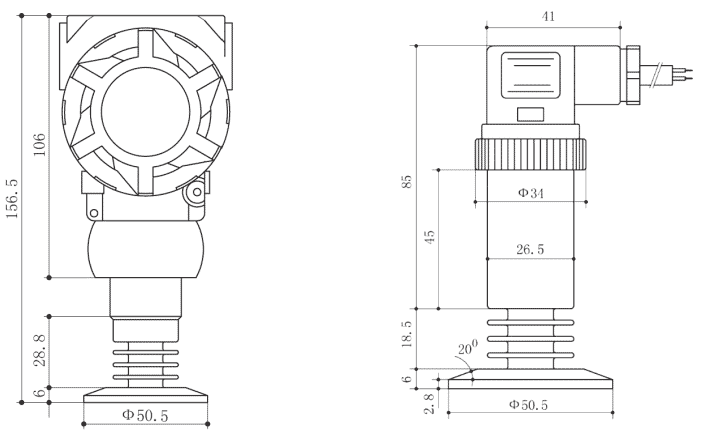

Drawing of SI-350 Sanitary Pressure Transmitter
Read more about: What is industrial pressure transmitter?
More Featured Pressure Transmitters
Flush diaphragm pressure transducer
Flush diaphragm pressure sensor uses a diaphragm isolation process. Feel the pressure directly with a flat membrane. There is no pressure hole in the test head. There is no clogging of viscous media during the measurement. Adopting flush membrane structure, diffused silicon pressure-sensitive core body, with good moisture resistance and excellent media compatibility. The sensor interface is available in clamp, thread and flange options. The output signal can be selected from voltage, current, and so on. The flush diaphragm of the sensor prevents problems such as scaling, unsanitary and clogging of viscous liquids.
Steam pressure transmitter
High Temperature Pressure Transducer/Transmitter works for steam and fluid. Temperature: -30 ℃ ～ 160-350 ℃, customized up to 850 ° C. It is possible to fit a stand off pipe, pigtail or other cooling device to reduce the media temperature. If not, High Temperature Pressure Transducer/Transmitter is the best choice. The pressure is transmitted to the sensor through the heat dissipation structure on the transmitter. The high-precision signal processing circuit is located in the stainless steel housing. The sensor output signal is converted to standard output signal, like 4-20mA.
High pressure transducer
The sino-Inst high-pressure transducer has gone through thousands of fatigue impact tests and several days of low and medium temperature aging cycles before leaving the factory. It has solved the disadvantages of high-pressure sensors in terms of stress and zero instability. Provide customers with reliable products for high voltage measurement. The pressure of the SI-702 series can reach 600MPa. The precision level is high, and the mature production technology can ensure the long-term stability of the sensor with excellent characteristics. SI-702 series pressure sensors are suitable for oil extraction platforms, water flow equipment, high-pressure measurement equipment, hydraulic control systems, test benches, and industrial automation control.
Pressure Transducer 4-20mA/Voltage
The signal system of 4-20mA and 1-5V output by the pressure transmitter is stipulated by international standards.In the signal circuit, the pressure transmitter is equivalent to a variable resistor. It is connected in series with the power supply, ammeter (indicator), and load resistance (including wire resistance). The function of the pressure transmitter is to change the current in the circuit in the range of 4-20mA by changing its own resistance according to requirements.The pressure acts on the sensor, and the sensitive element deforms. The deformation will cause the resistance or capacitance value to change. And then it will be converted into an analog 4-20mA output by the conversion circuit.
Other Sanitary Instruments
Sanitary Bimetal Thermometers also called the sanitary thermometer, or tri-clamp thermometer.
Sino-Instrument’s Sanitary Bimetal Thermometers are specially designed for direct insertion into sanitary process applications when a standard thermowell is not specified, or the process environment is not exposed to pressure.
Sanitary Flow Meter, also called sanitary turbine flow meter or Hygienic turbine flowmeter.
The Sino-Instrument sanitary turbine flow meter, food grade flow meter, provides accuracy, versatility, and economy, in measuring a wide variety of food, beverage and pharmaceutical products.
All of Sino-Inst pressure transmitters can work with the AMS TREX!
What is pressure transmitter how it works?
Pressure Transmitters are sensors with electrical transmission output for remote indication of pressure. Process transmitters differentiate themselves from pressure sensors through their increased range of functionality. They feature integrated displays, offer high measuring accuracies and freely scalable measuring ranges. Communication is via digital signals, and waterproof and explosion-proof certifications are available. Through connection to diaphragm seals, they are suitable for the harshest operating conditions. Ideal for OEMs, process applications, water processing, and industrial pressure applications.
What is the input of the pressure transmitter?
A pressure transmitter is an instrument that converts pressure variables into a standardized output signal that can be transmitted. And there is a given continuous function relationship between the output signal and the pressure variable (usually a linear function). Mainly used for measurement and control of industrial engineering pressure parameters. Differential pressure transmitters are often used for flow measurement.
There are two types of pressure transmitters, electric and pneumatic. The electric standardized output signals are mainly 0mA ~ 10mA and 4mA ~ 20mA (or 1V ~ 5V) DC signals.
How do you calibrate a pressure transmitter?
If the transmitter is used for a period of time, it may cause a change in metering performance. There will be zero drift and increased measurement error. Therefore, it is necessary to perform regular calibration. The accuracy of the calibrator used for calibration should be more than 3 times the required calibration accuracy. Use the pressure calibrator to input the standard pressure values of 0%, 25%, 50%, 75%, and 100% of the range to the transmitter in the forward and reverse directions. Check whether the current output signal is within the allowable accuracy range. If it is out of tolerance, it needs to be adjusted. The adjustment method is as follows (4 ~ 20mA output):
(1) Input a standard pressure of 4mA with a pressure calibrator. Adjust the ZERO (zero) potentiometer. Make the 4mA current output within the accuracy range.
(2) Input a standard pressure of 20mA with a pressure calibrator. Adjust the SPAN (range) potentiometer. Make the 20mA current output within the accuracy range.
(3) ZERO and SPAN will contain each other. Repeat steps (1) (2) until the current output of 4mA point and 20mA point meets the accuracy requirements at the same time. Then check whether the current output of the 25%, 50%, 75% range points meets the accuracy requirements. The transmitter is qualified if it meets the requirements.
What are the types of pressure transmitters?
There are different types of pressure transducers based on their design.
These sensors can come in several shapes and sizes,
but the technology inside can also differ.
There 4 main types of pressure sensors based on this:
Strain Gauge Pressure Transducers
Capacitance Pressure Transducers
Potentiometric Pressure Transducers
Resonant Wire Pressure Transducers
More about Industrial Pressure Sensors
Sino-Instrument offers over 10 Sanitary Pressure Transmitters.
A wide variety of Sanitary Pressure Transmitter options are available to you, such as free samples, paid samples.
Sino-Instrument is a globally recognized supplier and manufacturer of Sanitary Pressure Transmitters, located in China.
The top supplying country is China (Mainland), which supply 100% of Sanitary Pressure Transmitters respectively.
Sino-Instrument sells through a mature distribution network that reaches all 50 states and 30 countries worldwide.
Sanitary Pressure Transmitter products are most popular in Domestic Market, Southeast Asia, and Mid East.
You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.
