In our flow meter selection guide, we will help you understand different types of flow meters, their applications, factors to consider, and how to choose the perfect fit for your specific needs. With real-life examples and data, we aim to satisfy your search intent and provide valuable information to help you make an informed decision.
Understanding Different Types of Flow Meters
Flow meters come in various types, each with its unique working principle, advantages, and limitations. Some of the most common flow meters include:
- Differential Pressure Flow Meters: These flow meters measure flow rate by detecting the pressure drop across a constriction in the flow path. Examples include orifice plates, Venturi tubes, and flow nozzles.
- Ultrasonic Flow Meters: By measuring the transit time or Doppler shift of ultrasonic signals, these non-invasive flow meters can accurately measure liquid and gas flow rates without contacting the fluid.
- Magnetic Flow Meters: Suitable for conductive liquids, these flow meters measure flow rate based on Faraday’s law of electromagnetic induction. They are ideal for applications with corrosive or abrasive fluids.
- Coriolis Flow Meters: By measuring the mass flow rate directly, these flow meters provide highly accurate measurements for liquids, gases, and slurries. Their unique ability to measure mass flow and density makes them versatile and reliable.
- Turbine Flow Meters: These flow meters use a spinning turbine rotor to measure flow rate. The rotor’s rotation frequency is proportional to the fluid velocity, making them ideal for clean, low-viscosity fluids.
- Vortex Flow Meters: By measuring the frequency of vortices shed from a bluff body, vortex flow meters can accurately measure the flow rate of liquids, gases, and steam. Their robust design and low maintenance make them popular in various industries.
- Positive Displacement Flow Meters: These flow meters measure flow rate by capturing a fixed volume of fluid and counting the number of times the volume is filled and emptied. They are ideal for high-viscosity fluids and applications requiring high accuracy.
Flow Meter Selection Guide
To select the ideal flow meter, consider the following factors:
- Fluid properties: Consider the type of fluid (liquid, gas, or steam), its viscosity, temperature, pressure, and chemical compatibility with the flow meter materials.
- Flow meter accuracy and repeatability: Choose a flow meter that provides the required accuracy and repeatability for your specific application.
- Flow range: Select a flow meter with a suitable flow range for your system, ensuring optimal performance and accuracy.
- Installation requirements: Consider the available space, pipe size, and orientation, as well as any special mounting or installation requirements.
- Maintenance and lifecycle costs: Evaluate the maintenance needs, expected lifespan, and total cost of ownership for each flow meter type.
In summary, selecting the right flow meter for your application is crucial for achieving accurate and efficient flow measurement. By considering the factors discussed above and understanding the various flow meter technologies available, you can make an informed decision to find the perfect fit for your specific needs.
FAQ
Featured Applications
Case 1: Chemical Injection Flow Measurement in Oil and Gas Industry
A leading oil and gas company was looking for a reliable flow meter to accurately measure chemical injection rates in their offshore platform. The fluid properties were as follows:
- Fluid: Methanol
- Viscosity: 0.6 cP
- Flow rate: 2 to 50 L/h (0.53 to 13.21 GPH)
- Operating pressure: 20 MPa (2900 psi)
- Operating temperature: 5°C to 50°C (41°F to 122°F)
Given the challenging environment and stringent accuracy requirements, the company opted for a Coriolis flow meter. This choice was made due to its direct mass flow measurement, high accuracy, and ability to handle varying flow rates and pressures. The flow meter provided an accuracy of ±0.2% and a repeatability of ±0.1%, ensuring precise control over the chemical injection process.
Case 2: Cooling Water Flow Measurement in a Power Plant
A power plant required a flow meter to measure the cooling water flow rate to ensure optimal efficiency and prevent equipment overheating. The fluid properties and system requirements were as follows:
- Fluid: Cooling water
- Flow rate: 2000 m³/h (8800 GPM)
- Operating pressure: 1.5 MPa (217 psi)
- Operating temperature: 20°C to 45°C (68°F to 113°F)
- Pipe diameter: 500 mm (20 inches)
After evaluating different flow meter technologies, the plant chose an ultrasonic flow meter due to its non-invasive nature, low maintenance requirements, and ability to measure high flow rates accurately. The ultrasonic flow meter offered an accuracy of ±1% and a repeatability of ±0.2%. It was installed with a straight pipe run of 10D upstream and 5D downstream of the meter, ensuring accurate measurements and efficient cooling water flow management.
Case 3: Refrigerant Flow Measurement for HVAC System
A customer from the United States was looking to purchase a flow meter to measure the flow rate of liquid R134A in their HVAC system. The system requirements and fluid properties were as follows:
- Fluid: Liquid R134A
- Connection tube size: 1/4″
- Flow rate: 5-250 L/h
- Operating temperature: -30°C to 150°C (-22°F to 302°F)
- Operating pressure: 0 to 600 psig
- Preferred output signal: 0-5V DC (alternative options: 0-10V DC, 4-20mA)

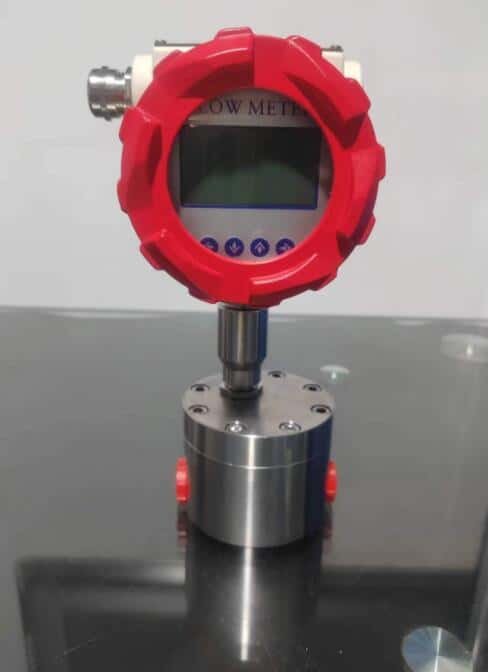

After evaluating various flow meter technologies, the customer selected our gear flow meter due to its suitability for their specific application. The gear flow meter provided accurate measurement for the refrigerant and met the temperature and pressure requirements. The selected gear flow meter had the following specifications:
- Model: GF-04
- Measuring range: 5-250 L/h
- Material: Stainless steel
- Connection: G3/8 thread
- Operating temperature and pressure: -30°C to 150°C (-22°F to 302°F), 0 to 600 psig
- Output signal: 0-5V DC
By choosing the gear flow meter, the customer was able to accurately measure and control the flow rate of liquid R134A in their HVAC system, ensuring optimal performance and energy efficiency.
More Flow Measurement Soluitons
Top Industrial Heating Oil Flow Meters
The Different Types of Inline Oil Flow Meters
Condensate Flow Meter-Steam Condensate Flow Meter|Types & Selection Guide
Air Flow Measurement Instruments for Industrial Harsh Conditions
Flow Measurement Units-What Is GPM in Flow Meter?
Top Flow Meters for PVC Pipes: Find Your Ideal Match
Selecting the right flow meter for your application is essential for achieving accurate and efficient flow measurement. By considering the factors discussed in this guide and understanding the different flow meter technologies available, you can make an informed decision to find the perfect fit for your specific needs. As an experienced manufacturer and supplier, Sino-Inst offers a wide range of flow meters and supports customization to meet your unique requirements.
Contact us today to discuss your flow meter needs and discover how our expertise can help you improve your process control and efficiency.
