Paperless Recorders for Industrial Measure & Control System

Posted on by

Paperless recorders are data loggers that record and trend measurement data over time — replacing strip-chart and circular recorders with a touchscreen, internal flash storage, and Ethernet/Modbus TCP/OPC UA export.

Paperless recorders for industrial measure and control system

Sino-Inst supplies industrial paperless recorders with 4 to 64 universal-input channels (thermocouple, RTD, mV, 4–20 mA, 0–10 V, pulse). Models cover general-process duty (R7100), temperature-focused heat-treat / pharmaceutical service (R7600), and dedicated flow-totalizer applications (F3000X). 21 CFR Part 11 audit trail and AMS 2750E compliance options are available, with Modbus TCP, OPC UA, and MQTT for SCADA / MES integration.

Sino-Inst offers a variety of low pressure transducers for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Contact Us

Description

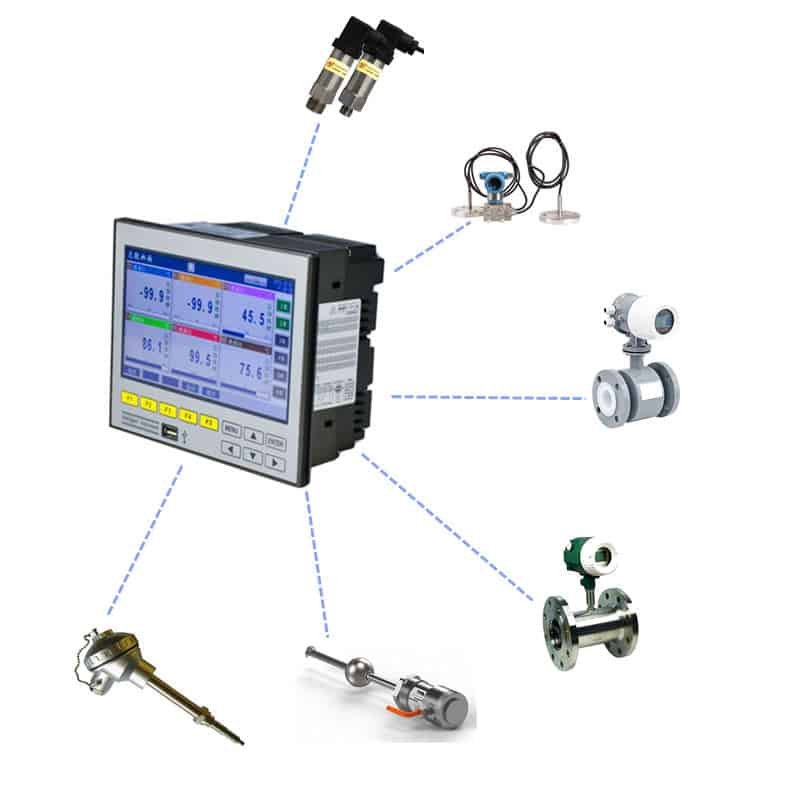

The paperless recorder is an electronic instrument that samples industrial process signals through a 24-bit ADC, applies the standard linearization (IEC 60584 for thermocouples, Callendar-Van Dusen for RTDs, scaled engineering units for 4–20 mA), and writes the result to internal flash storage. Up to 64 channels per chassis with 3-way galvanic isolation between channel-channel, channel-power, and channel-comms.

Front-panel touchscreen for live trend, alarm history and configuration. Trend stored as a tamper-evident binary file plus CSV; signed-PDF export available for 21 CFR Part 11 batch reporting. Communications include Ethernet 10/100, Modbus TCP slave, OPC UA server, MQTT publisher, USB host, and RS-485 Modbus RTU.

Features of Paperless Recorder

  • Universal input: K/J/T/E/N/S/R/B thermocouple, Pt100/Pt1000 RTD, 4–20 mA, 0–10 V, ±100 mV, pulse 0.1 Hz–10 kHz.
  • 4 / 8 / 16 / 32 / 48 / 64-channel models — pluggable hot-swap input cards.
  • 24-bit sigma-delta ADC, 100 ms–1 s sampling, configurable per-channel storage interval.
  • 3-way galvanic isolation (channel-channel, channel-power, channel-comms).
  • 21 CFR Part 11 audit trail, AMS 2750E heat-treat, GAMP 5, IEC 61010-1 compliance options.
  • Communications: Ethernet, Modbus TCP, OPC UA, MQTT, RS-485 Modbus RTU, USB host/device.
  • Front-panel IP65 for wash-down food and pharmaceutical service.
  • 3.5" / 5.6" / 7" / 10.4" / 12" TFT touchscreen, 4 GB flash + SD card.

Specifications of Paperless Recorder

ParameterR7100 UniversalR7600 TemperatureF3000X Flow Totalizer
Channels4 / 8 / 16 / 32 / 648 / 16 / 322 / 4 (pulse + 4–20 mA)
Display5.6" / 7" / 10.4"7" / 10.4"5.6"
Memory4 GB + SD card4 / 8 GB + SD2 GB + SD
Sampling100 ms / 200 ms / 1 s200 ms / 1 s100 ms (pulse) / 1 s
Compliance21 CFR Part 11AMS 2750E + 21 CFR Part 11OIML R117 (custody)
CommunicationsEthernet, Modbus TCP, OPC UA, MQTTEthernet, Modbus TCP, OPC UAEthernet, Modbus TCP, RS-485
Power90–264 VAC / 24 VDC90–264 VAC / 24 VDC90–264 VAC / 24 VDC

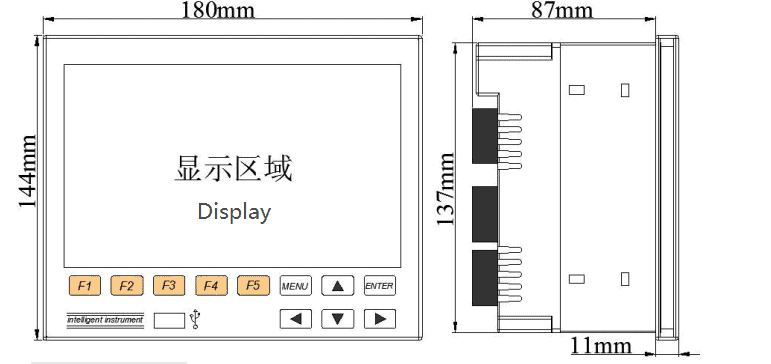

Panel cutout144 × 144 / 144 × 288 mm144 × 144 / 288 × 288 mm96 × 96 / 144 × 144 mm
Front panel ratingIP65IP65IP65

Read more about: Common Units Of Pressure

Applications of Paperless Recorder

  • Heat-treat furnace AMS 2750E TUS — 9 thermocouples + 1 control = 16-channel R7600 with Class 1 calibration.
  • Pharmaceutical sterilizer / autoclave — 21 CFR Part 11 mode, F0 calculation, signed batch report.
  • Food retort cook-cool validation — 1-minute storage, F0 trend, IP65 wash-down front.
  • HVAC and energy monitoring — temperature + flow + pulse from kWh, Modbus TCP to BMS.
  • Boiler / CHP plant — steam temperature, drum level, fuel-flow trending.
  • Custody flow measurement — F3000X with density/temperature compensation, batch totalizer.

What is a paperless recorder?

The paperless recorder is a stand-alone process data logger that replaces a strip-chart or circular recorder. Where the older instrument drew an ink trace on paper as the chart wheel rotated, the paperless recorder samples the same inputs at 100 ms–1 s, displays the trend on a touchscreen, and stores the values to internal flash for compliance and audit retrieval.

The recorded data are written as a tamper-evident binary file plus a CSV companion. The binary is the legally defensible record (signed checksum); the CSV is the convenience export for spreadsheets. Trend data and configuration changes are timestamped against an NTP-synced clock so the audit trail satisfies FDA 21 CFR Part 11 and AMS 2750E requirements for pharmaceutical and aerospace heat-treat work.

How does a paperless recorder work?

The paperless recorder is built around an industrial microprocessor, a 24-bit sigma-delta ADC, RAM and flash storage, and a touchscreen front. Each input channel is multiplexed through the ADC at the configured sampling rate (typical: 1 s per channel for compliance work, 100–200 ms for combustion and compressor monitoring).

The microprocessor applies the appropriate linearization curve (IEC 60584-1 for thermocouples, Callendar-Van Dusen for Pt100/Pt1000 RTDs, scaled engineering units for 4–20 mA inputs), computes alarm logic (HiHi / Hi / Lo / LoLo with deadband and on-delay), and writes the storage-interval-averaged value to internal flash. On alarm, a burst-capture routine stores the full sampling-rate data around the event so post-incident analysis sees the raw waveform.

Q&A

Is a paperless recorder the same as a data logger?

Closely related but not identical. A data logger is typically a small standalone unit with battery power and limited inputs; a paperless recorder is panel-mounted, plant-powered, with a touchscreen, more channels, built-in alarms, and SCADA integration.

How many channels do I need for a typical heat-treat furnace?

AMS 2750E TUS (temperature uniformity survey) calls for 9 thermocouples on a 60-225 cubic-foot furnace plus the control thermocouple – 10 channels active. Allow one card-slot of headroom and pick a 16-channel R7100 or R7600.

What protocols are available for SCADA integration?

Modbus TCP slave is standard. OPC UA server, MQTT publisher, and Modbus RTU (RS-485) are option keys. USB host accepts a flash drive for ad-hoc CSV export; Ethernet web server allows browser-based trend download.

Do paperless recorders need calibration?

Yes – annually for compliance work, every 2 years for non-critical applications. Calibration is per channel and includes the cold-junction reference for thermocouple inputs. Field calibrators (Fluke 754, Ametek MC) inject known signals and write the verification result to the audit trail.

What if I lose power mid-batch?

Internal flash memory is non-volatile, so the recorded data up to the power-off instant is preserved. The recorder reboots and resumes; a power-loss event is logged in the audit trail. For absolute continuity, a small UPS or 24 VDC battery backup is the recommended add-on.

R7100 Universal-Input Recorder

4 to 64 channels, universal input (TC/RTD/mA/V), 7″ or 10.4″ touchscreen, 4 GB internal + SD, Ethernet + Modbus TCP.

R7600 Temperature Recorder

8 / 16 / 32-channel temperature-focused recorder. 24-bit ADC, 3-way galvanic isolation, AMS 2750E-ready trend export.

F3000X Flow Totalizer

Specialized flow-totalizer recorder: pulse + 4–20 mA input, density/temp compensation, batch totalizer, RS-485 Modbus.

Sino-Inst supplies paperless recorders globally — heat-treat, pharma, food, HVAC, boiler, custody flow.

Channel counts from 4 to 64. Universal-input cards. 21 CFR Part 11 / AMS 2750E compliance options. Modbus TCP, OPC UA, and MQTT for modern SCADA / MES / IIoT integration.

Sino-Inst is a Chinese manufacturer with a global distribution network. Paperless recorders are most popular in heat-treatment, pharmaceutical, food, HVAC, and boiler / CHP markets across North America, Europe, India, and Southeast Asia. Send your channel mix, panel cutout, communication protocol and certification target — our team will configure and quote within 24 hours.

Request a Quote

Please enable JavaScript in your browser to submit the form

Digital Temperature Recorder-Paper Less Recorder R7600

Posted on by

Temperature Recorder can realize the signal acquisition and paperless recording of industrial temperature sensors. Also called Temperature data logger. Suitable for temperature and humidity monitoring, heat treatment process, current and voltage measurement, etc.

Temperature Recorder R7600 channel fully isolated universal signal input, 1-12 channels are optional. Multiple communication interfaces.

Support thermal resistance: PT100, Cu50, G53, Cu100, BA1, BA2 (requires three-wire resistance balance, lead resistance <10Ω).

Thermocouple: S, B, K, T, R, E, N, J

Sino-Inst offers a variety of Record and Analyze instruments for industrial control. If you have any questions, please contact our sales engineers.

Request a Quote
More Recorders

Features of Temperature Recorder R7600

  • Can support touch function (additional function).
  • Can support dual communication function (additional function).
  • Can support timing printing function (additional function).
  • Can support DC power supply (additional function).
  • Can support communication collection function (customized function).
  • Can support feed output function (optional function).
  • Can support alarm output function (optional function).
  • Can support manual serial port printing function (optional function).
  • Can support standard serial communication function (optional function).
  • Data recording/dumping and backup function (standard function).
  • Universal analog input (standard function).

Sepecification of Temperature Recorder R7600

Display

  • Screen: 7-inch true color TFT LCD
  • Accuracy: Real-time display: ±0.2% F.S.
  • Recall accuracy: ±0.2% F.S.
  • (Note: The cold junction error of thermocouple should be removed)

Processor

Using high-performance ARM Cortex-M3 32-bit RISC core. Multi-channel signal acquisition, recording, display and multi-channel alarm can be realized at the same time

Storage module

Use large-capacity parallel NAND FLASH flash memory chips to store historical data. Use serial FRAM memory chip to store key information such as system configuration parameters

Input function

  • Input specifications: fully isolated universal input, maximum support 6 analog inputs
  • Voltage input: 0-5V, 1-5V, 0-20mV, 0-100mV
  • Current input: 0-10mA, 4-20mA, 0-20mA
  • Resistance input: Res
  • Thermal resistance: PT100, Cu50, G53, Cu100, BA1, BA2 (requires three-wire resistance balance, lead resistance <10Ω)
  • Thermocouple: S, B, K, T, R, E, N, J
  • Radiation pyrometer: F1, F2
  • Tungsten rhenium: WRe3-25, WRe5-26

Note: other input signals (such as digital input (DI) or index number (such as PT1000) must be specified when ordering

Output function

  • Power distribution output: up to 2 groups of transmitter power distribution +24VDC, each group power distribution ≤60mA
  • Relay alarm output: support up to 6 relay alarm outputs, contact capacity 3A@250VAC/3A@30VDC, configurable upper limit, upper limit, lower limit, lower limit alarm

Newsletter printing

Communication interface: Provide RS232C and RS485 two communication interfaces for users to choose, support simultaneous use of RS232C and RS485, support simultaneous use of RS232C and RS232C, support Modbus RTU protocol, baud rate —- (1200, 4800, 9600, 19200, 38400, 57600)
Print interface: RS232C directly connected to the mini printer, baud rate 1200

Record function

  • Recording capacity: 64/128/192/248MB (FLASH capacity is optional);
  • Recording interval: 1 second to 240 seconds, divided into 11 levels:
  • 1/2/4/8/12/24/36/60/120/180/240 seconds optional;
  • Recording time: The length of the recording time is related to the FLASH memory capacity, the number of input points, and the recording interval. The calculation formula is as follows (the unit of the value should be consistent with the formula):

Data transfer

Data backup and transfer: support USB 1.1, 2.0 USB flash drives, support 1G to 32G USB flash drives for data transfer. Strong compatibility, compatible with most USB flash drives on the market (industrial USB flash drives are recommended)

Power supply

Power supply: 100~240VAC (rated power supply voltage 220VAC), 50/60HZ AC power supply, support 24VDC (18VDC-36VDC) DC power supply (DC power supply should be specified when ordering)

Protective function

Power failure protection: Built-in memory to protect parameters and historical data, which will be permanently stored after power failure
Clock protection: integrated hardware clock, can run accurately even after power failure

Error accuracy

Thermocouple cold junction compensation error: ±2℃
Clock error: ±2 seconds/day

Working environment [It is forbidden to work in a flammable and corrosive environment]

Working temperature: 0～50℃ (avoid direct sunlight)
Relative humidity: 0～85%R.H (no condensation)
Altitude: <2000m (except for special specifications)

Transportation and storage environment

Transportation and storage temperature: -20～60℃ (avoid direct sunlight)
Transportation and storage humidity: 5～95%R.H (non-condensing)

Instrument Net Weight: Net Weight: ≤3.0Kg

Note:
The technical index is the general index of this series of instruments, the function configuration please refer to the actual product.
If the technical indicators are inconsistent with the actual instrument, please refer to the actual instrument.

Read more about: What is a Paperless Recorder?

Temperature recorder price

R7600 series enhanced paperless recorder, 7-inch high-end color LCD display. Channel fully isolated universal signal input, 1-12 channels are optional. Multiple communication interfaces, 6 relay outputs, 6 feed outputs and other functions can be freely selected. It is most suitable for temperature and humidity monitoring, heat treatment processes, current and voltage measurement, etc.

This product has been certified by the testing agency, and the EMC test can reach level 4. Stable and reliable performance, rich colors, simple operation, but also allows you to experience the charm of good quality.

The price of Temperature Recorder R7600 is determined by the parameters of the product. For example, the number of channels. Functional requirements. Output function, etc.

Sino-Inst is the manufacturer of Temperature Recorder. Committed to providing customers with quality products and competitive prices. Temperature Recorder reference price: USD 650.00/pc.

Types of Paper Less Recorders

  • According to the type of recording signal:
    • Pressure recorder, flow recorder, speed recorder, temperature recorder, humidity recorder, liquid level recorder, level recorder, power recorder, F0 value recorder
  • According to the number of channels:
    • Single-channel recorder, multi-channel recorder. The number of channels of the recorder can range from 1 channel to 32 channels and so on.
  • Divided by function:
    • Alarm recorder, flow accumulation recorder, communication recorder, print recorder
  • According to the screen display:
    • Blue screen recorder, color screen recorder

More Featured Paperless Recorders

Universal Input-Paperless Recorder R7100
Flow Totalizer F3000X

You may like:

Sino-Inst offers over 10 Paperless Recorders for Industrial data recording and analysis. Paperless Recorder HS Code: 9031809090.

It is widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries to measure, display and control the pressure of fluid media on site.

A wide variety of Temperature Recorders are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Paperless Recorders, located in China.

Flow Totalizer F3000X

Posted on by

Flow Totalizer is also called flow rate totalizer. Used with various flow meters to perform data measurement and display, cumulative calculation, alarm control, transmission output, data acquisition, and communication.

Flow Totalizer collects, displays, controls, remotely transmits, communicates, and prints various signals such as on-site temperature, pressure, and flow. It constitutes a digital acquisition system and a control and monitoring system. It is widely used in trade settlement and factory measurement management networks in petrochemical, chemical, metallurgical, electric power, light industry, medicine and city gas industries.

Sino-Inst offers a variety of Record and Analyze instruments for industrial control. If you have any questions, please contact our sales engineers.

Request a Quote
More Recorders

The flow totalizer refers to the secondary instrument of the flowmeter, which is responsible for sampling, conversion, calculation, and data storage. It is used with a primary meter to form a complete flow meter. The primary meter often refers to the sensor part, such as an orifice throttling device.

The flow totalizer controller collects, displays, controls, remotely transmits, communicates, and prints various signals such as on-site temperature, pressure, and flow. It constitutes a digital acquisition system and control system, with LCD and digital display, and various external dimensions. It is suitable for flow accumulation measurement and control of various liquids, general gases, superheated steam, and saturated steam. It can carry out quantitative/batch control of the medium (with start, stop, and clear functions), and it can be used with various flow sensors or transmitters to adapt to various measurement control occasions.

Read more about: What is a paperless recorder?

Features of Flow Totalizer F3000X

  • Wide range of applicable flow meters and fluid media.
  • The flow unit is automatically converted, and the flow coefficient of the differential pressure flowmeter is automatically calculated.
  • The steam density is calculated according to the IAPWS-IF97 formula, and the superheated and saturated state of the steam is automatically recognized.
  • Emergency fault-tolerant function: when temperature and pressure signals are abnormal, use emergency parameter values ​​for compensation calculations.
  • Debug calculation function: support to view the original value of each transmitter/sensor signal; support to view the intermediate parameters such as density in the flow calculation.
  • Audit record: Power failure record function.
  • Alarm list: Support recording instantaneous or cumulative alarm information such as flow, temperature, pressure, differential pressure/frequency/volume/mass.
  • Cumulative report: Supports cumulative traffic class report, daily report, monthly report, and annual report.
  • Communication function: standard Modbus RTU protocol, support RS485, RS232C communication interface.
  • Transmission function: support standard current transmission output, signal source channel is optional.
  • Report backup function: Support the backup function of each cumulative report.
  • Import and export function: support the import and export function of instrument configuration parameters.
  • Timing printing function: supports the timing printing function of flow, temperature, pressure, accumulation and other data.

Specifications of Flow Totalizer F3000X

Display:
Screen: Screen: 128*64 dot matrix monochrome liquid crystal display (LCD)
Accuracy: Accuracy: Display and measurement accuracy: ±0.2% F.S.

Processor: High-performance ARM Cortex-M3 32-bit RISC core

Input function
Flow channel: Channel: analog signal: 4-20mA, 0-10mA, and other signals;
Frequency signal: Fr (range: 0.0-5000.0HZ, low-level ≤ 1V, high-level ≥ 5V)
Temperature channel: Temperature channel: 0-10mA, 4-20mA, Pt100 and other signals
Pressure channel: Pressure channel: 0-10mA, 4-20mA, and other signals
Other input signals (such as digital input (DI)) should be specified when ordering

Output function
Power distribution output: Provide 1 group (F12) 12VDC and 2 groups (Q24, P24) 24VDC sensor power supply, the maximum output current of a single channel is 30mA, of which flow current 24V power distribution Q24 and pressure 24V power distribution P24 share the same ground
Transmission output: Support 1 standard current transmission output (source is optional), load capacity 500Ω (maximum)
Relay output: Support up to 3 relay outputs, contact capacity 3A@250VAC/3A@30VDC, configurable upper limit, upper limit, lower limit, lower limit alarm

Communication function
Communication interface: Provide RS232C and RS485 two communication interfaces for users to choose, support Modbus RTU protocol, baud rate —- (1200, 4800, 9600)
Print interface: RS232C directly connected to the mini printer, baud rate 1200

Report backup
Report backup and transfer: Backup and transfer: support USB 1.1, 2.0 protocol, support for cumulative report transfer from 1G to 32G U disk, strong compatibility, compatible with most U disks on the market

Power supply
AC power supply: AC power supply: 220VAC/50HZ AC power supply
DC power supply: Current power supply: support 24VDC (18VDC-36VDC) DC power supply; support 12VDC (9VDC-18VDC) DC power supply, DC power supply should be specified when ordering

Error accuracy
Clock error: Clock error: ±2 seconds/day

Working environment
Ambient temperature: Ambient temperature: 0～50℃ (avoid direct sunlight)
Environmental humidity: Environmental humidity: 0～85%R.H (non-condensing)
Altitude: Altitude: <2000 meters

Prohibit working inflammable and corrosive environment

Net weight
Net weight: Net weight: ≤1.0Kg

Technical index description
The technical index is the general index of this series of instruments, and the function configuration is subject to the actual product.
If the technical indicators are inconsistent with the actual instrument, please refer to the actual instrument.

Flow totalizer working principle

The flow totalizer is composed of four parts: measurement loop, digital panel meter, regulator and power supply.

The stabilized power supply converts the 220V power supply into a stable DC voltage as the other part of the power supply.

The measurement loop processes the signal (voltage, current, etc.) sent by the flow transmitter into a voltage signal.

After A/D conversion, the signal is sent to a dedicated central processing unit for processing. Not only to the digital panel meter but also to the regulator. After comparing with the set value, it outputs a control or alarm signal according to the regulation rule.

The flow totalizer is used to measure the instantaneous flow of liquid or solid in the industrial field.

The signal output by the flowmeter is generally a pulse signal or a 4-20mA current signal, both of which output instantaneous flow. Our purpose is to calculate and display the instantaneous flow value and calculate the cumulative value in the PLC.

When the input signal is a pulse signal, when calculating the instantaneous flow rate, it must be calculated in strict time intervals to ensure the accuracy of the instantaneous flow rate.

Therefore, the calculation of instantaneous flow must be done with a timed interrupt. Moreover, only this one interrupt program can be run in the PLC system, and no other interrupts are allowed (even low-priority interrupts are not allowed to run). To prevent interference with the accuracy of the time interval of the timing interruption.

Calculating the instantaneous flow rate is to convert the number of accumulated pulses in this time period into the accumulated flow rate. Divided by time is the instantaneous flow.

For 4-20mA input, the instantaneous flow can be directly obtained by simply converting according to its corresponding range. The cumulative flow is to add up the cumulative flow in each time period.

In the actual use of PLC programming, the following issues must be paid attention to:

(1) Whether the input pulse frequency range exceeds the receiving range of the PLC;
(2) How to ensure correct calculation when the PLC high-speed counter reaches the maximum count value;
(3) How to ensure that the timing interruption is not disturbed;
(4) How to avoid errors in calculating the cumulative amount;
(5) The maximum cumulative digits of the cumulative amount;
(6) How to reset the totalizer.

Totalizer vs Flow Meter

A pure totalizer is not a flow meter.

Usually, flow meters measure instantaneous flow. If you need to know the total amount of flow, you need to use a totalizer.

A complete flow detection system includes several parts such as sensing, transmission, calculation, integration, display, etc. Each part can be an independent instrument. It is also possible to integrate several functions into one watch.

Many flow totalizers on the market now integrate calculation, totalization, and display. It includes most of the functions of the flow system. Some manufacturers set the totalizer and other parts as flow meters and use the name of the complete set on the totalizer. If you buy the totalizer alone, you will see that the name is flowmeter.

So the flowmeter [maybe] includes a totalizer, but the totalizer is not a flowmeter.

If you get here, you still can’t find a suitable product. Then let us take a more detailed look at the functions and applications of the Flow Totalizer Meter.

Read more about: Flow Totalizer Meter vs Flow Meter

Featured Flow Meters

Sino-Inst offers over 10 Flow Totalizers for Industrial data recording and analysis.

It is widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries to measure, display and control the pressure of fluid media on site.

A wide variety of Flow Totalizers are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Flow Totalizers, located in China.

Universal Input-Paperless Recorder R7100

Posted on by

Paperless Recorder is an intelligent Digital chart recorder. Data can be remotely recorded, analyzed, stored, and signal output. LCD color screen, maximum 16 channels.

R7100 series color paperless recorder supports 1-16 channels of universal input. R7100 has a powerful display function, real-time curve display, historical curve recall, bar graph display, alarm list display, power-down list display.
Configurable and optional inputs: standard voltage, standard current, thermocouple, thermal resistance, frequency, switch value, pulse, etc. It can be equipped with 6 relay alarm outputs, 6 feed outputs, 4 transmitter outputs, and RS232/485 communication interface is optional. Bluetooth function, GPRS function Ethernet interface, micro printer interface and USB interface.

Sino-Inst offers a variety of Record and Analyze instruments for industrial control. If you have any questions, please contact our sales engineers.

Request a Quote
More Recorders

Features of Paperless Recorder R7100

  • Can support touch function (additional function).
  • Can support dual communication functions (additional functions).
  • Can support timing printing function (additional function).
  • Can support DC power supply (additional function).
  • It can support the custom editing function of tag and unit (additional function).
  • Can support Ethernet communication (customized function).
  • Can support communication collection function (customized function).
  • Can support feed output function (optional function).
  • Can support transmission output function (optional function).
  • Can support alarm output function (optional function).
  • May support PID control function (optional function).
  • Can support manual serial port printing function (optional function).
  • Can support standard serial communication function (optional function).
  • Can support flow accumulation temperature and pressure compensation function (optional function).
  • Data recording/dumping backup function (standard function).
  • Universal analog input (standard function).

Specifications of Paperless Recorder R7100

Display

Screen: 7-inch true color TFT LCD (800 * 480 dot matrix)

Accuracy: Real-time display: ± 0.2% F.S. Remembrance accuracy: ± 0.2% F.S. (Note: The thermocouple should remove the cold junction error)

Processor

Using high-performance ARM Cortex-M3 32-bit RISC core, which can realize multi-channel signal acquisition, recording, display and multi-channel alarm at the same time

Storage module

A large-capacity parallel NAND FLASH memory chip is used to store historical data, and a serial FRAM memory chip is used to store system configuration parameters and other key information

Input function

  • Input specifications: fully isolated universal input, maximum support 16 analog inputs
  • Voltage input: 0-5V, 1-5V, 0-20mV, 0-100mV
  • Current input: 0-10mA, 4-20mA, 0-20mA
  • Resistance input: Res
  • Thermal resistance: PT100, Cu50, G53, Cu100, BA1, BA2 (requires three-wire resistance balance, lead resistance <10Ω)
  • Thermocouple: S, B, K, T, R, E, N, J
  • Radiation pyrometer: F1, F2
  • Tungsten rhenium: WRe3-25, WRe5-26

Note: Its input signal (such as digital input (DI), pulse input (PI)) or index number (such as PT1000) need to be indicated when ordering.

Output function

Power distribution output: support up to 3 groups of transmitter isolated power distribution + 24VDC, each group power distribution ≤60mA, support other specifications of isolated power distribution (such as 12VDC, 5VDC power distribution output)

Transmitter output: Support up to 4 channels of standard current [4-20mA, 0-20mA, 0-10mA] Transmitter output, load capacity 750Ω (maximum), easy to display instrument or DCS / PLC acquisition, to achieve long distance signal Transmission

Relay alarm output: support up to 6 relay alarm outputs, contact capacity 1A @ 250VAC / 1A @ 30VDC (maximum contact capacity can be customized), can configure upper and upper limit, upper limit, lower limit, lower and lower limit alarm

Communication printing

Communication interface: provide RS232C and RS485 two communication interfaces for users to choose, support simultaneous use of RS232C and RS485, support simultaneous use of RS232C and RS232C, support Modbus RTU protocol, baud rate —- (1200, 4800, 9600, 19200, 38400, 57600)

Print interface: RS232C directly connected to a mini printer, baud rate 1200

Record function

  • Recording capacity: 64/128/192 / 248MB (FLASH capacity is optional);
  • Recording interval: 1 second to 240 seconds, divided into 11 files: 1/2/4/8/12/24/36/60/120/180/240 seconds optional;
  • Recording time: The length of the recording time is related to the FLASH memory capacity, input points, and recording interval

Data transfer

Data backup and transfer: Support USB 1.1, 2.0 USB flash drive, support 1G to 32G U disk for data transfer, strong compatibility, compatible with most U disks on the market (recommended to use industrial version USB flash drive)

Power supply

Power supply: 100 ~ 240VAC (rated power supply voltage 220VAC), 50 / 60HZ AC power supply, support 24VDC (18VDC-36VDC) DC power supply (DC power supply must be specified when ordering)

Protective function

Power-off protection: Built-in memory protection parameters and historical data, permanently saved after power off Clock protection: integrated hardware clock, can also run accurately after power off

Error accuracy

Thermocouple cold junction compensation error: ± 2 ℃

Clock error: ± 2 seconds / day

Working environment [Forbidden to work in flammable and corrosive environment]

Working temperature: 0 ～ 50 ℃ (avoid direct sunlight)

Relative humidity: 0 ～ 85% R.H (no condensation)

Altitude: <2000m (except special specifications)

Transportation and storage environment

Transportation and storage temperature: -20 ～ 60 ℃ (avoid direct sunlight)

Transportation and storage humidity: 5 ～ 95% R.H (no condensation)

Net weight

Net weight: ≤1.5Kg

Note:

The technical indicators are the general indicators of this series of instruments. Please refer to the actual product for function configuration.

If the technical indicators are inconsistent with the physical instrument, please refer to the physical object.

Paperless Recorder R7100 Dimensions

R7100 paperless recorder can only match a variety of sensors. Support temperature sensors, humidity sensors, pressure sensors, current and voltage transmitters, liquid level sensors, flow meters, etc.

Read more about: What is a Paperless Recorder?

Paperless recorder working principle

A recorder is an instrument that converts the process of one or more variables over time or another variable into recognizable and readable signals. It can save the recorded signal changes for analysis and processing. The biggest feature of the recorder is that it can automatically record the slow change process and transient level change process of periodic or non-periodic multi-channel signals.

According to the types of input and output signals, recorders can be divided into analog-digital, digital-analog, analog-analog, digital-digital and other forms. Their main circuit varies according to the output form.

When the output is a digital signal, its main circuit is a memory circuit that can store digital information. It can send digital signals to tape drives, punchers or other equipment at any time. Or observe the analog waveform with an oscilloscope after proper conversion, such as digital memory and waveform memory.

When the output is an analog signal, the main circuit of the recorder is an analog amplifier drive circuit without storage function. The signal must be recorded on paper, photosensitive film, or tape immediately using appropriate recording devices and methods. The information can be saved for further analysis and processing. Such as various pen recorders, light recorders, plotters, tape recorders, etc.

You may like:

Absolute Pressure Transmitter
Hydrostatic pressure transmitter
SI-PCM261 Submersible Pressure Transducer
Extended Diaphragm Seal DP Level Transmitter
Differential pressure(DP) level transmitter
Remote Magnetic Sewage Flow Meter
Insertion Magnetic Flow Meter
Turbine Sanitary flow mete
Vortex Shedding Flow Meter
HS-2000 Ultrasonic Tank Level Sensor-External Mounted

Sino-Inst offers over 10 Paperless Recorders for Industrial data recording and analysis. Paperless Recorder HS Code: 9031809090.

It is widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries to measure, display and control the pressure of fluid media on site.

A wide variety of Paperless Recorders are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Paperless Recorders, located in China.

Digital chart recorders

Posted on by

What is a digital chart recorder?

Industrial digital chart recorders refers to an electronic instrument that remotely displays and counts signals such as pressure, temperature, flow, and liquid level in the industry.

Digital chart recorders record the collected data/calculated data in the internal storage system of the instrument with time as the base axis. It does not consume any commonly used recording facilities. For example: paper, pen and ink. Sino-Inst provides time-saving paperless chart recorders with up to 64 channels.

The stored data recorded in the instrument is displayed on the LCD screen after calculation and simulation. Commonly used LCD screens are widely used. On the LCD screen, digital display, bar graph display, curve display, alarm list, etc. can be displayed.

The data collected by the paperless recorder are commonly used: temperature, pressure, flow, liquid level, voltage, current, humidity, frequency, vibration, speed, etc.

Common Industrial Digital chart recorders:

Pressure recorder, flow recorder, speed recorder, temperature recorder, humidity recorder, liquid level recorder, level recorder, power recorder, F0 value recorder.

Universal Input-Paperless Recorder R7100
Flow Totalizer F3000X
Temperature Recorder R7600

What are the functions of the Digital chart Recorder?

Paperless recorder is an instrument that can convert temperature and pressure into current, voltage, thermocouple, thermal resistance and other signals through a transmitter, and record and process the data.

Generally, it has functions such as alarm output, analog output, power distribution output, and communication.

The paperless recorder is an instrument that connects to a printer or U disk through RS485, RS232 communication, CF card transfer, and PC connection communication.

Read more about: Common Units Of Pressure

Digital chart recorders signal types

Type of inputRangeMeasuring rangePrecision
DVC0~20mV-9999~199990.20%
0~100mV-9999~19999-0.5V~+5.500V0.20%
0~5V-9999~19999-0.5V~+5.500V0.20%
1~5V-9999~19999-0.5V~+5.500V0.20%
DCI0~100mA-9999~199990.20%
4~20mA-9999~19999-0.5V~+5.500V0.20%
TCS-50.0~100.0℃3.7℃
100.0~1768.0℃2℃To be determined2℃
B0~1820.0℃±（0.05%rdg+0.5℃）2℃
K-50.0~1372.0℃±（0.05%rdg+0.5℃）2℃
E-50.0~1000.0℃±（0.05%rdg+0.5℃）2℃
J-50.0~1200.0℃±（0.05%rdg+0.5℃）2℃
T-199.90~320.00℃±（0.05%rdg+0.5℃）2℃
Wer3-250.0~2300.0℃±（0.05%rdg+0.5℃）5℃
RTDPt100200.0~850.0℃1℃
Cu50-50.00~150.00℃±（0.05%rdg+0.5℃）1℃
resistance0~350-9999~199991℃
frequency0－10KHZ0~199991℃

Extended reading: RTD vs. Thermocouple: What’s the Difference, and Which Should You Use?

Digital chart recorder for pressure testing

The input signals of the paperless recorder are all “universal” full-switching signals, and can input standard analog signals 4~20MA, 1~5V, 0-20MA, 0~5V, 0~10V, etc. Generally, the output signal of the pressure transmitter is a passive signal of 4-20MA signal. As long as the recorder is equipped with a 24V power feed function, it can be displayed after setting the parameters according to the correct wiring indicated on the wiring diagram.

Read more about: Paperless recorder working principle

You may like:

Sino-Inst offers over 10 Digital chart recorders for Industrial data recording and analysis. Digital chart recorders HS Code: 9031809090.

It is widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries to measure, display and control the pressure of fluid media on site.

A wide variety of Temperature Recorders are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Paperless Recorders, located in China.
