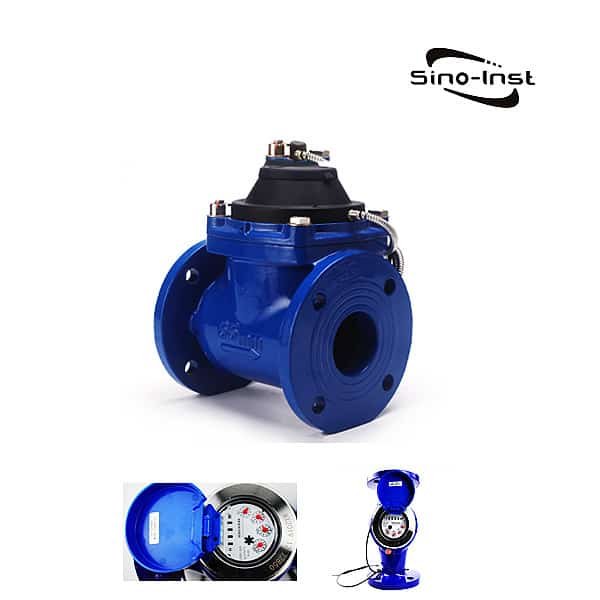

3″ Water Meter
3″ water meter is also DN80 water meter. Easy to read. Totalizing water volume. Intelligent large-caliber remote water meter includes wired remote transmission and wireless remote transmission. RS485 communication equipment, MODBUS, etc.
Features of 3″ Water Meter
Extended Reading: Clamp on Water Flow Meter
3″ water meter flow rate
|Caliber(mm)||Inch||Measurement grade Q3/Q1 |
|Overload flow Q4|
|Common flow Q3|
|Boundary flow Q2|
|Minimum flow Q1|
3″ water meter dimensions
Read more about: Flow Meter Selection Guide
3″ Water Meter Pressure Loss
The specifications of 3″ Water Meter are as follows:
|Measurement accuracy level||Class B|
|Temperature class||T30, T50, T70, T90|
|Pressure loss level||△P63|
|Maximum allowable error||a) Low area (Q1≤Q<Q2) The maximum allowable error is ±5%|
a) When the water temperature is ≤30℃, the high zone (Q₂Q<Q) is the largest
Allowable error is ±2% Q1 Q2
When the water temperature is ≥30℃, the high zone (Q₂QQ) is the largest
Allowable error is ±3% Q2 Q4
|Electronic technical indicators||Bus power supply: external supply DC6.5V~18V|
Working current: -5uA
Communication interface: RS-485 interface; MBUS interface
External power supply: 5~10V
|technical standard||The technical parameters of this product conform to national standards|
The electronic device complies with Electronic Remote Water Meter”
The pressure loss level of the water meter is △p63, which represents the maximum pressure loss of 0.063MPa
Read more about Everything You Need To Know About Electronic Flow Meters
3″ water meter with pulse output
The pulse output water meter is a water meter with a very unique design.
It has the characteristics of passive signaling. A square wave signal can be output without a power supply. The distance reached one kilometer. And the transmitted signal is very accurate.
The water meter has a self-retaining function. Avoid more possibility of false signal. It can ensure that the signal has no errors.
Prevent all kinds of water theft from happening.
The service life is also very long, and the service life of the remote transmission part can be as long as ten years.
The water meter supplied by Sino-Inst can be configured with pulse output. When you place an order, please confirm with our sales engineer.
Extended reading: 2 inch Water Flow Meter
Water meter types
In addition to the water meter described at the top of this article. We also have many types of water meters. Such as turbine water meter. Ultrasonic water meter. Electromagnetic water meter, etc.
Extended reading: Advantages and disadvantages of ultrasonic water meters
The types of water meters can be divided by the principle of measurement, the common types are:
a) Mechanical water meter:
Measuring sensors, calculators and indicating devices are all water meters with mechanical principles and structures. There are mainly speed water meters and volumetric water meters.
b) Mechanical water meter with electronic device:
The mechanical water meter with complete structure is retained, and the water meter with an electronic device is installed on this basis, mainly including IC card water meter and remote water meter.
The measuring sensor of the mechanical sensor electronic water meter is composed of a sensor based on the principle of mechanical motion and a sensor element that can convert the mechanical motion into an electrical signal and input into the calculator. Both the calculator and the indicating device are electronic components, such as a vortex (impeller) wheel electronic water meter.
Read more about: How does a residential water meter work?
c) Electronic water meter:
Electronic water meters are divided into mechanical sensor electronic water meters and electronic sensor electronic water meters.
The measuring sensor of the electronic water meter is based on the principle of electronic or electromagnetic induction. Both the calculator and the indicating device are electronic components.
Such as ultrasonic water meter, jet water meter, Coriolis water meter, and electromagnetic water meter.
Extended Reading: Chilled Water Flow Meter
More Water Flow Meters
More Water Flow Measurement Solutions
Sino-Inst offers over 30 water meter products. About 50% of these are ulrtasonic flow meters. 40% are mechanical water meters.
A wide variety of water meter options are available to you, such as free samples, paid samples.
Sino-Inst is a globally recognized supplier and manufacturer of water meter, located in China.
The top supplying country is China (Mainland), which supply 100% of the water meter respectively.
Sino-Inst sells through a mature distribution network that reaches all 50 states and 30 countries worldwide. Water meter products are most popular in Domestic Market, Southeast Asia, and Mid East.
You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.
