Blast furnace stockline measurement runs at 1200 °C inside, with dust, hydrogen-rich gas, and constant charging dynamics. Mechanical sounding rods and isotope sources have given way to 80 GHz FMCW radar as the standard since around 2018. This guide covers how the radar survives furnace conditions, what the purge system must deliver, and how to specify a unit for blast furnace, CDQ, BOF, and torpedo car service.

Contents

• Why Blast Furnace Level Is Hard to Measure
• Frequency Comparison: 80 GHz vs 120 GHz vs Lower Bands
• FMCW vs Pulse Radar in Furnace Service
• Mandatory Design Features for 1200 °C Service
• Purge Air and Air-Cooling Specifications
• Installation Geometry on Top of the Furnace
• Range, Accuracy, and Output Signals
• Related Products
• FAQ

Why Blast Furnace Level Is Hard to Measure

Three conditions defeat conventional level sensors. The throat sits at 200-400 °C continuous, with raw materials at 800-1200 °C below the burden line. Hot reducing gas (CO + H₂) flows upward at 5-15 m/s. And during charging, 50-100 t of coke and ore land in seconds, generating dust clouds that scatter ultrasonic and laser beams. A corrosive tank radar setup is mild by comparison — the blast furnace adds heat and impact load on top.

Radar at 80 GHz cuts through dust because the wavelength is 3.75 mm. Particle sizes that dominate in furnace dust (10-100 µm) are too small to scatter the beam significantly. Compared with 26 GHz radar (wavelength 11.5 mm), the 80 GHz beam stays focused and returns a clean echo from the burden surface.

Frequency Comparison: 80 GHz vs 120 GHz vs Lower Bands

Frequency	Wavelength	Beam angle	Best use	Limitation
6 GHz	50 mm	10-15°	Clean liquids, large tanks	Heavy dust scatter
26 GHz	11.5 mm	6-8°	Bulk solids, moderate dust	Echo loss in heavy dust
80 GHz	3.75 mm	3-4°	Blast furnace, CDQ, BOF	Higher unit cost
120 GHz	2.5 mm	2-3°	Narrow openings, small silos	Limited model availability

For a blast furnace throat 6-10 m wide with charging in progress, 80 GHz balances beam concentration with proven manufacturer support. 120 GHz wins only when the antenna must fire through a narrow nozzle smaller than 200 mm. Refer to the radar antenna selection guide for the matching antenna type.

FMCW vs Pulse Radar in Furnace Service

FMCW (Frequency Modulated Continuous Wave) transmits a chirp that sweeps 78-82 GHz over a few milliseconds. The return echo arrives shifted in frequency; that shift converts directly to distance. Pulse radar fires short bursts and times the round trip. For blast furnace use, FMCW dominates because the continuous chirp has lower peak power, longer averaging, and better signal-to-noise ratio against the dust background. Most modern 80 GHz blast furnace transmitters — Magnetrol Pulsar R80, Matsushima, Sino-Inst SIRD — are FMCW.

Mandatory Design Features for 1200 °C Service

• Ceramic or PTFE lens antenna with 250 °C continuous rating at the antenna face.
• Water- or air-cooled flange dropping the electronics housing to below 50 °C even when the process flange runs at 200-400 °C.
• Forced-air purge inlet at the antenna to prevent dust adhesion. Pressure 0.1-0.3 MPa, dewpoint ≤ -20 °C.
• Ball valve or knife valve isolation so the radar can be removed during planned shutdown without breaching furnace pressure.
• 4-20 mA HART or Modbus RTU output with secondary digital diagnostics for clogging detection.
• IEC 60079 (ATEX/IECEx) certification required where top-gas H₂ concentrations exceed flammability limits.

Match these features to the molten salt level service envelope — both applications share the high-temperature + flange-cooling architecture, only the dust profile differs.

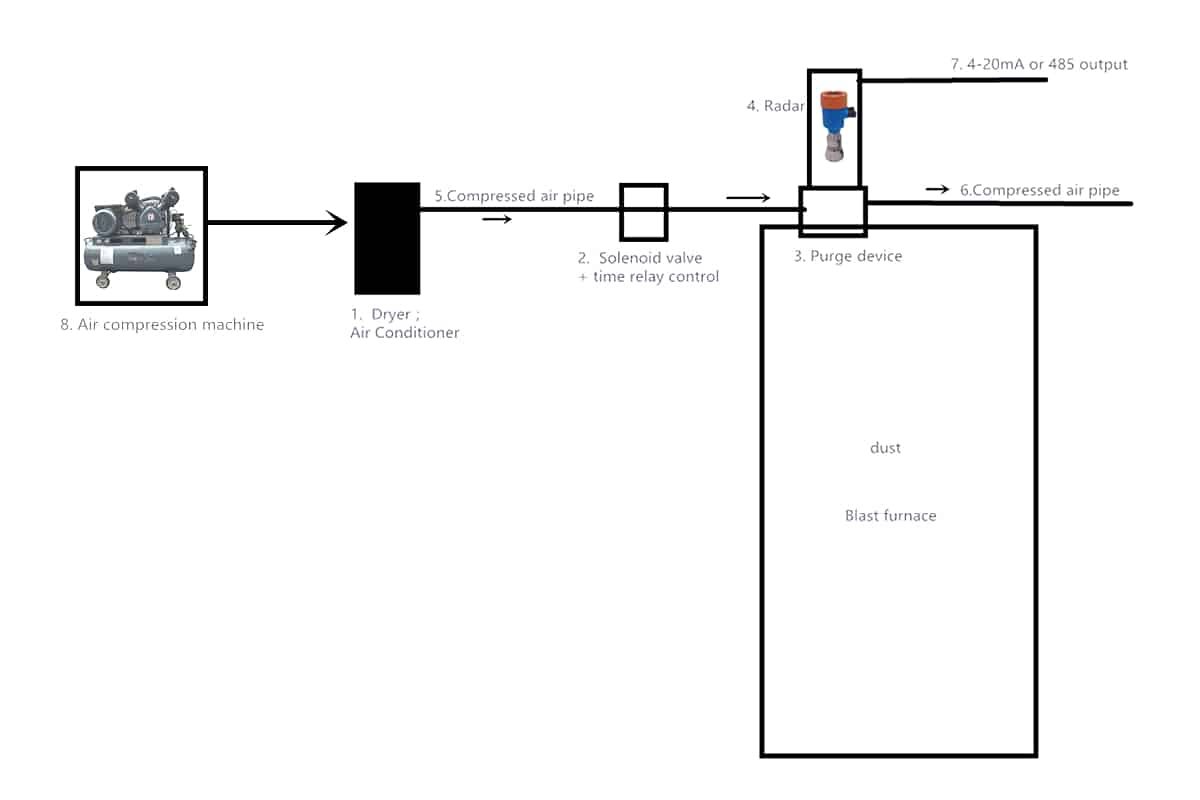

Purge Air and Air-Cooling Specifications

The purge system is what keeps the antenna lens clean. Specify on the data sheet:

• Air pressure: 0.1-0.3 MPa at the radar inlet (regulated, not unregulated plant air).
• Flow rate: 5-15 Nm³/h continuous, with provision for periodic burst clearing at 30-50 Nm³/h.
• Dewpoint: ≤ -20 °C to prevent condensation when air contacts the cooler lens surface.
• Solenoid valve with time relay for cyclic purge during charging (e.g., 5 s burst every 30 s).
• Cooling air for housing: separate line, 0.05-0.1 MPa, sized to hold electronics < 50 °C ambient.

Plants that share instrument air with the purge typically learn after the first lens fouling event to dedicate a dry compressor and refrigerated dryer to radar service. The cost of a 100 L instrument-grade dryer is recovered the first time the radar avoids a manual cleaning trip.

Installation Geometry on Top of the Furnace

Modern bell-less top (BLT) charging systems present a 6-10 m diameter throat with a chute rotating during charging. The radar must mount off-axis to avoid the chute path but still cover the burden centroid. Best practice:

• Mount the antenna 1.5-3.0 m above the maximum stockline.
• Offset from center by 1.0-2.0 m to avoid charging chute interference.
• Tilt 2-3° toward the burden centroid; verify with the manufacturer beam plot.
• Use a parallel sounding rod for the first month to confirm radar reading vs mechanical reference.

On tank installations the geometry is simpler — on a blast furnace the BLT mechanics force this off-axis compromise.

Range, Accuracy, and Output Signals

Application	Range	Accuracy	Output
Blast furnace stockline	2-15 m	±0.2% FS or ±5 mm (whichever greater)	4-20 mA HART + Modbus
Torpedo car / BOF bath	0.5-10 m	±1 mm	4-20 mA HART
CDQ (coke dry quench)	2-25 m	±0.2% FS	4-20 mA HART
Raw material silo (top)	2-30 m	±0.2% FS	4-20 mA HART

The 4-20 mA HART output is the universal interface to DCS. For SCADA integration via Modbus, confirm the device supports RTU over RS-485 in addition to HART. Some plants prefer the redundancy of running both protocols in parallel; see SCADA / DCS architecture basics for how the two layers consume the same primary measurement differently.
