Secrets of Shaft Torque Sensors: All You Need to Know

Posted on May 29, 2023 by KimGuo11

Torque sensors are essential components in many mechanical systems. They measure the torque, or rotational force, applied to a rotating system such as a motor, crankshaft, gearbox, or capstan. In essence, the torque sensor is like the heartbeat monitor of a machine, providing critical performance data.

But let’s focus on one type in particular: the shaft torque sensor. These unique sensors directly measure the torque on a rotating shaft. Providing real-time, highly accurate measurements crucial for monitoring and control applications.

RFQ

Characteristics of Shaft Torque Sensors

Direct Measurement: Shaft torque sensors measure torque directly on the rotating shaft. This means they provide real-time data which is crucial for monitoring and controlling systems.
High Accuracy: These sensors are known for their high precision, delivering reliable data for various applications.
Wide Range: Shaft torque sensors can measure a wide range of torques. Making them versatile for different needs.
Rugged and Durable: Designed to withstand the harsh conditions of a rotating shaft. These sensors are typically rugged and durable. Ensuring they deliver accurate results over time.
Compact Size: Many shaft torque sensors are compact, which allows them to be installed in areas with limited space.
Easy Integration: These sensors can often be easily integrated into existing systems, saving time and resources in setup.

Remember, these are general characteristics. Specific features can vary depending on the particular model or manufacturer.

At Sino-Inst, we offer a variety of shaft torque sensors, each with their own unique benefits, to ensure you get the perfect fit for your specific needs.

Featured Torque Sensors

**1050A Series Dynamic Torque Transducer**

**1050C Dynamic Micro Torque Sensor-10 Nm**

**1010 Dynamic Rotary Torque Sensor 0-5-1000N.m**

**1050E Dynamic Micro Torque Sensor 0-0.1-5N.m**

**818 Shaft Torque Sensor-Dynamic Dual Range**

**901 Inline Contactless Torque Sensor – 5 N·m-300000 N·m**

**803 Non Contact Rotary Torque Sensor-100KN.m-Non-Contact**

**5069 Non Contact Torque Sensor**–**5000Nm-OLED**

Where are Shaft Torque Sensors Used? Real-World Applications

Automotive Industry:

Shaft torque sensors play an integral role in the automotive sector. They are extensively used to measure engine output, drivetrain performance, and for electric power steering systems. Accurate torque measurements can lead to improvements in the vehicle’s fuel efficiency and overall performance.

Manufacturing and Assembly Lines:

Shaft torque sensors are vital in automated assembly systems, including manufacturing of appliances, electronics, and automobiles. They ensure that screws, bolts, and other fasteners are tightened with the correct amount of torque, thereby maintaining the quality and integrity of the product.

Renewable Energy:

In wind turbines, shaft torque sensors measure the power output, helping in efficient power generation and early detection of system failures. This contributes to the reliability and longevity of these renewable energy systems.

Aerospace:

Shaft torque sensors are used in the testing and maintenance of aircraft engines and components. They provide valuable data to ensure the efficiency and safety of the aircraft.

Maritime Applications:

In the maritime industry, shaft torque sensors are used to monitor the performance of ship propellers, optimizing fuel consumption, and diagnosing potential issues.

These examples are based on general knowledge and industry practices. At Sino-Inst, we can offer tailored solutions and consultations to meet your specific needs.

Choosing the Perfect Shaft Torque Sensor: Key Factors to Consider

Absolutely, selecting the ideal shaft torque sensor involves many considerations to ensure it performs well in its intended application. Here are some of the key factors you should take into account:

Measurement Range: The sensor should have the capacity to measure the maximum torque that will be applied to the shaft without going beyond its limit.
Accuracy: Consider the sensor’s accuracy and resolution. You want a sensor that can measure torque with the degree of precision required for your specific application.
Installation Requirements: Make sure the sensor can be installed onto your existing shaft without requiring significant modifications to your machinery.
Environment: The sensor should be able to withstand the environmental conditions it will be exposed to, such as temperature, humidity, vibration, and dust.
Output Signal: Depending on your system, you might need a sensor with a specific type of output signal (analog, digital, wireless, etc.).
Size and Weight: The sensor’s size and weight might be a crucial factor, particularly in applications where space is limited or in dynamic applications where the sensor’s weight could influence the measurement.
Cost: Last but not least, consider the cost of the sensor and whether it fits within your budget.

These considerations can guide you in selecting the right shaft torque sensor for your specific needs. Remember, the best sensor is not always the most expensive one, but the one that is most suited to your application and environment.

Maintaining Your Shaft Torque Sensor

Maintaining your shaft torque sensor is crucial to ensure its longevity and performance. Here are some essential tips to help you get the most out of your sensor:

Regular Inspection: Conduct periodic inspections to check for signs of wear, corrosion, or damage. Look for physical signs such as cracks or deformation.
Cleanliness: Keep the sensor clean and free from dust or grime which can interfere with accurate readings. Use a soft cloth or air duster for routine cleaning. Avoid abrasive materials that could scratch or damage the sensor.
Avoid Overloading: Do not exceed the sensor’s maximum load capacity. Overloading can lead to permanent damage, resulting in inaccurate readings or total sensor failure.
Handle with Care: Even though most sensors are designed to withstand harsh conditions, they should still be handled with care. Avoid dropping or impacting the sensor.
Proper Installation: Ensure the sensor is installed correctly according to the manufacturer’s instructions. Improper installation can lead to inaccurate readings and premature sensor wear.
Calibration: Regular calibration is essential to ensure your sensor continues to provide accurate readings. Refer to your sensor’s manual or consult with the manufacturer for specific calibration procedures.
Seek Professional Assistance: If you suspect that the sensor is not working correctly, seek professional assistance. Trying to fix the problem yourself may cause further damage.

By following these tips, you can maximize the lifespan and performance of your shaft torque sensor, ultimately saving time and resources in the long run.

FAQ

A shaft torque sensor is a device that measures the torque on a rotating system like a motor, crankshaft, or gear. It provides real-time, highly accurate measurements, which are crucial for monitoring and control applications.

Torque on a shaft can be measured using a shaft torque sensor. These sensors are installed directly on the rotating shaft, where they detect and measure the torsional strain (twisting) on the shaft as it rotates under load.

In cars, a torque sensor is typically used to measure engine output torque. This information can be used to optimize engine performance, enhance fuel efficiency, and inform decisions on safety systems.

The two main types of torque sensors are static torque sensors and dynamic torque sensors. Static torque sensors measure torque without rotation (static conditions), while dynamic torque sensors measure torque during rotation.

What Is a Differential Pressure Sensor?

Posted on May 25, 2023 by KimGuo11

What is a Differential Pressure Sensor?

A differential pressure sensor is a special instrument used to measure the pressure difference between two points in a system. It contains important parts like diaphragms, strain gauges, or capacitive elements. These sensors come in different types, such as diaphragm-based, piezoresistive, and capacitive. Each with its own benefits and uses. Unlike regular pressure sensors that measure absolute or gauge pressure, differential pressure sensors specifically concentrate on the pressure difference between two points.

RFQ

Differential pressure sensors are more than just another piece of machinery; they are the eyes and ears of many industrial systems, diligently measuring the pressure difference between two points in a process. By doing this, they provide invaluable insights that keep systems operating smoothly and safely. Whether in HVAC systems, medical devices, or industrial processes, these sensors are everywhere, silently playing their part.

So, why should you care about these sensors? Let’s dive deeper.

types of differential pressure sensors

Here are some common types of differential pressure sensors:

Resistive Differential Pressure Sensors: These sensors use changes in resistance to measure pressure differences.
Capacitive Differential Pressure Sensors: These sensors utilize changes in capacitance to detect pressure variations.
Piezoelectric Differential Pressure Sensors: These sensors convert pressure changes into electrical signals using piezoelectric materials.
Optical Differential Pressure Sensors: These sensors employ optical principles to measure pressure differences.
Microelectromechanical Systems (MEMS): These sensors utilize miniature mechanical structures to detect and measure pressure changes.

These different types of sensors offer various advantages and are used in a wide range of applications.

Working Principles of Differential Pressure Sensors

Typically, the two pressures to be measured are applied to opposite sides of a single diaphragm. The deflection of the diaphragm, whether positive or negative, determines the pressure differential.

Diaphragm-based sensors use the deformation of the diaphragm to detect differential pressure. Whereas piezoresistive sensors use strain gauges that change electrical resistance under pressure. Capacitive differential pressure sensors measure the change in capacitance caused by a pressure difference. These conversion mechanisms enable accurate and reliable measurement of differential pressure.

Some industrial differential pressure sensors use two separate absolute sensors with internal electronics to calculate and provide differential pressure.

Another way to achieve differential pressure measurement is to use two absolute pressure sensors and then calculate the difference on the industrial control system.

This is useful in situations where two different types of sensors are required due to the measured medium (i.e. liquid and gas) or the measurement environment.

The principle of differential pressure measurement states that differential pressure (also shown as DP or Δp) is the difference between two applied pressures.

For example, if the pressure at point A equals 100psi and the pressure at point B equals 60psi, the differential pressure is 40psi (100psi – 60psi).

Featured Industrial Differential pressure Transmitters

**Extended Diaphragm Seal DP Level Transmitter**
Extended Diaphragm Seal DP Transmitter is a level transmitter direct mounted on pipe or tank. The isolation diaphragm is in direct contact with the liquid medium.

**Flange Mounted Differential Pressure Transmitter**
Flange Mounted Differential Pressure Transmitter is also called single flange DP level transmitter. For liquid, gas or vapor pressure measurement.

**Smart Differential Pressure Transmitter**
Smart Differential Pressure Transmitter measures industrial differential pressure. Can Works with diaphragm seals, capillary, HART. Outputs standard signals (such as 4 ~ 20mA, 0 ~ 5V).

**Piezoresistive Differential Pressure Transmitter**
Piezoresistive Differential Pressure Transmitter utilizes the piezoresistive effect of semiconductor silicon materials. Realize accurate measurement of differential pressure.

**Remote Seal Differential Pressure Transmitter**
Remote Seal DP Transmitter is often used as a tank level transmitter. The smart pressure transmitter is connected with a stainless steel flange by capillary. The pressure is sensed by a remote transmission device installed on a pipe or container.

**Differential pressure(DP) level transmitter**
Differential pressure (DP) level transmitter is a perfect solution for tank level measurement. Flanges, seal diaphragms, capillaries, and DP transmitter are often used to measure liquid levels.

**Differential Pressure Gauge**
Quickly measure the positive, negative or DP of air or non-corrosive gas. Sino-Inst supplies Differential Pressure Gauges made in China. DWYER 2000 Differential Pressure Gauges, Magnehelic differential pressure gauges are also available.

Differential Pressure Sensors Vs. Pressure Sensors

When it comes to the world of pressure measurement, two types of sensors often come into focus: differential pressure sensors and pressure sensors. Both have significant roles in various industries. But they serve different functions and have unique characteristics. Let’s dive into the key differences between them.

Pressure Sensor: A pressure sensor measures the absolute pressure applied on it. It takes one pressure reading, typically against a vacuum (zero pressure). This method is similar to how we might measure the weight of an object or the temperature of a room.

Differential Pressure Sensor: A differential pressure sensor, on the other hand, measures the difference in pressure between two points. Imagine having a scale that measures the weight difference between two objects rather than the absolute weight. That’s the kind of measurement a differential pressure sensor does.

Pressure Sensor: These sensors are often used when you need to measure the overall pressure level in a system, such as barometric pressure in weather forecasting, tire pressure in vehicles, or blood pressure in medical monitoring.

Differential Pressure Sensor: Differential pressure sensors are used in applications where the pressure difference matters, such as across a filter in an HVAC system to determine when the filter needs to be replaced, or in fluid dynamics to calculate the flow rate based on pressure drop across a restriction.

Pressure Sensor: Typically, pressure sensors are simpler and less expensive than differential pressure sensors. They can be ideal for applications that don’t require the added complexity of differential pressure measurement.

Differential Pressure Sensor: These sensors are typically more complex and may cost more due to the added intricacy of measuring pressure at two points. However, they provide more detailed information, which can be crucial for certain applications.

In conclusion, while both types of sensors serve to measure pressure, the choice between a pressure sensor and a differential pressure sensor depends largely on the specific application and requirements. Understanding these differences is the first step in determining which sensor is the most suitable for your needs.

Applications of Differential Pressure Sensors

The versatility and precision of differential pressure sensors make them highly valuable in a variety of industries. Here are 6 key ones, explained in the simplest terms:

HVAC Systems: These sensors help control how much air is moving in heating and air conditioning systems. They also tell us when to change filters by measuring the pressure drop across them.
Industrial Control: In factories and plants, these sensors help manage the flow of chemicals, oil, gas, food and drink by monitoring pressure changes in pipes.
Flow Measurement: By checking the pressure drop across a blockage in a pipe, these sensors can tell how fast a liquid or gas is flowing. More about DP flow meters.
Filter Monitoring: The sensors can tell when a filter is getting clogged by noticing a change in pressure across it. This helps in timely cleaning or replacing the filter.
Medical Equipment: In devices like breathing machines and infusion pumps, these sensors help control the flow of air or medication to ensure the patient’s comfort.
Tank Level Measurement: By measuring the pressure difference from the top to the bottom of a tank, these sensors can accurately tell how full a tank is, be it water, fuel, or grains. More about: Use Differential Pressure Transmitter to Measure Liquid Level.

In a nutshell, from air conditioning systems to medicine, and fuel storage to food factories, differential pressure sensors make things work better and safer. They are truly a vital part of many systems and processes.

FAQ

A differential pressure sensor measures the pressure difference between two points within a system. This information can be used to control or monitor a process.

A pressure sensor measures the force exerted by a fluid on a surface, while a differential pressure sensor measures the difference in pressure between two points.

In air applications, a differential pressure sensor can be used to monitor and control airflow in HVAC systems or to monitor the status of filters.

Yes, a differential pressure sensor is a type of transducer as it converts pressure into an electrical signal.

The main purpose of a differential pressure sensor is to measure the difference in pressure between two points within a system. This information is vital in many applications, from HVAC systems to industrial processes.

A differential pressure flow sensor works by measuring the pressure drop across a restriction in a pipe. This pressure drop can be used to calculate the fluid flow rate.

Radar Liquid Level Sensors

Posted on May 22, 2023 by KimGuo11

Radar liquid level sensors are special tools that use radio waves to measure how much liquid is in a tank. They work by sending out waves and measuring how long it takes for them to bounce back. This information is turned into an electrical signal that can be used to tell you how much liquid is in the tank. These sensors are great because they don’t touch the liquid, they can handle tough conditions, and they are very accurate. They are used in many different industries, like water management, oil and gas, chemicals, and food and drink. They are much better than other ways of measuring liquid levels because they are so precise and reliable.

RFQ

Radar Liquid Level Sensors Products

**SI-FMF11 FMCW Radar Level Transmitter 120GHz**

Measuring medium: liquid;
Measuring range: 0.05m~30m;
Process connection: G1½A / 1½NPT thread / flange ≥DN50;
Process temperature: -40～80℃;
Process pressure: -0.1～0.3 MPa;
Antenna size: 32mm lens antenna;
Antenna material: PTFE

80 GHz radar sensor for continuous level measurement of liquids.

Sino-Inst also launched radar level sensor operating at 76-81 GHz.

**SIRD-906 Radar Sanitary Level Sensor**

Application: rivers, lakes, shallows
Measuring range: 30 meters
Process connection: thread G1½ʺ A / bracket / flange
Process temperature: -40～100℃
Process pressure: normal pressure
Accuracy: ±3mm
Frequency range: 26GHz

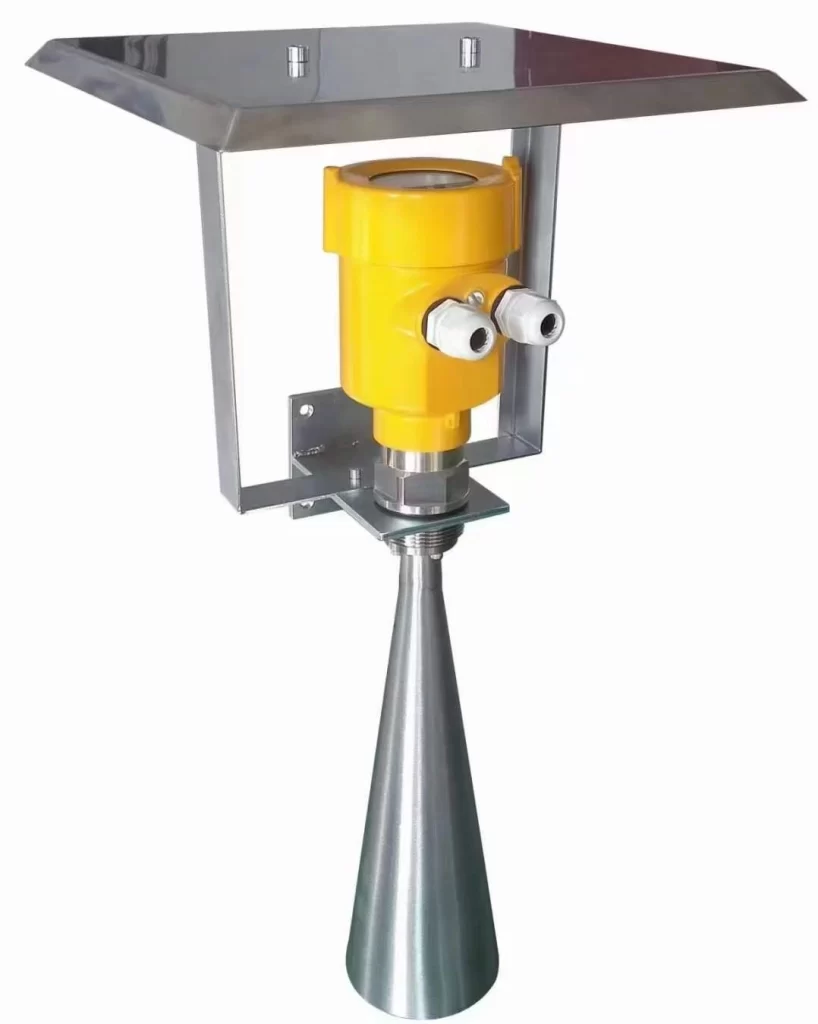

**SIRD-909 Radar Non-Contact Water Level Sensor**

Application: rivers, lakes, shallows
Measuring range: 70 meters
Process connection: thread G1½ʺ A / bracket / flange
Process temperature: -40～100℃
Process pressure: normal pressure
Accuracy: ±10mm
Frequency range: 26GHz

**SIRD-801 Radar Level Sensor-Suitable for Liquid, Slightly Corrosive Liquid**

Applicable medium: liquid, slightly corrosive liquid
Application: Sewage level measurement; low volatile acid-base level measurement; slurry level measurement
Explosion-proof certification: Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring range: 20m

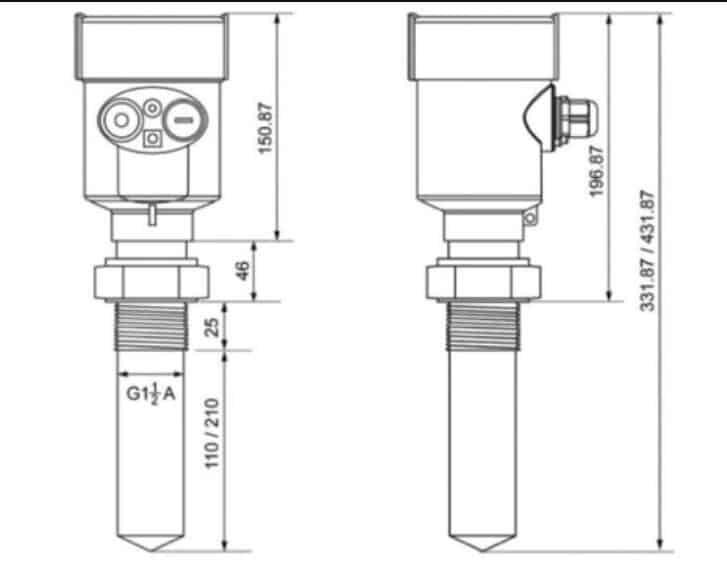

Antenna: Rod antenna (PP/PTFE)
Frequency: 6 GHz
Process temperature: (-40～130)℃

**SIRD-802 Radar Level Sensor for Corrosive Liquids**

Applicable medium: liquid, especially suitable for strong corrosive liquid
Application: pressure level measurement; sewage level measurement; volatile acid-base level measurement; slurry level measurement
Explosion-proof certification: Exia IIC T6 Ga/Exd IIC T6 Gb
Measuring range: 20m
Antenna: Rod antenna (PTFE)
Frequency: 6 GHz

**SIRD-803 Radar Oil Tank Level Sensor**

Applicable medium: liquid, especially pressure and volatile liquid
Application: crude oil, light oil level measurement; aluminum hydroxide level measurement; raw coal, limestone storage level measurement; coke level measurement
Explosion-proof certification: Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring range: 35m
Antenna: Horn antenna
Frequency: 6 GHz

**SIRD-805 Radar Slurry Tank Level Sensor**

Applicable medium: liquid, especially low-dielectric constant, slightly viscous, agitated liquid
Application: 20% flour slurry tank measurement; liquid measurement with stirring
Explosion-proof certification: Exia IIC T6 Ga/Exd IIC T6 Gb
Measuring range: 20m
Antenna: Horn antenna
Frequency: 6 GHz
Process temperature: -40～130℃(standard type)/-40～250℃(high temperature type)

Understanding Radar Liquid Level Sensors

Radar liquid level sensors operate based on the principle of time travel. A radar pulse is emitted from the sensor, which bounces off the surface of the liquid and returns to the sensor. By calculating the time taken for the pulse to return, the sensor accurately determines the distance, thus the liquid level.

Radar liquid level sensors are highly effective and can measure liquids regardless of surface impurities. They easily penetrate substances like dust, steam, foam, and adhesives without being affected. They can measure liquid levels in various tank shapes, including spherical, cylindrical, and linear.
High accuracy with a small blind zone: The radar liquid level sensor from Sino-Inst offers precise measurements with an accuracy of up to +1mm.
Narrow beam angle for focused measurement: These sensors are suitable for measuring in tight spaces. Their extremely small beam angle allows them to avoid obstacles and achieve accurate results.
Wide measuring range: These sensors can measure distances of over 120m without signal degradation.
Easy maintenance with minimal repairs: Radar liquid level sensors have built-in fault alarm and self-diagnosis functions. They can analyze faults based on error codes displayed on the module, making troubleshooting and maintenance convenient and accurate.

More Liquid level measurement products

LT series Digital Display Magnetostrictive liquid level sensor

HS-2000 Ultrasonic Tank Level Sensor-External Mounted

**Pressure Guided Submersible Level Transmitter**

**ULT-100 Explosion-proofUltrasonic Level Indicator**

SI-302 Anti-corrosive Submersible Level Transmitter

Differential pressure(DP) level transmitter

FAQ

A radar liquid level sensor works by transmitting radar pulses towards the liquid surface. The sensor then receives the reflected pulses. The time taken for the pulse to return to the sensor is used to calculate the distance, and thus the level of the liquid.

A radar water level sensor is a type of radar liquid level sensor specifically designed to measure the level of water in a reservoir, tank, or natural body of water. It operates on the same principle as other radar liquid level sensors, using radar pulses to determine the water level.

The best type of sensor for sensing liquid level depends on the specific application and conditions. Radar liquid level sensors are often the best choice for challenging conditions, such as in industries dealing with corrosive or high-temperature liquids, or where a high degree of accuracy is required.

The two main types of radar level sensors are non-contact radar sensors, which measure the level without touching the liquid, and guided wave radar sensors, which use a probe to guide radar waves to the liquid surface.

Extended Reading: Case: High Temperature Radar Level Transmitter for Melted Salt-Solar Photovoltaic Power Station

Related Tools

Converter Tools used to convert and calculate liquid level values or for calculations that require liquid level measurement to obtain other measurement parameters. Help users choose suitable Level sensors and transmitters!

Liquid Level Transmitter 4-20mA Current Output Calculator	Liquid Depth/Level to Hydrostatic Pressure Calculator	Pressure to Liquid Level Calculator
Specific Gravity Calculator	Horizontal Cylindrical Storage Tank Contents/Volume Calculator	Rectangular Shaped Tank Liquid Volume/Contents Calculator
Vertical Cylindrical Tank Volume/Contents Calculator	Depth/Level Unit Converter	Volume Unit Converter

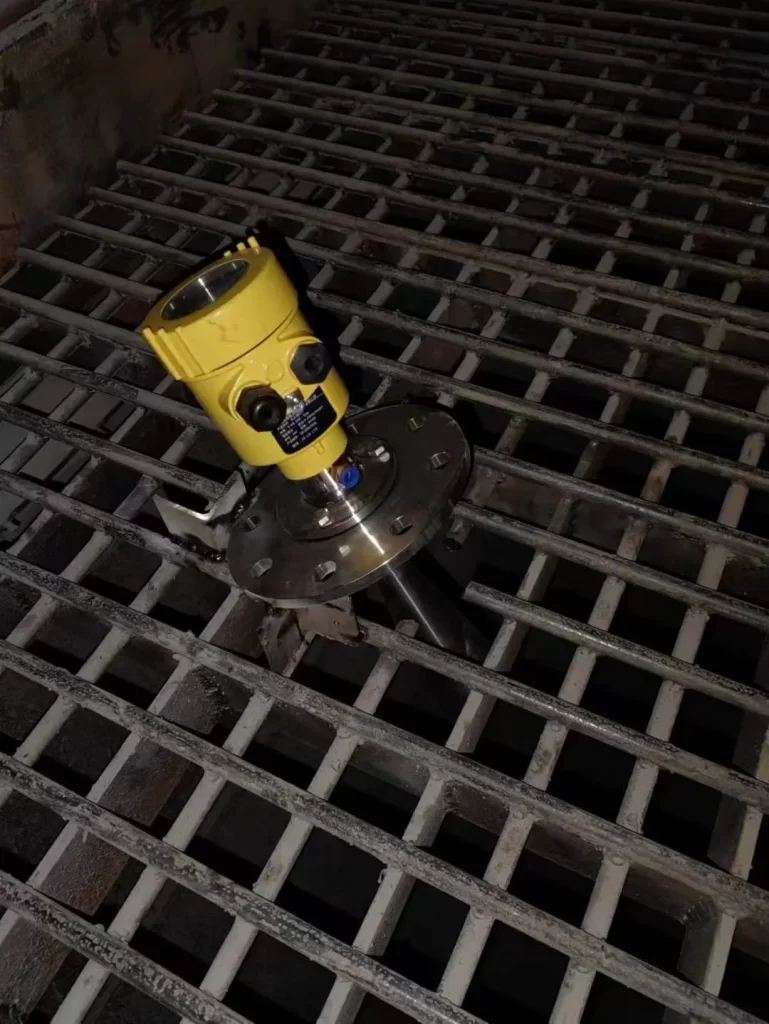

Radar liquid level sensors play a crucial role in many industries. By choosing a reliable manufacturer and the right type of sensor, you can significantly improve your liquid level measurement and control processes.

At Sino-Inst, we’re a leading manufacturer and supplier of radar liquid level sensors. We offer a wide range of products to meet various industry needs and provide exceptional customer service. For more information or to purchase, please contact us.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

Radar Antenna Types for Radar Level Meters: How to Choose?

Posted on May 18, 2023 by KimGuo11

What is radar level meter?

A radar level meter is an ingenious device that uses radio signals to measure the level of materials in a container. They are user-friendly and safe, making them suitable for use in a variety of containers, be it metal or non-metal.

When it comes to measuring the level of liquids or grains in a tank or pipe, radar level meters are the go-to devices. They work efficiently under various conditions – whether it’s hot, cold, or even in the presence of gases.

RFQ

Featured Radar Level Meters

80 GHz radar sensor for continuous level measurement of liquids.

Sino-Inst also launched radar level sensor operating at 76-81 GHz.

Measuring range: 0.3~120 meters;

Accuracy: ±1mm

**SIRD-901 Radar Corrosive Liquid Chemical Level Sensor**

Application: various corrosive liquids
Measuring range: 10 meters
Process connection: thread, flange
Process temperature: -40～130℃
Process pressure: -0.1～0.3 MPa
Accuracy: ±5mm
Protection level: IP67

Application: solid mat

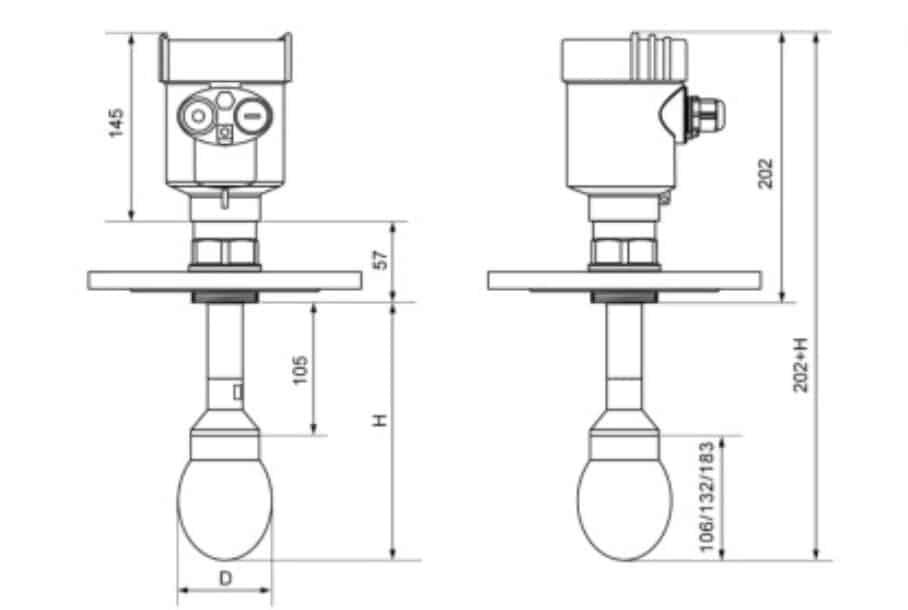

**SIRD-902 Drop Antenna Radar Tank Level Sensor**

Application: temperature-resistant, pressure-resistant, slightly corrosive liquid
Measuring range: 30 meters
Process connection: thread, flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～4.0MPa
Accuracy: ±3mm
Protection level: IP67

**SIRD-902T Microwave Radar Liquid Level Sensor**

Application: corrosive liquid, steam, volatile liquid
Measuring range: 20 meters
Process connection: flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～2.0MPa
Accuracy: ±3mm
Protection level: IP67
Frequency range: 26GHz

**SIRD-903 26 GHz Radar level Sensor -Dust solid level measurement**

Application: solid materials, strong dust, easy to crystallize, condensation occasions
Measuring range: 70 meters
Process connection: universal flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～4.0 MPa (flat flange) -0.1～0.3 MPa (universal flange)
Accuracy: ±15mm
Protection level: IP67

**SI-FMF13 FMCW Radar Water Level Sensor**

Measuring medium: liquid
Measuring range: 0.1m~100m
Process connection: flange ≥DN80
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 78mm lens antenna
Antenna material: PTFE

**SI-FMF15 FMCW Radar High Temperature Level Sensor**

Measuring medium: liquid and Solids
Measuring range: 0.1m~120m
Process connection: flange≥DN80
Process temperature: -40～200℃; -60~1200℃
Process pressure: -0.1～2.5MPa
Antenna size: 78mm lens antenna
Antenna material: PTFE/full filling

**SI-FMF21 FMCW Radar Silo Level Sensor**

Measuring medium: solid
Measuring range: 0.3m~150m
Process connection: flange≥DN80
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 78mm lens antenna + purging (or without purging)
Antenna material: PTFE

**SIRD-806 Radar High Temperature Level Sensor**

Applicable medium: solid, especially medium measurement in high temperature environment
Application: Blast furnace level measurement
Explosion-proof certification: Exia IIC T6 Ga/Exd IIC T6 Gb
Measuring range: 15m
Antenna: Horn antenna
Frequency: 6 GHz
Process temperature: (-40～400)℃

Radar level meters work a bit like a game of catch. Imagine you’re throwing a ball against a wall and then catching it when it bounces back. You can tell how far the wall is by how long the ball takes to return to you. The radar level meter works in a similar way, but instead of a ball, it uses radio waves.

Here’s the step-by-step process:

The radar level meter has a device called an antenna. It’s like your hand in the game of catch—it both throws and catches.
The antenna sends out a radio wave. This is like throwing the ball against the wall.
The radio wave travels down towards the material in the tank, be it a liquid or solid.
When the wave hits the surface of the material, it bounces back, just like the ball bouncing back from the wall.
The antenna catches this bounced-back signal, just like you catch the ball.
The meter then calculates how long the wave took to travel down and bounce back. The longer it takes, the further the surface of the material is. This is like determining how far the wall is by how long the ball takes to come back to you.
Based on this time, the radar level meter can figure out the level of the material in the tank.

And that’s it! That’s how a radar level meter works. It’s a clever game of catch that gives us valuable information about the level of materials in tanks and pipes.

Why do we advocate radar level meters so much when measuring industrial levels?

Advantages of Radar Level Meters:

Non-Contact: Since they use radio waves, radar level meters don’t need to touch the material they’re measuring. This is great for materials that might be harmful, hot, or corrosive.
Accuracy: These meters are known for their high accuracy. They can measure the level of a material down to the millimeter.
Versatility: They work with both liquids and solids, and they aren’t affected by things like temperature, pressure, or dust. This makes them suitable for a wide range of conditions.
Reliability: Because they don’t have any moving parts, radar level meters are very reliable and require little maintenance.

Common Applications of Radar Level Meters:

Oil and Gas Industry: Radar level meters are often used to measure the level of oil in tanks or the level of gas in liquefied natural gas (LNG) containers.
Chemical Industry: These meters are great for measuring levels of corrosive chemicals, as they don’t need to come into contact with the material.
Food and Beverage Industry: In this industry, radar level meters help with tasks like monitoring the level of liquids in tanks or measuring the amount of grain in a silo.
Water Treatment: Here, they are used to measure the level of water in tanks or the amount of sludge in a clarifier.
Power Generation: In power plants, these meters can monitor the level of coal in a bunker or the level of fly ash in a hopper.

In short, radar level meters are versatile tools that offer accurate, non-contact measurement, making them a popular choice in many industries.

Types of Radar Antennas

Radar level meters are tools that we use to measure the level of liquids, slurries, or granules without touching them. They’re pretty versatile and work well in places where temperatures and pressures change a lot, or where there are gases that don’t react to chemicals or things that can evaporate easily. They work using pulses of microwave radiation and can function in the range of usual industrial frequencies. Plus, they’re safe to use as they don’t emit a lot of energy and can be placed in all sorts of containers or pipes, whether they’re metal or not, without causing harm to people or the environment.

Now, there are a few types of antennas that these radar level meters can use:

Rod Antennas: These are good for measuring things that can corrode over time. They can handle pressures up to 1.6MPa and temperatures up to 20°C. They have a wide angle of emission, around 30 degrees, which means their signal isn’t that strong and they’re not as accurate. But they’re easy to clean and often used in good conditions, for larger measures, and small ranges, like tanks and corrosive substances.
Horn Antennas: These antennas have a large opening, which means they can receive and send signals well. They’re suitable for most measurements and can work under pressures up to 6.4MPa and high temperatures up to 350°C. They focus signals better and have a smaller angle of emission than rod antennas. So, if it’s a high-frequency radar level meter, the emission angle is even smaller, and the accuracy is higher. Many buffer tanks, storage tanks, and reaction tanks use this type of antenna. But they’re not good for corrosive substances.
Parabolic Antennas: These are newer antennas often used in high-frequency radar. They have a very small emission angle, only 3.5 degrees, which makes them great for precise measurements and working around obstacles.
Guided Wave Radar: This uses metal or cable to send and receive electromagnetic waves. It’s a contact measurement method, which means it touches what it’s measuring. It’s not much affected by dust, steam, or sticking to the waveguide rod, so it’s used a lot in solid level and small dielectric constant measurements.
Waveguide Antennas: These should be chosen when the dielectric constant is small (1.6~3) or when there are continuous whirlpools on the liquid surface or false reflections caused by devices inside the container. They focus the radar waves and are installed in the waveguide or bypass pipe. The size of the waveguide’s inner diameter affects the time it takes for the radar waves to travel, so it should be set in the parameters to compensate for the travel time. This type of antenna requires the substance being measured to flow well and not to stick to the material.

How to Choose the Right Radar Antenna

Choosing the right radar antenna for a radar level meter might seem a bit tricky, but it can be a breeze if you know what to look for. Let’s go through the factors you need to think about:

Size of the Tank: Bigger tanks need antennas that can handle longer distances. For example, horn antennas are great for bigger tanks because they have a large opening, so they can send and receive signals well.
Substance Being Measured: Different substances need different types of antennas. If you’re measuring something corrosive, a rod antenna might be your best bet because it can handle corrosive substances. But, if you’re measuring something solid, you might want to go for a guided wave radar, as it’s not much affected by dust or sticking to the waveguide rod.
Process Conditions: If the conditions in which you’re working have high pressures or temperatures, or if there are gases that don’t react to chemicals, you might need a more durable antenna, like a horn antenna. These can work under pressures up to 6.4MPa and high temperatures up to 350°C.

Now, here’s some advice on matching antenna types to specific needs:

Rod Antennas: Choose these when you’re measuring corrosive substances, and your operating conditions are pretty stable. They’re also good for larger measures and small ranges.
Horn Antennas: These are versatile and suitable for most measurements. They’re great for larger tanks and can handle high pressures and temperatures. However, avoid using them with corrosive substances.
Parabolic Antennas: Go for these when you need precise measurements, especially in high-frequency radar. They’re also good at working around obstacles.
Guided Wave Radar: This is your choice for solid level measurements or when the substance you’re measuring has a small dielectric constant.
Waveguide Antennas: Opt for these when the substance you’re measuring flows well and won’t stick to the material. They’re good when the dielectric constant is small or when there are continuous whirlpools on the liquid surface.

Remember, the key is to understand your specific needs and conditions before making a decision. That way, you’ll pick the perfect radar antenna for your radar level meter.

FAQ

Radar level measurement is usually very accurate. The exact accuracy can depend on the type of antenna used and the conditions of the measurement. In general, though, you can trust a radar level meter to give you a pretty good reading.

Radar type level measurement is a way of measuring the level of a substance using radar waves. The radar waves bounce off the surface of the substance and return to the meter. The meter then uses the time it took for the waves to return to calculate the level of the substance.

Radar level sensors work by sending out radar waves from an antenna. These waves hit the surface of the substance being measured and then bounce back to the sensor. The sensor measures the time it took for the waves to return and uses that information to calculate the level of the substance.

There are several types of antennas used in radar, including rod antennas, horn antennas, parabolic antennas, guided wave radars, and waveguide antennas. Each type of antenna is suited to different types of measurements and conditions.

Extended Reading: Case: High Temperature Radar Level Transmitter for Melted Salt-Solar Photovoltaic Power Station

Top Liquid Flow Meters in Industry

Featured

Posted on May 15, 2023 by KimGuo11

A liquid flow meter is an instrument designed to measure the volume or mass of a liquid flowing through a pipe. It plays a vital role in ensuring the efficiency and accuracy of industrial processes. From managing water supply in municipalities to controlling processes in the food and beverage industry, liquid flow meters are ubiquitous. With a variety of types and designs, each with its unique features, the perfect liquid flow meter can greatly enhance your operation.

RFQ

Top Liquid Flow Meters in Industry

At Sino-Inst, we provide liquid flow meters that make tracking the flow rates of various liquids a breeze. From water and fuels to thicker fluids, our meters are designed for ease and accuracy. Whether you need a meter for non-drinking water, fuel-dispensing pumps, or industrial flow measurement, we’ve got you covered.

We offer a broad selection of liquid flow meters, perfect for managing water, petroleum products, fuels, and chemicals.

In short, if you’re searching for a fluid flow meter that’s just right for measuring liquid flow, Sino-Inst is the place to look. We’re here to make liquid flow measurement straightforward and hassle-free.

**Low temperature Turbine Flowmeter-Liquid Nitrogen Flow Meter**

**LCD display Oval Gear High Viscosity Flow Meter**

**High Temperature Oval Gear Flow Meter – Heating oil**

**Z-Series Straight Tube Micro Motion Coriolis Flow Meter**

**T-series Triangle Coriolis Mass Flowmeter**

**V-series Curved Digital Mass Flow Meter**

Types of Liquid Flow Meters

Liquid flow meters come in many shapes and sizes, each built for a specific use. Here are some common types:

Electromagnetic Flow Meters: These meters use a magnetic field to measure flow. They’re great for liquids like water, as they’re clean, accurate, and don’t block the flow.

Turbine Flow Meters: These meters have a little wheel, or “turbine,” that spins when liquid flows past. The faster the liquid, the faster the turbine spins, giving a measure of the flow rate.

Ultrasonic Flow Meters: These meters use sound waves to figure out the speed of the liquid. They are perfect for jobs where you don’t want to touch the liquid you’re measuring.

Mass Flow Meters: These meters are a bit like a tiny weighing scale. They measure the actual mass of the liquid, not just the volume. These are often used in chemical processes.

Positive Displacement (Gear) Meters: Think of these like a water wheel in a stream. As the liquid flows, it turns gears. The number of turns tells you the flow rate. They are very precise and can be used with a wide range of liquids.

Differential Pressure (DP) Flow Meters: These clever devices measure the drop in pressure across a restriction to calculate flow rate. They’re robust, reliable, and can handle a wide variety of conditions.

Remember, each type of flow meter is good at specific tasks. The key is to match the right meter to your needs.

Choosing the Right Liquid Flow Meter

Choosing the right flow meter is crucial for the success of your operation. Factors to consider include:

Accuracy: Some applications may require very accurate measurements, while others can afford a bit of error.
Cost: The total cost of ownership, including the initial cost, installation, and maintenance costs, should be considered.
Ease of Installation and Maintenance: Some meters, like the clamp-on flow meters, are easier to install and maintain than others.
Pipe Size: The size of the pipe in which the meter will be installed is a crucial factor. For example, a 1″ water flow meter may be suitable for some applications but not for others.

FAQ

The three most common types of flow meters are volumetric, mass, and velocity flow meters. Each works on a different principle and is suited for different types of applications.

The accuracy of a liquid flow meter depends on its type, the specific model, and the application it is used for. Of course, if we compare it purely from the technical level. The accuracy of the mass flowmeter in the department will be higher.

A liquid flow meter works by measuring the volume or mass of a liquid as it passes through the device. The specific working principle depends on the type of flow meter.

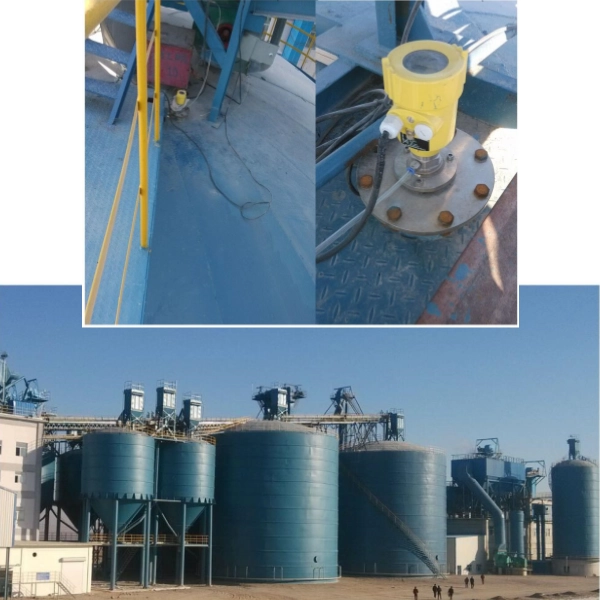

Top Powder Level Sensors-How to Choose

Posted on May 11, 2023 by KimGuo11

Powder Level Sensors help keep things running smoothly in many factories. They watch over the amount of powdery stuff in big containers like silos and bins. This way, they can stop it from getting too full or too empty. These sensors can measure the levels of dry, solid materials and give out a continuous or point value output. We’ll explore the many types of powder level sensors, like diaphragm, paddle, tilt, capacitive, and vibration. We’ll show you why they’re important and help you pick the best one for your needs.

RFQ

Powder level sensors are specialized devices designed to measure the level of powdered substances within a storage unit, such as a silo or hopper. They play an integral role in many industries – from food and beverage to pharmaceuticals, chemicals, and construction. These sensors ensure the smooth operation of industrial processes, minimize waste, and maximize efficiency.

Top Powder Level Sensors for Sale

SIRD-905 Horn Antenna Radar Tank Level Sensor

SIRD-804 Radar Solid Level Sensor

64-80GHz FMCW Level Radar

SIRD-703 GWR Bulk Solids & Powder Solid Level Sensor

Capacitance Level Transmitter

Challenges of powder level measurement

Measuring the level of powdery substances can be quite challenging. Here are a few reasons why:

Dust Creation: Powders can create a lot of dust. This dust can interfere with the sensor’s ability to accurately measure the level of the material.
Uneven Surface: Powders don’t always settle evenly. This can create an uneven surface, making it difficult for some sensors to get a good reading.
Material Characteristics: The characteristics of the powder, like its density or whether it tends to clump together, can also affect the accuracy of the measurement.
Static Electricity: Powdery substances can generate static electricity, which can interfere with the operation of some types of sensors.
Changes in Material Properties: Factors such as humidity, temperature, and pressure can change the properties of the powder, which can affect the accuracy of the level measurement.

Understanding these challenges can help in choosing the right sensor that can accurately measure powder levels despite these difficulties.

Different Types of Powder Level Sensors

Powder level sensors are essential tools for real-time and continuous detection of the height changes of solid materials in containers. They typically output standard signals that connect with display devices or computer systems. Here are some common types:

Mechanical sensors: These tools feel changes in solid stuff. They work well but can get dirty and need cleaning often.
Capacitive sensors: They use electricity to notice changes in stuff inside a container. They’re easy to use but can mess up if stuff sticks to them.
Rotary paddle sensors: These tools spin a small part inside the container. If stuff blocks the spin, they send a signal. They’re simple and cheap but don’t work well in hot places.
Radiation sensors: These tools use special rays to detect stuff. They work well in different spots, but they can make things dirty with radiation.
Ultrasonic sensors: These tools use sound waves to measure how far away stuff is. They’re easy to use and reliable but can mess up if the air is hot, has pressure, steam, or dust.
Radar sensors: These tools use special waves to measure how far away stuff is. They work well in different situations but can mess up when used with solid stuff.
Guided wave radar sensors: These tools work like radar sensors but have a guide for the waves. They’re very reliable but can mess up if stuff gets in the way or sticks to them.

Each tool has good and bad parts. It’s important to pick the right one for what you need.

Picking the right Powder Level Sensor for measuring powder level needs some careful thinking. Here are things to think about:

Type of Material: What kind of powder you are working with, how heavy it is, and other things about it can change how well the sensor works. Some sensors are better with certain powders.
Dust: Powders can make a lot of dust. This dust can mess with some sensors. Sensors that don’t touch the powder, like radar and ultrasonic ones, are often best for dusty places.
Measure Range: How big the container is and the highest and lowest levels you need to measure can change what sensor is best.
Installation: Think about what the place where you’ll put the sensor is like. This includes temperature, pressure, and how much room there is.
Cost and Upkeep: How much the sensor costs at first, how much work it needs to keep it going, and how long it will last are also important to think about.
What the Sensor Needs to Do: Think about if the sensor needs to switch signals or if it needs to output level signals, like 4-20mA.

If you have other special needs, please indicate when you purchase.

Top Digital Pressure Transducers with Display

Posted on May 8, 2023 by KimGuo11

Digital pressure transducers with display is One of the most innovative solutions for pressure measurement. These devices offer real-time, accurate pressure readings, making them indispensable tools in many industries.
Pressure measurement is a crucial aspect of various industrial processes. It ensures safety, improves efficiency, and maintains process quality. LCD or LED display brings great convenience to pressure monitoring.

RFQ

Top Digital Pressure Transducers with Display

To help you make an informed decision, we’ve compiled a list of the top digital pressure transducers with display we supply. These devices offer superior performance, durability, and ease of use.

**Diffused silicon Gauge Pressure Transmitter**
A gauge pressure (GP) transmitter compares a process pressure against local ambient air pressure. Gauge pressure transmitters have ports to sample the ambient air pressure in real-time.

**Capacitive Gauge Pressure Transmitter**
Gauge pressure (GP) transmitters compare process pressure with local ambient air pressure. Gauge pressure transmitters have ports for real-time sampling of ambient air pressure.

**Explosion-proof Pressure Transmitter**
Explosion-proof Pressure transmitter, or explosion-proof pressure transducer, with the explosion-proof enclosure.
For applications in hazardous areas.

**Diaphragm Seal Pressure Transmitter**
When the process medium should not come into contact with the pressured parts of the measuring instrument. Diaphragm sealed pressure transmitters are used for pressure measurement.

**Hygienic / Sanitary Pressure Transmitter**
Also called Hygienic pressure Transmitters, or tri clamp pressure transmitter. Sanitary pressure Transmitters is used to food &beverage or pharmaceutical application.

**High-Temperature Pressure Transmitter**
**High-temperature pressure transmitters** with a 4-20mA output.
which has a temperature capability of over 850 °C and is not pyroelectric.

**Absolute Pressure Transmitter**
Absolute pressure transmitter with 4-20mA output for measuring pressure with absolute type reference. Absolute pressure (AP) transmitter is a measure of the ideal (complete) vacuum pressure.

Advantages of Pressure Transducer with Display

Real-time monitoring: Pressure transducers with display provide instant, real-time pressure readings, enabling quick decision-making and faster response times in critical situations.
Easy to read: The built-in display allows for easy reading of pressure measurements without the need for additional equipment or software.
High accuracy: These devices offer precise and reliable pressure measurements, ensuring consistent performance and improved process control.
Wide range of applications: Pressure transducers with display can be used across various industries, such as oil and gas, petroleum chemicals, power generation, water management, and more, making them versatile and adaptable tools.
Compact and durable design: Pressure transducers with display are typically designed to be compact and robust, allowing for easy installation and long-lasting performance in harsh environments.
User-friendly interface: Many pressure transducers with display feature intuitive interfaces, making them easy to use and configure, even for users with limited experience.
Customization options: Pressure transducers with display can be customized to fit specific application requirements, such as different pressure ranges, output signals, or mounting options. Even, when the pressure transmitter is used to measure liquid level, it can display liquid level.
Low maintenance: These devices generally require minimal maintenance, ensuring a longer service life and lower operating costs.
Enhanced safety: Real-time monitoring of pressure levels can help detect potential issues early, preventing accidents and ensuring the safety of both personnel and equipment.
Improved process efficiency: Accurate pressure monitoring and control can optimize various processes, leading to increased productivity and reduced downtime.

FAQ

While both terms are often used interchangeably, pressure sensors generally refer to devices that detect pressure and convert it into an electrical signal. Pressure transducers, on the other hand, are more specific types of pressure sensors that output an analog or digital signal proportional to the applied pressure.

A digital pressure transducer is a device that converts pressure into a digital signal, typically using microprocessors or microcontrollers. These transducers often come with built-in displays, allowing users to view real-time pressure readings directly on the device.

A 4-20mA pressure transducer is a type of analog pressure transducer that outputs a current signal proportional to the applied pressure. The output current ranges from 4mA (representing the minimum pressure) to 20mA (representing the maximum pressure). This type of signal is commonly used in industrial control systems due to its noise immunity and ability to transmit signals over long distances.

Pressure transducers can be either analog or digital, depending on their output signal. Analog pressure transducers output a continuous signal proportional to the applied pressure, such as voltage or current (e.g., 4-20mA). Digital pressure transducers, on the other hand, output a discrete digital signal, usually in the form of a serial communication protocol like RS-232 or RS-485.

Process Applications of Digital Pressure Transducers with Display

Digital pressure transducers with display are used in many different jobs to check and control pressure. They are important because they show pressure information right away, are accurate, and are easy to use. Here are some examples of where they are used:

Oil and Gas Industry: These devices help make sure that oil and gas move safely and easily through pipes, refineries, and drilling places. They can stop accidents caused by changes in pressure. The U.S. Energy Information Administration talks about the importance of checking pressure in the oil and gas industry.

Water Treatment and Management: Digital pressure transducers with display help check pressure in water systems, wastewater plants, and systems that water plants.

Power Generation: In power plants, these devices are used to check the pressure of steam, water, and other liquids. This helps make power in a good way and stops machines from breaking.

Medicine Making: Digital pressure transducers with display are used when making medicine to keep the right pressure in machines, containers, and pipes.

Food and Drink Making: Pressure checking is important in making food and drinks, like when heating milk, putting bubbles in drinks, and putting food and drinks in packages. Digital pressure transducers with display help make sure the food and drinks are good and safe.

These examples show how digital pressure transducers with display are used in many different jobs. They help make things work better and keep people and machines safe by giving good pressure information right away.

Exploring the Different Types of 1 Inch Flow Meters

Posted on May 4, 2023 by KimGuo11

The world of flow measurement is vast, but one particular type of instrument that often stands out is the 1 inch flow meter. Widely used across various industries, this device is essential for accurate flow measurement in pipes with a diameter of 1 inch. We will check the different types of 1 inch flow meters, their working principles, advantages, and ideal applications. In this way, you can choose the applicable 1 inch flow meters.

RFQ

Featured 1 Inch Flow Meters

**Clamp Filling Oval Gear Positive Displacement Flow Meter**

More About 1 Inch Flow Meters

Turbine Flow Meters: Turbine flow meters are popular due to their accuracy and reliability. They work by allowing the fluid to flow through a turbine, causing it to rotate. The rotation speed corresponds to the fluid’s velocity, providing an accurate flow measurement. Ideal for clean, low-viscosity fluids, these meters are commonly found in the water supply, fuel delivery, and HVAC industries.

Ultrasonic Flow Meters: These meters measure flow rate by utilizing ultrasonic sound waves. With non-intrusive options available, ultrasonic meters are great for applications where the fluid should not be contaminated, such as in the food and beverage industry.

Magnetic Flow Meters: Also known as mag meters, these devices measure the flow rate of conductive liquids. They work on Faraday’s law of electromagnetic induction, making them a suitable choice for waste-water treatment or chemical processing applications.

Vortex Flow Meters: Vortex meters measure the vortices created by a fluid passing a bluff body placed in its path. They are particularly effective for steam flow measurement and other high-temperature applications.

Positive Displacement Flow Meters: These meters measure the volume of fluid by repeatedly filling and emptying compartments of a known volume. This type is ideal for high viscosity fluids, like oils.

For a more in-depth look at each of these types, click on their respective links.

More about: Different Types of Flowmeters – Technical and Application Analysis

Choosing the right size and style for installing your 1 inch flow meter is really important for getting accurate measurements and making sure it works well. Here, we’ll go through the different ways you can install it and give some specifics for each:

Flanged Connections: These are usually used for bigger, high-pressure jobs. The sizes of the flanges are standardized, and can follow different standards like ANSI or DIN. With a 1 inch flow meter, you’d usually see flanges with circle diameters of 88.9mm (ANSI) or 90mm (DIN), with four bolt holes.
Threaded Connections: These are usually used for smaller, low-pressure jobs. For 1 inch flow meters, the common types of threads are NPT (National Pipe Thread) and BSP (British Standard Pipe). A 1 inch NPT thread is about 1.315 inches across, while a 1 inch BSP thread is about 1.309 inches across.
Clamp or Sanitary Connections: These are used for jobs that need to be really clean, like in the food, drink, or drug industries. They’re easy to take apart and clean. A standard 1 inch tri-clamp connection has a flange that’s 1.984 inches across, and a tube that’s 1.370 inches across.
Compression Fittings: These are usually used for small pipes and are really common in gas or liquid chromatography. A standard 1 inch compression fitting has a tube that’s 1 inch across.
Wafer Connections: This style is small and cheap, and is often used where there isn’t a lot of space. For a 1 inch flow meter, the outer diameter of a wafer-style connection is usually around 4.25 inches, with bolt holes that match the flange standards.

Remember, the right style for installing your flow meter will depend on your specific job, what kind of fluid you’re dealing with, the pressure and temperature conditions, and how clean things need to be. Always talk to a professional or your flow meter manufacturer if you’re not sure what’s the best choice for your job.

Choosing the Right 1 Inch Flow Meter

Choosing the perfect 1 inch flow meter for your specific job can seem tricky, but it’s really important if you want to measure things correctly and make your system work its best. Here, we’ll go through a list of key things to think about when you’re picking out the best flow meter:

Type of Fluid: Know what kind of fluid you’ll be measuring. Is it a liquid, gas, or steam? What’s its thickness (or viscosity) and temperature range? Different types of flow meters work best with different kinds of fluids.
Flow Range: Figure out the lowest and highest flow rates you need to measure for your job. Flow meters can measure different amounts, so it’s really important to pick one that can handle the range you need.
Mounting Sizes: As we mentioned before, we can set up different mounting sizes for 1 Inch Flow Meters, like the ANSI DN25 flange.
Accuracy Requirements: Work out how accurate you need your measurements to be. Different flow meters can be more or less precise, so it’s important to pick one that can be as accurate as you need it to be.
Installation Constraints: Think about where you’ll install it, like how much space there is, how easy it is to get to, and if there’s anything in the way. Some flow meters need to be installed in specific ways, which could affect your choice.
Operating Conditions: Keep in mind the pressure and temperature of your system when it’s working. Choose a flow meter that can handle these conditions without losing performance or accuracy.
Material Compatibility: Make sure the flow meter’s materials won’t react with the fluid being measured. This is really important for stopping corrosion and making your flow meter last longer.
Maintenance Requirements: Think about how much upkeep the flow meter needs. Some types need more regular maintenance than others, which could affect your choice depending on how much upkeep you can do.
Cost and Budget: Keep in mind the cost of the flow meter, including buying it, setting it up, and keeping it running. Keep your budget in mind, but also think about the long-term value of the flow meter.

By thinking about these things, you can make a smart choice when picking the right 1 inch flow meter for your job. Remember, different types of flow meters have their own pros and cons, so understanding what you specifically need is key to choosing the best one.

Ultrasonic Tank Level Sensors for Tank Level Monitoring

Posted on May 1, 2023 by KimGuo11

Ultrasonic tank level sensors have become a popular choice for tank level monitoring due to their non-contact measurement, high accuracy, and easy installation. These sensors use high-frequency sound waves to measure the distance between the sensor and the surface of the liquid in the tank, and the time it takes for the sound waves to travel to the liquid surface and back is used to calculate the level.

RFQ

Top Ultrasonic Tank Level Sensors

**ULT-100A Ultrasonic Level Transducer**

**Portable Ultrasonic Liquid Level Indicator**

**HS-ULC Ultrasonic Level Switch-External Mounted**

**Ultrasonic Sludge Interface Meter /**
**Sludge Level Meter**

**Portable Ultrasonic Water Depth Gauge**

Tank Level Monitoring

Tank level monitoring is an essential aspect of managing liquid storage and ensuring efficient operations across various industries. There are several methods and technologies available to achieve accurate and reliable tank level monitoring. Here, we will outline the general steps and factors to consider when implementing a tank level monitoring system:

Choose the right level measurement technology: Several technologies can be used for tank level monitoring, including ultrasonic, radar, capacitive, and hydrostatic. Each technology has its advantages and disadvantages, depending on the type of liquid, tank size, and environmental conditions. It’s crucial to choose the appropriate technology that best suits your specific application.

Select the appropriate level sensor: Once you’ve determined the most suitable measurement technology, it’s essential to choose a level sensor that meets your specific requirements. Consider factors such as range, accuracy, resolution, and compatibility with the liquid being measured. You may also need to consider certifications and ratings for hazardous environments if applicable.

Install the level sensor correctly: Proper installation of the level sensor is critical for accurate and reliable measurements. Ensure that the sensor is mounted at the correct location and angle, free from obstructions and interferences that could affect the sensor’s performance. Follow the manufacturer’s guidelines and best practices for installation.

Integrate the sensor with a control system: To make the most of your tank level monitoring system, it’s essential to integrate the sensor with a control system that can display real-time data, generate alerts, and automate processes. This can be done using programmable logic controllers (PLCs), human-machine interfaces (HMIs), or dedicated tank level controllers.

Establish a data communication network: A robust data communication network is necessary for transmitting sensor data to the control system and other devices. You can choose from wired or wireless communication options, depending on your infrastructure and connectivity requirements.

Perform regular maintenance and calibration: To ensure the ongoing accuracy and reliability of your tank level monitoring system, it’s important to perform regular maintenance and calibration. This includes cleaning the sensor, checking for wear and damage, and calibrating the sensor according to the manufacturer’s recommendations.

Analyze and optimize: Monitor the performance of your tank level monitoring system and use the data collected to identify areas for improvement and optimization. This can help you enhance the efficiency of your operations, reduce costs, and prevent potential issues before they become critical.

By following these steps and carefully considering the factors involved, you can successfully implement a tank level monitoring system that meets your specific needs and provides accurate, reliable data to optimize your operations.

Monitors Liquid Volume Solutions

Ideally, we should be able to use a liquid volume sensor to directly measure the volume of the liquid in the container. Well, but in fact, there is no mature liquid volume sensor product on the market.

Because there are various shapes of liquid containers. Such as cylinders, spheres, rectangles, cylinders and squares with hemispherical ends.

So why are we talking about liquid volume sensor here? Don’t worry, we don’t have a mature liquid volume sensor. However, we have A dozen ways for liquid level measurement, with different level sensors. Combined with Sino-Inst’s volume recorder. It can collect, display and convert the liquid level of various regular and irregular tanks in the industrial field into the corresponding tank volume. It is suitable for monitoring, controlling and collecting various process parameters.

Read more about Monitoring liquid volume solutions.

Characteristics of Shaft Torque Sensors

Featured Torque Sensors

Where are Shaft Torque Sensors Used? Real-World Applications

Choosing the Perfect Shaft Torque Sensor: Key Factors to Consider

Maintaining Your Shaft Torque Sensor

FAQ

What is a shaft torque sensor?

How do you measure torque on a shaft?

What does a torque sensor do on a car?

What are the two types of torque sensors?

More Torque Measurement Solutions

What is a Differential Pressure Sensor?

types of differential pressure sensors

Working Principles of Differential Pressure Sensors

Featured Industrial Differential pressure Transmitters

Differential Pressure Sensors Vs. Pressure Sensors

1. Measurement Method

2. Application

3. Complexity and Cost

Applications of Differential Pressure Sensors

FAQ

What does a differential pressure sensor do?

What is the difference between a pressure sensor and a differential pressure sensor?

What is a differential pressure sensor for air?

Is a differential pressure sensor a transducer?

What is the purpose of a differential pressure sensor?

How does a differential pressure flow sensor work?

More Pressure Measurement Solutions

Radar Liquid Level Sensors Products

Understanding Radar Liquid Level Sensors

Radar Liquid Level Sensors Working Principle

Key Benefits of Radar Liquid Level Sensors

Related Level Measurement Solutions

More Liquid level measurement products

FAQ

How does a radar liquid level sensor work?

What is a radar water level sensor?

How accurate is a liquid level sensor?

What are the different types of radar level sensors?

Related Tools

What is radar level meter?

Featured Radar Level Meters

working principle of radar level meters

advantages and common applications of radar level meters in various industries

Advantages of Radar Level Meters:

Common Applications of Radar Level Meters:

Types of Radar Antennas

How to Choose the Right Radar Antenna

FAQ

How accurate is radar level measurement?

What is radar type level measurement?

How do radar level sensors work?

What are the different types of antennas used in radar?

More Level Measurement Solutions

Top Liquid Flow Meters in Industry

Types of Liquid Flow Meters

Choosing the Right Liquid Flow Meter

FAQ

What are the three types of flow meters?

What is the most accurate liquid flow meter?

How does a liquid flow meter work?

How to read a flow meter liquid?

How to make a liquid flow meter?

More Flow Measurement Solutions

Top Powder Level Sensors for Sale

Challenges of powder level measurement

Different Types of Powder Level Sensors

6 Key Factors to Consider When Choosing a Powder Level Sensor

More Level Measurement Solutions

Top Digital Pressure Transducers with Display

Advantages of Pressure Transducer with Display

FAQ

What is the difference between a pressure sensor and a pressure transducer?

What is a digital pressure transducer?

What is a 4-20mA pressure transducer?

Is a pressure transducer analog or digital?

Process Applications of Digital Pressure Transducers with Display

More Pressure Measurement Solutions

Featured 1 Inch Flow Meters

More About 1 Inch Flow Meters
