SI-512H High Temperature Pressure Sensor

High Temperature Pressure Sensor for pressure measurement of high temperature gas or liquid. Such as steam pressure. High temperature up to 800 ℃.

SI-512H High Temperature Pressure Sensor

High Temperature Pressure Sensors from Sino-Inst operate beyond standard 85°C to 125°C ranges, withstanding temperatures up to 800°C. These pressure sensor high temperature devices offer stable and repeatable output in various industries like test and measurement and downhole tool operations.

Engineers can easily calibrate these sensors due to their accurate performance over a wide temperature range. Choose between millivolt and amplified designs to find the ideal High Temperature Pressure Sensor for your needs, ensuring precise measurements and optimized efficiency in demanding conditions.

Sino-Inst is a manufacturer of high temperature pressure sensors in China. Committed to the manufacture, sales and engineering support of high temperature pressure sensors.

Features of High Temperature Pressure Sensor

  • High temperature -40 ℃ ~ 200 ℃; -40 ℃ ~ 400 ℃; -40 ℃ ~ 600 ℃; -40 ℃ ~ 800 ℃
  • Stainless steel integrated structure can adapt to harsh environments
  • Small size, high accuracy, high cost performance, high stability
  • -100KP ~ 0 ~ 100MPA
  • Various standard signal output options, convenient for user debugging
  • Lightning protection, electromagnetic / radio frequency interference resistance
  • Wide power supply range (5 ~ 40V)
  • With zero point, full scale adjustable
  • SS304 stainless steel housing structure

Extended Reading: What is a MEMS pressure sensor?

Specifications of High Temperature Pressure Sensor

  • Range: -100KPa ~ 0 ~ 100MPa optional
  • Accuracy: ± 0.5% FS (composite error including non-linear repeatability hysteresis)
  • Output signal: 4 ~ 20mADC (two-wire system), 0 ~ 10mADC, 0 ~ 20mADC, 0.5 ~ 4.5VDC, 0 ~ 5VDC, 1 ~ 5VDC, 0 ~ 10VDC (three wire system)
  • Power supply voltage: 5 ~ 40VDC (two-wire system), 15 ~ 40VDC (three-wire system)
  • Medium temperature: -40 ℃ ~ 200 ℃ -40 ℃ ~ 400 ℃ -40 ℃ ~ 600 ℃ -40 ℃ ~ 800 ℃
  • Ambient temperature: -30 ℃ ~ 105 ℃
  • Pressure connection: M20 * 1.5 M22 * 1.5 M16 * 1.5 M11 * 1 NPT1 / 4 NTP1 / 2 NTP3 / 8 G1 / 8 G1 / 2 G1 / 4 G3 / 8,1 / 2-20UNF, etc. Other threads can be according to customer requirements design
  • Zero temperature drift: ≤ ± 0.02% FS ℃
  • Range temperature drift: ≤ ± 0.02% FS ℃
  • Compensation temperature: 0 ~ 80 ℃
  • Safety overload: 150% FS ℃
  • Ultimate overload: 200% FS ℃
  • Response time: 5 mS (up to 90% FS)
  • Vibration effect: The frequency is 10 ~ 100KHZ, the acceleration is 10g, all the effects are less than ± 0.1% FS
  • Test medium: Various liquids and gases compatible with 17-4PH stainless steel
  • Housing material: 304 or 316 stainless steel
  • Electrical connection: Hessman 3009 connector

Read more about: What is a pressure sensor and how it works?

Applications of High Temperature Pressure Sensor

High Temperature Pressure Sensor is used in industrial fields such as water plants, oil refineries, sewage treatment plants, building materials, light industry, machinery, etc. to achieve the measurement of liquid, gas and vapor pressure.

Application examples:

  • Industrial field process pressure detection
  • Laboratory pressure calibration system
  • Nautical and shipbuilding
  • Aviation and aircraft manufacturing.
  • Air separation equipment and thermal power units

Extended reading: High Pressure Flow Meters for Liquids-Steam-Gas

Cooling Element

Can pressure transmitters measure high temperature media?

Customers often have such a question. So can pressure transmitters really measure high temperature media? The answer is yes.Of course, the pressure transmitter cannot directly contact the high-temperature medium. Prolonged contact with high-temperature media can easily damage the pressure sensor. Usually when measuring high temperature media, the pressure transmitter will be equipped with a stainless steel heat sink device. Avoid direct contact between the medium and the transmitter. A condensing tube can also be added on the basis of the heat sink to reduce the damage to the transmitter caused by excessive temperature.

Read more about: What is industrial pressure transmitter?

High temperature-resistant pressure transmitters use Hessman connectors to keep the signal stable, the circuit design is constantly optimized, and the anti-interference ability is strong. The heat sink and core are fully combined to work normally at high temperatures.

High temperature-resistant pressure transmitter:

  1. Adding stainless steel heat sink on the basis of standard type and industrial type is high temperature type product, divided into standard high temperature type and industrial high temperature type. 4 ~ 20mA output, voltage 0 ~ 5V / 1 ~ 5/0 ~ 10V, etc.
  2. Standard high temperature type, all stainless steel structure, small size and easy installation. High temperature industrial type, cast aluminum housing, terminal output and simple wiring. When the current output is required, a digital display meter can be optionally provided.
  3. Standard high temperature type, high temperature industrial type, optional intrinsically safe explosion-proof box isolation and explosion-proof.
  4. The computer compensation technology is adopted, and the temperature drift is small. ± 0.01% FS / ℃ integrated circuit, high precision, strong anti-interference ability.
  5. Applied in petroleum, chemical, steel, light industry, machinery and equipment, energy constant pressure variable frequency water supply and other industries pressure detection. When the temperature is quite high, a condenser tube or a condenser is still used.

Add-on High Temperature Adapter

Add-on High-Temperature Adapter can also be called a pressure buffer tube. The role is to cool the measured medium and smooth the pressure fluctuations. When the pressure of the liquid, steam, and condensable gas whose temperature is higher than 60 ℃ is detected, the source port of the pressure sensor installed locally shall have a ring-shaped condensation ring or a U-shaped condensation bend.

Add-on High-Temperature Adapter is mainly used in a high-temperature environments with permeable or saturated steam. Avoid direct contact with high-temperature fluid inside the pressure sensor.

Read more about: Steam pressure transmitter-Pressure measure on steam pipeline

Pressure and Temperature Sensor-Dual function
Ceramic Pressure Sensor
Ultra-High Pressure Senors
Liquid pressure sensor

pressure sensor for steam

Pressure transmitters are used for steam metering and pipeline monitoring.

The temperature in the steam pipeline is generally relatively high. The low is more than one hundred degrees Celsius, and the high is two to three hundred degrees Celsius.

The start and stop of the valve will also cause the pressure in the pipeline to fluctuate.

Today we are going to talk to you about what to pay attention to when measuring the pressure of steam pipes?

When measuring the pressure of the steam pipeline, a high-temperature pressure transmitter should be selected due to the high-temperature environment.

In fact, in steam conditions, it only needs to pass through the surface bend (condensation tube). After passing through the elbow, the steam will condense into water at the elbow. Insulate the temperature, so as to achieve a good cooling effect.

The pressure transmitter after passing through the elbow on the pipeline with insulation layer is basically at room temperature. If it is not insulated, the high temperature will rise, causing the temperature of all objects above the pipeline to rise.

Advantages: The use of bends can optimize the cost, and is compatible with the product.

The material selection of a good bend is high. It is thicker and more durable than the general watch bend on the market. Good pressure resistance. The price will be slightly more expensive.

Extended Reading: FMCW Radar for High Temperature Level Sensor

The above-mentioned pressure transmitter diaphragm damage is due to the phenomenon of water hammer.

The valve suddenly opens or closes, causing the pressure in the steam pipe to fluctuate suddenly.

Especially when the valve is opened, huge pressure fluctuations will cause the pipeline to vibrate violently. Even shocking.

The pressure transmitter will also withstand huge pressure in the pipeline. In severe cases, the core may be dented or even burst.

The prevention method is to install safety valves and accumulators, and open and close the valves slowly. Install a trap at the high point of the air discharge valve at the low point.

Some pressure transmitters will be protected by dampers and baffles.

The damper is a copper piece with a 4mm outer wire and a T-shaped thin through-tube structure inside. It can prevent the medium from directly impacting the diaphragm.

The baffle is placed on the front end of the core before assembling the core. Metal plate with holes. It also prevents the medium from directly impacting the diaphragm.

In the hydraulic machinery industry, there are a lot of equipment for pressure transmitters, which are often used for pressure control.

But hydraulic machinery is very prone to pressure shock when it is working. The shock pressure will far exceed the normal pressure, causing damage to the pressure transmitter.

In this case, some pressure transmitters have internal wires and dampers in the standard pressure port. Can effectively alleviate the impact.

The hydraulic and mechanical pressures are all above 10MPa. Generally, the transmitter above 10MPa should be equipped with a damper as standard. If the pressure shock is severe, a baffle can be added to alleviate the shock.

Extended Reading: Electronic Pressure Switch for Air Compressor

Frequently
Asked
Questions

A high pressure sensor is a device that converts the measured electrical parameters into DC current, DC voltage and isolates and outputs analog or digital signals.

The high pressure sensor usually adopts the selected foreign patch technology. The working principle is that the pressure of the measured pressure acts directly on the sensing piece of the sensor. The sensing piece produces a micro-displacement proportional to the pressure, and the resistance value of the sensor changes. And use the electronic circuit to detect this change. And convert and output a standard measurement signal corresponding to the pressure.

High temperature sensor is a kind of pressure sensor commonly used in industrial practice. It is widely used in various industrial automatic control environments.

The working principle of the high temperature sensor: the pressure of the wind pressure sensor acts directly on the diaphragm of the sensor. The diaphragm produces a micro-displacement proportional to the pressure of the medium. The resistance of the sensor changes. And the electronic circuit is used to detect this change. And The conversion outputs a standard signal corresponding to this pressure.

Extended reading: High Temperature Flow Meter

In HVAC systems, end sensors and controllers are the key components to ensure the smooth operation of the entire system and achieve energy-saving effects.

In the central air conditioner, the filter is used to filter the dust and impurities in the ventilation duct. The pressure sensor at the indoor vent is used to monitor the air pressure difference between the two ends of the filter at the air outlet. With the accumulation of time, the dust on the filter will accumulate more and more. It will gradually affect the air circulation of the filter. When the air circulation is not smooth, the air pressure difference between the two ends of the filter will continue to increase.

When the pressure sensor senses the pressure change, the upper computer receives the signal from the pressure sensor. When the signal value reaches the alarm point, it will start to alarm. It reminds the cleaning staff to replace or clean the filter. In addition to this role, the pressure sensor is also used to participate in the control of the air supply volume of the air outlet.

Extended reading: Miniature Pressure Switch

To measure pressure at high temperatures, you need a High Temperature Pressure Sensor designed to withstand extreme temperatures. These sensors typically use special materials and construction methods to ensure accurate and stable pressure readings even in environments with elevated temperatures.

Pressure sensor failures can result from several factors, including:

  • Overpressure: Exceeding the sensor’s rated pressure limit can cause permanent damage.
  • Temperature extremes: Prolonged exposure to temperatures outside the sensor’s specified range may cause sensor failure.
  • Mechanical stress: Physical damage, such as dropping or mishandling, can impact the sensor’s performance.
  • Corrosion: Exposure to harsh chemicals or corrosive substances can lead to sensor deterioration.
  • Electrical issues: Overvoltage, electromagnetic interference, or faulty wiring can damage the sensor’s electronics.

A pressure and temperature sensor is a combined device that measures both pressure and temperature in a single unit.

The pressure sensing element, usually a piezoresistive or capacitive element, converts the applied pressure into an electrical signal.

The temperature sensing element, often a thermocouple or RTD, measures the temperature by producing a voltage or resistance change proportional to temperature variations. The sensor’s output signals are then processed and converted into readable values.

A pressure sensor detects and measures the pressure of a fluid or gas. It converts the pressure into an electrical signal, which can be read and processed by control systems, instruments, or data acquisition devices. Pressure sensors can be used in various applications, such as monitoring pressure in pipelines, HVAC systems, automotive systems, and industrial processes.

Related Blogs

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at…

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion resistance, wear resistance, impact, and…

Static Pressure/Hydrostatic Pressure Transmitter

The Hydrostatic Pressure Transmitter measures the hydrostatic pressure exerted by a hydrostatic head. Use these hydrostatic pressure transmitters to measure the liquid level in storage tanks, processing vessels, collection tanks,…

How to convert a 4-20mA to 0-10V /1-5V signal?

4-20mA to 0-10v voltage, this is I/V conversion. That is current-voltage conversion, usually used for long-distance signal transmission in the industry. How to convert a 4-20mA to 0-10V /1-5V signal?…

What does intrinsically safe mean?

Intrinsically safe type is an explosion-proof type of electrical equipment. When purchasing electrical equipment, do you often hear about intrinsic safety? For example, when ordering pressure transmitters or flow meters…

What does SCADA stands for?

What does SCADA stand for? SCADA is the abbreviation of Supervisory Control And Data Acquisition. Namely data acquisition and monitoring control system. SCADA system is also called monitoring configuration software,…

What is a pressure sensor?

What is a pressure sensor? A pressure sensor is a device that senses a pressure signal and converts the pressure signal into a usable output electrical signal according to certain…

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors for pressure measure and control. If you have any questions, please contact our sales…

High Frequency Dynamic Pressure Sensor

Dynamic pressure sensor, the transmitter is a high frequency sensor. Sino-Inst offers a variety of  Dynamic Pressure Sensors for pressure measurement. If you have any questions, please contact our sales…

Differential Pressure Transmitter Installation Guide

Differential pressure transmitter installation guide helps you solve the installation problem of DP Transmitters. Sino-Inst offers a variety of  differential pressure transmitters for pressure/level/flow measurement. If you have any questions,…

Sino-Inst offers high temperature Pressure Sensors/Transducers. A wide variety of  high temperature Pressure sensors options are available to you. Such as free samples, paid samples. Sino-Instrument is a globally recognized manufacturer of high temperature Pressure sensors, located in China. Sino-Inst sells through a mature distribution network that reaches all 30 countries worldwide. Pressure sensors products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

SI-PT series Melt Pressure Sensors/Transducers – High Temperature

Melt pressure transducers work for pressure measurement & control of melt under high temperature.

SI-PT series melt pressure sensors work for high temperature melt pressure measurement and control. SI-PT series high temperature melt pressure sensor has the advantages of high accuracy. Good stability. Large output signal. Good dynamics and strong versatility. Melt pressure sensors are widely used in: Gas pipe production lines. Plastic pipe production line. Geonet unit. Single corrugated pipe production line. Core layer foamed pipe production line. Plastic sheet (sheet) extrusion line. Polystyrene foam pipe production line. Film blowing unit, extrusion unit, PE stretch film unit, etc.

Sino-Inst’s also offers hazardous location melt pressure transducer just as you need.

Sino-Inst is a manufacturer of high temperature melt pressure sensors in China. Committed to the manufacture, sales and engineering support of high temperature melt pressure sensors.

Featured Melt Pressure Sensors/Transducers

ModelSI-PT 111 Melt Pressure Sensor
DescriptionPT111-series high temperature melt pressure sensor is mainly used for pressure measurement and control of molten materials under high temperature conditions.
FeaturesHigh accuracy.
Stable and reliable.
The output signal is large.
Good dynamic performance.
Strong versatility
Specifications1: Pressure range: 0 ~ 5MPa ~ 100MPa;
2: Accuracy: + 0.5% FS; + 1.0% FS;
3: Working power: 10VDC (6–12VDC);
4: Output signal: 0 ~ 5V; 0 ~ 10V; 4-20mA;
5: Calibration method: 80% FSO + 1%;
6: Probe temperature resistance: 300 ℃;
7: Temperature drift: ≤0.30Mpa / 100 ℃;
8: Electrical connection: universal five-core connector; military five-core connector;
9: Overload pressure: 1.5 * FS;
10: Mechanical connection: 1/2 “-20UNF, M14 * 1.5, M22 * 1.5, G3 / 4 and other multi-thread sizes;
11: Anti-corrosion and wear-resistant coating: suitable for pressure measurement of high-concentration rough media, which can increase the applicable life 3-5 times;
ApplicaitonsWidely used in petroleum, chemical fiber, plastic, rubber and other industries.
ModelSI-PT112 melt pressure transmitter
DescriptionPT112 series rigid rod high-precision pressure transmitter is mainly used for various occasions that require accurate data measurement. This product uses special material and alloy elastic diaphragm to reduce temperature drift and improve measurement accuracy. The zero full scale can be adjusted, and the amplified signal is directly input to the PLC, and the internal 80% calibration.
FeaturesHigh precision.
Stainless steel package.
Easy to install.
Can replace similar imported products.
80% internal alignment.
Good stability repeatability.
Specifications1. Measuring range: 0… 5MPa ~ 0… 200MPa
2. Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS
3. Output signal: transmitter signal: 0 ~ 5V; 0 ~ 10V; 4-20mA; sensor signal: 2mV / V; 3.33mV / V
4. Power supply voltage: Transmitter: 24VDC (12 ~ 36) VDC; Sensor: 10VDC
5. Process connection: 1/2 ″ -20UNF, M14 × 1.5, M18 × 1.5, M22 × 1.5, G3 / 4 ″ optional
6. Electrical connection: 5 cores, 6 cores, optional
ApplicaitonsHigh temperature fluid media in chemical fiber spinning, polyester, and other equipment.
ModelSI-PT123 flexible high temperature melt pressure transducer
DescriptionPT123 flexible hose-type melt pressure sensor, which is equipped with a temperature sensor, can achieve the same point pressure and temperature measurement.
FeaturesHigh precision;
Stainless steel package;
Easy installation;
Can completely replace similar imported products;
80% internal calibration;
Good stability and repeatability
Specifications1. Measuring range: 0… 3.5MPa ~ 0… 150MPa
2. Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS
3. Output signal: 2mV / V; 3.33mV / V
4. Power supply voltage: 10 (9 ~ 12V) DC
5. Process connection: 1/2 ″ -20UNF, M14 × 1.5, M18 × 1.5 (customer-defined)
6. Diaphragm temperature: 350 ℃ (* High 400 ℃)
7. Diaphragm material: 15-5PH coated stainless steel
8. Electrical connection: 5 core, 6 core
ApplicaitonsPressure measurement and control of high temperature fluid media in chemical fiber spinning, polyester and other equipment.
ModelSI-PT124 high temperature melt pressure sensor
DescriptionRigid rod, hose isolation, diaphragm isolation structure, PT124 high temperature melt pressure sensor can be completely interchangeable with similar products such as American Dynisco, GEFRAN, RKC.
FeaturesRigid rod, hose isolation, diaphragm isolation structure
Specifications1. Pressure range: optional within 0 ~ 5MPa ~ 200MPa;
2. Accuracy: + 0.25% FS; + 0.5% FS;
3. Input voltage: 10VDC (6–12VDC);
4. Output signal: 1.5mv / v, 2.0mV / V, 3.3mV / V;
5. Calibration method: 80% FSO + 1%;
6. Probe temperature resistance: 450 ℃;
7. Temperature drift: ≤0.30Mpa / 100 ℃;
8. Electrical connection: universal five-core connector;
9. Overload pressure: 1.5 * FS; high temperature melt pressure transmitter
10.Mechanical connection: 1/2 “-20UNF, M14 * 1.5, M18 * 1.5, M22 * 1.5, and other multi-thread sizes;
11. Anti-corrosion and wear-resistant coating: suitable for pressure measurement of high-concentration rough media, which can increase the applicable life 3-5 times;
ApplicaitonsPressure measurement and control of high temperature fluid media used in chemical fiber spinning, polyester, rubber and plastic machinery.

ModelSI-PT127 high temperature melt pressure sensor
DescriptionPT127 high temperature melt pressure sensor is mainly used in various occasions that require accurate data measurement. This product uses special material and alloy elastic diaphragm to reduce temperature drift and improve measurement accuracy.
FeaturesRigid rod, hose isolation, diaphragm isolation structure. Good stability and accuracy;
Specifications1. Range: 0 ~ 5 ~ 200MPa
2. Comprehensive accuracy: 0.5% FS; 1% FS
3. Output signal: 1.5mV / V; 2mV / V; 3.33mV / V 4. Power supply voltage: 10VDC
5. Temperature model: J, K, E, PT100
6. Diaphragm temperature resistance: 450 ℃
7. Electrical connection: 5-pin connector 5 pin
8. Process connection: M22 × 1.5; special design
ApplicaitonsMeasurement and control of pressure and temperature of high temperature fluid media of chemical fiber spinning, polyester, rubber and plastic machinery and other equipment.
ModelSI-PT131 high temperature melt pressure and temperature transducer
DescriptionPT131 has good stability and accuracy. It is completely interchangeable with similar products such as Dynisco, GEFRAN, RKC, etc.
FeaturesRigid rod, hose isolation, diaphragm isolation structure
Specifications1: Pressure range: optional within 0 ~ 5MPa ~ 200MPa
2: Accuracy: + 1.0% FS; + 0.5% FS;
3: working power: 10VDC (6–12VDC);
4: Output signal: PT131 series: 1.5mv / v, 2.0mV / V, 3.3mV / V
5: Calibration method: 80% FSO + 1%;
6: Probe temperature resistance: 450 ℃
7: Temperature Model: PT131 (E; J; K)
8: Electrical connection: PT131-series: universal seven-core connector
9: Overload pressure: 1.5 * FS
10: Mechanical connection: 1/2 “-20UNF, M14 * 1.5, M18 * 1.5, M22 * 1.5, etc.
11: Anti-corrosion and wear-resistant coating: suitable for pressure measurement of high-concentration rough media, which can increase the applicable life 3-5 times
ApplicaitonsPressure measurement and control of high temperature fluid media used in chemical fiber spinning, polyester, rubber and plastic machinery.
ModelSI-PT2616 flange high temperature melt pressure transmitter
DescriptionPT2616 flange high temperature melt pressure transmitter is a new pressure measuring transmitter launched by our company. It is used to measure high precision and pollution-free environment. The product combines the latest technology of the industry, using special elastic diaphragm and pressure Strain gauges. Greatly reduced measurement error, more stable and more wear-resistant.
FeaturesHigh precision, stainless steel material sealing, simple installation, good stability, zero degree full scale adjustable, linear output can be directly PLC, good working characteristics and explosion-proof.
Specifications1. Pressure measuring range: 0 ~ 5, 0 ~ 200Mpa
2. Accuracy: ≤ ± 0.5% full scale
3. Signal output: 1.5mv / v, 2.0mV / V, 3.3mV / V
4. Input voltage: 10VDC (6-12) VDC
5. Electrical connection: 6-pin universal aviation plug
6. Mechanical connection: flange connection, size can be customized
7. Diaphragm temperature resistance: 300 ℃
8. Overpressure: 1.5% full scale
ApplicaitonsThis product is suitable for measuring the pressure of high temperature melt and the measurement of melt of plastic, plastic, rubber, chemical fiber and other extruder and extruder.
ModelSI-PT292 explosion-proof high temperature melt pressure transducer
DescriptionThe PT292 series is an intelligent 4-20mA pressure transmitter designed for use in hazardous areas. PT292 high temperature melt pressure transducer type products have passed the Class 1, Division I, Groups A, B, C and D explosion-proof certification. Explosion-proof products include wire connections. Type PT292 is ATEX II 1 G 100a certified and Eex ia IIC 0 and 1 zone intrinsically safe. This intrinsically safe and ATEX version is available with either a connection wire connection or a 6-pin connection.
FeaturesConfigurable by hand;
Repeatable precision pressure measurement;
Direct output to DCS or PLC;
Users can precisely adjust the pressure range;
Certification for use in hazardous environments;
Meets new EC requirements
Specifications1. HARTTM Digital Communications
2. Comprehensive error better than ± 0.25%
3. 4-20mA loop-powered output
4. 0-500 to 0-30,000 psi
5. Ex, intrinsically safe or ATEX certified
ApplicaitonsPressure measurement and control of high temperature fluid media used in chemical fiber spinning, polyester, rubber and plastic machinery.

Extended reading: Flat Pressure Sensor for High Viscosity Fluids

Working Principle of Melt Pressure Transducer

The working principle of the melt pressure sensor is that the pressure of the medium directly acts on the diaphragm of the sensor. The diaphragm produces a micro-displacement proportional to the pressure of the medium. The resistance of the sensor changes. The change is detected by electronic circuits. The conversion outputs a standard signal corresponding to this pressure.

Precautions for buying high temperature melt pressure sensors

1. What kind of pressure is being measured. Generally, the maximum pressure range of the high temperature melt pressure sensor you need should reach 1.5 times the maximum pressure value of your system. All high temperature melt pressure sensors are designed to withstand the maximum pressure for 200 million cycles without degrading performance. You need to find a compromise solution between system performance and high temperature melt pressure sensor life.

2. Consider the type of media that needs to be measured. The key factor to consider when selecting a high temperature melt pressure sensor is the medium being measured. Will it be a viscous liquid or a slurry on the pressure head? Is the contact with the high temperature melt pressure sensor a soluble or corrosive medium or clean dry air? This question determines whether impact dies are needed and what materials are used to make contact with the media.

3. Consider the accuracy you need to achieve. Accuracy is a term commonly used by manufacturers to describe the output error of high temperature melt pressure sensors. The cost of having a higher accuracy high temperature melt pressure sensor will be higher. Then your system really needs such high accuracy ? A system consisting of a high-precision high-temperature melt pressure sensor and a low-resolution instrument is actually a low-efficiency solution.

4. Carefully consider the temperature resistance, interchangeability, time stability and ruggedness of the high temperature melt pressure sensor to be purchased.

5. What output method does the high temperature melt pressure sensor you want to use. The required excitation voltage, and how to connect the high temperature melt pressure sensor to your electrical system.

Extended Reading: strain gauge pressure transducer

Use of high temperature melt pressure sensor

Installation

The correct installation position of the high temperature melt transmitter on the process pipeline is related to the measured medium. In order to obtain the best measurement results, pay attention to several points:

  1. Prevent the transmitter from coming into contact with corrosive or hot media;
  2. When measuring liquid pressure, the pressure taking port should be opened on the side of the process pipeline to avoid sedimentation;
  3. Prevent dross from depositing in the duct;
  4. When measuring the gas pressure, the pressure taking port should be opened at the top of the process pipeline, and the transmitter should also be installed at the top of the process pipeline so that the accumulated liquid can be easily injected into the process pipeline;
  5. When measuring steam or other high-temperature media, a condenser such as a buffer tube (coil) must be connected, and the operating temperature of the transmitter should not exceed the limit;
  6. The pressure guiding tube should be installed in a place with small temperature fluctuations;
  7. When freezing occurs in winter, it is necessary to take anti-freezing measures according to the transmitter installed outdoors to avoid the expansion of the liquid in the pressure port due to the freezing volume, leading to damage to the sensor;
  8. When wiring, pass the cable through the waterproof joint or flexible pipe and tighten the sealing nut to prevent rainwater, etc. from leaking into the transmitter housing through the cable;
  9. When measuring the liquid pressure, the installation position of the transmitter should avoid the impact of the liquid to avoid damage to the sensor due to overpressure.

Maintenance

High temperature melt transmitters are required to be checked once a week. Check every month. It is mainly to remove dust from the instrument. Carefully inspect electrical components. Always check the output current value. There is weak current inside the pressure transmitter. Be sure to keep it away from strong external electricity.

extrusion melt pressure transducer

In plastic and rubber extrusion production lines, melt pressure sensors play an important role in improving melt quality, improving production safety and protecting production equipment. At the same time, the high temperature melt pressure sensor is a very sensitive element. Only proper installation and maintenance can make it work to its fullest.

In the extrusion production process, some quality standards of the product (such as dimensional accuracy or the surface flatness of the parts added with mineral fillers, etc.) require optimal control of the extrusion pressure. Melt pressure sensor is an important element to achieve this requirement. By setting the melt pressure sensor and pressure control device at the mold inlet connection. It can make the product more stable and can reduce the waste of materials.

In addition, measuring the pressure across the screen and the melt pump is very important to ensure the safety of production and the optimal performance of the equipment. If the flow of the melt into the mold is blocked, a sensor under the screen will alert the operator (which can be done via a meter) to alert the operator.

When a sensor upstream of the filter sounds an alarm, it indicates that the pressure inside the extruder is too high, possibly causing excessive wear on the screw.
For manufacturers applying melt pumps, it is necessary to measure the inlet and outlet pressures of the melt medium. To ensure that the melt medium can continuously flow into the mold. Because of any obstruction, the melt pump may be blocked.

A pressure sensor equipped on an extrusion line can measure the pressure at only one point, or it can be a series of sensors used to measure the entire line.
Melt pressure sensor is connected with data recorder and sound alarm device. The processing parameters of the extruder can be adjusted using the processing control system.

Common faults of high temperature melt pressure sensor digital instruments

  1. High temperature melt pressure gauge with black screen. Make a preliminary judgment as to whether the 220v power supply line is faulty. The pressure gauge may burn out.
  2. Word skip appears on the pressure gauge. Preliminarily judge whether the connection of the signal line between the sensor and the pressure instrument is bad; whether the shield line is connected to the ground. There are interference signals at the scene. (Poor contact between the welding points inside the meter).
  3. The upper window of the meter displays —- or 0000. The signal cable between the sensor and the meter may be connected incorrectly. Or the sensor leads are broken.
  4. The pressure display on the upper window of the meter does not rise but decreases, which may be the damage of the sensor diaphragm.
  5. The pressure gauge functions normally, that is, the pressure cannot reach the target value. Check the sensor threads. Installing too shallow or too deep may cause it. Adjusting the torque to the normal range pressure shows normal;
  6. The high temperature melt pressure gauge shows a negative number. Cannot clear calibration. The high-temperature melt pressure gauge is subjected to an instantaneous strong current shock, which causes damage to the instrument protection components.

More Featured Pressure Transmitters

Frequently
Asked
Questions

Melt pressure transducers are common spares on extrusion lines to measure the pressure and/or temperature of materials in pipes. The design structure of the product is to stick the four strain gauges that make up the bridge circuit on the diaphragm at the other end of the capillary tube according to the principle of circular diaphragm compression.
During measurement, the melt presses the pressure-sensitive diaphragm, which transmits the pressure to the diaphragm at the other end through the filling medium. The diaphragm is deformed, and the strain is attached to the strain gauge.

Before the calibration operation, first, the Melt pressure transducers are stopped, second, the operating temperature is within the operating temperature, and third, the temperature compensation is adjusted to zero.

Melt pressure transducers are available in temperature compensated grades, which are selected based on the medium filled in the capillary tube in the sensor. The physical properties of the filling medium are directly related to the zero degree output level.

When assigning ranges with the meter, this value needs to be taken into account and adjustments made to compensate. A calibration adjustment acts like setting a balance, think of temperature compensation as the packaging of the item being weighed.

The temperature compensation for 3 different media is as follows:

  • Hg (mercury) = 15 psi/ 100°F or 27 psi/ 100°C
  • Oil = 36 psi/100°F or 65psi/100°C
  • NaK (Sodium Potassium) = 30 psi/ 100°F or 54psi/ 100°C

Example:
Process temperature = 200°C, mercury filled, signal output 60psi @ zero pressure

① According to the full scale pressure range of the sensor, this offset is outside the normal combined error specification. The pressure range is 10,000 psi, the combined error is 0.5%, and the compensation is actually 110 psi.
② Remember that when we perform calibration, there is no change to the signal output, only to ensure that the output is within the tolerance range of the specification.
③The design of the meter is easy to process calibration, and it only takes a few cases to test the high/low limit range of the output.

A pressure transmitter refers to a pressure sensor whose output is a standard signal, and is an instrument that accepts a pressure variable proportionally converted into a standard output signal. It can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals. Measurement, indication and process adjustment are carried out by supplying secondary instruments such as indicating alarms, recorders and regulators.

If you want the pressure transmitter to be washable, you should consider installing the pressure transmitter on the barrel before the filter or before and after the melt pump or in the mold.

Points to note when cleaning the pressure transmitter:

All pressure transmitter connections should be removed before cleaning the body with a wire brush or detergent. Because these two cleaning methods may damage the diaphragm of the pressure transmitter and the insulation of the wiring.

When heated cleaning is required, the pressure transmitter should also be removed and the top wiped with a soft, non-abrasive cloth. At the same time, the holes of the pressure transmitter also need to be cleaned with soft tools.

There are different types of pressure transducers based on their design.

These sensors can come in several shapes and sizes, but the technology inside can also differ.

There 4 main types of pressure sensors based on this:

More about Industrial Pressure Sensors

Extended Reading: Electronic Pressure Switch for Air Compressor

More pressure measurement solutions

What Is Resistive Pressure Transducer?

What Is Resistive Pressure Transducer? Resistive pressure transducers are also called resistance pressure transducers. It is a commonly used pressure sensor. Pressure sensors are generally…

What Is a Fluid Pressure Sensor?

What Is a Fluid Pressure Sensor? Fluid Pressure Sensors refers to sensors that can be used to measure the pressure of liquid media. Such as…

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion…

What does intrinsically safe mean?

Intrinsically safe type is an explosion-proof type of electrical equipment. When purchasing electrical equipment, do you often hear about intrinsic safety? For example, when ordering…

What is a pressure sensor?

What is a pressure sensor? A pressure sensor is a device that senses a pressure signal and converts the pressure signal into a usable output…

What Is an Air Pressure Transducer?

An Air pressure transducer is a sensor that converts the mechanical signal of air pressure into a current signal. Pressure has a linear relationship with…

Differential Pressure Transmitter Installation Guide

Differential pressure transmitter installation guide helps you solve the installation problem of DP Transmitters. Sino-Inst offers a variety of  differential pressure transmitters for pressure/level/flow measurement…

How to Calibrate a Pressure Transmitter

What is Calibrate a Pressure Transmitter? Calibrate a Pressure Transmitter is an important step to help pressure transmitters make accurate measurements. Only when the input…

Sino-Inst is Manufacturer of Melt Pressure Transducers. We supply more than 20 kinds of Melt Pressure Transducers. 90% Melt Pressure Transducers are used for precise measurement and control of high temperature such as rubber, plastic, chemical fiber, polyester nylon, polyester, steam, etc.

Sino-Inst’s high temperature Melt Pressure Transducers are used in the pressure measurement of high temperature melt, fluid and gas medium in chemical fiber spinning, polyester rubber, plastic rubber and plastic, extrusion machinery, non-woven non-woven, construction packaging materials and other equipment.

High temperature melt pressure sensor is used for pressure measurement and control of high temperature fluid medium in chemical fiber spinning, polyester, rubber and plastic machinery and other equipment.

Melt Pressure Transducers enable stable pressure measurement with high temperature. This greatly meets the measurement needs of many applications.

Sino-Inst’s Melt Pressure Transducers, made in China, Having good Quality, With better price. Our pressure measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s a Melt Pressure Transducers, level sensor, or other device, give us a call.

Request a Quote

Please enable JavaScript in your browser to submit the form

SI-702S Ultra High pressure transducer

High pressure transducer is used to measure high pressure up to 1500Mpa. Also called ultra high pressure transducer.

High pressure transducer adopts ultra high pressure design. Suitable for high pressure applications up to 15000bar. SI-702S series ultra high pressure pressure transducer can provide reliable ultra-high pressure measurement. Ultra high pressure transmitter adopts rare metal alloy material. After special process treatment, integrated design. All stainless steel welding package. Laser resistance temperature compensation. With high performance digital processing circuit. The factory has undergone high and low temperature aging and long-term fatigue tests. Good long-term stability. Ultra-long working life. Maintain safe and stable operation in the ultra-high pressure range.

Sino-Inst offers a variety of High pressure transducers for industrial pressure measurement. If you have any questions, please contact our sales engineers.

More High Pressure Transducers:

Combined Pressure and Temperature Sensor-Dual function
High Temperature Pressure Sensor
Melt Pressure Sensors/Transducers – High Temperature
Gas Pressure Sensor
Flush diaphragm pressure sensor
Digital Pressure Sensor
Sanitary Pressure Transmitter
Pressure Transducer 4-20mA/Voltage

Features of SI-702s High pressure transducer

  • Pressure range: 0-1500MPa …. 0-2000MPa to 0-7000MPa (customized)
  • Accuracy level: 0.1% FS, 0.2% FS, 0.5% FS
  • All stainless steel structure
  • Internally generated calibration signal
  • Using high-voltage accessories
  • Protection class IP65

Maybe you just need high pressure pressure sensor: 0 ~ 40MPa… 600MPa.

Specifications of High pressure transducer

Pressure range: 0-1500MPa …. 0-2000MPa to 0-7000MPa (customized)
Comprehensive accuracy: 0.1% FS, 0.2% FS, 0.5% FS
Output signal: 4-20mA ( 2 wire system), 0-5 / 1-5 / 0-10VDC (3 wire system)
Power supply voltage: 24VDC (10-30VDC)
Medium temperature: -20 ~ 75 ℃
Ambient temperature: -20 ~ 75 ℃
Load resistance: Current output type: max. 800Ω; Voltage output type: greater than 50KΩ
Insulation resistance: Greater than 2000MΩ (100VDC
Sealing grade: IP65
Long-term stable performance: 0.1% FS / year
Vibration effect:Within the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical interface: Four-core aviation connector, Hessman connector optional
Thread interface: Ball head M20 × 1.5, cone head M20 × 1.5, M22 × 1.5, etc. Other threads can be designed according to customer requirements.

Ultra high pressure quick connector-1 / 4NPT 3 / 8NPT high pressure connector

Features: High-strength carbon steel. Galvanized surface treatment. Check valves at both ends. Steel ball lock. Interchangeable with ENERPAC / parker3000.
Thread: 1 / 4NPT. 3 / 8NPT
Working temperature: -30-100 ℃
Maximum working pressure: 10000psi (700bar)
Features: High-strength carbon steel, galvanized surface, check valves at both ends, steel ball lock, 2 times safety factor.
Product description: The HP high-pressure series is designed for use in high-pressure environments. All metal parts are made of steel. The base of the female connector is treated by QPQ. The base of the male connector is treated by all black galvanizing.

SI-702s High pressure transducers types

SI-702Q Ultra-High Pressure Sensor

SI-702Q Ultra High pressure transducer adopts spherical sealing method. It can choose 0-20mV, 4-20mA, 0-5VDC output. The ultra-high pressure pressure transmitter uses fully integrated rare alloy materials. Fine machining. Multiple heat treatment processes. Each sensor undergoes rigorous pressure testing to ensure absolute safety and reliability. The sensor has high accuracy, long-term stability, and long life specialty.

SI-702Z Ultra High Pressure Sensor

SI-702Z Ultra High pressure transducer is an extended product of 702S. It is characterized by a 58 degree outer cone seal. The ultra-high pressure structure and processing technology ensure the long-term reliability of the product. High accuracy, long life, and various electrical interfaces to choose from.

SI-702W Ultra High Pressure Sensor

SI-702W Ultra High pressure transducer, M20 × 1.5 external thread with 60 degree inner cone seal. Fine machining, multiple heat treatment processes. Each sensor undergoes rigorous pressure test and high and low temperature aging. It guarantees absolute safety and reliability. The sensor has the characteristics of high accuracy, good stability and long life. Various electrical interfaces are available.

SI-702N Ultra High Pressure Sensor

SI-702N Ultra High pressure transducer, M20 × 1.5 internal thread with 60 degree inner cone sealing method. Each sensor has undergone strict pressure test and aging. It guarantees absolute safety and reliability. It has high accuracy, long-term stability and long life. Features. A variety of shapes can be selected and a variety of electrical interfaces can be selected.

Applications of SI-702S Ultra High pressure transducer

SI-702S Ultra-High Pressure Transducer is designed for high pressure hydraulic circuit applications. The electronic components with excellent stability are selected and the voltage and current output signals are used. Therefore, SI-702S Ultra-High Pressure Senors is used in applications that require long-distance transmission signals or intelligent control and detection systems.

  • Construction of test platform
  • Water jet cutting
  • High-pressure pasteurization
  • High pressure cleaning
  • High voltage processor
  • Water cutting machinery
  • Hydraulic components
  • High-voltage systems, etc.

Technical Support

What is a high pressure transducer?

High pressure transducer is a pressure transmitter suitable for high pressure measurement and control.

Sino-Inst high pressure transducer has gone through thousands of fatigue impact tests and several days of low and medium temperature aging cycles before leaving the factory. It has solved the disadvantages of high pressure sensors in terms of stress and zero instability. Provide customers with reliable products for high voltage measurement. The pressure of SI-702 series can reach 600MPa. The precision level is high, and the mature production technology can ensure the long-term stability of the sensor with excellent characteristics. SI-702 series pressure sensors are suitable for oil extraction platforms, water flow equipment, high pressure measurement equipment, hydraulic control systems, test benches and industrial automation control.

More about high pressure transducer wikipedia.

FAQ

What does a pressure transducer do?

A pressure sensor (Pressure Transducer) is a transmitter that can sense pressure signals and convert them into usable output electrical signals according to certain rules.
The pressure sensor usually consists of a pressure sensitive element and a signal processing unit. According to different test pressure types, pressure sensors can be divided into gauge pressure sensors, differential pressure sensors and absolute pressure sensors.

How do you test a pressure transducer?

Today I will mainly introduce three common detection methods for pressure sensors. Hope it helps everyone.
1. Pressure test. The method of detection is to power the sensor. Use your mouth to blow the air hole of the pressure sensor. Use the voltage file of a multimeter to detect the voltage change at the output of the sensor. If the relative sensitivity of the pressure sensor is large. This amount of change will be obvious. If nothing has changed. You need to use a pneumatic source to apply pressure instead.
2. Zero point detection. Use the voltage file of a multimeter. Detect the zero output of the sensor under no pressure. This output is generally mV level voltage. If the technical specifications of the sensor are exceeded, the zero deviation of the sensor is out of range.
3. Detection of bridges. It mainly detects whether the circuit of the sensor is correct. It is generally a Wheatstone full-bridge circuit. Use the ohm file of the multimeter to measure the impedance between the input terminals and the impedance between the output terminals. These two impedances are the input and output impedances of the pressure sensor. If the impedance is infinite, the bridge is disconnected. It means there is a problem with the sensor or the definition of the pin is not correct.

How does a 3 wire pressure transducer work?

The output signal of the two-wire pressure transmitter is generally 4-20MA. The supply voltage is 24VDC. The two wires are a red (representing positive 24V power supply), and a black or blue (representing positive signal output). The wiring method is that the red wire is connected to the positive source and the blue wire is connected to the signal positive, and then the power supply negative and the signal negative are shorted.
The three-wire pressure transmitter is generally a voltage output. Wire one (red power supply is positive), one black (power supply is negative), and one yellow (signal output is positive). The output ground is common to the power supply.

Why shouldn’t you use a pressure transducer with high oxygen environment?

Oxygen plays an important role in the smelting process, chemical industry, national defense industry, and healthcare. However, the process of oxygen production and use is extremely prone to combustion and explosion.
The analysis is based on the mechanism of the “three elements” of combustion and explosion (combustible materials, oxidants, and excitation energy). The high-purity high-pressure oxygen transported in the oxygen pipeline is a very strong oxidant. The higher the purity, the higher the pressure, the stronger the oxidation, the more dangerous.
The potential sources of excitation energy for combustion or explosion are roughly the following: friction, compression heat, impact force, arc, resonance, etc.
In the construction of industrial oxygen pipelines, multiple cleaning processes such as derusting, scrubbing, sand blasting, blowing, degreasing, and acid cleaning should be carried out. Remove the oil and impurities in the pipeline to make it reach the condition of transporting oxygen medium. Check and accept according to relevant standards, and use it after passing the test.
For oxygen pressure measurement, choosing a clean instrument filled with inert oil not only improves the safety level, but also greatly reduces the risk of economic and time loss caused by maintenance or failure replacement.
Sino-Inst pressure sensor for oxygen measurement
Accuracy: ± 0.15% FS
Fill with Fluorolube® oil to ensure no oxidation reaction
Oil-free production process, oxygen-level cleaning process
Φ19mm standard OEM pressure / differential pressure sensor
Constant current / constant voltage power supply
All stainless steel 316L material

Sino-Instrument offers High pressure sensors. A wide variety of High Pressure sensors options are available to you. Such as free samples, paid samples. Sino-Instrument is a globally recognized manufacturer of High Pressure sensors, located in China. Sino-Instrument sells through a mature distribution network that reaches all 30 countries worldwide. Pressure sensors products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

SI-702 High Pressure Sensor

High pressure sensor is pressure transmitter designed for high pressure measure&control. 0 ~ 40MPa… 600MPa.

High pressure sensor elastic body adopts special material and integrated structure design. SI-702 high pressure sensor has no burst phenomenon during high voltage measurement and control. The high pressure sensor is used under high pressure, differential high pressure and high pressure shock conditions. High pressure sensors are suitable for pressure measurement & control of large hydraulic equipment. SI-702 high pressure sensor adopts spherical or cone seal to ensure the tightness of high voltage system. Such sensor also referred to as: high pressure pressure sensor, high pressure transmitter.

Sino-Inst offers a variety of High Pressure sensors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

More High Pressure Sensors:

Combined Pressure and Temperature Sensor-Dual function
High Temperature Pressure Sensor
Melt Pressure Sensors/Transducers – High Temperature
Gas Pressure Sensor
Flush diaphragm pressure sensor
Digital Pressure Sensor
Sanitary Pressure Transmitter
Pressure Transducer 4-20mA/Voltage

Features of SI-702 High Pressure Sensor

  • Adopt resistance strain gauge pressure sensor chip. The selected patch technology has zero point, full scale compensation and temperature compensation;
  • High precision and high stability amplifier integrated circuit;
  • Micro-mechanical processing technology, integrated structure of measuring diaphragm and pressure interface. Impact resistance, fatigue resistance, high reliability;
  • Integrated design product will not rupture under pressure of 1100MPA, ensuring product safety
  • Diversified output signals (general-purpose analog output, digital RS485 / RS232 output, GPRS wireless transmission);
  • Small structure, minimum outer diameter can reach 26mm. Can be directly matched with local display meter (output is 4-20mA two-wire system);
  • Thread interface adopts 7 degree cone sealing surface;

Specifications of SI-702 High Pressure Sensor

Pressure typeGauge/ AbsolutePressure range 0-80,100,150,200,250,300MPa, …600MPa.
Precision ±0.1%FS   ±0.3%FS   ±0.5%FSZero temperature drift ±0.02%FS/℃
Sensitivity temperature drift ±0.02%FS/℃Long-term stability (1 year) ±0.1%FS
Response frequency (-3dB) 3.2KHzTemperature compensation -20~+85℃
Operating temperature -40~+125℃Storage temperature -40~+125℃
Overload pressure 150%FSDestruction pressure300% FS (limit pressure 10000bar)
Protection class IP65Material 17-4PH
Electrical connectionsDirect lead, M12 connector, Big Hessman, Little HessmanPressure connectionM20 × 1.5, G1 / 2 (others are customized according to requirements)
Signal output 4~20mA 0.5~4.5VDC
(Proportional output)
 0.5~4.5VDC 0~5VDC 0-10VDC
Signal cable specifications 2 Wire 3 Wire 3 Wire 3 Wire 3 Wire
Supply voltage 9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VDC

Extended reading: High Pressure Flow Meters for Liquids-Steam-Gas

Applications of SI-702 High Pressure Sensor

  • Pressure measurement of large hydraulic machinery and hydraulic stations;
  • Pressure measurement and control of water jet cutter and ceramic wire cutter;
  • Pressure measurement of high pressure water pump and high pressure oil pump;
  • Supporting heavy equipment
  • high pressure
  • High load
  • High impact
  • Frequently overloaded areas

Extended Reading: Digital Pressure Sensor-RS485

Dimensions of High pressure sensors

What is High Pressure Sensor?

High pressure transducer is a pressure transmitter suitable for high pressure measurement and co

A high pressure sensor is a device for high pressure measurement of gases or liquids. A high pressure sensor usually acts as a transducer; it generates a signal as a function of the pressure imposed. Such a signal is electrical 4-20mA, 0-5V,etc.

High Pressure sensors are used for control and monitoring in thousands of everyday applications. High Pressure sensors can also be used to indirectly measure other variables such as fluid/gas flow, speed, water level, and altitude. High Pressure sensors can alternatively be called High pressure transducers, High pressure transmitters, High pressure senders, High pressure indicators, piezometers and manometers, among other names.

Sino-Inst high pressure sensor has gone through thousands of fatigue impact tests and several days of low and medium temperature aging cycles before leaving the factory. It has solved the disadvantages of high pressure sensors in terms of stress and zero instability. Provide customers with reliable products for high voltage measurement. The pressure of SI-702 series can reach 600MPa. The precision level is high, and the mature production technology can ensure the long-term stability of the sensor with excellent characteristics. SI-702 series pressure sensors are suitable for oil extraction platforms, water flow equipment, high pressure measurement equipment, hydraulic control systems, test benches and industrial automation control.

You may like: How does a pressure transmitter work?

Technical Support

High Temperature Pressure Sensor

High Temperature Pressure Sensor with high temperature resistant pressure core or sapphire core as pressure measurement material. After high reliability amplifier circuit and precise temperature compensation. The absolute or gauge pressure of the measured medium is converted into standard electrical signals such as 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC. It is also widely used in industry. Collect pressure signals at the points of some high-temperature steam and fluid pipes.

How do you use a pressure sensor?

1. The key points in the use of pressure sensors and the correct installation position of the transmitter on the process pipeline are related to the measured medium. Only by mastering the correct use of the pressure sensor can the best measurement results be obtained!

2. Prevent the transmitter from coming into contact with corrosive or hot media.

3. Prevent dross from depositing in the duct.

4. When measuring liquid pressure, the pressure taking port should be opened on the side of the process pipeline to avoid sedimentation.

5. When measuring the gas pressure, the pressure taking port should be opened at the top of the process pipeline. The transmitter should also be installed at the top of the process pipeline so that the accumulated liquid can be easily injected into the process pipeline.

6. The pressure guiding tube should be installed in a place with small temperature fluctuations.

7. When measuring steam or other high-temperature media, a condenser such as a buffer tube (coil) must be connected. The transmitter’s operating temperature should not exceed the limit.

Q&A

What is pressure sensor and how it works?

pressure sensor is a device for pressure measurement of gases or liquids.  Pressure sensors can also be used to indirectly measure other variables such as fluid/gas flow, speed, water level, and altitude. Pressure sensors can alternatively be called pressure transducerspressure transmitterspressure senderspressure indicatorspiezometers, and manometers, among other names.
In short, a pressure sensor converts pressure into a small electrical signal, which is sent and displayed. Therefore, these are also commonly referred to as pressure transmitters. Two common signals used are 4 to 20 mA signals and 0 to 5-volt signals.
Most pressure sensors work using the piezoelectric effect. This is when the material generates a charge in response to stress. This stress is usually compressive, but may be twisted, bent, or vibrated.
Pressure sensors detect pressure and can determine the amount of pressure by measuring the charge.
The pressure sensor needs to be calibrated in order to know what voltage or milliamp (mA) signal corresponds to what pressure. This is the basic “zero” and “span” calibration or minimum and maximum, which is a common job for maintenance personnel.
Read more about: What is a pressure sensor and how it works?

What does a barometric pressure sensor do?

Air pressure sensor is an instrument used to measure the absolute pressure of gas. Air pressure sensor is mainly suitable for physical experiments related to gas pressure. It can also measure dry, non-corrosive gas pressure in biological and chemical experiments.
The main sensing element of the air pressure sensor of the air compressor is a thin film that is sensitive to the pressure of the air pressure and a thimble opening control. In the circuit, it is connected with a flexible resistor. When the pressure of the measured gas decreases or increases, the thin film deforms to drive the ejector pin, and the resistance of the resistor will change. The resistance of the resistor changes. The signal voltage of 0-5V is obtained from the sensing element, and is received by the data collector after A / D conversion, and then the data collector transmits the result to the computer in an appropriate form.
The main component of many air pressure sensors is a variable-capacitance silicon capsule. When the external atmospheric pressure of the variable-capacitance silicon membrane box changes, the thimble moves, and the single crystal silicon membrane box elastically deforms with it, thereby causing a change in the capacitance of the parallel plate capacitor of the silicon membrane box to control the air pressure sensor.
More about Gas Pressure Sensor.

What are pressure sensors made of?

The pressure sensor is a device that detects pressure and converts the pressure signal into an electrical signal and outputs it linearly. Common types include strain gauge, piezoresistive, capacitive, piezoelectric, and vibration frequency pressure sensors.
We use strain gauge pressure sensors as an introduction. It is mainly composed of 4 parts: elastomer, strain gauge, measuring circuit and transmission cable.
Strain gauge pressure sensor measurement principle: When the pressure sensor elastic body is deformed under the action of external force. The strain gauge attached to the elastic body then bends. The resistance of the strain gauge changes. Then the measurement circuit converts the change in resistance into an electrical signal (usually a millivolt signal).
Elastomer: Elastomer is the pressure sensor shell. The main materials are aluminum alloy, alloy steel and stainless steel.
Strain gauge: The strain gauge pressure is an important part of the sensor. Commonly used strain gauge base material adopts polymer film material. The strained material is usually high-purity constantan. The strain gauge is attached to the elastic body through dehydration. The elastic body is deformed by force. The strain gauge then deforms. Thereby changing the resistance value.
Measurement circuit: Transform the resistance change of the strain gauge into a millivolt signal output through the Wheatstone bridge.
Transmission cable: 4-core shielded cable with four wires of red, black, green and white. Red: Power +. Black: Power-. Green: signal +. White: Signal-.

What is the difference between pressure switch and pressure sensor?

Pressure Switch:
As the name suggests, a pressure switch is a switch. It’s just that this switch is the pressure set in advance. When the measured medium reaches this pressure level, the switch can automatically turn on or off. The pressure switch must be given a pressure value in advance. Then turn the switch on or off. They are used for simple control and are all digital outputs.
Pressure Sensor:
The pressure sensor can output not only analog signals but also digital signals. Digital signal processing is more convenient, and remote transmission is also possible. The pressure sensor is composed of a pressure sensitive element and a conversion circuit. Use the pressure of the measured medium to produce a small change in current or voltage output on the pressure sensitive element.

Sino-Inst offers High pressure sensors. A wide variety of High Pressure sensors options are available to you. Such as free samples, paid samples. Sino-Instrument is a globally recognized manufacturer of High Pressure sensors, located in China. Sino-Inst sells through a mature distribution network that reaches all 30 countries worldwide. Pressure sensors products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

SI-503K Gas Pressure Transducer

Gas Pressure Transducer for industrial gas pressure measurement. Pagoda gas nozzle Φ8. It is used to measure the pressure of weak corrosive gases such as natural gas and exhaust gas pressure sensor.

SI-503K Pagoda Joint Gas Pressure Transducer uses stainless steel as a whole. High-precision strain gage and advanced technology. It has high sensitivity, stable performance and good impact resistance. GB 304 stainless steel welding. Small and compact structure. Has good moisture resistance and excellent media compatibility. Can measure weakly corrosive liquids and gases.Widely used in industrial equipment: Water conservancy. Chemical, medical. Electric power, air conditioning. Vehicle braking and other pressure measurement and control.

Sino-Inst offers a variety of Gas Pressure Transducers for industrial pressure measurement. If you have any questions, please contact our sales engineers.

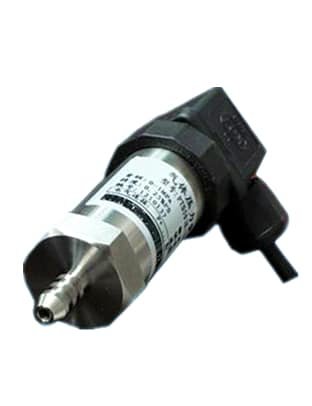

Features of SI-503K Gas Pressure Transducer

  • High sensitivity and stable performance
  • Compact and compact
  • Good impact resistance
  • Excellent media compatibility
  • Pagoda gas nozzle Φ8, quick connector

Specifications of SI-503K Gas Pressure Sensor

  • Measuring range: -100KPa ~ 0, ~ 0 ~ 1 ~ 10MPa
  • Comprehensive accuracy: 0.25% FS, 0.5% FS
  • Output signal: 4 ~ 20mA (two-wire system), 0-5 / 1-5 / 0-10V (three-wire system)
  • Power supply voltage: 24DCV (9 ~ 36DCV)
  • Medium temperature: -20 ~ 85 ~ 105 ℃
  • Ambient temperature: normal temperature (-20 ~ 85 ℃)
  • Load resistance: current output type: max. 800Ω; voltage output type: greater than 50KΩ
  • Insulation resistance: more than 2000MΩ (100VDC)
  • Response time: <1ms
  • Sealing grade: IP65
  • Long-term stable performance: 0.1% FS / year
  • Impact of vibration: within the frequency of mechanical vibration 20Hz ~ 1000Hz, the output change is less than 0.1% FS
  • Electrical interface: Hessman connector (optional)
  • Threaded connection: Pagoda nozzle Φ8, quick connector

Dimensions

Wiring

Gas pressure transducer is a special sensor that converts gas pressure into current and voltage signals.

For gas pressure measurement the solution of pressure sensor is used to accomplish the significance of measurement.

Pressure sensors for gas pressure measurement are mainly conversion devices used to measure the absolute pressure of gases.

It can be used for pressure measurement in terms of blood pressure, wind pressure, pipeline gas, etc. It has a stable and reliable performance.

It is mainly suitable for physical experiments related to gas pressure. Such as gas laws, etc. It can also be used in biological and chemical experiments to measure the pressure of dry, non-corrosive gases.

Read more about: What is a pressure sensor and how it works?

How does gas pressure sensor work?

In short, a pressure sensor converts pressure into a small electrical signal, which is sent and displayed. Therefore, these are also commonly referred to as pressure transmitters. Two common signals used are 4 to 20 mA signals and 0 to 5 volt signals.
Most pressure sensors work using the piezoelectric effect. This is when the material generates a charge in response to stress. This stress is usually compressive, but may be twisted, bent, or vibrated.

Pressure sensors detect pressure and can determine the amount of pressure by measuring the charge.

The pressure sensor needs to be calibrated in order to know what voltage or milliamp (mA) signal corresponds to what pressure. This is the basic “zero” and “span” calibration or minimum and maximum, which is a common job for maintenance personnel.

Read more about: What is a pressure sensor and how it works?

The price of gas pressure Transducers is mainly affected by the following factors:

  1. Measuring medium
  2. Does the gas contain particles?
  3. Gas temperature
  4. Gas corrosive
  5. Explosion-proof performance
  6. Interface size
  7. Signal output, etc.

Gas pressure Transducer price reference range: USD80-800.00/pc

Natural gas pressure Transducer is 4-20mA current output sensors for monitoring the pressure of natural gas. Measure very low inlet and output pressure or very high natural gas bottle pressures. Where there is the potential for natural gas to be present in the local atmosphere, special approval options such as ATEX intrinsic safety are available.

What pressure sensor is used on the natural gas pipeline?

  1. Natural gas pipelines are pipelines that transport natural gas (including associated gas produced in oil fields) from mining sites or treatment plants to urban gas distribution centers or industrial enterprise users, also known as gas pipelines.
    Using natural gas pipelines to transport natural gas is the only way to transport large amounts of natural gas on land. Natural gas pipelines account for about half of the total pipeline length in the world.
  2. Residential gas inlet pipes should be installed in non-residential rooms such as kitchens, corridors, and enclosed balconies connected to the kitchen (the balconies should be closed when transporting wet gas in cold areas) and other non-residential rooms that are convenient for maintenance. When it is really difficult, it can be introduced from the stairwell, but metal pipes and inlet pipe valves should be installed outdoors.
  3. The gas introduction pipes of commercial and industrial enterprises should be installed in the rooms or gas meter rooms where gas is used.
  4. The gas introduction pipe should be introduced through the wall along the ground on the outer wall. The upper bend of the outdoor exposed pipe section should be installed with no less than DN15 cleaning tee and wire plug, and treated with anti-corrosion treatment. Keep warm when transporting wet gas in cold areas. The introduction pipe can be buried into the room through the outer wall or foundation of the building. When the introduction pipe penetrates the wall or foundation and enters the building, it shall exit the indoor ground within a short distance, and shall not be laid horizontally under the indoor ground.

The sensors used to detect natural gas pipelines can be used to detect the pressure of natural gas pipelines with explosion-proof verification and regular gas pipeline pressure sensors and gas pressure Transducers.

The air pressure sensor is used to measure the absolute pressure of the gas. It is mainly suitable for physical experiments related to gas pressure, such as gas laws, etc. It can also measure dry and non-corrosive gas pressure in biological and chemical experiments.

The air pressure sensor is mainly used to measure the pressure of the gas. One of the atmospheric pressure sensors is usually used to measure changes in weather and use the corresponding relationship between air pressure and altitude for altitude measurement.

The air pressure sensor is a detection device that can feel the measured information, and can transform the detected and felt information into electrical signals or other required forms of information output according to a certain rule to meet the needs of information transmission, processing, and Storage, display, recording and control requirements.

Pressure transmitter types include gauge pressure, absolute pressure, and differential pressure. Gauge pressure refers to the pressure that is less than or greater than atmospheric pressure based on the atmosphere. Absolute pressure refers to the absolute zero pressure as the reference and is higher than the absolute pressure. Differential pressure refers to the difference between two pressures.

According to the working principle of the pressure transmitter:

  • Strain Gauge Pressure Transducers
  • Capacitance Pressure Transducers
  • Potentiometric Pressure Transducers
  • Resonant Wire Pressure Transducers

Read more about: What is industrial pressure transmitter?

Gas pressure Transducer is mainly used to measure the absolute pressure of gas conversion device. It can be used for pressure measurement of blood pressure, wind pressure, pipeline gas, etc. Its performance is stable and reliable, and it is mainly suitable for physical experiments related to gas pressure, such as gas laws. It can also measure the pressure of dry, non-corrosive gases in biological and chemical experiments.

Technical Support

Precision Gauge Pressure Transmitter for the Process Industry. With HART®-Communication and SIL2 (optionally) .

The Gauge Pressure Transmitter SMT3151 TGP, has been specially designed for the process industry, and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids, and dust up to 600 bar.

Flush diaphragm pressure sensor has Flush membrane / diaphragm structure, anti-blocking design. Pressure measurement of viscous media.

Flush diaphragm pressure sensor uses a diaphragm isolation process. Feel the pressure directly with a flat membrane. There is no pressure hole in the test head. There is no clogging of viscous media during the measurement.

Are you taking industrial gas measurements? Maybe you need industrial gas flow measurement.

Steam Pressure Transmitter

Steam pressure transmitters are widely used in the measurement and control of various high-temperature steam piping…

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors…

Q&A

What is pressure transducer used for?

The main function of a pressure transmitter is to transmit pressure signals to electronic equipment. The pressure is then displayed on the computer. For example, the mechanical signal of water pressure is converted into an electronic signal such as voltage or current (usually 0-5V or 4-20mA). Pressure and voltage or current have a linear relationship. It is generally proportional, so the voltage or current output by the transmitter increases with increasing pressure.
A pressure transmitter is a sensor commonly used in industrial practice. It is widely used in various industrial automatic control environments. Involving water conservancy and hydropower, railway transportation, intelligent buildings, production control, aerospace, military industry, petrochemicals, oil wells, electric power, ships, machine tools, pipelines and many other industries. The pressure transmitter workshop must be in direct contact with the measured medium. Often run in high temperature, low temperature, corrosion, vibration, shock and other environments. Whether it works normally on the job site depends not only on the quality of the product. It also depends on optimized engineering design and reasonable model configuration. And proper installation and maintenance. Pressure transmitters are a key element in the fluid industry.
Pressure transmitters are mainly used in the following areas:
1.Petroleum, petrochemical, chemical industry, supporting with throttling devices. Provides accurate flow measurement and control. Measures pressure and level in pipes and tanks.
2.Electric power, city gas, and other companies. Places requiring high stability and high accuracy measurement.
3.Pulp and papermaking are used in places that require chemical-resistant liquids and corrosion-resistant liquids.
4. Steel, non-ferrous metals, ceramics, used in furnace pressure measurement and other places requiring high stability, high precision measurement and other places. It is used in places where stable measurement is required under strict control (temperature, humidity, etc.).
5. Machinery and shipbuilding, used to strictly control the place where high precision is required for stable measurement.
In general, the pressure transmitter is mainly used to measure the pressure of the medium and the liquid level.

Sino-Inst is Chinese manufacturer of Gas pressure Transducers for industrial gas pressure measurement.

Gas pressure Transducer for industrial gas pressure measurement which are widely used in India, US, South Africa, and other countries.

Contact us any time, if you need the quotation or technical support.

Request a Quote

SI-703 Flush Diaphragm Pressure Sensor

Flush diaphragm pressure sensor is also called flush diaphragm pressure transducer or flush diaphragm pressure transmitter. Flush diaphragm pressure sensor has Flush membrane / diaphragm structure, anti-blocking design. Pressure measurement of viscous media.

Flush diaphragm pressure sensor uses a diaphragm isolation process. Feel the pressure directly with a flat membrane. There is no pressure hole in the test head. There is no clogging of viscous media during the measurement. Adopting flush membrane structure, diffused silicon pressure-sensitive core body, with good moisture resistance and excellent media compatibility. The sensor interface is available in clamp, thread and flange options. The output signal can be selected from voltage, current, and so on. The flush diaphragm of the sensor prevents problems such as scaling, unsanitary and clogging of viscous liquids.

Sino-Inst offers a variety of Flush diaphragm pressure sensors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

This type of pressure sensor is also commonly known as: Flat film pressure sensor. Diaphragm pressure transmitter. Paint pressure sensor. Food pressure sensor. Diaphragm pressure sensor. Diaphragm pressure transmitter. Or sanitary pressure transmitter.

Flush diaphragm pressure sensor, including strain type and diffused silicon front type.

The strain-type flush-membrane measuring end adopts a special, sturdy flush diaphragm. Hard particles in the measured medium will not damage the isolating diaphragm. Compact structure, corrosion resistance, anti-vibration, anti-particle impact, wide temperature compensation.

Diffusion silicon front type is made of imported diffusion silicon core. Use calibration and digital compensation technology. The product has reliable performance and stable output.

You may like: Diaphragm pressure gauge

Features of SI-703 Flush diaphragm pressure sensor

  • The imported resistance strain gauge is used as a pressure-sensitive chip. The anti-blocking design of the flush membrane / diaphragm structure can measure viscous media.
  • Advanced patch technology and process;
  • It can bear large impact pressure, and the bearing pressure can reach 100MPa;
  • The temperature drift is small, and it can work stably at the working temperature of -20 ~ 85 ℃ for a long time;
  • The elastomer is also connected to the joint using a fully sealed or integrated structure. Solve the oil / gas shortcomings of diffused silicon and ceramic core pressure sensor cores. Reliable work and high fatigue strength;
  • It is specially designed for OEM processing of pressure transmitter manufacturers. Low cost. Suitable for mass production;

Specifications of SI-703 Flush diaphragm pressure sensors

Model703 Flush diaphragm pressure transmitter
Range0-0.6,1,5,10,20,30,40,50 ~ 200MPa
Comprehensive accuracy0.1% FS, 0.2% FS, 0.5% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 75 ℃
Ambient temperature-20 ~ 75 ℃
Load ResistanceCurrent output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistanceMore than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effectWithin the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceMetal sealed terminal, four-core aviation connector
Mechanical connectionM20 × 1.5, G1 / 2-14, etc., other threads can be customized
Model703F waterproof Flush diaphragm pressure sensor
Range  0-1, 2, 4, 5, 10, 20, 30, 40, 50 to 200 MPa
Comprehensive accuracy0.2% FS, 0.5% FS, 1.0% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 75 ℃
Ambient temperature-20 ~ 75 ℃
Load Resistance  Current output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistanceMore than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effect  Within the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceWaterproof outlet
Mechanical connectionM20 × 1.5, G1 / 2-14, etc., other threads can be designed according to customer requirements
Model703K Flush diaphragm pressure sensor
Range0-2,1,5,10,20,30,40,50 ~ 100MPa
Comprehensive accuracy0.1% FS, 0.2% FS, 0.5% FS
Output signal1-1.5mV / V
Supply voltage10VDC
Medium temperature-20 ~ 85 ℃
Ambient temperature-20 ~ 85 ℃
Load Resistance1500Ω
Insulation resistance  More than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effect/
Electrical InterfaceDirect outgoing
Mechanical connectionΦ19 standard size
Model703W Flush diaphragm micro pressure sensor
Range0, 1.5, 2, 10, 30, 50, 100-500KPa, 1-60MPa
Comprehensive accuracy0.25% FS, 0.5% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 65 ℃
Ambient temperatureNormal temperature (-20 ~ 65 ℃)
Load ResistanceCurrent output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistanceMore than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effectWithin the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceHessman connector, other optional
Mechanical connectionM24 * 1.5, M25 * 1.5, M27 × 2, etc. Other threads can be designed according to customer requirements
Model703C Flush diaphragm micro pressure sensor
Range0-10, 30, 50, 100 ~ 500KPa, 1-7MPa
Comprehensive accuracy0.1% FS, 0.2% FS, 0.5% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 65 ℃
Ambient temperature-20 ~ 65 ℃
Load ResistanceCurrent output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistance≥2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effectWithin the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceHessman connector, four-core aviation connector optional
Mechanical connection  M20 × 1.5, G1 / 2-14, etc.
Model703G Flush diaphragm pressure sensor
(Alternative WiKa similar products)
Range0 ~ 5, 10, 20, 50, 100-500KPa, 1-7MPa
Comprehensive accuracy0.1% FS, 0.2% FS, 0.5% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 65 ℃
Ambient temperatureNormal temperature (-20 ~ 65 ℃)
Load Resistance  Current output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistanceMore than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effectWithin the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceHessman connector, other optional.
Mechanical connectionM20×1.5,G1/2-14
Model703GB Flush diaphragm pressure sensor (Alternative WiKa similar products)
Range  0 ~ 5,10,20,50,100KPa ~ 1MPa, 2,3,10MPa
Comprehensive accuracy0.1% FS, 0.2% FS, 0.5% FS
Output signal4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
Supply voltage24VDC (10-30VDC)
Medium temperature-20 ~ 65 ℃
Ambient temperatureNormal temperature (-20 ~ 65 ℃)
Load ResistanceCurrent output type: max. 800Ω; voltage output type: greater than 50KΩ
Insulation resistanceMore than 2000MΩ (100VDC)
Sealing levelIP65
Long-term stable performance0.1% FS / year
Vibration effectWithin the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical InterfaceHessman connector, other optional.
Mechanical connectionG1

Read more about: What is a pressure sensor and how it works?

SI-703 Flush diaphragm pressure sensor Applications

The sensor’s Flush diaphragm structure prevents problems such as scaling, unsanitation, and sticky liquid clogging. Widely used in food, pharmaceutical, brewing and other process control fields. It is suitable for the pressure measurement and control of viscous media such as chemical coatings, paints, muds, asphalts, and crude oil under weak pressure. Its industry applications are as follows:

  1. Food hygiene industry;
  2. Paper industry;
  3. Sewage level measurement;
  4. Beverage tank liquid level measurement;
  5. Pipeline level measurement;
  6. Pharmaceutical and biological products processing.
  7. Pressure transmitter manufacturer OEM
  8. Pressure measurement and control of viscous media

Extended reading: Flat Pressure Sensor for High Viscosity Fluids

Flush diaphragms appear flush from the surface, so they are called flush diaphragms.

A flush diaphragm is a diaphragm that is fully open and exposed to the pressure medium. The flush diaphragm is level or slightly recessed with the surrounding surface when installed.

The purpose of the flush membrane is to prevent the viscous medium from blocking the pressure hole, or to use a special material for better measurement with the medium to avoid damage to the sensor chip material, etc.

In short, the way to measure or protect the sensor according to the specific application

Flush pressure sensor refers specifically to Pressure Sensors with Flush Diaphragms. Pressure transmitters and transducers with open flush diaphragms suitable for use with highly viscous media such as plastics, paper pulp, bitumen, sewage, paint and adhesives.

Extended Reading: MEMS Pressure Sensors

Flushing connection is different from the common internal diaphragm pressure measurement method.

Internal diaphragm is the industry standard for most gaseous and liquid media because it is inexpensive and easy to handle.

However, once it encounters the measurement of viscous media, or in the case of high hygiene requirements. Keeping the Flushing connection can effectively avoid blockage. And meet the sanitary cleaning requirements.

Flush Mount Diaphragm can be:
Clamp flat film installation, threaded flat film installation, or flange flat film installation. Sometimes there are customers who need special cavityless flat membranes.

Clamp Flush Membrane Pressure Sensor

The clamp type adopts a silicone oil filling technology, and the pressure felt by the diaphragm is transmitted to the pressure chip through the silicone oil. The compensation circuit corrects the pressure signal to a linear electrical signal.

The stressed diaphragm on the end face of the clamp is exposed to directly feel the pressure. Prevents scaling, unsanitary and sticky pressure clogging problems. It is widely used in hygiene industries such as food, medicine, brewing and other occasions where the measuring medium may be fouled.

Threaded flush membrane pressure sensor

The threaded flush Diaphragm pressure transmitter uses a flat membrane to directly sense the pressure signal. The diffusion silicon pressure core is used as the sensitive element. The standard silicone oil or olive oil is used as the pressure transmission medium.

The measuring end is made of 316L stainless steel, and the flush isolation diaphragm is specially welded. Compact structure, corrosion resistance, vibration resistance, wide temperature compensation.

Flange flush Diaphragm pressure transmitter

  • Shell optional;
  • flange mounting;
  • Two-wire system, 4~20mA analog output, HART® protocol digital communication;
  • Smart LCD head with backlight;
  • Large-size diaphragm, fully welded and sealed, long-term reliability and durability;
  • For pressure measurement of gas, liquid, steam;
  • Anti-corrosion diaphragm is optional (tantalum, Kazakhstan C, 316L, 316L sprayed with PTFE);
  • Especially suitable for high temperature viscous liquid;

Cavityless flush Diaphragm pressure transmitter

Cavityless flush Diaphragm pressure transmitter

The cavityless flush Diaphragm pressure transmitter adopts a high-precision foil strain gauge and has no cavity to measure the diaphragm. It is especially suitable for measuring liquids with high viscosity.

The product adopts an improved and optimized installation structure, which makes the product have good anti-vibration ability.

Equipped with a variety of characteristic amplifying circuits, such as anti-interference, high temperature resistance, intrinsically safe explosion-proof, etc., making the modification suitable for various measurement and control occasions such as oil fields and food.

Working Principle

Flush diaphragm pressure sensors use processes such as diffusion or ion implantation to form resistors and connect them to a Wheatstone bridge. Micro-machining technology is used to form a pressure-sensitive diaphragm under the bridge. When pressure is applied to the diaphragm, the resistance value changes and a linearized output signal is generated that is proportional to the applied pressure. When we add DC power to the Wheatstone bridge, a DC voltage signal will be output. After the second conversion line, the two-wire system 4 ~ 20MA output is realized.

When to Use a Flush Diaphragm Pressure Connection?

In short, there are two cases, we can first consider Flush Diaphragm Pressure Connection.

The first is hygienic applications. Such as Pharmaceutical, Food, Beverage & Biotech.

For these applications the concern is not necessarily high viscosity but more to do with cleanliness. The wetted part of the Flush Diaphragm Pressure Sensor is flat. No holes, no ripples. This way, residue-free cleaning is easy.

The second is High Viscosity Liquids or Crystals.

Substances such as paints, oils, waxes, pastes, tars, plastic melts or slurries can clog the process connections of the pressure sensor.

The media may be too hard to adequately fill the internal voids of the pressure connector. Or once the process cools, the substance may wax. For these types of substances, it is necessary to specify a flushing connection in which the diaphragm is fully open.

Some pressure transducers have the option of flush-embedded diaphragms where mechanical damage to the diaphragm is a concern.

WIKA has a great video on When to use a front-flush pressure connection? Let’s take a look.

Technical Support

High Temperature Pressure Transducer with Best Price

High Temperature Pressure Transducer is also called High Temperature Pressure Sensor, or High Temperature Pressure Transmitter. The High Temperature Pressure Transducer is used for applications where the medium temperature exceeds the temperature limits of standard pressure transmitters. By assembling Cooling … Continue reading

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at a constant speed. Static Water Pressure is also called hydrostatic … Continue reading

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion resistance, wear resistance, impact, and vibration resistance. Ceramic has good thermal stability characteristics. High-temperature sintering … Continue reading

Static Pressure/Hydrostatic Pressure Transmitter

The Hydrostatic Pressure Transmitter measures the hydrostatic pressure exerted by a hydrostatic head. Use these hydrostatic pressure transmitters to measure the liquid level in storage tanks, processing vessels, collection tanks, pump inlet heads. And other applications use hydrostatic pressure to … Continue reading

What does intrinsically safe mean?

Intrinsically safe type is an explosion-proof type of electrical equipment. When purchasing electrical equipment, do you often hear about intrinsic safety? For example, when ordering pressure transmitters or flow meters. Intrinsically safe instruments are intrinsically safe instruments. Also called safety … Continue reading

What is a PID controller?

What is a PID controller? A PID controller is an instrument used in industrial control applications to regulate temperature, flow, pressure, speed, and other process variables. PID is the abbreviation for proportional integral derivative. PID controllers use a control loop … Continue reading

What does SCADA stands for?

What does SCADA stand for? SCADA is the abbreviation of Supervisory Control And Data Acquisition. Namely data acquisition and monitoring control system. SCADA system is also called monitoring configuration software, which is widely used in enterprise equipment management of equipment … Continue reading

What is a pressure sensor?

What is a pressure sensor? A pressure sensor is a device that senses a pressure signal and converts the pressure signal into a usable output electrical signal according to certain rules. Pressure sensors have a variety of structural types. Common … Continue reading

Introduction to Piezoelectric Pressure Sensors

What is a piezoelectric pressure sensor? The piezoelectric pressure sensor is a sensor that uses the piezoelectric effect of piezoelectric materials to convert the measured pressure into an electrical signal. Use electrical components and other machinery to convert the pressure … Continue reading

What Is an Air Pressure Transducer?

An Air pressure transducer is a sensor that converts the mechanical signal of air pressure into a current signal. Pressure has a linear relationship with voltage or current, and it is generally proportional. Therefore, the output voltage or current of … Continue reading

Steam Pressure Transmitter

Steam pressure transmitters are widely used in the measurement and control of various high-temperature steam piping systems. The monitoring of steam pipes is very important. To measure the pressure of steam pipes, have you encountered the following problems: Steam pressure … Continue reading

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors for pressure measure and control. If you have any questions, please contact our sales engineers. What is Cryogenic pressure transducer? The Cryogenic pressure sensor … Continue reading

Frequently
Asked
Questions

In short, a pressure sensor converts pressure into a small electrical signal, which is sent and displayed. Therefore, these are also commonly referred to as pressure transmitters. Two common signals used are 4 to 20 mA signals and 0 to 5 volt signals.

Most pressure sensors work using the piezoelectric effect. This is when the material generates a charge in response to stress. This stress is usually compressive, but may be twisted, bent, or vibrated.

Pressure sensors detect pressure and can determine the amount of pressure by measuring the charge.

The pressure sensor needs to be calibrated in order to know what voltage or milliamp (mA) signal corresponds to what pressure. This is the basic “zero” and “span” calibration or minimum and maximum, which is a common job for maintenance personnel.

Pressure gauge according to its measurement accuracy:

Can be divided into precision pressure gauges, general pressure gauges.
The precision level of precision pressure gauges is 0.1, 0.16, 0.25, 0.4 and 0.05.
The accuracy levels of general pressure gauges are 1.0, 1.6, 2.5, and 4.0.

Pressure gauge according to its measurement basis:

Pressure gauges are divided into: general pressure gauges, absolute pressure gauges, stainless steel pressure gauges, and differential pressure gauges according to the basis of their indicated pressure.
General pressure gauges are based on atmospheric pressure.
The absolute pressure gauge is based on the absolute zero pressure.
The differential pressure gauge measures the difference between two measured pressures.

Pressure gauge according to its measuring range:

Divided into vacuum gauges, pressure vacuum gauges, micro pressure gauges, low pressure gauges, medium pressure gauges and high pressure gauges.

Vacuum gauges are used to measure pressure values ​​below atmospheric pressure.

Pressure vacuum gauges are used to measure pressure values ​​less than and above atmospheric pressure.

Micro pressure gauges are used to measure pressure values ​​less than 60,000 Pa.

Low pressure meter is used to measure 0 ~ 6MPa pressure value.

Medium pressure gauge is used to measure the pressure value of 10 ~ 60MPa.

High pressure gauge is used to measure pressure value above 100MPa.

Pressure gauge according to its display mode:
Divided into pointer pressure gauge. Digital pressure gauge.

The pressure gauge is divided according to its use function:
Pressure gauges can be divided into local indication pressure gauges and charged signal control pressure gauges according to their different functions.

General pressure gauges, vacuum pressure gauges, shock-resistant pressure gauges, stainless steel pressure gauges, etc. are all in-situ indicating pressure gauges. They have no other control functions except the indicated pressure.

The output signals of the pressure signal-controlled pressure gauge mainly include:

1. Switching signal (such as electric contact pressure gauge)
2. Resistance signal (such as resistance remote pressure gauge)
3. Current signals (such as inductive pressure transmitters, remote pressure gauges, pressure transmitters, etc.)

According to the purpose of the pressure gauge:

It can be divided into: ordinary pressure gauge, ammonia pressure gauge, oxygen pressure gauge, electric contact pressure gauge, remote transmission pressure gauge, vibration resistance pressure gauge, pressure gauge with inspection pointer, double needle double tube or double needle single tube pressure gauge, digital display Pressure gauges. Digital precision pressure gauges.

Pressure sensors are mainly divided into two types: semiconductor piezoresistive type and electrostatic capacity type. Below we introduce their principles.

Semiconductor piezoresistance type:
The semiconductor piezoelectric impedance diffusion pressure sensor forms a semiconductor deformation pressure on the surface of the sheet. The sheet is deformed by an external force (pressure) to produce a piezoelectric impedance effect. The change in impedance is converted into an electrical signal.

Capacitance type:
The electrostatic capacitance type pressure sensor is a capacitor that opposes the fixed pole of glass and the movable pole of silicon to form a capacitance. It converts the change in electrostatic capacity generated by deforming the movable pole by external force (pressure) into an electrical signal.

A pressure sensor (Pressure Transducer) is a device or device that can sense the pressure signal and convert the pressure signal into a usable output electrical signal according to a certain rule.

At present, there are many types of core materials for pressure sensors. The performance of several core materials is briefly introduced below.
1. Single crystal silicon
2. Polysilicon
3. Silicon-Sapphire
4. Compound semiconductor materials
5. SiC thin film material

diaphragm pressure gauge is a device,

that uses a diaphragm with a known pressure to measure pressure in a fluid.

It has many different uses, such as monitoring the pressure of a canister of gas, measuring atmospheric pressure. Or recording the strength of the vacuum in a vacuum pump.

The diaphragm pressure gauge consists of a circular membrane, made from sheet metal of precise dimensions, which can either be flat or corrugated.

The diaphragm is mechanically connected to the transmission mechanism, which will amplify the small deflections of the diaphragm, and transfer them to the pointer.

Read more about: SI-D100 Diaphragm pressure gauge

Related Products

Sino-Inst offers Flush diaphragm pressure sensors. A wide variety of Flush diaphragm Pressure sensors options are available to you. Such as free samples, paid samples. Sino-Instrument is a globally recognized manufacturer of Flush diaphragm Pressure sensors, located in China.

Sino-Inst sells through a mature distribution network that reaches all 30 countries worldwide. Flush diaphragm Pressure sensors products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

Application Analysis of Intelligent Pressure Transmitter

Intelligent Pressure Transmitter is also called smart pressure transmitter.

Current intelligent pressure transmitters are generally hybrid intelligent pressure transmitters that have both digital and analog signals. Communication with DCS is mainly based on passing 4-20mA analog signals. Then superimpose digital signals on them for remote Set the zero point, range, and calibration, configuration, and diagnostics of the transmitter. It is only designed to be compatible with the existing DCS. Smart pressure transmitter is a transition product of true all-digital smart pressure transmitter (such as field bus type intelligent pressure transmitter).

As far as the composition structure of intelligent pressure transmitters widely used in the market is concerned, it mainly includes devices such as microprocessors, sensors, digital-to-analog converters, and memories. Different devices play different automatic control functions. The sensors are mainly aimed at The measured signal is detected. There are some differences in the materials designed in the specific application. As the core part of the entire device, the microprocessor is mainly used for comprehensive analysis and calculation of the relevant data collected by the device. Unit conversion, fault diagnosis, range adjustment, function calculation, etc. are performed for the detection signal. The function of the memory is to implement the configuration for the relevant data and programs in the microprocessor. At present, most of the memory used by people have the function of rewriting and adjusting. Related converters are mainly responsible for the interchange of digital signals related to analog signal machines. Smart pressure transmitters can communicate with DCS by outputting a series of digital signals. A reserve power supply is also set in the transmitter, which can prevent the memory data from being lost in the event of a power failure. According to the different types of sensors used in smart pressure transmitters, the transmitters can also be classified into capacitive, diffused silicon strain, and diffused silicon resonant types.

Featured Smart Pressure Transmitters

Diffused silicon Gauge Pressure Transmitter
A gauge pressure (GP) transmitter compares a process pressure against local ambient air pressure. Gauge pressure transmitters have ports to sample the ambient air pressure in real-time.
High-Temperature Pressure Transmitter
High-temperature pressure transmitters with a 4-20mA output.
which has a temperature capability of over 700 °C and is not pyroelectric.
Explosion-proof Pressure Transmitter
Explosion-proof Pressure transmitter, or explosion-proof pressure transducer, with the explosion-proof enclosure.
For applications in hazardous areas.
Diaphragm Seal Pressure Transmitter
When the process medium should not come into contact with the pressured parts of the measuring instrument. Diaphragm sealed pressure transmitters are used for pressure measurement.
Hygienic / Sanitary Pressure Transmitter
Also called Hygienic pressure Transmitters, or tri clamp pressure transmitter. Sanitary pressure Transmitters is used to food &beverage or pharmaceutical application.
Capacitive Gauge Pressure Transmitter
Gauge pressure (GP) transmitters compare process pressure with local ambient air pressure. Gauge pressure transmitters have ports for real-time sampling of ambient air pressure.
Absolute Pressure Transmitter
Absolute pressure transmitter with 4-20mA output for measuring pressure with absolute type reference. Absolute pressure (AP) transmitter is a measure of the ideal (complete) vacuum pressure.
Hydrostatic pressure transmitter
Hydrostatic pressure transmitter is used for fluid hydrostatic pressure measurement. With working static pressure up to 32Mpa, for liquid, gas or steam .

Function of Smart Pressure Transmitters

  • Type: Pressure- Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT)
  • Certificate: SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X
  • Feature: 4 to 20mA, HART, Loop Powered
  • Accuracy: ± 0.075% (option ± 0.04%) of CS* 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
  • Application: Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinery

More about: Absolute Pressure Vs Gauge Pressure.

Hydrostatic pressure for level measurement:

SI-151 Hydrostatic Level Sensor
SI-PCM260 Deep Well Water Level Sensor
SMT3151TR Hydrostatic level transmitter-Rod Type

Main Features of Smart Pressure Transmitters

Compared with conventional analog transmitters, smart pressure transmitters have many characteristics. Take Rostman smart pressure transmitters as an example. The characteristics of this pressure transmitter are mainly concentrated on the following points:

1. Wide range and large range ratio

Intelligent pressure transmitters generally have a wide measuring range. The measuring range ratio is large, from 30: 1 to 100: 1, and some even reach 400: 1. The measuring range ratio of the transmitter refers to the maximum measurement range (URV) and the minimum measurement Range (LRV) ratio. Because the intelligent pressure transmitter has a wide measuring range, compared with conventional analog pressure transmitters, the biggest advantage is that it can reduce the inventory. At the same time, according to the process requirements, the measuring range can be changed at any time without following the meter change, without having to change the meter. Don’t worry about exceeding the range.

2.Simple and convenient maintenance

The handheld communicator can be used to communicate with the intelligent pressure transmitter at the terminal of the field transmitter or at the terminal in the control room of the main control room. In this way, the instrument maintenance personnel can perform range modification, parameter setting, and instrument maintenance on the transmitter in a relatively safe and relatively good control room.

3.With high and low voltage side conversion function

Intelligent pressure transmitters generally have high- and low-pressure side conversion functions of the sensor, and the internal parameters can be adjusted with a handheld communicator. I encountered such a problem in production. Because the meter has been running for many years, the pressure guiding tube connected to the transmitter needs to be replaced due to leakage. When the meter is put into operation after replacement, it is found that the positive and negative phase pressure guiding tubes are reversed (because the pressure guiding tube is long , And there is a heat tracing tube together, the positive and negative phases are easily reversed). The intelligent pressure transmitter has high and low pressure side conversion functions, as long as the parameter items in the table are changed from NORMOAL (high pressure on the right side, low pressure on the left side) to REVERSE (low pressure on the right side, high pressure on the left side). After reconfiguring the table, Everything works fine, saving time and effort.

4. With fixed output function

This function is more convenient to use in the following situations: When the transmitter fails, in order to ensure the safety of production equipment and personnel, or to ensure product quality, the transmitter output needs to be a fixed value. After the annual overhaul, due to the meter All links in the control circuit have been overhauled. The entire circuit needs to be co-calibrated before driving. At this time, the fixed output function of the intelligent transmitter can be used by the hand programmer. Generally, any value between 3.8-21.6mA can be set, and the whole circuit where it is located is cascaded.

In addition, the intelligent pressure transmitter has the characteristics of high accuracy, good stability and high reliability.

Extended Reading: Selection of pressure transmitter

Application Analysis of Intelligent Pressure Transmitter

Used as a reminder of impulse pipeline problems

In general, the intelligent pressure transmitter is connected to the process through a small-diameter pipe, and this management is the impulse pipeline. In some applications, such impulse lines may be blocked by materials or frozen due to cold weather. These blockages may cause difficulties in transmitting pressure signals. In this case, the use of conventional pressure transmitters cannot be used to understand this clogging problem. The main reason is that in the case of a blockage problem, there is a certain difference between the signal indicated by the transmitter and the signal provided before the blockage occurred. It must be ensured that the output of the transmitter does not change with the actual flow rate change before it can be found The problem. It has been found in practice that if one or two impulse lines are blocked during some flow measurement processes, the standard deviation at a specific flow will change greatly. The intelligent pressure transmitter can effectively detect such changes. In this way, the blocking position of the impulse pipeline can be controlled in time, which facilitates fault finding and avoids increasing problems.

For flame instability detection in refining furnaces

In many chemical fields, refining furnaces are important equipment. Incineration of different chemical production waste gases is required. Because many BTUs coexist, the flame stability is not very good, which is also an important sign that the refining furnace is out. The application of intelligent pressure transmitter can measure the noise of the fire control pressure in the room. The transmitter can be used to detect the flame stability. The general measurement accuracy is relatively high, and it can detect the abnormal signal in the refining furnace. . Convenient staff to correct equipment problems in time to avoid flameout.At present, smart pressure transmitters are also used in related fields to a certain extent, which belongs to the category of precision instruments. In many fields of application, smart pressure transmitters can accurately detect related signals and data information, find abnormalities in time, and facilitate Find and repair the corresponding faults. It is helpful to reduce system failures and improve system operation efficiency.

Q&A

What is smart pressure transmitter?

Digital smart pressure transmitter is pressure sensor with a 12-bit or higher microprocessor. Smart pressure transmitters are high performance microprocessor-based transmitters with flexibility. Pressure calibration and output, automatic compensation.
Smart pressure transmitter also called intelligent pressure transmitter.
The intelligent pressure transmitter consists of two parts: a smart sensor and a smart electronic board.
The smart sensor part includes: a capacitive sensor. A measuring diaphragm detection circuit. A temperature sensor, and a temperature compensation circuit.
The smart electronic board includes: a microcomputer controller. And the peripheral circuit, complete the pressure signal to 4 ~ 20mA dc conversion.
Smart Pressure Transmitter is used to measure the pressure of liquid, gas or steam. And then convert the pressure signal into 4 ~ 20mA DC signal output. The intelligent pressure transmitter produced by Sino-Inst can communicate with the HART communicator. It is widely used in weakly corrosive liquids in industrial pipelines, Gas and steam measurement and control systems.
Extended reading: How to calibrate HART pressure transmitters

What is the principle of pressure transmitter?

Like other transmitters, a pressure transmitter consists of electronics connected to a sensor. We can find transmitters with many types of pressure sensors on the market – capacitive, piezoelectric, resonant silicon, and more.
So pressure applied to capacitive cells will produce a change in the capacitance of the sensor. This change will affect the oscillator frequency, and the pressure transmitter will detect this change. Then the transmitter translates this data into a standard output signal that we can read.
Using a local setup or a handheld, you can adjust the transmitter, changing information like the unit, measuring range, and output.
More: How does a pressure transmitter work

How do you calibrate a smart transmitter?

To perform the test:
1. Isolate the transmitter from the process being measure and its loop wiring. If measuring the mA signal across the transmitter test diode leave the wires intact, but note this method does not give the best mA measurement accuracy.
2. Connect the mA measurement jacks of the 754 to the transmitter.
3. Connect the pressure module cable to the 754 and connect the transmitter test hose from the hand pump to the transmitter.
4. Press the HART button on the calibrator to see the configuration of the transmitter.
5. Press HART again and the calibrator will offer the correct measure/source combination for the test. If documenting the calibration press As-Found, input the test tolerance and follow the prompts. If the measured mA signal at the test points is found within tolerance the test is complete. If not, adjustment is required.
6. Select, adjust, and trim the pressure zero, mA output signal and input sensor.
7. After adjustment select As-Left, document the condition of the transmitter and after adjustment and if the test passes, it is complete.
More: Pressure Transmitter Calibration

How do you calibrate a pressure transmitter with HART Communicator PDF?

The basic procedure for calibration
1. Isolate the Pressure Transmitter from the Process.
2. Slowly open the vent plug and the vent valve to release the pressure.
3. Connect the multimeter with the transmitter and ensure that output is 4ma when 0 pressures are applied.
4. Connect the handheld test pump (pressure source) to the transmitter.
5. Ensure there is no leak.
6. Apply pressure range at 0%, 25%, 50%, 75%, 100% and check there is any error.
7. If there is any error calibration should be done.
Extended reading: Smart Differential Pressure Transmitter

Industrial Pressure Transmitters

Industrial pressure transmitters for the process pressure measure, monitor and control application.

Industrial pressure transmitters are sensors with electrical transmission output for remote indication of pressure. Process transmitters differentiate themselves from pressure sensors through their increased range of functionality.

They feature integrated displays, offer high measuring accuracies and freely scalable measuring ranges. Communication is via digital signals, and waterproof and explosion-proof certifications are available. Through connection to diaphragm seals, they are suitable for the harshest operating conditions. Ideal for OEMs, process applications, water processing, and industrial pressure applications.

Sino-Inst offers a variety of pressure senors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Featured Industrial Pressure Transmitters

Diffused silicon Gauge Pressure Transmitter
A gauge pressure (GP) transmitter compares a process pressure against local ambient air pressure. Gauge pressure transmitters have ports to sample the ambient air pressure in real-time.
Capacitive Gauge Pressure Transmitter
Gauge pressure (GP) transmitters compare process pressure with local ambient air pressure. Gauge pressure transmitters have ports for real-time sampling of ambient air pressure.
Explosion-proof Pressure Transmitter
Explosion-proof Pressure transmitter, or explosion-proof pressure transducer, with the explosion-proof enclosure.
For applications in hazardous areas.
Diaphragm Seal Pressure Transmitter
When the process medium should not come into contact with the pressured parts of the measuring instrument. Diaphragm sealed pressure transmitters are used for pressure measurement.
Hygienic / Sanitary Pressure Transmitter
Also called Hygienic pressure Transmitters, or tri clamp pressure transmitter. Sanitary pressure Transmitters is used to food &beverage or pharmaceutical application.
High-Temperature Pressure Transmitter
High-temperature pressure transmitters with a 4-20mA output.
which has a temperature capability of over 850 °C and is not pyroelectric.

Absolute Pressure Transmitter
Absolute pressure transmitter with 4-20mA output for measuring pressure with absolute type reference. Absolute pressure (AP) transmitter is a measure of the ideal (complete) vacuum pressure.
Hydrostatic pressure transmitter
Hydrostatic pressure transmitter is used for fluid hydrostatic pressure measurement. With working static pressure up to 32Mpa, for liquid, gas or steam .
Remote Diaphragm Seal Pressure Transmitter
Remote seal pressure transmitter, with capillary and diaphragm seal, remote mount. Diaphragm seal systems protect pressure transmitters from hot, viscous, contaminated or corrosive media.

Sino-Inst also provides repair services for Industrial pressure transmitters. Such as WIKA, Rosemount, and other brands of pressure transmitters.

What is a smart pressure transmitter?

Digital smart pressure transmitter is pressure sensor with a 12-bit or higher microprocessor. Smart pressure transmitters are high performance microprocessor-based transmitters with flexibility. Pressure calibration and output, automatic compensation.

Smart pressure transmitter also called intelligent pressure transmitter.

The intelligent Industrial pressure transmitters consist of two parts: a smart sensor and a smart electronic board.

The smart sensor part includes: a capacitive sensor. A measuring diaphragm detection circuit. A temperature sensor, and a temperature compensation circuit.

The smart electronic board includes: a microcomputer controller. And the peripheral circuit, complete the pressure signal to 4 ~ 20mA dc conversion.

Smart Industrial pressure transmitter is used to measure the pressure of liquid, gas or steam. And then convert the pressure signal into 4 ~ 20mA DC signal output. The intelligent pressure transmitter produced by Sino-Inst can communicate with the HART communicator. It is widely used in weakly corrosive liquids in industrial pipelines, Gas and steam measurement and control systems.

Industrial pressure transmitters Working Principle

Principle and Application of Diffusion Silicon Pressure Transmitter

The pressure of the measured medium directly acts on the diaphragm of the sensor (stainless steel or ceramic). Causing the diaphragm to generate a micro-displacement proportional to the pressure of the medium. The resistance value of the sensor changes. The electronic circuit detects this change and converts and outputs a standard measurement signal corresponding to this pressure.

Principle of capacitive pressure transmitter

Capacitive pressure transmitter is mainly composed of capacitance sensor and circuit board. The sensor implements pressure-capacitance conversion. The circuit board converts the capacitance to a two-wire 4-20mA.

When the process pressure is applied to the isolation diaphragm from both sides (or one side) of the measuring chamber, it is transferred to the central diaphragm of the chamber through the silicone oil filling liquid. The central diaphragm is a diaphragm with tensioned edges.

Under the action of pressure, a corresponding displacement is generated. This displacement creates a change in differential capacitance!

And through the adjustment, oscillation and amplification of the electronic circuit board! Converted into 4-20mA signal output! The output current is directly proportional to the process pressure!

Types of Pressure Transmitters

Depending on the type of pressure to be measured:

Pressure transmitter types include gauge pressure, absolute pressure, and differential pressure. Gauge pressure refers to the pressure that is less than or greater than atmospheric pressure based on the atmosphere. Absolute pressure refers to the absolute zero pressure as the reference and is higher than the absolute pressure. Differential pressure refers to the difference between two pressures.

According to the working principle of the Industrial pressure transmitters:

  • Strain Gauge Pressure Transducers
  • Capacitance Pressure Transducers
  • Potentiometric Pressure Transducers
  • Resonant Wire Pressure Transducers

Electrical Output of Pressure Transducers

Pressure transmitters are generally available with three types of electrical output. Millivolt, amplified voltage and 4-20mA. Below is a summary of the outputs and when they are best used.

Extended Reading: 4-20ma pressure transducer wiring diagram

Millivolt Output Pressure Transducers

A sensor with a millivolt output is usually the most economical pressure sensor. The output of a millivolt sensor is nominally about 30mV. The actual output is proportional to the input power or excitation of the pressure sensor. If the stimulus fluctuates, the output will change.

Because of this dependence on the level of excitation, a regulated power supply is recommended for millivolt sensors. Because the output signal is so low, the transducer should not be placed in an electrically noisy environment. The distance between the transducer and the reading instrument should also be kept relatively short.

Voltage Output Pressure Transducers

Voltage output transducers include integral signal conditioning, which provides higher output than millivolt transducers. The output is usually 0-5Vdc or 0-10Vdc. Although model-specific, the output of the transducer is usually not a direct function of the stimulus. This means that as long as the regulated power supply falls within the specified power range, it is usually sufficient. Because of their higher output levels, these sensors are not as susceptible to electrical noise as millivolt sensors and can therefore be used in more industrial environments.

4-20 mA Output Pressure Transducers

These types of sensors are also called pressure transmitters. Because 4-20mA signals are least affected by electrical noise and resistance in the signal line, these sensors are best used when signals must be transmitted over long distances. These sensors are typically used in applications where the lead must be 1000 feet or more.

Industrial Applications of Pressure Transmitters

Pressure transmitters are mainly used in the following areas:

  1. Petroleum, petrochemical, chemical. Matching with throttling devices to provide accurate flow measurement and control. Measures pressure and level in pipes and tanks.
  2. Electricity, city gas. And other companies and businesses require high stability and high precision measurement and other places.
  3. Pulp and papermaking are used in places that require chemical-resistant liquids and corrosion-resistant liquids.
  4. Steel, non-ferrous metals, and ceramics are used in furnace pressure measurement and other places that require high stability and high precision measurement. They are also used in places that require stable measurement under strict control (temperature, humidity, etc.).
  5. Machinery and shipbuilding, used to strictly control the place where high precision is required for stable measurement.

Hydrostatic pressure for level measurement:

SI-151 Hydrostatic Level Sensor
SMT3151TR Hydrostatic level transmitter-Rod Type
SI-PCM260 Deep Well Water Level Sensor

Pressure Transmitters VS Pressure Sensors VS Pressure Transducers

A pressure sensor is a device or device that can sense a pressure signal and convert the pressure signal into a usable output electrical signal according to a certain rule.

A pressure sensor usually consists of a pressure-sensitive element and a signal processing unit. According to different test pressure types, pressure sensors can be divided into gauge pressure sensors, differential pressure sensors and absolute pressure sensors. A pressure sensor is the core part of pressure transmitter.

In a pressure transducer, a thin-film or piezo-resistive pressure sensor is mounted on a process connection. The transducer converts pressure into an analog electronic output signal, typically as a millivolt per volt output. These signals are not linearized or temperature compensated.

A pressure transmitter has additional circuitry that linearizes, compensates, and amplifies the signal from a transducer. The different signal types are typically voltage signals (eg, 0 to 5 or 0 to 10 volts), milliamp (eg, 4 to 20 milliamp), or digital. The instrument then can transmit the signal to a remote receiver.

If you still don’t know how to choose the right pressure transmitter. Please feel free to contact our sales engineers. We will provide you with the best pressure measurement and control solution.

Guidelines for Troubleshooting Pressure Transmitters

When this happens, you should consider: Is the pressure source itself stable? The degree of anti-interference ability of the instrument or pressure sensor. Is the sensor wiring normal? The sensor itself is vibrating and the cause of the failure. Is the polarity of the power supply reversed?

Check the degree of pressure variable; make 4-20mA output adjustment.

Check the transmitter’s power supply voltage, calibration equipment and set values (4mA and 20mA points). Check whether the pressure interface is leaking or blocked. Check the wiring mode and power supply. If normal, check if the sensor has zero output. Or Perform a simple pressurization to see if the output changes. If there is a change, the sensor is not damaged.

Check if pressure transmission is blocked; check calibration equipment and adjust sensors; check vehicle damping and electromotive force interference.

Frequently
Asked
Questions

1. Do a 4-20mA trimming first to calibrate the D / A converter inside the transmitter. Since it does not involve sensing components, no external pressure signal source is required.

2. Do a full fine-tuning again to make the 4-20mA, digital reading coincide with the pressure signal actually applied. So a pressure signal source is needed.

3. Finally, do the re-ranging, and adjust the analog output 4-20mA to match the external pressure signal source. Its role is exactly the same as that of the zero (Z) and range (R) switches on the transmitter housing.
The communicator can change the range of the intelligent pressure transmitter. And can adjust the zero point and the range without inputting a pressure source. However, this method cannot be called calibration and can only be called “setting the range”. True calibration requires a standard pressure source input to the transmitter.

Adjusting the range (LRV, URV) without using a standard is not calibration. And ignoring the input part (input transmitter pressure) for output adjustment (transmitter conversion circuit) is not a correct calibration. Furthermore, the relationship between the pressure and differential pressure detection components, the A / D conversion circuit, and the current output is not equal. The purpose of calibration is to find the changing relationship between the three.
Emphasize one point:
Only when the input and output (input transmitter pressure, A / D conversion circuit, loop current output circuit) are debugged together, can it be called a true calibration.

First of all, the parameters that must be seen when purchasing a pressure transmitter are:
Pressure range. Range. Measurement medium. Installation method-threaded flange clamps, etc. Installation dimensions. Temperature. Whether with display. Whether with HART protocol. Output type. Current output or voltage output. Explosion-proof level, protection level. Accessories. Mounting bracket.
The above parameters will affect the price of the pressure transmitter.
Sino-Inst, as the manufacturer of pressure transmitter, offer you with the best price.

The input of the pressure transmitter is a pressure signal. The function of the pressure transmitter is to convert the pressure signal input from the outside into a current or voltage signal.

A pressure transmitter is a device that converts pressure into pneumatic or electric signals for control and remote transmission.

It can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.). Measurement, indication and process adjustment are carried out by supplying secondary instruments such as indicating alarms, recorders and regulators.

Related Products

Related Blogs

High Temperature Pressure Transducer with Best Price

High Temperature Pressure Transducer is also called High Temperature Pressure Sensor, or High Temperature Pressure Transmitter. The High Temperature Pressure Transducer is used for applications where the medium temperature exceeds…

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at…

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion resistance, wear resistance, impact, and…

Static Pressure/Hydrostatic Pressure Transmitter

The Hydrostatic Pressure Transmitter measures the hydrostatic pressure exerted by a hydrostatic head. Use these hydrostatic pressure transmitters to measure the liquid level in storage tanks, processing vessels, collection tanks,…

What does intrinsically safe mean?

Intrinsically safe type is an explosion-proof type of electrical equipment. When purchasing electrical equipment, do you often hear about intrinsic safety? For example, when ordering pressure transmitters or flow meters…

How to convert a 4-20mA to 0-10V /1-5V signal?

4-20mA to 0-10v voltage, this is I/V conversion. That is current-voltage conversion, usually used for long-distance signal transmission in the industry. How to convert a 4-20mA to 0-10V /1-5V signal?…

What does SCADA stands for?

What does SCADA stand for? SCADA is the abbreviation of Supervisory Control And Data Acquisition. Namely data acquisition and monitoring control system. SCADA system is also called monitoring configuration software,…

What is a pressure sensor?

What is a pressure sensor? A pressure sensor is a device that senses a pressure signal and converts the pressure signal into a usable output electrical signal according to certain…

Introduction to Piezoelectric Pressure Sensors

What is a piezoelectric pressure sensor? The piezoelectric pressure sensor is a sensor that uses the piezoelectric effect of piezoelectric materials to convert the measured pressure into an electrical signal…

What Is an Air Pressure Transducer?

An Air pressure transducer is a sensor that converts the mechanical signal of air pressure into a current signal. Pressure has a linear relationship with voltage or current, and it…

Steam Pressure Transmitter

Steam pressure transmitters are widely used in the measurement and control of various high-temperature steam piping systems. The monitoring of steam pipes is very important. To measure the pressure of…

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors for pressure measure and control. If you have any questions, please contact our sales…

High Frequency Dynamic Pressure Sensor

Dynamic pressure sensor, the transmitter is a high frequency sensor. Sino-Inst offers a variety of  Dynamic Pressure Sensors for pressure measurement. If you have any questions, please contact our sales…

Sino-Inst offers over 20 industrial pressure transmitters.
A wide variety of industrial pressure transmitters options are available to you. Such as free samples, paid samples.
Sino-Inst is a globally recognized manufacturer of industrial pressure transmitters, located in China.
Sino-Inst sells through a mature distribution network that reaches all 30 countries worldwide.
Industrial pressure transmitters products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

Industrial Pressure Sensors

Insutrial pressure sensor for the pressure measurement application.

A pressure sensor converts the physical quantity ‘pressure’ into an industry-standard electric signal. Sino-Inst manufactures pressure sensors ranging from the sensing element to system packaging. Based on piezoresistive Micro-electromechanical systems and silicon strain gauge , our sensors measure from 20inWc … 200,000 psi. We can also build custom sensors to meet your specific needs. Our product portfolio covers a wide range of pressure sensors. Suitable for refrigeration and air conditioning applications, the food industry, mobile work machines, medical gas and semiconductor industries.

Sino-Inst offers a variety of pressure senors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Featured Industrial Pressure Sensors

SI-303 Low-Pressure Transducer
Low pressure transducers for air and non-corrosive gases low pressure measurement. 0 ~ 2.5kPa to 0 ~ 30kPa measurable.
SI-350 Sanitary Pressure Transmitter
Sanitary Pressure Transmitter, also called tri clamp pressure transmitter,
is the pressure transducer with the flush diaphragm (flat membrane) as the pressure sensor.
SI-300 Pressure Transducer 4-20mA/Voltage
The 4-20mA/ Voltage Pressure Transducer,
also called pressure transmitter 4-20mA,
is a pressure sensor with4-20ma/Voltage output.
SI-390 Industrial Pressure Transmitter
Pressure transmitters for general industrial applicaitons. -0.1kPa ~ 0 ~ 0.01kPa ~ 100MPa ~150MPa. 0.1% FS, 0.25% FS, 0.5% FS. 4-20mA (2-wire system), 0-5 / 1-5 / 0-10V (3-wire system)
SI-520 Digital Pressure Sensor
Digital Pressure Sensor is particularly suitable for use in computer control systems. RS485 half-duplex working mode.

SI-302 OEM pressure sensor
OEM pressure sensors from Chinese manufacturer. Silicone filled. Protected by stainless steel diaphragm. Suitable for a variety of fluid media.

SI-703 Flush diaphragm pressure sensor
Flush membrane / diaphragm structure, anti-blocking design. Pressure measurement of viscous media.
SI-10 Liquid pressure sensor
Liquid pressure sensor is widely used for pressure measurement of various liquids. Like water or oils. IP68 waterproof.
SI-503K Gas Pressure Sensor
Gas pressure sensor for industrial gas pressure monitoring. Pagoda gas nozzle Φ8. Such sensors are also commonly referred to as wind pressure transmitters, exhaust pressure sensors.
SI-702 High Pressure Sensor
High pressure sensor is pressure transmitter designed for high pressure measure&control. 0 ~ 40MPa… 600MPa. M20 × 1.5, G1 / 2 (others are customized according to requirements)
SI-702S Ultra-High Pressure Senors
Pressure sensor for Ultra high pressure applications. Ultra high pressures up to 15,00MPa. 0-2000MPa to 0-7000MPa (customized).Ball head M20 × 1.5, cone head M20 × 1.5.
SI-512H High Temperature Pressure Sensor
High Temperature Pressure Sensor for pressure measurement of high temperature gas or liquid. Such as steam pressure. High temperature up to 800 ℃.

SIJC-1000HSM-Silicon Pressure Sensor
Silicon pressure sensor, also known as Diffused silicon pressure sensor. Silicon pressure sensors are low cost.
SI-706 Combined Pressure and Temperature Sensor-Dual function
Combined pressure and temperature sensor for Simultaneous measurement of pressure and temperature.
Thermocouple types: J, K, E type or PT100 platinum resistance. Two outputs do not affect each other.
SI-338 Ceramic Pressure Sensor
Ceramic pressure sensor is a pressure sensor refined from a thick ceramic base using a refined ceramic base. Cost-effective. Support OEM processing. 0-0.2MPa -…- 40MPa

Technical Support

pressure sensor is a device for pressure measurement of gases or liquids.  Pressure sensors can also be used to indirectly measure other variables such as fluid/gas flow, speed, water level, and altitude. Pressure sensors can alternatively be called pressure transducerspressure transmitterspressure senderspressure indicatorspiezometers and manometers, among other names.

From Wikipedia : Pressure sensor

In short, a pressure sensor converts pressure into a small electrical signal, which is sent and displayed. Therefore, these are also commonly referred to as pressure transmitters. Two common signals used are 4 to 20 mA signals and 0 to 5 volt signals.
Most pressure sensors work using the piezoelectric effect. This is when the material generates a charge in response to stress. This stress is usually compressive, but may be twisted, bent, or vibrated.

Pressure sensors detect pressure and can determine the amount of pressure by measuring the charge.

The pressure sensor needs to be calibrated in order to know what voltage or milliamp (mA) signal corresponds to what pressure. This is the basic “zero” and “span” calibration or minimum and maximum, which is a common job for maintenance personnel.

What common types of pressure can you measure with a pressure sensor?

We use three common types in the industry.

  • The first is “gauge pressure”. Measured with reference to atmospheric pressure (typically 14.7 PSI). When above atmospheric pressure, you will display a “positive” pressure; when below atmospheric pressure, you will display a “negative” pressure.
  • The next is “absolute pressure“. In short, this is the pressure relative to an absolute vacuum measurement. The absolute pressure of the full vacuum is zero PSIa and it increases from there. This type of sensor can be used if it is necessary to read pressures below atmospheric pressure.
  • The last type that is usually monitored in the industry is “pressure differential”. It sounds like this, the difference between two pressures, a measured pressure and a reference pressure.

Sino-Inst also provides repair services for pressure sensors. Such as WIKA, Rosemount, and other brands of pressure sensors.

Pressure sensor structure

Pressure sensor wiring

Industrial Applications of Pressure Sensors

Pressure sensors play critical process and quality control roles in industrial applications. Industrial pressure sensors provide a reliable solution for medical, HVAC, and industrial applications. Our sensors are signal-conditioned, calibrated over the entire temperature range. And include digital or analog outputs.

Industrial pressure sensors can be used to measure media, namely different types of gases and liquids:

  • Air
  • Atmosphere / barometric pressure
  • Gas
  • Water
  • liquid
  • Hydraulic / pneumatic
  • Corrosive media

Although many of the above apply to corrosive substances. You can also find sensors specifically designed for measuring corrosive media.

Sensors used in chemical processes may need to withstand exposure to corrosive media such as acids or bases. Many stainless steel enclosures and / or diaphragms can be specified to improve corrosion resistance. They can also withstand corrosion due to atmospheric humidity or water splashes. Or withstand permanent immersion in untreated water or chemical-containing water such as treatment plants or swimming pools.

The corrosion hazard caused by seawater, salt spray or coastal environment exceeds the tolerance of ordinary low grade stainless steel. Housing and diaphragm materials such as super nickel alloys or titanium are generally recommended.

Sensors can also be specified, such as using O-rings made of fluororubber instead of parts made of rubber to increase resistance to aging and corrosion. Alternatively, the diaphragm can be welded to the sensor body to enhance corrosion resistance.

Sino-Instrument offers over 20 Pressure sensors. A wide variety of  Pressure sensors options are available to you. Such as free samples, paid samples. Sino-Instrument is a globally recognized manufacturer of Pressure sensors, located in China. Sino-Instrument sells through a mature distribution network that reaches all 30 countries worldwide. Pressure sensors products are most popular in Europe, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers. With ISO9001, ISO14001 certification.

Request a Quote

Please enable JavaScript in your browser to submit the form

SI-ML Portable Ultrasonic Liquid Level Indicator

Portable Ultrasonic Liquid Level Indicator allows you to conveniently detect the level of liquid available in a container /cylinder/pipe/tank. Ultrasonic principle, Non-contact.

Portable ultrasonic liquid level indicator is best choice for tanks or pipes level measurement. It is designed to measure the presence or absence of liquid at a certain height position in a tank or in pipelines. Non-contact ultrasonic detection technology. SI-ML works perfect for detection of dangerous toxic or corrosive liquids. Under ordinary conditions, the maximum wall thickness of measurable containers is 30mm. The product is suitable for the detection of various types of liquids. Liquids are non-crystalline or other particulate matter. For example CO2 Tank. Thanks to non-contact detection technology, this level indicator is ideal for detecting hazardous toxic or corrosive liquids.

Please feel free to contact us for Techinical Support, or Request a quote for Portable ultrasonic liquid level indicators (customization available).

Features of Portable Ultrasonic Liquid Level Indicator

SI-ML Portable Ultrasonic Liquid Level Indicator is mainly used for liquid level detection of various tanks and pipes.

Detect the storage capacity of fire extinguishing agent storage containers in gas fire extinguishing systems (eg, original Indo-European, haloalkane, CO2, etc.). Measure the presence of liquid level in a cylinder or container at a certain height position, such as haloalkane, CO2, etc. It can also indicate the presence of a liquid level in the container.

The material of the measurable container can be various metals, glass or non-foam. And the measurable wall thickness is usually not less than 30mm. This measurement technique is not affected by factors such as medium density, dielectric constant, electrical conductivity, reflection coefficient, pressure, temperature, sediment, and so on.

The product can be used to detect all liquids that do not crystallize and contain no particulate matter. Because it uses non-contact detection, it is ideal for fire detection of toxic and corrosive hazardous liquids and acceptance testing of gas fire suppression systems.

  • No contact with medium
  • Suitable for toxic, corrosive, orinvasive medium
  • No need for drilling or welding on tank wall
  • Advanced ultrasonic sensor technology
  • Reliable measurement results
  • Easy and convenientt ooperate and maintain
  • Ultrasonic adaptive detection algorithm.
  • High-contrast OLED color display, suitable for outdoor use under strong light.
  • Newly added ultrasonic waveform display function facilitates parameter testing, waveform comparison and other functions to ensure measurement accuracy in complex situations
  • Gooduser interface design
  • The comprehensive software displays the measurement results, and the method is simple

Working principle of Portable Ultrasonic Liquid Level Indicator

The portable ultrasonic cylinder liquid level indicator couples high-frequency ultrasonic pulses generated by the sensor to the outer wall of the container. An ultrasonic signal is then returned from the container wall. Different media attenuate the received ultrasonic signals differently. The received reflected wave generates an electrical signal. The magnitude of the electrical signal can be displayed by the digital value of the LCD on the panel, and the LED corresponding to the liquid level is lit.

Different sensors have different sensitive devices. When measuring, different containers and different liquids will produce slightly different readings, so this reading is not absolute. But the same thing is that when the sensors are connected to the respective inside and outside of the container, the reading of the level indicator will change significantly. In this way, you can determine whether there is liquid at a certain height position in the container by changing the indicator on the instrument and the value displayed on the LCD.

Extended reading: The Secret of Ultrasonic Level Measurement

How to use Ultrasonic Liquid Level Indicator?

Structure of Portable Ultrasonic Liquid Level Indicator

Applications of Portable Ultrasonic Liquid Level Indicator

Note: Usable for calibration of liquid level meter

Extended reading: GWR Corrosive Liquid Chemical Level Sensor

Portable ultrasonic liquid level indicator for Co2

Co2 cylinder specifications (external diameter division):

The CO2 cylinders measured by this meter are divided into the following 4 specifications: 215mm-225mm diameter cylinders. 270mm-280mm diameter cylinders. 345mm-355mm diameter cylinders. 395mm-405mm diameter cylinders. There are no excessive requirements for the height of the medium and the tank.

If you need to purchase liquid level gauge for CO2 Cylinders, you may like:

CO2 Cylinder | Portable Liquid Level Gauge

Procurement Guide: Ultrasonic liquid level sensors

Co2 cylinder measurement operation:

  1. Select “co2 cylinder”-“Choose a suitable cylinder diameter” through the menu and enter the measurement interface.
  2. Hold the probe vertically and tightly on the tank, and press the <Measure> button to measure.
  3. Measurement results are based on measurement parameters and level indicator lights (red is “no liquid”, green is “with liquid”)
  4. Generally, the measurement is started from the bottom of the storage tank (measurement with liquid position). If the measurement parameter is> = 2, the current level is considered to be a liquid-free position. And <2 is considered to be a liquid level. if it is floating around 2, It is considered that the liquid level of the horizontal plane is approaching the liquid surface (usually about 5 cm).
  5. Take multiple points on the same horizontal plane for measurement. And take the result with the highest probability as the final result (avoid the interference of welds and unknown factors).
  6. Find the liquid level position step by step through the approximation measurement.

Co2 cylinder measurement Note:

Due to the irregular shape of the air outlet and the many welding kits on the top of the carbon dioxide cylinder, the bottom and top measurement results are invalid. (If the fuel tank is full, the top is usually empty).

FAQ

What is ultrasonic level measurement?

Ultrasonic liquid level measurement is non-contact liquid level measurement. Commonly used for non-contact liquid level measurement. Such as tank level, river level, etc.
Based on the principle of ultrasonic time difference, the ultrasonic liquid level sensor is used to complete the ultrasonic liquid level measurement.
Read more: Guide: Non-contact Ultrasonic Level Sensing transmitters

How does an ultrasonic level transmitter work?

To put it simply, the ultrasonic wave sent by the ultrasonic sensor hits the bottom of the tank or the liquid surface vertically. The sensor then receives the reflected return signal. The time difference between one trip and one trip back and forth. Through intelligent calculation inside the instrument. The calculation formula is as follows: h = H-v * t / 2. Where: h is the required liquid level height. H is the distance between the ultrasonic probe and the bottom of the container. v is the speed of ultrasonic sound. t is the ultrasonic propagation time. It can be seen that the measurement accuracy of liquid level depends on the measurement accuracy of ultrasonic sound velocity v and ultrasonic propagation time t.
Extended reading: Guide to Ultrasonic Level Transmitters

How does water level sensor work?

The water level sensor is an essential component. If not repaired or replaced, a sensor can become damaged over time and fail entirely. Too much water can cause a malfunction and too little water means inadequate water pressure. Either way, repairing or replacing holding tanks is an expensive task you shouldn’t have to undertake because of sub-par sensors.
With Sino-Inst’s water tank level sensors, there’s nothing to break down or rust and our models have a 99% success rate!
In case you encounter any problems with the product, please call us and we will immediately replace or repair it for you for free.
Read more about our water tank level sensors and control systems.

How does a level transmitter work?

There are 7 main types of level transmitters that Sino-Inst offers. Each type of transmitter works in a different way, and makes it useful for different types of processes.
Capacitance Level Transmitters
Hydrostatic Level Transmitters
Magnetic Level Transmitters
Radar Fill Level Transmitters
Ultrasonic Level Transmitter
Guided Microwave Level Transmitters
Magnetostrictive Liquid Level Transmitters

Other Non-Contact Level Measurement

ULT-100A Ultrasonic Level Transducer
ULT-200 Ultrasonic Level Detector
ULT-200A Ultrasonic fuel tank level sensor

More about: Ultrasonic Level Sensor Applications

Sino-Inst offers Ultrasonic Liquid Level Indicators for tank level indicate. Portable co2 bottle liquid level gauge uses ultrasonic non-contact measurement technology. Detect and display the presence or absence of the Co2 cylinder liquid level.

The Digital portable Ultrasonic Liquid Level Indicators are designed to offer a simple, accurate, rapid and reliable method. Determining the liquid level of high or low pressure CO2, Halon, FM200, Propane, Novec 1230 and any liquefied gas under pressure. No need to move or weigh the cylinders.

Request a Quote

Please enable JavaScript in your browser to submit the form
