Guidebook: Bimetallic Stemmed Thermometer

Updated 2026-05-31 by the Sino-Inst Engineering Team

A bimetal stemmed thermometer is only as accurate as its calibration and its immersion. Calibrate it to the 32°F (0°C) ice point. Push the stem at least 2 inches into the medium. And match the ASME B40.200 accuracy grade to the tolerance your process needs. Skip any one of those and the dial reads with total confidence and is still wrong. This guide walks through the calibration steps first, then immersion, accuracy, and how to choose the right thermometer.

Contents

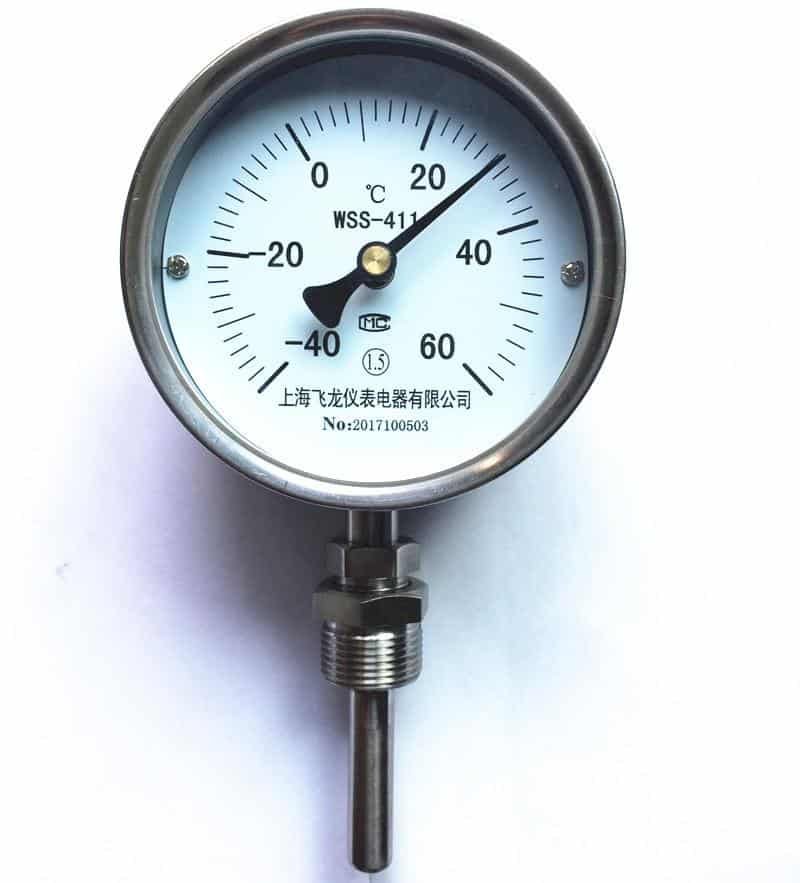

What Is a Bimetal Stemmed Thermometer, and How Does It Work?

A bimetal stemmed thermometer measures temperature with a coil of two bonded metals that expand at different rates. As the temperature changes, the coil winds or unwinds and rotates a pointer on the dial. There is no power, no battery, and no electronics — just a mechanical movement reading the medium the stem sits in.

That simplicity is the appeal. These thermometers are rugged, cheap, and give a clear local reading on a pipe, tank, oven, or boiler. The trade-off is that they are mechanical: vibration and shock cause calibration drift, and they react more slowly than an electronic probe. If you need a remote signal for a control system, you want a temperature transmitter instead — but for at-a-glance field readings, the bimetal dial is hard to beat.

How Do You Calibrate a Bimetal Thermometer?

There are two field methods: the ice-point bath and the boiling-point test. The ice point is the one to use day to day, because it is more repeatable and does not depend on your altitude. Both end the same way: you hold the calibration nut under the dial head with a wrench and turn the dial until it reads the reference.

MethodReferenceHow to do it
Ice point (preferred)32°F / 0°CFill a cup with crushed ice, add cold water, wait 1 min. Insert the stem past the dimple, keep it off the sides, wait 30 s, adjust the nut to read 32°F.
Boiling point212°F / 100°C at sea levelInsert the stem to cover the sensing area in boiling water, let it stabilize, adjust to the boiling point for your elevation.

Recalibrate after any drop or hard knock, and check a thermometer used for food or quality records at the start of each shift. If the dial will not hold the reference after adjustment, the movement is worn and the instrument should be replaced rather than nursed along.

What Temperature Should You Calibrate To?

Calibrate to 32°F (0°C) in an ice-water bath, or to 212°F (100°C) in boiling water at sea level. The ice point is fixed everywhere, which is why it is the standard reference. The boiling point is not. Water boils lower as you climb, dropping roughly 1°F for every 500 feet of elevation. A boiling-point calibration done at altitude without correcting will set the dial too high.

Pick the reference closest to your working range. If you check refrigeration or chilled product, the 32°F ice point is right next to your readings. If you run hot process near 200°F, a boiling-point check brackets it better. Either way, verify at a single fixed point you trust rather than guessing against another thermometer that may also be off.

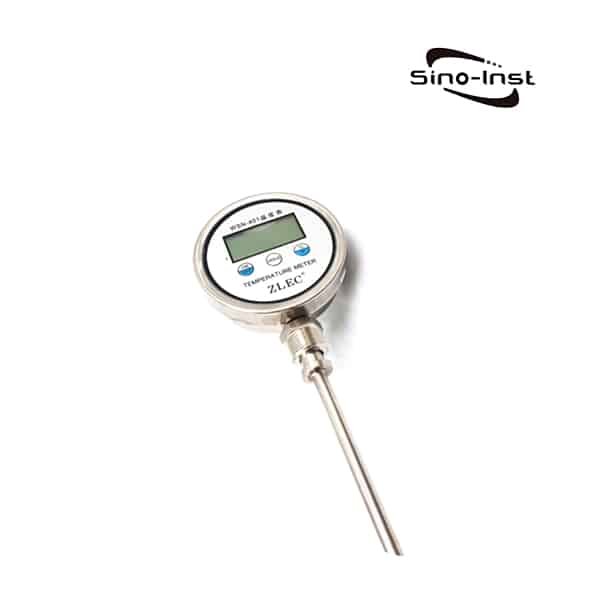

Bimetal stemmed thermometer with digital display showing dial reading during calibration

How Deep Must the Stem Be Immersed?

Immerse the stem at least 2 inches (50 mm) in liquid, or at least 4 inches (100 mm) in gas, to reach rated accuracy. Below that, heat conducts up the stem to the ambient air and the reading drifts toward room temperature — a mistake called stem conduction error. It is the single most common reason a correctly calibrated dial still reads wrong in service.

Most stems carry a dimple or groove marking the minimum sensing depth; get that mark below the surface. In a thin pipe where you cannot reach 2 inches straight in, use an angled or adjustable-angle thermometer, or a thermowell that lets the stem sit along the flow. Never judge immersion by eye on a short stem in a gas duct, where the 4-inch requirement is easy to underestimate.

How Accurate Is a Bimetal Thermometer? ASME B40.200 Grade A vs B

Industrial bimetal thermometers are specified to ASME B40.200 (formerly B40.3), which sets accuracy as a percent of full scale. Grade A is ±1% and Grade B is ±2%. Because the tolerance is a share of the whole span, a wide range costs you resolution. A 0–500°F Grade A dial is ±5°F, while a tighter 50–300°F dial of the same grade resolves much closer.

ASME B40.200 gradeAccuracy (% of full scale)Typical use
Grade A±1%Process, HVAC, quality checks needing tighter tolerance
Grade B±2%General indication where trend matters more than exact value

The lesson for selection: do not over-buy range. Choose a span that brackets your normal operating temperature with a little headroom, and the same grade will give you a tighter real-world reading. Pairing the grade with proper immersion and a fresh ice-point check is what actually delivers the number on the datasheet.

How to Choose One: Range, Dial Size, Connection, and Thermowell

  • Range — bracket your operating temperature; common spans run from -40 to 550°C. Tighter range plus Grade A gives the best resolution.
  • Dial size — 1″ to 5″; bigger dials read from farther away on tanks and overhead pipes.
  • Stem length — long enough to clear the 2″ liquid / 4″ gas immersion rule at the mounting point.
  • Connection — back, bottom, or adjustable-angle so the dial faces the operator.
  • Thermowell — required on pressurized or fast-moving process lines so you can remove the thermometer without breaking containment.
  • Hygiene — for food and pharma, choose a sanitary, cleanable design and check the ice point daily.

Bimetal vs Digital, Thermocouple, and RTD: When to Use Which

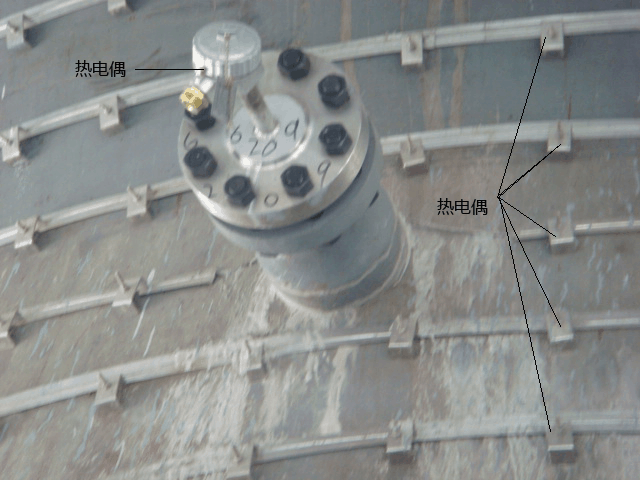

Reach for a bimetal dial when you want a rugged, powerless local reading and roughly ±1% is good enough. Move to an electronic sensor when you need a remote signal, tighter accuracy, or faster response. A thermocouple suits very high temperatures — see our Type K thermocouple chart and the platinum-rhodium types for furnaces and kilns. An RTD wins on accuracy and stability in the moderate range; our guide on RTD vs thermocouple covers the choice. For high-heat applications a furnace thermocouple replaces the dial entirely, and where you need a logged record a paperless recorder captures the trend.

Featured Bimetal Thermometers

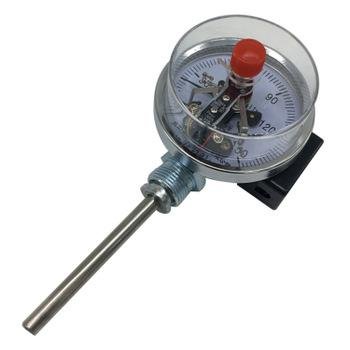

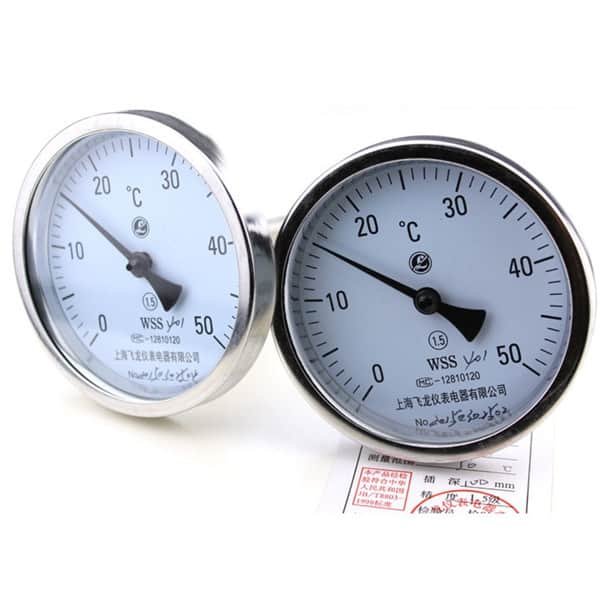

Industrial Bimetal Dial Thermometer

Back- or bottom-connect dial thermometer for pipes, tanks, and HVAC. ASME B40.200 Grade A accuracy, ranges to 550°C, 1″–5″ dials.

Adjustable-Angle Bimetal Thermometer

Rotating head so the dial faces the operator on overhead or low pipes, while the stem still meets the immersion depth for rated accuracy.

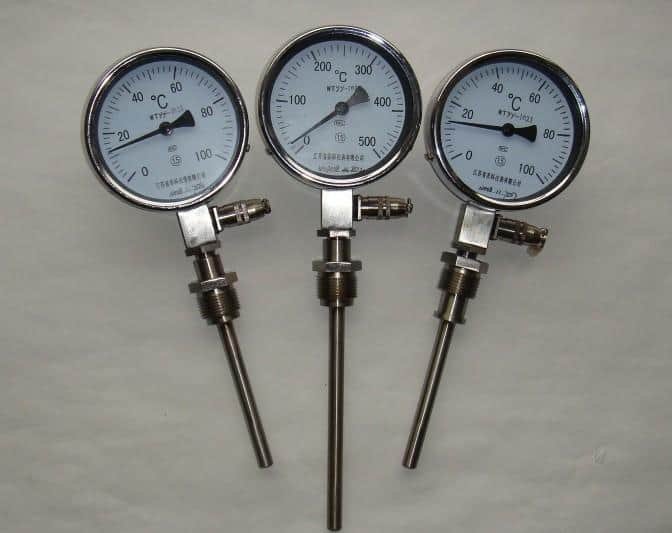

Remote-Reading Dial Thermometer

Threaded-connection thermometer for HVAC and process where the display sits away from the measuring point. Easy-read dial for hard-to-reach spots.

Frequently Asked Questions

What temperature should a bimetal thermometer be calibrated to?

Calibrate to 32°F (0°C) using an ice-water bath, or to 212°F (100°C) in boiling water at sea level. The ice point is preferred because it is fixed regardless of altitude. Hold the calibration nut and turn the dial to the reference.

How do you calibrate a bimetal stemmed thermometer?

Fill a cup with crushed ice and cold water, wait a minute, then insert the stem past the sensing dimple without touching the sides. After 30 seconds, hold the nut under the dial with a wrench and adjust the pointer to 32°F (0°C).

How deep should the stem be immersed?

At least 2 inches (50 mm) in liquid and 4 inches (100 mm) in gas, with the dimple below the surface. Shallow immersion lets heat escape up the stem — stem conduction error — and pulls the reading toward ambient.

How accurate is a bimetal thermometer?

Per ASME B40.200, Grade A is ±1% of full scale and Grade B is ±2%. Because it is a percent of the whole span, a narrower range gives a tighter reading at the same grade, provided the stem is properly immersed and recently calibrated.

What is the temperature range of a bimetal stemmed thermometer?

Common ranges run from about -40 to 550°C, with many narrower spans available. For higher temperatures a thermocouple is the better choice. Pick the narrowest range that still brackets your operating point for the best resolution.

Bimetal vs digital thermometer — which is better?

A bimetal dial is rugged, needs no power, and is ideal for local readings at roughly ±1%. A digital sensor is better when you need higher accuracy, faster response, or a remote signal to a controller or recorder. Many plants use both.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-05-31 (AI-assisted drafting). Based on ASME B40.200 accuracy grades and ice-point / boiling-point calibration practice, plus field experience installing bimetal dial thermometers on process, HVAC, and food lines. Questions? Reach our application engineers.

Request a Quote

Tell us your temperature range, connection, and mounting, and a Sino-Inst engineer will recommend the right bimetal thermometer grade, stem length, and thermowell.

Request a Quote

Please enable JavaScript in your browser to submit the form

Oil-water Interface Level Measurement Guide

Interface level measurement is very important for oil and gas, chemical tanks. At the same time, Interface level measurement is also a measurement and control challenge.


In today’s increasingly modernized oilfield production, automated crude oil processing has become a guarantee for the quality of refined oil. The performance of the oil-water interface fundamentally affects several key issues in crude oil processing: the water content of crude oil, energy consumption, sewage discharge indicators, etc.

Here we mainly compare the working principle, usage and common failures of several oil-water interface instruments commonly used in North China Oilfield. Hope to help you find a suitable solution when measuring oil-water interface.

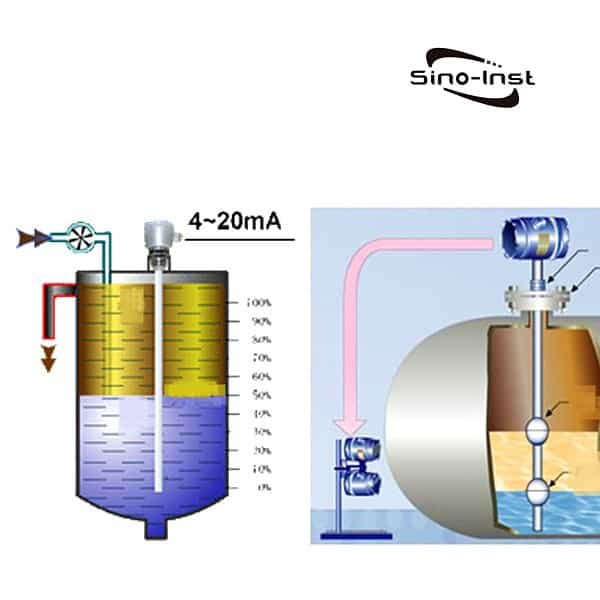

Interface level measurement technologies

According to the different measurement principles of the interface instrument, the interface instrument can be roughly divided into: magnetic radio frequency admittance type, short wave absorption type, capacitive type, servo type and so on.

Among them, the magnetic interface instrument is divided into: reed tube type magnetron interface instrument, magnetostrictive interface instrument and other forms.

Interface level measurement using Magnetostrictive interface instrument

A rigid tube or flexible tube leads from the top to the bottom of the tank, and the float with magnetic steel moves up and down along the wave guide with the liquid surface.

During the measurement, the current pulse excites a stress pulse on the waveguide in the tube where the magnetic float is located. Propagate along the waveguide to the measuring part in the top electronic box at the speed of sound. Is converted into electrical pulses.

The position of the liquid level can be determined based on the propagation time of the stress pulse.

If there is a second float, choose the relative density appropriately. Make it float on the oil-water interface. Then the position of the oil-water interface can be measured at the same time.

Interface level measurement using Reed switch level sensor

The reed tube type magnetic control interface instrument is also called the magnetic float ball level gauge.

This type of interface instrument was used earlier in the oil field, and now there are more problems.

The measurement principle is extremely simple. Attach a circuit board consisting of a reed switch and resistors. The length is determined by the height of the measured medium.

Put it into a stainless steel tube, as the magnetic float sleeved outside the steel tube moves with the liquid surface, the magnetic force will attract the corresponding dry reed tube. The resistance value of the output terminal of the circuit board also changes accordingly.

According to the density of the measured crude oil. Appropriately match magnetic floats with different relative densities. The liquid level and interface can be measured.

Know more about: Continuous Float Level Sensor & Switches

Interface level measurement using Shortwave

The meter is based on the theory of medium absorption of short waves. Electric energy is radiated into the oil-water medium in the form of an emulsion in the form of electromagnetic waves. The content of the two media is detected based on the difference in the electric energy absorbed by the oil and water.

The dielectric constant of oil is about 2.3, while that of water is about 80. There is a great difference between the two.

The oil-water interface is detected by measuring the oil-water content.

Extended reading: Radar Oil Tank Level Sensor

Interface level measurement using Capacitive

Capacitive interface meter uses the difference in electrical conductivity between oil and water media to make the capacitance and the height of the water have a linear relationship. To achieve the purpose of monitoring the oil-water interface.

Nowadays, radio frequency admittance type is used to replace the traditional capacitive interface instrument.

Capacitive Level Sensors can be used for point level detection and continuous level measurement, particularly in liquids. The measuring principle is based on the change of the capacitance in a capacitor. The electrically conductive tank wall and a probe inside of the tank form a capacitor, The capacity changes of which are used to determine the level. This animation shows the measuring principle in conductive liquids and non-conductive liquids. The Capacitive Level Sensor can convert the changes of various levels and the height of the liquid level into standard current signals. Level Sensors can also support wireless transmission, RS485 digital communication transmission, etc.

Interface level measurement using Servo Level Meter

Servo Level Meter is a high-precision measuring instrument that measures the level of liquid level with microelectronic technology and servo motor drive technology.

Servo Level Meter can carry out routine and accurate measurement and signal transmission of liquid level, interface level and density of the measured medium. It also has functions such as temperature transmission. It can meet the requirements of storage tank inventory management, loss control cost saving and safe operation.

Servo Level Meter is explosion-proof design and has strong expandability. It can be widely used in a variety of flammable and explosive places. It is an ideal choice for liquid level measurement in storage tanks in the fields of petroleum and petrochemical, electric power, medicine, and food.

Single Servo Level Meter: It can realize real-time oil tank level, boundary level measurement display and remote transmission display.

Servo Level Meter is equipped with a multi-point thermometer: it can realize the temperature measurement of the oil tank’s liquid level, boundary level, and different point heights on site.

Servo Level Meter is equipped with a multi-point thermometer and a tank side display: it can measure and display the liquid level, boundary level and temperature of the oil tank at different heights on site.

Explore Oil and Gas Flow Meters

Interface level measurement using DP transmitter

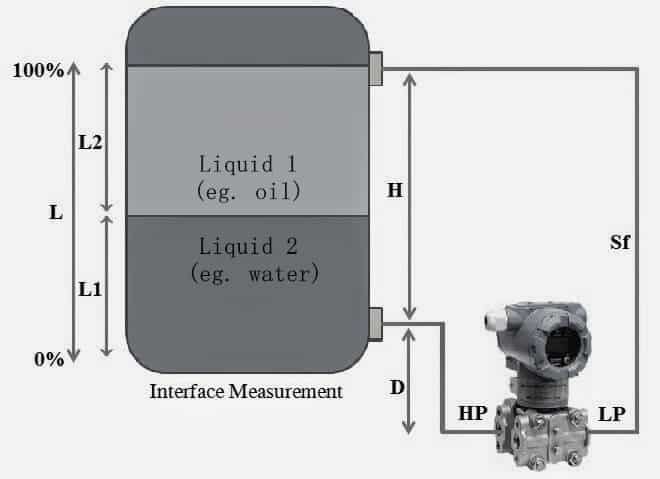

Differential pressure (DP) transmitters are used to measure the interface of two fluids with different specific gravities. This measurement can be made with or without a distal seal. It is important that the height must be large enough to create a reasonable DP between the two specific gravity limits.

Suppose the measuring H distance is 1.2m, the density of oil is 0.7, and the density of water is 1.0. The pressure guiding pipe on the high and low pressure side is filled with water as a sealing liquid. Find the range of the differential pressure transmitter.

Solution:

Differential pressure at the lowest water level: P=(ρoil×g×H)-(ρwater×g×H)

=(0.7×9.8×1.2)-(1.0×9.8×1.2)=-3.528Kpa

Differential pressure at the highest water level: P=(ρwater×g×H)-(ρwater×g×H)

=(1.0×9.8×1.2)-(1.0×9.8×1.2)=0Kpa

The range of the transmitter is: -3.528Kpa to 0 Kpa

Quick calculation of range: (ρ water-ρ oil)×g×H=3.528Kpa

Note: This algorithm is only used for working conditions with obvious oil and water layers. It is undesirable if oil and water are miscible to form an emulsified quality.

Read more about: 7 Level Senors for Tank Level Measurement

In oil field production, oil-water separation is an extremely important link in crude oil processing. After the crude oil enters the joint station, it has to go through treatment processes such as sedimentation and power-off. Oil-water interface control is the key to the separation effect.

Nowadays, oilfields generally use special oil-water interface meters to monitor the process. To achieve the purpose of automatic control.

At present, there are many types of oil-water interface instruments. The performance difference is relatively large. Based on the actual situation of the North China Oilfield, the use of the interface instrument is specifically analyzed.

First, give a general introduction to the basic process flow of oilfield production. After the crude oil is extracted, it is sent to the oil production metering station for measurement, and then enters the joint station.

At the joint station, after metering and heating, the crude oil is sent to the primary settling tank. The crude oil in the primary sedimentation tank is kept at about 60°C all year round.

After sedimentation and separation, it is sent to the intermediate tank. After dehydration pump dehydration. After secondary heating, it enters the secondary settling tank.

The crude oil in the secondary settling tank is kept at about 80℃ all year round. The separated crude oil enters the electric dehydrator for final treatment. After reaching the moisture content standard (0.5%). Finally, it is sent to the refined oil storage tank.

In the whole process, it is necessary to measure the oil-water interface. The accurate monitoring of the oil-water interface is critical to the recovery of water content of oil products and the cost of treatment.

Extended reading: Magnetostrictive Hydraulic Cylinder Position Sensor
