SIRD70 Guided Wave Radar Level Transmitters

Guided wave radar level transmitter uses guided wave radar (GWR) technology. Based on the reflection of microwave on the surface medium. Through the probe, continuous level measurement of liquid and solid levels is completed.

Guided wave radar level transmitter

A guided wave radar level transmitter is also called a wave-guided radar level sensor. They can measure both levels and the interface between two media. Through probe rod or cable, complete level contact types continuous level measurement. Such as Coaxial Probe Guided Wave Radar Level Transmitter. This is different from ultrasonic level measurement, which is non-contact measurement. A guided wave radar level transmitter is often used for tank level measurement. Including liquid and solid. Output 4~20mA/HART, so as to measure and control the level during production.

Sino-Inst offers a variety of Guided wave radar Level Transmitters for industrial level measurement. If you have any questions, please contact our sales engineers.

We also supply level transmitters, like: Pressure Level Transmitter; Submersible Level Transmitter; and (DP) level transmitter

Features of Guided Wave Radar Level Transmitters

  • Using advanced microprocessors and unique echoDiscovery echo processing technology, the guided wave radar level sensor can be used in a variety of complex conditions.
  • A variety of process connections and types of detection components, guided wave radar level sensor for a variety of complex conditions and applications. Such as high temperature, high pressure, etc.
  • With the pulse working mode, the guided wave radar level meter has very low transmitting power. And can be installed in various metal and non-metal containers without harm to the human body and the environment.

Customer benefits:

  • Microwaves are unaffected by temperature, pressure, specific gravity and vapors
  • Easy to install
  • No moving parts
  • Ignores light continuous coatings
  • Good for vacuum service
  • More direct energy return – more consistent signal
  • Built-in waveform screen (Scope Trace)

Industries served:

  • Oil and gas production
  • Refining
  • Pharmaceutical and biotech
  • Power generation
  • Pulp and paper
  • Iron and steel
  • Chemicals
  • Food and beverage
  • Marine

Parameters of SIRD70 Guided wave radar level transmitters

General Parameters

Probe Material:

  • Rod                                               Stainless Steel 316L/PTFE
  • Cable                                            Stainless Steel 316L/PTFE
  • Coax                                             Stainless Steel 316L/PTFE
  • Seal                                              Viton fluororubber , Kalrez Fluorinated rubber
  • Process Connection                     Stainless Steel 316L
  • Shell                                             Stainless Steel 316L, Plastic,Aluminum
  • Ground  Terminal                          Stainless Steel 316L

Power: 2-Wire

  • Standard Version                           (16~26)V DC
  • Intrinsic Safe Version                    (21.6~26.4)V DC
  • Power Consumption                      max. 22.5mA
  • Ripple Allowed
    • – <100Hz                                        Uss < lV
    • – (100~100K)Hz                            Uss < l0mV

Flameproof Type

  • (22.8 ~ 26.4) V DC       2-wire system
  • (198 ~242)V AC   4-wire system / 110V AC    4-wire system
  • Power Consumption                                  max. 1VA,1W

Output

  • Output Signal                               (4~20)mA/HART
  • Resolution                                    1.6μA
  • Failure mode                                20.5mA;22mA;3.9mA, hold
  • 2-wire load resistance                  See the diagram below
  • 4-wire load resistance                  Max.500 ohm
  • Integration Time                           ( 0~36)sec, adjustable
SIRD70 guided wave radar level transmitters

Specifications of Guided Wave Radar Level Transmitters

Max Measurement Distance 701         30m/6m(Cable /Rod)
702         20m/6m(Cable /Rod)
703         30m/6m(Cable /Rod)
704           6 m
705         15m/6m(Cable /Rod)
Measurement Interval           About 1sec (Depend on parameter settings)
Adjustment Time                About 1sec (Depend on parameter settings)
Resolution of Display  1mm
Accuracy             ±10mm(See the accuracy illustration diagram below)
Temperature for Storage/Transport               (-40~80) ℃Process Temperature  (Probe)
701、704       (-40~250)℃
702            (-40~200)℃
703            (-40~130)℃
705            (-200~400)℃
Relative Humidity   <95%
Pressure         Max. 40MPa
Vibration Proof  Mechanical vibration 10m/s² , (10~150)Hz

guided wave radar level transmitter data sheet

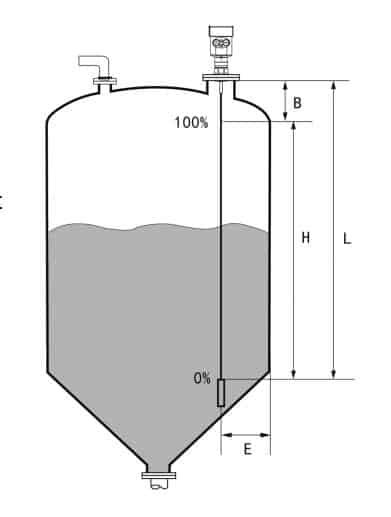

Guided wave radar level transmitter range

Explanation

H— Measuring range

L—Empty distance

B—The top of the blind

E—The minimum distance from the probe to the tank wall

–Blindspot is the minimum distance between the top of the highest material surface materials and the measurement reference point.

–The bottom of the blind refers to a distance near the very bottom of the cable that can not be accurately measured.

–Between the top and bottom of the blind is blind effective measure distances.

Note:

In order to ensure the accuracy of level measurement, the material should be located between the top and bottom of the blind.

Measuring Range:

The following table lists the relationship between different types of measured media and measurement distance.

Media DK(ε)Solid particlesLiquidMeasuring range
11.4~16-Condensation gas, such as N2CO23m (only refers to the coaxial rod probe)
21.6~19-Plastic with particles
-White limestone, special cement
-sugar
-Liquefied petroleum gas, such as propane
-Solvent
-Freon 12/ Freon
-Palm oil
25m
31.9~25-Ordinary cement, gypsum-Mineral oil, fuel30m
42.5~4-Cereals, seeds
-stone
-Sand
-Benzene, styrene, toluene
-Furan
-Naphthalene
30m
54~7-Wet stones, ores
-salt
-Chlorobenzene, chloroform
-Cellulose spray
-Isocyanide hydrochloric acid, this amine
30m
6>7-mineral powder
-Carbon black
-coal
-Aqueous liquid
-alcohol
-Liquid ammonia
30m

Extended reading: Radar Level Meter for Corrosive Liquids

What is guided wave radar?

Micropower impulse radar (MIR) combines time domain reflectometry (TDR), equivalent time sampling (ETS), and modern low power circuitry.

This synthesis of technologies creates a high-speed Guided Wave Radar (GWR) transmitter.

The electromagnetic pulses are propagated via a waveguide, that focuses the energy and yields a system, many times more efficient than Non-Contact Radar (Non-contact radar level transmitters).

Time domain reflectometry (TDR)

TDR uses pulses of electromagnetic (EM) energy to measure distances or levels.
When a pulse reaches a dielectric discontinuity (such as one created by a media surface), a portion of the pulse is reflected.
The greater the dielectric difference between air and the process medium being measured, the greater the amplitude of the reflection.

Equivalent time sampling (ETS)

ETS, or Equivalent Time Sampling, is used to measure the high speed, low power EM energy.
ETS is a critical key in the application of TDR to vessel-level measurement technology.
The high-speed EM energy (1000 ft/us) is difficult to measure over short distances, and at the resolution required in the process industry.
ETS captures the EM signals in real time (nanoseconds), and reconstructs them in equivalent time (milliseconds), which is much easier to measure with today’s technology.

Guided-wave radar (GWR) level transmitter working principle

Levelflex works with high-frequency radar pulses, which are emitted and guided along with the probe.

As the pulse meets the medium surface, part of the emitted pulse is reflected due to a change of the dc value (relative dielectric constant).

The Time-of-Flight between pulse launching and receiving is measured, and analyzed by the instrument and constitutes a direct measure for the distance, between the process connection and the product surface.

Install for guided wave radar level transmitter

Waveguides can be metal rigid rods or flexible metal cables. The microwave pulse travels down the outside of the rod or cable. It is reflected on the surface of the material to be tested, and the echo is received by the antenna. The propagation distance can be calculated from the time difference between the launch and echo pulses.

Advantages:

  • Compared with ultrasonic and radar level gauges, the work is stable and reliable;
  • Like radar level gauges, the strength of the reflected signal depends on the dielectric or conductivity of the material being measured. However, the guided wave type can measure materials with lower dielectric constants.
  • It has a strong ability to suppress steam and foam, and the measurement is not affected;
  • Not affected by liquid density, looseness of solid materials, temperature, and dust during feeding;
  • Low maintenance, high performance, high precision, high reliability and long service life.

Disadvantages:

  • Double rods (cables) and coaxial tubular waveguides are easily affected by external structures due to the concentration of electric field energy;
  • It is easy to accumulate material between the rods (or inside the tube), resulting in false echoes and affecting the measurement effect;
  • The cable buried in the material will generate a large pull-down force due to the gravity of the material, causing the cable to be pulled off and other failures.

Extended reading: Features Of Magnetostrictive Level Transmitters

The microwave pulse emitted by the high frequency radar level transmitter is transmitted through the antenna, while the guided wave radar level transmitter is transmitted through the detection component.

So, is the installation standard of the guided wave radar level transmitter the same as that of the high-frequency radar level transmitter?

Today, let’s take a look at the installation standards of guided wave radar level transmitters.

  1. Try to avoid the facilities in the tank during installation, and avoid the detection components (steel cables or steel rods) contacting internal obstacles during the measurement process, which will affect the measurement accuracy.
  2. When installing, try to keep the detection component perpendicular to the surface of the measured medium. In this way, the microwave pulses sent out can reach the designated position, and the later data can be accurate.
  3. During installation, the guided wave radar level transmitter should keep a certain distance from the container wall, and should be kept away from the feed and discharge ports. The feed and discharge ports have a great influence on the accuracy and stability of the guided wave radar level transmitter, so attention must be paid.
  4. If the guided wave radar level transmitter is threaded, its length should not exceed 15mm. Generally, the length of the thread is inversely proportional to the stability of the measurement, that is, the shorter the thread, the more stable the measurement.
  5. During installation, if the cable is too long, we need to cut off the power supply of the guided wave radar level transmitter, remove the cable, and remove the screw on the heavy hammer, and then intercept it from the bottom of the cable.
  6. During installation, if the guided wave radar level transmitter is installed in the still-pipe, pay attention to fix the radar probe with an insulating bracket to ensure that the probe and the still-pipe are concentric, so as to avoid vibration caused by improper installation and affect the accuracy of the measurement.
  7. When installing the guided wave radar level meter, if the connection surface of the container is made of other materials than metal, either use a metal flange to connect, or configure a metal plate.

The above are the main installation standards of the seven-point guided wave radar level transmitter summarized by Sino-Inst. In fact, the standard of guided wave radar level transmitter is far more than that.

When installing, be sure to read the manual of the self-contained product in detail. If you have any questions, you can contact the manufacturer’s engineer.

The relative permittivity of a medium is a physical quantity that characterizes the polarization of the medium.

It is determined by the properties of the medium itself.

Therefore, different media have different relative permittivity.

The dielectric constant of the measured medium directly affects the reflectivity of the high-frequency pulse signal.

When an electromagnetic pulse hits the surface of a medium, the electromagnetic wave is reflected and refracted.

The larger the relative permittivity, the smaller the reflection loss. On the contrary, the smaller the relative permittivity, the greater the transmission loss and the more serious the signal attenuation.

When the conductivity of the measured medium is greater than 10mS/cm, all of them will be reflected back. That is, the stronger the echo signal.

The signal will be extremely attenuated due to too small relative permittivity. Therefore, each guided wave radar level gauge has a minimum relative permittivity to ensure that the radar level gauge can be used normally.

Different companies’ guided wave radar liquid level transmitters have different structural designs and different requirements for minimum relative permittivity.

What is the difference between radar and ultrasonic level transmitter?

Radar liquid level sensors and ultrasonic liquid level sensors are non-contact liquid level measuring instruments. They mainly differ in the following three aspects:

Working principle

  1. Ultrasonic level sensor
    The ultrasonic level sensor uses non-touch measurement method. It is suitable for liquid level measurement in water conservancy and hydrology, chemical petroleum and sewage treatment. The probe of the ultrasonic level sensor is also called a transducer. The transducer emits ultrasonic pulses to the object to be measured. After touching the surface of the medium, the sound wave is reflected by the surface of the medium and is received by the transducer again. The time from when the sound wave is emitted to when it is absorbed and consumed after reflection will be proportional to the distance between the transducer and the medium.
  2. Radar level sensor
    Radar level sensors also use non-touch measurement methods. The measuring principle is similar to that of an ultrasonic level sensor. That is, the antenna emits electromagnetic waves, and the electromagnetic waves are reflected back after reaching the measured liquid surface. Then the antenna receives and recognizes the time distance that Baud has.

Adaptability

The time consumed by the ultrasonic storage and analysis of the sound waves in each period of the ultrasonic level sensor is slightly longer. For this reason, if the rate of liquid level change is too fast, it is generally not recommended to use an ultrasonic level sensor. In addition, the ultrasonic level sensor is sensitive to misty vapor and fine dust within the area. Therefore, ultrasonic level sensors are not suitable for high-pressure and high-temperature environments, misty spaces filled with vapor, or spaces with dust. But on the contrary, the radar level sensor can prevent the disturbance of the above-mentioned environment.

Cost performance

The market price of ultrasonic level sensors produced in China usually ranges from one thousand yuan to several thousand yuan. The appearance of its products is more delicate than that of radar level sensors, so transportation costs will be reduced accordingly. In comparison, the structural design of the radar level sensor is more messy and the measurement steps are more refined, so the price is higher. Especially when the user needs a radar level sensor with HART protocol, the unit price is more expensive. But now the price gap is not big, and it is shrinking year by year.

Through induction and comparison, it is not difficult to find that the ultrasonic level sensor and the radar level sensor have their own advantages and disadvantages. Therefore, it is recommended that users should consider many aspects when purchasing liquid level timing. It is not only necessary to meet the preset specifications, but also to scientifically include the above aspects into consideration.

Extended reading: Ultrasonic Oil Level Sensor-External Paste-Truck Fuel Tank

Maybe you still have questions like:

How to calibrate radar level transmitter?

What’s the guided wave radar level transmitter principle of operation?

You can just contact us for more information about GWR level transmitters.

Our guided wave radar (GWR) level transmitters, are made in China,

With better price, and higher quality.

Frequently
Asked
Questions

Guided wave radar devices, also called wave-guided radar level transmitters.
Have no moving parts and require minimum maintenance.
They can measure both levels and the interface between two media.
The guided wave radar level sensor is applied to water storage tanks,
acid and alkali storage tanks, slurry storage tanks,
solid particles, and small oil storage tanks.
All kinds of conductive, non-conductive media, corrosive media.
Such as coal bunkers, ash silos, oil tanks, acid tanks, etc.

Radar level transmitters use radar technology to perform the non-contact continuous level measurement. The radar level indicator converts the level into an electrical signal. The level signal output can then be utilised by other instrumentation to monitor or control. Liquids and solids are commonly measured with this measuring technique. Like: Fly ash silo. Radar level sensors are divided into: Pulsed radar technology and frequency modulated continuous wave (FMCW) radar level sensors.
Extended reading: Radar level sensor for solids – Dust solid level measurement

The main factors affecting the price of guided wave radar level sensors are: Type of medium. Explosion-proof requirements, material and size, temperature, output signal, interface type. Connection method, etc. The reference price is 500-900USD.

Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave travels at the speed of light, and the running time can be converted into a level signal by electronic components.
The instrument measures the distance from the reference point to the material surface. The probe sends out high-frequency pulses and propagates along the cable. When the pulses meet the material surface, they are reflected back and received by the receiver in the instrument. The time signal is converted into a material level signal.

GWR level transmitter is guided wave radar level transmitter. GWR level transmitter is an instrument based on guided wave radar to measure level.

Straighten the wave guide cable, place an internal obstacle with a radius of 30cm, put a vise (simulate the liquid level), and use a steel ruler with high precision to compare the error and calculate the accuracy.

The above method is not very accurate.
If possible, it can be installed on the tank, and the dipstick can be compared.

Related Products

Related Blogs

Water Level Transducers – Detailed Guide

What Is a Water Level Transducer? Water level transducers are also called Water Level Sensors, or water level transmitters. Water level transducers are used to monitor water usage and quality…

New Trend of Transformer Oil Level Indicator

What is Transformer Oil Level Indicator? The Transformer oil level indicator is specially designed to measure and indicate the oil level in transformer tanks, oil conservators and on-load tap-changers. Transformer…

External Tank Level Indicator

External Mounted Tank Level Sensors External Tank Level Indicator refers to an externally mounted level sensor. It is used to install on the outside of the liquid storage tank to…

80GHZ Radar Level Transmitter

80 GHz Radar Level Measurement 80GHZ Radar Level Transmitter refers to a frequency modulated continuous wave (FMCW) radar product operating at 76-81GHz. It can be used for level measurement of…

Material Level Indicators

The material level indicator refers to an instrument for real-time detection of changes in the height of solid materials in a container. Material level indicator is also known as material…

The Secret of Water Level Control

Water level control refers to the control of high and low water levels by mechanical or electronic methods. It can control solenoid valves, water pumps, etc. to become an automatic…

Tank Level Gauges & Indicators

Tank level gauges are instruments used to indicate and control the height of the liquid level in the tank. Commonly used in water storage tanks, oil storage tanks, and underground…

Sino-Inst offers over 10 GWR Corrosive Liquid Chemical Level Sensors for level measurement. About 50% of these are Guided Radar level meters, 40% is the tank level sensor.

A wide variety of GWR Corrosive Liquid Chemical Level Sensors options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Guided Wave radar level measurement instrumentation, located in China.

Request a Quote

Please enable JavaScript in your browser to submit the form

SIRD-901 Radar Corrosive Liquid Chemical Level Sensor

Liquid Chemical Level Sensor is suitable for level measurement of corrosive chemicals. Pulse radar non-contact measurement. Antenna made of PTFE.

Liquid Chemical Level Sensor works for level measure and monitor of corrosive liquids for Chemical Processing. The level measurement of corrosive chemicals places extremely high demands on the sensor. Downtime must be avoided. The radar liquid level sensor wrapped in PTFE is corrosion resistant and has a long service life. The sensor has both analog and digital outputs that comply with industry standards. SIRD-901 Radar Corrosive Liquid Chemical Level Sensor is a 26GHz pulse radar level transmitter. The measuring distance can reach 10 meters. The antenna has been further optimized and is suitable for the measurement of various corrosive liquids.

Sino-Inst offers a variety of Radar Corrosive Liquid Chemical Level Sensors for industrial level measurement. If you have any questions, please contact our sales engineers.

Features of SIRD-901 Radar Corrosive Liquid Chemical Level Sensor

The SIRD90 series radar sensor is a 26G Hz radar level measuring instrument, with a maximum distance of up to 80 meters.

  • Non-Contact Measurement
  • Continuous Level Measurement
  • Pulse Radar Measurement Range 0.254 to 15.24m (10″ to 50′)
  • Simple Push-Button Calibration
  • High measurement accuracy
  • Measurement is not affected by temperature, pressure or dust
  • User-friendly adjustment saves time

Parameters of SIRD-901 Radar Corrosive Liquid Chemical Level Sensor

Radar Level Transmitters
Application:All kinds of corrosive liquid
Measuring Range:10 meters
Process Connection:Thread G1½″A / Thread 1½″ NPT /  Flange
Process  Temperature:-40℃~130℃
Process Pressure:-0.1~0.3 MPa
Accuracy:± 5mm
Protection Grade:IP67
Frequency Range:26GHz
Supply:2-wire(DC24V)/ 4-wire(DC24V /AC220V)
Signal Output:4… 20mA /HART (2-wire / 4-wire)RS485/ Modbus
Outer Covering:Aluminum / Plastic / Stainless steel
Explosion-proof Grade:ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
Antenna MaterialStainless Steel  /  PTFE

Applications of Radar Corrosive Liquid Chemical Level Sensor

Application of radar level transmitter
  • Solid materials;
  • Process vessels or strong dust are easy to crystallize;
  • Condensation occasions
  • Solid Particles
  • Dust
  • Slightly corrosive liquids
  • Various corrosive liquids
  • Hygienic liquid storage containers
  • Strong corrosive containers

Extended reading: Radar Non Contact Water Level Sensor

Corrosive Liquid Chemical Level Sensor in Chemical Processing

Generally, in chemical plants, you will encounter liquid level measurement such as petroleum storage tanks, chemical storage tanks, chemical storage tanks, sewage treatment plants, dosing tanks, seaside, and docks.

Used to measure corrosive media such as sulfuric acid, nitric acid, hydrochloric acid, hydrofluoric acid, sodium hydroxide, and concentrated alkali.

When encountering these corrosive media, corrosive liquid level sensors are generally used. Use non-contact radar level sensors to measure corrosive liquids such as sulfuric acid, hydrochloric acid, and nitric acid.

Following the introduction of Sino-Inst, we have to consider four major principles when choosing a level gauge to measure.

Extended reading: GWR Corrosive Liquid Chemical Level Sensor

The first principle is to consider the principle of non-contact measurement and choose a non-contact liquid level sensor.

Because the probe of the liquid level sensor does not need to contact the medium. The principle of sensing band is used to obtain the current liquid level information. Such a liquid level sensor, for example, when measuring a level, a radar level gauge does not contact the measured medium, and the material used is tetrafluoroethylene. At the same time, it is a fully enclosed anticorrosive structure. Therefore, the effect is very good for liquid level measurement of viscous, corrosive, turbid and other liquids.

The second principle is to consider the convenience of installation.

Due to the uniqueness of the measurement of corrosive liquids such as sulfuric acid, hydrochloric acid, and nitric acid. It needs simple installation on site. It needs to be simple to open a hole in the tank.

Therefore, in the selection process of the level gauge, it is necessary to consider the characteristics of reliable work, easy installation, long service life, and maintenance-free.

The third principle is sensor selection.

When the radar level gauge measures corrosive media, the general manufacturer will choose the anti-corrosion type tetrafluoro material contact surface. Considering environmental factors, a physically sealed anti-corrosion probe should be selected for this occasion.

The fourth principle is the choice of the host part.

As the host part, good sealing is required. As long as there is a little medium leakage, it is possible to enter the inside of the level gauge from the housing or the wire inlet. As a result, the internal circuit board is corroded.

For corrosive gases in the environment, anticorrosive high frequency radar level gauges can be used to protect the service life of the host.

The above is Sino-Inst analyzes how to choose the level sensor for concentrated sulfuric acid and hydrochloric acid. If concentrated sulfuric acid and hydrochloric acid exceed a certain temperature range, steam or vaporization occurs. It is necessary to consider the actual situation on site and re-select the appropriate level sensor.

Extended reading: FMCW Radar Level Transmitter 120GHz

How does a Radar Corrosive Liquid Chemical Level Sensor work?

In radar level measurement, microwaves are transmitted by the antenna system of the radar sensor, to the measured product, reflected by the product surface, and received back by the antenna system.

The time from emission to reception of the signals is proportional to the level in the vessel. In continuous non-contact level measurement with radar, the sensor sends microwave signals towards the medium from above.

The surface of the medium reflects the signals back in the direction of the sensor. Using the received microwave signals, the sensor determines the distance to the product surface and calculates the level from it.

Liquids and solids are commonly measured with this measuring technique.

Extended Reading: Dielectric constant for radar level transmitter

Featured Level Sensors for Chemical Processing

Continue reading

ULT-100 Ultrasonic level transmitter

Ultrasonic Level Transmitter, also called Ultrasonic level sensor, or ultrasonic level Indicator. Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. ULT-100 Ultrasonic level transmitter is an explosion-proof product specially suitable for measuring flammable and explosive liquids.

Learn About: Magnetostrictive level transmitter

Magnetostrictive level sensor

Features of ULT-100 Ultrasonic level transmitter

  1. Provides reliable, accurate, and non-contact level measurement of compatible liquids
  2. Non-contact technology offers no moving parts to wear, jam, corrode or get coated like contact technologies
  3. Mapping software makes effective measuring surface only a 3″ (76.2 mm) diameter column.with no concerns of ladders, pipes, or other tank intrusions in the remaining sound cone
  4. FM approved explosion-proof making it ideal for use in hazardous locations
  5. Easy programming with 6 digit LCD display and simple menu structure
  6. Output range is adjustable with choices of inputting tank dimensions. or by filling and emptying the tank. while calibrating and it automatically and scaling to levels it senses
  7. Window cover allows easy viewing of the display
  8. Fail-safe output options and diagnostic capabilities

Specifications of Ultrasonic Level Transmitter

Wire System Two-wire system
Installation mode Intergrated
Basic parameters Maximum measuring range
(High temperature, fluid)
30m
Maximum measuring range
(high temperature, moisture)
20m
Maximum measuring range
(particle > 4mm solid)
10m
Blind area 0.25-0.5m
measurement accuracy ±0.3%FS(Standard conditions)
Resolution ±1mm
Input Power supply 12~36VDC/85~265VAC
Max electric current >22mA
Ripple requirement less than ±20mA
Output Analog signal 4-20mA
Digital signal RS485, HART 5.0, Modbus RTU
Switch 4 way
Material Transmitter Die Casting Aluminum Alloy
Probe Waterproof ABS/Corrosion Resistant PTFE
Flange Flange standard needs to be provided by customers. Size is related to installation method.
Various kinds of PVC, PP, PTFE, carbon steel and stainless steel flanges can also be customized.
Environment condition Ambient temperature -20°C~60°C. If temperature less than 20°C, LCD display will be limited.
Outdoor instruments should be protected against ultraviolet rays if they are exposed to direct sunlight.
Protection level IP67
Explosion proof level Flamproof type ExdIICT4
Intrinsically safe type ExiaIICT4
Process condition Process temperature -40℃~100℃, High temperature probe is required when exceed 70℃
Process pressure 0.8~3bar or 0.08~0.3MPa, Below 3000m altitude.
Product characteristics Analog and digital output can be shared
High level of protection
Strong anti-interference ability
Comprehensive function

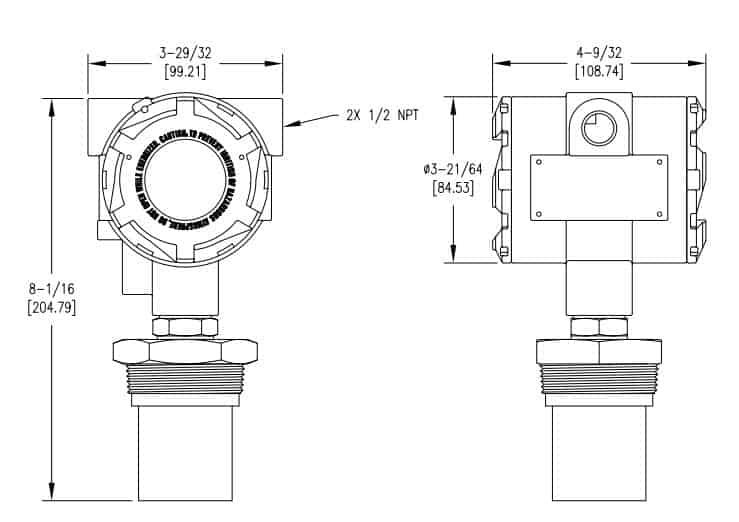

Drawings of ultrasonic level transmitter

Applications of Ultrasonic Level Transmitters

  • Chemical
  • Mining
  • Aggregate
  • Power generation
  • Pulp and paper
  • Iron and steel
  • Wastewater
  • Food and beverage
  • Quarries

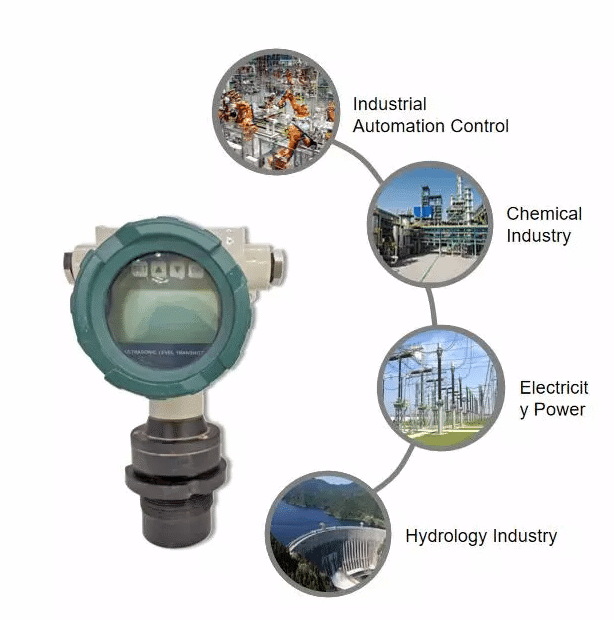

Applications of Ultrasonic Level Transmitters

Extended reading: The Secret of Ultrasonic Level Measurement

Extended reading: Guide to Ultrasonic Level Transmitters

Continue reading

SMT3151LT Pressure Level Transmitter

Pressure level transmitter is good for level measurement. Most of the time, we use submersible hydrostatic level sensor for the level measurement. When you can not use the probe of hydrostatic level sensor, you can try with this pressure level transmitter. Pressure level transmitter, is one type of DP level measure instrument, with the diaphragm.

The liquid level (pressure/differential pressure) transmitter,

is a pressure signal, measured at the reference side of atmospheric pressure (a low-pressure side),

with one or two ports for flange (or other connection) and process pipe connection.

So, we can say that the SMT3151LT pressure level transmitter,

also is one kind of diaphragm type level transmitter.

A pressure level transmitter is an on-site transmitter, that is mounted directly on a pipe or vessel.

Since the isolating diaphragm is directly in contact with the liquid medium,

it is not necessary to take out the pressure guiding tube on the positive pressure side,

so that the liquid level (Magnetostrictive level gauge), pressure, and density of the medium,

such as high temperature, high viscosity, easy crystallization,

easy precipitation and strong corrosion can be measured,

and then It is converted to 4~20mA.DC signal output

Features of SMT3151LT Pressure level transmitter

  • 0-2.1Mpa
  • -40~204℃
  • Flange-mounted
  • 4-20mA, HART
  • 316 stainless steel
  • Explosion-proof

Working Principle of pressure level transmitters:

DP Level Technology

On the basis of common pressure/differential pressure transmitter,

one or two isolation membrane boxes are added to measure the liquid receiving part.

Mainly used for measuring high temperature,

easy to solidify or crystallize,

containing solid suspended matter, too viscous,

corrosive or other needs to maintain sanitary conditions, non-polluting media.

The basic measurement element,

is the same as the technical performance,

and technical index of the 3151 pressure/differential pressure transmitter.

After adding the remote transmission device,

there will be a small decrease in measurement accuracy,

slow reaction speed,

and the installation position should be attended to,

when the pressure is relatively small,

so as to ensure that the measured pressure is within the measurement range,

of the basic measurement element.

In other words, a column of water of a specific height,

will always exert the same amount of pressure on a transducer.

And because weight is a force, and pressure is force applied over an area,

in this case, the area of the transducer,

we can take the pressure reading from the transducer and translate it into a level.

Extended reading: Flat Pressure Sensor for High Viscosity Fluids

What is the working principle of level transmitter?

There are many different kinds of level measurement transmitters, including:

  • Capacitance
  • Hydrostatic
  • Magnetic
  • Radar
  • Ultrasonic
  • Guided Microwave

Each of these transmitters works in different ways, making them useful for different types of processes.

These transmitters use liquid stored in a tank or container,as a dielectric medium between two or more electrodes.The energy capacity of the capacitor circuit increases,when there is more liquid and decreases if there is less liquid. By measuring the variations in the capacitance value,capacitance level transmitters can calculate the current fill level of the tank or container.

Capacitance Level Transmitters:

  • Hydrostatic Level Transmitters::

Also known as pressure level transmitters,these transmitters help in determining fluid contents of a container,by measuring the pressure of the resting body of the fluid within it. The greater the force of liquid, the greater the volume of fluid.

Read more about: Hydrostatic level measurement: Measuring Principle

  • Magnetic Level Transmitters:

These transmitters use a magnetic object,which is suspended in a buoyant float.This is usually in a narrow auxiliary column,to restrict lateral movements of the float.While the float is on top of the liquid,the movement of the float is measured by a different magnetic device.This allows a precise and stable fill level to be transmitted.This method is suitable for continuous measurement,owing to the tendency of the float to rise or sink based on the liquid level.

New: SI-LT Magnetostrictive level transmitter with Local Digital Display

These transmitters work on the principle of radar by using radio wave emissions.These transmitters are normally mounted at the top of a tank filled with a liquid.The transmitter sends a radar signal into the liquid and receives a reflection of the signal.The transmitters then analyze the current fill level of the tank based on the time taken by the transmitted signal to return.

In this type of transmitter, an ultrasonic transducer is mounted at,or near the top of a container containing liquid.The transducer sends out an ultrasonic pulse.The pulse hits the surface of the liquid and gets reflected.The sensor then calculates the fill level based on the time between the transmitted and received signal.

  • Guided Microwave Level Transmitters:

These transmitters work by sending a microwave pulse,through a sensor cable or rod.The signal hits the surface of the liquid,and travels back to the sensor,and then to the transmitter housing.The electronics integrated into the transmitter housingdetermine the filling level based on the time,taken by the signal to travel down the sensor and back up again.These types of level transmitters are used in industrial applications,in all areas of process technology.

How do you use a DP transmitter for level measurement?

How does a hydrostatic level transmitter work?

Hydrostatic pressure for level measurement:

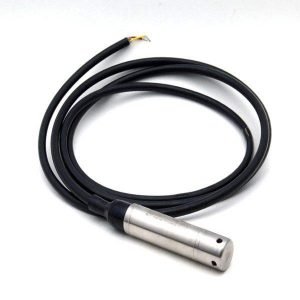

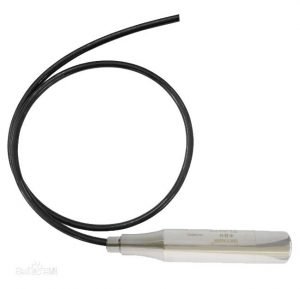

SI-151 Hydrostatic Level Sensor
SMT3151TR Hydrostatic level transmitter-Rod Type
SI-PCM260 Deep Well Water Level Sensor

Featured Continuous level sensors

SI-U01 Float Level Sensor
SI-U02 Multi-Point Liquid Level Float Switch
SI-U03 Float Switch Water Level Controller
SI-U04 Magnetic Float Level Sensor-Reed Switch

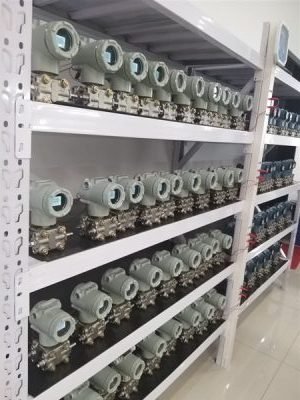

Pressure level transmitter manufacturer

Sino-Instrument, we are the pressure level transmitter manufacturer in China.

We supply SMT3151LT pressure level transmitters.

We offer flamges:

  • DN50 (2″)
  • DN80 (3″)
  • DN100 (4″)
  • DN40
  • Flush flange
  • Insert barrel flange

And for the material of diaphragm, we offer :

316 Stainless steel
Hastelloy C
Monel
Tantalum
Titanium
Special requirements

If you need to know more about the SMT3151LT pressure level transmitters,

you can refer to the :

Request a Quote

Please enable JavaScript in your browser to submit the form

SMT3151 Remote Diaphragm Seal Pressure Transmitter

Remote seal pressure transmitter, with capillary and diaphragm seal, remote mount. Diaphragm seal systems protect pressure transmitters from hot, viscous, contaminated or corrosive media.

Remote Diaphragm seal pressure transmitter with capillary is used as a level transmitter. Diaphragm Seals also called chemical seals, are used in applications where pressure sensor requires isolation from the process media. These applications are corrosive, high temperature, clogged. Or must sanitary fluids to remain in the pipeline or container. The pressure of the liquid in the process does not affect the pressure sensor. Instead, it is applied to the remote seal. And through the capillary, hydraulic pressure is transmitted to the pressure sensor. Installing and filling the diaphragm seal, the impact on instrument performance will be minimized.

Sino-Inst also offers repair, refurbishment or replacement of used transmitters with remote seals.

Features of Remote Diaphragm Seal Pressure Transmitter

Protect pressure sensor

The remote transmission diaphragm can protect the transmitter diaphragm from corrosive, aggressive or extreme temperature.

Various sealing diaphragms are available

Sino-Inst can provide a suitable sealing diaphragm according to your measurement requirements. For example, remote threaded seal, flush flanged type seals, remote flange seal-RTJ gasket surface, extended flanged seal, etc.

Suitable for special environments.

Such as:
High / low temperature fluids;
Highly corrosive / high viscosity fluids;
Toxic fluids;
The fluids containing suspended solids which are deposited in the impulse piping and may cause clogging.

Specifications of Remote Diaphragm Seal Pressure Transmitter

 Measurement parameters: pressure, liquid level
 Measuring range: lower limit: -100% URL (continuously adjustable);
upper limit: to + 100% URL (continuously adjustable)
 Output: two-wire system, 4-20mADC + HART output, digital communication; output signal limit: Imin = 3.9mA, Imax = 20.5mA
 Alarm current:①Low report mode (minimum): 3.7mA
②High report mode (maximum): 21mA
③No report mode (hold): keep the effective current value before the fault
④Alarm current standard setting: high report mode
 Response time: the damping constant of the amplifier part is 0.1s; the time constant of the sensor and the remote flange is 0.2-6s, which depends on the range of the sensor, the range ratio, the length of the capillary, and the viscosity of the filling fluid The additional adjustable time constant is: 0.1-60s.
 Ambient temperature: minimum: depends on the filling liquid; maximum: 85 ℃; with liquid crystal display, fluorine rubber sealing ring is -20 ~ +65 ℃
 Storage temperature / transport temperature: minimum: depends on filling liquid; maximum: 85 ℃
 Relative humidity: 0-100%
 Anti-shock: acceleration: 50kg; duration 11ms
 Anti-vibration: 2g to 500Hz
 Process medium temperature limit: medium temperature: -20 ~ 400 ℃
 Pressure limit of transmitter body: vacuum to maximum pressure
 Rated pressure of remote flange: ANSI standard: 150psi-600psi; DIN standard: PN1.6MPa-PN10MPa
 Warm-up time: <15s
 Explosion-proof performance: NEPSI explosion-proof license: ExdⅡCT6; NEPSI intrinsically safe license: ExiaⅡCT4; allowable temperature is -40 ~ + 65 ℃
 Power and load conditions:① The power supply voltage is DC24V, R≤ (Us-12) / Imax kΩ, where Imax = 23mA
②Max power supply voltage: 42VDC
③Minimum power supply voltage: 12VDC, 15VDC (backlit LCD display)
④Digital communication load range: 250-600Ω
 Electrical connection: M20 × 1.5 cable sealing buckle, the terminal is suitable for 0.5-2.5mm2 wire
 Process connection: The remote flange meets ANSI standard or DIN standard. Can be installed directly, please refer to the dimension drawing for flange size
 Material: Measuring capsule: stainless steel 316L; diaphragm: stainless steel 316L, Hastelloy C, tantalum
 Process connection: stainless steel 316
 Filling fluid: silicone oil, high temperature silicone oil, ultra high temperature silicone oil, vegetable oil
 Pressure transmitter shell: aluminum alloy material, epoxy resin on the surface
 Shell sealing ring: NBR
 Nameplate: Stainless steel 304
 Weight:DN50 / 2 inches about 7-10kg; DN80 / 3 inches about 8-11kg; DN100 / 4 inches about 9-12kg
 Shell protection grade: IP67

Read more What is a diaphragm seal?

Types of SMT3151 Remote Diaphragm Seal System Pressure Transmitters

3151T flange type remote pressure transmitter

The selection is as follows:
3151TGP4SF00S1M4B4 0~40kPa
1199FFW A50AADL03H00

On behalf of the 3151TGP base table plus an American standard 2”150LB flange type remote transmission device, the capillary length is 3 meters.

3151T flat remote pressure transmitter

The selection is as follows:
3151TGP4SF00S1M4B4 0~40kPa
1199PFWA50AADL03H00

On behalf of the 3151TGP base table plus an American standard 2”150LB flat remote transmission device, the capillary length is 3 meters.

3151T type insert barrel remote pressure transmitter

The selection is as follows:
3151TGP4SF00S1M4B4 0~40kPa
1199EFWA50AABDL03H00

On behalf of the 3151TGP base table plus an American standard 2”150LB plug-in remote transmission device, the capillary length is 3 meters, the insertion barrel length is 100mm.

3151T threaded remote pressure transmitter

The selection is as follows:
3151TGP7SF00S1M4B4 0~1000kPa
1199RTWA1AADL03H00

On behalf of the 3151TGP base table plus a threaded connection remote transmission device, capillary length of 3 meters, user connection thread specifications 1/2NPT-14.

3151T type three clamp type remote pressure transmitter

The selection is as follows:
3151TGP5SF00S1M4B4 0~100kPa
1199SCWA1A0DL03H00

On behalf of the 3151TGP base table plus a three-clamp type remote transmission device, the capillary length is 3 meters, the user connection clamp specification is 1 1/2 inch.

3151GP/DP flange type remote pressure transmitter

The selection is as follows:
3151GP4SF22S1M4B3 0~40kPa
1199FFW A50AADL03H00

On behalf of the 3151GP base table plus an American standard 2”150LB flange type remote transmission device, the capillary length is 3 meters.

3151GP/DP flat remote pressure transmitter

The selection is as follows:
3151GP4SF22S1M4B3 0~40kPa
1199PFWA50AADL03H00

On behalf of the 3151GP base table plus an American standard 2”150LB flat remote transmission device, the capillary length is 3 meters.

3151GP/DP type insert barrel remote pressure transmitter

The selection is as follows:
3151GP4SF22S1M4B3 0~40kPabr>
1199EFWA50AABDL03H00

On behalf of the 3151GP base table plus an American standard 2”150LB plug-in remote transmission device, the capillary length is 3 meters, the insertion barrel length is 100mm.

3151GP/DP type threaded remote pressure transmitter

The selection is as follows:
3151GP7SF22S1M4B3 0~1000kPa
1199RTWA1AADL03H00

On behalf of the 3151GP base table plus a threaded connection remote transmission device, capillary length of 3 meters, user connection thread specifications 1/2NPT-14 specific size,

3151GP/DP type three clamp type remote pressure transmitter

The selection is as follows:
3151TGP5SF22S1M4B3 0~100kPa
1199SCWA1A0DL03H00

On behalf of the 3151GP base table plus a three-clamp type remote transmission device, the capillary length is 3 meters, the user connection clamp specification is 1 1/2 inch.

Diaphragm Seal System

Remote Diaphragm seal pressure transmitter, is the capillary type pressure transmitter. This type pressure transmitter, assembling diaphragm seals to field transmitters for the purpose of measuring pressure, differential pressure, level, and flow.

Diaphragm seals are used to prevent process medium from entering into the pressure-sensing assembly of the Differential pressure, Gauge pressure, or Absolute pressure transmitter.

Applications which is suitable for diaphragm seal system

  • For measuring the liquid level, density, flow and pressure of ;
  • high/low-temperature fluids;
  • highly corrosive/high viscosity fluids ;
  • the fluids which may cause clogging of impulse piping in the low temperature ;
  • toxic fluids;
  • the fluids containing suspended solids, which are deposited in the impulse piping and may cause clogging.
How do diaphragm seals work?

You may like: Diaphragm pressure gauge

How do diaphragm seals work?

Basically, diaphragm seals are used in all pressure measurement processes to avoid direct contact between the measuring instrument and the medium during this process. In addition, if the measuring point cannot be installed or read because the measuring point is located in a hard-to-reach location, a diaphragm seal can also be used. In both cases, the applied pressure is transferred to the measuring instrument through the system fill fluid in the diaphragm seal housing.
The diaphragm of the seal can be made of different materials, such as stainless steel, Hastelloy, Monel or tantalum. In addition, coatings with ECTFE, PFA or gold can also be used.

We can provide the best diaphragm seal design, materials, system fill fluid and accessories for each application. The combined configuration of the pressure measuring instrument and the diaphragm seal is mainly determined by the special application conditions of the diaphragm sealing system.

How does a diaphragm pressure sensor work?

When the diaphragm seal pressure transmitter is working, the high and low pressure side isolation diaphragms and the filling liquid transfer the process pressure to the center filling liquid. The filling fluid in the center transmits the pressure to the sensing diaphragm in the center of the δ-chamber sensor. The sensing diaphragm is a tensioned elastic element, and its displacement changes with the differential pressure. For GP gauge pressure transmitters, the atmospheric pressure is applied to the low-pressure side of the sensing diaphragm. AP absolute pressure transmitter, the low pressure side always maintains a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 inches (0.10 mm). The displacement is proportional to the pressure. The two capacitance fixed plates of the measuring diaphragm are linearly converted into a 2-wire current, voltage or digital HART output signal of 4-20mADC by the amplifying circuit.

What is a diaphragm seal?

Diaphragm seals, also known as chemical seals or remote seals, are used for pressure measurements when the process medium should not come into contact with the pressurised parts of the measuring instrument.

A diaphragm seal has two primary tasks:

  1. Separation of the measuring instrument from the process medium
  2. Transfer of the pressure to the measuring instrument

Extended reading: SI-703 Flush Diaphragm Pressure Sensor

What is remote seal?

The remote seal is used to prevent the medium in the pipeline from directly entering the pressure sensor assembly in the pressure transmitter. It is connected to the transmitter by a capillary filled with fluid. As a result, they’re often used in refining, petrochemical, and chemical plants.

Applicaitons of diaphragm seal

Typical applications where a diaphragm seal provides a cost-effective solution, to protecting the pressure instrument are:

  • In applications where the process fluid is corrosive;
  • In applications where the process fluid has a high viscosity,
    is comprised of slurries, sludge or other material that can actually coat,
    or damage a traditional pressure measuring device;
  • In applications where the process fluid can freeze or polymerize,
    thus causing a condition that might lead to the instrument becoming immobilized,
    or incapable of transmitting an accurate pressure measurement or signal.

The process side of the seal is isolated by a flexible diaphragm. The internal space between this diaphragm and pressure measuring sensor is filled with a system fill fluid. The pressure is transmitted from the measured medium, by the elastic diaphragm into the fluid. And from there to the measuring element, i.e. to the pressure measuring instrument or the transmitter.

Often, between the diaphragm seal and pressure measuring instrument, a capillary is connected. Capillary can eliminate or to minimize temperature effects from the hot fluid to the measuring instrument.

A Remote seal is mounted to the process by threaded, flanged, in-line, sanitary, or other connections. Usually, the fittings consist of T-pieces which are integrated into a pipeline, or of welding sockets which are welded to a pipeline, the process reactor or a tank.

This diaphragm seal type offers the advantage, that the “contact surface” between pressure medium and the diaphragm is relatively large. Thus ensuring accurate pressure measurement, especially for very low pressures (< 600 mbar).

Although standard remote seal bodies and diaphragms, are made of stainless steel, a variety of materials, from carbon steel to Hastelloy® C-276, are available to meet the demand of most applications.

A remote seal from Sino-Instrument can operate in pressure applications from 10″ Hg to 20,000 psi, and media temperatures between -130°F and 752°F. We can try to Learn more about the functionality, areas of application and advantages of a diaphragm seal in the following WIKA video.

Extended reading: Flat Pressure Sensor for High Viscosity Fluids

Diaphragm type pressure transmitter

https://www.drurylandetheatre.com/diaphragm-sealed-differential-pressure-transmitters-for-sale/

Data sheet of SMT3151 Diaphragm Seal Pressure transmitters

Diaphragm seal pressure transmitter installation

  1. The remote pressure transmitter without capillary can be directly installed through the remote flange. The position deviation will produce a correctable zero offset
  2. The electronic watch case can rotate 360 degrees at the maximum. The positioning screw can fix it at any position.
  3. Single-crystal silicon remote flange is connected with the matching flange conforming to ANSI / DIN standard. The matching flange should be equipped with soft gasket and fixed bolts and nuts. The user can choose to install bolts and nuts.
  4. For the remote transmission pressure transmitter with capillary, if the remote transmission sealing device is lower than the transmitter body, the maximum height drop between the remote transmission sealing device and the transmitter body should be less than 5m. When the working pressure is lower than 100kPa absolute pressure, the transmitter body must be lower than the remote transmission sealing device.
  5. The minimum bending radius of the capillary is 75mm, winding is strictly prohibited

Q&A

Parameters that determine the design of a remote seal transmitter

Location of the transmitter (indoor versus outdoor).
Temperatures (process and ambient).
Exposure to vacuum.
Pressure (operating and maximum).
Length of capillary.
Type of seal desired.
Process connection, material of construction and similar considerations.
Installation requirements.
Measurement span.

When are threaded connections used with diaphragm seals?

The combinations of diaphragm seals with threaded connection can be used for processes with extreme temperatures and with aggressive, adhesive, corrosive, environmentally hazardous or toxic media.

Why are there different system fill fluids with diaphragm seals?

In selecting the system fill fluid for diaphragm seals, factors such as compatibility (physiologically harmless) and also temperature and pressure conditions at the measurement location are of crucial importance. Depending on the system fill fluid, the appropriate minimum and maximum operating temperature range must be observed.

How are the diaphragm seals connected?

The diaphragm seals are available with female or male thread in their basic design. Due to the wide variety of available process connections they can be mounted to many different connections without any problems. Generally these connections are T-pieces which are integrated into a pipeline or welded to a pipeline by means of a welding socket.

Sino-Instrument offers SMT3151 Diaphragm Seal Pressure transmitter. Work the same as Wika diaphragm seal pressure transmitter; diaphragm seal pressure transmitter Rosemount; Yokogawa diaphragm seal pressure transmitter.

Sino-Instrument are diaphragm seal pressure transmitters manufacturer. We can offer you automated instruments from China, With best price.

Request a Quote

Please enable JavaScript in your browser to submit the form

SMT3151TR Hydrostatic Submersible Level Transmitter-Straight Rod Insertion

The Submersible Level Transmitter is the most commonly used tank level indicator. There are stainless steel probes that are placed at the bottom of tanks, wells, or other liquid containers. Output 4-20mA signal. For liquid level measurement and control.

The difference between the SMT3151TR Hydrostatic Submersible Level Transmitter and other submersible level transmitters is that it is a straight rod insertion type.

  • Measuring range: select within 0 ~ 5m (more than 5m negotiate order)
  • Measurement accuracy: 0.5
  • Output signal: 4 ~ 20mADC; 0 ~ 20mA;
  • Working temperature: -50 ~ 80 ℃/ -50~450℃ (High temperature type);
  • Wetted materials: stainless steel, polypropylene (PP), PTFE
  • Explosion-proof grade: ExiaIICT6Gb ExIICT6Gb

Sino-Inst offers a variety of Hydrostatic Submersible Level Transmitters for flow measurement. If you have any questions, please contact our sales engineers.

Features of Hydrostatic Submersible level transmitter

  • Solid structure, no moving parts, high reliability and long service life;
  • From water to sewage, from oil to liquid with high viscosity, high-precision measurement can be carried out, and it is not affected by foaming and sedimentation of the medium;
  • With multi-purpose mounting bracket, easy to install and use;
  • Lightning protection design. Has good anti-interference and lightning protection capabilities;
  • With power reverse polarity protection and overload current limit protection;
  • The new material is not easy to fatigue and wear, and has strong resistance to vibration, impact and overload]
  • High temperature type can be customized. High temperature reaches 450 ℃.

Extended reading: HART protocol digital signal (two-wire system)

Specifications of Submersible Level Transmitter

Measuring range:0~5m
Accuracy:0.5
Signal output:4~20ADC, 0~20mA
Loading resistance:0~600Ω
Transmitting distance:>1000m
Working voltage:24VDC
Working temperature:-50~ +80 °C;    -50~ +450 °C;
Environmental temperature:-40~ +50 °C
Relative humidity:≤85%
Contacting liquid material:Stainless steel
Installation type:Flange: DN32 (HG/T20593,20595-97) RF sealing face ;
G2″ thread(customize)
Electrical connection:M20×1.5
Explosion-proof grade:Exia II CT6Ga;   Exd II CT6Gb

Applications of Submersible Level Transmitter

Sino-Inst’s Hydrostatic Level Transmitter is used in various industrial and municipal environments. Especially in water supply and wastewater treatment plants. Mainly used for water level measurement of urban water supply, oil tanks, petrochemical and other open tanks.

Hydrostatic Level Transmitter measures the hydrostatic pressure of a liquid medium. Liquid level information is transmitted through electrical signals. The signal changes linearly and proportionally. To measure the hydrostatic pressure above the sensor.

If your measurement range is greater than 5 meters, please refer to Submersible Pressure Transducer.

If you are measuring the fuel tank level, you can choose a magnetostrictive liquid level sensor with higher accuracy and longer service life.

More Featured Hydrostatic Level Transmitters

Installation of Submersible Level Transmitter

The rod type static pressure liquid level transmitter has two standard installation methods of G11 / 2 thread and flange.

Thread installation
For the transmitter that is directly installed with G11 / 2 thread, a G11 / 2 round nut is provided at the time of delivery. Generally, there are two ways for installation.

  1. The installation position has G11 / 2 thread. The liquid level transmitter can be screwed in directly. The attached round nut can be used or screwed on to prevent loosening.
  2. There is no G11 / 2 thread in the installation position. Can use the existing Φ50 ~ Φ60 light hole, or install a bracket with Φ50 ~ Φ60 hole. Install the liquid level transmitter, and screw on the round nut to fix it.

Flange mounting
The standard installation dimensions of flanges are in accordance with DN50, GB9119.6-88
If there are other flange mounting holes in the installation location, please indicate the flange size or the corresponding specifications and standard numbers when ordering, in order to meet the installation requirements.

Of course, we can also directly measure the liquid level with a pressure transmitter. For example, install a Hydrostatic pressure transmitter directly at the bottom of the tank. The installation is shown on the right.
If you want to measure the tank liquid level like this, you can refer to:

What is hydrostatic level transmitter?

Hydrostatic level transmitter is actually a type of pressure transmitter. Hydrostatic level transmitter is the application of pressure transmitter to liquid level measurement. The submersible Hydostatic pressure level transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. Piezoresistive effect using diffused silicon or ceramic sensitive elements. Convert static pressure into electrical signal. After temperature compensation and linear correction. Convert to 4-20mADC standard current signal output. In order to achieve liquid level measurement.

Read more about: [What is and How it Works]Hydrostatic Level Sensor

Submersible level transmitter working principle

The basic working principle of Hydrostatic Level Sensor is static pressure level measurement.

In liquid, the pressure generated at a certain depth is generated by the weight of the medium itself above the measurement point. It is proportional to the density of the medium and the local acceleration of gravity.

The formula P = ρgh reflects the proportional relationship between them.

Where P = pressure, ρ = medium density, g = gravity acceleration, h = depth of measurement point.

Therefore, the physical quantity measured by the input liquid level gauge is actually pressure. It can be understood by the calibration unit mH2O of the input level gauge. The actual liquid level must be obtained by conversion after knowing the two parameters of density and gravity acceleration. In the industrial field, such conversion is usually performed by a secondary instrument or PLC.

The Hydrostatic Level Sensor mainly measures corrosive liquids such as hydrochloric acid, hydrogen peroxide, etc. Or chemical and electroplating wastewater. Mainly used in measuring corrosive media. It has the advantages of strong corrosion resistance and stable performance.

Let’s see How is hydrostatic pressure measured ?

Video source: https://www.youtube.com/watch?v=T2OPoEod_jM&feature=emb_logo

Hydrostatic level transmitter advantages and disadvantages

About Hydrostatic level transmitter advantages and disadvantages, we do a simple analysis here. If you want to know more about the advantages and disadvantages of level transmitters. Please refer to Sino-Inst Level Transmitters.

Advantages

  • High measurement accuracy;
  • The ultra-high range can be customized up to 1000 meters.
  • Easy to install;
  • The signal can be transmitted remotely;
  • The corrosion of various media can be resisted by choosing different materials;
  • Suitable for explosion-proof occasions;
  • Low cost;

Disadvantages

Extended reading: Hydrostatic Pressure Transmitter

Hydrostatic level transmitter price

Compared with other liquid level transmitters, Hydrostatic level transmitter has lower cost. The price of Hydrostatic level transmitter is mainly affected by the measurement situation. such as:

  1. Range range;
  2. Medium temperature;
  3. The medium is corrosive;

Sino-Inst is a manufacturer of Hydrostatic level transmitter. Sino-Inst provides customers with the best Hydrostatic level transmitter price. For example, the general-purpose Hydrostatic level transmitter has a reference price of USD70. If you want to know the exact price, please contact our sales engineer.

Sino-Instrument offers detailed product specifications and data sheets for review. Our application engineers, can help ensure you choose exactly what you need for your specific installation. Or if you need the RFQ instantly, we can offer you with the submersible level transmitter price immediately.

Frequently
Asked
Questions

Magnetostriction means that the change of the magnetization direction in ferromagnetic substance will cause the change of the medium lattice spacing. As a result, the length and volume of the ferromagnetic substance change.
Magnetostrictive level transmitter is a level transmitter based on the principle of magnetostriction. It is a high-precision, high-resolution transmitter driven by a magnetic float.

Ultrasonic Level Indicator, also called Ultrasonic level sensor, or ultrasonic level transmitter. In this type of transmitter, an ultrasonic transducer is mounted at, or near the top of a container containing liquid. The transducer sends out an ultrasonic pulse. The pulse hits the surface of the liquid, and gets reflected. The sensor then calculates the fill level based on the time between the transmitted and received signal.

Sino-Inst offers over 10 Submersible Level Transmitters. About 50% of these are Submersible Level Sensors, 40% are water level meters, and 40% are for tank level. A wide variety of Hydrostatic Level Sensor options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Hydrostatic level transmitter.
Submersible Level Transmitter instrumentation, located in China.

Sino-Inst sells through a mature distribution network that reaches all 50 states and 30 countries worldwide. Submersible Level Transmitter products are most popular in Domestic Market, Southeast Asia, and Mid East. You can ensure product safety by selecting from certified suppliers, with ISO9001,ISO14001 certification.Send RFQ NOW, You may get the price now.

Request a Quote

Please enable JavaScript in your browser to submit the form

3051HP Hydrostatic Pressure Transmitter

What is hydrostatic pressure transmitter?

Hydrostatic Pressure Transmitters is an instrument that measures the hydrostatic pressure or differential pressure exerted by a hydrostatic head.

Feel the measured pressure through the remote transmission device installed on the pipeline or container. The pressure is transmitted to the main body of the transmitter through the filling silicone oil (or other liquid) in the capillary tube. Then there is the delta chamber and the amplifier circuit board in the main body of the transmitter. Convert into 4-20mA DC signal output. HP Smart can communicate with a HART handheld communicator. Use it to set, monitor, or form an on-site monitoring system with the host computer.

Hydrostatic Pressure Transmitters are often used to measure the level, flow, and pressure of liquids, gases, or steam under high working pressure environments.

Features of Hydrostatic Pressure Transmitter

The Hydrostatic pressure transmitter is used to measure the liquid level, flow, and pressure of the liquid, gas or steam under high working pressure, and then convert to 4~20mA DC signal output.

The Hydrostatic pressure transmitter is used to measure the liquid level, flow, and pressure of the liquid, gas or steam under high working pressure, and then convert to 4~20mA DC signal output.

  • The high hydrostatic pressure transmitter can measure differential pressure below 32MPa hydrostatic pressure.
  • With 32MPa working pressure and overload protection.
  • Ensuring reliable application of the transmitter in Hydrostatic pressure systems.

Read more about: Steam pressure transmitter-Pressure measure on steam pipeline

Specifications of Hydrostatic Pressure Transmitter

Measure Range of Hydrostatic pressure sensor:

Differential pressure: 0-1.3-6790KPa
Hydrostatic pressure: 32MPa

  • Use object: liquid, gas or steam
  • Output signal: 4-20mA dc. Output superimposed HART protocol digital signal (two-wire system)
  • Power source: external power supply 24V dc. Power supply range 12V ~ 45V
  • Installation in dangerous places:
    • Flameproof  ExdIIBT5Gb;(explosion-proof certificate no. :CE16.1163)
    • Intrinsically safe ExiaIICT4/T5/T6Ga;(explosion-proof certificate no. : CE15.2354X) ;
  • Accuracy: ± 0.1%, ±0.2%
  • Stability: ±0.25%/6 months of maximum range
ModelTransmitter type
HPAbsolute pressure transmitter
CodeScale range
20-0.10~3.5kPa(0-10~350mmH2O)
30-0.8~8.0kPa(0-80~800mmH2O)
40-4.0~40kPa(0-400~4000mmH2O)
50-20~200kPa(0-2000~20000mmH2O)
60-70~700kPa(0-0.7~7kgf/cm2)
70-210~2100kPa(0-2.1~21kgf/cm2)
80-700~7000kPa(0-7.0~70kgf/cm2)
90-2.1~21MPa(0-21~210kgf/cm2)
00-4.1~41MPa(0-41~4100kgf/cm2)
CodeOutput form
ELinear output 4-20mAdc
SFLinear/square root output 4-20mAdc +HART signal,,Full function buttons on site
FMODBUS-485 signal
CodeStructural materials
Flange connectorExhaust/Drain valveIsolation diaphragmFilling liquid
22316 Stainless steel316 Stainless steel316 Stainless steelSilicone oil
23316 Stainless steel316 Stainless steelHastelloy CSilicone oil
24316 Stainless steel316 Stainless steelMonelSilicone oil
25316 Stainless steel316 Stainless steelTantalumSilicone oil
33Hastelloy CHastelloy CHastelloy CSilicone oil
35Hastelloy CHastelloy CTantalumSilicone oil
44MonelMonelMonelSilicone oil
CodeShell materialConduit inlet dimensions
ALow copper aluminum alloy polyurethane coatingM20×1.5
BLow copper aluminum alloy polyurethane coating1/2-14 NPT
CStainless steelM20×1.5
DStainless steel1/2-14 NPT
CodePressure connection
L11/4NPT-18 Internal thread(excluding waist joint standard)
L21/2NPT-14 Internal thread
L3M20×1.5 External thread
CodeOptional parts
M4LCD multi-power digital display head
B1Pipe bending bracket
B2Plate bending bracket
B3Pipe mounting bracket
C02M20×1.5 nut and Φ 14 pressure short tube
C121/2NPT-14 external thread and Φ14 pressure short tube
C221/4NPT-18 external thread and Φ14 pressure short tube
C321/4NPT-18 to M20×1.5 external thread
C421/2NPT-14 to M20×1.5 external thread
C431/2NPT-14 to 1/4NPT-18 internal thread
C441/2NPT-14 to 1/2NPT-14 external thread
C451/2NPT-14 to G1/2 external thread
D1The side discharge valve is on the upper part
D2The side discharge valve is on the upper part
X1Oil ban
DaFlameproof ExdIIBT5Gb;(explosion-proof certificate no. : CE16.1163)
FaIntrinsically safe ExiaIICT4/T5/T6Ga;(explosion-proof certificate no. : CE15.2354X)

Hydrostatic Pressure Transmitter Applications

  • Viscous medium at high temperature
  • Crystallizable medium
  • Precipitating medium with solid particles or suspended matter
  • Strong corrosive or highly toxic medium
  • It can eliminate the phenomenon that the pressure guiding tube leaks and pollutes the surrounding environment. It can avoid the instability of the measurement signal when the isolation fluid is used. The tedious work of frequently supplementing the isolation fluid is required.
  • Continuous and accurate measurement of interface and density
  • The remote transmission device can avoid the mixing of different instantaneous media. So that the measurement result truly reflects the actual situation of the process change.
  • Occasions requiring high hygiene and cleanliness
  • For example, in the production of food, beverage and pharmaceutical industries, it is not only required that the parts of the transmitter contacting the medium meet the hygienic standards. It should also be easy to wash. To prevent cross-contamination of different batches of media.

Extended reading: Silicon Pressure Sensor

Hydrostatic Pressure

Hydrostatic pressure is the pressure generated by the weight of the liquid above the measurement point when the liquid is stationary. The height of the liquid column with uniform density is proportional to the hydrostatic pressure. As the weight of the fluid exerting downward force from above increases, the hydrostatic pressure increases in proportion to the depth measured from the surface.

Read more about: Differences! Static pressure vs dynamic pressure vs total pressure

If the fluid is inside the container, the depth of the object placed in the fluid can be measured.
The hydrostatic characteristics of a liquid are not constant, and the main factors affecting it are the density and local gravity of the liquid. In order to determine the hydrostatic pressure of a particular liquid, both quantities need to be known.

The deeper an object is placed in a fluid, the greater the pressure it bears. This is because the weight of the fluid is higher than its weight. Due to the weight of the fluid, the denser the fluid above it, the greater the pressure on the submerged object.

Measuring principle

The pressure in the liquid increases as the filling height increases. The hydrostatic pressure is transmitted to the measuring unit through the stainless steel diaphragm. Bubbling, accumulation of liquids, fluctuating electrical characteristics, and container design will not affect the measured value.

Extended reading: What is flush diaphragm?

Formula for calculating hydrostatic pressure

The formula for calculating the hydrostatic pressure of a column of liquid is:

Phyd = h.ρ.g

Prel = h.ρ.g

Pabs = h.ρ.g + Patm

Phyd = Hydrostatic Pressure (Pa)
Prel = Relative Pressure (Pa)
Pabs = Absolute Pressure (Pa)
Patm = Atmospheric Pressure (Pa)
h = Liquid Height (m)
ρ = Liquid Density (kg/m3)
g = Local Gravity (m/s2)

The above calculation formula is also the working principle of hydrostatic liquid level sensor.

The hydrostatic pressure sensor measures the hydrostatic pressure applied by the hydrostatic head. Output 4-20mA.
Use a hydrostatic pressure transmitter to measure the storage tank and pump inlet. And other applications where hydrostatic pressure is used to determine the liquid level.

Hydrostatic Pressure Sensor/Transmitter can also be used with paperless recorder.

Hydrostatic Level Sensor measures the hydrostatic pressure by the submersible pressure sensor. The static pressure of the liquid is proportional to the height of the liquid. Then the static pressure was converted into an electrical signal. Convert to analog signal output or 4-20mADC. With digital display. For water level measurement, hydrostatic level sensor is a low cost type. Different types of measuring cells are used in level measurement based on the hydrostatic principle.

Lightning protection, anti-corrosion, explosion-proof optional. IP68 is optional.

Read more about: Hydrostatic Level Sensor

The basic working principle of Hydrostatic Level Sensor is static pressure level measurement.

In liquid, the pressure generated at a certain depth is generated by the weight of the medium itself above the measurement point. It is proportional to the density of the medium and the local acceleration of gravity.

The formula P = ρgh reflects the proportional relationship between them.

Where P = pressure, ρ = medium density, g = gravity acceleration, h = depth of measurement point.

Therefore, the physical quantity measured by the input liquid level gauge is actually pressure. It can be understood by the calibration unit mH2O of the input level gauge. The actual liquid level must be obtained by conversion after knowing the two parameters of density and gravity acceleration. In the industrial field, such conversion is usually performed by a secondary instrument or PLC.

The Hydrostatic Level Sensor mainly measures corrosive liquids such as hydrochloric acid, hydrogen peroxide, etc. Or chemical and electroplating wastewater. Mainly used in measuring corrosive media. It has the advantages of strong corrosion resistance and stable performance.

Extended reading: Static pressure vs dynamic pressure vs total pressure

There are various methods and techniques for measuring fluid level using hydrostatic pressure sensors. Depending on the installation, they all have advantages and disadvantages. Hydrostatic pressure measurement is an accurate and convenient technique for determining fluid height or volume.

Let’s take a look at each according to the installation location of the hydrostatic pressure sensor.

Externally mounted type

Image source: https://www.yourlevelexperts.com/zh-hant/product/hydrostatic-pressure/

The Hydrostatic pressure liquid level sensor can be installed to the outside of the container through threads or flange fittings. If necessary, capillaries can also be used.

Submersible type

Picture source: network picture

If the externally mounted sensor is not available, a submersible pressure sensor can be used. The electrical connection with IP68 rating is suitable for long-term permanent immersion. The electronic equipment of the sensor can be protected from the external environment.

Read more about: [What is and How it Works]Hydrostatic Level Sensor

DP transmitters are Differential Pressure Transmitters. DP transmitter measures the pressure difference between the gas or liquid at both ends of the transmitter. Output 4~20mA, 0~5V. Used for liquid level, density, and pressure of liquid, gas, and steam.

DP transmitters are different from pressure transmitters as they have 2 pressure interfaces. With flanges, capillaries, valves, brackets, throttle devices. Differential pressure transmitters are used to measure the level, density, and flow of liquids, gases, and vapors. Then convert it into 4–20mADC current signal output.

Read more.

pressure transducer often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal.

Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer.

The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gauges, which are bonded into the diaphragm of the pressure transducer, and wired into a Wheatstone bridge configuration.

Pressure applied to the pressure transducer produces a deflection of the diaphragm, which introduces strain to the gages.

The strain will produce an electrical resistance change proportional to the pressure.

Read more.

Hydrostatic pressure transmitter fault debugging steps:

How to debug the fault of Hydrostatic pressure transmitter

Total Time: 30 minutes

Check the power supply

Check if the power supply of the differential pressure transmitter is reversed, and whether the positive, and negative poles of the power supply are connected correctly.

Measure the power supply

Measure the power supply of the transmitter, whether there is 24V DC voltage. It must ensure that the power supply voltage to the transmitter is ≥12V
(that is, the voltage of the transmitter power input terminal is ≥12V).
If there is no power supply, check whether the circuit is disconnected, whether the instrument is selected incorrectly (input impedance should be ≤250Ω), and so on.

Check the display meter

If the pressure transmitter is equipped with a meter head, it is necessary to check whether the dislay meter is damaged. You can short-circuit the two wires of the meter head first. If it is normal after a short circuited, it means the head is damaged.
If the meter head is damaged, Then you need to change the header.

Check the current

If there is a problem with the differential pressure transmitter, connect the ammeter to the 24V power supply circuit to check if the current is normal.
If it is normal, the transmitter is normal. In this case, check if other instruments in the loop are normal.

Connect the power supply

Connect the power supply to the transmitter power input terminal, and connect the power cable to the power supply wiring port.
If you still have any question with the selection, application, and use of pressure transmitters, you can just contact our engineer today.

Related Blogs

Steam Pressure Transmitter

Steam pressure transmitters are widely used in the measurement and control of various high-temperature steam piping systems. The monitoring of…

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors for pressure measure and…

Extended reading: Use of high temperature melt pressure sensor

Hydrostatic pressure transmitter/sensor measures the level, density, and pressure of liquid, gas, or steam. And then converts it into a 4-20 mA DC signal output. The Hydrostatic pressure transmitter can communicate with the HART communicator intelligently. Use it to set, monitor or form a site monitoring system with the host computer. Use a Hydrostatic pressure sensor to measure tanks, processing vessels, headers, pump inlets and others using hydrostatic pressure to determine the liquid height. SI3051HP Hydrostatic pressure transmitters, with working Hydrostatic pressure up to 32Mpa.

Extended reading: Best Price Ceramic Pressure Sensor

Sino-Inst offers a variety of Hydrostatic Pressure Transmitters for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Request a Quote

Please enable JavaScript in your browser to submit the form

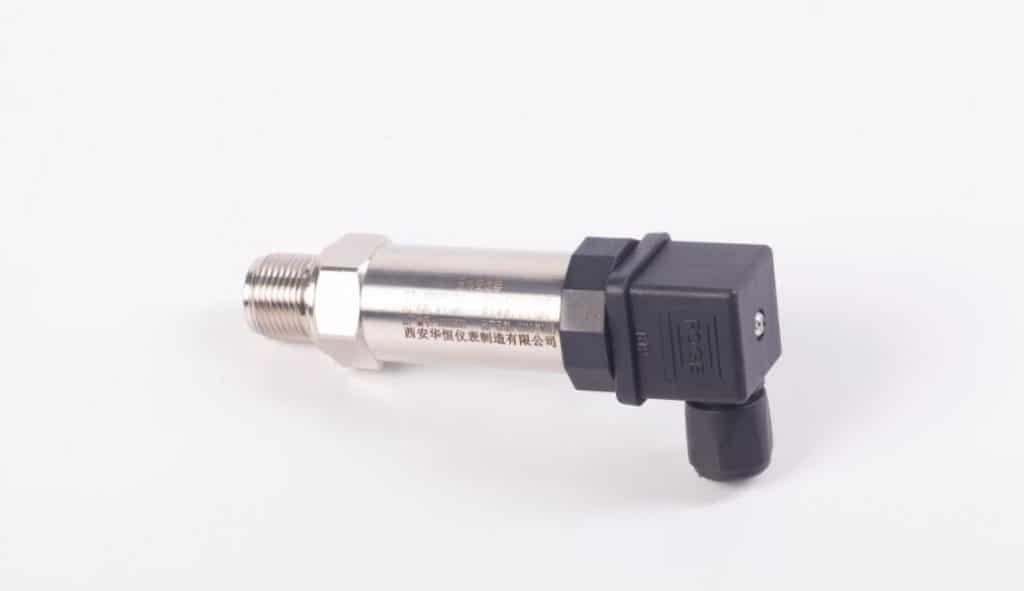

Industrial Pressure Sensor for OEM applications

OEM pressure sensors from Chinese manufacturer. Silicone filled. Protected by stainless steel diaphragm. Suitable for a variety of fluid media.

OEM Pressure Sensor is an economical product for users. SI-302 pressure sensor for OEM applications. The core of this series pressure sensor adopts strain gauge technology. And the elastic element is 17-4PH stainless steel. Specially designed for customer OEM processing. Mass production. Low cost, impact resistance, fatigue resistance. It is mainly used in many situations that require economical stress testing. Professional economic products for OEM users. For pressure measurement of weakly corrosive liquids, gases and vapors.

Sino-Inst offers a variety of OEM pressure senors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Industrial OEM Pressure Transducer Features

  • Measuring range: 0-0.6,1,2,5,10,20,30,40,50,60 ~ 150MPa
  • Available in gage, absolute and sealed gage styles
  • Constant current / constant voltage power supply
  • Isolated structure, suitable for a variety of fluid media
  • Standard OEM pressure sensitive element
  • All 316L stainless steel
  • Tantalum diaphragm optional, titanium structure optional
  • Standard male thread pressure connection available
  • Flexible customer customization

Specifications of SI-302 OEM Pressure Sensor

  • Measuring range: 0-0.6,1,2,5,10,20,30,40,50,60 ~ 150MPa
  • Comprehensive accuracy: 0.1% FS, 0.25% FS, 0.5% FS
  • Output signal: 1.0mV / V, 1.5mV / V, 2.0mV / V
  • Power supply voltage: 10VDC (3 ~ 15VDC)
  • Output impedance: 350/1000/1650 / 2000Ω
  • Medium temperature: -20 ~ 85 ℃ ~ 125 ℃
  • Ambient temperature: -20 ~ 85 ℃
  • Insulation resistance: greater than 2000MΩ / 100VDC
  • Response time: <1-5ms
  • Sealing grade: IP65
  • Long-term stable performance: 0.15% FS / year
  • Vibration effect: within the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1% FS
  • Electrical connection: red-positive power, black (yellow)-negative power, blue-positive signal, white-negative signal
  • Mechanical connection: M20 × 1.5, other threads can be customized according to customer requirements

5 Types of Pressure Sensors

Piezoelectric pressure sensor:

Piezoelectric effect is the main working principle of piezoelectric sensors. Piezoelectric sensors cannot be used for static measurement. Because the charge after external force is applied, it can only be saved when the loop has infinite input impedance. This is not the case, so this determines that piezoelectric sensors can only measure dynamic stress.

Ceramic pressure sensor:

Ceramic pressure sensors are based on the piezoresistive effect. Pressure directly acts on the front surface of the ceramic diaphragm, causing the membrane to deform slightly. Thick film resistors are printed on the back of the ceramic diaphragm and connected into a Wheatstone bridge. Because of the varistor The piezoresistive effect makes the bridge generate a voltage signal that is highly linear and proportional to the pressure and proportional to the excitation voltage. The standard signal is calibrated to 2.0 / 3.0 / 3.3mv / v according to different pressure ranges. Strain sensors are compatible.

Diffused silicon pressure sensor:

The working principle of a diffused silicon pressure sensor is also based on the piezoresistive effect. Using the piezoresistive effect principle, the pressure of the measured medium directly acts on the diaphragm of the sensor (stainless steel or ceramic). The diaphragm produces a micro-displacement proportional to the pressure of the medium. Change the resistance value of the sensor. Use electronic circuits to detect this change, and convert and output a standard measurement signal corresponding to this pressure.

Sapphire pressure sensor:

Utilizing strain-resistance working principle. Using silicon-sapphire as the semiconductor sensitive element has unparalleled metrological characteristics. Therefore, silicon-sapphire semiconductor sensitive components are used. They are not sensitive to temperature changes and have good working characteristics even under high temperature conditions. Sapphire has extremely strong radiation resistance. In addition, silicon-sapphire semiconductor sensitive components, pn drift.

Piezoresistive force sensor:

Resistance strain gage is one of the main components of a piezoresistive strain sensor. The working principle of a metal resistance strain gage is that the resistance of the strain resistance absorbed by the base material changes with the mechanical deformation.

Individual designs of OEM pressure transmitters

A wide range of designs in the area of process connections,

and mechanical connections to the case is already available.

On request,

further customizations can be developed to meet customer demands to the full extent.

Applications of OEM pressure sensor

Applications

Industrial process control: liquid level measurement, gas, liquid pressure measurement;

Pressure testing instruments: pressure calibration instruments, hydraulic systems and switches; refrigeration equipment and air conditioning systems, aviation and marine testing.

oem pressure transmitter

OEM pressure transmitter manufacturer in China

Sino-Instrument is the Best Chinese independent manufacturer, of media-isolated, piezoresistive pressure sensors, producing in excess of 3 thousand units every year.

Sino-Instrument sensors are produced in three basic configurations:

gauge pressure sensors, absolute pressure sensors and sealed gauge pressure sensors.

Each of these types benefits from over 30 years of continuous development in our ISO9000:

2001-accredited headquarters.

Optimized mechanical packaging ensures effective media isolation without degrading performance.

A large percentage of OEM sensors produced by Sino-Instrument, are used in our own pressure transducers, and pressure transmitters, so Sino-Instrument understands the OEM viewpoint.

Sino-Instrument’s designs cover a broad spectrum of applications, from medical vascular intervention systems to downhole oil tools.

Whatever the need, Sino-Instrumenr can provide the solution!

Request a Quote

SMT3151AP Absolute Pressure Transmitter

Absolute pressure transmitters measure the difference between vacuum and measured pressure. Absolute pressure (AP) transmitter is a measure of the ideal (complete) vacuum.

Absolute pressure transmitters, also known as absolute pressure transducer,
and absolute pressure sensor. Measure absolute pressure relative to full vacuum. In contrast, pressure measured relative to atmosphere is called gauge pressure. All absolute pressure measurements are positive. The readings produced by absolute pressure sensors are not affected by atmosphere. When the pressure corresponds to the ideal vacuum, the absolute pressure transmitter will produce a 4mA output signal.

Sino-Inst offers a variety of pressure senors for industrial pressure measurement. If you have any questions, please contact our sales engineers.

Absolute Pressure Transmitter Features

Direct Mount Pressure-Absolute Pressure Transmitter
  • Sensor Type : Industrial Pressure Transducers
  • Full function buttons on site
  • Pressure ranges: 0 … 1 mbar up to 0 … 600 bar
  • Output/Span 0 – 10 V, 0 – 5 V, 1 – 5 V, 10 mV/V, 4 – 20 mA, HART
  • Pressure Port/Fitting : 1/2 MNPT, 1/4 FNPT, 1/4 MNPT, 1/8 MNPT
  • Operating Temperature Range: -40 – 85 °C [ -40 – 185 °F ]

Extended reading: How to calibrate HART pressure transmitters

Specifications of Absolute Pressure Transmitter

ModelTransmitter type
SI-1301GPPressure transmitter
SI-1301APAbsolute pressure transmitter
CodeScale range
20-0.10~3.5kPa(0-10~350mmH2O)
30-0.8~8.0kPa(0-80~800mmH2O)
40-4.0~40kPa(0-400~4000mmH2O)
50-20~200kPa(0-2000~20000mmH2O)
60-70~700kPa(0-0.7~7kgf/cm2)
70-210~2100kPa(0-2.1~21kgf/cm2)
80-700~7000kPa(0-7.0~70kgf/cm2)
90-2.1~21MPa(0-21~210kgf/cm2)
00-4.1~41MPa(0-41~4100kgf/cm2)
CodeOutput form
ELinear output 4-20mAdc
SFLinear output 4-20mAdc+HART signal,Full function buttons on site
FMODBUS-485 signal
CodePressure connection
L11/4NPT-18 Internal thread (excluding waist joint standard)
L21/2NPT-14 Internal thread
L3M20×1.5 External thread
CodeOptional parts
M4LCD multi – power digital display head
B1Pipe bending bracket
B2Plate bending bracket
B3Pipe mounting bracket
D0The discharge valve is at the end
D1The side discharge valve is on the upper part
D2The side discharge valve is on the upper part
C02M20 x 1.5 nut and Φ 14 pressure short tube
C121/2NPT-14 external thread and Φ14 pressure short tube
C221/4NPT-18 external thread and Φ14 pressure short tube
C321/4NPT-18 to M20×1.5 external thread
C421/2NPT-14 to M20×1.5 external thread
C431/2NPT-14 to 1/4NPT-18 internal thread
C441/2NPT-14 to 1/2NPT-14 external thread
C451/2NPT-14 to G1/2 external thread
X1Oil ban
GdMeasure the gold-plated membrane box
DaFlameproof  ExdIIBT5Gb;(explosion-proof certificate no. : CE16.1163)
FaIntrinsically safe ExiaIICT4 / T5 / T6Ga;(explosion-proof certificate no. : CE15.2354X)
CodeFlange connectorExhaust/Drain valveIsolation diaphragmFilling liquid
22316 Stainless steel316 Stainless steel316 Stainless steelSilicone oil
23316 Stainless steel316 Stainless steelHastelloy CSilicone oil
24316 Stainless steel316 Stainless steelMonelSilicone oil
25316 Stainless steel316 Stainless steelTantalumSilicone oil
33Hastelloy CHastelloy CHastelloy CSilicone oil
35Hastelloy CHastelloy CTantalumSilicone oil
44MonelMonelMonelSilicone oil
CodeShell materialConduit inlet dimensions
ALow copper aluminum alloy polyurethane coatingM20×1.5
BLow copper aluminum alloy polyurethane coating1/2-14 NPT
CStainless steelM20×1.5
DStainless steel1/2-14 NPT

Read more about: Common Units Of Pressure

What is the absolute pressure?

The pressure acting on the surface of object is called “absolute pressure”. The absolute pressure value starts with absolute vacuum.

The absolute pressure sensor measures the pressure relative to the high vacuum reference. The high vacuum reference is sealed behind its sensing diaphragm. The vacuum must be negligible compared to the pressure to be measured.

Sino-Inst’s absolute pressure sensor provides a pressure range of 1 bar or even 700 mbar. Most electronic pressure sensors measure pressure based on the deformation of the diaphragm.

For Gauge pressure sensors, One side of the diaphragm is exposed to process pressure, while the other side is exposed to ambient. This means that the pressure is actually the difference between the process pressure and atmospheric.

For absolute pressure sensors, the side of the sensor that is not in contact with the pressure medium is exposed to a permanently sealed absolute vacuum chamber. The deformation of the diaphragm is not affected by atmospheric. Because it uses a sealed vacuum as a reference point and zero point.

What is absolute pressure transmitter?

Absolute pressure (AP) transmitter measure relative to perfect (full) vacuum pressure (absolute zero pressure).

Therefore, AP transmitters are not affected by fluctuations in the local atmosphere.

All absolute pressure measurements are positive.
The letter ‘a’ or the abbreviation ‘abs’ in the unit of measure
(i.e., inH₂O(abs) or psia) indicates an absolute pressure measurement.

Any critical storage and delivery (toxic gases) will change due to atmospheric conditions. So these systems must be accurate and use static references. Absolute pressure transmitters are used in applications where the pressure of a gas or liquid is isolated from changes in atmosphere. For example, when testing a sealed pressure vessel for leaks for a long time.

How do absolute pressure sensors work?

The absolute pressure transmitter is mainly composed of two parts. One part is directly connected to the side to be measured. The other side is designed as an absolute vacuum reference chamber. This makes the two compartments form Absolute pressure. When the pressure on both sides is inconsistent, the difference signal will be transmitted through a special transmission line. The computer system in the background can calculate the difference. The pressure value on the measured side is directly displayed.

Applications for Absolute Pressure Sensors

Absolute pressure sensors and absolute pressure gauges are commonly used in industrial high-performance vacuum pumps that require monitoring.

For example, it is used to vacuum package medical products in a clean environment. To ensure that hospitals and doctors are provided with hygienic and bacteria-free delivery.

In the food industry, when the highest possible vacuum is needed to prevent oxygen from degrading perishable food, vacuum packaging can be used, which greatly extends the flavor and shelf life of the product.

For example, in meat packaging, a vacuum that meets the requirements must be generated, so that the longest shelf life can be safely guaranteed.

Pressure sensors affected by the atmosphere cannot monitor the high end of the vacuum.

Applications that require true absolute pressure sensors and gauges can also be found in scientific laboratories, universities, military and aerospace industries.

Applications requiring true absolute pressure sensors and gauges, can also be found in scientific laboratories, universities, the military, and the aviation industry.

Sino-Instrument supplies Direct Mount Pressure / Absolute Pressure Transmitter.

SMT3151 Absolute Pressure Transmitter
SM3151 TAP Pressure-absolute pressure transmitter shape and installation dimensions

Absolute pressure transmitter calibration

  1. First make a 4-20mA fine adjustment. It is used to calibrate the D / A converter inside the transmitter. Because it does not involve sensing components, no external pressure signal source is required.
  2. Do a full fine-tuning again. Make the 4-20mA, digital reading coincide with the actual applied pressure signal. Therefore, a pressure signal source is required.
  3. Finally, re-quantify the range. By adjusting the analog output 4-20mA and the external pressure signal source. Its function is exactly the same as the zero (Z) and range (R) switches on the transmitter shell.

Gauge pressure VS absolute pressure

1. Gauge pressure:

Gage pressure refers to pipeline pressure. It refers to the pressure measured with pressure gauges, vacuum gauges, U-shaped tubes and other instruments. It is also called relative pressure. “Gage pressure” starts from atm.

2. Absolute pressure:

The pressure directly acting on the surface of the container or object is called “absolute pressure”. The absolute pressure value starts with absolute vacuum.

3. Relationship:

Absolute pressure actually refers to the gauge pressure plus the local atm.

Absolute pressure = gauge pressure + 1 atm

If it is in MPa, absolute pressure = gauge pressure + 0.1MPa

Gauge pressure = absolute pressure-atm

Vacuum = atm-absolute pressure

The pressure measured on the basis of absolute vacuum is the absolute pressure. The pressure measured on the basis of atm is the gauge pressure or the degree of vacuum. G behind the pressure indicates gauge pressure, A indicates absolute pressure.

The gauge pressure g = gauge refers to the pressure indication of the pressure gauge on the system. It can also be simply understood as putting a pressure gauge under atm, at which time the pressure gauge displays zero. The gauge pressure at this time is displayed as 0. If the pressure of this gauge pressure rises, the rising value is the gauge pressur

Read more about: Absolute Pressure Vs Gauge Pressure Measuring Instruments

Absolute pressure transmitter VS Gauge pressure transmitter

Absolute pressure transmitter

Absolute pressure transmitter can realize absolute pressure measurement in equipment such as degassing system, distillation tower, evaporator and crystallizer, and allows pressure under 10Mpa. The δ chamber side of the absolute pressure transmitter receives the measured absolute pressure signal. The other side is sealed into a high vacuum reference chamber. Then convert it into 4 ~ 20mA DC signal output.

Gauge pressure transmitter

A gauge pressure transmitter in the general sense is mainly composed of a load cell sensor (also called a pressure sensor), a measurement circuit and a process connection. It can convert the physical pressure parameters such as gas and liquid felt by the load cell sensor into standard electrical signals (such as 4 ~ 20mADC, etc.), and provide secondary indicators such as alarm indicators, recorders, and regulators for measurement and indication. And process regulation.

https://www.drurylandetheatre.com/series-siep489-explosion-proof-pressure-transmitter/

Sino-Inst is Chinese manufacturer of absolute pressure transmitters.

SMT3151ap absolute pressure transmitters, are our mian products, which are widely used in India, US, South Africa, and other countries.

Contact us any time, if you need the quotation or technical support.

Request a Quote

Please enable JavaScript in your browser to submit the form

SI2088 High Temperature Pressure Transmitter/Transducer

High Temperature Pressure Transducer/Transmitter for measuring pressure in hot environments. Liquids or gases up to 850 ° C. Such as steam, food processing & engine monitoring.

High Temperature Pressure Transducer/Transmitter works for steam and fluid. Temperature: -30 ℃ ~ 160-350 ℃, customized up to 850 ° C. It is possible to fit a stand off pipe, pigtail or other cooling device to reduce the media temperature. If not, High Temperature Pressure Transducer/Transmitter is the best choice. The pressure is transmitted to the sensor through the heat dissipation structure on the transmitter. The high-precision signal processing circuit is located in the stainless steel housing. The sensor output signal is converted to standard output signal, like 4-20mA.

Sino-Inst is a manufacturer of high temperature pressure transducer in China. Committed to the manufacture, sales and engineering support of high temperature pressure sensors.

Features of SI2088 high-temperature transmitter

Differential, acceleration compensated, piezoelectric pressure sensor for operation temperatures up to 850 ° C.

  • Operating temperature –55 …850 ° C
  • Internally case isolated
  • Differential charge output
  • Highest reliability
  • Not pyroelectric
  • Acceleration compensated
  • ATEX/IECEx certificated
  • CE IECEx and EAC conform

High temperature differential output pressure sensor for measuring lowest pressure fluctuations in a harsh environment up to 850 ° C. For applications in hazardous areas, the sensor is available with intrinsically safe Ex-ia and non-incendive Ex-nA certifications. for Gas Turbine- and Thermoacoustics Applications

Specifications of High Temperature Transducer

Range: 0 ~ 1KPa ~ 10KPa ~ 400KPa, -0.1 ~ 0 ~ 1 ~ 60 (MPa), 0 ~ 10KPa ~ 100MPa
Comprehensive accuracy: 0.25% FS, 0.5% FS
Output signal:4-20mA (2-wire system), 0-5 / 1-5 / 0-10V (3-wire system)
Power supply voltage: 24DCV (9 ~ 36DCV)
Medium temperature: -30 ℃ ~ 160-350 ℃, customized up to 800 ℃.
Ambient temperature: Normal temperature (-20 ~ 85 ℃)
Load resistance: Current output type: maximum 800Ω; voltage output type: greater than 50KΩ
Insulation resistance: Greater than 2000MΩ (100VDC)
Long-term stability: 0.1% FS / year
Vibration effect: In the mechanical vibration frequency 20Hz ~ 1000Hz, the output change is less than 0.1% FS
Electrical interface: Hessman connector (customizable)
Thread connection: M20 × 1.5, etc. Other threads can be designed according to customer requirements
Dimensions: M20 × Φ26.5 × 156
Shell protection: Plug type (IP65); cable type (IP67)
Safety explosion-proof: Ex iaⅡ CT5

Extended reading: High accuracy pressure transducers

Applications of high-temperature transmitter

SI2088 High Temperature Pressure Transmitter / Transducer
Used in the fields of steam, oil, boiler and heat energy exchange. Realize the measurement of liquid, gas and vapor pressure.

Examples of application examples:

  • Industrial field process pressure detection
  • Laboratory pressure calibration system
  • Navigation and Shipbuilding
  • Aviation and aircraft manufacturing
  • Air separation equipment and thermal power unit

Application of high-temperature transmitter

Extended reading: Common Pressure Sensor Applications

Application of high temperature pressure transmitter in steam pipeline

Pure steam pipes have good mechanical properties and thermal insulation properties. Under normal circumstances, it can withstand a high temperature of 120 ° C. It can withstand a high temperature of 180 ° C by modification or in combination with other thermal insulation materials. It is suitable for thermal insulation of various cold and hot water high and low temperature pipelines. The pressure detection in the steam pipeline is very important. And because of the high temperature characteristics in the pipeline. Therefore, it is suitable to use the high temperature pressure transmitter designed by our company for such occasions.

Extended Reading: MEMS Pressure Sensors

In addition, in the steam system, water hammer (Water Hammer) is one of the main hazards causing casualties. Thereby eliminating the hazard of water hammer. This shows that daily pressure monitoring of the pipeline is very important.

Extended reading: High Temperature Flow Meter

Precautions for the correct use of steam pressure transmitters

   1. Prevent the steam pressure transmitter from contacting with corrosive or overheated media;
   2. Prevent dross from depositing in the conduit;
   3. When measuring gas pressure, the pressure port should be opened at the top of the pipeline, and the pressure transmitter should also be installed at the top of the pipeline, so that the accumulated liquid can be easily injected into the process pipeline;
   4. The pressure guiding pipe should be installed in a place with small temperature fluctuation;
   5. When measuring steam or other high-temperature media, a condenser such as a buffer tube (coil) should be connected, and the working temperature of the transmitter should not exceed the limit;
   6. When freezing occurs in winter, the transmitter installed outdoors must take anti-freezing measures to avoid the expansion of the liquid in the pressure port due to the frozen volume, resulting in the loss of the sensor;
   7. When wiring, pass the cable through the waterproof connector or the flexible tube and tighten the sealing nut to prevent the rainwater etc. from leaking into the transmitter housing through the cable.

High Temperature Pressure Transducers vs. Cooling Elements

Generally, the design method is to reduce the temperature near the pressure transmitter by incorporating mechanical cooling components to dissipate heat.

The cooling assembly may be filled with oil and isolated from the process medium by the isolation diaphragm.

Alternatively, the cooling assembly may include a hollow tube. The shape of the hollow tube is designed to increase heat transfer. This allows the process medium that is allowed to pass to be lowered to a much lower temperature.

The cooling element usually relies on the principle of convection heat transfer. This convective heat transfer principle is a mechanism for transferring heat due to the movement of fluid. In contrast, conductive heat transfer is the transfer of energy due to molecular vibration. In addition to cooling elements, convection is also used in many other engineering practices.

The cooling element may be able to reduce the temperature of the medium. This is usually a much cheaper solution than high temperature sensors. It is assumed that the medium density is not greatly affected by temperature changes within the normal operating range. Then this method can keep the pressure unchanged. The cooling element usually works in air and water, but it is not suitable for oily media such as hydraulic oil. High temperature sensors must be used in these applications because the viscosity of this medium is highly temperature dependent.

The cooling element should be made of stainless steel so that most process media have maximum corrosion resistance. The nickel content of the steel is usually 1.25% and the chromium content is 0.65% to 0.8%. The cooling element should withstand a maximum pressure of 5,000 psi at 38 ° C (100.4 ° F) and a maximum pressure of 3500 psi at 400 ° C (752 ° F). It also reduces the liquid process temperature at the sensing element from 260 to 38 ° C (500 to 100.4 ° F).

600 ℃ High Temperature Remote Pressure transmitter / Differential Pressure Transmitter

600 ℃ ultra-high temperature remote transmission pressure transmitter / remote transmission differential pressure transmitter cleverly uses the combination of ultra-high temperature silicone oil and internal isolation diaphragm. This makes the field application temperature greatly increased to about 600 ℃. Greatly expanded the application range of ultra-high temperature pressure / differential pressure measurement. It can be widely used in coal chemical industry and CSP industry.

https://www.drurylandetheatre.com/si-pt-series-melt-pressure-sensors-transducers-high-temperature/

How to Select a Pressure Transducer For High Temperature Environments

Define your high temperature pressure transmitter requirements using this checklist:

Process temperature?
Cooling mechanism?
Ambient temperature?
Pressure range?
Output signal? 4-20mA
Electrical connection?
Process connection?
Process media type?


Sino-Instrument supplies High-temperature pressure transmitters with a 4-20mA output.
Tolerant to high-temperature applications such as steam, food processing & engine monitoring.


High-temperature pressure transmitters are used in applications,
where the media temperature exceeds the temperature limits of standard pressure transmitters,
or where it is not possible to fit a standoff pipe,
pigtail or other cooling devices to reduce media temperature.

If you have a special request, you can just contact us for Technical Support.

Request a Quote

Please enable JavaScript in your browser to submit the form
