How Coriolis Flow Meters Measure Density

Posted on by

A Coriolis meter is famous for mass flow, but the same vibrating tubes also give a direct, real-time density reading — and that density comes from a completely different signal than the flow. Once you see which signal does what, it is obvious when the density number is trustworthy and when temperature or entrained gas will quietly pull it off.

Contents

How does a Coriolis flow meter measure density?

A Coriolis flow meter measures density from the resonant (natural) frequency at which its tubes vibrate. A drive coil holds the tubes oscillating at their natural frequency; that frequency falls as the mass of fluid inside the fixed-volume tubes rises. Because volume is fixed, more mass means more density, so the meter converts the measured vibration period τ into density with a calibrated relation of the form ρ = K₀·τ² − K₁, where K₀ and K₁ are tube constants set at the factory. A heavier fluid literally slows the tubes down.

Why density and mass flow come from two different signals

Mass flow and density are two independent measurements on the same tubes. Mass flow is read from the Coriolis-induced phase shift — the slight twist between the inlet and outlet legs as moving fluid resists the tube’s rotation. Density is read from the vibration frequency, which does not need any flow at all. That is why a Coriolis meter still reports density at zero flow, and why you can use one instrument to derive concentration or °Brix as well as mass and volume flow.

How accurate is Coriolis density measurement?

A good Coriolis meter measures density to roughly ±0.0005–0.002 g/cm³ (±0.5–2 kg/m³), while its mass flow accuracy is typically ±0.1% of rate. That density spec is excellent for concentration, interface detection and net-oil calculations, though it is not quite a laboratory densitometer. The big caveat is two-phase flow: entrained gas or cavitation makes the tubes vibrate erratically and degrades both the density and the mass-flow reading, so the fluid must stay single-phase and the tubes full.

Why temperature compensation matters

Temperature is the error source people forget. The Young’s modulus of the tube metal softens as it warms, which lowers the resonant frequency independently of any density change — left uncorrected this can look like several kg/m³ of false density shift. Quality meters carry one or two built-in Pt100 RTDs and apply a tube-stiffness compensation, and they also report process temperature so you can correct fluid density to a reference temperature. If your meter’s density wanders with ambient or process temperature swings, suspect the temperature compensation first.

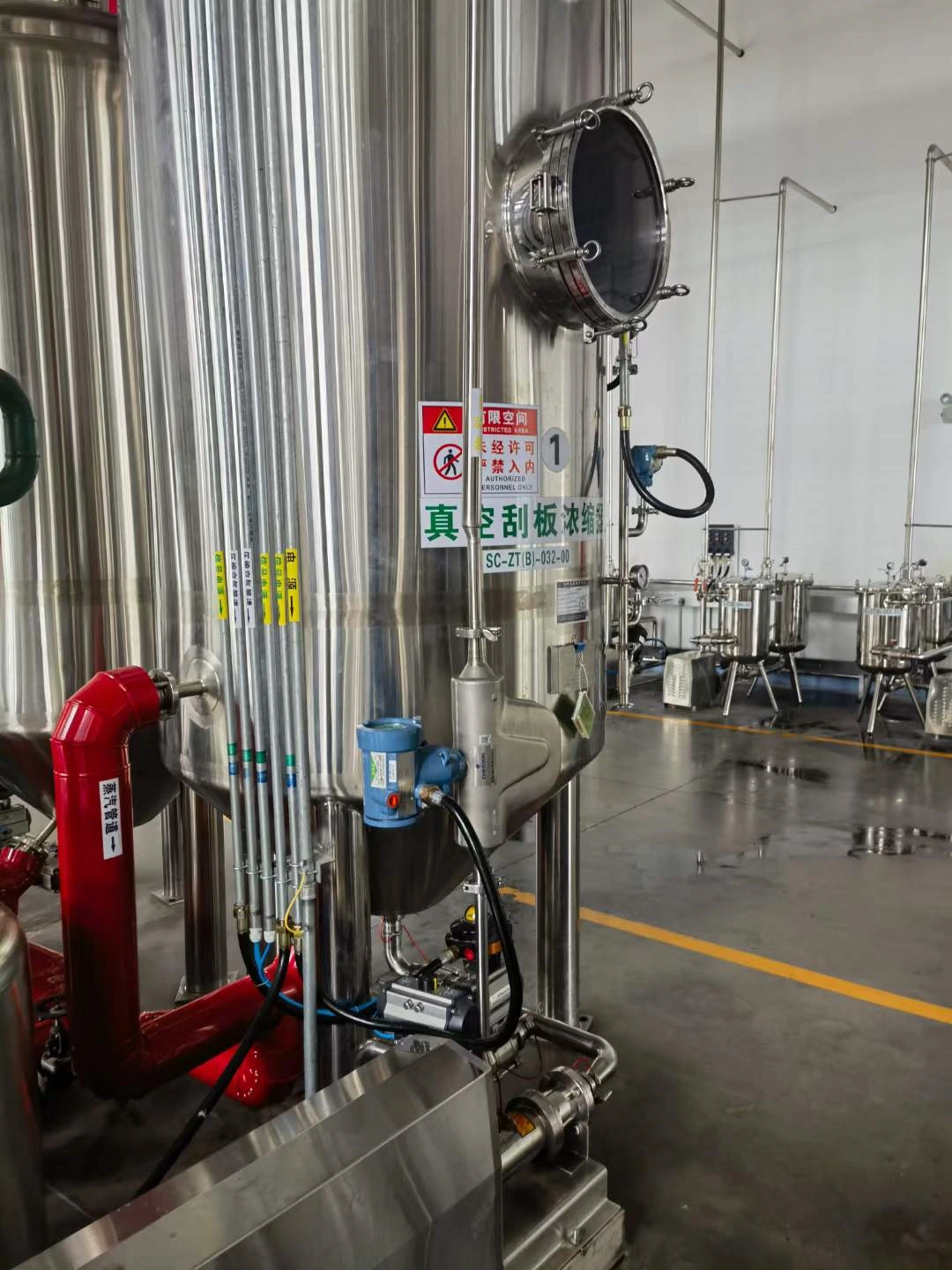

Coriolis flow meter vibrating tube density measurement principle

Coriolis density vs tuning-fork and DP density meters

Choose Coriolis density when you already need mass flow and density from one point — concentration control, blending, or custody net-oil. If you only need density in a tank or line and not flow, a tuning-fork density meter is a cheaper, simpler fit. For large tanks, a differential-pressure (hydrostatic) density method measures density from the pressure of a known liquid column. Coriolis wins on combined accuracy and a single process penetration; tuning-fork and DP win on cost and on tolerance of difficult or gassy service.

Field calibration and common density errors

Verify density in the field against a known fluid: degassed water at a measured temperature has a density of 998.2 kg/m³ at 20 °C, which makes a clean single-point check, and an air/water pair gives a two-point span. The usual culprits behind a bad density reading are entrained gas, partially full tubes, coating or erosion that changes tube mass, mounting strain, and — most often — temperature compensation that has not been set up for the actual service. Document the verification so drift is visible over time. For very high accuracy, send the meter for periodic factory density calibration.

Featured Coriolis and density meters

Three Sino-Inst instruments for combined mass-flow-and-density and for dedicated density service:

Z-Series Straight-Tube Coriolis

Single straight-tube Coriolis meter for simultaneous mass flow and density, easy to drain and clean for hygienic and viscous fluids.

U-Series Coriolis Mass Flow Meter

Bent-tube Coriolis meter delivering ±0.1% mass flow plus real-time density for blending, dosing and concentration measurement.

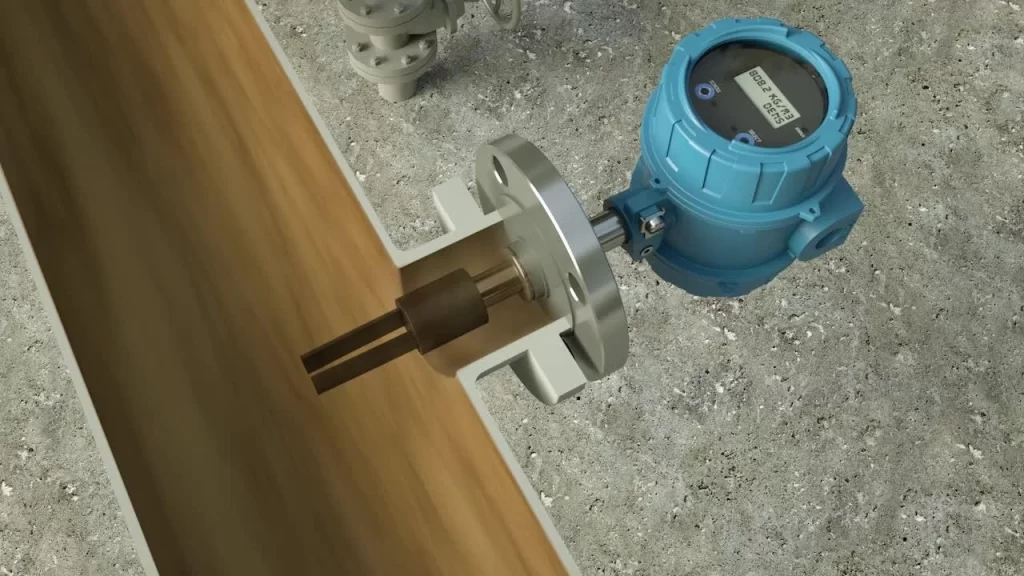

Tuning Fork Density Meter

Dedicated vibrating-fork density meter for tanks and lines when you need density and concentration but not flow — lower cost, simple install.

Frequently asked questions

How does a Coriolis meter measure density?

It measures the resonant frequency of its vibrating tubes. The tubes oscillate at their natural frequency, which decreases as the mass — and therefore density — of the fixed-volume fluid inside increases. The meter converts the vibration period into density using factory tube constants.

Is Coriolis density as accurate as a dedicated density meter?

Coriolis density is typically ±0.5–2 kg/m³, which is excellent for process concentration and net-oil work but slightly below a laboratory densitometer. For combined mass flow plus density from one point it is usually the best overall choice.

Does temperature affect Coriolis density measurement?

Yes. Warming softens the tube metal (Young’s modulus), lowering the resonant frequency and faking a density change. Quality meters use built-in RTDs and tube-stiffness compensation to correct it, and report temperature so you can reference density to a standard temperature.

Can a Coriolis meter measure density at zero flow?

Yes. Density comes from the tube vibration frequency, which is present whether or not fluid is moving, so the meter reports density even at no flow as long as the tubes are full of single-phase fluid.

Why is my Coriolis density reading unstable?

The most common cause is entrained gas or a partially full tube, which disrupts the vibration. Other causes are coating or erosion changing tube mass, mounting strain, and temperature compensation not configured for the actual service.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-06-02 (AI-assisted drafting). Based on the vibrating-tube resonant-frequency density principle and field calibration practice for Coriolis and density meters. Questions? reach our application engineers.

Request a Quote

Please enable JavaScript in your browser to submit the form

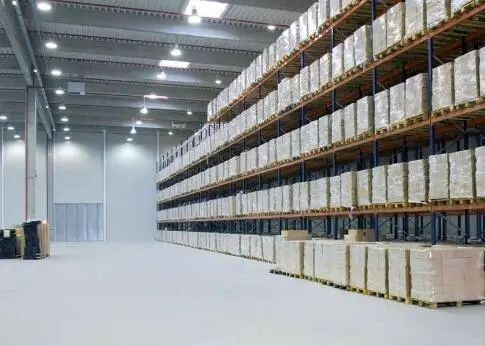

Dew Point Monitoring for Fruit and Vegetable Cold Storage

Posted on by

Condensation on cartons, a wet film on chilled apples, mould blooming in a corner of the room — these almost always trace back to one number most produce stores do not watch closely enough: the dew point of the air. This guide shows how to set dew point and humidity targets by commodity, where to put the sensor so the reading means something, and a simple control routine that keeps surfaces dry without drying out the produce.

Contents

What is dew point, and why it matters more than humidity

Dew point is the temperature at which the air in your cold room becomes saturated and water vapour starts to condense. Relative humidity (RH) only tells you how close the air is to saturation at its current temperature; cool that same air and its RH climbs even though the actual moisture has not changed. Dew point is the absolute number — the temperature any surface has to stay above to remain dry. That is why two rooms at “90% RH” can behave completely differently, and why a dew point monitor tells you more than a hygrometer alone.

When does condensation actually form on produce?

Condensation forms the moment any surface — produce skin, carton, evaporator coil, wall, or a cold pallet just moved in — drops below the dew point of the surrounding air. Researchers studying cold-chain losses call this the dew point undershot. A worked example: room air at 4 °C and 90% RH has a dew point of about 2.5 °C, so a pallet brought in at 1 °C will sweat until its surface warms past 2.5 °C. The fix is not lower humidity for its own sake; it is keeping every cold surface a degree or two above the room’s dew point.

Dew point and humidity targets by commodity

Most fruits and vegetables want high humidity to limit weight loss, but the safe dew point depends on the storage temperature. Use these as starting points, then adjust to your coldest surface:

CommodityStorage tempTarget RHApprox. air dew point
Leafy greens, lettuce0–1 °C95–98%-0.5 to 0.5 °C
Apples, pears0–4 °C90–95%-1 to 3 °C
Citrus5–8 °C85–90%3 to 6 °C
Potatoes, onions (cured)7–10 °C90–95%5.5 to 9 °C
Tomatoes, cucumber10–13 °C85–90%7.5 to 11 °C

The pattern is the same everywhere: the higher the RH you run for freshness, the smaller the margin between dew point and your coil and product surfaces — which is exactly why the dew point has to be measured, not assumed.

How to measure dew point in a cold room

Two sensor technologies cover almost all produce storage. A capacitive polymer sensor measures RH and temperature and computes dew point; it is rugged, inexpensive, and good to about ±2 °C dew point — the right choice for room and duct monitoring with an online dew point meter. A chilled-mirror hygrometer measures dew point directly to about ±0.2 °C and is used as a reference or for tight controlled-atmosphere rooms. Whichever you use, mount it in the return-air stream away from doors and the coil, run one per temperature zone, and confirm placement with a portable dew point meter before fixing it in place.

A practical routine to prevent condensation

Keep the room’s dew point one to two degrees below the coldest surface in the space, and most condensation problems disappear. In practice that means:

  • Stage warm incoming product so it is not parked directly under a cold coil discharge.
  • Manage door infiltration — humid outside air is the fastest way to spike room dew point. Use strip curtains or air doors.
  • Coordinate defrost timing so coil surfaces do not sit below dew point dripping onto product.
  • Keep airflow even; dead spots run higher RH and dew point than the sensor in the main stream reports.
  • Trend dew point over a full day, not a spot reading — door cycles and restocking move it more than the setpoint does.

Common mistakes monitoring dew point in produce storage

The recurring field mistakes are predictable. Operators watch RH alone and miss that a 2 °C temperature drop pushed the air to saturation. Sensors get mounted next to the evaporator, reading colder and wetter than the room. Nobody compensates for the dew point spike every time the dock door opens. And calibration is skipped for years, so a capacitive sensor that has drifted 5–8% RH is quietly trusted. Respiration heat from dense produce also raises local humidity above what a single sensor sees. If you also store in modified atmospheres, a zirconia oxygen analyzer alongside the dew point monitor keeps both moisture and gas in range.

Featured dew point instruments

Three Sino-Inst dew point instruments cover fixed room monitoring, in-line transmitting, and spot checks:

Dew Point Meter 602 Series

Wall- or panel-mount dew point meter for cold rooms and CA storage, with capacitive sensing and a clear local display for daily checks.

Dew Point Transmitter 608 Series

Loop-powered 4–20 mA dew point transmitter that feeds your refrigeration controller or PLC for automatic humidity management.

Portable Dew Point Meter

Handheld dew point meter for verifying sensor placement, surveying zones, and troubleshooting condensation complaints on the spot.

Frequently asked questions

What is a good dew point for fruit and vegetable cold storage?

Aim to keep the air dew point 1–2 °C below the coldest surface in the room. For most produce held at 0–5 °C and 90–95% RH that means an air dew point in the roughly -1 to 3 °C range; warmer commodities like tomatoes allow a higher dew point.

Is dew point or relative humidity more important in cold storage?

Dew point. RH changes with temperature, so the same moisture reads as different RH in different parts of the room. Dew point is the absolute temperature at which condensation starts, which is what actually causes sweating and mould.

How do I stop condensation on fruit in cold storage?

Keep every cold surface above the room’s dew point, stage warm product away from cold coils, control door infiltration, and time defrosts so coils are not dripping below dew point. Monitor dew point continuously rather than relying on RH.

How often should a dew point sensor be calibrated?

Capacitive room sensors should be verified every 6–12 months against a reference such as a chilled-mirror or a calibrated portable unit, because polymer sensors drift a few percent RH per year in dusty, humid environments.

Can one dew point monitor cover a whole warehouse?

No. Run at least one sensor per temperature zone and per air-handling circuit. Airflow dead spots, multiple coils, and door areas all create local dew point differences a single sensor will miss.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-06-02 (AI-assisted drafting). Based on psychrometric dew-point relationships and field practice in refrigerated produce and controlled-atmosphere storage. Questions? reach our application engineers.

Request a Quote

Please enable JavaScript in your browser to submit the form

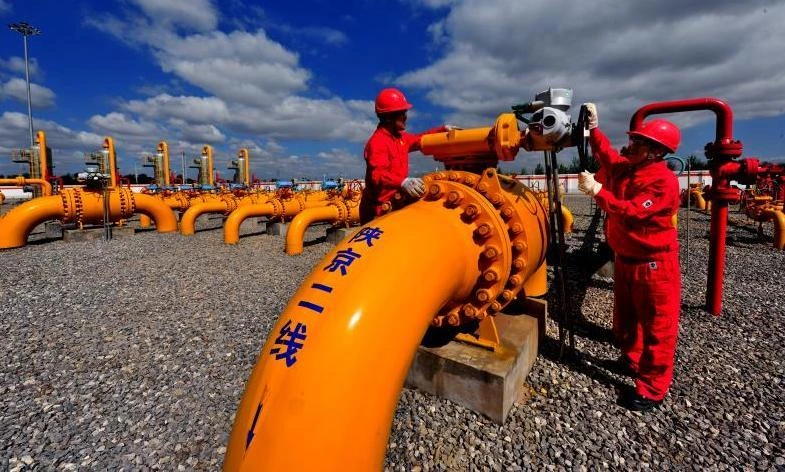

Crude Oil Density & How to Measure It | Sino-Inst

Posted on by

Updated 2026-06-01 by the Sino-Inst Engineering Team

Crude oil density looks simple until a custody-transfer reading disagrees with the lab by 0.3% and the money is real. The fix is almost always one of two things: a density quoted without its reference temperature, or an online meter mounted where gas or low flow corrupts the reading. This guide shows how to measure crude oil density properly — the API gravity conversion, the ASTM D1250 temperature correction, and where to put an online density meter so its number holds up at the transfer point.

Contents

Why Crude Oil Density Always Needs a Reference Temperature

A crude oil density figure is meaningless without the temperature it was measured at. Oil expands as it warms, so the same barrel reads lighter hot and denser cold. The industry settles this by quoting density at a standard reference temperature — 60 °F (15.56 °C), or 15 °C in metric practice. Every custody-transfer number is corrected back to that base so two parties compare like with like.

This is the root of most density disputes. One side reports a field reading at 32 °C, the other a lab value corrected to 15 °C, and the gap looks like an error when it is just physics. The discipline is simple: never state crude oil density without its reference temperature, and never compare an uncorrected field reading to a standardized one. Get that habit right and most “0.3% discrepancies” vanish before they reach the commercial team.

API Gravity and Density: The Conversion

API gravity is just a rescaled way of expressing density relative to water, defined at 60 °F. The two convert directly. To go from specific gravity to API gravity, use API = 141.5 / SG − 131.5. To go the other way, density in kg/m³ = 141,500 / (131.5 + °API), with the result at the 60 °F reference. Water sits at 10 °API; most crudes fall between roughly 10 and 45 °API, where higher API means lighter oil.

Crude gradeAPI gravityDensity @ 60 °F (kg/m³)
Light> 31.1 °API< 870
Medium22.3–31.1 °API870–920
Heavy10–22.3 °API920–1000

The classification matters because it drives both pricing and the measurement method. A light 38 °API crude behaves very differently in a meter than a heavy 14 °API one near its wax point. If you are choosing instruments, our overview of density meters and their types sets out the options before you match one to a grade.

How to Measure Crude Oil Density: Lab vs Online

There are two routes, and they answer different needs. The laboratory route takes a spot sample and measures it under controlled conditions — the hydrometer method of ASTM D1298, or the oscillating U-tube digital density meter of ASTM D4052 (with ASTM D5002 specific to crude oils). It is the reference for dispute resolution and quality certificates. The online route puts a meter in the pipe — a Coriolis or tuning fork density meter — and reads density continuously for real-time custody and blending.

MethodStandardUseNote
HydrometerASTM D1298Field / lab spot checkCheap; operator-dependent
Digital U-tube (lab)ASTM D4052 / D5002Reference, certificatesHigh accuracy on a sample
Coriolis (inline)—Real-time custody / massDensity + mass flow together
Tuning fork (inline)—Continuous process density±0.0005 g/cm³ achievable

For custody transfer most operators run both: an online meter for the live, ticket-by-ticket value and periodic lab samples to verify it. The online meter keeps the transfer moving; the lab keeps everyone honest. A good online density meter reaches ±0.0005 g/cm³ — fine enough for transfer — provided it is installed where the fluid is representative, which is the part people get wrong.

Temperature Correction with ASTM D1250

Whatever instrument you use, the raw reading is at line temperature and must be corrected to 60 °F. ASTM D1250 — the same content as API MPMS Chapter 11.1 — provides the petroleum measurement tables that do this. The correction for temperature on the liquid (CTL, sometimes called the volume correction factor, VCF) scales the observed value to the standard base using the fluid’s thermal expansion behaviour.

The reason a generic correction will not do: thermal expansion varies with the oil. Lighter fractions expand more per degree than heavy ones, so D1250 keys the correction to the fluid’s density class rather than applying one slope to everything. In practice the meter’s flow computer applies the D1250 algorithm automatically from the live temperature and density. Your job is to confirm it is using the current standard tables and the right product group — not to interpolate paper tables by hand. Mismatched product groups are a quiet source of transfer error.

Online Density Meter Placement for Custody Transfer

Where you mount the meter decides whether its number survives an audit. The fluid at the sensor must be single-phase, representative, and stable. That means downstream of the pump where pressure is high enough to keep gas in solution, in a full, flooded line — never a section that can run partially empty — and away from low-flow dead legs where the sample stagnates. A vertical run with upward flow helps keep the line full and sweeps gas through rather than trapping it.

A case from our field files makes the point. An export station mounted a tuning fork density meter on a gas-entrained section upstream of the booster pump. Entrained bubbles dropped the indicated density about 0.4% — straight onto the wrong side of the transfer. Moving it to the stabilized, pressurized line after the pump and adding a small gas-eliminator brought it back within 0.1% of the lab. Nothing was wrong with the meter; the location was wrong. The same care applies to heavier duties such as slurry density measurement.

What Throws the Reading Off

  • Entrained gas — bubbles lower indicated density; stabilize pressure and de-gas before the meter.
  • Free water / emulsion — a separate water phase reads as a density anomaly; account for BS&W.
  • Wax near the cloud point — light crudes near their wax point drift; keep the line warm and flowing.
  • Missing temperature correction — an uncorrected field value compared to a 60 °F lab value looks like a fault.
  • Wrong product group in D1250 — using the lubricant or refined-product table for crude skews the correction.

Choosing a Method for Your Duty

Match the method to the job. For a one-off check or a dispute, take a sample and run ASTM D1298 or a lab D4052/D5002 density. For continuous custody transfer or blending, install an inline Coriolis or tuning fork meter in a stabilized line and let the flow computer apply D1250. For mass-based accounting, a Coriolis meter gives density and mass flow in one device. Whatever you pick, store the reference temperature with every value and verify the online meter against the lab on a schedule. Our review of industrial density meter applications and the note on Coriolis density measurement go further on selection.

Related Density Products

Tuning Fork Density Meter

Inline density meter for crude, fuels, and process liquids. Continuous density to ±0.0005 g/cm³ with temperature output for D1250 correction at the flow computer.

Online Density Meter

Flange-mounted meter for stabilized, flooded transfer lines. Real-time density and temperature for live custody tickets and blending control.

Threaded Inline Density Meter

Threaded process-connection version for small-bore sample and side-stream loops. Same fork sensing for spot custody verification next to the main line.

Frequently Asked Questions

How do you convert API gravity to density?

Use density in kg/m³ = 141,500 / (131.5 + °API), giving the value at the 60 °F reference temperature. To go the other way, API = 141.5 / SG − 131.5, where SG is specific gravity at 60 °F. Water is 10 °API; most crudes fall between 10 and 45 °API.

What standard is used to correct crude oil density for temperature?

ASTM D1250, identical in content to API MPMS Chapter 11.1, provides the petroleum measurement tables. The correction for temperature on the liquid (CTL or VCF) scales the observed density or volume to the 60 °F base using the fluid’s thermal expansion, keyed to its product group.

Should crude oil density be measured in a lab or online?

Both, for custody transfer. An online Coriolis or tuning fork meter gives the live, ticket-by-ticket density, while periodic lab samples by ASTM D1298 or D4052/D5002 verify it. The lab is the reference for disputes; the online meter keeps the transfer moving in real time.

Why does my online density meter read low?

The most common cause is entrained gas. Bubbles in the fluid lower indicated density, often by a few tenths of a percent. Mount the meter downstream of the pump in a stabilized, flooded line, add a gas eliminator if needed, and avoid low-flow dead legs. Free water and wax can also skew the reading.

What is the reference temperature for crude oil density?

60 °F (15.56 °C), or 15 °C in metric practice. Because oil expands with temperature, every density and API gravity figure is corrected back to this base so measurements compare on a common footing. Always record the reference temperature with the value.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-06-01 (AI-assisted drafting). Based on ASTM D1250 / API MPMS 11.1, ASTM D1298, and D4052/D5002, plus field experience installing online density meters on crude custody-transfer lines. Questions? Reach our application engineers.

Request a Quote

Tell us your crude grade, line conditions, and whether you need custody-grade accuracy. A Sino-Inst engineer will recommend the right density meter and installation for a reading that holds up at the transfer point.

Request a Quote

Please enable JavaScript in your browser to submit the form

Which Gases Can a Dew Point Meter Detect? | Sino-Inst

Posted on by

Updated 2026-06-01 by the Sino-Inst Engineering Team

A dew point meter measures moisture in far more than compressed air. The same capacitive probe that checks your dryer can read nitrogen, SF6, natural gas, CO2, and most inert gases. But “can measure” is not “plug in and trust the number.” Corrosive gases poison the sensor, high pressure can destroy it, and a reading taken at the wrong pressure basis is confidently wrong. This guide lists which gases a dew point meter can detect, which ones need sampling first, and the moisture spec each application actually demands.

Contents

Can One Dew Point Meter Measure Every Gas?

Mostly yes — for non-corrosive, non-condensing gases. A dew point meter measures water vapour, and water vapour behaves the same whether it is carried by air, nitrogen, or SF6. So a single capacitive or metal-oxide probe can read moisture across a wide list of gases. The limits are chemistry and pressure, not the gas’s identity. If the gas attacks the sensing element, or arrives wet enough to condense liquid on the probe, the measurement fails regardless of how “compatible” the gas looks on paper.

That is the honest version of “yes, it measures many gases.” The reading is trustworthy when the gas is dry-ish, clean, and chemically inert toward the probe. The rest of this article is about the cases where one of those three conditions breaks.

Which Gases Can a Dew Point Meter Detect?

Here is the cross-gas view the SF6-only product pages never give you. The table covers the gases we are asked about most, whether a standard capacitive dew point meter measures them directly, the corrosion risk, whether sampling is needed, and the moisture target each application typically holds.

GasMeasurable?Corrosion riskSampling needed?Typical moisture target
Compressed / instrument airYes, directNoneIn-line probe−40 °C PDP (ISO 8573-1 Class 2)
Nitrogen (N2)Yes, directNoneIn-line probe−60 to −40 °C PDP
SF6 (switchgear)YesLow unless decomposedRegulated sampling, reclaim gas≤ −36 °C (IEC 60480 in-service)
Natural gasYesLow; H2S variants corrosiveSampling + hazardous-area rating≤ −5 °C water dew point @ pipeline P
CO2YesForms acid when wetSampling for wet streamsApplication-specific
Hydrogen (H2)YesNone (sensor); flammableHazardous-area ratingGenerator/process spec
Argon / HeliumYes, directNoneIn-line probeWelding / electronics spec
Gases with H2S, Cl2, NH3Not directlyHigh — poisons probeScrub / dedicated sensorConsult application

The pattern is clear: the clean, inert gases — air, N2, Ar, He, H2 — are direct reads. SF6 and natural gas are measurable but want a regulated sampling setup. The acidic and reactive streams need scrubbing or a different instrument. For a deeper compressed-air walkthrough, see our guide to the dew point meter for compressed air.

Pressure Dew Point vs. Atmospheric Dew Point

Before you compare any two readings, settle the pressure basis. Pressure dew point (PDP) is the dew point of the gas at its working pressure. Atmospheric dew point is what that same gas would read after expanding to ambient. Compressing a gas raises its dew point, so a value that looks dry at atmosphere can be wet inside the line. The number is meaningless without the pressure it was taken at.

This trips up multi-gas work constantly. An operator measures SF6 at line pressure, then compares it to a portable reading taken after a regulator dropped the gas to atmosphere, and panics at the gap. Both numbers can be correct — they are just different bases. The rule on our sites: measure at line pressure when the sensor is rated for it, always record the pressure, and never compare a PDP spec to an atmospheric reading. SF6 limits such as IEC 60480 are quoted at a defined basis for exactly this reason.

Gases That Damage or Fool the Sensor

Three things ruin a dew point sensor faster than anything else. Corrosive contaminants — hydrogen sulphide, chlorine, ammonia — chemically attack a metal-oxide or capacitive element and shift its calibration permanently. Liquid water from an upstream upset floods a capacitive probe and pins it wet for hours, or kills it outright. And over-pressure beyond the sensor’s rating physically damages the cell. None of these announce themselves; you get a plausible reading that is quietly wrong or a probe that slowly dies.

A case from our files: a substation crew measured compressed air with a portable meter, got a clean −40 °C, then pushed the same probe straight onto an SF6 reclaim port at full bottle pressure with no regulator. The reading was nonsense and the sensor needed recalibration. The gas was perfectly “measurable” — the install was not. Treat reactive and high-pressure gases as a sampling problem first and a measurement problem second.

Sampling and Pre-Conditioning: Why “Can Measure” Is Not “Plug In”

For anything other than clean line air, the sensor needs a sampling system, not a bare insertion. A workable SF6 or natural-gas setup uses a pressure regulator to bring the gas to the sensor’s rated pressure, a stainless sample cell so you can isolate and remove the probe, and a controlled bleed of roughly 1–2 L/min through the cell. Too much flow cools the element and reads falsely dry; too little leaves stale gas that does not represent the system. Use stainless tubing for low dew points, since plastic and rubber outgas moisture and keep you from ever reaching a dry reading.

For valuable gases like SF6, route the sample to a reclaim bag rather than venting it. A fixed install on a header is better served by an online dew point meter plumbed into a permanent sample loop, while a dew point monitor for cold-storage air shows how the same sampling logic adapts to food and process environments.

Which Sensor for Multi-Gas Work?

For monitoring several gas lines with one instrument, a capacitive or metal-oxide (MEMS) probe is the practical default. It covers roughly −80 to +20 °C dew point, tolerates the occasional damp excursion, and is cheap enough to keep as a portable spot-checker. Chilled-mirror instruments are the laboratory reference and do not drift, but they are maintenance-heavy and intolerant of oil and dust — overkill for routine plant rounds. Keep a chilled-mirror or a freshly calibrated portable as the reference you periodically check the working sensor against.

Per-Application Dew Point Specs

  • Compressed air — ISO 8573-1 sets the classes: Class 2 ≤ −40 °C PDP, Class 3 ≤ −20 °C PDP, all quoted as pressure dew point.
  • SF6 switchgear — IEC 60480 gives an in-service moisture limit around ≤ −36 °C; new gas is drier still.
  • Pipeline natural gas — water dew point commonly ≤ −5 °C at transmission pressure to prevent hydrate and corrosion.
  • Instrument nitrogen — typically −60 to −40 °C PDP depending on the downstream analyzer or process.

Different gas, different judge — but the same probe can read all of them if you respect the chemistry and the pressure basis. If your question is really about gas composition rather than moisture, the moisture meter sits alongside other analysers; our note on density meters and types and the field guide to measuring crude oil density cover the analytical side for liquids.

Related Dew Point and Gas Products

Portable Dew Point Meter

Handheld unit for spot-checking compressed air, N2, SF6, and inert gases. Fast readings with a regulated sampling kit for pressurized or reclaim-gas points.

Industrial Online Dew Point Meter

Fixed inline meter for continuous moisture monitoring on dry-air and gas headers. 4–20 mA / RS485 output for direct PLC and alarm integration.

Gas Detection & Analysis

Analysers and detectors for moisture, oxygen, and hazardous gases. For reactive or flammable streams where a dew point probe alone is not enough.

Frequently Asked Questions

Can a dew point meter measure SF6 gas?

Yes. A capacitive dew point meter measures moisture in SF6, which is why utilities use it on switchgear. Use a pressure regulator and a sample cell rather than inserting the probe at full bottle pressure, and route the sample to a reclaim bag. The in-service moisture limit referenced by IEC 60480 is around −36 °C.

Can the same dew point meter measure natural gas and compressed air?

Generally yes, if the gas is non-corrosive. Compressed air reads in-line directly. Natural gas needs a sampling setup and, because it is flammable, a meter with the correct hazardous-area certification. Confirm the pressure basis for each so you are not comparing pressure dew point to atmospheric dew point.

Which gases will damage a dew point sensor?

Corrosive contaminants such as hydrogen sulphide, chlorine, and ammonia chemically attack the sensing element and shift calibration. Liquid water from an upstream upset floods a capacitive probe, and pressure beyond the sensor’s rating damages the cell. Scrub reactive streams or use a dedicated sensor instead of a standard moisture probe.

Do I need sampling to measure dew point in a pressurized gas?

For pressurized or valuable gases, yes. Use a regulator to reach the sensor’s rated pressure, a stainless sample cell with an isolation valve, and a controlled 1–2 L/min bleed. Use stainless tubing for low dew points to avoid moisture outgassing, and reclaim costly gases like SF6 rather than venting.

What dew point is acceptable for compressed air?

It depends on the ISO 8573-1 class. Class 2 requires a pressure dew point of −40 °C or lower, typical for desiccant-dried pharma and PET-drying air. Class 3 allows ≤ −20 °C. All ISO 8573-1 dryness figures are pressure dew points, not atmospheric.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-06-01 (AI-assisted drafting). Based on ISO 8573-1 air-quality classes and IEC 60480 SF6 moisture limits, plus field experience measuring dew point in compressed air, SF6, and process gases. Questions? Reach our application engineers.

Request a Quote

Tell us the gas, line pressure, and moisture target. A Sino-Inst engineer will recommend the right dew point meter, sensor technology, and sampling setup for your gases.

Request a Quote

Please enable JavaScript in your browser to submit the form

Density Meter: Working Principle, 6 Technologies, Spec Sheet, Compensation, Calibration

Posted on by

Updated 2026-05-11 by the Sino-Inst engineering team.

A density meter measures the mass per unit volume of a liquid, slurry, or gas, usually in real time and at process pressure. The reading is what you bill on, what you blend by, and what tells custody-transfer custody that you handed over the product you said you would. The same number — “density” — can be measured six different ways, and the wrong technology for the wrong service makes a 0.1 % error look like 5 %.

This guide covers what a density meter does, the working principle behind each sensing technology, a side-by-side comparison of the six main types, how to pick by fluid, how to read a spec sheet, temperature and pressure compensation, calibration, and four install pitfalls that wreck field accuracy.

Contents

Density Meter Definition and Industrial Role

A density meter reports the density (ρ, in kg/m³ or g/cm³) of a fluid in real time. Density is mass divided by volume, but in process plants it doubles as a stand-in for concentration, dilution, fermentation progress, hydrocarbon API gravity, brine strength, or polymer solids content. A 0.5 % shift in density at the right point in a process tells the operator that a steam coil has stuck open, that a feed tank is being diluted by rinse water, or that a custody-transfer batch is off-spec — long before any other parameter catches it.

For background on the SI and field units density meters report — kg/m³, g/cm³, API gravity, °Brix, °Baumé — see our note on the unit of measurement for density.

Working Principle of a Density Meter

Every density meter exploits one of four physical effects: mechanical resonance shift, gravitational hydrostatic pressure, acoustic time-of-flight, or nuclear absorption. The choice of effect drives accuracy, fluid compatibility, and price.

  • Mechanical resonance. A tube or fork is vibrated at its natural frequency. As denser fluid loads the structure, the resonant frequency drops. Coriolis tubes, tuning forks, and Anton-Paar-style U-tubes all use this principle. Resolution is excellent (4-decimal density), but the cell sees the process directly and must tolerate it.
  • Hydrostatic ΔP. Two pressure transmitters at known elevations in a tank read the column weight; density is ΔP / (g·h). Slow, cheap, and immune to fluid type, but tank-mounted only and accuracy is limited by the transmitters.
  • Acoustic time-of-flight. A pulse is launched across the fluid; the speed of sound depends on density and bulk modulus. Non-intrusive (clamp-on), but fluid-of-known-composition only.
  • Gamma absorption. A small radioactive source on one side of the pipe, a detector on the other. Beam attenuation tracks density. Works on slurries, opaque flows, and high-pressure service where nothing else survives, but needs a radiation safety case.

Six Density Meter Technologies, Side by Side

Six technologies dominate field and lab density measurement. They span 5 decades of accuracy and 3 decades of price.

TechnologyAccuracy (kg/m³)Best forAvoid forCost band
Coriolis mass flow + density±0.5Custody transfer, hydrocarbons, dosingSlurries with gas voids, very low flow$$$$
Tuning fork (insertion or in-line)±1Tank-side concentration, refining, foodFibrous solids that snag the fork$$
Oscillating U-tube (lab/portable)±0.01Lab reference, batch QC, °Brix labsIn-line service, opaque slurries$$$
Differential pressure (hydrostatic)±2-5Open tanks, settling slurriesClosed pressure vessels, fast process$
Ultrasonic time-of-flight±2Non-intrusive retrofits, clean fluidsGassy or particulate-laden streams$$
Gamma (nuclear) densitometer±1-5Drilling muds, ore slurries, coke, opaque high-PAnywhere licensing is a problem$$$$

Coriolis is the de-facto custody-transfer instrument for hydrocarbons because it gives mass flow and density simultaneously at ±0.1 % MV — but it cannot tolerate the gas voids that drilling mud delivers daily. For that, gamma is the answer. Oscillating U-tube wins the lab and the portable spot-check role; it is the reference for °Brix, °Baumé, and API gravity. For a deeper look at how Coriolis derives density from its tube resonance, see our Coriolis density measurement guide.

Process-Specific Density Meter Selection by Fluid Type

The fluid dictates the technology more than the budget does. A picker by service:

  • Crude oil and refined hydrocarbons: Coriolis for custody transfer, oscillating U-tube for assay lab. See our density of crude oil guide for API gravity and ASTM D1250 corrections.
  • Sugar, °Brix, fermentation: Oscillating U-tube for lab, tuning fork in-line for blending tanks.
  • Acid (H₂SO₄, HCl, HNO₃): Tuning fork in tantalum or PEEK wetted parts, or non-intrusive ultrasonic.
  • Settling slurries and drilling muds: Gamma densitometer — survives abrasion that destroys vibrating cells. For more on slurry behaviour, see our industrial slurry density measurement note.
  • Polymer melts and high-viscosity fluids: Coriolis or hydrostatic ΔP; avoid tuning fork (high damping kills resolution).
  • Cryogenic LNG and LPG: Coriolis with cryogenic-rated tubes — also the standard custody-transfer choice on LNG terminals.

Density Meter Spec Sheet Decoded

A density meter spec sheet drowns the buyer in numbers. Five fields decide whether the instrument fits the loop:

  1. Reference temperature. Density is meaningless without it. ASTM uses 15 °C, API uses 60 °F, food uses 20 °C. A “1000 kg/m³ water” reading at 4 °C is not the same as at 20 °C — there is a 0.18 % swing in between.
  2. Accuracy band (specified vs typical). Anton-Paar publishes ±0.0001 g/cm³ for the lab U-tube but only at 20 °C and after a 30-minute warm-up. Process Coriolis is ±0.5 kg/m³ across the full operating envelope. Compare like-for-like.
  3. Span vs zero stability. Span drift moves the calibration slope; zero drift moves the intercept. A spec sheet that quotes only “accuracy” without splitting the two is hiding something.
  4. Process connection and wetted materials. 316L is default; tantalum, Hastelloy C276, and PTFE-lined are extra-cost. Get the material right and the meter lasts; get it wrong and you lose it to corrosion in months.
  5. Output and protocol. 4-20 mA + HART, Modbus RTU, Foundation Fieldbus, EtherNet/IP. Match the loop, not the brochure.

Temperature and Pressure Compensation for Field Accuracy

Fluid density changes about 0.1 % per °C and about 0.005 % per bar. Without compensation a Coriolis or tuning fork running at 60 °C and 20 bar will read 5-6 kg/m³ off its 20 °C / 1 bar factory calibration. Modern transmitters apply two corrections automatically:

  • Temperature compensation. An RTD glued to the resonating element or the U-tube reads element temperature and applies the manufacturer’s temperature coefficient.
  • Pressure compensation. A static-pressure input (4-20 mA from a separate transmitter, or HART-burst from the same loop) corrects the resonator stiffness shift with line pressure.

Two field traps: first, the temperature sensor reads the wall of the cell, not the fluid bulk — a fast process step (a steam injection, a cold-water rinse) gives a transient density error until the wall equilibrates. Second, the pressure correction needs the actual line pressure, not the design pressure; a stuck pressure transmitter feeding a constant 16 bar will drift the density reading whenever the line moves up to 25 bar.

Calibration Procedure and Drift Management

Density meter calibration is a two-fluid procedure, regardless of technology:

  1. Air (or N₂) zero. Drain and dry the cell, take a reading at atmospheric pressure and known temperature. Compare to tabulated air/N₂ density at that T,P.
  2. Reference fluid span. Fill the cell with degassed deionised water (or another traceable reference). Read at known T,P, compare to tabulated value (999.0 kg/m³ at 15 °C, 998.2 at 20 °C).
  3. Adjust offset and slope. Most transmitters expose a two-point cal interface; enter the air and water readings, the firmware computes the new offset and slope.
  4. Verify with a third fluid. Run a second reference (denser organic solvent like trichloroethylene at 1462 kg/m³, or a sodium-chloride brine) and check the meter is within ±0.5 kg/m³ of the tabulated value.

Field intervals: lab U-tubes monthly, Coriolis and tuning fork annually, gamma every two years (with a source-decay correction built into the firmware). Drift rates: 1-2 kg/m³ per year for Coriolis and tuning fork on clean fluids, faster on abrasives. If the meter swings more than 0.5 % between cal cycles, look at coating, erosion, or mounting strain before declaring the sensor faulty.

Four Install Pitfalls That Ruin Field Accuracy

  1. Strain from pipe expansion. A Coriolis or tuning fork bolted between rigid supports picks up axial stress as the line heats up; the resonator stiffens and the density reading drifts low by 5-10 kg/m³. Use a flexible mount or a thermal-expansion loop upstream.
  2. Gas entrainment. A single 1 mm bubble at 10 barg can pull a Coriolis reading 20 kg/m³ low for several seconds. Mount horizontally with the tubes upwards, or install a gas eliminator if the line is suspect.
  3. Wrong orientation for tank settling. Tuning fork insertion probes mounted at the bottom of a tank read the heavy phase, not the bulk. Mount at the mid-tank or in the recirculation loop.
  4. Vibration coupling from pumps. A positive-displacement pump 2 m upstream of a Coriolis at 10-15 Hz couples into the resonator and adds 1-2 kg/m³ noise. Decouple with a flexible connector or move the meter further away. For more on equivalent piping discipline, see our industrial applications of density meters note.

Featured Density Meters

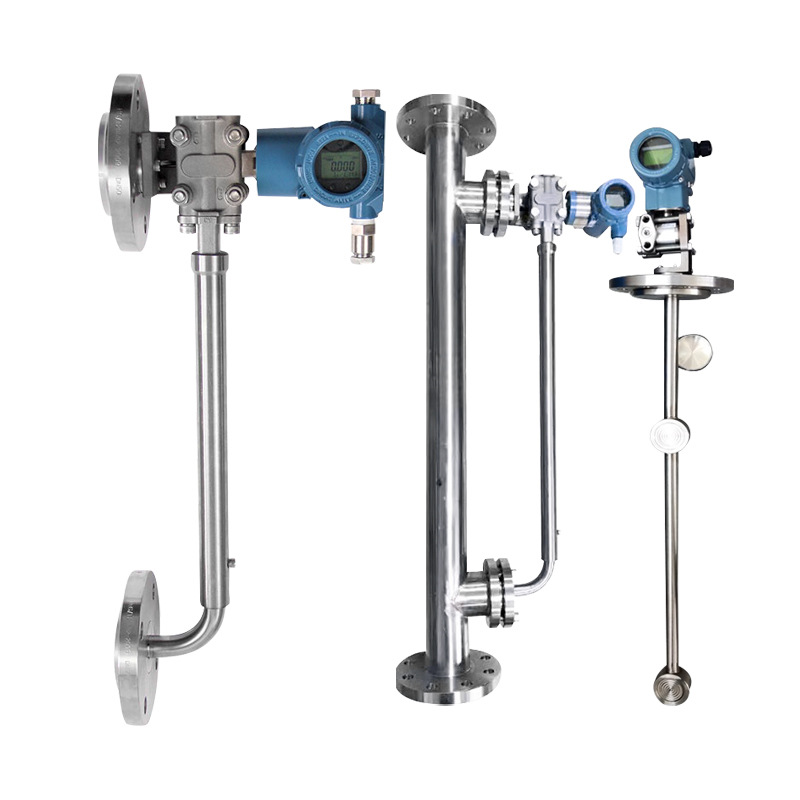

Online Density Meters by Differential Pressure

Tank-mount ΔP density, 0-3000 kg/m³, 4-20 mA + HART, ±2 kg/m³ accuracy.

Portable Density Meter (Tuning Fork)

Hand-held tuning fork, 0-3000 kg/m³, °Brix / °API conversion, data-log.

In-line Tuning Fork Density Meter

In-line insertion fork, 0-2000 kg/m³, 4-20 mA + Modbus, ±1 kg/m³ accuracy.

FAQ

What is a density meter?

An instrument that measures the mass per unit volume (density) of a fluid at process conditions. Real-time units are typically kg/m³ or g/cm³; derived units include °Brix, °Baumé, and API gravity.

How does a density meter work?

The four working principles in use are mechanical resonance shift (Coriolis, tuning fork, U-tube), hydrostatic ΔP, acoustic time-of-flight, and nuclear absorption. Each maps a physical effect that depends on density into an electrical signal.

What does SG 20/20 mean?

Specific gravity 20/20 means the density of the sample at 20 °C divided by the density of pure water at 20 °C. It is dimensionless and slightly different from SG 60/60 (the API petroleum convention at 60 °F).

Can density be measured in g/m³?

Technically yes, but no one does for liquids — values would run into millions. Liquids use kg/m³ or g/cm³; only very low-density gases (atmospheric particulate, trace contaminants) are reported in g/m³.

How do you read a density meter?

Read the primary display (kg/m³ or g/cm³), then check the reference temperature it is corrected to. If the reading is at process temperature uncorrected, apply the manufacturer’s T-coefficient to get the value at 15 °C or 20 °C reference.

How often should a density meter be calibrated?

Lab oscillating U-tubes monthly. Process Coriolis and tuning fork annually. Gamma densitometers every two years with source-decay correction. Verify after any major piping work that could induce strain.

Which density meter is best for slurries?

Gamma densitometer for abrasive or opaque slurries (drilling muds, ore concentrates). For lighter slurries with gas tolerance, a properly-mounted Coriolis can work. Avoid tuning fork in fibrous slurries.

Need help picking a density meter for your fluid, accuracy band, and budget? Our engineers can quote and ship within 24 hours — message us with the service, line pressure, fluid composition, and target accuracy.

Request a Quote

Request a Quote

Please enable JavaScript in your browser to submit the form

Dew Point Meter for Compressed Air: PDP, ISO 8573-1, Sensors, and Out-of-Spec Fix

Posted on by

Updated 2026-05-11 by the Sino-Inst engineering team.

A dew point meter for compressed air reports the pressure dew point (PDP) — the temperature at which water vapour condenses out of the air at line pressure. That single number decides whether your dryer is delivering the ISO 8573-1 humidity class your plant signed up for. Most field problems with moisture in compressed air are not dryer failures; they are wrong sensor selection, wrong placement, or a sensor that has drifted 8 °C since the last calibration.

This guide covers PDP fundamentals, the ISO 8573-1 classes that fix sensor range, three sensor technologies (chilled mirror, aluminum oxide, capacitive polymer), a step-by-step measurement procedure for in-line and portable instruments, dryer pairing, what to do when the reading is out of spec, and the four mistakes that pull readings off year after year.

Contents

Pressure Dew Point Explained for Compressed Air

Pressure dew point is measured at the working pressure of the line. Atmospheric dew point is the same temperature after the sample has been expanded back to 1 atm. The two numbers are not interchangeable. A sample at 7 barg with +3 °C PDP is equivalent to roughly -23 °C atmospheric dew point — a 26 °C gap that catches engineers out on audits.

This matters on every spec sheet. Compressed air specifications are written in PDP, but most cheap psychrometers report atmospheric dew point. Take a hand-held instrument, vent the sample to ambient, and read -23 °C — you have not exceeded ISO 8573-1 Class 4 (+3 °C PDP), you have just barely met it. Reading the wrong column has flunked more compressed-air audits than any real dryer fault. Always confirm whether a number is at line pressure or after expansion.

The conversion isn’t intuitive either. At 10 barg the gap widens further, so a portable meter reading -30 °C after expansion does not mean you have Class 2 air. For background on absolute vs gauge pressure references, see our static vs dynamic pressure guide.

ISO 8573-1 Humidity Classes and Sensor Range Selection

ISO 8573-1:2010 defines seven humidity classes. The class you have to meet is set by what the air feeds, not by the dryer you happen to own. Pick the class first; the sensor range falls out of it.

ClassPDP targetTypical useSensor range needed
1≤ -70 °CPharma, semiconductor, breathing air-100 to -40 °C
2≤ -40 °CInstrument air, paint spray, food packaging-80 to -20 °C
3≤ -20 °CPlant control air in cold climates-60 to 0 °C
4≤ +3 °CGeneral plant air, pneumatic tools-20 to +20 °C
5≤ +7 °CLight pneumatic load (refrigerant dryer)-10 to +20 °C
6≤ +10 °CCoarse air, agitation0 to +30 °C
XUser-definedProcess-specificBy spec

One trap to watch: a Class 2 sensor (-80 to -20 °C) loses resolution above -20 °C, so it cannot tell you whether you have exceeded Class 4. Spec to your worst-case PDP target plus about 20 °C of headroom, not your best-case. A second trap: 4-20 mA outputs are usually scaled across the full sensor span, so if you buy a -80 to +20 °C sensor and only care about Class 4 territory, you waste 75 % of the resolution on the lower end. Either scale the transmitter output to your range of interest, or buy a Class-matched sensor.

Three Sensor Technologies: Chilled Mirror, Al₂O₃, and Capacitive Polymer

Three technologies dominate field dew point measurement in compressed air. They differ by 5–10 °C in absolute accuracy and by an order of magnitude in price and maintenance.

TechnologyRangeAccuracyBest forCost band
Chilled mirror-90 to +90 °C±0.1 °CLab reference, cal standard$$$$
Aluminum oxide capacitive (Al₂O₃)-110 to +20 °C±2 °CCryogenic, Class 1, hydrogen service$$$
Capacitive polymer film-80 to +60 °C±2 °CClass 2-4 plant air, instrument air$

Chilled mirror is the laboratory primary — a cooled metal mirror with optical detection of condensation. The reading is by definition correct because it physically forms condensate at the dew point. Slow (minutes per reading) and expensive, and the mirror needs cleaning. Use it as your calibration reference, not as the in-line sensor.

Aluminum oxide capacitive sensors use a porous Al₂O₃ layer whose dielectric constant changes with adsorbed water. They tolerate extreme dryness (-110 °C is realistic), which makes them the choice for hydrogen, cryogenic nitrogen, and Class 1 pharma air. Drift is moderate at 3-5 °C per year, and the cell needs an annual factory bake-out.

Capacitive polymer film sensors are the workhorse for compressed air in the Class 2-4 range. They are faster (90 % response in 30-60 seconds with proper sampling), cheaper, and have a 200 °C auto-bake cycle that drives moisture back out daily. Drift is 2-3 °C per year in clean air but climbs to 5-10 °C in oily lines, which is why filtration matters more than the sensor brand.

Dryer Technology and Achievable Pressure Dew Point

The dryer fixes the floor your sensor will see; pick the right pair so the sensor sits in the middle of its calibrated range.

  • Refrigerant dryer: +3 to +10 °C PDP. Cheapest, used for Class 4-6.
  • Heatless desiccant dryer: -40 °C PDP nominal, -70 °C achievable. Class 2 standard, Class 1 with tight tower switching.
  • Heated desiccant dryer: -40 to -70 °C PDP, lower purge loss than heatless (5-7 % vs 14 %).
  • Membrane dryer: -20 to -40 °C PDP for low-flow point-of-use applications.

If your specification calls for Class 2 air but you own a refrigerant dryer, no amount of sensor calibration fixes that — you need a desiccant tower. The dew point meter is a diagnostic tool, not a corrective one. For broader gas-dew-point context (CO₂, N₂, hydrocarbons), see our guide to what gases a dew point meter can detect.

Step-by-Step Procedure to Measure Dew Point in Compressed Air

There are two field procedures, depending on whether you have an in-line transmitter or a portable spot-check meter.

In-line transmitter (continuous monitoring):

  1. Confirm the sensor is mounted downstream of the dryer outlet and downstream of the coalescing filter, but upstream of any after-filter that could retain moisture.
  2. Open the sample bleed valve to 1-2 NL/min purge through the measuring chamber. Without purge, response time stretches from minutes to hours.
  3. Let the 4-20 mA / RS485 output settle for 5-15 minutes after any pressure or flow change. Capacitive polymer sensors respond fast, but gas exchange around the film is the rate-limiter.
  4. Trend continuously over 24 h. A clean compressed air line should show diurnal swing under 3 °C; larger swings point at dryer cycling problems.

Portable spot-check (audit):

  1. Connect the portable meter to a Minimess test point downstream of the dryer using a 2-3 m sample hose in stainless or PTFE. Avoid rubber — plasticisers outgas into the sensor and shift the calibration warm.
  2. Set the flow regulator on the meter to 1 NL/min. Vent any condensate trap before starting.
  3. Allow 15-30 minutes for the reading to stabilise. Keep the sample at line pressure during the wait — measuring at a vented sample reads atmospheric dew point, not PDP.
  4. Record both PDP and line pressure on the audit log. The two together let you compute atmospheric dew point and cross-check any downstream spec written in that reference.

The same straight-run logic that shapes flow-meter sample placement applies here — see our upstream and downstream straight pipe guide for the underlying sampling principle.

Sensor Placement and Sample Conditioning

Install the in-line probe at least 2 metres downstream of the dryer outlet, after the coalescing filter, and before the final after-filter. Three placement rules from field installations:

  1. Mount the probe horizontally, never sensor-down. Liquid water collecting on the polymer destroys the calibration in hours.
  2. Use stainless or PTFE in the sample line. PVC and rubber outgas plasticisers that load the sensor.
  3. Keep the sample line under 5 m. Long lines act as moisture buffers and slow the reading by an hour or more.

Sample conditioning is where most field measurements quietly fail. A common mistake is plumbing the probe straight into the dryer header without a sample loop — at zero flow, the polymer equilibrates to whatever the dead leg has been doing for the past week, not to the live process. A 1-2 NL/min bleed is the cheapest insurance against this.

How to Reduce Pressure Dew Point When You Are Out of Spec

If the dew point meter shows you above your ISO 8573-1 target, work down this list before assuming the dryer has failed.

  1. Verify the reading. Confirm the sensor was calibrated in the last 12 months. A polymer sensor running 8 °C high after a year in oily air is normal, not faulty.
  2. Check the pre-filter. Liquid water carryover from the receiver overwhelms any dryer downstream. Replace coalescing elements at 4000 hours or per ΔP alarm.
  3. Inspect dryer cycling. On twin-tower desiccant dryers, a stuck purge valve or failed tower switch raises PDP by 10-30 °C. Listen for the tower changeover at the timer interval.
  4. Check ambient and inlet conditions. Refrigerant dryers degrade above 35 °C inlet temperature. Heatless desiccant dryers consume up to 14 % of throughput as purge — under-sizing the dryer for plant air demand shows up as PDP creep.
  5. Upgrade dryer technology. Refrigerant only reaches +3 °C PDP. If the spec calls for Class 2 or better, you need a desiccant tower added in series or in replacement. For installations facing pressure-side fluctuations alongside moisture, our pressure transmitter installation guide covers the same impulse-line discipline.

Calibration and Drift: Why a 1-Year-Old Sensor Reads 8 °C High

Polymer-capacitive dew point sensors drift by 2-3 °C per year in clean air and 5-10 °C in oily air. Four practical errors accelerate that:

  1. Skipping the coalescing filter. Compressor oil mist coats the polymer and shifts the calibration warm — typically 5-8 °C in 12 months.
  2. Wet exposure. A single bulk-water hit damages the dielectric layer permanently. Once a polymer sensor has seen liquid water, it never reads correctly again.
  3. Neglected auto-cal cycles. Modern sensors run a 200 °C bake every 24 h to drive moisture out; if power is interrupted, drift compounds month over month.
  4. Annual factory cal that ignores process conditions. A sensor returned for cal at -40 °C reference will not match a +3 °C process. Calibrate at the band you actually run in.

Featured Dew Point Meters for Compressed Air

Dew Point Transmitter 608 Series

In-line probe, -80 to +20 °C PDP, 4-20 mA / RS485 Modbus, ±2 °C accuracy.

Dew Point Meter 602 Series

Wall-mount display, -60 to +60 °C PDP, alarm relays, 35 bar service.

Portable Dew Point Meter

Hand-held audit tool, integrated sample cell, -50 to +20 °C PDP, data-log.

FAQ

How do you measure the dew point of compressed air?

Use a polymer-capacitive sensor in a sample cell at line pressure with 1-2 NL/min purge through the cell. Allow 5-15 minutes for in-line transmitters and 15-30 minutes for portable spot-checks to settle on each new reading.

What is the dew point limit for compressed air?

It depends on the ISO 8573-1 class required. Instrument air is usually Class 2 at -40 °C PDP; general plant air is Class 4 at +3 °C PDP; pharma and semiconductor air is Class 1 at -70 °C PDP. There is no single number.

How do you reduce the dew point in compressed air?

Verify sensor calibration first, then check coalescing filter ΔP, then check dryer cycling and ambient inlet temperature. If readings are confirmed and the dryer is healthy, the only durable fix is upgrading from refrigerant to desiccant drying, or adding a desiccant tower in series.

What is the difference between pressure dew point and atmospheric dew point?

Pressure dew point is measured at line pressure; atmospheric dew point after expansion to 1 atm. 7 barg air at +3 °C PDP corresponds to roughly -23 °C atmospheric dew point — the two are not interchangeable on a spec sheet.

What is the best dew point for instrument air?

ISA-7.0.01 calls for instrument air at least 10 °C below the lowest ambient temperature the air will see. In temperate plants that means -40 °C PDP (Class 2); in arctic service, -70 °C PDP (Class 1).

How often should a compressed air dew point sensor be calibrated?

Annually for clean instrument air, every 6 months for plant air on oil-lubricated compressors. Send the sensor back at the PDP band you actually operate in, not the factory default.

Can a dew point meter be installed downstream of an oil filter?

Yes — and it should be. Place the probe after the coalescing oil filter but before the after-filter. Oil mist on the polymer is the fastest way to ruin the sensor.

Which sensor technology is best for Class 1 compressed air?

Aluminum oxide capacitive sensors reach -110 °C and are the right choice for Class 1 air (-70 °C PDP). Capacitive polymer sensors lose resolution below -60 °C and should not be used for pharma or semiconductor service.

Need help picking a dew point meter for your dryer and ISO 8573-1 class? Our engineers can quote and ship within 24 hours — message us with your line pressure, target PDP, and flow rate.

Request a Quote

Request a Quote

Please enable JavaScript in your browser to submit the form

Zirconia Oxygen Sensor: Working Principle, In-Situ vs Sampling, and Combustion Tuning

Posted on by

Updated: May 10, 2026 — by Sino-Inst Engineering Team

A zirconia oxygen sensor reads the O₂ partial pressure in a hot gas stream by exploiting yttria-stabilised zirconia, an oxide ceramic that becomes an O²⁻-ion conductor above ~600 °C. In flue-gas combustion control it is the only practical technology that survives 700–1,400 °C duct temperatures while still responding in seconds. This page lays out the working principle, the in-situ versus extractive decision, the cross-sensitivity to CO and H₂ that biases low-O₂ readings, a spec-sheet decoder, and a short comparison with titania sensors that comes up in every replacement-parts question.

Contents

Working Principle: How a Zirconia Cell Generates a Millivolt Signal

The cell follows the Nernst equation. One face of a heated zirconia disc sees the process gas, the other face sees reference air at 20.9 % O₂. When ZrO₂ is doped with Y₂O₃ and held above ~650 °C, oxygen vacancies in the lattice carry O²⁻ ions across the disc. Platinum-paste electrodes on each face dissociate O₂ on the high-O₂ side and recombine it on the low-O₂ side. The voltage that develops is logarithmic in the O₂ ratio.

For a boiler running 3 % O₂ wet against 20.9 % reference air at 750 °C, the cell outputs roughly 50 mV. Drop the process O₂ to 0.5 % and the output rises to about 95 mV. The transmitter linearises this on a log scale and converts it to a 4-20 mA signal — usually 0–25 % O₂ for combustion duty.

Material and Temperature: Why Zirconia, Why 700 °C, and What the Platinum Does

Below ~600 °C the ZrO₂ lattice does not move O²⁻ fast enough to give a usable signal — cell impedance climbs and response time drags. Above ~850 °C the platinum electrodes start to volatilise and the cell ages noticeably faster. The 700–750 °C operating window is the compromise between conductivity and electrode life. Every industrial probe carries an internal heater and a thermocouple feedback loop to hold this window.

The platinum is not just a contact pad. It catalyses three reactions on the cell surface: O₂ dissociation, recombination of any combustibles (CO, H₂, hydrocarbons) that reach the surface, and the back-reaction with adsorbed O²⁻. The middle one drives the cross-sensitivity covered below. For an adjacent example of how surface electrochemistry shapes a 4-20 mA signal, see our note on static, dynamic and total pressure measurement.

In-Situ Probe vs Extractive Sampling: Decision Matrix by Duct

The first install decision is not the brand. It is whether the cell sits inside the duct or in a sample cabinet several metres away. The two architectures fail in completely different ways.

ArchitectureHow it worksStrengthsWeaknessesBest for
In-situ probeProbe and cell inserted directly into the duct, heated to ~750 °CResponse < 5 s; no sample lag; reads wet O₂Cell exposed to fly ash, SO₂, alkali; cannot be hot-removedBoilers, kilns, process heaters at duct temp 200–700 °C
Extractive (sampling)Heated sample line draws gas to a remote analyser cabinetCell stays clean; can pre-condition (filter, dry) before measuring30–90 s sample lag; condensation if heat trace fails; reads dry O₂Cement, waste-to-energy, corrosive gases, multi-point manifolds
Close-coupled extractiveShort eductor pulls gas through a probe-mounted cell within 0.5 m of the ductFaster than full extractive; cell still removableEductor air consumption; in-service calibration is awkwardProcess heaters where in-situ access is blocked but lag must stay < 30 s

Above 800 °C duct, or with heavy alkali (cement preheater, glass melter), the extractive route usually wins because in-situ probes will not survive a 12-month interval. For clean natural-gas boilers under 700 °C, in-situ is the default — sub-5-second loop response in exchange for field-replaceable cells. Plants that change feedstock often also prefer in-situ, because long sample lines blur the signal and make trim control sluggish.

Zirconia vs Titania O₂ Sensors: When Each Wins

Both technologies are solid-state and operate at high temperature, but the physics is different. Zirconia gives a Nernst voltage from an O²⁻ ion gradient. Titania changes its bulk resistance when O₂ adsorbs on the lattice surface — it is a resistive sensor, not a voltage source. That single difference drives every other trade-off.

PropertyZirconia (ZrO₂)Titania (TiO₂)
Output typeVoltage (Nernst, log-scaled)Resistance change
Reference airRequiredNot required
Operating temp650–850 °C700–900 °C
Response time (t90)1–5 s0.1–1 s (faster)
Accuracy across rangeExcellent for 0.1–25 % O₂Drifts above 5 % O₂
Typical useCombustion trim, lab gas analysisAutomotive lambda (some Toyota / Nissan), narrow-band only

For industrial combustion control the answer is almost always zirconia — the wider range and reference-air anchor make it the only useful option for trim work. Titania kept a foothold only in narrow-band automotive lambda sensors where speed mattered more than wide-range accuracy.

Cross-Sensitivity to CO and H₂: Quantitative Bias Numbers

A zirconia cell does not measure free O₂. It measures net O₂ — whatever survives after the platinum surface has burned off any combustibles diffusing through. In a boiler near stoichiometric combustion the flue carries small free-O₂ and small CO/H₂ at the same time. The hot platinum oxidises CO and H₂ on the cell, consuming O₂ before it can produce a Nernst voltage.

Numbers worth memorising: 1,000 ppm CO biases the reading by ≈ 0.05 % O₂; 1,000 ppm H₂ biases it by ≈ 0.025 % O₂; a smoke event with 0.5 % CO drops the apparent O₂ by half a percent. Any combustion-trim loop targeting sub-1 % excess O₂ should pair the zirconia cell with a CO analyser to detect this regime — otherwise the trim controller will keep adding fuel while the actual flue is already air-starved.

Spec-Sheet Decoder for Zirconia O₂ Analysers

  1. Accuracy at low O₂. Most data sheets quote ±0.75 % of reading or ±0.1 % O₂, whichever is greater. Below 1 % O₂, the floor term dominates — a 0.3 % O₂ reading with that spec is really ±33 % of value.
  2. Response time t90 vs t63. t90 reaches 90 % of a step change, t63 reaches 63 %. Vendor sheets that quote only t63 (“< 3 s”) look faster than they are. Compare on t90.
  3. Reference-air specification. Some probes use ambient air drawn into the head; others need plant instrument air at 1–3 L/min, ≤ 1 ppm hydrocarbons. Solvent vapour or turbine seal-leak in plant air will bias the reading.
  4. Cell life vs cycling. “5-year cell life” assumes continuous operation. Plants that cycle the heater off every shift see life drop 30–50 % from thermal-shock cracking of the platinum.
  5. Combustibles correction. Some analysers (Yokogawa ZR22, AMETEK Thermox, ABB Endura) ship a paired CO sensor that compensates the bias. If the duty is sub-stoichiometric or fuel-rich at any point, this is not optional.

Rule of thumb: the cheaper unit is rarely cheaper after you add reference-air conditioning, the heated sample line, the spare cell, and the engineer time. We use the same logic in our pressure transmitter installation guide — the headline price is a small fraction of the loop cost.

Calibration and Reference-Air: Four Mistakes That Drift the Reading

  • Skipping the two-point cal. Span on instrument air (20.9 % O₂), zero on a certified low-O₂ gas (0.4 % or 1 % O₂ in N₂). Single-point span hides electrode aging.
  • Calibrating cold. Wait until the heater PID is stable and the cell has held temperature for ≥ 30 minutes. Calibration on a still-warming cell drifts back overnight.
  • Plumbing reference air with copper. Solder-flux residue contaminates the reference side and biases zero. Use stainless 1/4″ tubing with no flux joints.
  • Ignoring the impedance trend. Modern transmitters log cell impedance. A doubling over 6 months is the leading end-of-life indicator — replace before it spikes and trips a heater fault.

Integrated Zirconia Oxygen Analyzer

In-situ probe with built-in heater. 0–25 % O₂ range, 4-20 mA + Modbus, response t90 < 4 s. Designed for boiler and process-heater combustion trim.

Dew-Point Transmitter 608 Series

Pairs with O₂ measurement on dryer outlets. −80…+20 °C dew-point range, 4-20 mA, polymer capacitance sensor, ATEX option for hazardous gas streams.

Single / Multi-Gas Industrial Detector

Pairs with the zirconia analyser for combustible-gas safety. 1–6 channel, electrochemical / catalytic / IR cells, IECEx Ex d certification.

FAQ

What is the lifespan of a zirconia oxygen sensor in a boiler?

Three to five years on continuous duty for a clean fuel (natural gas, light oil). One to two years on cement, glass or biomass duty where alkali and dust attack the platinum. The cell impedance trend on the transmitter is the most reliable predictor — replace when it has roughly doubled from commissioning.

How does a zirconia type sensor work?

It generates a Nernst voltage from the O₂ partial-pressure difference across a heated yttria-stabilised zirconia disc. Above ~650 °C the disc conducts O²⁻ ions; platinum electrodes catalyse the surface reactions on each face. The output mV is logarithmic in the O₂ ratio.

What is the difference between zirconia and titania oxygen sensors?

Zirconia outputs a voltage from an O²⁻-ion gradient and needs reference air. Titania changes its bulk resistance when O₂ adsorbs on the surface and needs no reference. Zirconia covers 0.1–25 % O₂ with high accuracy; titania is faster but drifts above ~5 % O₂. Industrial combustion trim almost always uses zirconia.

How many wires does a heated zirconia oxygen sensor have?

Automotive heated zirconia (HEGO) sensors are usually 4-wire: two for the heater (12 V), one signal, one ground. Wide-band industrial probes add 2–4 wires for the cell-impedance feedback loop and a thermocouple, giving 6–8 wires total. Always cross-check against the analyser terminal diagram before connecting.

Why does my zirconia analyser read lower O₂ than my portable analyser?

Combustibles are present. The portable instrument typically uses an electrochemical cell that ignores CO; the zirconia cell oxidises CO on the platinum surface and reports the resulting net O₂. A 1,000 ppm CO bias drops the zirconia reading by ≈ 0.05 % O₂ — small absolute, large at low setpoints.

Does the zirconia sensor read wet or dry O₂?

In-situ probes read wet O₂ — the cell is exposed to bulk flue including water vapour. Extractive systems read dry O₂ because the sample is cooled and water condenses out before reaching the cell. The two readings differ by 1–3 percentage points in a typical boiler.

Where can I get a quote for a zirconia oxygen analyser?

Use the form below or visit our integrated zirconia oxygen analyser product page. Send duct temperature, expected O₂ range, fuel type, and ATEX requirement — those four data points let our engineers quote a probe length and material grade in one round trip.

Send your duct conditions and the form below routes directly to a Sino-Inst combustion-instrumentation engineer. Typical reply within one business day with probe length, materials, and a per-cell life estimate based on your fuel.

Request a Quote

Please enable JavaScript in your browser to submit the form

Industrial Liquid Ammonia Density Measurement-What You Need to Know?

Posted on by

Liquid Ammonia Density might not be a term you come across in everyday conversation, yet its significance in modern industries is profound. From the refrigeration systems that keep our groceries fresh to the manufacturing processes that produce everyday items, the density of liquid ammonia plays a pivotal role. Accurate measurements of properties like ammonia’s density become essential.

For the broader density-meter family — Coriolis, tuning fork, U-tube, ΔP, ultrasonic, and gamma — and how to pick by fluid type, see our density meter overview with 6-technology comparison.

In the following sections, we’ll explore the ins and outs of liquid ammonia, its properties, and the technological advancements making accurate density measurements more accessible than ever.

RFQ

Featured Industrial Liquid Ammonia Density Meter for you

Tuning Fork Density Meter
Online Density Meter – Differential Pressure Type
Optical Density Meter-Liquid Densitometer
Coriolis Density Meter-Concentration Meter

Whether you are new to the industry or an experienced measurement and control engineer, it is necessary to understand What is the density of liquid ammonia and related information.

Basic properties of Liquid Ammonia [NH3]

Liquid ammonia, often denoted as NH3, is a colorless liquid mainly used in agriculture, refrigeration, and manufacturing. Its unique properties make it invaluable in many sectors.

Density is like a substance’s “compactness.” For liquid ammonia, its density varies with temperature. At a typical room temperature of 25°C (77°F), its density is around 682 kg/m^3. This means a cubic meter of liquid ammonia weighs 682 kilograms!

Ammonia has a low boiling point of -33.3°C (-28°F). This property is why it’s so useful in refrigeration. When it boils, it absorbs heat, providing a cooling effect.

Ammonia turns solid or freezes at -77.7°C (-107.8°F). This temperature is colder than even the coldest winter day in most places!

Liquid ammonia is alkaline, meaning it’s on the opposite end of the scale from acids. It has a pH greater than 7, which is the neutral point on the pH scale.

Unlike metals, ammonia is a poor conductor of electricity. It’s not something you’d want to use to make wires!

While ammonia has many beneficial uses, it’s essential to handle it with care. It can be harmful if inhaled, ingested, or if it comes in contact with the skin. Always prioritize safety when working with or around liquid ammonia.

In wrapping up, liquid ammonia’s properties make it a cornerstone in various industrial applications. By understanding its basic traits, we gain insight into how and why it’s used, emphasizing the marvelous interplay between science and our daily lives.

Liquid Ammonia Density: Common Units Simplified

In the world of science and industry, measurements and units are crucial. They ensure consistency, safety, and efficiency. For liquid ammonia density, there are several units commonly used, each serving its purpose based on the context. Let’s decode these units in a simple and straightforward way.

  1. Kilogram per Cubic Meter (kg/m^3):
    This is a standard unit to measure density. Think of it like this: Imagine a box that’s a meter wide, long, and tall. If you fill that box with liquid ammonia, the weight of that ammonia in kilograms represents its density in kg/m^3. For instance, at room temperature (25°C), liquid ammonia has a density of about 682 kg/m^3.
  2. Pound per Cubic Foot (lb/ft^3):
    This is another way to measure density but using pounds and cubic feet. It’s especially familiar in countries using the imperial system. For our liquid ammonia, its density is roughly 42.6 lb/ft^3 at room temperature.
  3. Pound per US Gallon (lb/gal):
    A gallon is a unit of volume often used for liquids, especially in the United States. So, when we measure how many pounds of liquid ammonia fit into one US gallon, we get a density of approximately 5.68 lb/gal at 25°C.
  4. Gram per Milliliter (g/mL):
    A milliliter is a tiny cube that’s a centimeter on each side. It’s a commonly used volume in the scientific world. At room temperature, liquid ammonia’s density is 0.682 g/mL.
  5. Ounce per Cubic Inch (oz/in^3):
    This unit is more specialized but can still be used for specific applications. It indicates the weight in ounces of liquid ammonia that would fit into a cube measuring one inch on all sides. For ammonia, this comes to about 0.394 oz/in^3 at 25°C.

Understanding the units of liquid ammonia density isn’t just about numbers and measurements. It’s about appreciating the consistency and standards that allow industries to function smoothly and safely. Each unit has its place and is selected based on the context and region, ensuring that everyone speaks the same “language” when it comes to measuring this vital substance.

Read More About: Density 101: What Is the Unit of Measurement for Density

Liquid Ammonia is Important for Industries

Liquid ammonia might seem like a mysterious substance to many of us, but it plays a silent yet powerful role in several industries we rely on every day. Let’s explore where this unique liquid truly makes its mark.

  1. Agriculture:
    Farmers use liquid ammonia as a primary source of nitrogen in fertilizers. This nitrogen helps plants grow strong and healthy, leading to the fruits and vegetables we enjoy on our tables.
  2. Refrigeration:
    Ever wondered how our food stays cold in large warehouses or during transport? The answer often lies in refrigeration systems that use liquid ammonia. It’s efficient, effective, and helps keep our food fresh.
  3. Pharmaceuticals:
    When we’re feeling under the weather and reach for certain medications, we might be benefiting from liquid ammonia’s role. It’s a key component in the production of some medicines, ensuring they’re both safe and effective.
  4. Cleaning Supplies:
    Ammonia is also an active ingredient in many household cleaning agents. It helps cut grease, brighten surfaces, and ensure our homes and offices sparkle.
  5. Textile Industry:
    Our clothes go through many processes before they reach us. In the textile industry, liquid ammonia is used to treat cotton, making it stronger and giving it a soft, attractive finish.
  6. Plastic Manufacturing:
    Some of our everyday plastic items owe their existence to liquid ammonia. It’s a critical component in the production of certain plastics, ensuring they’re durable and fit for purpose.

Of course, density measurement of liquid ammonia is important. Similarly, liquid ammonia flow, temperature, pressure, and liquid level measurement are also important.
In addition to supplying liquid ammonia density meters, Sino-Inst also provides liquid ammonia flow meters, liquid ammonia temperature, liquid ammonia pressure transmitters, and liquid ammonia level meters.

More Featured Industrial Liquid Ammonia Measuring instruments

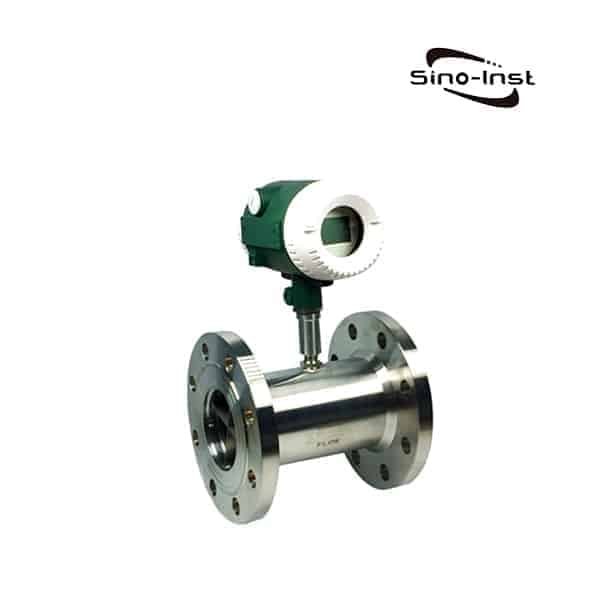

Liquid Turbine Flow Meter
Low temperature Turbine Flowmeter-Liquid Nitrogen Flow Meter
New Products! Insertion Type Ultrasonic Flow Meter-Heat Meter–Mono/multi-Channel
Ultrasonic Clamp on Flow Meter
Gear flow meter for Micro flow
Cryogenic Pressure Transducer

SI-706 Combined Pressure and Temperature Sensor-Dual function

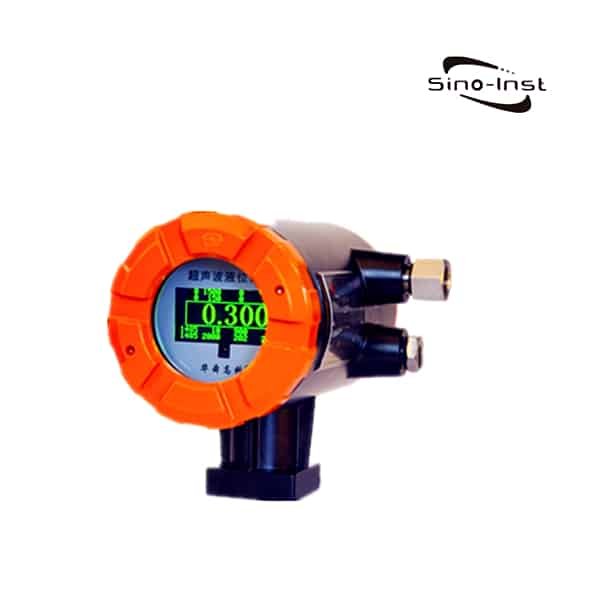

HS-2000 Ultrasonic Tank Level Sensor-External Mounted

Related Documents:

  1. Compound Summary: Liquid Ammonia. National Center for Biotechnology Information; U.S. National Library of Medicine; 8600 Rockville Pike; Bethesda, MD 20894 USA. Last accessed: 29 August 2020. Link.
  2. Ammonia Production and Uses. International Fertilizer Industry Association; Paris, France. Last accessed: 28 August 2020. Link.
  3. Ammonia Refrigeration Basics. International Institute of Ammonia Refrigeration (IIAR); Alexandria, VA, USA. Last accessed: 30 August 2020. Link.

In our journey through the intricacies of liquid ammonia density, we’ve uncovered the crucial role it plays in various sectors. Its importance in industries ranging from agriculture to refrigeration underscores the science’s impact on our daily lives. Yet, the world of measurement doesn’t stop at ammonia density.

Did you know that accurate measurements are equally crucial in other domains? At Sino-Inst, we dive deeper into the world of precision. From crude oil flow measurement ensuring efficient transportation of our primary energy source, level measurements which are vital for storage tanks and reservoirs, to temperature measurements ensuring that processes remain within desired ranges – we’ve got it all covered.

With a rich tapestry of experience, Sino-Inst stands proud as a leading manufacturer and supplier in the world of instrumentation. Whether you’re looking for standard instruments or need a customized solution, our team is here to guide and assist. Reach out to Sino-Inst today and elevate your measurement game!

Request a Quote

Please enable JavaScript in your browser to submit the form

What Is Density Flow Meter: Principles and Applications

Posted on by

The Density Flow Meter stands out as a key instrument that serves this very purpose. At its core, a density flow meter is a device designed to measure the density of a fluid as it flows through a system. But why is this so crucial? Knowing the exact density of a substance can influence decisions ranging from quality control in manufacturing to safety protocols in transportation. Different industries, such as oil & gas, food & beverage, and pharmaceuticals, rely heavily on these meters to ensure that their operations run smoothly and efficiently.

For the working principle behind each density-measurement technology — mechanical resonance, hydrostatic, acoustic, and nuclear — and a six-technology spec comparison, see our density meter guide.

RFQ

Featured Density Flow Meters

Coriolis Density Meter-Concentration Meter
Z-Series Straight Tube Micro Motion Coriolis Flow Meter
U-Series Liquid Mass Flow Meter
T-series Triangle Coriolis Mass Flowmeter

The Science Behind Density Flow Meters

At the heart of a density flow meter lies a blend of physics and engineering that enables precise measurements. To grasp how these instruments work, we need to dive a bit into the principles that drive them.

Principle of Operation: Density flow meters, particularly the Coriolis-type, operate based on the Coriolis effect. When a fluid or gas flows through an oscillating tube, it experiences a force (Coriolis force) that causes a measurable phase shift in the tube. This shift is directly related to the mass flow rate of the fluid.

Mathematics of Measurement: The phase shift mentioned above can be mathematically represented by the formula:

Fc​=2m⋅v⋅ω

Where:
Fc= Coriolis force
m = mass of the moving fluid
v = velocity of the fluid
ω = angular velocity of the oscillating tube

Density Determination: The meter not only measures the mass flow rate but also determines the density of the fluid. It does this by monitoring the frequency of the tube’s oscillation. Changes in fluid density cause shifts in this frequency, allowing the meter to compute the fluid’s exact density.

In essence, the science behind density flow meters is a blend of physical forces and mathematical calculations. These tools, with their rooted scientific principles, offer industries a reliable way to gauge the density and flow of their fluids.

Difference between Density Flow Meters and Traditional Flow Meters

Density flow meters and traditional flow meters serve similar primary functions – they measure the flow of fluids. However, the methods they employ and the information they provide can differ substantially. Let’s break down their differences:

Measurement Principle:

Density Flow Meters: These meters, especially Coriolis-type, use the Coriolis effect. They measure mass flow directly by detecting the phase shift in an oscillating tube caused by flowing fluids.
Traditional Flow Meters: These often measure volumetric flow. Devices like turbine or paddlewheel flow meters calculate flow based on the rotation speed of a turbine or wheel placed in the fluid’s path.

Data Output:

Density Flow Meters: They not only provide mass flow rates but also measure the density of the fluid. Thus, they give dual information from a single device.
Traditional Flow Meters: Typically, these meters provide only volumetric flow data unless paired with additional sensors or equipment.

Accuracy & Calibration:

Density Flow Meters: Often, they offer higher precision as they directly measure mass flow. Calibration is essential for optimal accuracy.
Traditional Flow Meters: While they can be accurate, changes in fluid properties (like temperature or viscosity) can influence readings unless compensated.

Application Suitability:

Density Flow Meters: They’re versatile and can be used with varying fluid types, including those with changing properties.
Traditional Flow Meters: They’re best suited for specific fluid types and conditions for which they’ve been calibrated.

Infrastructure Needs:

Density Flow Meters: Generally require minimal infrastructure changes, with some designs being compact and easy to integrate.
Traditional Flow Meters: Might require additional setups, like straight runs of pipes, to ensure accurate measurements.

In conclusion, while both density flow meters and traditional flow meters have their place in industries, the former offers a more comprehensive and direct approach to flow measurement. Choosing between them depends on the specific needs and conditions of each application.

FAQ

A density flow meter is an advanced device used to measure the flow and density of liquids, gases, and even some solids. It not only determines the rate at which a fluid flows but also provides insight into its density, allowing for more comprehensive data analysis in various applications.

A mass flow meter, especially the Coriolis type, works on the principle of the Coriolis effect. When a fluid flows through an oscillating tube, it generates a Coriolis force that causes a shift in the tube’s phase. By measuring this shift, the meter can determine the mass flow rate. Additionally, the meter’s resonant frequency changes based on the density of the fluid. By detecting these frequency changes, the meter can also measure the fluid’s density accurately.

Mass flow meter density measurements are renowned for their high accuracy. When properly calibrated and maintained, they can achieve an accuracy of up to ±0.1% to ±2% for flow measurements and ±0.0005 g/cc for density measurements. However, the exact accuracy can vary based on the specific model and manufacturer.

A Coriolis density flow meter is a type of mass flow meter that employs the Coriolis effect to measure mass flow and density simultaneously. It consists of one or more vibrating tubes through which the fluid flows. The Coriolis force generated by the flowing fluid causes a measurable phase shift in these tubes. By analyzing this shift and the changes in the tubes’ resonant frequency, the meter provides accurate readings of both flow and density.

More Detection and Analysis Sloutions

The density flow meter, with its unique capability to measure both flow and density, stands out as an invaluable tool. Its precision, backed by science and innovative engineering, makes it a preferred choice for many professionals.

Beyond density flow meters, there’s a vast realm of measurement devices essential for various applications. Whether you’re looking to measure flow rate, gauge liquid levels, or monitor temperature, the right instrument can significantly impact the accuracy and efficiency of your operations.

At Sino-Inst, we pride ourselves on being seasoned manufacturers and suppliers, offering an extensive range of measurement instruments. From flow meters to temperature and level measuring devices, our offerings are diverse and tailored to the industry’s evolving needs.

Request a Quote

Please enable JavaScript in your browser to submit the form

Industrial Online Dew Point Meters | Sino-Inst

Posted on by

Updated 2026-05-31 by the Sino-Inst Engineering Team

An online dew point meter only protects your process if three things line up. You read pressure dew point, not atmospheric dew point. You match the meter range to your ISO 8573-1 air-quality class. And you mount the sensor downstream of the dryer. Get any one wrong and the display is confident but false. That is how a “−40 °C” system still drops liquid water at a point of use. This guide walks through the three decisions you actually make before buying or replacing a meter.

Contents

What Is an Online Dew Point Meter, and How Is It Different From a Portable One?

An online dew point meter is a fixed sensor installed in the gas line. It measures moisture continuously and outputs a live signal — usually 4–20 mA or Modbus — to your control system or an alarm. A portable dew point meter does the same physics as a spot check: you carry it to a test port, take a reading, and move on.

The split matters because the two answer different questions. Portable units verify a dryer during commissioning or a quarterly audit. Online units catch the failure you would otherwise miss — a desiccant bed breaking through at 3 a.m., or a refrigerated dryer losing capacity in summer. If a wet excursion can scrap product or corrode a line, you want continuous monitoring, not a snapshot. Many plants run both: a fixed meter at the dry-air header and a portable one for point-of-use troubleshooting.

Pressure Dew Point vs. Atmospheric Dew Point: Why the Same −40 °C Means Two Things

This is the single most common mistake we see. Pressure dew point (PDP) is the dew point of the gas at its working pressure. Atmospheric dew point is what that same gas would show after it expands to ambient pressure. They are not interchangeable. Compressing a gas raises its dew point, so a value that looks safe at atmosphere can be wet inside a pressurized line.

ISO 8573-1 specifies compressed-air dryness as pressure dew point. ISO 8573-3 sets reference conditions of 20 °C and 7 barg so readings compare on a common basis. So when a dryer is rated “−40 °C,” confirm whether that is PDP or atmospheric, and make sure your meter reports the same basis. A sensor in the pressurized line reads PDP directly. One mounted after a pressure-reducing valve reads atmospheric dew point and needs a correction. Our rule on site is simple: measure at line pressure when you can, and never compare a PDP spec to an atmospheric reading. For that case we cover sampling detail in our guide to the dew point meter for compressed air.

Which ISO 8573-1 Air Quality Class Do You Need?

Pick the meter’s range from your target air-quality class, not the other way around. A meter optimized for very dry air can be compromised by humid exposure. A wide-range humid sensor will not resolve a Class 1 reading. This table maps the ISO 8573-1 humidity classes to a typical dryer and the range you should specify.

ISO 8573-1 humidity classPressure dew pointTypical dryer / applicationMeter range to specify
Class 1≤ −70 °C PDPDesiccant dryer; electronics, lithium, lab gasDown to −80 °C, fast-settling sensor
Class 2≤ −40 °C PDPDesiccant dryer; pharma/medical air, PET drying−60 to 0 °C, condensation-tolerant
Class 3≤ −20 °C PDPDesiccant or premium refrigerated; paint, blow molding−40 to +20 °C
Class 4≤ +3 °C PDPRefrigerated dryer; general plant air, tools−20 to +50 °C

Medical and pharmaceutical air commonly targets −40 °C PDP or drier, which puts it in Class 2 territory. Drying PET resin before blow molding needs the same −40 °C class. Skip it and moisture flashes off in the mold, leaving silver streaks and bubbles. The same logic protects a dew point monitor in food and cold-storage air.

Capacitive Polymer vs. Chilled Mirror vs. Metal Oxide: Which Sensor Fits?

Three sensing technologies cover almost every industrial install, and the trade-off is accuracy versus maintenance. Capacitive polymer sensors are the default for online compressed-air work. They are low maintenance, tolerant of condensation, and cheap enough to put one on every header. Chilled mirror is the laboratory reference and does not drift, but it is maintenance-heavy and sensitive to contamination. Metal-oxide sensors sit in between, tend to drift, and usually need a return to the factory for recalibration.

TechnologyAccuracy / driftMaintenanceBest fit
Capacitive polymerGood; can drift, verify periodicallyLow; field-swappableContinuous online compressed air and gases
Chilled mirrorHighest; no driftHigh; clean mirror, sensitive to oil/dustReference, calibration lab, critical low PDP
Metal oxideModerate; driftsFactory recalibrationLegacy installs, trace moisture

The practical takeaway: use a capacitive polymer transmitter for the line. Keep a chilled-mirror or a freshly calibrated portable unit as the reference you check it against. A capacitive sensor that has not been verified in two years is the quiet reason a “compliant” system fails an audit.

Where Should You Install the Sensor?

Install the sensor downstream of the dryer, never upstream. Upstream the probe sits in saturated air, and a capacitive element soaked in liquid water reads falsely wet for hours or fails outright. We have pulled more dead sensors off the wet side of a dryer than from any other cause.

The reliable arrangement is a stainless-steel sample cell teed off the dry-air header. Add an isolation valve ahead of it so you can remove the sensor without depressurizing the line. Bleed a controlled 1–2 L/min of sample through the cell. Too much flow cools the sensor and drags the reading below the real dew point. Too little, and a dead leg gives you stale air that does not represent the system. Use stainless tubing for low dew points, since plastic and rubber outgas moisture and keep you from ever reaching a dry reading. For point-of-use checks, sample as close to the critical process as possible. A receiver tank or a long run can add moisture the header never sees.

Beyond Compressed Air: SF6, Natural Gas, and Plastics Drying

Dew point is not only a compressed-air parameter. Moisture in SF6 switchgear degrades insulation and forms corrosive byproducts, so utilities monitor it as a maintenance indicator. Custody-transfer and pipeline natural gas carry a water dew point spec to prevent hydrate formation and corrosion. Plastics processors monitor the dryer feeding the resin hopper. Each wants the same core measurement but different hardware. In flammable streams such as natural gas, select a meter with the right hazardous-area certification rather than a general compressed-air model. If your moisture question is really a gas-composition question, an oxygen sensor or an integrated zirconia oxygen analyzer may belong alongside the dew point meter. A multi-gas detector covers the safety side. Our note on which gases a dew point meter can detect goes deeper on compatibility.

How to Choose an Online Dew Point Meter: A 6-Point Checklist

  1. Range — set it from your ISO 8573-1 class, with headroom below your target PDP.
  2. Pressure rating — confirm the sensor is rated for line pressure if you want PDP directly.
  3. Response time — drier setpoints settle more slowly; budget stabilization time at very low PDP.
  4. Output and integration — 4–20 mA, Modbus/RS485, alarm relays; match your PLC or monitor.
  5. Certification — hazardous-area rating for natural gas, biogas, or solvent-laden streams.
  6. Calibration plan — decide upfront how often you verify the sensor and against what reference.

One note on economics. Dew-point demand control on a desiccant dryer purges only when moisture actually rises. That can cut dryer energy by roughly 20%, so an online meter often pays for itself on utilities alone.

Featured Online Dew Point Meters

Online Dew Point Meter (602 Series)

Fixed inline meter for continuous compressed-air and gas monitoring. Wide PDP range with 4–20 mA / RS485 output for direct PLC and alarm integration at the dry-air header.

Portable Dew Point Meter

Handheld unit for commissioning, audits, and point-of-use troubleshooting. Fast spot readings to verify a fixed meter or find where moisture enters the line.

Dew Point Transmitter (608 Series)

Loop-powered transmitter for SF6, natural gas, and process gases beyond compressed air. Capacitive sensor with stable output for permanent moisture monitoring.

Frequently Asked Questions

How do I measure dew point in a compressed air system?

Install a dew point sensor downstream of the dryer. Use a stainless sample cell teed off the dry-air header with an isolation valve, and bleed 1–2 L/min of sample through it. Read pressure dew point at line pressure for a true picture of moisture risk inside the system.

Is pressure dew point the same as atmospheric dew point?

No. Pressure dew point is measured at the gas’s working pressure. Atmospheric dew point is the value after the gas expands to ambient pressure. Compression raises dew point, so the two differ. ISO 8573-1 specifies compressed-air dryness as pressure dew point, referenced to 20 °C and 7 barg by ISO 8573-3.

Where should a dew point sensor be installed?

Always downstream of the dryer, never upstream where saturated air can flood and ruin a capacitive sensor. Use a sample cell off a tee, an isolation valve for maintenance, controlled 1–2 L/min flow, and stainless tubing for low dew points to avoid moisture outgassing.

How often does a dew point sensor need calibration?

Capacitive polymer sensors can drift, so verify them periodically — typically annually — against a chilled-mirror reference or a freshly calibrated portable meter. Chilled-mirror instruments do not drift but still benefit from periodic verification. Set the interval in your maintenance plan before you buy.

What dew point do I need for ISO 8573-1 Class 2?

Class 2 requires a pressure dew point of −40 °C or lower, which a desiccant dryer typically delivers. Specify a meter that resolves comfortably below −40 °C with some headroom, and confirm the reading is pressure dew point rather than atmospheric.

Can one dew point meter cover both very dry and humid readings?

Within limits. Some sensors handle a wide span. But instruments optimized for very low dew points can be compromised by humid exposure, and wide-range humid sensors will not resolve Class 1 air. Match the range to your target class instead of expecting one meter to do everything.

About this article

Written and technically reviewed by the Sino-Inst engineering team — last reviewed 2026-05-31 (AI-assisted drafting). Based on ISO 8573-1 air-quality classes and ISO 8573-3 reference conditions, plus field experience installing online dew point meters on compressed-air, SF6, and gas-drying systems. Questions? Reach our application engineers.

Request a Quote

Tell us your air-quality target, line pressure, and gas. A Sino-Inst engineer will recommend the right range, sensor technology, and mounting for your online dew point meter.

Request a Quote

Please enable JavaScript in your browser to submit the form
