Tuning Fork Density Meter

Posted on April 18, 2026 by KimGuo11

The tuning fork density meter is an inline vibrating-fork sensor that measures liquid density from 0 to 2500 kg/m³ with ±1 kg/m³ accuracy. The fork tines sit directly in the process line — their resonant frequency shifts with the density of the fluid between them, giving a continuous 4–20 mA or Modbus signal with no moving parts. It handles slurries, corrosive acids, and two-phase fluids that break Coriolis meters, and it calibrates once and holds over years.

Sino-Inst ships the tuning fork density meter in eight mounting styles and several wetted-material options (316L, Hastelloy C, PTFE-lined, titanium). Pick the variant below by your fluid and pressure, then confirm with the specs table.

Features of Tuning Fork Density Meter

Direct inline density — no sample loop, no rotameter, no density calculation from pressure/temperature. The fork sits in the live process line.
±1 kg/m³ accuracy, ±0.1 kg/m³ repeatability — matches most Coriolis meters on density alone, at a fraction of the cost.
Handles bubbles and slurries — the vibrating fork keeps reading through two-phase flow and solids loading up to ~50%, where Coriolis tubes stall.
No moving parts — no bearings, no seals, no wear. Typical service life is 8+ years on continuous duty.
Wide wetted-material menu — 316L, 2205 / 2507 duplex, Hastelloy C, titanium, PTFE or PFA lining for acids and chlorinated solvents.
Eight process connections — DN50 PN16, G1.5″ thread, 3″ tri-clamp, IDF, RJT sanitary, top-mounted rod up to 3 m, submersible IP68 cable, stirred-tank offset bracket.
4–20 mA + HART + Modbus RTU — drops straight into a PLC or DCS. The transmitter also reports °API, °Brix, concentration %, and specific gravity directly.

Technical Parameters

Measuring range	0 – 2.5 g/cc (0 – 2500 kg/m³); 0 – 100%
Accuracy	±0.001 g/cc (±1 kg/m³); ±0.5% of reading
Repeatability	±0.001 g/cc (±0.1 kg/m³); ±0.1%
Operating temperature	-50 °C to +150 °C
Working pressure	up to 4 MPa
Viscosity range	0 – 2000 cP
Temperature coefficient	< 0.1 kg/m³/°C after compensation
Wetted materials	316L / 2205 / 2507 stainless; Hastelloy C; Titanium; PTFE/PFA lined
Fork coating	Standard PTFE or PFA
Power supply	24 VDC, ≥50 mA
Output	4–20 mA, 0–1000 Hz, RS-485 Modbus RTU, HART
Output accuracy	±0.1% of reading or ±0.05% FS
Process connection	DIN 50 PN16, G1.5″ thread, 3″ tri-clamp, IDF, RJT sanitary
Enclosure rating	IP65 aluminum alloy housing
Derived readings	Density, °API, °Brix, concentration %, mass %, volume %, specific gravity

Tuning Fork Density Meter Working Principle

A piezo driver excites the two fork tines at their natural resonant frequency in vacuum — typically around 1300 Hz. When the fork is immersed in a liquid, the fluid adds effective mass to the tines, and the resonant frequency drops. The frequency shift is proportional to the liquid density.

The transmitter measures this frequency, applies a temperature correction (a built-in Pt100 reads process temperature), and converts to density in kg/m³, °API, °Brix, or concentration %. Because the measurement is based on a physical resonance of the fork — not a flow-dependent effect — density is independent of flow rate, viscosity (up to 2000 cP), and orientation. That’s why a tuning fork works in a storage tank as well as a high-velocity process line.

The fork is also insensitive to bubbles and solids. Small bubbles and particles pass between the tines without damping the resonance. This is the single biggest difference from a Coriolis density meter, which shuts down on two-phase flow.

Models & Configurations

The tuning-fork head is the same mechanical principle across all models. What changes is the wetted material, mounting style, and process fit. Pick the variant by your fluid and pressure, then confirm on the spec table above.

Model	Wetted material	Temp / pressure	Best for
Alcohol Concentration variant	316L stainless	-40–120 °C / 4 MPa	Breweries, distilleries, beverage batching
Submersible variant	316L + IP68 cable	-20–80 °C / 0.6 MPa	Tank bottoms, open reservoirs, settling ponds
Anti-corrosion variant	Hastelloy C-276 or PTFE-lined	-20–150 °C / 4 MPa	Acid, caustic, chlorinated solvents
Slurry / heavy-duty variant	Wear-plated 316L	-20–100 °C / 2.5 MPa	Dredging, mining tailings, cement

Other available configurations: threaded (G1-1/2) for standard process lines, flange-standard (DN50 PN16-20592) for slurry service including lime and mud, sanitary 3″ tri-clamp for pharma and food, top-mounted rod up to 3 m insertion for large tanks, and stirred-tank special with offset bracket. Custom wetted materials include Hastelloy C, titanium, 2205 and 2507 duplex stainless, and aluminum — specify the medium and we’ll recommend the right alloy.

Applications

Tuning fork density meters show up wherever density is the controlled process variable — concentration in blending, solids loading in slurry, end-point in reactors, interface detection in pipelines that batch multiple products. The fork handles bubbly fluids and slurries that would break a Coriolis meter.

Petrochemical — batch interface detection in product pipelines (gasoline / diesel / jet fuel), density-based reactor end-point
Mining & dredging — slurry solids concentration in thickener underflow, tailings transport, dredger discharge lines
Brewing & beverage — wort gravity, fermentation progress, CIP verification
Pharmaceuticals — solvent blending, API concentration monitoring, granulation liquor
Food — sugar syrup °Brix, dairy cream fat content, concentrated juice blending
Pulp & paper — black liquor density in chemical recovery
Chemical — sulfuric acid concentration, sodium hydroxide concentration, aqueous ammonia
Power — flue gas desulfurization limestone slurry density

Handheld Petroleum Density Meter

Portable micro-vibrator digital density meter for on-site crude, gasoline, and refined-fuel density checks.

Coriolis Density / Concentration Meter

Inline Coriolis density and concentration meter for high-accuracy custody transfer and brewing applications.

Slurry Density Meter

Heavy-duty slurry density solution for dredging, mining tailings, and cement — the same family as our dredger case study.

Need sizing help or a drawing review? Our engineers can match a tuning fork density meter to your fluid, pressure, and mounting, and ship a quote the same day. Send us the line data below and we’ll get back with a variant recommendation and price.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Ultrasonic CO2 Level Indicator: How It Works, Specs & Measurement Guide

Posted on April 18, 2026 by KimGuo11

An ultrasonic CO2 level indicator is a portable, non-contact device that tells you how full a liquid CO2 cylinder is without opening it, weighing it, or puncturing the wall. You hold the probe against the outside of the cylinder, press the measure button, and the meter reads the level through the steel wall using ultrasonic reflection. This matters because the most common CO2 applications — fire suppression systems, beverage supply, cryogenic supply — all use sealed cylinders where conventional sight gauges or sensors can’t be installed. This guide covers how the indicator works, which cylinder diameters it fits, how to take a correct reading, and where it beats weighing and pressure-based methods.

How Does an Ultrasonic CO2 Level Indicator Work?
Which CO2 Cylinders Does It Fit?
Specifications
How Do You Measure the Level in a CO2 Cylinder?
Ultrasonic vs Weighing vs Pressure: Which Method Wins?
Where Is This Device Actually Used?
FAQ
Related CO2 & Gas Level Instruments

How Does an Ultrasonic CO2 Level Indicator Work?

The indicator sends a burst of ultrasonic energy through the cylinder wall and measures the reflected signal. When the probe is pressed against the cylinder above the liquid line, the ultrasonic pulse passes through the steel, bounces off the far wall through the gas phase, and returns with low attenuation. Below the liquid line, the pulse travels through steel, then through liquid CO2, reflects off the far wall, and returns with much higher attenuation and a distinctive signature. The electronics compare the return signal strength against a threshold and output “liquid” or “no liquid” for that spot.

You move the probe vertically along the cylinder to find the transition — that’s the liquid level. A numeric parameter on the screen tells you how confident the reading is: parameter ≥ 2 means gas phase, parameter < 2 means liquid, and values around 2 mean you're within roughly 5 cm of the actual liquid surface. Moving the probe 1 cm at a time in that range pinpoints the level.

Because the method is entirely non-contact, it works on sealed, pressurized cylinders that would be impossible to drill for a conventional level probe. For the same reason it handles CO2, Halon, FM-200, Novec 1230, propane, and any other liquefied gas under pressure without any gas-specific calibration.

Which CO2 Cylinders Does It Fit?

The portable indicator has pre-loaded calibration for four standard CO2 cylinder diameter ranges. Pick the matching size from the menu before measuring.

Cylinder Mode	External Diameter	Typical Use
Small CO2	210 – 230 mm	Beverage-grade 5–15 kg bottles
Medium CO2	265 – 285 mm	Fire-suppression 25–30 kg cylinders
Large CO2	340 – 360 mm	Industrial bulk cylinders
Extra-large CO2	390 – 410 mm	Large fire-suppression banks
Common mode	Any diameter up to 3 m spherical/horizontal/vertical	Non-standard tanks and vessels

Wall thickness up to 30 mm is supported. The cylinder material can be carbon steel, stainless steel, glass, or unfoamed plastic — anything that transmits ultrasound cleanly. If your cylinder is outside the four CO2 diameters, use the Common mode, which accepts any tank shape up to 3 m diameter without a pre-loaded profile. Accuracy drops slightly in Common mode because the calibration isn’t cylinder-specific.

Specifications

Measurement accuracy	< 5 mm at the liquid surface transition
Wall thickness range	3 – 30 mm
Container materials	Steel, stainless steel, glass, unfoamed plastic
Measurable media	Liquefied CO2, Halon, FM-200, Novec 1230, propane, pure liquids, slurries without crystallization
Ambient temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Ambient humidity	15% to 85% RH
Display	High-contrast OLED, readable under direct sunlight
Power	Two customer-supplied lithium batteries
Typical current draw	~100 mA average
Enclosure	Rugged portable handheld

How Do You Measure the Level in a CO2 Cylinder?

The measurement takes under a minute once you know the cylinder size. Follow these steps to get a clean reading and avoid the common mistakes that produce false negatives on partly-full bottles.

Wipe the contact band of the cylinder clean. Paint, rust, or stickers on the wall block the ultrasonic signal.
Power on the indicator, select “CO2 cylinder” from the menu, then select the cylinder diameter range that matches your bottle.
Start from the bottom of the cylinder (you expect liquid there). Press the probe vertically, flat against the wall. Any tilt or air gap gives a false “no liquid” reading.
Press the Measure button. Watch the indicator: green = liquid present at this height, red = no liquid.
Move the probe up in 5–10 cm increments. When the reading flips from green to red, you’re at the liquid level.
Take three spot readings at the transition around the cylinder circumference. Welds and shadows can distort a single reading; the consistent result across three points is the real level.

Two zones always give invalid readings: the very bottom dome (weld seam reflections) and the top neck (valve, outlet plumbing, and vapor space geometry). Stay in the cylindrical mid-section. On a typical 275 mm fire-suppression bottle, useful measurement zone runs from about 10 cm above the bottom to 10 cm below the shoulder.

Ultrasonic vs Weighing vs Pressure: Which Method Wins?

The three common ways to check a CO2 cylinder are weighing, pressure reading, and ultrasonic non-contact level. Each has a niche. The ultrasonic indicator wins for any scenario where you need a fast check without disconnecting the cylinder or moving it onto a scale.

Method	Typical Accuracy	Time per Cylinder	Need to Disconnect?	Works on Low-fill?
Weighing (scale)	±0.1 kg	2–5 min (move + weigh)	Usually yes	Yes
Pressure gauge	Poor — pressure stays ~57 bar at 20 °C until nearly empty	Instant	No	No — useless until the last 5%
Ultrasonic indicator	±5 mm (2–3% of cylinder volume)	30–60 sec	No	Yes

The killer limitation of a pressure gauge on a CO2 cylinder is that pressure stays at the saturation value (~57 bar at room temperature) as long as any liquid is present. A cylinder that’s 90% full and a cylinder that’s 10% full read the same pressure. By the time the gauge drops, you’re almost empty. This is why fire-suppression inspectors stopped relying on pressure for half-yearly checks and moved to ultrasonic.

Weighing is accurate but slow and impractical on banked installations where 16 or 24 cylinders are strapped to a manifold. Detaching each one and weighing it takes hours. Ultrasonic lets an inspector walk down the bank and check all 24 in about 15 minutes. For deeper reading on ultrasonic theory, see our ultrasonic level transmitter guide.

Where Is This Device Actually Used?

The largest installed base is fire-suppression system inspection. NFPA 12 and equivalent codes require periodic verification that every suppression cylinder is within its specified fill range, and ultrasonic is the fastest legal way to do it. A single technician clears a data-center suppression room in under an hour.

Other recurring applications:

Beverage industry — bar and restaurant CO2 supply cylinders, where detach-and-weigh interrupts service
Industrial gas distribution — cylinder-fill stations verifying post-fill weights on a sample basis
LPG distribution — propane bottles in refill stations and truck-mounted banks
Novec 1230 and FM-200 clean-agent suppression in server rooms and marine engine rooms
Halon legacy systems still in service on military and offshore platforms
Liquid nitrogen and argon low-pressure cryogenic dewars (see our cryogenic level sensor guide for continuous-monitoring alternatives)

For applications that need a permanent fixed sensor rather than a portable spot check, the ultrasonic concept doesn’t transfer well — long-term cylinder monitoring usually uses load cells on the cylinder bracket. The portable indicator is the right tool specifically when you’re walking a site and need quick verification across many cylinders.

If the method above fits your process, these are the sensors Sino-Inst ships for it. Each card links to full specs and a quote form.

SI-100 Magnetostrictive Level Transmitter

Continuous level transmitter for large bulk CO2 storage tanks, immune to vapour and pressure changes.

Flange-Mounted DP Transmitter

Differential pressure level transmitter for pressurised CO2 vessels where portable ultrasonic can’t fit.

Tank Level Sensors Selection Guide

Decision matrix to pick the right level sensor by tank contents, pressure, and mounting constraints.

FAQ

Does an ultrasonic CO2 level indicator work through insulation?

No. The probe must contact bare cylinder wall. Foam insulation, thick paint coats, or fiberglass jackets kill the signal. If the cylinder is jacketed, you have to find an inspection patch cut into the jacket, or remove a section of insulation for the measurement.

Is calibration required for each gas type?

No. The indicator detects the acoustic impedance difference between gas phase and liquid phase, which is large for every liquefied gas (CO2, Halon, FM-200, Novec 1230, propane). You don’t need a separate calibration per gas. The pre-loaded profiles are for cylinder diameters, not gas types.

What’s the accuracy on a partly-full cylinder?

Within ±5 mm at the actual liquid surface. Converted to volume, that’s about ±2–3% on a standard 275 mm diameter fire-suppression cylinder. If you need sub-1% precision, weigh the cylinder on a calibrated scale — ultrasonic is a fast check, not a fiscal-grade measurement.

Can I use the indicator on an aluminum cylinder?

Yes. Aluminum transmits ultrasound cleanly, same as steel. The indicator works on carbon steel, stainless, aluminum, glass, and unfoamed plastic up to 30 mm wall thickness. What it won’t handle is composite fiber-wrapped cylinders (CNG Type 3 or 4), because the fiber layer scatters the ultrasonic signal.

Why do I get “no liquid” on a cylinder I know is full?

Three common causes: (1) the probe isn’t flat against the wall (any tilt or air gap blocks the signal), (2) you’re measuring in the bottom dome or top neck (always invalid zones), (3) paint, rust, or grease is blocking acoustic coupling — wipe the contact patch clean or add a drop of coupling gel. Try three points around the circumference at mid-height; if all three read no liquid, the cylinder really is empty.

Get Pricing & Application Support

Sino-Inst supplies portable ultrasonic liquid-level indicators for CO2, Halon, FM-200, Novec 1230, and propane cylinder inspection. Tell us your typical cylinder diameter range and how many bottles you need to check per shift, and we’ll spec the right model. Contact our engineers below.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

SI-100 Rigid Probe Magnetostrictive Level Transmitter | 0.2-6 m, ±0.1 mm

Posted on April 18, 2026 by KimGuo11

SI-100 Rigid Probe Magnetostrictive Level Transmitter

Stainless probe, 0.2 to 6 m measuring range, ±0.1 mm accuracy, 4-20 mA / HART / Modbus, ATEX option. Built for atmospheric and pressurized tanks where you need a rigid stem instead of a flexible cable.

Range: 0.2-6 m rigid. Up to 23 m with flexible cable variant.
Accuracy: ±0.1 mm or 0.05 % of FS, whichever is greater.
Output: 4-20 mA + HART, RS-485 Modbus RTU, or 0-10 V.
Process: -40 to +125 °C standard, +200 °C with extension. PN16/PN40 flange or 1″ NPT.
Certifications: ATEX/IECEx Ex ia IIC T6 Ga (Zone 0 capable). IP67.

Request a Quote View Full Specs ↓

Why Engineers Spec the SI-100

Four reasons it gets picked over float, ultrasonic, or guided-wave radar in our daily quote requests.

±0.1 mm

Repeatable Accuracy

Better than float by ~50× and better than 4-20 mA radar by ~10× for tanks under 6 m.

No Drift

Time-of-Flight Reading

The torsional pulse on the waveguide does not drift with temperature, dielectric, or coating.

2 Outputs

4-20 mA HART + Modbus

Drops into a PLC analog input or a Modbus poll loop without buying a new transmitter.

ATEX Ex ia

Zone 0 Capable

Same body as the standard model; just add the safety barrier on the cabinet side.

Full Specification Sheet

What you will see on the line item of the quote. Download the PDF datasheet from the request form below.

Item	SI-100 Standard	SI-100 Ex (ATEX/IECEx)
Probe type	Rigid stainless rod, 316L	Rigid stainless rod, 316L
Measuring range	0.2 m – 6 m	0.2 m – 6 m
Resolution	0.01 mm	0.01 mm
Linearity	±0.05 % FS or ±0.1 mm (greater)	±0.05 % FS or ±0.1 mm (greater)
Repeatability	±0.005 % FS	±0.005 % FS
Output	4-20 mA / HART / Modbus RTU / 0-10 V	4-20 mA + HART (Ex ia) / RS-485 (Ex ia)
Power supply	24 VDC ±10 %	24 VDC via Ex ia barrier
Process temperature	-40 to +125 °C (+200 °C with extension)	-40 to +85 °C (T6) / -40 to +120 °C (T5)
Process pressure	0 – 4 MPa (40 bar)	0 – 4 MPa (40 bar)
Process connection	1″ NPT / G1″ / DN50 PN16 / DN50 PN40 flange	Same as standard
Float (included)	SUS304 ring float, 50 mm OD, ≥ 0.6 g/cm³	SUS304 ring float with Ex cable gland
Housing	Aluminum die-cast, IP67	Aluminum die-cast, IP67
Cable entry	M20 × 1.5	M20 × 1.5 with Ex cable gland
Hazardous area	Safe area only	Ex ia IIC T6…T4 Ga (Zone 0)
Approvals	CE, RoHS	CE, RoHS, ATEX, IECEx

How Magnetostriction Actually Measures Level

The transmitter head fires a low-current interrogation pulse down a tensioned waveguide wire inside the rigid stem.
A donut float wrapped around the stem carries a permanent magnet. Where the pulse meets the magnetic field, the wire twists slightly — that twist is a torsional pulse.
The torsional pulse travels back up the waveguide at ~2,830 m/s. The transmitter clocks the round-trip time.
Distance = ½ × travel time × wave speed. A 1 GHz timer gives 0.01 mm resolution.

Why it matters in the field: no capacitance plate to coat, no ultrasonic beam to scatter on foam, no microwave dielectric to fight. The pulse is mechanical and the trigger is magnetic, so dirty liquids, vapors, and dielectric changes do not affect the reading.

Where the SI-100 Fits (and Where It Doesn’t)

The rigid-stem version owns four common tank shapes. If your tank looks like one of these and the depth is under 6 metres, the SI-100 is a one-line BOM addition.

Ceiling / Suspended Tanks

Top-mount through a flange. Probe length picked to leave 50 mm dead zone at the bottom. Common in chemical dosing rooms.

Buried Fuel Tanks

Diesel, petrol, or AdBlue. 4-20 mA + HART output feeds station controllers. Choose Ex ia version for petrol.

Small Process Containers

Day tanks, mixing vessels, lube reservoirs. Short probe (300-800 mm) keeps the float stable in narrow geometry.

Agitated / Foaming Tanks

Use the external stilling-well variant. The float sits inside a side chamber so the agitator does not whip it around.

When NOT to spec the SI-100: tanks deeper than 6 m (use flexible-cable variant or guided-wave radar), liquids with floating crust or solid foam thicker than 20 mm, and any liquid with metallic suspended solids that could stick to the float.

Three Ways to Mount It

Tell us which one fits your tank when you request the quote and we will ship the right adapter pre-fitted.

1. Top Mount (Thread or Flange)

Default option. 1″ NPT, G1″, or DN50 PN16/PN40. Probe drops straight down through the tank top.

2. Positioning Ring

For tanks where you cannot drill a flange. A clamping ring holds the rigid stem at the top opening.

3. External Stilling Well

Side-mounted chamber connected by upper and lower process taps. Used for agitated, foamy, or coating liquids.

Sizing the Probe Length

The probe is cut to order. Get this wrong and you either lose dead-band at the top or pay for steel you do not need. Three numbers go on the quote:

H1 — Top Dead Zone: 50 mm minimum from the flange face down to the highest reading point. Add the height of the top fitting (a DN50 flange eats 30-60 mm).
H2 — Live Measuring Length: the distance you actually want to read. Make this the working range you care about, not the full tank height.
H3 — Bottom Dead Zone: 50 mm fixed, set by where the float magnet sits on the end stop.

Total probe length = H1 + H2 + H3, rounded up to the nearest 50 mm. For a tank 1.2 m tall with full coverage, order a 1300 mm probe (50 + 1200 + 50).

Two real-world examples from quotes we shipped last quarter:

Tank	Working Level Needed	Probe Ordered	Output Wired To
2.5 m vertical day tank, diesel	0 – 2.4 m	2500 mm rigid, 4-20 mA HART	Allen-Bradley AI card
0.8 m mixing vessel, IPA	0.1 – 0.7 m	800 mm rigid, Modbus RTU, Ex ia	Schneider M340 RS-485
4.2 m underground petrol tank	0 – 4.0 m	4200 mm rigid, 4-20 mA HART, Ex ia	Station controller

Pricing and Lead Time

FOB Shanghai, EXW China for orders ≥ 5 units. Stock items ship in 5 working days; configured items 10-15 days.

Configuration	Probe Length	Unit Price (USD, Qty 1-4)	Lead Time
SI-100 Standard, 4-20 mA	≤ 1.0 m	$680	5 days (stock)
SI-100 Standard, 4-20 mA + HART	≤ 2.0 m	$880	10 days
SI-100 Standard, Modbus RTU	≤ 3.0 m	$1,150	10 days
SI-100 Ex ia, 4-20 mA + HART	≤ 6.0 m	$1,650	15 days
SI-100 with Stilling-Well Chamber	Configured	$1,950 +	15 days

Bulk pricing (10+ units) drops 12-18 % depending on configuration. Quote turnaround is the same business day for any spec listed above.

If the SI-100 Doesn’t Fit Your Tank

Three alternatives we ship for the cases the rigid SI-100 cannot cover:

Flexible-Cable Magnetostrictive →

For tanks 6-23 m deep. Cable instead of rigid stem. Same accuracy, easier shipping.

Magnetic-Flap Level Gauge →

When you need a visible local indicator (flap column) plus the 4-20 mA signal in one device.

SMT3151 Hydrostatic →

Cheaper for water and benign liquids if ±0.1 mm is overkill. Submersible or threaded.

Frequently Asked Questions

What’s the Longest Rigid Probe You Will Build?

6 metres. Beyond that the rigid stem is hard to ship and to install, so we switch you to the flexible-cable variant which goes to 23 m.

Will It Work With Diesel That Has Water at the Bottom?

Yes, with two floats. The dual-float SI-100 gives you total liquid level (top float on diesel) and water-interface level (lower float on the diesel/water boundary). Specify on the quote.

Can I Retrofit It Where a Guided-Wave Radar Used to Be?

If the existing flange is DN50 or 1″ NPT, yes — drop-in. The 4-20 mA + HART output keeps your DCS configuration unchanged.

Does the Float Density Matter?

Standard SUS304 ring float works for liquids ≥ 0.6 g/cm³. For lighter liquids (like LPG condensate at 0.55 g/cm³) we ship a low-density titanium or PTFE float. Tell us the SG when you request the quote.

Which Output Should I Order for a Siemens S7-1500 PLC?

4-20 mA + HART for the simplest path (S7-1500 has analog input cards). If you are already on Profibus or Profinet, take the Modbus RTU version and run it through a gateway.

How Is the SI-100 Calibrated Before Shipping?

Each unit is bench-tested with the actual ordered float against a precision linear stage. A two-point calibration certificate (4 mA at empty, 20 mA at full) is included in the box. Field calibration is rarely needed.

Get a Confirmed Quote and PDF Datasheet

Tell us tank height, liquid, mounting style, and your PLC, and we will come back with a unit price and the full PDF datasheet within one business day.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

Verabar Flow Meter: Averaging Pitot Tube Specs & Comparison

Posted on April 18, 2026 by KimGuo11

Updated on April 18, 2026 — The Verabar flow meter is an averaging pitot tube that measures flow by sensing differential pressure across multiple ports in a pipe cross-section. It handles pipe sizes from DN50 to DN6000, covers gas, steam, and liquid service, and delivers ±1% accuracy with far less permanent pressure loss than an orifice plate. This page covers the Verabar working principle, full specifications, and a head-to-head comparison with the Annubar.

What Is a Verabar Averaging Pitot Tube Flow Meter?
How Does a Verabar Flow Meter Work?
Verabar Flow Meter Specifications
What Is the Difference Between Verabar and Annubar?
What Pipe Sizes and Fluids Suit a Verabar?
FAQ

What Is a Verabar Averaging Pitot Tube Flow Meter?

A Verabar flow meter is a multi-port averaging pitot tube that measures volumetric or mass flow rate by calculating the average velocity pressure across a pipe diameter. Unlike a single-point pitot tube that samples velocity at one location, the Verabar uses four or more sensing ports distributed along the probe length to capture the actual velocity profile, including boundary layer effects near the pipe wall.

The technology was originally developed by Yokogawa (formerly Dietrich Standard) under the Verabar trade name. It belongs to the family of differential pressure flow elements but differs from orifice plates, Venturi tubes, and flow nozzles in one critical way: the Verabar is an insertion element. It slides into the pipe through a single penetration point, so installation does not require cutting the pipe or breaking flanged joints on large-diameter lines.

This insertion design makes the Verabar the preferred DP element for pipes above DN200 (8 inches). An orifice plate for a DN600 line is heavy, expensive, and causes 40–70% permanent pressure loss. A Verabar in the same line causes roughly 3–5% permanent pressure loss and costs a fraction of the orifice assembly.

How Does a Verabar Flow Meter Work?

The Verabar works by measuring the difference between total pressure (impact) and static pressure at multiple points across the pipe diameter, then averaging those readings into a single DP signal.

Multi-Port Averaging Principle

The probe body has two internal chambers. The upstream face contains multiple impact ports (typically 4–8 depending on pipe size) that sense total pressure — the sum of static pressure and velocity pressure. The downstream face has low-pressure ports that sense static pressure plus a slight negative pressure from wake effects.

Each impact port is positioned at a specific distance from the pipe center according to the equal-area method (Chebyshev spacing). This ensures that each port represents an annular ring of equal cross-sectional area, so the arithmetic average of all port readings equals the true mean velocity across the full pipe section.

DP Signal and Flow Calculation

The averaged high pressure and averaged low pressure are routed to a differential pressure transmitter. The transmitter outputs a DP signal that relates to velocity by the Bernoulli equation:

V = K × √(2 × ΔP / ρ)

Where V is velocity (m/s), K is the flow coefficient (determined by probe geometry), ΔP is the measured differential pressure (Pa), and ρ is the fluid density (kg/m³). Volumetric flow rate Q then equals V × A, where A is the pipe cross-sectional area.

The Verabar’s bullet-nose profile generates a stronger DP signal than round or diamond-shaped averaging pitot tubes. Typical DP output runs 2–5 times higher than a standard round pitot probe at the same velocity, which improves the signal-to-noise ratio and extends the usable turndown range.

For applications where flow rate needs to be expressed in gallons per minute rather than standard volumetric units, see flow meters with GPM units.

Verabar Flow Meter Specifications

The table below lists the standard specification range for Verabar averaging pitot tube flow meters. Actual limits depend on the specific model variant (insertion vs flanged) and process conditions.

Parameter	Specification
Pipe Size Range	DN50–DN6000 (2″–240″)
Accuracy	±1.0% of reading (typical); ±0.5% with in-situ calibration
Repeatability	±0.1% of reading
Turndown Ratio	10:1 (standard); up to 15:1 with high-sensitivity DP transmitter
Max Operating Pressure	40 MPa (ANSI 2500 class)
Temperature Range	−40°C to +450°C (standard); up to +650°C with ceramic-coated probe
Probe Material	316L SS (standard), Hastelloy C-276, Monel, Duplex 2205
Process Connection	Insertion (compression fitting), flanged (ANSI 150–2500)
Output Signal	4–20 mA with HART (via DP transmitter); optional Modbus, FOUNDATION Fieldbus
Permanent Pressure Loss	3–5% of measured DP (vs 40–70% for orifice plate)
Straight Pipe Requirement	8D upstream / 4D downstream (minimum); 15D/7D recommended

The straight pipe requirements above are general guidelines. Actual upstream/downstream distances depend on the type of disturbance (elbow, tee, valve). For detailed spacing rules by fitting type, refer to the upstream and downstream straight pipe reference.

What Is the Difference Between Verabar and Annubar?

The Verabar (Yokogawa) and Annubar (Emerson/Rosemount) are both averaging pitot tube flow meters, but they differ in probe profile shape, signal strength, and clog resistance. The table below compares the two on the parameters that matter most for selection.

Feature	Verabar	Annubar (485)
Probe Profile	Bullet-nose (rounded leading edge)	T-shaped (flat leading edge)
DP Signal Strength	Higher — rounded profile creates stronger wake separation	Moderate — T-shape produces lower DP at same velocity
Accuracy	±1.0% of reading	±0.75% of reading (Annubar 485 with calibration)
Repeatability	±0.1%	±0.1%
Clog Resistance	Good — bullet nose sheds debris; self-cleaning in moderate-particle flows	Moderate — T-shape can collect buildup on leading face
Permanent Pressure Loss	3–5% of DP	4–8% of DP
Max Temperature	+450°C (std); +650°C (special)	+450°C (std); +600°C (special)
Max Pressure	ANSI 2500 (40 MPa)	ANSI 2500 (40 MPa)
Pipe Size Range	DN50–DN6000	DN25–DN2400
Typical Cost (DN300)	$800–$1,500	$1,200–$2,500
OEM / Manufacturer	Yokogawa (Dietrich Standard)	Emerson (Rosemount)

When to Choose Verabar Over Annubar

Choose the Verabar when you need coverage for very large pipes (above DN2400), when the process fluid carries light particulates (the bullet nose is less prone to fouling), or when the project budget is tight. The Verabar also generates a stronger DP signal at low velocities, which helps in turndown-sensitive applications like natural gas distribution lines.

Choose the Annubar when the application requires traceable ±0.75% accuracy without in-situ calibration, when you already have a Rosemount DP transmitter infrastructure, or when the pipe is below DN50 (the Annubar goes down to DN25).

Both options produce far less permanent pressure loss than orifice plates or flow nozzles. For a broader comparison of DP flow elements including Venturi tubes, see the flow element selection guide.

What Pipe Sizes and Fluids Suit a Verabar?

The Verabar averaging pitot tube covers DN50 to DN6000 (2″ to 240″), making it one of the widest pipe-size ranges among all flow meter types. Its sweet spot is DN200 and above, where competing technologies become impractical or prohibitively expensive.

Gas Applications

Natural gas, compressed air, nitrogen, flue gas, and biogas. The Verabar’s strong DP signal works well with gases because gas DP readings are inherently small. Typical gas velocities range from 3 m/s to 60 m/s. For custody transfer, pair with a multivariable DP transmitter that compensates for pressure and temperature in real time.

Steam Applications

Saturated steam and superheated steam up to +450°C (or +650°C with special probes). The insertion mounting style is a major advantage for steam service — hot-tapping the probe into a live steam line takes less than an hour, with no shutdown required. Steam velocities from 5 m/s to 80 m/s are within the standard operating range.

Liquid Applications

Water, condensate, light hydrocarbons, and chemical solutions. For dirty liquids with suspended solids, select a probe with purge ports that allow periodic cleaning without removal. The Verabar is not recommended for high-viscosity fluids (above 30 cP) because low Reynolds numbers distort the velocity profile and degrade accuracy.

Sizing Consideration for Large Pipes

For pipes above DN1000 (40″), the probe length exceeds 1 meter. At this length, structural vibration from vortex shedding can become a concern. Verify that the probe’s natural frequency is at least 3× the expected vortex shedding frequency at maximum velocity. Most manufacturers provide vibration analysis as part of the sizing calculation for DN1000+ applications.

Featured DP & Averaging Pitot Flow Meters

Sino-Inst manufactures averaging pitot tube flow meters equivalent to the Verabar design, along with companion DP transmitters and alternative flow elements for pipes below DN50.

Averaging Pitot Tube (Verabar-Style)

Verabar averaging pitot tube for DN50-DN6000 gas, steam and liquid lines. Just 3-5% permanent pressure loss vs 40-70% for orifice plates — huge energy savings on large pipes.

Smart DP Transmitter SI-3051

SMT3151DP smart DP transmitter with German MEMS monocrystalline silicon sensor. HART and RS485 Modbus RTU protocols, 0.075% accuracy — the go-to for flow, level and density loops.

Orifice Plate Flow Meter

SI-LG orifice plate flow meter — the standard DP primary element for steam, gas and clean liquids. Supports concentric, segmental and eccentric plates, pairs with any smart DP transmitter.

FAQ

What is a Verabar flow meter?

A Verabar flow meter is an averaging pitot tube that measures flow by sensing differential pressure at multiple points across a pipe diameter. It was developed by Yokogawa (originally Dietrich Standard) and uses a bullet-nose probe profile to generate a strong, stable DP signal. It covers pipe sizes from DN50 to DN6000 and works with gas, steam, and liquid.

How accurate is a Verabar flow meter?

Standard accuracy is ±1.0% of reading with factory calibration. With in-situ calibration against a reference meter, accuracy can reach ±0.5% of reading. Repeatability is ±0.1%. These figures hold across the 10:1 turndown range; accuracy degrades below 10% of full-scale flow.

Can a Verabar be installed without shutting down the line?

Yes. The insertion-type Verabar supports hot-tap installation, where a valve and fitting assembly allow the probe to be inserted into a pressurized, flowing pipe. This is one of its major advantages for retrofit applications in steam, gas, and water systems where shutdown is costly or not allowed.

What maintenance does a Verabar need?

Routine maintenance involves checking the impulse tubing for condensate (gas/steam service) or air (liquid service) and verifying the DP transmitter zero. In dirty service, periodic purging or rod-out of the sensing ports prevents buildup. The probe has no moving parts, so mechanical wear is not a factor. Typical inspection interval is 12–24 months depending on fluid cleanliness.

How does a Verabar compare to an orifice plate?

The Verabar causes 3–5% permanent pressure loss versus 40–70% for an orifice plate. It is cheaper and faster to install on large pipes (DN200+) because it does not require flanged pipe modification. However, the orifice plate has a longer track record in custody-transfer applications and is backed by more extensive standards (ISO 5167). For pipes below DN100, an orifice plate is often more practical and equally affordable.

Get a Verabar Flow Meter Quote

Sino-Inst supplies Verabar averaging pitot tube flow meters in insertion and flanged configurations, with optional integrated DP transmitters. We provide sizing calculations, material selection support, and hot-tap installation guidance for pipes up to DN6000. Tell us your pipe size, fluid, and operating conditions — we will send you a spec sheet and delivered price within 24 hours.

Request a Quote

Please enable JavaScript in your browser to submit the form

Verabar is a registered trademark of Yokogawa Electric Corporation. Annubar is a registered trademark of Emerson Electric Co. Product names are used for reference purposes only. Sino-Inst is an independent supplier and is not affiliated with Yokogawa or Emerson.

KimGuo11

drurylandetheatre.com

How to Install a Pressure Transmitter: Step-by-Step Guide

Posted on April 17, 2026 by KimGuo11

Updated Apr 17, 2026 — A pressure transmitter is only as accurate as its installation. Get the mounting position wrong, run sloppy impulse lines, or skip the root valve, and you will chase phantom readings for months. This guide walks through every step — from choosing a tap location to final loop checkout — so your transmitter reads true on day one.

How Do You Install a Pressure Transmitter?
Where Should You Mount a Pressure Transmitter?
How Do You Run Impulse Tubing to a Pressure Transmitter?
What Is the Correct Wiring for a 4-20mA Pressure Transmitter?
What Are 5 Common Pressure Transmitter Installation Mistakes?
FAQ

How Do You Install a Pressure Transmitter?

Pressure transmitter installation follows four stages: select the tap and mounting location, run impulse tubing with proper slope, mount and orient the transmitter body, then wire and commission the 4-20 mA loop. Roughly 80 % of installation quality comes from the first two stages — planning and piping — while physical mounting and wiring account for the remaining 20 %. See the same of-reading vs of-full-scale logic on torque sensors for the engineer’s full decision tree.

Choose the measurement point. Pick a straight pipe run with at least 5 D upstream and 3 D downstream of the tap. Avoid dead legs, elbows, and control-valve outlets.
Set the mounting position. Gas taps above the pipe centerline, liquid taps below. Steam requires a condensate pot between the tap and the transmitter.
Install impulse tubing. Slope tubing ≥ 1:12 toward the tap (liquid) or toward the transmitter (gas). Keep total run under 15 m and include a root valve, block valve, and bleed valve.
Wire and commission. Connect shielded 2-wire cable, verify 4-20 mA output at the DCS/PLC, perform a zero trim at atmospheric pressure, and apply a known pressure for span check.

If you want to understand the sensing principle before you start, read our overview of how a pressure transmitter works.

Where Should You Mount a Pressure Transmitter?

Mount the transmitter so that the process media cannot trap gas pockets (in liquid service) or accumulate condensate (in gas service). The table below gives the baseline rules. Every exception — such as a corrosive gas requiring a seal pot — still follows the same logic: keep unwanted phase out of the impulse line.

Media Type	Mount Position	Impulse Slope	Reason
Clean gas	Above the tap, transmitter higher than tap	≥ 1:12 down toward tap	Condensate drains back to pipe; no liquid leg error
Clean liquid	Below the tap, transmitter lower than tap	≥ 1:12 down toward transmitter	Gas vents back to pipe; impulse line stays liquid-filled
Steam	Below condensate pot, same elevation both legs	Level between pot and transmitter	Equal condensate legs cancel head offset
Slurry / dirty liquid	Below tap with flush/purge connection	≥ 1:12 down toward transmitter	Allows periodic flushing to prevent clogging

For differential pressure applications — such as orifice-plate flow — both high-side and low-side taps follow the same media rules. Our DP transmitter installation guide covers 3-valve and 5-valve manifold procedures in detail.

Orientation of the Transmitter Body

Most transmitters allow mounting in any orientation, but flange-mounted units should have the diaphragm facing downward in liquid service so air cannot collect against the sensing element. In gas service, face the diaphragm upward or sideways. Always confirm the manufacturer datasheet; some models require a specific mounting angle to meet stated accuracy.

How Do You Run Impulse Tubing to a Pressure Transmitter?

Impulse tubing (also called sensing line) connects the process tap to the transmitter. Bad tubing practice is the single biggest source of measurement error in pressure systems. Follow these rules:

Tubing material and size. Use 12 mm OD (½ in.) 316 SS tubing for most chemical and petrochemical services. For high-purity or sanitary applications, use electropolished tubing.
Slope. Maintain a continuous slope of ≥ 1:12 (approximately 5°). No sags, no U-bends, no horizontal traps. Even a small pocket will trap air in liquid lines or condensate in gas lines.
Length. Keep total impulse line length under 15 m. Longer lines slow dynamic response and increase the chance of temperature-induced errors.
Valve arrangement. Install a root valve at the process tap, a block valve immediately upstream of the transmitter, and a bleed valve between the block valve and the transmitter. This three-valve sequence lets you isolate, vent, and remove the transmitter without shutting down the process.
Heat tracing. In any ambient below 0 °C, heat-trace the impulse line and insulate it. Frozen impulse lines crack fittings and destroy diaphragms.

Understanding static vs dynamic pressure helps when choosing the tap location — always measure static pressure in a straight run, never at a point where velocity pressure dominates.

What Is the Correct Wiring for a 4-20 mA Pressure Transmitter?

Most field-mount pressure transmitters use a 2-wire, loop-powered 4-20 mA connection: the same two wires carry both power and signal. The 24 V DC supply sits at the control room; the transmitter modulates current between 4 mA (zero) and 20 mA (full scale).

2-Wire vs 4-Wire

2-wire (loop-powered). Two conductors — positive and negative. Power supply voltage must be 12–36 V DC (check transmitter minimum operating voltage). Maximum loop resistance = (V_supply − V_min) / 0.02 A.
4-wire (self-powered). Separate power pair and signal pair. Used when the transmitter requires higher power — for example, units with an integral display or HART/Wi-Fi module drawing > 30 mA.

Cable and Grounding Rules

Use shielded twisted-pair cable rated for the ambient temperature range (-40 °C to +85 °C typical).
Ground the shield at the control room end only to avoid ground loops.
Route signal cable in a separate tray from power cables (> 300 mm separation).
Maximum cable run depends on wire gauge: approximately 1 500 m for 1.5 mm² conductor at 24 V supply.

For wiring diagrams covering every common configuration — including HART, split-range, and safety loops — see our pressure transducer wiring diagram reference.

What Are 5 Common Pressure Transmitter Installation Mistakes?

These five errors account for the majority of warranty returns and field callbacks. Each one is preventable with basic planning.

Wrong orientation for the media. Mounting a transmitter above the tap in liquid service traps air against the diaphragm, causing a constant positive offset. Flip the transmitter below the tap.
Missing root valve. Without a root valve at the process nozzle, you cannot isolate the impulse line. Any maintenance requires a full process shutdown — or a dangerous line break under pressure.
Impulse line too long or poorly sloped. Lines over 15 m respond slowly to pressure changes and pick up ambient temperature errors. Sags in the line trap condensate or gas, creating a variable hydrostatic offset.
No heat tracing in cold climates. Water-filled impulse lines freeze below 0 °C. Ice expansion cracks compression fittings and can rupture the sensing diaphragm, causing process leaks.
Over-torquing the diaphragm flange. Flange bolts torqued beyond the manufacturer specification (typically 15–20 Nm for ¼-inch NPT process connections) deform the diaphragm seal, shifting zero and reducing span. Always use a calibrated torque wrench.

If you are seeing erratic 4-20 mA readings after installation, our 4-20 mA fault diagnosis guide walks through every common failure mode.

Frequently Asked Questions

Can I mount a pressure transmitter horizontally?

Yes. Most modern transmitters accept any orientation. However, a horizontal diaphragm in liquid service may trap micro-bubbles. If the datasheet specifies a preferred angle, follow it and re-zero after installation.

How far can impulse tubing run from the tap to the transmitter?

Keep impulse lines under 15 m for gauge and absolute pressure. For differential pressure service, both legs should be equal in length and as short as practical — ideally under 10 m.

Do I need a condensate pot for steam pressure measurement?

Yes. A condensate pot (also called a siphon or pigtail) fills the impulse line with water, protecting the diaphragm from live steam. Without it, steam collapses at the diaphragm face and damages the sensor over time.

What supply voltage does a 4-20 mA transmitter need?

Most 2-wire transmitters operate on 12–36 V DC. The actual minimum depends on loop resistance. Calculate: V_min = transmitter minimum voltage + (0.02 A × total loop resistance).

Should I calibrate the transmitter before or after mounting?

Perform a bench calibration before mounting to confirm factory specs. After mounting, do a zero trim at the installed elevation. A full span calibration after mounting is only necessary if you changed the range.

Featured Pressure Transmitters

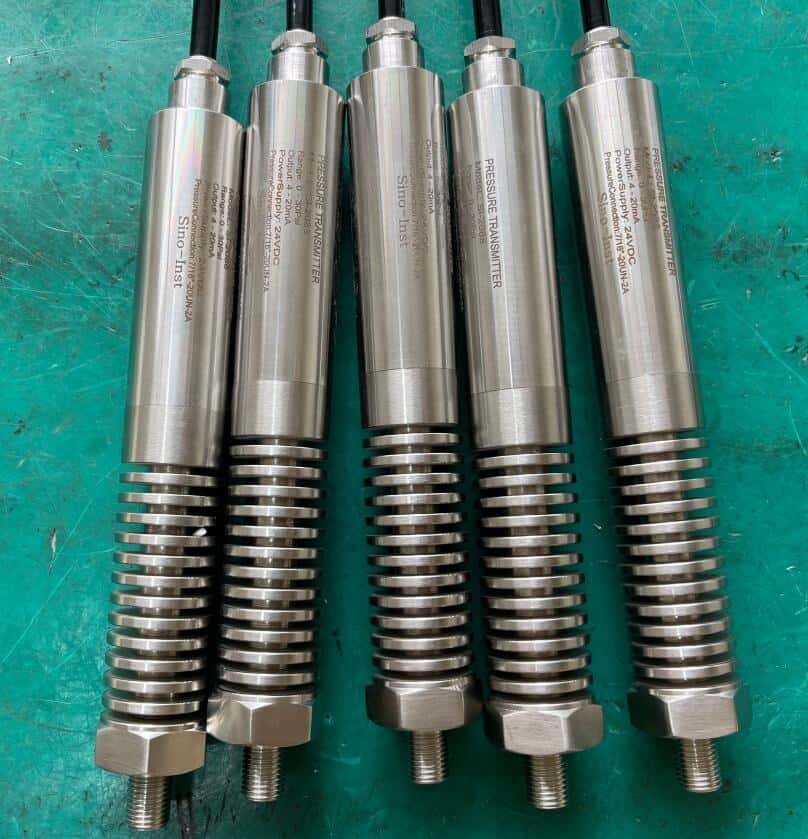

High Temperature Pressure Transmitter

High-temperature pressure transducer for media up to 300 °C (further extended with cooling tube). 4-20mA output for boiler drums, reactors and superheated-steam lines.

Differential Pressure Transmitter

DP transmitters measure pressure difference across gas, liquid or steam. 4-20mA / 0-5V output drives liquid level, density and flow loops across process plants.

Sanitary Pressure Transmitter

SI-350 sanitary (tri-clamp / hygienic) pressure transmitter for food, beverage and pharma. Flush diaphragm avoids product pockets; tri-clamp, M27×2 and flange process connections available.

Need Help Selecting the Right Pressure Transmitter?

Our engineering team can review your P&ID, recommend the correct transmitter model, and provide a detailed installation drawing for your specific application. Fill out the form below or contact us directly.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

6 Types of Flow Elements Compared: Selection Guide

Posted on April 17, 2026 by KimGuo11

Updated Apr 17, 2026 — Differential pressure (DP) flow measurement relies on a flow element — a restriction in the pipe that creates a pressure drop proportional to flow rate. But not all flow elements perform equally. Each type trades off accuracy, pressure loss, and cost differently. This guide compares all six major types of flow elements with real specs and a decision framework so you can pick the right one for your application.

What Is a Flow Element?
What Are the 6 Main Types of Flow Elements?
How Do You Compare Flow Elements?
What Is the Difference Between an Orifice Plate and a Venturi Tube?
How Do You Select the Right Flow Element?
FAQ

What Is a Flow Element?

A flow element is a restriction placed inside a pipe that creates a measurable pressure drop proportional to the flow rate. The DP transmitter reads that pressure difference, and the flow rate is calculated using Bernoulli’s equation: Q is proportional to the square root of the differential pressure.

All DP flow elements share this same operating principle. What separates them is the geometry of the restriction — and that geometry determines accuracy, permanent pressure loss, turndown ratio, and how they handle dirty or multiphase fluids. The discharge coefficient (Cd) captures these geometric differences in a single number.

What Are the 6 Main Types of Flow Elements?

The six main types of DP flow elements are: orifice plate, Venturi tube, flow nozzle, wedge meter, V-cone, and averaging pitot tube. Each uses a different restriction geometry to generate differential pressure.

Orifice Plate

The orifice plate is a thin plate with a concentric bore mounted between flanges. It is the most widely installed flow element globally, covering roughly 40% of all industrial flow measurements. Cd is approximately 0.6, accuracy is typically +/-0.5% to +/-2% of rate depending on installation, and turndown ratio is limited to about 3:1 due to the square-root relationship. Permanent pressure loss runs 40-80% of the generated DP.

Venturi Tube

A Venturi tube uses a converging inlet cone, a cylindrical throat, and a diverging recovery cone to gradually accelerate and decelerate flow. This smooth geometry recovers 80-90% of the generated pressure drop. Cd is around 0.98. Accuracy reaches +/-0.5% of rate. The Venturi handles dirty and slurry fluids well because there are no sharp edges to erode, but the unit cost is roughly 5-10x that of an orifice plate.

Flow Nozzle

The flow nozzle sits between an orifice plate and a Venturi in both cost and performance. It features a smooth elliptical inlet converging to a cylindrical throat, but lacks the Venturi’s recovery cone. Pressure recovery is about 40-60%. Cd is approximately 0.99. Flow nozzles are common in steam and high-velocity gas applications where erosion would damage a sharp-edged orifice plate.

Wedge Meter

The wedge meter uses a V-shaped restriction welded into the top of the pipe. It excels with slurries, viscous liquids, and dirty fluids because there are no cavities or stagnation points where solids can accumulate. Accuracy is typically +/-0.5% to +/-1.5%. Turndown reaches 5:1 to 8:1. The wedge geometry works reliably at low Reynolds numbers (below 10,000), where orifice plates become unreliable.

V-Cone

The V-cone positions a cone-shaped element in the center of the pipe, forcing flow to the annular space along the pipe wall. This design conditions the flow profile internally, reducing straight-run requirements to 0-3 diameters upstream. Accuracy is +/-0.5%, turndown reaches 10:1, and pressure recovery is 50-70%. The V-cone is a strong choice for tight installations where long straight runs are unavailable.

Averaging Pitot Tube

An averaging pitot tube (such as an Annubar) inserts a multi-port sensor across the pipe diameter, measuring both total and static pressure at multiple points across the flow profile. Permanent pressure loss is the lowest of any DP element — typically below 5% of the generated DP. Accuracy is +/-0.8% to +/-1.5%. Installation cost is low since the sensor can be hot-tapped into existing pipe without shutdown. Best suited for large pipes (DN200+) in HVAC, utility water, and stack gas.

How Do You Compare Flow Elements?

You compare flow elements across five performance dimensions: accuracy, permanent pressure loss, turndown ratio, relative cost, and application fit (see our companion guide on K-factor calibration). The table below puts all six elements side by side.

Flow Element	Accuracy (% of rate)	Pressure Loss (% of DP)	Turndown	Relative Cost	Best Application
Orifice Plate	+/-0.5 to +/-2.0	40-80%	3:1	1x (baseline)	Clean gas/liquid, budget projects
Venturi Tube	+/-0.5	10-20%	4:1	5-10x	High-value fluids, slurries, large pipes
Flow Nozzle	+/-0.5 to +/-1.0	40-60%	4:1	2-4x	High-velocity steam and gas
Wedge Meter	+/-0.5 to +/-1.5	40-60%	5:1 to 8:1	3-5x	Slurries, viscous fluids, low Re
V-Cone	+/-0.5	30-50%	10:1	4-7x	Short straight runs, wet gas
Averaging Pitot Tube	+/-0.8 to +/-1.5	<5%	4:1	1-2x	Large pipes, HVAC, retrofit

The key takeaway: orifice plates dominate on cost, but they pay for that savings with the highest pressure loss. For high-value fluids — natural gas, refined chemicals, steam — the Venturi’s 85% pressure recovery translates directly into pumping or compression energy savings that often offset the higher purchase price within 1-3 years.

What Is the Difference Between an Orifice Plate and a Venturi Tube?

The core difference is pressure recovery. An orifice plate recovers only 15-20% of the generated DP, while a Venturi tube recovers 80-90%. This single difference cascades into cost, maintenance, and application decisions.

Parameter	Orifice Plate	Venturi Tube
Pressure Recovery	15-20%	80-90%
Cd	~0.6	~0.98
Purchase Cost (DN100)	$200-$600	$2,000-$6,000
Maintenance	Plate replacement every 2-5 yrs (erosion)	Minimal — no wearing edges
Straight Run Upstream	15-40D	5-10D
Dirty Fluid Tolerance	Low (edge buildup)	High (smooth bore)
Pipe Sizes	DN15 to DN1000+	DN50 to DN3000+

Consider a 10-inch natural gas pipeline running at 500 SCFM. An orifice plate creates roughly 50 kPa of permanent loss, while a Venturi on the same line loses about 8 kPa. That 42 kPa difference, multiplied across 8,760 hours/year of compressor runtime, can cost thousands in electricity annually. For steam flow measurement, where every kPa of wasted pressure translates to lost thermal energy, the argument for a Venturi or flow nozzle strengthens further.

So when should you stick with an orifice plate? When the fluid is low-value (cooling water, ambient air), the line pressure is high enough that losses don’t matter, or the project budget is tight. Orifice plates are also easiest to re-range — just swap the plate for a different bore.

How Do You Select the Right Flow Element?

Follow a three-step decision process to narrow down six options to one or two candidates.

Step 1: Check Fluid Properties

Is the fluid clean, dirty, or a slurry? For clean gas or liquid, all six elements work. For dirty or viscous fluids, eliminate the orifice plate and averaging pitot tube — solids will foul the pressure taps or erode the sharp orifice edge. Wedge meters and Venturi tubes handle dirty service best.

Step 2: Check Your Pressure Budget

Can the process afford permanent pressure loss? If the system is gravity-fed or the pump is already near its limit, you need a low-loss element: Venturi tube or averaging pitot tube. If line pressure is 20 bar or higher and the loss is negligible relative to system pressure, an orifice plate is perfectly acceptable.

Step 3: Check Accuracy and Turndown Requirements

Do you need +/-0.5% accuracy with custody-transfer traceability? Venturi or V-cone. Is +/-2% enough for process monitoring? An orifice plate saves money. Need turndown beyond 4:1? The V-cone reaches 10:1. Understanding flow meter K-factor behavior across the range helps confirm whether your candidate element stays within spec at both low and high flows.

Frequently Asked Questions

What is the most common flow element?

The orifice plate. It accounts for approximately 40% of all industrial flow measurements worldwide, primarily because of its low cost, simplicity, and the extensive empirical data (ISO 5167) supporting its calibration.

Which flow element has the lowest pressure loss?

The averaging pitot tube produces the lowest permanent pressure loss — typically less than 5% of the generated DP. The Venturi tube comes second, recovering 80-90% of the DP through its diverging cone.

Can I use an orifice plate for steam?

Yes, but flow nozzles are preferred for high-velocity superheated steam. The sharp orifice edge erodes faster in wet or high-velocity steam. If budget requires an orifice plate, use stainless steel 316 or Monel and plan for more frequent inspections.

What turndown ratio can a DP flow element achieve?

Standard orifice plates and pitot tubes achieve 3:1 to 4:1 turndown. V-cone meters reach 10:1. Using stacked DP transmitters or multi-range transmitters can extend turndown to 8:1 or beyond for most element types.

Do flow elements need calibration?

Orifice plates, Venturi tubes, and flow nozzles manufactured to ISO 5167 can be installed without wet calibration — their Cd values are predicted from geometry and Reynolds number. V-cones, wedge meters, and pitot tubes typically require factory calibration against a reference standard.

Featured Flow Elements from Sino-Inst

Orifice Plate Flow Meter

SI-LG orifice plate flow meter — the standard DP primary element for steam, gas and clean liquids. Supports concentric, segmental and eccentric plates, pairs with any smart DP transmitter.

Venturi Tube

Classical venturi flow meter with low permanent pressure loss and high repeatability. Long service life on dirty liquids, gas and steam where orifice plates wear out fast.

V-Cone Flow Meter

V-cone flow meter (inner-cone / integrated cone type) for DP flow measurement in water, steam, natural gas and dirty process fluids. Rated to 450 °C and 40 MPa with high turndown and low pressure recovery.

Need help selecting a flow element for your application? Send us your pipe size, fluid type, operating pressure and temperature, and required accuracy. Our engineers will recommend the right element and provide a quotation — typically within 24 hours.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

What Is a Metal Tube Flow Meter? Rotameter Specs & Selection Guide

Posted on April 15, 2026 by KimGuo11

Updated: April 15, 2026

A metal tube flow meter is a variable-area (VA) rotameter built with a stainless steel measuring tube instead of glass. A float inside the tube rises to a height proportional to the flow rate, and a magnetic coupling transfers that position to an external scale or a 4–20 mA transmitter. It’s the standard choice for high-pressure, high-temperature, or opaque fluids where a glass rotameter won’t survive.

This guide covers the working principle, when to pick metal tube over glass or digital flow meters, accuracy and pressure limits, and what to specify when ordering one. If you already know you need a rotameter and just want the specs, jump to the comparison table and product cards below.

What Is a Metal Tube Flow Meter?
How Does a Metal Tube Rotameter Work?
Metal Tube vs Glass Tube vs Digital Rotameter
What Pressure, Temperature and Accuracy Can It Handle?
Where Are Metal Tube Flow Meters Used?
How to Specify a Metal Tube Flow Meter
Featured Metal Tube Rotameters
FAQ

What Is a Metal Tube Flow Meter?

A metal tube flow meter — also called a metal tube rotameter or LZ-series variable area flow meter — measures liquid or gas flow using a float suspended in a vertical metal tube. “Metal tube” distinguishes it from the glass-tube rotameters used for low-pressure water and air service.

Typical construction: 304 or 316L stainless tube, a stainless or Hastelloy float, and an external magnetic indicator with pointer or LCD display. Wetted parts can be PTFE-lined for acid and chlorine service. Connection is flanged or threaded, sizes DN15–DN200.

How Does a Metal Tube Rotameter Work?

Fluid enters the bottom, flows upward, and lifts a float until the upward drag force balances gravity. Higher flow pushes the float higher. A permanent magnet inside the float couples through the stainless wall to an external indicator or transmitter — no mechanical feedthrough, no seals to leak.

The governing equation is a balance between float weight and the dynamic pressure of flow through the annular gap:

Q = C_d × A × √(2 × g × V_f × (ρ_f − ρ) / (A_f × ρ))

Where Q is volumetric flow, A is the annular flow area, V_f and A_f are the float volume and cross-section, ρ_f and ρ are float and fluid density. What this tells you in practice: a float calibrated for water will read wrong on heavier oils or gases — always calibrate for the specific fluid.

For a deeper comparison of variable-area flow measurement vs other technologies, see our rotameter vs flow meter comparison.

Metal Tube vs Glass Tube vs Digital Rotameter

Metal tube is the right answer when pressure, temperature, or opacity rules out glass. Digital VA meters add outputs but cost more.

Parameter	Glass Tube	Metal Tube	Digital VA
Max Pressure	1 MPa (145 psi)	25 MPa (3,600 psi)	25 MPa
Max Temperature	120 °C	300 °C	300 °C
Accuracy	±2% – ±5% FS	±1.5% – ±2.5% FS	±1% FS
Turndown	10:1	10:1	20:1
Output	Visual only	Visual + 4–20 mA / HART / alarm	4–20 mA / HART / Modbus
Opaque / colored fluid	Unreadable	OK (magnetic coupling)	OK
Relative cost	1×	3–4×	5–7×

Pick metal tube when you’re above 10 bar, above 120 °C, or measuring oil, slurry, or steam condensate. Stick with glass for clean low-pressure water and air. Pay for digital VA only if you need remote output on fluids where a magnetic flow meter or vortex flow meter won’t work.

What Pressure, Temperature and Accuracy Can It Handle?

Typical metal tube rotameter specs for standard LZ-series:

Size range: DN15 to DN200 (½” to 8″)
Flow range: 2.5 L/h to 100 m³/h for water; 0.1 to 1,000 Nm³/h for air
Pressure: PN16 to PN64 standard; PN250 on request
Temperature: −40 °C to +300 °C; higher with remote indicator
Accuracy: ±1.5% of full scale (±1% for calibrated premium units)
Repeatability: ±0.5%
Turndown ratio: 10:1
Outputs: local pointer, LCD, 4–20 mA, HART, alarm contact, pulse

Where Are Metal Tube Flow Meters Used?

Metal tube rotameters dominate three duty areas where digital flow meters either cost too much or can’t cope with the fluid.

Chemical injection and dosing. Low flow, aggressive fluids, and the need for a local visual indicator make rotameters the default on batch reactors and wastewater treatment skids.
Utility gas and steam condensate. Where upstream straight run is short and accuracy requirements are moderate, a metal tube VA is simpler than Coriolis or thermal mass.
Oil and lubricant supply lines. Dark fluids make glass rotameters unreadable. Magnetic coupling solves this without electronics.
High-pressure gas cylinders and analyzers. PN64+ rating handles industrial gas distribution without bulky electronics.

How to Specify a Metal Tube Flow Meter

Get these six items right on the RFQ and you’ll receive a workable quote without back-and-forth.

Fluid. Name and density/viscosity. “Water” isn’t enough — brine, DI water, and boiler feed all calibrate differently.
Flow range. Minimum and maximum normal flow. Size for the meter’s mid-range, not the max.
Operating pressure and temperature. Nominal and maximum. Adds 20% margin as a default.
Connection type. Flanged (ANSI B16.5 or EN 1092-1) vs threaded; pipe size and rating.
Output and display. Local pointer only, LCD+4–20 mA, HART, alarm switches — each adds cost.
Orientation and mounting. Vertical is standard. Horizontal or top-mount needs a specific float design — call it out.

Common mistake on RFQs: asking for a single meter to cover 0–100 m³/h on the same spec sheet. Turndown is 10:1, so that unit will not read below 10 m³/h reliably. Either split into two meters or switch to a vortex or electromagnetic meter with 100:1 turndown.

Featured Metal Tube Rotameters

LZ Metal Tube Rotameter

Variable-area metal-tube rotameter for liquid, gas and steam in low-flow lines. Local dial plus optional remote 4-20mA transmitter — built for small-flow chemical dosing and utility service.

High-Temp Metal Rotameter

Metal-tube rotameter rated to 25 MPa for high-pressure liquid and gas service. Local dial plus optional 4-20mA output — built for hydraulic, LNG and chemical-injection skids.

PTFE-Lined Metal Rotameter

Variable-area metal-tube rotameter for liquid, gas and steam in low-flow lines. Local dial plus optional remote 4-20mA transmitter — built for small-flow chemical dosing and utility service.

FAQ

What does LZ mean on a metal tube rotameter?

LZ is the Chinese industry naming code for metal tube variable-area flow meters. LZD is a version with damping, LZB has been superseded by LZ for glass-tube designs. Spec sheets from Chinese manufacturers will use LZ-, LZB-, LZD- prefixes interchangeably.

Does a metal tube rotameter need straight pipe upstream?

Yes — 5 pipe diameters upstream and 250 mm downstream is the standard recommendation. Turbulence pushes the float off centre and skews the reading. See the full flow meter straight length requirements.

Can a metal tube rotameter measure gas and liquid with the same unit?

No. The float is sized for the fluid’s density. A float calibrated for air won’t measure water correctly. Order separate units or ask for a dual-calibration chart if flow alternates between two known fluids.

How often does a metal tube rotameter need recalibration?

Every 2–3 years for process use. Check the float visually after any line flush — debris wedged in the annular gap causes readings to stick at specific values. Our flow meter calibration guide covers the full procedure.

What’s the minimum viscosity a metal tube rotameter can handle?

Viscosity immunity varies by float type. Standard ball floats work up to ~30 cP. For heavier lubricants and syrups, specify a viscosity-immune float (V-shape or dual-ring) which extends the range to ~300 cP.

Are metal tube rotameters ATEX certified?

Yes — most manufacturers offer ATEX Ex ia or Ex d versions for hazardous area installation. Specify the zone and gas group on the order. Standard mechanical pointer units without electronics are inherently suitable for most hazardous areas.

Ready to spec a metal tube rotameter? Send us fluid, flow range, pressure, temperature, and connection size. Our engineers reply within 24 hours with a sized unit and a price — no account needed.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

Float Switch for Water Tank: Wiring Diagrams + Troubleshooting

Posted on April 15, 2026 by KimGuo11

Updated: April 16, 2026 | By Sino-Inst Engineering Team

A float switch on a water tank is just a mechanical contact in your pump’s power loop. When the float rises, the contact opens (or closes); the pump stops (or starts). 90% of the calls we get about float switch failures are not failed switches at all — they are wiring mistakes, wrong terminal selection (NO vs NC), or pumps drawing more current than the switch’s contacts can handle. This page walks through the three wiring patterns that cover most water tank applications and a step-by-step fault-finding flow.

Quick wiring answer (read this first)
How a float switch interrupts the pump circuit
NO or NC: choosing the right terminal for fill or empty
Scenario A: single float driving the pump directly
Scenario B: dual float for fill and high-level cutoff
Scenario C: float through a contactor for large pumps
Five wiring mistakes that burn out pumps and switches
Troubleshooting flow when the pump won’t stop or won’t start
When to replace the switch (and when not to)
FAQ

Quick wiring answer (read this first)

For an emptying tank (sump pump that runs when level rises): use the Normally Open (NO) contact. Float floats up → NO closes → pump runs.

For a filling tank (cistern pump that runs when level drops): use the Normally Closed (NC) contact. Float drops → NC stays closed → pump runs to refill.

If the float switch is rated for less amperage than your pump’s full-load current (FLA), wire it to a contactor or pump relay coil instead of directly to the motor. This is covered in Scenario C below.

How a float switch interrupts the pump circuit

A float switch is a single-pole device. Inside the float housing is either a mercury bulb (older designs), a steel ball that rolls into a microswitch (modern tilt-type), or a sealed reed switch on a stem with a magnet inside the float. All three behave the same way at the terminals: there is a common (C) wire and either a normally open (NO) or normally closed (NC) wire — sometimes both, in a single-pole double-throw (SPDT) switch.

The float switch is wired in series with one leg of the pump’s power supply. Power flows from the line, through the switch contact, through the pump motor, and back to neutral. Open the contact and the pump loses power. There is no logic, no controller, no signal — it is the same as a wall light switch with a heavier rating.

Cable-tilt floats use the cable itself as the pivot. The length of free cable below the cord grip sets the differential between pump-on and pump-off levels. For tank gauging applications that need continuous level (not just on/off), see our guide on tank level sensor types and selection.

NO or NC: choosing the right terminal for fill or empty

Read the application backwards. Decide first what state the pump must be in when the tank is full, then pick the contact that gives you that state.

Application	Pump should run when	Float position when running	Use terminal
Sump / sewage / lift pump	Tank is filling up (empty it)	Float UP	NO (closes when float rises)
Cistern / make-up water	Tank is draining (refill it)	Float DOWN	NC (closes when float drops)
High-level alarm only	Level is dangerously high	Float UP	NO to alarm coil
Low-level dry-run cutout	Level is too low (must STOP pump)	Float UP (cuts off when float drops)	NO to interlock chain

If your float switch only has two wires, the manufacturer has pre-wired it for one mode. Cable-tilt floats labeled “pump down” or “drain” are NO; floats labeled “pump up” or “fill” are NC. Checking with a multimeter on continuity is faster than reading the data sheet — flip the float by hand and watch the beep.

Scenario A: single float driving the pump directly

This is the simplest setup. Use it when the pump’s full-load amperage is below the float switch’s contact rating (typically 10A at 250VAC for a quality cable-tilt float, 5A for cheap reed-stem types).

Cut the line (hot) wire of the pump cord, not the neutral. Cutting neutral leaves the pump energized when the float opens — a shock risk during service.
Strip both ends of the cut and one lead of the float switch. Junction them in a watertight box outside the tank if possible.
Connect line-in → float common; float NO (or NC, per the table above) → pump line-in.
Cap or insulate the unused float lead (NC if you used NO, and vice versa). A floating bare conductor in a damp pump pit is the #1 reason these systems fail.
Bond the pump’s green/ground wire all the way through to the supply ground. The float switch never interrupts ground.

Cable-tilt models (the egg-shaped floats on a cord) self-set their pump-on / pump-off differential by the length of cord below the cable clamp. A short tether (4–6 inches) gives a tight ±3 inch level band; a long tether (12–18 inches) gives a 12+ inch band. Long tethers reduce pump cycling, which is what kills small submersibles.

Scenario B: dual float for fill and high-level cutoff

Use two floats when one float can’t safely handle both the start command and a backup safety cutoff. Common cases: cisterns where overflow would damage the building, sewage tanks where a stuck float means flooding, fuel transfer systems.

Lower float (working float): wired to start/stop the pump on its normal differential band.
Upper float (high-level cutoff): wired in series with the working float on a fill system, OR to an alarm/shutdown circuit on a drain system. If the working float jams, the upper float overrides.

For a fill cistern: line → upper-float NC → lower-float NC → pump line-in. Both floats must be DOWN (NC closed) for the pump to run. The pump stops as soon as either float rises. The upper float should be set 4–6 inches below the overflow line so it has time to act before water spills.

For a sump pump: lower float NO drives the pump; upper float NO drives a 12V alarm or an internet-connected sensor. The upper float never touches the pump circuit — its only job is to tell you the working float failed.

Scenario C: float through a contactor for large pumps

If your pump’s nameplate shows more than 8–10 amps, do not run pump current through the float switch contacts. Contact welding is what kills float switches in heavy applications: every start arc burns a little metal, and after a few hundred cycles the contacts fuse closed and the pump runs forever.

The fix is a contactor (motor starter relay) sized to the pump. The float switch only carries the contactor coil current — typically 100–300 mA at 24V or 120V — which is well within any float switch’s rating. The contactor’s heavy contacts handle the pump load and can be replaced as a wear part.

Wire the float switch to the contactor coil terminals (A1, A2). Float NO in series with the coil hot leg.
Wire the pump motor leads to the contactor’s load contacts (T1, T2, T3 for 3-phase).
Add a thermal overload block downstream of the contactor sized to the pump’s FLA × 1.15.
If you need remote start/stop, wire a HAND-OFF-AUTO selector switch in parallel with the float across the coil.

This is also the right approach for explosion-proof installations. The float can be intrinsically safe (low energy, in the hazardous area), the contactor sits in a non-hazardous panel. For a deeper look at high-current and DP-style installation rules, see our DP transmitter installation guide.

Five wiring mistakes that burn out pumps and switches

Switching the neutral, not the line. Pump stays energized when float opens; the casing can become live if internal insulation fails.
Picking the wrong NO/NC terminal. Pump runs continuously or never starts. Test with a multimeter before powering up.
Tether too short on a cable float. Pump cycles every 30 seconds, motor windings overheat in days.
Float allowed to rest against the tank wall. Float wedges, never tilts. Always install with at least 6 inches of free swing.
Running 15A pump current through a 10A float contact. Contacts weld closed; pump runs the well dry. Add a contactor (Scenario C).

Troubleshooting flow when the pump won’t stop or won’t start

Run this in order. The first three steps catch about 80% of float switch problems without removing the switch from the tank.

Check power at the pump. Disconnect the float from the circuit (jumper across float wires) and try the pump. If the pump still won’t run, the problem is upstream of the switch — breaker, cord, motor.
Manually flip the float. With the system de-energized, lift the float through its full travel. You should hear a faint click (microswitch) or feel a snap (mercury). No sound = stuck switch, replace.
Continuity test at the float wires. Disconnect both float leads. Touch a multimeter on continuity to the two leads. Tilt the float — beep should go on/off cleanly. Intermittent or no change = internal switch failure.
Inspect the cord grip and tether. Cable that has slipped 1–2 inches will shift the trigger level enough to either short-cycle or never trigger. Re-clamp with the original tether length.
Look for grease or scale on the float body. A float coated in pump grease becomes neutrally buoyant and stops tilting. Wipe clean with mineral spirits.
Measure inrush current at the contacts. If you’ve replaced two switches in six months, the pump is over-amping the contacts. Move to Scenario C wiring with a contactor.

When to replace the switch (and when not to)

Replace if: the float body is cracked, the cord insulation is damaged, the continuity test in step 3 is intermittent, or the contacts show black welding marks when opened. Float switches are not user-serviceable — there are no contacts you can clean inside a sealed cable-tilt body.

Don’t replace if: the issue is grease/scale on the float (clean it), the tether has slipped (re-clamp), or the wiring is plain wrong (rewire per the table above). A new switch in the same wrong configuration fails just as fast as the old one.

For continuous water tank monitoring (level reading, not just switching), a 4-20 mA hydrostatic submersible or ultrasonic gauge is a better tool. See our water tank level sensors guide for the trade-offs.

FAQ

Why does my float switch click but the pump doesn’t run?

The switch is doing its job — the pump circuit is broken somewhere else. Test continuity through the float leads while you tilt it, then check the pump’s own cord and breaker. A clicking switch with no pump action is almost never a failed float.

Can I use the same float switch for hot water (over 60°C / 140°F)?

Standard polypropylene cable-tilt floats are rated to about 50°C continuous. For hotter water (boiler feed, condensate tanks), pick a stainless-steel stem float with a Buna-N or Viton seal rated to 120°C. The cheap pool-pump style will deform and sink within weeks at boiler temperatures.

Do I need a relay if my pump is only 1/3 HP?

Probably not. A 1/3 HP submersible pump draws roughly 6–8 amps running and 15–25 amps inrush at start. Most quality cable-tilt floats are rated 13A inductive at 120V, which covers it. If you’re cycling more than 4 times per hour or using a no-name float, add a contactor anyway — it costs less than a replacement switch.

How long should a float switch last?

In clean water with proper sizing, 100,000+ cycles or roughly 5–7 years. In sewage with grease and stringy debris, expect 1–2 years and inspect quarterly. Switches in chemical service rarely make it past 6 months without seal degradation; use a non-contact alternative there.

Can I wire two pumps off one float switch?

Not directly. Wire each pump’s contactor coil in parallel off the same float NO contact, and stagger the contactor pull-in voltages so they don’t both start simultaneously and trip the breaker. For lead/lag duplex pumping, use a duplex pump controller with an alternator relay — the float is just one input.

Need help sizing or troubleshooting?

Send your pump nameplate, tank dimensions, and a photo of the existing wiring to our engineers. We’ll specify the right float series and wiring scheme — and we’ll tell you straight if a continuous-level sensor would be the better tool. Use the form below or contact us via the contact page.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

How Does a Capacitive Liquid Level Sensor Work? (Engineer’s Guide 2026)

Posted on April 15, 2026 by KimGuo11

Updated: April 15, 2026

A capacitive liquid level sensor detects level by measuring the capacitance change between a probe and the tank wall (or a second probe) as the liquid rises or falls. The liquid acts as the dielectric — its dielectric constant determines how much capacitance changes per centimeter of level. That’s the whole working principle in one sentence.

What matters in the field is knowing when this technology works well (oils, water, most chemicals, slurries) and when it doesn’t (varying dielectric, heavy coating, high-purity water). This guide walks through the physics, sensor types, calibration, and the dielectric-constant numbers you actually need to size a probe.

How Does a Capacitive Liquid Level Sensor Work?
What Are the Main Types of Capacitive Level Sensors?
What Dielectric Constants Work with Capacitive Sensing?
What Are the Advantages and Disadvantages?
How Do You Calibrate a Capacitive Liquid Level Sensor?
Capacitive vs Float vs Ultrasonic: Which to Pick?
Featured Capacitive Level Sensors
FAQ

How Does a Capacitive Liquid Level Sensor Work?

The sensor acts as one plate of a capacitor; the tank wall or a second rod acts as the other plate. Liquid between them is the dielectric material. When level rises, more of the probe is submerged, dielectric material replaces air (ε_r of water is 80 vs air’s 1), and capacitance jumps.

The transmitter converts that capacitance change into a 4–20 mA or digital signal proportional to level. The equation:

C = (ε₀ × ε_r × A) / d

Where ε₀ is the vacuum permittivity, ε_r is the relative dielectric constant of the liquid, A is the submerged electrode area, and d is the gap. Because ε_r is the only variable that depends on the medium, the sensor must be calibrated to the specific liquid.

What Are the Main Types of Capacitive Level Sensors?

Four probe configurations cover almost every tank scenario.

Bare rod (single probe, metal tank). The rod and the conductive tank form the capacitor. Simplest and cheapest. For conductive liquids like water, the rod must be insulated.
Insulated rod. PTFE or PFA jacket prevents shorting in conductive media. Standard for water, acids, and alkalis.
Dual-rod (coaxial). A second rod replaces the tank wall — used in plastic or fiberglass tanks where there’s no grounded reference.
RF admittance. Adds a driven guard to cancel out coating effects on the probe. Used on sticky liquids like slurries, glue, and chocolate. See our RF admittance level sensor guide.

What Dielectric Constants Work with Capacitive Sensing?

Capacitive sensors work reliably when the liquid’s dielectric constant is ≥1.8 and stable. Below that, capacitance change per cm is too small to measure reliably. If ε_r varies with temperature or composition, calibration drifts.

Liquid	ε_r (approx.)	Capacitive sensing
Air / vapor	1.0	Reference
Gasoline, kerosene	2.0	Marginal — needs sensitive electronics
Diesel, fuel oil	2.1–2.3	Good
Lubricating oil	2.2–2.8	Good
Vegetable oil	3.0	Good
Alcohols (ethanol)	24	Excellent
Water (tap)	80	Excellent — requires insulated probe
Aqueous acids/bases	40–80	Excellent — requires insulated probe

Do not use capacitive sensing on liquids with unpredictable ε_r — examples include variable oil–water emulsions and slurries of changing solids content. Use guided wave radar or float-based measurement instead.

What Are the Advantages and Disadvantages?

Short answer: capacitive is a low-cost, rugged workhorse, but it’s sensitive to medium properties and probe coating.

Advantages	Disadvantages
No moving parts — long service life	Needs stable dielectric constant
Works in pressurized and high-temp tanks (to 200 °C, 40 bar)	Coating on probe shifts calibration
Compact — fits small tanks where radar doesn’t	Metal tank required for single-rod types
Low cost: $150–$600 per sensor	Must be recalibrated if liquid changes
Accuracy ±1% of full scale	Foam and vapor can affect top of range

How Do You Calibrate a Capacitive Liquid Level Sensor?

Two-point calibration handles most capacitive sensors. Do it with the actual process liquid, not water. For general calibration procedures across flow and level instruments, see our calibration procedures guide.

Empty the tank. Set the low (4 mA / 0%) point. This captures probe-to-tank baseline capacitance.
Fill to 100% of measuring range. Set the high (20 mA / 100%) point.
Verify at midpoint. Fill to 50% and check reading is 12 mA ±1%. If off, check for probe coating or partial air gap.
Log ambient temperature. ε_r of many oils changes 0.1% per °C. For wide temperature swings, use a transmitter with temperature compensation.

A common field mistake is to calibrate with water when the tank will hold oil. The dielectric constants differ by a factor of 30, and the sensor reads nonsense until you recalibrate.

Capacitive vs Float vs Ultrasonic: Which to Pick?

Capacitive wins on cost and durability in small-to-medium tanks with stable liquids. Float meters win where power or electronics aren’t available. Ultrasonic wins on non-contact measurement in open tanks.

Criterion	Capacitive	Float	Ultrasonic
Contact with liquid	Yes	Yes	No
Moving parts	No	Yes	No
Handles foam / vapor	Fair	Fair	Poor
Handles sticky / coating liquids	Poor (RF admittance: Good)	Poor	Good
Accuracy	±1% FS	±3–5% FS	±0.5% FS
Typical cost (1 m range)	$150–$600	$50–$300	$300–$800

Featured Capacitive Level Sensors

Capacitance Level Transmitter

SI700 RF capacitance level transmitter for continuous and point level detection in liquids and solids. Resists coating, condensation and vapour layers — reliable where radar struggles.

Capacitive Water Level Sensor

Contact and non-contact capacitive water level sensor for storage tanks, wells and corrosive liquids. Resists temperature, humidity and conductivity drift for reliable readings where floats fail.

Capacitive Level Switch

Capacitive (RF) level sensor for liquid, solid and interface measurement. Handles high-temp, corrosive and easy-to-crystallise media with anti-clogging probes and 4-20mA output.

FAQ

Can a capacitive level sensor measure both liquids and solids?

Yes, for solids with dielectric constant ≥1.8 — grain, plastic pellets, cement powder all work. The accuracy is lower (±3%) because dielectric varies with bulk density.

Does probe length affect accuracy?

Longer probes give higher capacitance change per unit level, which improves resolution. Up to a point — probes over 4 m may need a high-sensitivity transmitter. Never cut a factory probe in the field; it changes the calibration curve.

What makes RF admittance different from standard capacitive?

RF admittance uses a driven guard electrode that cancels out capacitance caused by coating on the probe. Standard capacitive sensors drift when a residue builds up; RF admittance ignores it. Use RF admittance on sticky liquids and heated oils.

Does a capacitive sensor work with pure deionized water?

Yes, but with reduced accuracy. DI water’s dielectric constant is the same (80), but its low conductivity causes response instability. For ultra-pure water service, conductivity-based or ultrasonic water level sensors are more reliable.

Is capacitive level sensing safe for hazardous areas?

Yes. Intrinsically safe and explosion-proof versions are available with ATEX and IECEx certifications. Specify Ex ia for flammable liquid tanks and Ex d for vapor spaces.

How long does a capacitive level sensor last?

With no moving parts, expected life is 10–15 years in normal service. PTFE-jacketed probes in aggressive chemicals last 5–10 years before coating degradation forces replacement.

Need to confirm whether capacitive is the right fit for your tank? Send us the liquid, probe length, and tank material. Our engineers will recommend the right probe type and output, plus a quote — usually within 24 hours.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

Inline Water Flow Meters: Types, Sizing & Buying Guide (2026)

Posted on April 15, 2026 by KimGuo11

Updated: April 15, 2026

An inline water flow meter measures water flow while installed directly in the pipeline — no bypass, no strap-on sensors. Three technologies dominate this space: mechanical (turbine), electromagnetic, and ultrasonic. The right choice depends on pipe size, water quality, required accuracy, and whether you need digital output for building automation or SCADA.

This guide compares the three technologies with real specs and prices, walks through sizing and installation, and gives a straight answer to the question most buyers ask first: which type do I actually need?

What Is an Inline Water Flow Meter?
What Are the 3 Main Types of Inline Water Flow Meters?
Mechanical vs Electromagnetic vs Ultrasonic: Which Is Best?
How Do You Size an Inline Water Flow Meter?
How Do You Install an Inline Water Flow Meter?
How Much Does an Inline Water Flow Meter Cost?
Featured Inline Water Flow Meters
FAQ

What Is an Inline Water Flow Meter?

An inline water flow meter is a flow-measuring device cut directly into the pipe so all water passes through the sensing element. This differs from clamp-on (strap-on) meters, which sit outside the pipe, and from insertion meters, which measure a small cross-section through a tap.

Inline designs give the highest accuracy — typically ±0.5% to ±2% of reading — because every drop of water touches the sensor. The trade-off is pressure drop and the need to shut down the line for installation.

You’ll find inline meters in residential sub-metering, HVAC chilled water loops, irrigation systems, cooling towers, and light industrial water treatment. For a deeper look at hot water metering specifically, see our hot water flow meters guide.

What Are the 3 Main Types of Inline Water Flow Meters?

Mechanical, electromagnetic, and ultrasonic — these three cover more than 90% of installed inline water meters worldwide.

Mechanical (Turbine and Multi-Jet)

A mechanical meter uses a rotor or impeller that spins as water flows past. Rotations are converted to volume through a register or pulse output. Multi-jet meters dominate residential service (¾” and 1″), while turbine meters cover industrial sizes up to 12″.

Accuracy is typically ±1.5% to ±2%. They work on clean water only — sand, scale, and fibers wear the bearings. Expected service life is 10–15 years for residential units and shorter under heavy industrial use.

Electromagnetic (Magmeter)

A magmeter generates a magnetic field across the pipe. Conductive water moving through the field induces a voltage proportional to flow velocity (Faraday’s law). No moving parts, no pressure drop, and accuracy of ±0.2% to ±0.5%.

Magmeters need water with conductivity above 5 µS/cm — fine for tap water, process water, and wastewater; not suitable for deionized water. For full specs and models, see our magnetic flow meter guide.

Inline Ultrasonic (Transit-Time)

Inline ultrasonic meters fire sound pulses upstream and downstream between two transducers. The time difference is proportional to flow velocity. No moving parts, no pressure drop, accuracy ±1% to ±2%.

They handle clean water and most process water, but air bubbles and heavy solids degrade signal. Increasingly popular for residential district metering because they have no mechanical wear and run on a battery for 10+ years.

Mechanical vs Electromagnetic vs Ultrasonic: Which Is Best?

There’s no single winner. Match the technology to the water and the job.

Parameter	Mechanical	Electromagnetic	Ultrasonic
Accuracy	±1.5% – ±2%	±0.2% – ±0.5%	±1% – ±2%
Pressure Drop	Medium–High	None	None
Moving Parts	Yes	No	No
Water Quality	Clean only	Any conductive	Clean, low bubbles
Pipe Size Range	½” – 12″	½” – 120″	½” – 48″
Turndown	10:1 – 50:1	100:1 – 1000:1	100:1
Power	None (register) or 9V	AC or 24VDC	Battery 10+ yrs or DC
Typical Price (DN50)	$150 – $400	$600 – $1,500	$500 – $1,200
Service Life	10–15 years	20+ years	15+ years

Pick mechanical for residential billing and low-cost sub-metering. Pick electromagnetic when you need high accuracy, wide turndown, or zero pressure drop on cooling loops and process water. Pick ultrasonic for battery-powered district metering and retrofits where you can’t run power.

How Do You Size an Inline Water Flow Meter?

Size the meter to the flow rate, not to the pipe. The common mistake is to match meter size to pipe diameter — this oversizes the meter and kills accuracy at normal flow.

Aim for flow velocity between 0.5 and 3 m/s (1.6–10 ft/s) through the meter. Outside this window, mechanical meters lose accuracy at the low end, and all types see excessive wear or cavitation at the high end.

Find your normal operating flow rate (not peak).
Compute required pipe area: A = Q / v, using v = 2 m/s as target.
Pick the meter size whose nominal rating covers your normal flow in the middle of its range.
If your pipe is larger than the meter, use eccentric reducers and the upstream and downstream straight pipe rule (10D upstream, 5D downstream).

How Do You Install an Inline Water Flow Meter?

Proper installation is the difference between ±0.5% and ±5% accuracy. Four rules cover 95% of field installations:

Straight pipe runs. Provide 10× diameter upstream and 5× diameter downstream, free of elbows, valves, and reducers.
Full pipe. Electromagnetic and ultrasonic meters need 100% liquid. Install on a vertical rising section or a well-flooded horizontal section.
Flow direction. Match the arrow on the meter body to flow direction. Reverse installation voids warranty on most mechanical meters.
Isolation. Put shutoff valves on both sides and a strainer (20–40 mesh) upstream of mechanical and small ultrasonic meters.

A common field error is installing the meter right after a pump or control valve. Turbulence from these devices skews the flow profile for 20+ pipe diameters downstream and produces readings that can be off by 5–10%.

How Much Does an Inline Water Flow Meter Cost?

Prices scale with pipe size, technology, and output. For a DN50 (2″) water line, expect these ranges from a direct manufacturer:

Mechanical multi-jet with pulse output: $150–$400
Inline ultrasonic, battery-powered: $500–$1,200
Electromagnetic with 4–20 mA + Modbus: $600–$1,500
Sanitary tri-clamp electromagnetic: $900–$2,000

Jumping to DN100 (4″) roughly doubles these. DN200+ pricing varies heavily by lining and electrode material — contact our engineers for a quote on anything above DN150.

Featured Inline Water Flow Meters

Inline Ultrasonic Water Flow Meter

In-line transit-time ultrasonic flow meter with pre-calibrated pipe spool. Wetted-transducer design delivers higher accuracy than clamp-on whenever a line shutdown is acceptable.

Residential Ultrasonic Water Meter

Insertion ultrasonic water flow meter for DN100-DN3000 mains. Hot-tap installation means no pipe cutting and no shutdown — ideal for water utilities, irrigation and cooling loops.

Electromagnetic Water Flow Meter

Electromagnetic water flow meter for drinking water, sewage, seawater and cement slurry. IP68 sensor for buried mains, optional MID / OIML R49 compliance for custody transfer billing.

FAQ

What does “inline” mean on a flow meter?

Inline means the meter is installed directly in the pipeline — water flows through the sensor body. Clamp-on and insertion meters are the two non-inline alternatives.

Can I install an inline water flow meter in any orientation?

Horizontal is preferred for most types. Vertical rising flow is also acceptable and helps keep the meter full. Avoid horizontal-downward orientations, which trap air at the sensor.

What’s the most accurate inline water flow meter?

Electromagnetic meters, at ±0.2% to ±0.5% of reading, are the most accurate for any conductive water. Coriolis meters are more accurate still but cost 3–5× more and are overkill for water service.

Do inline water flow meters need straight pipe?

Yes. All three types require at least 10 pipe diameters upstream and 5 downstream, free of fittings. Some electromagnetic models tolerate 5D/3D, but you pay a small accuracy penalty.

How often does an inline water meter need calibration?

For custody-transfer use, calibrate annually. For process monitoring, every 3–5 years is typical. See our flow meter calibration guide for procedures.

Can an inline water flow meter work on hot water?

Yes. Electromagnetic meters handle up to 180°C with proper lining (PFA or PTFE). Ultrasonic models go to 150°C. Mechanical multi-jets are usually rated 30–90°C — always check the data sheet.

Still unsure which inline water flow meter fits your line? Send us your pipe size, flow range, water type, and required output — our engineers will reply within 24 hours with a specific recommendation and a quote.

Request a Quote

Please enable JavaScript in your browser to submit the form

KimGuo11

drurylandetheatre.com

Features of Tuning Fork Density Meter

Technical Parameters

Tuning Fork Density Meter Working Principle

Models & Configurations

Applications

Related Density Measurement Instruments

Contents

How Does an Ultrasonic CO2 Level Indicator Work?

Which CO2 Cylinders Does It Fit?

Specifications

How Do You Measure the Level in a CO2 Cylinder?

Ultrasonic vs Weighing vs Pressure: Which Method Wins?

Where Is This Device Actually Used?

Related CO2 & Gas Level Instruments

FAQ

Does an ultrasonic CO2 level indicator work through insulation?

Is calibration required for each gas type?

What’s the accuracy on a partly-full cylinder?

Can I use the indicator on an aluminum cylinder?

Why do I get “no liquid” on a cylinder I know is full?

Get Pricing & Application Support

SI-100 Rigid Probe Magnetostrictive Level Transmitter

Why Engineers Spec the SI-100

±0.1 mm

No Drift

2 Outputs

ATEX Ex ia

Full Specification Sheet

How Magnetostriction Actually Measures Level

Where the SI-100 Fits (and Where It Doesn’t)

Ceiling / Suspended Tanks

Buried Fuel Tanks

Small Process Containers

Agitated / Foaming Tanks

Three Ways to Mount It

1. Top Mount (Thread or Flange)

2. Positioning Ring

3. External Stilling Well

Sizing the Probe Length

Pricing and Lead Time

If the SI-100 Doesn’t Fit Your Tank

Flexible-Cable Magnetostrictive →

Magnetic-Flap Level Gauge →

SMT3151 Hydrostatic →

Frequently Asked Questions

Get a Confirmed Quote and PDF Datasheet

Contents

What Is a Verabar Averaging Pitot Tube Flow Meter?

How Does a Verabar Flow Meter Work?

Multi-Port Averaging Principle

DP Signal and Flow Calculation

Verabar Flow Meter Specifications

What Is the Difference Between Verabar and Annubar?

When to Choose Verabar Over Annubar

What Pipe Sizes and Fluids Suit a Verabar?

Gas Applications

Steam Applications

Liquid Applications

Sizing Consideration for Large Pipes

Featured DP & Averaging Pitot Flow Meters

FAQ

What is a Verabar flow meter?

How accurate is a Verabar flow meter?

Can a Verabar be installed without shutting down the line?

What maintenance does a Verabar need?

How does a Verabar compare to an orifice plate?

Get a Verabar Flow Meter Quote

Contents

How Do You Install a Pressure Transmitter?

Where Should You Mount a Pressure Transmitter?

Orientation of the Transmitter Body

How Do You Run Impulse Tubing to a Pressure Transmitter?

What Is the Correct Wiring for a 4-20 mA Pressure Transmitter?

2-Wire vs 4-Wire

Cable and Grounding Rules

What Are 5 Common Pressure Transmitter Installation Mistakes?

Frequently Asked Questions

Can I mount a pressure transmitter horizontally?

How far can impulse tubing run from the tap to the transmitter?

Do I need a condensate pot for steam pressure measurement?
