Stainless Steel Pressure Transducers: 316L vs 17-4PH Material Guide

Posted on by

Updated May 27, 2026 | Sino-Inst Engineering Team

For pressure transducer wetted parts, the choice between 316L and 17-4PH stainless steel is the single most important spec you put on the RFQ. 316L is the default for clean liquid, hydrogen, marine, and biocompatible service. 17-4PH is the default for high-cycle hydraulic and surge-prone systems. Get this wrong and you either lose accuracy under transient pressure (under-spec’d 316L on a pulsing hydraulic line) or burn money on stainless that fails in chloride service (17-4PH on sea water). This guide walks both, plus when to step up to Duplex or Hastelloy.

Contents

Where stainless steel sits in a pressure transducer

A pressure transducer has three metallic zones that may or may not see the process media:

  • Wetted parts — the diaphragm, process port, and any internal cavity that contacts the media. Material here decides corrosion resistance, hydrogen embrittlement, and biocompatibility. UNS S31603 (316L) and UNS S17400 (17-4PH) cover ~95% of industrial pressure transducer designs.
  • Sensor body — the structural casing that houses the electronics, behind the isolation diaphragm. Usually 304 or 316; never sees process media.
  • Process connection — the threaded or flanged fitting (1/4″ NPT, G1/2, ANSI flange). Same material as the wetted side, machined to ASME B1.20.1 for NPT or DIN 3852 for G-thread.

When a datasheet says “316L wetted parts,” it means the diaphragm and process port. The body shell is a separate spec and may downgrade to 304 to save cost. The diaphragm is the part that fails first — pick its material against the worst-case media chemistry the loop will see, not the steady-state nominal. Background on diaphragm failure modes is covered in our pressure transmitter working principle page.

316L vs 17-4PH: head-to-head comparison

Property316L (UNS S31603)17-4PH (UNS S17400)
FamilyAusteniticPrecipitation-hardened martensitic
Magnetic?No (non-magnetic)Yes (magnetic)
Tensile strength (MPa)4851100+ (H900 condition)
Yield strength (MPa)1701000+ (H900 condition)
Corrosion resistanceExcellent (chlorides, hydrogen, marine)Moderate (avoid chlorides, sea water, hydrogen)
High-cycle fatigue performanceAdequateExcellent — preferred for pulsing hydraulics
Typical max temperature+200 °C continuous+300 °C continuous
Hydrogen embrittlement resistanceYes — suitable for H₂ serviceNo — avoid hydrogen and cryogenic
Biocompatible (food, pharma)Yes (FDA, USP Class VI compatible grades)No
Relative cost (raw)1.0×1.1–1.3×

The trade-off is mechanical strength vs corrosion resistance. 17-4PH is roughly twice as strong as 316L, so the diaphragm can be thinner for the same rated pressure — which means better dynamic response and lower fatigue at high cycle counts. The cost is corrosion: 17-4PH pits in chloride environments, embrittles in hydrogen, and is not suitable for sanitary or cryogenic use.

For the same rated 60 MPa working pressure, both materials can be specified — but the failure mode is different. 316L will lose accuracy as repeated cycling fatigues the diaphragm. 17-4PH stays accurate longer but corrodes if the process chemistry sneaks outside spec.

When to specify 316L

Default to 316L when any of the following are true:

  • Hydrogen service — H₂, hydrogen-rich syngas, refinery hydrocrackers. 17-4PH will embrittle within months.
  • Marine or chloride-bearing media — sea water, brine, coastal-air installations. The molybdenum in 316L (2.1%) buys pitting resistance that 17-4PH does not have.
  • Cryogenic service — LN₂, LOX, LNG, LAr below −100 °C. 17-4PH becomes brittle and shatters; 316L retains ductility down to LHe temperatures.
  • Sanitary / food / pharma — 316L is the EHEDG and 3-A baseline. 17-4PH is not on the list.
  • Clean water, mild acids, lubricating oils — the default service envelope where 316L is more than adequate.

Steady-state ratings — 316L handles continuous service up to ~200 °C and most ranges from 10 kPa to 60 MPa. For high-purity applications, specify “316L low-carbon” rather than 316 (the L matters — it prevents weld decay). Clean-water service is the largest 316L use case; see our water pressure transducer family for water pipe / tank / well configurations. For air, nitrogen, hydrogen, and other gas applications, our industrial gas pressure sensors default to 316L wetted parts.

When to specify 17-4PH

Switch to 17-4PH (typically heat-treated to H900 or H1025 condition) when these conditions exist:

  • High-cycle pressure pulsing — hydraulic press feeders, fuel injection rails, paint sprayers running at >100,000 cycles per day. The diaphragm fatigue life of 17-4PH is 5–10× that of 316L.
  • Frequent pressure transients above rated — water hammer in pipework, surge spikes during pump start/stop. 17-4PH stays linear after a 1.5× over-range event; 316L starts drifting.
  • High working pressure with thin diaphragm — 100 MPa and above. The strength of 17-4PH allows a thinner diaphragm with the same burst rating, improving sensitivity at high range.
  • Service media that is benign chemistry — clean hydraulic oil, deionized water, instrument air, nitrogen (gaseous, not cryogenic). No chlorides, no hydrogen, no acids.

⚠ NACE MR0175 / ISO 15156 oil & gas warning: 17-4PH is NOT an accepted material under NACE MR0175 / ISO 15156 for sour service (H₂S-containing oil & gas equipment). If your spec calls out NACE compliance — every offshore, upstream, and refinery hydrocarbon service does — you must use 316L, Duplex 2205, Inconel 625, or another NACE-listed grade. Do not propose 17-4PH on these projects, even if the hydraulic-cycle argument seems to favor it.

17-4PH is also commonly chosen when machinability matters. It can be machined to tighter tolerances and threaded reliably, without the work-hardening problems of 316L. Our high-pressure product line uses 17-4PH for the diaphragm and 316 for the housing as a standard configuration. When troubleshooting transducers that drift after pressure surges, see our pressure transmitter calibration guide for the zero-trim procedure that often recovers 316L units before requiring replacement.

Escalation grades: 304, Duplex 2205, Hastelloy C-276, Monel

Outside the 316L / 17-4PH default, four grades come up on RFQs:

  • 304 (UNS S30400) — austenitic, no molybdenum, lower cost than 316L. Acceptable for clean water and air; avoid for any chemical service. Sometimes specified for transducer housings (non-wetted) but rarely for diaphragms.
  • Duplex 2205 (UNS S32205) — austenitic-ferritic blend, ~2× the chloride pitting resistance of 316L, stronger and cheaper than super-austenitics. Used for offshore oil, hot brine, and concentrated chloride brines (>50,000 ppm). Specify when 316L pits within 12 months in service.
  • Hastelloy C-276 (UNS N10276) — nickel-molybdenum-chromium alloy, near-immune to hot mineral acids (HCl, H₂SO₄, HF) and aggressive chlorides. ~5× the cost of 316L. Specified when service media includes >20% mineral acid at elevated temperature.
  • Monel 400 (UNS N04400) — copper-nickel alloy, specific resistance to hydrofluoric acid (HF) and seawater. Specified for HF alkylation units and submarine pressure ports.

For really aggressive media, a 316L transducer with a diaphragm seal is often cheaper than a Hastelloy transducer — the diaphragm seal isolates the transducer from the media using a chemically inert oil-fill and a sacrificial wetted membrane. See our wetted materials of pressure sensors reference for the full matrix.

RFQ checklist — five questions before you order

Before sending a pressure transducer RFQ, the procurement team should have answers to these five:

  1. What is the actual media chemistry? Not “water” — clean DI water, raw river water, sea water, brine concentration X%? Chlorides above 500 ppm rule out 17-4PH.
  2. What is the pressure cycle profile? Steady, slow-ramping (< 100 cycles/day), or pulsing (>1,000 cycles/day)? High cycles push toward 17-4PH.
  3. What is the maximum service temperature? Above 200 °C continuous → 17-4PH or step up to Inconel. Below −50 °C → 316L only.
  4. Hydrogen content in the media? Any H₂ presence above trace → 316L only. 17-4PH embrittles.
  5. What is the over-range / burst-pressure expectation? If 1.5× rated pressure is expected (water hammer, surge), 17-4PH gives margin. If steady, 316L is enough.

Once these five answers are in, the material choice usually becomes obvious. Our standard quote includes the recommended grade per service — see the underground tank level guide for an example of how grade affects sensor life in buried installations. For chemical-service tanks, the sulfuric acid storage tank guide shows when stainless transducers should be avoided entirely in favor of a non-contact radar.

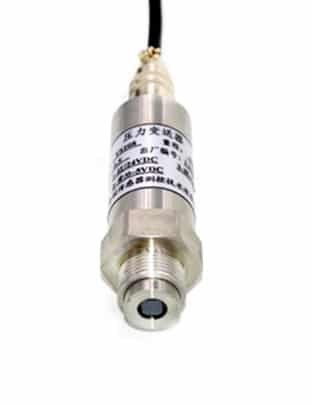

Stainless steel pressure transducer products

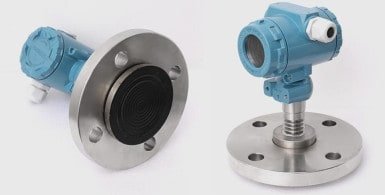

SI-703 Flush Diaphragm Pressure Sensor

316L flush diaphragm for viscous, slurry, and sanitary service. Sub-flush profile prevents process build-up. Range 0–10 kPa to 60 MPa, ±0.1% accuracy, 4–20 mA output.

SI-702 High Pressure Sensor

17-4PH H900 diaphragm for high-cycle hydraulic and ultra-high pressure service. Ranges to 600 MPa, fatigue life >10 million cycles. Best for hydraulic presses and surge-prone loops.

High-Frequency Dynamic Pressure Sensor

Piezoelectric high-frequency sensor for combustion, shock, and pulsation studies. 316L wetted parts, response up to 100 kHz, ranges to 100 MPa. Used in engine test cells and ballistics.

FAQ

What is the difference between 316L and 17-4PH stainless steel pressure transducers?

316L is austenitic, non-magnetic, and resistant to chlorides and hydrogen — the default for water, marine, and biocompatible service. 17-4PH is precipitation-hardened martensitic, magnetic, twice as strong, and preferred for high-cycle hydraulic systems and pressure surge applications. 17-4PH should not be used for hydrogen, sea water, or cryogenic service.

Is 316L suitable for hydrogen pressure transducer service?

Yes. 316L is the standard wetted material for hydrogen service because it resists hydrogen embrittlement, which is the failure mode that destroys 17-4PH and other high-strength steels in H₂ environments. For trace-H₂ or hydrogen-rich syngas, always specify 316L low-carbon.

Why is 17-4PH used in hydraulic pressure transducers?

17-4PH has roughly twice the tensile strength of 316L. For a hydraulic system that cycles thousands of times per day with frequent pressure spikes, the thinner diaphragm in a 17-4PH transducer survives 5–10× longer than the equivalent 316L unit, while staying linear after over-range events. Clean hydraulic oil is benign chemistry, so corrosion is not a concern.

When should I specify Hastelloy or Duplex instead of stainless?

Switch to Duplex 2205 when chloride concentration exceeds ~10,000 ppm and 316L pits within a year. Switch to Hastelloy C-276 for hot mineral acid service (HCl, H₂SO₄, HF above 20% concentration at elevated temperature). For HF specifically, Monel 400 is the targeted choice. A 316L transducer with a diaphragm seal is often cheaper than a Hastelloy transducer for borderline cases.

What is the wetted material on a pressure transducer datasheet?

“Wetted material” refers to the surfaces that contact the process media — the diaphragm, the process port, and any internal cavity exposed to the fluid. The transducer body shell is separate and may be a lower grade. When comparing transducer datasheets, match wetted-material specs against the actual service chemistry, not against transducer cost.

Is 17-4PH stainless steel NACE MR0175 / ISO 15156 compliant?

No. 17-4PH is not on the accepted-materials list in NACE MR0175 / ISO 15156, which governs metallic materials in H₂S-containing oil & gas environments (sour service). For any project that calls out NACE compliance — offshore, upstream, refining hydrocarbon — specify 316L, Duplex 2205, Inconel 625, or another NACE-listed grade. 17-4PH is fine for clean hydraulics outside oil & gas, but cannot be substituted on NACE-spec’d jobs.

Need help picking grade for your service? Send process media composition (including trace species), pressure cycle profile, and temperature range — our engineers will recommend 316L, 17-4PH, or an escalation grade and quote accordingly. For installation context, our pressure transmitter installation guide covers torque specs and gasket selection by material.

Request a Quote

Please enable JavaScript in your browser to submit the form

Hydrostatic Pressure: Formula, Calculation & Industrial Measurement

Posted on by

Updated May 27, 2026 | Sino-Inst Engineering Team

Hydrostatic pressure is the pressure a liquid exerts on a point below its surface, equal to density × gravity × depth. In SI units, P = ρgh — and that single equation is the basis for measuring tank level, well depth, hydraulic head, and reservoir pressure in nearly every process plant. This guide walks the formula, an industrial worked example, the instruments that read it, and where it is used in the field.

Contents

The hydrostatic pressure formula (P = ρgh)

Hydrostatic pressure follows P = ρgh, where ρ is the liquid density (kg/m³), g is gravitational acceleration (9.80665 m/s² at sea level), and h is the vertical depth from the free surface (m). The result is in pascals.

A worked example. Take a water tank with 4.5 m of clean water above the bottom-mounted transducer port. Density of clean water at 20 °C is 998.2 kg/m³.

P = 998.2 × 9.80665 × 4.5 = 44,063 Pa ≈ 44.06 kPa ≈ 6.39 psi.

This is gauge pressure — pressure above ambient air. If you want absolute pressure (the value a sealed reference cell would read), add 101.325 kPa at sea level for the column of atmosphere sitting on top of the water. Units matter. Pa, kPa, bar, psi, and mmH₂O all show up on instrument datasheets, and the common units of pressure reference sheet has the cross-table.

LiquidDensity at 20 °C (kg/m³)Pressure per 1 m of head (kPa)Pressure per 1 m (psi)
Fresh water998.29.791.42
Sea water (3.5% salt)102510.051.46
Diesel fuel8328.161.18
Gasoline (light)7207.061.02
Sulfuric acid (98%)184018.042.62
Mercury13,546132.8419.27

The same 4.5 m head reads 28.4 kPa in gasoline but 81.2 kPa in sulfuric acid. A level transmitter calibrated for water will read wrong by 20–80% if the actual service medium is denser or lighter — always recalibrate or specify density when ordering, especially for chemical storage. See our sulfuric acid storage tank level guide for why radar is often preferred over hydrostatic for high-density acids.

Why container shape and area don’t matter

Hydrostatic pressure depends only on the vertical depth from the surface — not the volume of the tank, not the diameter, not whether the tank is cylindrical or rectangular. This is Pascal’s principle, sometimes called the hydrostatic paradox.

Two tanks side by side: one a 1 m diameter cylinder, the other a 5 m square pond, both filled to 2 m of water depth. Both bottoms see exactly 19.6 kPa. The 5 m pond holds 50× more water, but the pressure at the bottom is identical. This is why a pressure transmitter can read tank level regardless of tank geometry — the reading converts directly to height once you know the liquid density.

The same principle is why underground septic and storage tanks can use a single hydrostatic transducer dropped to the bottom: the irregular tank profile doesn’t change the reading at all. Volume is then computed from depth × tank-profile lookup table inside the recorder.

Where hydrostatic pressure shows up in industry

Hydrostatic pressure is the working principle behind several measurement and process tasks. The four most common in our project files:

  • Tank and well level — a hydrostatic transducer reads pressure at the tank bottom; the recorder converts to liquid height using ρ.
  • Pump suction head — engineers calculate available NPSH (net positive suction head) from the hydrostatic pressure at the suction side, minus vapor pressure.
  • Hydraulic system static charge pressure — accumulator pre-charge pressure is set by hydrostatic head of the working fluid in the column above it.
  • Hydrostatic pipeline testing — new pressure pipelines are filled with water and pressurized; pressure decay over time reveals leaks. Test pressure typically equals 1.5× design pressure.

In each case the underlying physics is the same — only the application context changes. For pump and pipeline systems, see how we discuss flow rate from pressure using Bernoulli and the related hydrostatic head term.

How temperature and gas head shift the reading

Three real-world effects change the hydrostatic pressure reading away from the textbook P = ρgh value:

  • Temperature — water density drops about 0.4% from 4 °C to 60 °C. For a 10 m tank that is a 4 cm level error if you forget to compensate. Most modern hydrostatic transmitters include onboard temperature compensation in the firmware.
  • Sealed tank with gas blanket — if the tank is sealed and pressurized (nitrogen blanket, vapor recovery), the gas pressure on top adds directly to the hydrostatic head. A standard gauge transducer will read total — gauge — not just liquid head. Use a differential pressure transmitter with the LP port piped to the vapor space to subtract the gas pressure.
  • Dissolved solids and slurry — water with 5% suspended solids reads 5% higher head. Calibrate against an actual sample at process temperature, not laboratory clean water.

The first item — temperature — is silent and frequently missed. A chilled-water tank operating at 4 °C reads 0.4% higher than the same physical depth at 20 °C. For high-accuracy custody-transfer applications, density is computed from a separate temperature sensor and used to back-correct the head reading.

Instruments that measure hydrostatic pressure

Three instrument families cover almost all field uses of hydrostatic measurement. Pick by mounting access, service medium, and required accuracy.

Submersible hydrostatic level transmitter

A sealed transducer lowered into the tank or well, cable length determines depth range. The diaphragm sees the full hydrostatic head and outputs 4–20 mA. Best for tall open tanks, wells, and sumps where the bottom is hard to drill. Selection details — IP68 cable jacket, vent tube — are in our submersible pressure transducer selection guide.

Bottom-mounted (or flange-mounted) pressure transducer

Installed in a 1/2″ or 1″ NPT port at the tank bottom, with the diaphragm exposed to the process. Most common in clean liquid storage. Use a diaphragm seal version for hot, viscous, or slurry service. For installation good practice see our pressure transmitter installation guide.

Differential pressure (DP) transmitter

Used on sealed pressurized tanks. The HP port reads bottom hydrostatic + gas blanket; the LP port reads the gas blanket alone via an impulse line to the top. The DP cell subtracts — output is liquid head only, independent of vapor pressure. Standard practice for boiler drum and reactor level service — see our 3051HP hydrostatic pressure transmitter for a drop-in DP cell optimized for tank-level service.

Convert hydrostatic pressure to liquid height

Given a pressure reading and known density, height is h = P / (ρg).

A worked conversion. Transducer reads 27.5 kPa in a diesel storage tank (ρ = 832 kg/m³).

h = 27,500 / (832 × 9.80665) = 3.37 m of diesel head above the transducer.

Pressure unit1 m of water head equals1 m of diesel head equals
kPa9.798.16
bar0.09790.0816
psi1.421.18
mmH₂O1000833
inH₂O39.3732.8

If your DCS receives the raw 4–20 mA from a pressure transmitter spanned for 0–100 kPa, the conversion to liquid height happens in the recorder. Our digital tank volume recorders ship with a lookup table for irregular tank profiles, so the recorder reads in m³ or gallons without the operator doing manual conversion. For a quick sanity check on a single value, the hydrostatic pressure calculator on our tools page does P → h for any liquid density in one step.

Pressure and level products for hydrostatic measurement

Hydrostatic Level Transmitter

Submersible level transducer for open tanks, wells, and sumps. 316L wetted parts, vented cable, IP68 rated. Range 1 m to 200 m of water column, 0.1% accuracy.

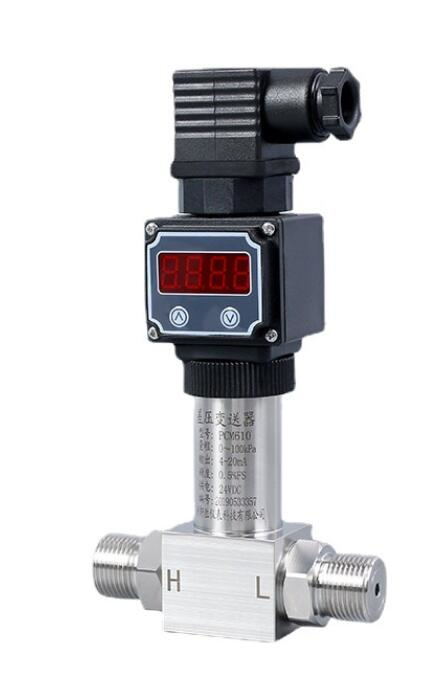

Differential Pressure Transmitter

DP cell for sealed pressurized tanks — boiler drums, reactors, vapor-blanketed storage. HP and LP ports subtract gas blanket, leaving pure liquid head. Up to 32 MPa static, ±0.075% accuracy.

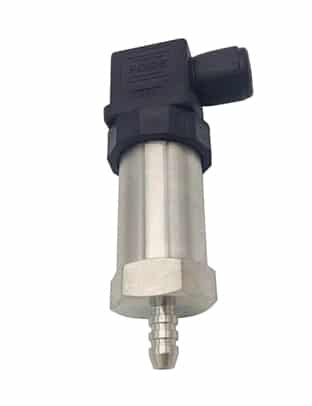

Industrial Pressure Sensor

General-purpose bottom-port pressure transducer for clean liquid storage. 4–20 mA or 0–5 V output, ranges from 10 kPa to 60 MPa. NPT or G-thread process connection.

FAQ

What is the hydrostatic pressure formula?

P = ρgh, where ρ is liquid density in kg/m³, g is gravitational acceleration (9.80665 m/s²), and h is the vertical depth from the free surface in meters. The result is gauge pressure in pascals. Multiply by 1×10⁻³ for kPa or 1.45×10⁻⁴ for psi.

Does container shape affect hydrostatic pressure?

No. Hydrostatic pressure depends only on the vertical depth from the surface and the liquid density. A 1 m diameter cylindrical tank and a 5 m square pond filled to the same depth produce the same bottom pressure, even though the pond holds 25 times more water. This is Pascal’s principle.

How is hydrostatic pressure used in industry?

Four main uses: tank and well level measurement, pump suction head calculation (NPSH), hydrostatic pipeline pressure testing, and hydraulic accumulator pre-charge. Each application uses P = ρgh in a slightly different way but the underlying physics is identical.

What instrument measures hydrostatic pressure?

Three common families. A submersible hydrostatic level transmitter lowered to the bottom of a tank or well. A bottom-mounted pressure transducer in a flange or NPT port. A differential pressure (DP) transmitter for sealed pressurized tanks where the gas blanket has to be subtracted. All three output a standard 4–20 mA signal.

How does temperature change a hydrostatic reading?

Liquid density drops as temperature rises. For water, density falls about 0.4% from 4 °C to 60 °C, which translates to a 4 cm level error in a 10 m tank if you ignore it. Modern hydrostatic transmitters compensate internally using an onboard temperature sensor, but custody-transfer applications often use a separate RTD for live density correction.

How do you convert hydrostatic pressure to liquid height?

Rearrange P = ρgh to h = P / (ρg). A reading of 30 kPa in clean water (998 kg/m³) gives h = 30,000 / (998 × 9.80665) = 3.06 m of head. The recorder or DCS does this conversion automatically once you tell it the liquid density. Wrong density entry is the #1 source of level-error complaints in our field tickets.

Need help spec’ing the right transducer for your hydrostatic application? Send tank dimensions, liquid type, and required accuracy — our engineers will recommend a configuration and provide a quote.

Request a Quote

Please enable JavaScript in your browser to submit the form

Submersible Pressure Transducer: 5-Step Selection Guide for Wells, Tanks & Sumps

Posted on by

Updated May 26, 2026 | Sino-Inst Engineering Team

A submersible pressure transducer measures the hydrostatic head of liquid above its diaphragm and reports it as a 4–20 mA, 0–5 V, or RS485 signal. Choosing one is not “pick the cheapest 0–5 m sensor.” It is a decision across pressure range, cable jacket, wetted material, vent reference, and accuracy class, and getting any single one wrong leaves you with a sensor that works for a week and drifts off the rails. This selection guide is the same checklist our engineers walk through on every well, sump, and tank project.

Contents

SI-PCM261 submersible pressure transducer with vented cable

What a submersible pressure transducer actually is

A submersible pressure transducer is a sealed pressure sensor with a stainless steel diaphragm, a vented or unvented cable, and an internal signal-conditioning circuit that outputs a calibrated 4–20 mA or voltage signal. Lower the sensor into a tank, well, or basin and the column of liquid above the diaphragm pushes on it. The deeper it sits, the higher the reading. Level (in metres) equals pressure (in kPa) divided by fluid density times gravitational acceleration, so a 1 m water column reads about 9.81 kPa.

It is sometimes called a submersible level transmitter, a hydrostatic level sensor, or a deep-well water level sensor. All three terms refer to the same hardware family. The transducer name comes from the underlying pressure-to-current conversion; the “level” naming comes from how the output is interpreted by the DCS or PLC. For background on the conversion math, our how does a pressure transmitter work page covers the URL/LRL scaling used to convert kPa back to metres of head.

How it works — hydrostatic head to 4–20 mA

The sensing element is a thin stainless steel or ceramic diaphragm bonded to a piezoresistive Wheatstone bridge or a capacitive plate. Liquid pressure deforms the diaphragm by a few micrometres. The bridge converts that deformation to a millivolt signal, the on-board amplifier turns it into 4–20 mA, and the cable carries the signal back to the surface. A vented submersible additionally has a small breather tube inside the cable that references the back side of the diaphragm to atmospheric pressure, so the reading does not drift when a cold front pushes the barometer up or down. For the underlying physics, see our what is hydrostatic pressure primer.

The output is linear with pressure across the full range of the sensor. A 0–10 m water-column transducer reads 4 mA at empty, 20 mA at 10 m of head, and 12 mA at 5 m. That linearity is what lets the PLC do a simple two-point scaling and report level in real units. Common output options include 4–20 mA (the standard for industrial DCS), 0–5 V or 0–10 V (for OEM telemetry), and RS485 Modbus (for SCADA over long cable runs).

Step 1: size the pressure range to your tank or well

Size the sensor to the maximum static head the diaphragm will ever see, plus 25% margin for pump surges and tank overfill. A 5 m water tank with a 1 m surge during pump start needs a 0–7.5 m sensor, not a 0–5 m sensor. Under-ranging is the leading cause of premature diaphragm fatigue we see in field returns.

ApplicationTypical static headRecommended range
Shallow water well, irrigation pond1–5 m0–10 m
Industrial water tank, fire reservoir5–12 m0–20 m
Deep well groundwater monitoring15–60 m0–100 m
Wastewater lift station, sump3–8 m0–10 m vented
Chemical storage tank (corrosive)3–10 m0–15 m, PTFE diaphragm
Oilfield production well (sour)50–300 m0–500 m, Hastelloy diaphragm

Pressure ranges available on standard catalogue parts are 0–1 m, 0–5 m, 0–10 m, 0–20 m, 0–50 m, 0–100 m, 0–200 m, and 0–500 m equivalent water column. For non-water fluids, recalculate the equivalent head: 5 m of sulfuric acid at 1.84 specific gravity loads the diaphragm the same as 9.2 m of water. The xlsx-style common units of pressure reference is useful when the customer quotes psi but the data sheet is in kPa.

Step 2: pick the right cable jacket and length

The cable carries both the 4–20 mA signal and, on vented sensors, the atmospheric reference tube. Cable jacket is what gets eaten by chemistry first; the diaphragm itself usually outlives the cable in aggressive service.

  • Polyurethane (PU): general-purpose for fresh water, well water, and clean tanks. Good abrasion and bend life. Not for solvents.
  • Polyethylene (PE): low-cost alternative to PU. Good for drinking water and groundwater monitoring.
  • FEP / PTFE: for acids, solvents, and aggressive chemicals. Significantly more expensive, but the only cable that survives concentrated H2SO4, HCl, or strong caustic over the long term.
  • Hytrel TPE: tougher than PU for ragged sumps and lift stations with heavy mechanical wear on the cable.

Order cable about 1.5 m longer than the maximum installed depth. This gives slack for repositioning, splicing into a junction box, and routing to the conduit entry without sharp bend radii at the sensor head. For deep wells, also consider a Kevlar strain-relief strand inside the cable so the sensor weight does not pull on the conductors. The same cable-jacket logic applies to water tank level sensor installations where the cable passes through a corrugated conduit.

Step 3: choose vented gauge vs sealed gauge vs absolute

The reference pressure on the back side of the diaphragm decides what the sensor reads. There are three options, and the wrong choice produces a sensor that drifts every time the barometric pressure changes.

TypeReferenceReadsUse it when
Vented gaugeAtmosphere (via breather tube)True head, immune to barometer driftOpen tanks, wells, sumps — >90% of installs
Sealed gaugeFixed 1 atm at factoryHead ± barometric driftSealed pressurized vessels, short cable runs
AbsoluteVacuumTotal absolute pressure including atmosphereCustody-grade well monitoring with separate barometer logger

For 90% of open-tank and groundwater applications, choose a vented gauge transducer. The breather tube inside the cable does the barometric compensation automatically. If you must use a sealed gauge sensor (because the cable splice has to be submerged and a breather tube cannot survive), expect ±0.5 kPa swing every time the barometer shifts — about 5 cm of error on a water-column sensor.

Step 4: match wetted material to the fluid

The diaphragm and housing material decide service life. Stainless steel handles 80% of installations; the other 20% need a step up to Hastelloy, titanium, or PTFE coating.

  • 316L stainless steel: fresh water, wastewater, fuel, brine to 5%, light hydrocarbons. The default and cheapest option.
  • Hastelloy C-276: seawater, dilute acids (HCl, H2SO4 < 30%), oilfield brine with H2S. Roughly 3–4× the cost of 316L.
  • Titanium Gr2: chlorinated brines, electroplating baths, food-grade applications where SS pickup is unacceptable.
  • PTFE-coated diaphragm: concentrated acids, caustic above pH 13, organic solvents that swell elastomers. Adds about 15% to lead time.

Sour-service oilfield monitoring deserves special attention. H2S above ~50 ppm in produced water requires NACE MR0175-compliant 316L (low-hardness) or step up to Hastelloy. For corrosive duty inside a stainless steel tank, the sulfuric acid storage tank level case study shows how PTFE coating decisions interact with maximum service temperature.

Step 5: set realistic accuracy and temperature drift targets

Catalogue accuracy is quoted as ±0.1%, ±0.25%, or ±0.5% of full scale (FS). At 0–10 m, that is ±1 cm, ±2.5 cm, or ±5 cm respectively. Match the spec to the consequence of getting it wrong. Groundwater monitoring under regulatory scrutiny needs ±0.1% FS; an irrigation pond can live with ±0.5% FS at a third of the price.

  • ±0.5% FS: general industrial monitoring, irrigation, sumps. Cheapest and fastest delivery.
  • ±0.25% FS: process tanks, well telemetry, environmental monitoring under permit.
  • ±0.1% FS: custody-transfer water trading, EPA-regulated discharge, scientific groundwater studies.

Temperature drift matters as much as static accuracy in outdoor installs. A sensor with ±0.02% FS/°C compensation will drift 0.4% across a 20 °C ambient swing — half a centimetre on a 0–10 m gauge for every 25 °C change. Look for a “compensated temperature range” spec (usually −10 °C to +50 °C or −20 °C to +70 °C) that brackets the actual ambient. If you also need to calibrate the unit on a bench before deployment, our pressure transmitter calibration walkthrough applies to submersibles too.

SI-151 Hydrostatic Level Sensor

General-purpose submersible for fresh water, wastewater, and fuel tanks. 0–5 m to 0–100 m equivalent water column, 4–20 mA / RS485, 316L stainless body, PU vented cable. The default first choice for most water-tank and shallow-well installations.

SI-PCM260 Deep Well Water Level Sensor

Slim 22 mm OD body for narrow casings down to 200 m. Kevlar-reinforced vented cable, ±0.25% FS, ATEX intrinsically safe option. Designed for groundwater monitoring networks and deep-borehole telemetry.

SI-302 Anti-corrosive Submersible Level Transmitter

PTFE-coated diaphragm and FEP-jacketed cable for concentrated acids, caustic, and chemical service. Hastelloy diaphragm option for sour-service oilfield brine. 0–10 m to 0–100 m, ±0.25% FS, hazardous-area approval available.

FAQ

What is the difference between a submersible pressure transducer and a level transmitter?

They are the same hardware in most catalogues. “Transducer” emphasizes the pressure-to-electrical-signal conversion, while “transmitter” emphasizes the calibrated 4–20 mA output that goes to the DCS. In practice the two terms are used interchangeably on data sheets.

How deep can a submersible pressure transducer go?

Standard catalogue ranges go to 500 m equivalent water column with stainless steel diaphragm and Kevlar-reinforced cable. Custom-built sensors with titanium or Hastelloy diaphragms reach 1000 m for oilfield production wells. Below 200 m, cable stretch and self-weight become design constraints.

Do I need a vented cable submersible?

For any open tank, well, or sump exposed to atmosphere, yes — a vented gauge sensor cancels barometric pressure drift automatically. Only use sealed gauge or absolute sensors when the cable cannot be terminated in a dry junction box, or when a separate barometer logger is recording atmospheric pressure for offline correction.

What cable jacket should I use for a wastewater sump?

Polyurethane (PU) is the default for municipal wastewater. For industrial process wastewater containing solvents, chlorinated compounds, or persistent pH excursions, step up to FEP. Hytrel TPE is a better choice if the cable is being dragged across debris during pump-station maintenance.

How accurate is a submersible pressure transducer?

Catalogue specs are typically ±0.1%, ±0.25%, or ±0.5% of full scale. On a 0–10 m sensor that translates to ±1 cm, ±2.5 cm, or ±5 cm of level error at steady temperature. Add another 0.4-0.8% across a 20 °C ambient swing if the sensor is mounted outdoors without temperature compensation enabled.

Can a submersible sensor measure non-water liquids?

Yes, as long as the diaphragm and cable jacket are compatible with the fluid. Multiply equivalent water column by specific gravity to size the range. For example, a 0–10 m sensor immersed in diesel fuel (SG 0.84) reads 0–8.4 m of actual fuel depth at full scale.

Need help sizing a submersible for a specific tank, well, or sump? Send the maximum depth, fluid type, ambient temperature range, and required output (4–20 mA / RS485 / voltage) and our engineering team will return a specification sheet within 24 hours, including the correct cable jacket and vent option.

Request a Quote

Please enable JavaScript in your browser to submit the form

Pressure Transmitter Troubleshooting: 5-Fault Checklist & Loop Test

Posted on by

Updated May 26, 2026 | Sino-Inst Engineering Team

Most pressure transmitter troubleshooting calls trace to one of five things. A 4–20 mA transmitter with “no output” looks like a dead sensor, but it almost never is. In our field records, 80% of no-output reports come down to wrong wiring polarity, low supply voltage, an open loop, a clogged impulse line, or a damaged diaphragm. Work down this list in order and you will find the fault before opening the transmitter housing.

Contents

First 60 seconds: what to check before touching anything

Before any multimeter goes on the loop, rule out a control-system cause. 30% of reported transmitter failures are actually DCS tag problems or PLC analog card faults. Confirm scaling first — our pressure transmitter working principle page has the URL/LRL math used in tag setup.

  • Check the DCS tag: is the scale correct? A transmitter reading 50% shown as 0% is a tag fault, not a transmitter fault.
  • Check the analog input card: pull a second channel from the same card. If it also reads 0, the card is dead.
  • Check the 24 V power supply: measure DC at the marshalling panel, not at the PSU. Long cable runs drop 2–4 V at 20 mA loop current.
  • Look at the transmitter display: a local LCD showing pressure but the DCS showing zero means the loop is broken somewhere between the transmitter and the DCS input card.

Pull recent maintenance records. If another technician just swapped wiring, changed a fuse, or opened an isolation valve, that is your most likely cause.

The basic loop test — multimeter in series

Loop current tells you what the transmitter is actually putting out. A multimeter set to mA, wired in series, is the single most diagnostic tool you have.

  1. Set multimeter to DC mA, 200 mA range.
  2. Disconnect the positive loop wire from the transmitter + terminal.
  3. Put the multimeter red lead on the transmitter + terminal, black lead on the disconnected wire. Loop must stay unbroken.
  4. Read the current.
ReadingWhat it meansNext step
4.00 mA ±0.05Transmitter healthy, pressure at zeroCheck if that is plausible. If not, look at impulse line and diaphragm.
3.8–5 mA, unstableLoose terminal, moisture, or bad groundTighten terminals. Check for water in conduit. Verify shield grounded at one end only.
< 3.6 mAFailed low alarm — transmitter detects internal faultCheck local display for error code. Diaphragm, electronics, or calibration fault likely.
> 21 mAFailed high alarm — out-of-range or sensor shortCheck process pressure vs URL. Diaphragm may be over-ranged.
0 mANo loop — open circuit or no supplyGo to Fault 1 and Fault 2.

A working 2-wire transmitter must draw at least 4 mA to run its own electronics. If you see 0 mA, the transmitter itself is not even booted — the loop is open or the supply is too low. If the loop has to drive a 0–10 V PLC input downstream of the sense resistor, refer to our 4-20 mA to 0-10 V conversion guide for the matching resistor math.

Fault 1: Wiring reversed or open

Reversed polarity is the #1 cause of a just-installed transmitter reading zero. The transmitter has reverse-polarity protection on most models, so it does not blow — it just sits there drawing nothing.

  • Confirm + goes to transmitter +, — goes to transmitter −. Labels on the terminal block are authoritative, not the cable color.
  • Check conductor continuity end-to-end. Marshalling cabinet to field junction box to transmitter.
  • For 2-wire transmitters, there are only two terminals. For 4-wire units (powered separately), signal and power are on different pairs — do not confuse them.
  • For installation best practice, see our pressure transmitter installation guide.

Fault 2: Low supply voltage at the transmitter

Most 4–20 mA transmitters need a minimum of 10–16 V DC at the terminals to operate. The nominal 24 V supply at the control room can drop below that by the time it reaches a field transmitter at the end of a 400 m cable loop with a 250 Ω sense resistor.

Calculate minimum supply voltage:

V_supply_min = V_transmitter_min + (0.020 A × (R_sense + R_cable + R_barrier))

For a 250 Ω sense resistor, 25 Ω cable loop, IS barrier at 300 Ω, and a transmitter needing 12 V:

V_supply_min = 12 + 0.020 × (250 + 25 + 300) = 12 + 11.5 = 23.5 V

A 22 V supply on that loop will leave the transmitter cold. Swap to a 24 V or 28 V supply, or move the sense resistor closer to the transmitter. For HART communication, keep at least 250 Ω in the loop — see our HART pressure transmitter guide for the full loop math.

Fault 3: Blocked impulse line or closed isolation valve

A perfectly healthy transmitter will read 4 mA if the process pressure never reaches the diaphragm. Blocked impulse lines are the #1 process-side cause of flat output.

  • Is the manifold isolation valve open? Walk the line from the process tap to the transmitter and touch every valve.
  • Is the impulse line plugged? Crystallization, scale, and wax plug lines over time. A hot-water flush through the tap usually clears it.
  • Is there trapped gas in a wet leg or trapped liquid in a dry leg? Both sides of a DP transmitter must be the phase the installer intended. Our DP transmitter installation guide covers impulse-line filling procedures.
  • On a diaphragm seal transmitter, is the capillary oil leaked out? Touch the face of the remote seal: a sunken diaphragm means fill fluid is gone and the transmitter needs factory service.

Fault 4: Damaged or saturated diaphragm

An over-ranged diaphragm reads a constant upper limit (20 mA or higher) regardless of real pressure. A cracked or stretched diaphragm reads constant low or drifts with temperature.

  • Bench test: remove the transmitter, apply a known pressure with a hand pump, and watch output. A linear 4–20 mA response across 0–100% means the sensor is good.
  • Stuck at 20+ mA: diaphragm over-ranged, or electronics stuck in failed-high state. Most transmitters recover after a pressure release and a power cycle.
  • Stuck at 4 mA, no response to pressure: diaphragm mechanically damaged or the pressure sensing element is shorted internally. Replace the transmitter or send for repair.
  • Reading drifts with ambient temperature: fill fluid has migrated or the sensing diaphragm has permanent deformation. Replace.

Fault 5: Drifted zero, failed electronics

A transmitter that reads a steady 6–8 mA with no process pressure applied is usually alive but with drifted zero. This is fixable in the field with a HART communicator or via the local zero push-button.

  1. Isolate the transmitter from process pressure.
  2. Vent both sides of a DP transmitter to atmosphere (open the equalizer valve on the manifold).
  3. Trigger a zero-trim — via HART, the local button, or the DCS asset management software.
  4. Check that output is now 4.00 mA ± 0.02.
  5. If zero-trim does not hold, the electronics are drifting. Replace.

Do not confuse zero drift with span drift. Zero drift is a constant offset at zero pressure. Span drift shifts the 20 mA endpoint. Both are trimmable through the transmitter menu, but persistent drift after trimming means the sensor is degrading and the unit is near end-of-life. For a full calibration procedure with deadweight tester or hand pump, see our pressure transmitter calibration walkthrough.

Replacement options

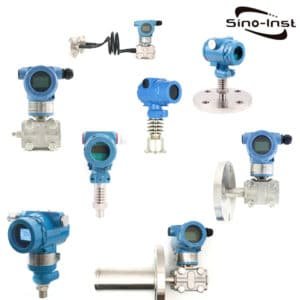

Process Industrial Pressure Transmitter

General-purpose 4–20 mA with HART. ±0.075% accuracy, 10-year stability. Direct drop-in replacement for legacy Rosemount 3051 and Yokogawa EJA loops.

SMT3151 TGP Gauge Pressure Transmitter

Compact 2-wire gauge pressure unit for utilities and OEM use. ±0.1% accuracy, 0.4 kPa to 42 MPa range, IP67 housing. Fast zero-trim via magnetic button.

Diaphragm Seal Pressure Transmitter

Flush-flanged remote seal for viscous, slurry, or high-temperature service. Eliminates impulse-line blockage. 316L wetted parts, PTFE option, capillary lengths to 10 m.

FAQ

How do you troubleshoot a faulty pressure transmitter?

Start with the loop, not the transmitter. Put a multimeter in series and read the mA: 0 mA means open circuit or no power; 4 mA at zero process pressure means the transmitter is healthy but the impulse line may be blocked; >21 mA means a failed-high alarm. Walk the 5-fault sequence above (wiring, voltage, impulse line, diaphragm, drift) before opening the transmitter housing.

What does a 20 mA output mean when there is no pressure?

The transmitter has entered a failed-high alarm state. This happens when the sensor detects an internal fault — over-ranged diaphragm, failed ADC, or memory corruption. Cycle power to clear transient faults. If 20 mA persists at zero pressure, replace the transmitter.

How do I test a 4-20mA pressure transmitter with a multimeter?

Set the multimeter to DC mA (200 mA range), break the loop at the + terminal, and insert the meter in series. The multimeter becomes part of the current path. You should read 4 mA at zero pressure and 20 mA at full scale. Never put a multimeter in parallel with a 4–20 mA loop — it will short the signal to ground.

Can low voltage damage a 4-20mA transmitter?

Low supply voltage does not damage the transmitter, but it prevents normal operation. Below the minimum operating voltage (typically 10–12 V at the terminals), the transmitter either does not boot or outputs an unstable current. Fix the supply; the transmitter will resume normal service.

How often should a pressure transmitter be recalibrated?

Annual recalibration is standard for custody transfer and safety-critical loops. For general process control, 3–5 years is typical if the transmitter has not been exposed to over-range events, temperature cycling beyond spec, or corrosive service. Trend the zero drift year over year — if it is accelerating, shorten the interval.

Still stuck on a 4–20 mA loop that reads wrong? Send us the transmitter tag, loop wiring diagram, and the current DCS reading. Our engineers will walk through the fault tree with you and recommend a replacement unit if yours is end-of-life. If you also need a refresher on instrument units, our common units of pressure page covers psi/bar/kPa cross-reference.

Request a Quote

Please enable JavaScript in your browser to submit the form

Static Pressure vs Dynamic Pressure (vs Total): HVAC & Pitot

Posted on by

Static, dynamic, and total pressure are three flavours of the same scalar — but they appear at different ports of a Pitot-static probe, drive different process instruments, and trip up new HVAC and fluid-mechanics engineers because the textbook prose hides the practical mapping. This page leads with a three-way comparison table, then walks the formulas, the Pitot anatomy, an HVAC duct traverse example, and what pressure gauges actually read.

Static vs Dynamic vs Total Pressure: Comparison Table

The fastest answer, before any equations. Use this table to decide which port, sensor, and equation matches the engineering problem in front of you.

QuantitySymbolWhat it MeasuresTypical Sensor / PortWhere it Shows Up
Static pressurepsPressure exerted by a fluid at rest on the pipe or duct wall, normal to flowWall tap, gauge transmitter, manometer static legProcess gauges, HVAC duct readings, tank pressures
Dynamic pressureq or pdKinetic energy density of the moving fluid, ½ρv²Pitot-static probe — difference between impact and static portsFlow meters (DP-type), aircraft airspeed, fan curves
Total pressurep0 or ptStatic + dynamic, the energy if the fluid were brought to rest isentropicallyForward-facing impact port (Pitot tube)Aerodynamics, compressor inlet, turbine stages

The defining identity (incompressible, low-Mach): p0 = ps + ½ρv². Knowing any two of the three, you can solve for the third. A Pitot-style averaging probe measures both p0 and ps in the same body and outputs the difference (the dynamic head) to a DP transmitter.

Contents

Static Pressure: Force at Rest on Pipe and Tank Walls

Static pressure is the pressure a fluid exerts perpendicular to a surface that is not moving with the flow — the pipe wall, the duct wall, the diaphragm of a wall-mounted gauge. It exists whether the fluid is moving or stationary. For a fluid at rest under gravity, ps = ρgh; for a closed pressurized tank, it is whatever the regulator allows.

Static pressure is what process gauges, transmitters, and most safety devices read by default. The port faces sideways into the flow, so kinetic energy contributes nothing to the signal. The static port on a Pitot-static probe — those small holes on the side of the probe body — does the same job inside a moving stream.

  • Units: Pa, kPa, bar, psi, “in WC” (inches of water column in HVAC), mm Hg (vacuum and medical).
  • Sensor: gauge pressure transmitter, absolute pressure transmitter, or the static side of a differential transmitter.
  • Process examples: tank head pressure, pump suction/discharge static, distillation column pressure, HVAC duct static.

Dynamic Pressure: Kinetic Energy and Its Formula

Dynamic pressure is the kinetic energy of the moving fluid expressed as a pressure. For an incompressible flow at low Mach number:

q = ½ ρ v²

  • ρ = fluid density (kg/m³)
  • v = local fluid velocity (m/s)
  • q = dynamic pressure (Pa)

Dynamic pressure is zero when the fluid is at rest, and rises with v². Doubling velocity quadruples the dynamic head — which is why orifice plate, Venturi, and Pitot-style DP flow meters are intrinsically square-root devices, not linear ones. The 4–20 mA output that drives the loop has to be linearised in the transmitter or the DCS; see our linear-to-sqrt converter tool for the math.

For air at standard density (1.20 kg/m³) and 10 m/s in a duct, q = 0.5 × 1.20 × 100 = 60 Pa. For water at 1000 kg/m³ and 2 m/s in a pipe, q = 2000 Pa = 2 kPa. The factor of 800× between gas and liquid dynamic head explains why air-velocity Pitot tubes need very sensitive DP cells while water-velocity Pitots can use standard-range transmitters.

Total Pressure and Bernoulli’s Equation

Total pressure is the static + dynamic sum at a point. It is also the pressure you would read if you could decelerate the fluid to zero velocity isentropically — no friction, no heat exchange. Bernoulli’s equation says total pressure is conserved along a streamline of a steady, incompressible, frictionless flow:

ps + ½ρv² + ρgz = constant

The ρgz term is the elevation head; in a horizontal pipe or HVAC duct it drops out and the equation simplifies to p0 = ps + q. In real pipes, friction and turbulence make total pressure decrease in the flow direction — that decrease is the line’s friction head, which is what pumps and fans actually have to provide. The relationship between line static pressure and the resulting flow is covered in detail in our flow rate and pressure reference.

For compressible flows above Mach 0.3, the simple formula understates total pressure. Aerodynamicists use the isentropic relation p0/ps = (1 + (γ−1)/2 × M²)γ/(γ−1). For most HVAC and process work, Mach is well under 0.1 and the incompressible form is fine.

Pitot-Static Tube Anatomy: Which Port Reads Which

A Pitot-static probe is two tubes in one body. The forward-facing impact port stagnates the flow at the tip and reads total pressure p0. The flush side holes — typically a ring of 4 to 8 — read the wall static ps. A DP transmitter across the two ports outputs the dynamic head q directly. From q you back out velocity by v = √(2q/ρ).

Misalignment costs accuracy fast. A ±5° yaw on a single-port Pitot is roughly 1% error on velocity; ±15° is closer to 8–10%. Averaging Pitot tubes (Verabar, Annubar, V-cone variants) place multiple impact ports across a chord to reduce both alignment sensitivity and the impact of non-uniform velocity profiles. For straight-pipe rules see our flow-meter straight-pipe requirements note, and our V-Cone flow meter page for the contraction-based variant.

Static Pressure in HVAC Fans and Ducts

In HVAC, “static pressure” is almost always referenced to the duct wall, and the design target is the pressure the fan has to supply to overcome the system resistance. Typical numbers:

  • Residential furnace / AC: 0.5 in WC (125 Pa) is a common rated external static pressure.
  • Light commercial RTU: 0.8–1.5 in WC (200–375 Pa).
  • VAV systems at the fan: 2–4 in WC (500–1000 Pa).
  • High-pressure plenum or dust collection: 6–10 in WC (1.5–2.5 kPa).

“Total” external static pressure on a fan curve is supply-side static plus return-side static, both measured to the duct wall — not the velocity pressure. Velocity pressure (the dynamic head from the fan outlet) is separate, and fan-total pressure rise is the sum of the two. Confusing the two is the most common HVAC commissioning mistake. For chilled-water side energy accounting, see how flow and ΔT combine in our BTU meter for chilled water note.

What Pressure Gauges Actually Measure

A standard process gauge, gauge transmitter, or absolute transmitter mounted on a wall tap reads static pressure. The diaphragm sees fluid normal to its face from a side port, so the kinetic component has no projection onto the sensing surface.

To read dynamic or total pressure you need a probe that intentionally faces the flow:

  • An impact port alone (a forward-facing tube) reads total pressure.
  • A static wall tap reads static pressure.
  • The DP between an impact port and a static port reads dynamic pressure directly.
  • A differential pressure flow calculation across an orifice, Venturi, or V-cone is the same physics — Bernoulli applied across an area contraction.

HVAC Duct Velocity From a Pitot Traverse

Round duct, 400 mm ID, supply air at 25 °C. Pitot-static traverse shows an average dynamic head of 38 Pa across the standard log-Chebyshev points. What is the air velocity and volumetric flow?

  1. Air density at 25 °C ≈ 1.184 kg/m³.
  2. v = √(2q/ρ) = √(2 × 38 / 1.184) = √(64.2) = 8.01 m/s.
  3. Cross-section A = π(0.4/2)² = 0.1257 m².
  4. Q = v × A = 8.01 × 0.1257 = 1.007 m³/s = 3623 m³/h = 2133 CFM.

If the air is hotter or cooler than 25 °C, correct ρ before computing v. Around 80 °C supply air the density is ~12% lower, which gives a ~6% higher velocity for the same measured dynamic head — small but enough to matter for VAV setpoints.

Three Misconceptions Engineers Still Get Wrong

  1. “Dynamic pressure is what a gauge reads when the fluid is moving.” No — a wall-mounted gauge reads static pressure whether the fluid moves or not. Dynamic head only shows when a forward-facing impact probe is involved.
  2. “Total pressure equals static pressure plus the pump pressure.” No — total pressure is the energy per unit volume at a point, not a pump-curve quantity. The pump curve specifies the pressure rise (Δp0) it adds between suction and discharge.
  3. “At higher velocity the static pressure goes up.” The opposite. By Bernoulli, where v rises (e.g. at an orifice throat or in a Venturi neck) static pressure falls so that total pressure stays constant. That fall is exactly what DP flow meters measure.

FAQ

What is the difference between static and dynamic pressure?

Static pressure is the force the fluid exerts on a surface that is not moving with the flow. Dynamic pressure is the kinetic-energy contribution from the fluid’s motion, ½ρv². The two add to give total pressure: p0 = ps + ½ρv².

What is the difference between static pressure and dynamic pressure in a fan?

Fan static pressure is the wall-referenced pressure the fan must supply to push air through the ductwork against system resistance. Fan dynamic pressure (also called velocity pressure) is the kinetic head at the fan outlet, ½ρv² evaluated at outlet velocity. Fan-total pressure rise is the sum — and is what the fan curve plots against flow.

Do pressure gauges measure static or dynamic pressure?

Standard wall-mounted process gauges and transmitters read static pressure. To read dynamic pressure you need a Pitot-style probe wired through a DP transmitter across the impact and static ports. To read total pressure alone you need a forward-facing impact port without a paired static port.

What is total pressure used for?

Total pressure is used in aerodynamics (airspeed via Pitot tube), turbomachinery (compressor and turbine inlet/outlet states), and as the reference for Bernoulli energy balances. In incompressible HVAC and water systems, total pressure equals static + dynamic and is the quantity conserved between two points on a frictionless streamline.

Why do flow meters need dynamic pressure?

DP-type flow meters (orifice plate, Venturi, V-cone, Pitot, averaging Pitot) infer velocity from the dynamic head created by an area change or a stagnation point. Q = K √(ΔP/ρ), so the meter is intrinsically square-root and needs accurate density correction for compressible fluids.

SMT3151 Gauge Pressure Transmitter

±0.075% FS | 4–20 mA HART | Reads static pipe/tank pressure to atmosphere, configurable range from kPa to MPa.

SMT3151DP DP Transmitter

±0.075% FS | 4–20 mA HART | Pairs with Pitot or orifice ports to deliver dynamic head; spans from 0–0.5 kPa up to 0–40 MPa.

Verabar Averaging Pitot

DN50–DN3000 | Multi-port impact + static | Built-in DP output for direct dynamic-head reading on liquid, gas, and steam.

Need a Pressure or Pitot Tube Sized for Your Process?

Whether you need a static gauge transmitter, a DP cell for a Pitot or orifice, or an averaging Pitot probe in carbon-steel or 316L, send the line size, fluid, and design velocity to our engineers — we’ll quote ranges, accuracy class, and process connection together.

For loop-side issues when your pressure transmitter reads wrong, see the pressure transmitter troubleshooting checklist — multimeter loop test plus a 5-fault decision tree.

Request a Quote

Please enable JavaScript in your browser to submit the form

4-20 mA to 0-10 V Converter: Resistor Table, Wiring & PLC Scaling

Posted on by

A 4-20 mA current loop carries a sensor signal across hundreds of meters with near-zero drift. A 0-10 V PLC card cannot accept that current directly. Converting between the two is a five-cent fix on the bench (one resistor) or a forty-dollar fix in the panel (a signal converter). This guide gives you the resistor table, the wiring diagram, the PLC wiring conventions, and the decision rule for picking each.

Contents

4-20 mA to 0-10 V Conversion at a Glance

Two paths exist. A precision resistor across the PLC analog input converts current to voltage by Ohm's law. An active signal converter does the same job but adds galvanic isolation and a true zero-based output. Pick the resistor for short cable runs and grounded single-PLC systems. Pick the converter when ground loops, long runs, or true 0-10 V output matter. Reviewing how a 4-20 mA transmitter generates the loop helps clarify why the live-zero matters.

One trap catches new technicians weekly: a 500 Ω resistor produces 2-10 V, not 0-10 V. The 4 mA live zero of the loop drops 2 V across 500 Ω. If the PLC card requires the input to start at 0 V (some 12-bit modules do, others scale from any value), the resistor method needs software offset or an active converter with zero adjustment.

Resistor Sizing Table for Common Output Ranges

Voltage at the PLC input equals current times resistance. The 4 mA endpoint sets the low voltage; 20 mA sets the high. Most plants standardize on 250 Ω (1-5 V) or 500 Ω (2-10 V) so spares interchange.

ResistorOutput @ 4 mAOutput @ 20 mASpanTypical PLC card
125 Ω0.5 V2.5 V0.5-2.5 VLow-voltage ADC, microcontroller
250 Ω1.0 V5.0 V1-5 VAllen-Bradley 1492-IFM, legacy DCS
500 Ω2.0 V10.0 V2-10 VSiemens S7-1200/1500 0-10 V mode
250 Ω + opamp offset0 V4 V0-4 VCustom analog front-end

Specify 1% or 0.1% metal-film resistors at 0.25 W or higher. At 20 mA through 500 Ω the dissipation is I²R = 0.0004 × 500 = 0.2 W, so a quarter-watt part is borderline; jump to 0.5 W if the resistor sits inside a hot panel. Wirewound and carbon-film parts drift with temperature and should not be used for analog instrumentation. The same precision rule applies whenever you read engineering units back from a sensor — resistor error multiplies straight into reported value.

Wiring the Resistor Across the PLC Analog Input

Three terminals do the work: the transmitter positive (+), the PLC analog input (AI), and the PLC common (COM). The resistor goes between AI and COM, the transmitter loop closes through the AI terminal.

  • Wire the transmitter + to the 24 VDC supply positive (most transmitters are loop-powered).
  • Wire the transmitter − (current return) to the PLC AI terminal.
  • Wire the PLC COM terminal to the 24 VDC supply negative.
  • Install the precision resistor across AI and COM (parallel to the input impedance).
  • Keep the resistor lead length under 20 mm to limit thermal EMF and pickup noise.

On terminal blocks, mount the resistor on the panel side, not at the transmitter side. This keeps the 4-20 mA loop full-length (high immunity) and only the short voltage span sees the PLC. Our pressure transmitter installation guide covers the loop-powered vs self-powered (4-wire) wiring variants for reference.

PLC Scaling: Why 500 Ω Gives 2-10 V, Not 0-10 V

The 4 mA live zero is the cause. 4 mA × 500 Ω = 2 V. The PLC reads 2 V at the bottom of the sensor range, not 0 V. Two options correct this in software:

  • Two-point scaling: Engineering value = (raw_V − 2) / 8 × full_scale. The 8 is the 10-2 V span. Built into most modern PLC scale function blocks (SCL, SCP, FC105).
  • Offset correction: Add a -2 V offset before the standard 0-10 V scale block. Works on older HMIs that lack two-point scaling.

A common error is mapping 0-10 V raw counts directly to 0-100% engineering units. This compresses the live signal range to 80% and shifts zero by 20%. Field calibration will look fine at mid-scale and fail at endpoints, which is hard to diagnose without a multi-point bench calibration.

Signal Converter vs Resistor: Decision Matrix

A passive resistor wins on cost and simplicity. An active signal converter wins on isolation, true zero-based output, and long cable immunity. Use the matrix to pick.

CriterionResistor (passive)Signal converter (active)
Cost per channel< $1$30-$120
Galvanic isolationNone1500-3000 V typical
True 0-10 V outputNo (gives 2-10 V)Yes
Ground loop immunityVulnerableImmune
Cable length tolerance< 50 m typical> 500 m with shielded twisted pair
Field calibrationNone neededTrim pots or DIP switches
Failure modeOpen = no signal; short = full-scaleDiagnostic LED, fault output

A DIN-rail signal converter handles 4-20 mA ↔ 0-10 V either direction, with 24 VDC loop power, 2500 V isolation, and 0.1% accuracy. For hazardous-area service, look for an IECEx/ATEX zener barrier with isolated output in the same form factor. When the signal then feeds a SCADA-level analog input bank, the isolated converter also limits common-mode voltage entering the supervisory layer.

Reverse Path: 0-10 V to 4-20 mA

VFDs, lab power supplies, and HMI analog outputs often produce 0-10 V. Sending that signal to a DCS that expects 4-20 mA requires the reverse converter: a V/I converter chip (XTR110, AD694) on a board, or a packaged DIN-rail unit. Passive conversion is not possible — a resistor cannot generate a current loop. Loop power must come from somewhere, typically the DCS analog input itself or an external 24 VDC supply.

Common Mistakes in Field Installations

  • Resistor on the wrong side of the loop. Mounting at the transmitter cuts loop length immunity in half.
  • Using 250 Ω on a 0-10 V card. Output peaks at 5 V; PLC reads 50% at full sensor span.
  • Mixing carbon and metal-film resistors in spare-parts inventory. Temperature drift kills accuracy on outdoor panels.
  • Skipping isolation when sharing 0 V reference between multiple PLC racks. Ground loops appear as 50/60 Hz noise on the voltage signal.
  • Forgetting the live zero in PLC code. Process readings stuck at −25% LRV at idle are the symptom.

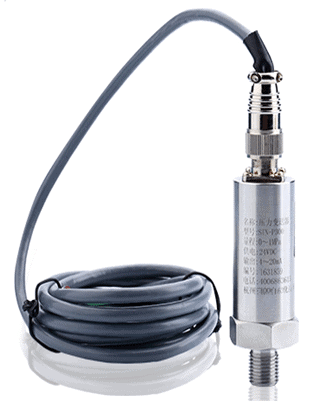

SI-300 Pressure Transducer (4-20 mA / Voltage)

Ranges 0-1000 bar | Output 4-20 mA, 0-5 V, 0-10 V | Accuracy ±0.25% FS — ships with selectable output for direct PLC wiring.

R7100 Universal-Input Paperless Recorder

Accepts 4-20 mA, 0-10 V, mV, RTD, thermocouple on the same channel — no resistor or converter required to log mixed-signal field instruments.

SI-512H High-Temperature Pressure Sensor

Process temp up to 800 °C | 4-20 mA two-wire output | Cooling fin design — for steam, hot oil, furnace headers feeding PLC analog inputs.

FAQ

What resistor converts 4-20 mA to 0-10 V?

A 500 Ω precision resistor gives 2-10 V, not 0-10 V, because the 4 mA live zero drops 2 V across 500 Ω. For a true 0-10 V output, use an active signal converter with zero adjustment, or apply two-point scaling in PLC code to handle the 2 V offset.

Why does 500 Ω not give 0 V at 4 mA?

Ohm's law: 4 mA × 500 Ω = 2 V. The 4 mA "live zero" is intentional. It lets the receiver detect a broken loop (0 mA = fault) versus a valid low reading. The 2 V offset must be handled in software or by an active converter.

What resistor for 4-20 mA to 1-5 V?

250 Ω. 4 mA × 250 Ω = 1 V; 20 mA × 250 Ω = 5 V. Specify 0.1% tolerance metal film, 0.25 W. The 1-5 V range was common on legacy DCS systems and still appears on some older Allen-Bradley 1771 modules.

Do I need an isolator between the sensor and PLC?

Yes, if the sensor and PLC share a long cable run (over ~50 m), if either device has a separate ground reference, or if 50/60 Hz hum appears on the signal. A DIN-rail signal isolator with 1500-3000 V galvanic isolation breaks the ground path.

Need spec help, a wiring drawing for a specific PLC, or a price on a DIN-rail signal converter? Send your project details — our instrumentation engineers reply within one business day.

Request a Quote

Please enable JavaScript in your browser to submit the form

How to Install a Pressure Transmitter: Step-by-Step Guide | Sino-Inst

Posted on by

Updated May 21, 2026 — A pressure transmitter is only as accurate as its installation. Mount it on the wrong elevation, route impulse tubing without a proper slope, or skip the root valve and you will chase phantom readings for the life of the loop. This guide walks through tap location, mechanical mounting, impulse lines, manifold hookup, 4-20 mA wiring, and final loop checkout — with the numbers and IEC 62828-2 references field crews actually need.

The transmitter port reads static pressure; if your application also needs dynamic head from a Pitot or DP element, the relationship and Bernoulli formula are covered in our static vs dynamic pressure note.

Contents

Site Survey: Tap Location and Mounting Position

Pick the tap before you pick the bracket. The tap point determines whether the transmitter sees a clean process signal or noise from cavitation, two-phase flow, or pulsation. Follow three rules during the walk-down:

  • Keep the tap on a straight run. Stay at least 5 pipe diameters downstream of an elbow, valve, or reducer and 2 diameters upstream of the next disturbance. The same 10D upstream / 5D downstream rule applies to most inline instruments.
  • Stay away from heat and vibration sources. Hot spots above 85 °C ambient drift the electronics; pump skids and reciprocating compressors crack diaphragms.
  • Allow elevation difference for static head correction. If the transmitter sits below the tap on a liquid service, expect a static offset equal to ρgh. Calibrate the zero after installation, not before.

Mount the housing where a technician can read the local display from eye level without climbing. The default mounting height is 1.3 to 1.5 m above grade or a permanent platform. Leave 200 mm of clearance behind the terminal cover so the conduit can be opened without rotating the body.

Mechanical Mounting: Bracket, U-Bolt, and Direct-Mount

Three mounting styles cover almost every plant installation. Pick by support availability and pipe size.

Mount styleBest forPipe sizeWatch-outs
2-inch pipe stand bracket (U-bolt)General-purpose remote mountDN50 vertical pipeUse SS304 bracket on outdoor or marine sites
Panel/wall bracketIndoor instrument rackn/aVibration isolation pads if rack is on a skid
Direct (close-coupled) mountClean liquids, short process linesProcess taps with 1/2 NPT or G1/2Avoid on hot or vibrating lines

Use stainless or galvanized hardware on outdoor installations. Carbon-steel U-bolts rust in six months on a coastal site and torque-loose under thermal cycling. Torque the process flange bolts in a star pattern to the value printed on the transmitter nameplate — most 1/2 NPT process connections target 40 to 60 N·m.

Impulse Tubing Routing: Slope, Pots, and Bends

The impulse line carries process pressure from the tap to the transmitter. Bad routing introduces lag, plugging, and frozen lines. Stick to the slope rule and condensate-pot sizing below.

  • Slope at least 1:10 (about 100 mm per meter) along the entire run. Slope down toward the transmitter for liquid; slope up toward the transmitter for gas.
  • Keep the line as short as practical. Lines longer than 15 m add measurable response lag — about 0.5 s per 10 m on a 1/2 inch tube with water service.
  • Use a single material. 316L stainless tubing is standard for general process; PTFE-lined or Monel handles chlorides and acids.
  • Install a condensate pot on steam. Size the pot to hold at least 100 mL of condensate at working pressure. Fill the pots and isolate before commissioning.

Always include a root valve at the tap. A failed transmitter you can isolate; a failed transmitter on a live tap means a unit shutdown. The root valve must match the line rating — Class 300 process gets Class 300 root, not Class 150.

Manifold Selection: 3-Valve vs 5-Valve Hookup Drawings

A manifold lets the technician zero, vent, and isolate the transmitter without disturbing the process. Two configurations cover almost every job.

  • 3-valve manifold — two block valves plus one equalizing valve. Standard for differential pressure on clean liquid or steam where venting through the equalizer to atmosphere is acceptable.
  • 5-valve manifold — adds two vent valves at each block. Use when the process is toxic, when the transmitter handles a calibration in place, or when the customer spec calls for ANSI/ISA-77.40 compliant hookup.

The zero procedure is the same: close both blocks, open the equalizer, vent through the drain plug, then zero the transmitter. Open the high-side block first when bringing the loop back online so the diaphragm sees positive pressure first. If you need a printable hookup drawing, see our DP transmitter hookup drawings page.

Wiring a 4-20 mA Loop: 2-Wire, 4-Wire, and Shielding

Most industrial transmitters are 2-wire, loop-powered. The same pair of conductors carries 24 V DC supply and the 4-20 mA signal. Three rules keep the loop clean:

  • Watch the loop budget. Standard supply is 24 V DC. The transmitter needs at least 10.5 V at its terminals; the rest is loop resistance. With a 250 Ω HART resistor and 100 m of 1.0 mm² cable, you have about 8 V of headroom.
  • Use shielded twisted-pair cable. Ground the shield at the DCS end only. Grounding both ends creates a ground loop that injects 50/60 Hz noise.
  • Separate signal from power. Run 4-20 mA cables in a tray separate from VFD output cables, contactor lines, and welding circuits. Crosstalk on a poorly shielded run shows up as a 10-30 mA spike during motor start.

4-wire transmitters take a separate power feed and put the 4-20 mA signal on its own pair. They give more loop headroom and are common on radar, magnetic flow, and Coriolis. Wire the signal pair the same way as 2-wire: twisted, shielded, single-ended ground. For a full reference see our pressure transducer wiring diagram page. If the DCS input only accepts 0-10 V or 1-5 V, drop a precision 4-20 mA to voltage conversion resistor in series.

Tap Orientation by Service: Liquid, Gas, and Steam

Tap orientation around the pipe is the single biggest source of long-term reading error. The rule is to keep the tap line free of the wrong phase.

ServiceTap clock positionTransmitter locationReason
Liquid3 or 9 o’clock (horizontal)Below the tapKeeps gas out of the impulse line
Gas / dry air12 o’clock (top)Above the tap, slope upKeeps condensate out of the impulse line
Steam3 or 9 o’clockBelow the tap with condensate potsPots create stable water column ahead of the diaphragm

For two-phase flow, install a stilling chamber or knockout drum upstream. The transmitter cannot recover phase data from a slug-flow signal. If you are still picking between a pressure gauge and a transmitter for this duty, see our pressure transmitter vs gauge comparison.

Commissioning and Loop Checkout

Once the mechanical and electrical work is done, run through this loop checkout sequence before signing off.

  1. Megger the cable. Disconnect the transmitter and measure conductor-to-shield resistance at 250 V DC. Anything below 100 MΩ is suspect insulation.
  2. Energize and verify supply. Confirm 24 V at the transmitter terminals with the loop wired but the process isolated.
  3. Inject a 4-20 mA simulator at the transmitter end and verify the DCS reads 0%, 50%, and 100% within ±0.2 mA.
  4. Open the root valve slowly. Watch the local display for unexpected spikes; if the reading jumps to scale and stays, look for a plugged tap or closed equalizer.
  5. Trim the zero. With process applied and the equalizer closed, zero against a known reference (deadweight tester or a calibrated pressure module). See our 5-step bench & HART calibration procedure for the full sequence.
  6. Sign the loop sheet. Record as-found and as-left readings per ISA-5.4 loop diagram conventions. Most plant audits cite missing as-left documentation as a finding.

IEC 62828-2:2017 codifies the test procedures for industrial pressure transmitters and references the loop-checkout sequence above. Reference the standard in your commissioning packet if the project is under EPC scope.

Six Common Installation Mistakes

  1. Tap on a 90° elbow. Turbulence error swamps the signal. Move at least 5D away.
  2. Forgetting the root valve. No way to isolate for calibration; every recal becomes a unit shutdown.
  3. Wrong slope direction. Slope down for liquid, up for gas. Reversed slope traps the wrong phase and shows up as 4-20 mA fault symptoms within days.
  4. Grounding the shield at both ends. Creates a 50/60 Hz ground loop and 1-2 mA noise on the signal.
  5. Skipping the condensate pot on steam. The diaphragm sees flashing steam directly and reads erratic until the pot is fitted.
  6. Calibrating zero before the static head is settled. Always zero with the process applied and lines vented.

Industrial Process Pressure Transmitters

0-60 MPa range | ±0.075% accuracy | 4-20 mA HART — general-purpose process pressure measurement with IP65 housing.

SMT3151DP Smart DP Transmitter

0-40 MPa span | ±0.05% accuracy | flow/level/DP service — 3-valve or 5-valve manifold ready.

Diaphragm Seal Pressure Transmitters

For viscous, slurry, or high-temperature media. Remote seals with capillary up to 10 m, 316L wetted parts.

Frequently Asked Questions

How do you install a pressure transmitter?

Pick a tap at least 5 pipe diameters from any disturbance, mount the transmitter on a 2-inch pipe stand with a bracket, route impulse tubing with a 1:10 slope toward (liquid) or away from (gas) the transmitter, fit a 3-valve or 5-valve manifold, wire the loop with shielded twisted pair grounded only at the DCS, then run loop checkout and trim the zero with process applied.

How do you install a pressure transmitter on a liquid service?

Tap at the 3 or 9 o’clock position on a horizontal pipe so trapped gas vents back into the process. Mount the transmitter below the tap so liquid fills the impulse line and slope the tubing down at least 1:10 toward the transmitter. Verify there is no air pocket before zeroing.

What is the IEC standard for pressure transmitter installation?

IEC 62828-2:2017 covers test procedures and reference conditions for industrial-process pressure transmitters, including impulse line connection and loop checkout. ANSI/ISA-77.40 covers hookup drawings, and the ISA-5.4 standard specifies loop diagrams used during commissioning.

What is the correct wiring for a 4-20 mA pressure transmitter?

Use 2-wire loop power on most industrial transmitters: a single shielded twisted pair carries 24 V DC supply and the 4-20 mA signal. Ground the shield at the DCS end only. Confirm the transmitter has at least 10.5 V at its terminals after subtracting loop resistance — with a 250 Ω HART resistor and 1 mm² cable, that leaves about 8 V of headroom on 100 m of run.

Where should a pressure transmitter be mounted on a pipe?

Mount it at eye level on a 2-inch pipe stand, 1.3 to 1.5 m above grade, with 200 mm clearance to open the terminal cover. Keep it at least 5 pipe diameters from elbows or valves and out of direct sunlight, hot lines, and vibration sources.

Need help selecting the right pressure transmitter for your installation? Send us the line size, service, range, and accuracy and our engineers will come back with a recommendation and quote within one business day.

Request a Quote

Please enable JavaScript in your browser to submit the form

Pressure Transmitter Calibration: 5-Step Bench & HART Procedure

Posted on by

A pressure transmitter drifts. Diaphragm fatigue, temperature swings, vibration, and process buildup move the zero and span over time. A 0.1 % drift on a 0–1.6 MPa range puts the loop 1.6 kPa off — enough to trip a safety interlock or skew custody-transfer billing. This page is the field procedure for calibrating a 4–20 mA pressure transmitter at the bench and in place, with HART communicator and DP-cell specifics, plus the certificate format an auditor wants to see.

Contents

Why and When to Calibrate a Pressure Transmitter

The reasons a calibrated transmitter goes out of spec are mostly mechanical: piezoresistive bridges age, ceramic and metal diaphragms fatigue, process deposits add a static load, and the electronics drift with temperature. Most manufacturers (Rosemount, Yokogawa, Endress+Hauser, Sino-Inst) quote a long-term stability figure such as ±0.1 % URL per 10 years — that is a maximum, not a guarantee at any given moment.

Recommended calibration interval by service:

ServiceCalibration intervalTrigger to recalibrate sooner
Custody transfer / fiscal metering6 monthsAny contractual dispute
Safety instrumented systems (SIS / SIL)Per proof-test plan (1–3 years)Demand failure, MOC change
Critical process control loops1 yearLoop tuning issues, drift > 0.25 %
General process monitoring2 yearsVisible drift on trend, gauge mismatch
Steam / corrosive / high-temp service1 yearDiaphragm deformation, plugged tap

Always recalibrate after a process upset, a transmitter swap, a wiring change, or any time the field gauge and the DCS reading disagree by more than the combined uncertainty of the two instruments.

Calibration Equipment You Need

  • Reference pressure source — hand pump (0–40 bar), nitrogen bottle + regulator (40–200 bar), deadweight tester (high accuracy, ±0.025 %).
  • Reference pressure gauge or calibrator — at least 4× better accuracy than the transmitter. A Fluke 718 or Druck DPI 610 covers most field cases.
  • 4–20 mA reader — loop calibrator or precision multimeter with a 250 Ω shunt for HART signal.
  • HART communicator — Emerson 475 / 375 / Trex, or a HART modem + laptop with FDT/DTM software. Required for digital trim and configuration changes.
  • 24 VDC supply — clean, isolated, with at least 22 V at the transmitter terminals after the 250 Ω shunt.
  • 3-valve manifold or 5-valve manifold — required for differential pressure transmitters in service.

Match unit conventions across instruments. A reference gauge in psi against a transmitter ranged in MPa is the most common source of calibration error — consult our reference on common pressure units before starting.

Bench Calibration Procedure: 5 Steps

Bench calibration uses 5 test points covering 0 %, 25 %, 50 %, 75 %, and 100 % of the range, with ascending and descending sweeps to expose hysteresis.

  1. Wire and power up. Connect 24 VDC supply, 250 Ω loop resistor, mA reader and HART communicator across the loop. Record the as-found tag number, serial number, and configured range.
  2. Vent to atmosphere and capture zero (0 %). Output should read 4.00 mA ± 0.02. Note as-found zero error.
  3. Apply 25 %, 50 %, 75 %, 100 % pressure. Hold each point for at least 30 s, then record the mA reading. The expected mA at each point is I = 4 + 16 × (P−PL)/(PH−PL).
  4. Sweep down. Apply 75 %, 50 %, 25 %, 0 % and record again. Hysteresis = max difference between up and down at the same point. Should be within transmitter accuracy class (typically ±0.075 % to ±0.25 %).
  5. Adjust if needed. If zero or span are out of tolerance, perform a sensor trim (analog or digital) and re-run the 5-point sweep as “as-left”.

Tag the transmitter with a sticker showing the calibration date, next-due date, and technician initials before returning to service. See the 4–20 mA wiring diagrams if the loop polarity or HART resistor placement is unclear.

HART Communicator Calibration Workflow

HART transmitters separate two trim operations: the sensor trim aligns the transducer’s digital pressure value to the applied reference; the D/A trim (also called 4–20 mA trim) aligns the analog output to the digital value. Both must be done in order — never trim the analog output before the sensor.

  1. Connect the HART communicator across the loop, with the 250 Ω resistor in series.
  2. Navigate to Diag/Service → Calibration → Sensor Trim. Vent the transmitter and apply “Lower Sensor Trim” at 0 %. Apply 100 % pressure and apply “Upper Sensor Trim”.
  3. Navigate to Diag/Service → Calibration → D/A Trim. The transmitter forces 4.00 mA; read the loop calibrator value and enter the measured value. Repeat at 20.00 mA.
  4. Verify by sweeping 5 points and comparing both the digital PV (from HART) and the analog mA reading.
  5. Document the as-found / as-left values and save the configuration with the “Save” or “Write to Field” command.

For Rosemount 3051 and SMART transmitters the menu paths are similar. Background on how the transmitter generates the 4–20 mA in the first place is in how a pressure transmitter works.

Differential Pressure Transmitter Calibration

DP transmitters need their high and low sides isolated and equalized correctly before any pressure is applied. The 3-valve or 5-valve manifold sequence is non-negotiable; opening the wrong valve first can over-range the cell.

  1. Close both block valves (H and L), open the equalizer valve. The cell now sees 0 ΔP regardless of static line pressure.
  2. Disconnect the low side, vent the cell to atmosphere on the low side, and zero the transmitter at ΔP = 0.
  3. Apply 25 / 50 / 75 / 100 % differential pressure to the high side using a pneumatic source. Read mA at each point.
  4. If a 5-valve manifold, also verify that static-pressure effect is within spec (apply equal static pressure to both sides and confirm the output stays at zero).
  5. Return to service by opening L block, opening H block, then closing the equalizer — in that order.

If the transmitter is used as a level instrument by the ρgh principle, recalibrate after any fluid density change. See the DP transmitter installation guide for impulse line and manifold layout.

Multimeter Loop Check Without a Pressure Source

When no pressure source is available, a HART transmitter can be set to fixed-output mode for a wiring and DCS-tag verification. This is not a calibration, but it confirms that the loop is intact and that the DCS scaling matches the transmitter range.

  • Put the transmitter in loop test mode via HART (Diag/Service → Loop Test).
  • Force 4.00 mA, 8.00 mA, 12.00 mA, 16.00 mA, 20.00 mA in sequence.
  • Read each value with a precision multimeter in mA mode (DCV across the 250 Ω shunt = mA × 0.25, e.g. 4 mA = 1.000 VDC).
  • Confirm the DCS displays the correct engineering value at each point. A 12 mA forced output on a 0–100 kPa range should show 50.0 kPa on the operator screen.
  • Exit loop test mode before leaving site or the transmitter will be stuck at the fixed mA value.

Useful for commissioning, troubleshooting alarm trips, and verifying DCS tag scaling. If forced output is correct but the DCS reading still drifts, the cause is upstream in the impulse line or the transmitter itself — see pressure transmitter 4–20 mA fault diagnosis. See our resistor sizing table for 4-20 mA to 0-10 V conversion if the receiving PLC expects voltage instead of current.

Calibration Certificate: What to Record

An auditable calibration certificate (ISO/IEC 17025 format) records:

  • Tag number, manufacturer, model, serial number, calibrated range, accuracy class
  • Reference standards used, their certificate numbers and uncertainty (traceable to NIST or national lab)
  • Ambient temperature and humidity during calibration
  • As-found and as-left data tables (5 points up + 5 points down, with mA reading and percent error)
  • Hysteresis, linearity, and total error vs. transmitter spec
  • Pass/fail decision and any adjustments performed
  • Technician name, date, and next-due date

For Sino-Inst transmitters supplied to OEM customers, we provide an ISO 17025 certificate with each unit and a re-cal service through our network of partner labs.

Common Pressure Transmitter Calibration Mistakes

  • Trimming the analog output before the sensor. If you 4–20 mA-trim a transmitter whose digital PV is wrong, the loop reads the correct mA but the wrong process value. Always sensor-trim first.
  • Using a reference no better than the transmitter. The reference should be at least 4× more accurate than the device under test — ideally 10×.
  • Forgetting to close the equalizer on a DP cell. The transmitter then reads ΔP as 0 regardless of process. Quick check: cycle the manifold and verify the output moves.
  • Calibrating in a different orientation than the install position. A vertical-mount transmitter calibrated horizontally can show a 0.05–0.2 % zero shift from oil-fill column gravity. Calibrate in the install orientation when possible.
  • Skipping the wetted-material check. A transmitter previously used on a fluid that attacks the diaphragm may already be damaged before recal. Verify against wetted-material compatibility.
  • Leaving the transmitter in burnout-low or burnout-high. A transmitter set to fail-low (3.6 mA) during cal will trigger alarms on return to service if the alarm threshold sits between 3.6 and 4.0 mA.

Frequently Asked Questions

How do you calibrate a pressure transmitter?

Apply a known reference pressure at 0 %, 25 %, 50 %, 75 % and 100 % of the transmitter range, read the 4–20 mA output at each point, and compare to the expected I = 4 + 16 × P/Pfull. If readings are outside the spec, perform a sensor trim followed by a D/A (4–20 mA) trim using a HART communicator, then re-run the 5-point sweep to capture the as-left data.

Do pressure transmitters need to be calibrated?

Yes. Even high-accuracy transmitters drift due to diaphragm fatigue, temperature cycling, vibration and electronics aging. Typical intervals are 6 months for custody transfer, 1 year for critical control loops, and 1–3 years for general monitoring. SIL-rated loops follow the proof-test interval defined by the SIS designer.

What is transmitter calibration?

Calibration is the process of comparing a transmitter’s output to a more accurate reference standard, recording the deviation, and adjusting the device so its output matches the reference within its accuracy spec. The output is a documented certificate showing as-found and as-left values traceable to a national standard.

What are the steps of calibration?

(1) connect the reference source and the mA reader; (2) record as-found values at 0/25/50/75/100 %; (3) decide pass/fail against the accuracy spec; (4) trim the sensor and the D/A output if needed; (5) record as-left values, sign the certificate, and tag the device. See the static / dynamic / total pressure note for static-effect correction on DP cells.

Sino-Inst Pressure Transmitters for Calibration Service

SMT3151DP DP Transmitter

0–10 kPa — 40 MPa | HART 4–20 mA | ±0.075 % FS — bench-calibrated, ISO 17025 certificate included.

3051HP Hydrostatic Transmitter

0–25 m H2O | HART | ±0.1 % FS — for tank level via ρgh, factory zero + 5-point cal.

SI-3151GP Capacitive Gauge

0–40 MPa | HART | ±0.075 % FS — capacitive cell, low long-term drift, ideal for 1-year recal cycle.

Need a transmitter calibrated to your local SIS proof-test interval, or a re-cal certificate for an existing unit? Contact a Sino-Inst engineer with the tag number and we will quote a turnkey calibration plus return logistics.

Related: follow our step-by-step pressure transmitter installation guide.

Request a Quote

Please enable JavaScript in your browser to submit the form

Pressure Units Explained: Pa, psi, bar, mmHg & Conversion

Posted on by

Pressure is force per unit area, but the unit you put on a gauge depends on the industry, the country, and the instrument. A process plant in Asia reads MPa, an HVAC tech reads inches of water column, a hydraulic shop reads psi or bar, and a vacuum lab reads Torr. This page lays out the seven pressure units you will see in the field, an exact conversion table, the hydrostatic formula behind level instruments, and how to pick the right unit for the job.

Contents

SI Unit of Pressure: The Pascal (Pa)

In the International System of Units, the pascal is the unit of pressure. One pascal equals one newton per square meter: 1 Pa = 1 N/m². The pascal is small — atmospheric pressure is about 101,325 Pa — so engineering uses the kilopascal (1 kPa = 1,000 Pa) and the megapascal (1 MPa = 1,000,000 Pa). Meteorologists use the hectopascal (1 hPa = 100 Pa), which equals one millibar.

kPa is the working unit for most modern process documentation in Europe and Asia; MPa appears on high-pressure hydraulic and chemical equipment. A typical pressure transmitter from this site can be ordered in any of Pa, kPa, MPa, bar, psi, or mmH2O ranges from the factory.

Seven Common Industrial Pressure Units

These are the seven units you will encounter most often on process drawings, gauge dials, and PLC tags. The first three are SI or SI-derived; the rest are legacy units that survive because of industry convention or region.

  • Pascal (Pa) — SI base. 1 Pa = 1 N/m². Used for low-pressure HVAC and clean-room differential readings.
  • Bar — 1 bar = 100,000 Pa. Close to one atmosphere, common in European pneumatics and hydraulics.
  • Atmosphere (atm) — 1 atm = 101,325 Pa. Reference pressure in chemistry and physics.
  • Pound-force per square inch (psi) — 1 psi ≈ 6,895 Pa. Default in the United States for hydraulics, plumbing, tire pressure.
  • Millimeter / inch of mercury (mmHg, inHg) — 1 mmHg ≈ 133.32 Pa; also called Torr. Used in medicine, vacuum work, and barometry.
  • Millimeter / inch of water column (mmWC, inWC, inH2O) — 1 inWC ≈ 249 Pa. Standard in HVAC duct static pressure, draft, and low-range DP.
  • Kilogram-force per square centimeter (kgf/cm²) — 1 kgf/cm² ≈ 98,066 Pa ≈ 0.98 bar. Still common on Chinese, Korean, and older Japanese equipment.

Pressure Unit Conversion Table

The table below converts between the seven units above. Values are rounded to four significant figures; for instrument calibration use the exact factors from BIPM SI Brochure (9th ed.).

From →PakPabarpsimmHginWCkgf/cm²
1 Pa10.0011.0×10−51.450×10−47.501×10−34.015×10−31.020×10−5
1 kPa1,00010.010.14507.5014.0150.01020
1 bar100,000100114.50750.1401.51.020
1 psi6,8956.8950.06895151.7227.680.07031
1 mmHg133.30.13331.333×10−30.0193410.53521.360×10−3
1 inWC249.10.24912.491×10−30.036131.86812.540×10−3
1 kgf/cm²98,06698.070.980714.22735.6393.71

Quick rules of thumb engineers carry in their heads: 1 bar ≈ 14.5 psi, 1 atm ≈ 1.013 bar ≈ 760 mmHg, 1 psi ≈ 27.7 inWC, 1 MPa = 10 bar = 145 psi.

Water Column Units: inWC, mmWC and inH2O

inWC, inH2O, and mmWC describe the height of a water column whose weight equals the pressure being measured. They are popular in HVAC duct static pressure, filter differential pressure, and low-range DP transmitter ranges because the numbers stay readable — a fan delivers 2 inWC instead of 498 Pa.

The conversion between inch and millimeter water column is purely the inch-to-millimeter factor: 1 inWC = 25.4 mmWC. Both are referenced to water at 4 °C (39.2 °F). At 60 °F the values shift by about 0.2 %, so for laboratory calibration the reference temperature should be stated.

  • 1 inWC = 25.4 mmWC = 249.1 Pa = 0.0361 psi = 1.868 mmHg
  • 1 mmWC = 0.0394 inWC = 9.807 Pa
  • 1 psi = 27.68 inWC = 703.0 mmWC

Cross-check with the NIST SI units conversion factors before tagging instruments.

Hydrostatic Pressure: ρ × g × h

At the bottom of a static liquid column, pressure equals the product of fluid density ρ (kg/m³), gravitational acceleration g (9.807 m/s²), and column height h (m). The result is in pascals.

P = ρ × g × h

Worked example: a 5 m water column at 20 °C (ρ ≈ 998 kg/m³) generates 998 × 9.807 × 5 = 48,936 Pa ≈ 49 kPa ≈ 7.1 psi ≈ 5,000 mmWC. This is exactly how a DP level transmitter infers liquid level from pressure: range the transmitter in the same pressure unit as ρgh and read level directly.

For non-water fluids, multiply by specific gravity. Diesel (SG 0.84) under a 5 m column produces 0.84 × 49 kPa = 41.2 kPa — the same height of column reads different pressure if ρ changes. This is why flow and level calculations must include the actual process density.

Selecting the Right Pressure Unit by Application

Choosing a unit is not arbitrary — each industry has a convention that matches the typical magnitude. Picking the “wrong” unit forces operators to track decimals or large exponents.

ApplicationTypical rangeConventional unit
HVAC duct static, filter DP0–5 inWCinWC, Pa
Clean room differential0–25 PaPa
Pneumatic instrumentation0–10 barbar, psi
Hydraulic systems50–400 barbar, psi, MPa
Steam & process plant0–25 MPaMPa, bar, kgf/cm²
Medical (blood pressure, gas)0–300 mmHgmmHg
High vacuum1–10−6 TorrTorr, mTorr, Pa
Subsea / deep well0–100 MPabar, MPa

Regional bias: North America defaults to psi and inWC; Europe defaults to bar and Pa; Mainland China and Korea still ship many systems in kgf/cm²; Japan uses both kgf/cm² and MPa; the Middle East follows US conventions for oil & gas and European conventions for water. When commissioning across regions, lock the engineering unit at the DCS tag level rather than relying on operator conversion.

Common Pressure Unit Mistakes in the Field

  • Confusing psig and psia. A 100 psig reading equals 114.7 psia at sea level. Vendor data sheets sometimes mix the two without a suffix — always check the reference. See our deeper note on absolute, gauge and differential pressure.
  • Reading the wrong scale on a dual-scale gauge. A 0–25 bar / 0–360 psi gauge has two pointer arcs; operators have set incorrect alarms by reading the inner arc.
  • Unit mismatch between transmitter and DCS tag. A transmitter ranged 0–1.6 MPa transmitted as 4–20 mA into a PLC tag scaled 0–1.6 bar gives 10× the true value. The fault hides until commissioning. Verify scaling against the transducer wiring and scaling sheet.
  • Ignoring temperature reference in water column readings. inH2O at 4 °C, 60 °F, and 68 °F differ — calibration certificates must state which.
  • Using kgf/cm² on new equipment. kgf/cm² is not an SI unit and ISO 80000-4 lists pascal as the SI unit of pressure; new system specifications should request bar, MPa, or psi.
  • Wrong wetted material for the unit’s pressure range. A 100 MPa transducer needs a stronger diaphragm than a 10 bar one. Confirm wetted materials match the rated pressure and fluid.

For installation best practice and torque settings, follow the pressure transmitter installation guide.

Frequently Asked Questions

Is 1 pascal equal to 1 N/m²?

Yes. The pascal is defined exactly as one newton of force distributed over one square meter of area: 1 Pa = 1 N/m². This is its SI base-unit derivation; no scaling factor is involved.

Is 1 psi equal to 1 bar?

No. 1 bar = 14.50 psi, and 1 psi = 0.0689 bar. The two units differ by a factor of about 14.5. They are sometimes confused because both are close to atmospheric pressure, but mixing them on a hydraulic system specification can produce a 14× error.

What is ρ × g × h equal to?

It equals the hydrostatic pressure at the base of a static liquid column. With ρ in kg/m³, g in m/s² (9.807), and h in m, the result is in pascals. This formula underlies every submersible level sensor reading.

What are 3 units for pressure?

The three most common are the pascal (Pa) — the SI unit; the bar — widely used in European industry and close to one atmosphere; and the pound per square inch (psi) — the US engineering standard. All three can be converted via 1 bar = 100,000 Pa = 14.50 psi – 760 mmHg.

Featured Pressure Instruments from Sino-Inst

SI-300 Pressure Transducer

0–100 MPa | 4–20 mA / 0–5 V | ±0.25 % FS — selectable factory range in Pa, kPa, MPa, bar, psi.

SMT3151 Gauge Pressure Transmitter

0–40–MPa | HART or 4–20 mA | ±0.075 % FS — process gauge in MPa, bar, psi, kgf/cm².

SI-D100 Diaphragm Pressure Gauge

−1 — +60 bar | 2.5 % class | mechanical dial in dual-scale bar/psi or MPa/kgf/cm².

Talk to a Sino-Inst pressure engineer for the right unit range, accuracy class, and wetted material for your process. We respond within one working day with a quote and a recommended model.

Request a Quote

Please enable JavaScript in your browser to submit the form

Wetted Parts in Pressure Sensors: Materials & Selection Matrix

Posted on by

The wetted parts of a pressure sensor are the surfaces that the process media actually touches — diaphragm, port, fill fluid (if any), and any seals or gaskets exposed to the line. Pick the wrong wetted material and the sensor either corrodes through, drifts, or contaminates a clean process. This guide names the parts, lists the standard materials, and gives a media-to-material matrix you can drop straight onto an RFQ. When specifying ranges, cross-check with the pressure unit conversion table to avoid scaling errors.

Contents

Wetted Parts Defined: Surfaces That Touch the Process Media

“Wetted” is a misleading word. It does not mean wet with water. It means in direct contact with whatever flows through your pipe — water, brine, hydraulic oil, sulfuric acid, hydrogen, slurry, sterile WFI, or anything else the process pushes against the sensor. The wetted surface is the boundary between the process and the instrument.

Everything outside that boundary — the housing, the cable gland, the electronics — is non-wetted. Damage to non-wetted parts comes from ambient conditions: humidity, vibration, temperature swings. Damage to wetted parts comes from the media itself: corrosion, abrasion, deposition, thermal shock, pressure spikes. The two failure paths are independent, which is why a datasheet always names the wetted material as a separate line item.

For most pressure sensors, the wetted parts include the diaphragm (the thin sensing membrane), the process port or threaded body that the media flows past, the fill fluid sealed behind the diaphragm (in a transmitter), and any o-ring or gasket at the connection. If the sensor uses a remote diaphragm seal with capillary, the seal flange, the capillary tubing, and the fill fluid inside the capillary are all wetted to the process.

Anatomy: Wetted vs Non-Wetted Components in a Pressure Sensor

A typical industrial pressure transmitter has four wetted components and a stack of non-wetted ones. Knowing which is which matters when you order spare parts or evaluate why a unit failed. The pressure transmitter working principle page walks through the signal path; here we focus on the surfaces.

ComponentWetted?Why it matters
Diaphragm (isolation or sensing)YesCarries the process load; corrosion thins it and shifts zero
Process port / weld neck / flangeYesThreads or sealing surfaces touch media; galvanic effects start here
Fill fluid (silicone, fluorinated, food-grade)Yes, if diaphragm rupturesContaminates the process if released; pick based on application
O-ring / gasket at the unionYesOften the first failure point — chemical attack, swelling, extrusion
Sensor body housingNoExposed to ambient only
Electronics, cable, displayNoSealed in non-wetted compartment
Process flange boltsNo (usually)Outside the seal — but specify per ASME B16.5 service rating

A wet-to-wet differential pressure sensor has two wetted ports and two diaphragms — one for the high side, one for the low side — and the same media touches both. A dry-side reference (like a gauge pressure sensor vented to atmosphere) has one wetted face and one non-wetted reference. We covered the difference in absolute pressure vs gauge pressure.

Standard Wetted Materials and Where They Apply

Wetted materials fall into four families. Picking inside the right family is most of the job. Recalibrate the transmitter after any wetted-part change using the 5-point bench calibration procedure.

Stainless steels. The default for general process. 316L (UNS S31603) handles clean water, neutral hydrocarbons, food and dairy at room temperature, and most utility services. It is the cheapest path to a good wetted surface and the easiest to weld. 304 is acceptable for utility air and clean water but is not chloride-tolerant. 304/316 makes up the bulk of the wetted parts on a pressure transmitter installation in standard service.

Nickel and cobalt alloys. Hastelloy C-276 (UNS N10276) is the workhorse when 316L corrodes — chlorides, dilute sulfuric, hydrochloric below 1%, wet chlorine, oxidizing and reducing service in the same loop. Monel 400 (UNS N04400) handles hydrofluoric acid and seawater. Inconel 625 is used in sour gas and chloride-rich offshore. Tantalum is the bulletproof option for hot strong acids but is expensive and brittle.

Elastomers and fluoropolymers. Viton (FKM) is the default o-ring for hydrocarbon and air service to 200 °C. EPDM is used for steam and water above 150 °C but is destroyed by hydrocarbons. PTFE (Teflon) is universal but creeps under load — fine as a diaphragm coating, marginal as a gasket. Kalrez (perfluoroelastomer) is the choice when an FKM swells and a PTFE creeps.

Ceramics. Aluminum oxide (Al₂O₃, 96-99.6%) diaphragms are abrasion-resistant and chemically inert. Ceramic capacitive sensors are the right choice for slurries, abrasive water, paper pulp, and pharma applications where metal-ion contamination is unacceptable. The piezoelectric pressure sensor family uses quartz or PZT as a wetted element for high-frequency dynamic measurement.

Material-by-Media Selection Matrix

The hardest part of speccing wetted parts is matching them to your actual service, not the worst-case service in the textbook. The table below is a starting point — verify with your corrosion data and the latest NACE / NORSOK guidance before you order.

Process MediaRecommended Wetted MaterialO-ring / SealAvoid
Potable water, condensate, steam (sat.)316L SSEPDMBrass below pH 6
Crude oil, refined hydrocarbons316L SSViton (FKM)EPDM (swells in oil)
Seawater, brine, chlorinated coolingHastelloy C-276 or Monel 400Viton316L (pits on chlorides)
Hydrofluoric acid (dilute)Monel 400PTFEGlass, ceramic
Sulfuric acid (98%)Tantalum or carbon steelPTFE304/316 (active corrosion zone)
Sour gas (wet H₂S)Inconel 625 per NACE MR0175NACE-rated FKMHigh-strength steel (SSC)
Sterile WFI, CIP/SIP food316L electropolished, Ra ≤ 0.5 µmEPDM, 3-A / FDA gradeCarbon steel, leaded materials
Abrasive slurry, paper pulpCeramic (Al₂O₃) flush diaphragmFKMThin metal diaphragms
Hydrogen service ≥ 80 °CAnnealed 316L or Inconel 625FFKM (Kalrez)Plated coatings — H₂ permeates

Standards Engineers Cite on the Datasheet

A clean wetted-parts spec references the standard, not just the material name. Five standards cover most cases.

  • ASTM A276 / A479 — stainless bar and forging chemistry; ensures the 316L on the cert sheet is actually 316L.
  • NACE MR0175 / ISO 15156 — material limits for sour service. Mandatory for upstream oil & gas wetted parts.
  • NACE MR0103 — refinery sour service equivalent.
  • 3-A Sanitary Standard 74-07 — surface finish (Ra ≤ 0.8 µm), crevice-free design, FDA-approved elastomers for dairy and food.
  • FDA 21 CFR 177 — covers the elastomer and fluid contact materials for direct food service.

If you are buying for hygienic service, ask for the 3-A authorized supplier list and a surface-finish certificate, not just a 316L material certificate. Surface finish kills more food-grade installations than alloy chemistry does.

Common Wetted-Part Failure Modes

Field failures cluster around five mechanisms. Recognising them early saves a turnaround.

  • Pitting corrosion on 316L in chloride service. A unit reads fine for six months, then zero drifts negative as the diaphragm thins. Switch to Hastelloy C-276 or use a remote diaphragm seal with a sacrificial fluoropolymer barrier.
  • O-ring swelling in hydrocarbon service. EPDM swells in oil within days. Spec FKM or FFKM and verify the temperature limit; FKM hardens above 230 °C.
  • Hydrogen embrittlement in sour service. High-strength carbon steel cracks under wet H₂S. Use NACE-approved 22Cr duplex or Inconel 625 and keep yield strength below the standard’s threshold.
  • Fill-fluid migration after a diaphragm rupture. A torn isolation diaphragm dumps the silicone or fluorinated fill into the process. Pick a food-grade or oxygen-service fill when contamination matters.
  • Erosion of thin diaphragms in slurry. A flush 0.05 mm steel diaphragm wears through in months on a slurry line. A ceramic or hard-coated diaphragm runs for years in the same service.

For DP service in particular, isolating the wetted parts from the high-side impulse line is half the design — see the DP transmitter hook-up guide for piping practice that protects the wetted diaphragm.

Specifying Wetted Parts on Your RFQ

A complete wetted-parts spec on a quote request has six lines:

  1. Diaphragm material + thickness (e.g. “316L SS, 0.10 mm, electropolished Ra ≤ 0.5 µm”)
  2. Process connection material (often same alloy as diaphragm; specify per ASTM)
  3. Fill fluid (silicone DC 200, fluorinated FC-43 for O₂ service, food-grade glycerin)
  4. O-ring / gasket compound (FKM 75 Shore A, EPDM, FFKM Kalrez 6375)
  5. Surface finish for hygienic service (Ra value + 3-A reference)
  6. Applicable standard (NACE MR0175, 3-A 74-07, FDA 21 CFR 177)

That’s enough for a competent supplier to confirm compatibility, and it shifts the corrosion risk back where it belongs — onto the certified material rather than on the engineer’s assumption. The reference scale also matters; the psi vs bar reference note helps when the spec sheet mixes US and metric units.

Recommended Wetted-Part Configurations

Flush-Flanged Diaphragm Seal Transmitter

316L / Hastelloy C wetted | Flush flange | Silicone or FC-43 fill — for slurries, viscous and crystallising media.

SI-338 Ceramic Pressure Sensor

96–99.6% Al₂O₃ wetted | Abrasion + corrosion resistant — picks up where 316L pits out on chlorides.

SI-302 Anti-Corrosive Submersible

PTFE-coated 316L wetted | IP68 cable seal — wastewater, brine, and acidic tank level service.

FAQ

What are the wetted parts of a pressure transmitter?

The diaphragm, the process port or weld neck, the fill fluid behind the diaphragm, and the o-ring or gasket at the union. On a remote-seal transmitter add the seal flange, the capillary tube, and the fluid inside the capillary.

What are the wetted parts of a pressure gauge?

The Bourdon tube or diaphragm, the socket / process connection, and any internal fill fluid (glycerin or silicone) if it is a liquid-filled gauge. The case, window, and pointer are non-wetted.

What are wetted parts in process instrumentation?

Any surface inside a measuring or control instrument that the process media contacts under normal operation. The term applies across pressure, flow, level, and analytical instruments — not just water service.

Is the diaphragm always considered wetted?

Yes for the process-side diaphragm. In a remote-seal or wet-to-wet differential design, both sensing diaphragms are wetted. A gauge transmitter has one wetted diaphragm and one dry reference cavity vented to atmosphere.

If you can list the media, temperature, pressure range, and any standards required (NACE, 3-A, FDA), our engineers will return a wetted-parts spec sized to your service within 24 hours.

Request a Quote

Please enable JavaScript in your browser to submit the form
