Flow meter straight length requirements tell you how much undisturbed pipe you need upstream and downstream of the meter. Get this wrong and accuracy drops by 2–5×, regardless of how precise the meter itself is. This guide covers the specific requirements by meter type, how upstream fittings change them, and what to do when piping is tight.
Contents
- What Are Flow Meter Straight Length Requirements?
- Why Do Flow Meters Need Straight Pipe Runs?
- How Much Straight Pipe Does Each Flow Meter Type Need?
- How Do Upstream Disturbances Change the Requirement?
- What If You Don’t Have Enough Straight Pipe?
- How Do You Measure Straight Length Correctly?
- Recommended Flow Meters
- FAQ
What Are Flow Meter Straight Length Requirements?
Straight length requirements specify the minimum length of straight, unobstructed pipe you must install before and after a flow meter. They are expressed as multiples of the pipe’s inner diameter (D), typically as “10D upstream, 5D downstream.”
For a 4-inch (100 mm) pipe, a 10D upstream requirement means 1000 mm (about 40 inches) of straight pipe ahead of the meter. These lengths are not optional suggestions. They are the conditions under which manufacturers and calibration labs verified the meter’s accuracy spec. Ignore them and the ±0.5% number on the datasheet becomes meaningless.
ISO 5167 (for orifice plates and nozzles) and manufacturer datasheets are the two authoritative sources. For most industrial meters, follow the stricter of the two.
Why Do Flow Meters Need Straight Pipe Runs?
Flow meters assume a fully developed, symmetrical velocity profile. Any elbow, valve, pump, or pipe reducer disturbs that profile and introduces swirl, asymmetry, or turbulence. Different meter technologies respond differently to each type of disturbance.
A single 90° elbow creates asymmetric flow that can persist 20–30 diameters downstream. Two elbows in different planes generate rotational swirl that takes even longer to decay. Partially closed valves create jet effects that can bias readings by 5–15%.
The straight pipe gives this disturbed flow room to re-develop before it reaches the sensing element. For a detailed breakdown of how upstream and downstream distances are calculated, see our upstream and downstream straight pipe guide.
How Much Straight Pipe Does Each Flow Meter Type Need?
Requirements vary widely by technology. Differential pressure meters (orifice, venturi) are the most sensitive. Coriolis meters are the least sensitive. The table below gives typical minimums for a single 90° elbow upstream.
| Meter Type | Upstream (min) | Downstream (min) | Sensitivity |
|---|---|---|---|
| Orifice plate | 10–44D | 4–7D | Very high |
| Venturi tube | 3–16D | 2–4D | Moderate |
| Nozzle | 6–36D | 4–6D | High |
| Turbine | 10–20D | 5D | High |
| Vortex | 15–40D | 5D | High |
| Electromagnetic | 5D | 3D | Low |
| Ultrasonic (transit time) | 10–20D | 5D | Moderate |
| Ultrasonic (clamp-on) | 10–30D | 5D | Moderate–High |
| Coriolis | 0–5D | 0–2D | Very low |
| Thermal mass | 10–15D | 5D | Moderate |
| Positive displacement | 0D | 0D | None |
Two practical observations. First, electromagnetic and Coriolis meters are often chosen specifically because they tolerate short installations in cramped skids. Second, orifice plates look cheap on paper but the piping cost to give them 20–40D of straight run often erases that advantage in real projects.
How Do Upstream Disturbances Change the Requirement?
The required straight length depends on what disturbance sits upstream of the meter. The worse the disturbance, the more pipe you need. Below are typical multipliers for a turbine or vortex meter (β ≈ 0.7 for DP meters follows similar patterns per ISO 5167).
| Upstream Disturbance | Turbine / Vortex (D) | Orifice β=0.7 (D) |
|---|---|---|
| Single 90° elbow | 10–20 | 28 |
| Two 90° elbows, same plane | 20 | 36 |
| Two 90° elbows, different planes | 25–40 | 62 |
| Reducer (gradual) | 10 | 14 |
| Expander (gradual) | 15 | 28 |
| Fully open gate valve | 10 | 18 |
| Partially closed valve | 50+ | 60+ |
| Pump discharge | 30+ | 50+ |
The worst case is a partially closed control valve directly upstream of the meter. Never do this. Always place control valves downstream of the flow meter. If a valve must sit upstream, use a gate or ball valve in the fully open position and add flow conditioning.
What If You Don’t Have Enough Straight Pipe?
Three practical options exist when piping is tight.
- Install a flow conditioner. Devices like the Zanker plate, tube bundle, or Vortab eliminate swirl and accelerate profile re-development. A good conditioner reduces the required upstream length to 3–10D depending on the meter type.
- Switch to a less sensitive meter technology. If the process permits, electromagnetic, Coriolis, or thermal mass meters work in much shorter runs. The upfront cost is higher but installation cost drops.
- Run an in-situ calibration. Install the meter as-is, then calibrate it against a reference meter in a spool that is run in series. This is common in critical skid applications where physical space cannot be expanded.
What doesn’t work: assuming “it’s probably fine” and skipping the calculation. We’ve seen 8% errors in custody transfer skids that were traced back to a 2D shortfall after an elbow. Do the math before the piping is welded.
How Do You Measure Straight Length Correctly?
Measure from the downstream edge of the last fitting to the centerline of the flow meter’s sensing element. For upstream, this is the inlet flange of an orifice plate, the leading edge of a turbine rotor, or the shedder bar of a vortex meter. For downstream, measure from the sensing element to the next fitting.
Three common mistakes to avoid:
- Measuring from the flange of the upstream fitting rather than its internal disturbance point.
- Forgetting that a tee used as an elbow is more disruptive than a proper long-radius elbow.
- Using pipe OD instead of ID. “10D” means 10 inner diameters, which for Schedule 40 steel pipe is noticeably smaller than OD.
For DP meters, reference ISO 5167-2 for the formal rule set. For turbine, vortex, and ultrasonic meters, follow the manufacturer’s datasheet, which is usually stricter than ISO norms. For a deeper dive into K-factor calibration adjustments that can partially compensate for imperfect piping, see our dedicated guide.
Recommended Flow Meters for Short-Run Installations
If piping space is constrained, these three meter types work well with reduced straight runs.
Electromagnetic Flow Meter
5D upstream / 3D downstream | ±0.2–0.5% accuracy | For conductive liquids

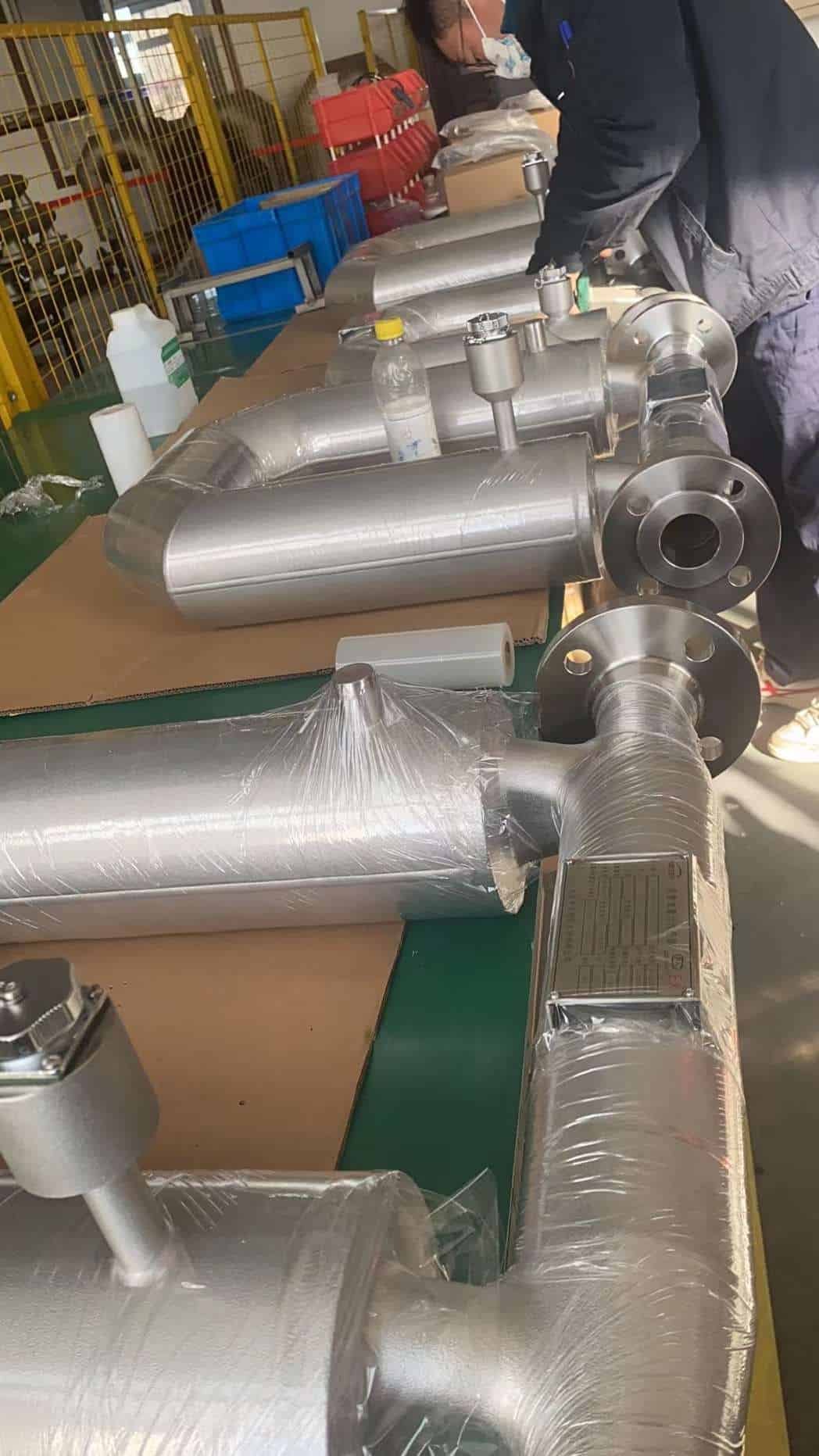

Coriolis Mass Flow Meter
0–5D upstream / 0–2D downstream | ±0.1% accuracy | Mass flow + density
Ultrasonic Flow Meter
10–20D upstream / 5D downstream | ±1% accuracy | Non-invasive option
FAQ
What is the 10D/5D rule for flow meters?
The 10D/5D rule means 10 pipe diameters of straight pipe upstream and 5 downstream. It is a rough baseline for turbine, vortex, and magnetic meters after a single 90° elbow. Always verify against the meter’s datasheet, as DP meters and orifice plates often require much longer runs (up to 44D).
Do electromagnetic flow meters need straight pipe?
Yes, but much less than other meter types. Most manufacturers specify 5D upstream and 3D downstream. Some modern electromagnetic meters with full-bore design and advanced signal processing require as little as 3D upstream. Check the datasheet for the specific model.
Can a flow conditioner replace straight pipe?
A flow conditioner can reduce the required upstream length by 50–80% for most meter types. Common designs include Zanker plates, tube bundles, and Vortab conditioners. They do not eliminate the requirement entirely. You still need a few diameters of straight pipe between the conditioner and the meter.
What happens if there is not enough straight pipe?
Accuracy degrades. The actual error depends on the disturbance type and shortfall magnitude. Typical field errors range from 2% to 15% when straight runs are 30–50% short of the requirement. In custody transfer or batch applications, this is financially material.
Does a Coriolis meter really need no straight pipe?
Coriolis meters are nearly immune to velocity profile distortion because they measure mass flow via tube oscillation, not velocity. Most manufacturers still recommend 0–5D of straight pipe upstream to prevent pressure pulsation and gas entrainment issues, but the sensitivity to elbows and valves is minimal.
Should valves be installed upstream or downstream of the flow meter?
Always downstream. A partially closed control valve upstream creates a jet effect that can skew readings by more than 15% even with 50D of straight pipe. If a valve must go upstream, use an on/off type (gate or ball valve) and keep it fully open during operation.
Need help selecting a meter for a short-run installation or calculating straight pipe for an existing line? Our engineers can review your P&ID and recommend the right technology. Share your application details below and we’ll respond within one business day.
