Vertical Flow Meter Installation: Do’s & Don’ts by Meter Type

Updated on April 25, 2026 — “Can I install this flow meter vertically?” is the wrong question. The right one is: which meter, and in which direction? A turbine installed downflow destroys its bearings in months. A rotameter installed horizontally will not read at all. A mag meter with electrodes at 12 and 6 o’clock reads noise. This guide is the field engineer’s matrix for vertical flow meter installation — upflow vs downflow rules, the 3 & 9 o’clock electrode axis, 10D/5D straight pipe, and the seven mistakes that show up on every site audit.

Contents

• Can a Flow Meter Be Installed Vertically?
• Vertical Flow Meter Direction Rules: Upflow vs Downflow
• Meter-Type Matrix: Which Flow Meters Work Vertically
• Electromagnetic Flow Meter Vertical Installation
• Ultrasonic, Vortex & Turbine Vertical Rules
• Coriolis, Rotameter & Orifice Plate Vertical Orientation
• Common Vertical Installation Mistakes
• Frequently Asked Questions

Can a Flow Meter Be Installed Vertically?

Quick answer: Yes — but the rules change with the meter type. Most inline flow meters (magnetic, ultrasonic, vortex, Coriolis, orifice) tolerate vertical mounting. Turbine meters tolerate it only in upflow. Rotameters (variable-area) are the outlier — they must be installed vertical with upflow because the float is gravity-balanced. The common requirements across every type: the pipe must stay 100% full through the measurement section, the same 10D upstream / 5D downstream straight pipe rule applies, and sensor orientation around the pipe axis still matters.

Vertical runs are normal on pump discharge risers, downcomers from overhead tanks, compact skids, and any application where horizontal footprint is constrained. Gravity acts along the pipe axis instead of across it, which changes how entrained air, sediment, and the velocity profile behave — and that is what drives the per-meter rules in the matrix below.

Vertical Flow Meter Direction Rules: Upflow vs Downflow

Flow direction inside a vertical pipe is not a cosmetic choice. Upflow and downflow produce different velocity profiles, different gas behaviour, and different fault modes.

Upflow — the default for liquids

In upflow, the liquid column above the meter provides natural backpressure, so the pipe stays full even at low rates. Gravity flattens the velocity profile slightly, which most meters actually prefer. Entrained air bubbles rise in the same direction as flow and are carried through and out. If your meter spec sheet says “install vertically,” it almost always means upflow.

Downflow — acceptable only with backpressure

In downflow, gravity accelerates the fluid and peaks the velocity profile at the center. Worse, below a threshold velocity the liquid separates from the pipe wall and the section runs partially empty — fatal for any wetted-sensor meter. Fix: maintain at least 0.5 bar (7 psi) of backpressure at the meter by installing a restriction, control valve, or elbow-riser downstream. Even then, do not install turbine meters in downflow — the rotor overspins from the gravity assist.

Meter-Type Matrix: Which Flow Meters Work Vertically

The one-page answer for every meter type in your plant:

Meter Type	Vertical OK?	Direction	Key Caveat
Electromagnetic (mag)	Yes	Upflow only	Electrodes must be at 3 & 9 o’clock (±5° of horizontal)
Ultrasonic (inline)	Yes	Upflow preferred	Downflow gas bubbles scatter the transit-time signal
Ultrasonic (clamp-on)	Yes	Upflow or downflow	Couple transducers on the pipe sides, not top/bottom
Vortex	Yes	Upflow or downflow	Re > 10,000 required; low-flow cutoff rises in downflow
Turbine	Conditional	Upflow only	Downflow causes overspin and bearing wear >2 m/s
Coriolis	Yes	Upflow preferred	Orient tubes so meter self-drains; gas pocket = zero drift
Rotameter (variable-area)	Mandatory	Upflow only	Float is gravity-balanced — horizontal installation does not work
Orifice plate / DP	Yes	Upflow or downflow	Downflow reverses DP sign; relocate gas/drain taps

The two non-negotiables in this table: turbines only upflow, and rotameters only vertical upflow. Everything else is a “yes, with caveats.” For the fundamental difference between float-based and inline meters, see rotameter vs flow meter.

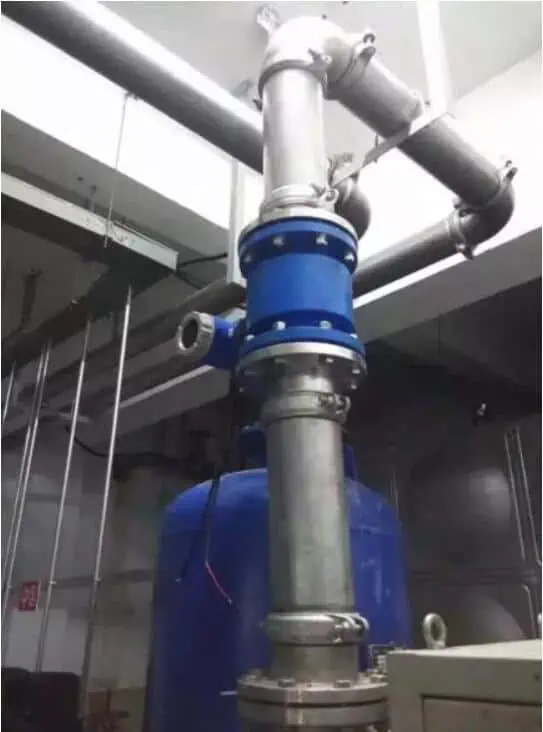

Electromagnetic Flow Meter Vertical Installation

Mag meters are the easiest meter to install vertically — if you get two details right: electrode orientation and flow direction. The measurement principle (Faraday’s law) requires the two electrodes to be continuously wetted by the conductive fluid. Any break in contact with the liquid zeroes the signal.

Electrode axis: 3 and 9 o’clock. On a vertical pipe, rotate the meter body so the electrode axis lands within ±5° of horizontal — i.e., electrodes at the 3 and 9 o’clock positions when you look down the pipe. This keeps both electrodes submerged even if a thin air layer forms at the top or sediment settles at the bottom. The classic field mistake is installing with electrodes at 12 and 6 o’clock — the top electrode sees air pockets, the bottom electrode sees sludge, and the reading is unusable.

Upflow only for mag meters. Vertical downflow on a mag meter is a bad idea even with backpressure — entrained gas migrates against the flow direction and collects at the sensor, disrupting the magnetic field path. Upflow is the universal spec and is where the magnetic flow meter installation shines for slurries and dirty liquids: vertical upflow self-clears solids, keeps the lining clean, and stops sediment from burying the electrodes.

Ultrasonic, Vortex & Turbine Vertical Rules

Ultrasonic — upflow preferred, clamp-on is flexible

Transit-time ultrasonic meters need a full pipe and minimal gas entrainment. Install inline models with upflow; downflow risks cavitation-like bubble curtains that scatter the acoustic signal and drop the meter offline. For clamp-on retrofits, mount the transducers on the sides of the pipe (3 and 9 o’clock positioning again), never top-bottom, so the acoustic path avoids the air layer near the crown. Clamp-on designs tolerate both upflow and downflow as long as the pipe runs full.

Vortex — works both ways above the Re threshold

Vortex shedding requires a Reynolds number above roughly 10,000 — below that the meter falls off the linearity curve regardless of orientation. Vertical vortex meter vertical placement is common on steam risers and gas lines. Upflow and downflow both work for gas and steam. For liquid service, downflow raises the low-flow cutoff by 10–15% because gravity assist destabilizes shedding at low velocity. Keep the bluff body axis horizontal (factory default on most models — do not reclock it).

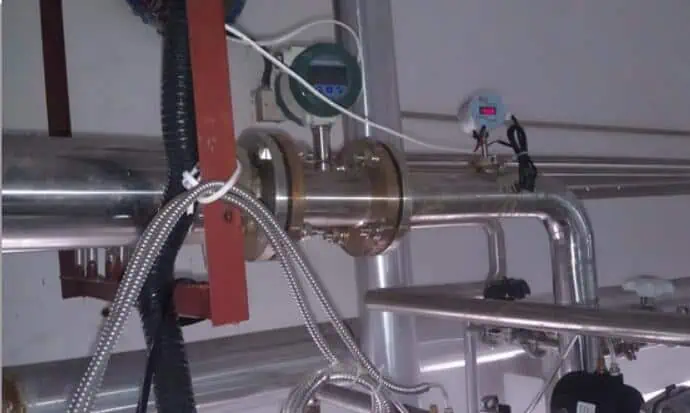

Turbine — upflow only, no exceptions

This is the meter most frequently destroyed by bad vertical installation. In downflow above about 2 m/s, gravity adds to the driving force, the rotor overspins by 1–3%, and the jewel or sleeve bearings wear out in months instead of years. The turbine flow meter upflow requirement is not a recommendation — it is a warranty condition on most models. Always install turbines in vertical upflow, with 10D upstream and 5D downstream, and confirm the arrow on the body matches the actual flow direction.

Coriolis, Rotameter & Orifice Plate Vertical Orientation

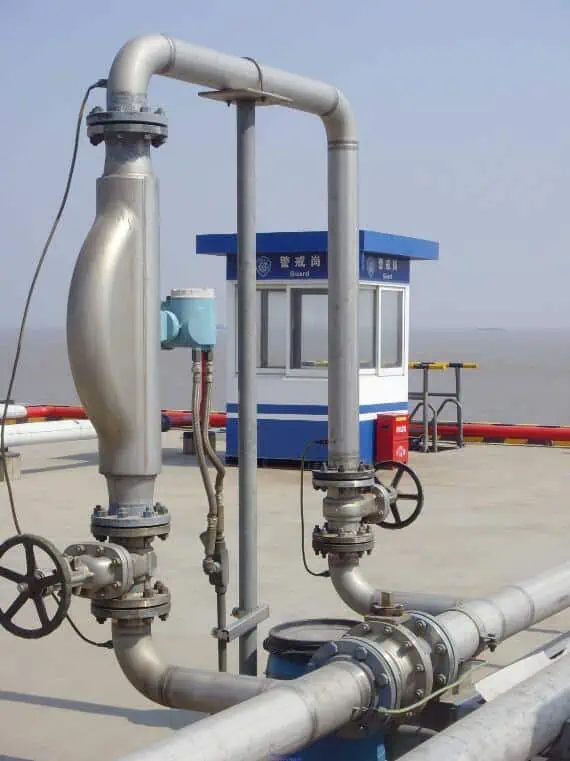

Coriolis — orientation decides zero stability

Coriolis meters measure mass via tube vibration phase shift. Any gas trapped in the tubes changes the resonant mass and causes zero-point drift. On a vertical installation, choose an orientation that lets the tubes self-drain and self-vent. For U-tube designs on gas service, flag-mount with the bend up. For liquid service, flag-mount with the bend down so gas rises out of the tubes. Single-straight-tube Coriolis units are the most orientation-forgiving. Upflow is the default.

Rotameter — vertical upflow or nothing

The variable-area rotameter is the one meter where vertical is not an option but a physical requirement. The float sits at an equilibrium between upward drag from the fluid and downward gravity — 100% vertical, 100% upflow. Install it off-axis by more than about 2°, or mount it horizontal, and the float either jams against the tube wall or bottoms out. Read the scale from the top edge of the float (or the center for ball floats). No straight-pipe requirement to speak of — the tapered tube sets the profile.

Orifice plate / DP — watch the tap locations

An orifice plate in a vertical pipe works in either direction, but the DP transmitter piping must be reconfigured. In upflow, the high-pressure tap is below the plate and the low-pressure tap above. In downflow, the DP sign reverses — swap the transmitter connections or configure the DP cell for reverse range. Gas taps go to the top of the line for upflow liquid service; drain taps go to the bottom. Apply hydrostatic correction for the liquid column between the plate and the transmitter — on a long vertical impulse line, that offset is not negligible.

Common Vertical Installation Mistakes

Seven failure modes that show up repeatedly on field audits. Every one of them costs accuracy, and several destroy the meter.

1. Turbine meter installed in downflow. Rotor overspins; bearings gone in months. Verify arrow direction before welding the flanges.
2. Mag meter electrodes at 12 and 6 o’clock. Top electrode loses contact with air, bottom electrode buried in sediment. Rotate the body 90° so electrodes sit at 3 and 9.
3. Air pocket at the top of a downflow riser. Gas rises against the flow and collects at the highest point, often right at the sensor. Either switch to upflow or install a vent valve above the meter.
4. Entrained gas at the bottom of a long downcomer. At low velocities, the pipe runs partially full at the meter. Add 0.5 bar backpressure or relocate to an upflow section.
5. Reversed DP sign on a vertical orifice. Engineer uses the upflow wiring diagram on a downflow installation; the transmitter reads negative or zero. Reconfigure the DP cell range or swap the impulse lines.
6. Treating vertical runs as “less straight pipe needed.” They are not. Apply the same 10D/5D straight pipe requirements upstream and downstream. A valve directly below a vertical meter creates swirl that persists 20D or more; see the upstream and downstream pipe diameter rules.
7. Ignoring thermal expansion on tall vertical runs. A 10 m carbon steel riser on 150°C service grows about 18 mm. That lands as axial stress on a flanged meter. Use expansion bellows or flexible couplings within 5D of the meter.

Frequently Asked Questions

Can a flow meter be installed vertically?

Yes — most inline meters (magnetic, ultrasonic, vortex, Coriolis, orifice) work vertically. Turbine meters work only in upflow. Rotameters must be installed vertically. The pipe must stay full and the standard 10D/5D straight pipe rule still applies.

Upflow or downflow — which is better?

Upflow, for almost every liquid application. Upflow keeps the pipe full, sweeps air bubbles through with the flow, and gives a more uniform velocity profile. Downflow is acceptable for gas and steam, and for liquid only when at least 0.5 bar of backpressure is maintained.

Why must magnetic flow meter electrodes be at 3 and 9 o’clock?

The electrodes must stay continuously wetted to conduct the induced voltage. The 3 and 9 o’clock (horizontal) axis keeps them submerged even if a thin air layer forms at the top or sediment settles at the bottom. Electrodes at 12 and 6 lose contact with the liquid and output noise or zero.

Why can’t a turbine flow meter be installed in downflow?

Gravity adds to the driving velocity. Above about 2 m/s the rotor overspins 1–3%, and the jewel or sleeve bearings wear out within months. Most manufacturers void the warranty on downflow installations. Always install turbines in upflow with 10D upstream / 5D downstream straight pipe.

Does a rotameter have to be installed vertically?

Yes. The rotameter float reaches equilibrium between upward fluid drag and downward gravity, so the tube must stand vertical with flow going upward. A tilt of more than about 2° causes the float to jam. There are spring-loaded variable-area designs that work horizontally, but a classic gravity rotameter does not.

Does a vertical flow meter need 10D / 5D straight pipe?

Yes — the 10D upstream / 5D downstream rule applies the same as horizontal. Flow conditioners can reduce this to roughly 5D/3D, but never eliminate it. Elbows, valves, and pumps directly below a vertical meter generate swirl that persists for 20D or more.

How do you install a Coriolis meter vertically?

Orient the tubes so the meter self-drains on liquid and self-vents on gas. For U-tube designs on liquid service, flag-mount with the bend at the bottom and flow upward so gas rises out. Gas pockets in Coriolis tubes cause zero-point drift and mass-flow errors, so orientation is a commissioning priority, not an afterthought.
