Our new Insertion Type Ultrasonic Flow Meter supports mono, binaural, and even quadraphonic measurements. Meet the pipeline measurement of DN80~DN6000. Compared with the single-channel ultrasonic flowmeter, the two-channel insertion ultrasonic flowmeter is more accurate, has high precision, strong stability, and is easy to install.

RFQ

Technical advantages of Insertion Type Ultrasonic Flow Meter-Heat Meter

• Single/dual/four-channel host can be selected to achieve multi-channel measurement, and fluid layer measurement is more accurate;
• Standard output 4-20mA, RS485 signal;
• 220V and 24V power supply options;
• PT100, PT1000 can be connected externally; heat measurement can be realized;
• External pressure sensor can be connected to display pressure parameters;
• Using a high-speed ARM processor, the response speed reaches 0.1 seconds;
• Advanced digital signal processing technology, the measurement is not interfered by impurities such as iron filings and welding slag;
• Different sensors can be connected to solve the problem of multi-bubble application in the field;
• It is generally used to measure pure single liquids such as tap water, air-conditioning water, and heating water. However, it should be noted that the pipe must be hard and straight, such as PVC, iron pipe, stainless steel, etc.;
• The protection level of the host is IP67, and the protection level of the sensor reaches IP68;
• The host and the sensor are installed separately, the host can be installed in the indoor instrument cabinet, and the instrument panel sensor is installed on the measuring pipeline;

Technical parameters: Insertion Type Ultrasonic Flow Meter-Heat Meter

How it works: Insertion Type Ultrasonic Flow Meter-Heat Meter

Introducing our new Insertion Type Ultrasonic Flow Meter-Heat Meter—Mono/Multi-Channel. This advanced device measures both flow and heat. Each channel is accurate, and for multi-channel products, channels support each other, improving accuracy and stability.

The measurement is based on the signal correlation method. Multi-channel products can use multiple channels at once, which greatly reduces the impact of turbulence. This makes the device more adaptable and accurate for different situations, ensuring reliable small flow and heat measurements.

Our product has a fast ARM core processor, with a response time under 0.1 seconds, making it over 10 times faster than regular flow meters. It’s great for measuring high-viscosity oils, chemical products, and ultrapure water flow. Additionally, it can connect to two temperature sensors, so it can be used as a flow or heat meter.

More Insertion Type Flow Meters

More Flow Measurement Solutions

Our new product, Insertion Type Ultrasonic Flow Meter-Heat Meter–Mono/multi-Channel, brings new opportunities for measuring large diameter pipes.

Multi-channel Insertion Type Ultrasonic Flow Meter can use multiple channels to work simultaneously. The impact of turbulence randomness on measurement is largely overcome. It greatly improves the adaptability and measurement accuracy of different working conditions, making the measurement of small flow (heat) more guaranteed.

Sino-Inst is a professional Insertion Type Ultrasonic Flow Meters manufacturer. Experience. If you need to measure pipeline flowmeter, please feel free to contact our sales engineers!

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Ultrasonic water meter is a new small residential water meter. Residential ultrasonic water meters are equipped with line water meters, and wireless water meters can be customized.

T3-1-2-H residential ultrasonic water meter adopts ultrasonic time difference measurement technology. A highly integrated, developed according to ISO4064-1:2005, GB/T778.1-2007 and other standards. A new generation of fully digital water meter with the advantages of high turndown ratio, ultra-low starting flow, and rich communication methods. IP68 protection level.

Features of Ultrasonic water meter T3-1-2-H

T3-1-2-H ultrasonic water meter has wired type as standard configuration, wireless type need to be customized.

Specifications of Ultrasonic water meter T3-1-2-H

Flow rate:

Read more about: How does a residential water meter work?

ultrasonic water meter lorawan

With the progress of the times, the ultrasonic water meters we use are becoming more and more intelligent. Technology makes the meter reading fee smarter. Today’s main prominent ultrasonic water meters can generally be customized according to customer needs. Wired remote ultrasonic water meters, NB-loT ultrasonic water meters There are three types of water meters and LoRa ultrasonic water meters. However, most people don’t know much about these three types, especially LoRa ultrasonic water meters, and few people know about them?

Today, I will introduce to you the LoRa ultrasonic water meter produced by our company. I hope that through the introduction, you will have a better understanding!

The birth of LoRa is earlier than that of NB-loT. LoRa works in unlicensed frequency bands, so no additional fees are required. The LoRa protocol is simpler and easier to develop than NB-loT, and the relative cost is less. LoRa nodes can sleep longer or shorter according to the needs of specific application scenarios, and the battery life is longer.

LoRa Smart Ultrasonic Water Meter: Using advanced wireless transmission technology to achieve remote centralized reading of remote water meters, concentrators, and computers, without wiring, simple and convenient construction, and effectively solve the problem of difficult meter reading.

The remote water meter utilizes the wireless networking of the meter. Signal coverage without gaps. No meter reading blind spots, valve anti-rust function design. The valve can be opened and closed automatically.

Frequency automatic calibration technology: automatic adjustment of operating parameters. Effectively avoid frequency offset caused by environmental changes. Achieve super high meter reading rate.

Electromagnetic wave wake-up technology: Wake up the target smart meter to make it in the communication state during meter reading, and automatically return to the ultra-low power consumption state after meter reading, saving energy and reducing consumption.

A variety of meter reading methods are available, and wireless centralized reading system and handheld meter reading device meter reading system are selected according to different needs.

Two modes of timed uploading and real-time uploading can be selected to meet different customers’ needs.

High waterproof grade design, the protection grade can reach IP68. Using imported communication chips, it has the characteristics of high performance and low power consumption.

Extended reading: Magnetic water meter-ultrasonic water meter-mechanical water meter

Ultrasonic water meter working principle

The ultrasonic water meter adopts the time difference method to measure the flow. That is, an ultrasonic transducer is installed at the upstream and downstream of the measuring channel (pipe section) to transmit and receive ultrasonic signals.

Because the ultrasonic signal and the water flow signal are superimposed, the propagation speed of the sound wave is different in the forward and reverse flow. Therefore, the running time of the ultrasonic signal emitted by different transducers in the water is different. The fluid can be calculated by measuring the difference of the time The flow rate. Then it is converted into a flow rate, so as to realize the measurement of the flow rate.

There are two transducers on the top of the flow tube. Transducer A transmits an ultrasonic signal to transducer B (downstream), while transducer B transmits an ultrasonic signal to transducer A (countercurrent). Downstream and The countercurrent ultrasonic signal forms a certain time difference in the transmission process. In the case of the calibrated cross-sectional area of ​​the pipe diameter and the length of the standard measuring pipe, the flow rate of the meter is calculated by the calculation chip on the integrator.

Advantages and disadvantages of ultrasonic water meters

Ultrasonic water meter is a fully electronic water meter manufactured with industrial-grade electronic components using the principle of ultrasonic time difference. Compared with mechanical water meters, it has the characteristics of high accuracy, good reliability, wide range ratio, long service life, no moving parts, no need to set parameters, and installation at any angle.

The ultrasonic water meter has no moving or blocking parts in the tested pipeline, no wear, and low pressure loss. High sensitivity, can detect small changes in flow rate. At the same time, it has almost no requirements for the measured medium, has an extremely wide range ratio, and the ultrasonic water meter has a simple structure and is easy to maintain, which is very suitable for civil and industrial measurement.

But the stability of ultrasonic water meters is low.

Extended Reading: Chilled Water Flow Meter

Ultrasonic water meter Application

1. Residential water metering and control.
2. Industrial process measurement and control.
3. Replace mechanical flow meters to improve measurement reliability.
4. Replace all kinds of tightly high-performance flow meters.

Ultrasonic water meter clamp-on

Strap on flow meter X3 is a kind of ultrasonic external clamp-on flow meter. Strap on flow meter X3 is easy to install. Suitable for measuring pipe diameter Φ9.53~Φ90.

Strap on flow meter X3 can meet the needs of different pipe materials: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe, PVC, PVDF, PPH, PPE, etc.

Strap on flow meter X3 almost meets the measurement of different clean fluids: various acids, alcohols, chemical solvents, alcohol, drinking water, Coca-Cola water… etc.

Portable ultrasonic flow meter

Handheld ultrasonic flow meter realizes the non-contact measurement of liquid flow. Also often referred to as Portable Clamp-On Ultrasonic Flow Meter for Liquids.

Handheld Ultrasonic Flow Meter ( Model:2000H) has been successfully applied to measurement work in various industries. The measuring range is 20-6000mm (0.5-20 inches). A non-contact measurement method is adopted. Flexible operation and easy to carry. Conductive or non-conductive, corrosive or non-corrosive liquids can be measured. Various fluids: water, pure water, sewage, sea water, chemical fluids, river water, fuel Oil etc. can be measured.

Handheld Ultrasonic Flow Meter Reference price: USD 470.00/pc

Extended reading: Portable ultrasonic flow meter for water

Featured Digital water meters for sale

Related Water Meter Blogs

Sino-Inst, Manufacuturer for Ultrasonic Water Meter for Residential Waters. It can measure a single sound-conducting liquid medium of DN 15—40mm.

Sino-Inst’s Ultrasonic Water Meter for Residential Water, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Strap on flow meter X3 is a kind of ultrasonic external clamp-on flow meter. Strap on flow meter X3 is easy to install. Suitable for measuring pipe diameter Φ9.53~Φ90.

Strap on flow meter X3 can meet the needs of different pipe materials: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe, PVC, PVDF, PPH, PPE, etc.

Strap on flow meter X3 almost meets the measurement of different clean fluids: various acids, alcohols, chemical solvents, alcohol, drinking water, Coca-Cola water… etc.

Features of Strap on flow meter X3

• The flowmeter is stuck outside the pipe, no need to change the pipeline
• No professional knowledge is required, installation and measurement can be completed according to the operation guide
• No moving parts, no pressure loss, can be installed and used without stopping production

Details about Strap on flow meter X3

Strap on flow meter X3 is very unique in its structural design. It uses circular magnetic steel to realize automatic engagement during installation. It only takes 2-3 minutes to complete from installation to measurement. It also uses the current popular OLED display, It can be easily read even in insufficient environments.

Strap on flow meter X3 is widely used in flow measurement and monitoring in the production process. The application of the product continuously effectively and accurately controls the flow of the fluid, while improving the yield of the product. It even saves the investment of personnel and brings benefits to the production enterprise.

Strap on flow meter X3 can meet the needs of different pipe materials: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe (PVC, PPR, PPH, HDPE), etc.

Strap on flow meter X3 almost meets the measurement of different clean fluids: various acids, alcohols, chemical solvents, alcohol, drinking water, Coca-Cola water… etc.

Specifications of Strap on flow meter X3

Read more about: what is gpm;

What is clamp-on flow meter?

What is clamp-on flow meter?

Clamp-on flow meter mainly refers to an ultrasonic external clamp-on flow meter. The ultrasonic sensor is clamped on the pipeline. It can be measured without changing the pipeline.
Clamp-on flow meter can be a handheld host, portable host, etc.

Extended reading: Ultrasonic Insertion Flow Meter for Lined/Large Pipes

How does a clamp-on flow meter work?

How does a clamp-on flow meter work?

Clamp on Ultrasonic Flow Meter adopts the measurement principle of the time difference method. It uses the ultrasonic wave emitted by the sensor to propagate in the flowing fluid. The sound wave propagation speed in the downstream direction will increase, and the backward direction will decrease. In the same propagation distance, there will be different transmission times. According to the difference between the transmission time and the measured The relationship between fluid velocity measures the fluid velocity.

The flow rate of the fluid is different in different positions in the tube. The flow rate in the center of the tube is faster than the flow rate near the wall of the tube. The flow velocity distribution of the fluid in the pipeline can be represented by the flow velocity cross-sectional distribution diagram.

By setting the flowmeter and considering the cross-sectional distribution of the flow velocity, the average flow velocity can be calculated. Then the volume flow of the fluid can be obtained according to the cross-sectional area of the pipe.

Notes:
V measure fluid velocity
M ultrasonic reflection times
D pipe diameter
θ The angle between the ultrasonic signal and the fluid
T up The time when the downstream sensor transmits the signal to the upstream
T down Time from upstream sensor to downstream
ΔT = T up – T down

Extended reading: Magnetic Large Dia. Pipe Flow Meter

More Featured ultrasonic strap on flow meters

You may like:

Sino-Inst, Manufacuturer for ultrasonic Strap on flow meter . It can measure a single sound-conducting liquid medium of Φ9.53 ~ Φ90 . It can measure even liquids such as water, sea water, oil, and slurry.

Sino-Inst’s ultrasonic strap on flow meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

The Portable Doppler Flow Meter uses the Doppler effect of sound waves propagating in the fluid. Hand-held design, suitable for handheld wading water flow measurement.

The Portable Doppler Flow Meter (Model: LSX-2) can obtain the velocity of the fluid by measuring the Doppler frequency shift of the sound waves scattered by the moving particles in the fluid. Combined with the built-in pressure water level gauge, the velocity area method can be used to measure the flow of the liquid. It is suitable for flow measurement of open channels, rivers, pipelines and difficult-to-build standard sections. It can work continuously for more than 12 hours on a single charge.

Features of Portable Doppler Flow Meter

• The flow rate range can reach 0.02-5m/s, and the resolution is 1mm/s.
• High response time. It takes a long time to get the flow rate and the measurement results are refreshed in real time.
• Flow measurement by velocity area method, suitable for full and non-full pipes. The water level relationship of the section can be set freely.
• The integrated pressure and water level sensor can directly measure the water depth and can be used in shallow water.
• Fluid mechanics shell design. Little impact on the flow state of the water body. Does not affect the measurement accuracy.
• Small and lightweight handheld terminal with a graphic display interface. It can display the flow rate, flow, water level, and water temperature in real time.
• 16MB internal storage space. It can store more than 100,000 data.
• Equipped with data receiving software. Used for data export and processing.
• Built-in multiple standard flow rate measurement methods and flow calculation methods.
• Rechargeable battery pack, continuous use for more than 12 hours.

Specifications of Portable Doppler Flow Meter

Extended reading: Make Ultrasonic Open Channel Flow Meter Work for You

Portable Doppler Flow Meter to measure open channel flow

Portable Doppler ultrasonic open channel flowmeter uses the principle of Doppler velocity area method to monitor flow. It is designed for flow velocity and flow measurement in open channels and partially filled pipes.

The principle of the Portable Doppler Flow Meter is to measure the fluid flow rate using the ultrasonic Doppler principle.

The liquid level is measured by pressure and ultrasonic sensors. The calculator can set multiple point coordinates to simulate the shape of the weir trough to obtain the cross-sectional area, so as to measure and monitor the flow.

The principle of ultrasonic Doppler is adopted, that is, any liquid flowing in the pipeline has discontinuous disturbance.

These discontinuous disturbances can be suspended solid particles or bubbles, or interfaces caused by fluid disturbances.

This disturbance causes the reflected ultrasonic wave to produce a Doppler frequency shift Δf. The Doppler shift Δf is a linear function of the flow velocity. By measuring the Doppler frequency shift Δf, and according to the propagation speed of sound waves in the water. The flow velocity of the disturbance can be calculated, and then the water flow velocity can be obtained.

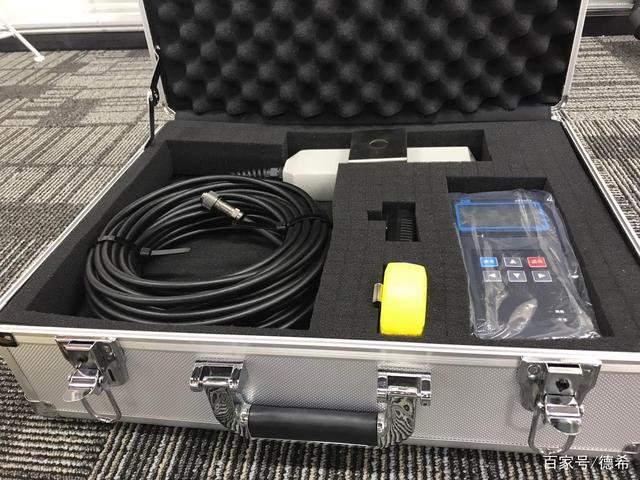

Only need to connect the flowmeter probe and the handheld controller when using the equipment.

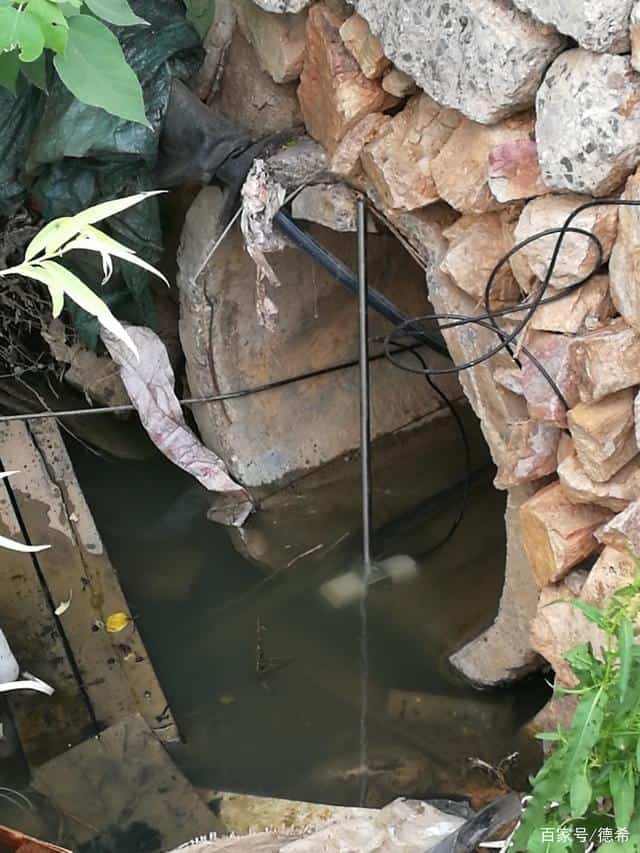

Use the measuring rod to fix the flowmeter probe.

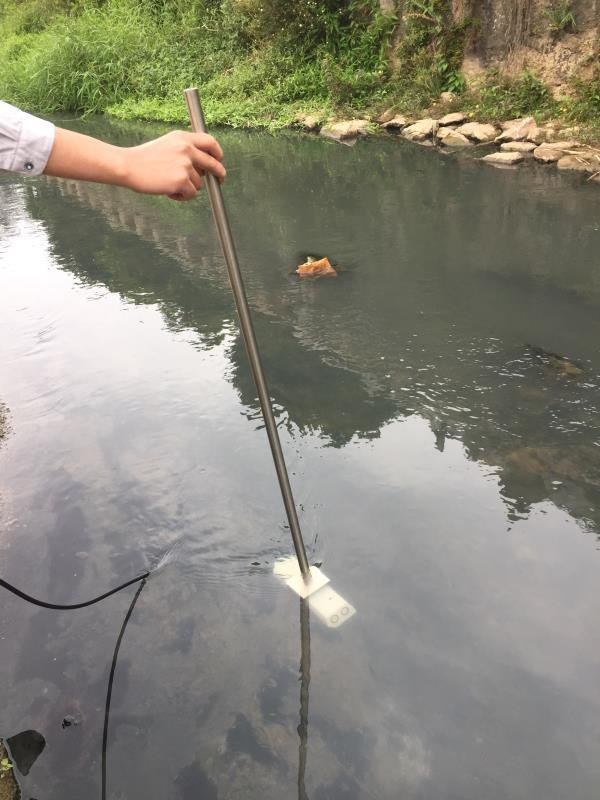

Put the flowmeter probe into the channel or water body to be measured.
