Combined pressure and temperature sensor for Simultaneous measurement of pressure and temperature.

SI-706 Combined Pressure and Temperature Sensor-Dual function

The Combined pressure-temperature sensor uses a special core. Thermocouple types are: J, K, E type or PT100 platinum resistance. Integrated structure of temperature and pressure. Measure the medium pressure and temperature at the same point at the same time. The combined pressure and temperature sensor has a built-in temperature / pressure sensor. The two outputs do not affect each other. Consuming the power of one sensor can complete the pressure and temperature measurement. Widely used in scientific research, military industry, petrochemical, electric power, metallurgical machinery and environmental protection fields. Such as oil well temperature and pressure measurement, diesel engine common rail temperature and pressure measurement, injection machinery temperature and pressure measurement.

Sino-Inst is a manufacturer of Combined Pressure and Temperature Sensor in China. Committed to the manufacture, sales and engineering support of Combined Pressure and Temperature Sensors.

Oil pressure and temperature sensor Features

  • Use imported resistance strain gauge or diffused silicon pressure-sensitive chip. High-precision PT100 temperature sensor
  • Advanced placement technology. With zero point, full range compensation, temperature compensation;
  • High precision and high stability amplification integrated circuit;
  • Isolation diaphragm design. Integrated structure design. Impact resistance, fatigue resistance and high reliability;
  • Fully sealed welding structure. Protection grade reaches IP67;
  • Diversified pressure output signals. General analog output, digital RS485 / RS232 output, etc .;
  • The structure is small, and the minimum outer diameter can reach 26mm;

Specifications of Combined Pressure and Temperature Sensor

  • Range: 0-20, 30-600KPa, 1, 5, 10, 20, 50-100MPa
  • Comprehensive accuracy: 0.2% FS, 0.5% FS, 1.0% FS
  • Output signal: 4-20mA (two-wire system), 0-5 / 1-5 / 0-10VDC (three-wire system)
  • Temperature signal output: J, K, E type thermocouple or PT100 platinum resistance, digital temperature signal DS18B20
  • Power supply voltage: 24VDC (10-30VDC)
  • Medium temperature: -20 ~ 85 ~ 350 ℃
  • Ambient temperature: -20 ~ 85 ℃
  • Load resistance: current output type: max. 800Ω; voltage output type: greater than 50KΩ
  • Insulation resistance: greater than 2000MΩ / 50VDC
  • Sealing grade: IP65
  • Long-term stable performance: 0.1% FS / year
  • Vibration effect: within the mechanical vibration frequency of 20Hz ~ 1000Hz. The output change is less than 0.1% FS
  • Electrical interface: direct outlet or aviation connector outlet
  • Mechanical connection: G1 / 2-14, M20 × 1.5, etc. Other threads can be designed according to customer requirements
SI-706 Combined Pressure and Temperature Sensor-Dual function

Applications of Combined Pressure and Temperature Sensor

  • Aerospace
  • Analytical Instruments
  • Hydraulics
  • Hydrogen (Consult factory for media compatibility)
  • Test Stands
  • HVAC
  • Alternative energy management
  • Engine Controls & Monitors

Why use a Dual Pressure and Temperature Sensor?

Temperature and pressure integrated dual-function type: pressure, temperature measurement. The main reason for using dual pressure and temperature sensors is to save space. It can be widely used in the occasions where pressure and temperature need to be measured simultaneously in industrial control detection.

The integrated temperature coefficient organically integrates the temperature sensing element (thermal resistance or thermocouple) with the signal conversion and amplification unit. Thermocouple types are: J, K, E type or PT100 platinum resistance. Integrated structure of temperature and pressure. Simultaneously measure the medium pressure and temperature at the same point. It is suitable for measuring the temperature of the medium while measuring the pressure.

Working principle of Pressure and Temperature sensor

Thermocouples or thermal resistance sensors convert the measured temperature into electrical signals. Then send the signal to the input network of the transmitter. The network contains related circuits such as zero adjustment and thermocouple compensation.

The signal after zero adjustment is input to the operational amplifier for signal amplification. The amplified signal is output with 4-20ma DC current after being calculated and processed by the v / i converter. The other channel is processed by the a / d converter and displayed on the meter header.

There are two types of transmitter linearization circuits, both of which use feedback. For the RTD sensor, use positive feedback to correct it. For the thermocouple sensor, the multi-section broken line approach method is used for correction.

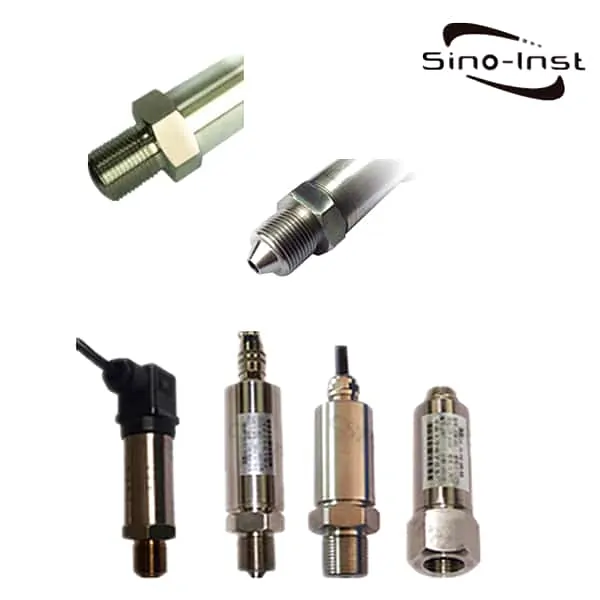

Ultra-High Pressure Senors
