Crude oil measurement is important to the petrochemical industry. To control costs and improve efficiency. Effective crude oil level measurement regulation has become a challenge for many plants.

If you’re looking for a reliable and accurate way to measure the level of crude oil, the 80G radar level meter is the perfect choice. With its ability to handle various types of liquids and vapors, this meter is ideal for use in oil refineries and other industrial applications. The 80G radar level meter also offers a wide range of features and options, making it the perfect choice for Crude oil measurement application.

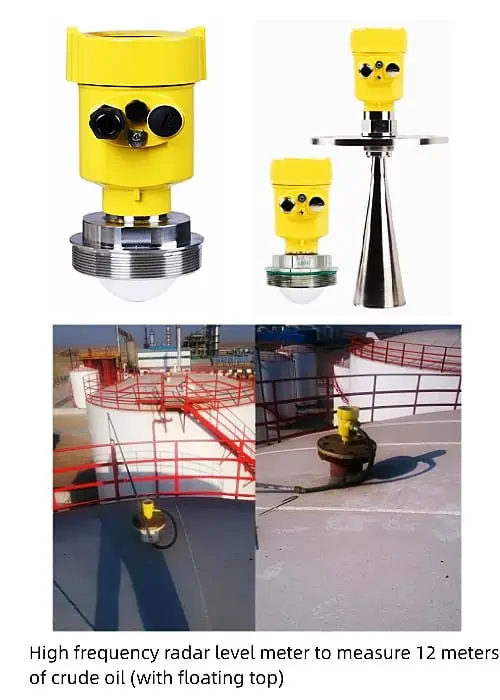

Crude oil measurement, 80G radar level meter should be your first choice!

Why is crude oil level measurement challenging?

What everyone thinks must be the characteristics of the medium of crude oil.

Crude oil, usually referred to as unprocessed petroleum, is a viscous liquid. When the temperature is between minus 50 ℃ and 35 ℃ above zero, solidification will occur, changing from a liquid shape to a solid shape.

From this information, crude oil is viscous and tends to solidify when the temperature drops to the freezing point. Therefore, in order to ensure that the crude oil is always in a liquid state, the storage tank for storing the crude oil may be accompanied by a heating device. This is one of the working conditions.

Of course, there are many factors that can affect the accuracy of crude oil measurement, including the type of tank, the temperature and density of the oil, and the presence of water or sediment in the tank. Inaccurate measurements can lead to costly errors in production, transportation and refining operations.

Crude oil is typically stored in large tanks ranging in size from 10,000 to 50,000 barrels (4.5 to 22.5 million liters). These tanks are often located in remote areas, making it difficult to access them for monitoring and inspection. In addition, the oil in the tanks is typically very hot – up to 150 degrees Fahrenheit (65 degrees Celsius) – and under high pressure. These conditions can make it difficult to get accurate readings of the oil level.

Water and sediment can also accumulate in the bottom of the tank, which can throw off measurements of the oil level. Inaccurate measurement of the crude oil level can lead to over- or under-estimating the amount of oil in a tank, which can have serious consequences for production, transportation and refining operations.

To ensure accurate crude oil measurement, it is important to use a reliable and well-calibrated measuring device. In addition, regular monitoring and inspection of the tank is essential to identify any potential problems that could affect the accuracy of the measurements.

Crude oil measurement – Radar level meter measuring vaulted buffer tank

Distinguished from the shape, Crude oil storage tanks are divided into lying tanks, round tanks, conical tanks, arch-shaped tanks and so on. Distinguished from the use, storage tanks are divided into process tanks and metering tanks.

So, if the radar level meter is used to measure the crude oil in the process, and the crude oil is installed in the vaulted tank. What should you pay attention to Crude oil measurement?

First of all, process tank measurement should pay attention to the selection and installation of radar level meter. The process tank, is not used for direct trading. So the accuracy requirement is not very high. But stability is an aspect that needs attention.

Radar level meter selection, you can consider high-frequency radar level meter. When installing, pay attention to whether there are stirring devices or heating devices in the tank. If there is, pay attention to avoid these obstacles. To avoid causing inaccurate measurement, or even the inability to measure the situation.

From the arch-shaped tank alone, the selection of radar level meter is basically unaffected by the tank, but the installation needs to pay attention to the following. From the arch-shaped tank alone, the radar level meter selection is basically unaffected. But the installation needs to pay attention to the following. Normally, the radar level meter is installed in the vaulted tank. Do not install in the middle of the filling top. To avoid the generation of indirect echoes. Affect the real echo.

Finally, radar level meter to measure crude oil, pay attention to the characteristics of crude oil. Select the appropriate radar level meter model.

According to the information, for a long time in the past, the crude oil vault tank level measurement, are used to manually check the ruler + steel band level meter. As a result, there were often cases of stuck steel belt and stuck shaft.

The result of such a result is inseparable from the characteristics of crude oil. Crude oil has a certain viscosity. If there is a heating device present, there will also be water vapor present. Select radar level meter, as far as possible, choose non-contact radar level meter.

The use of the measured medium is different, the choice of level meter is different. The measured medium used in the tank is different, the choice of level meter is different. The characteristics of the measured medium are different, and the type of level meter is also different.

So no matter what kind of media measurement, we must know the working conditions, know the medium, know the use. This will ensure that the right type, the measurement can be accurate. Liquid level meter to play the maximum role.

Summary:

Here’s a quick overview of how to use radar level transmitters to measure the level of crude oil:

1. First, you’ll need to install the radar level transmitter on the tank. Make sure that it’s installed properly and securely.

2. Once the radar level transmitter is installed, turn it on and calibrate it according to the instructions in the manual.

3. When the radar level transmitter is calibrated, it will be able to measure the level of crude oil in the tank.

4. You can check the readings on the radar level transmitter at any time to see how much crude oil is in the tank.

That’s all there is to it! Using a radar level transmitter is the best way to get accurate readings of the level of crude oil in a tank. If you need any help, don’t hesitate to contact Sino-Inst for assistance.

Extended Reading: Low Cost Float Level Sensor for Tank Liquid Volume Monitoring

Frequently
Asked
Questions

In the petrochemical industry in order for the crude oil process to run continuously and smoothly care has to be taken when storing raw and finished products. Delivery of the crude oil is via pipeline or ship and stored in a large tank until it is ready for final processing.

Accurate level measurement of products of distillation is essential whilst they are being stored in different sized tanks.

In the past, it was expensive as calibratable measuring devices were implemented for level measurement. Nowadays cheaper and low-maintenance measuring systems are used for small and medium-sized tanks. Products are now usually measured by calibratable flow meters while being moved.

Extended Reading: Industrial petrol flow meters Types

It is important to measure crude oil levels for a number of reasons.

First, crude oil is a valuable commodity, and accurately measuring levels ensures that companies are correctly compensated for the product they are selling.

Additionally, precise measurement is necessary in order to maintain optimal production levels; too little oil could lead to decreased output, while too much could cause equipment failures.

Finally, monitoring oil levels can help to identify potential leaks or other issues with storage tanks and pipelines. By regularly measuring and monitoring crude oil levels, companies can ensure the safety and efficiency of their operations.

There are a few key factors that go into measuring the quality of crude oil. The first is density. This is measured by the American Petroleum Institute (API) and is expressed in degrees.

The second factor is sulfur content. This is important because it determines the amount of pollution that will be produced when the oil is burned.

Finally, viscosity is measured to determine the oil’s ability to flow. This is important for transportation and refining.

Oil is typically measured in barrels, with one barrel containing 42 gallons of oil. To measure the level of oil in a barrel, a ruler or tape measure is inserted into the barrel to determine how much oil is present. The measurements are then converted to barrels using a standard conversion factor.

More Oil level Monitoring & Measurement Solutions

Case Study: Automatic Sludge Blanket Level Detector

Sludge Blanket Level Detectors use ultrasonic technology, so they are also known as ultrasonic mud level meters. Ultrasonic Sludge Blanket Level Detector uses ultrasonic emission with echo analysis of solids suspended in water. The height and thickness of the sludge Read More

Fuel Tank Diesel Level Sensors

Diesel Level Sensors are used in Fuel Tank\Oil Depot. By accurately measuring the level data of the oil tank, it can effectively manage the inflow, sale and storage of oil in the oil depot. The selection of Level Sensors for Read More

Ultrasonic Level Sensor for Diesel Tanks | 5~150cm,0-30m

Ultrasonic level sensor for diesel tank includes top mount and external mount. Oil tanks are storage equipment commonly used in oil depots, oil terminals, oilfield refineries and petrochemical enterprises. For the liquid medium (petrochemical products) in the tank, the liquid Read More

Water Level Transducers – Detailed Guide

What Is a Water Level Transducer? Water level transducers are also called Water Level Sensors, or water level transmitters. Water level transducers are used to monitor water usage and quality. The water level signal is output through 4-20mA and other Read More

Sino-Inst is Manufacturer of 80G radar level meters for Crude oil measurement. We supply more than 20 kinds of radar level meters for Tanks. 40% 80G radar level meters, 40% 26G radar Level Meters and 20% other types level sensors.

80G radar level meters for Crude oil measurement are mainly used for level measurement of various oils tanks.

80G radar level meters for Crude oil measurement enable stable level measurement without tank modifications. This greatly meets the measurement needs of many applications. Can be used from small to large tanks.

Sino-Inst’s 80G radar level meters for Crude oil measurement, made in China. Having good Quality, With better price. Our level measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s a 80G radar level meters for Crude oil measurement, flow sensor, or other device, give us a call.
