Diesel Level Sensors are used in Fuel Tank\Oil Depot. By accurately measuring the level data of the oil tank, it can effectively manage the inflow, sale and storage of oil in the oil depot. The selection of Level Sensors for diesel and gasoline tanks should be determined according to the design results of the oil tank. Different structures choose different liquid level instruments.

Diesel tanks, gasoline tanks can choose to invest in Level Sensors, radar level gauge. The radar level gauge has high precision, but the price is slightly higher than that of the magnetic flap level gauge and the float level gauge. It can carry 4-20ma long-distance transmission. Sino-Inst Fuel Tank Diesel Level Sensors has obtained the national heat certificate of intrinsic safety explosion-proof certificate and isolation explosion-proof certificate, so you can buy it with confidence.

Fuel Tank Diesel Level Sensors

Featured Diesel Level Sensors

Types of Fuel-Diesel Level Sensors

Below are some of the most commonly used diesel level sensors that we have compiled.

Magnetic Flap Level Indicator

Generally speaking, the storage of diesel oil is in custom-made storage tanks. At this time, a magnetic flap liquid level indicator will be added outside the storage tank to measure the remaining amount of diesel in the tank.

When the level of diesel in the storage tank rises and falls, the magnetic float in the body tube of the level gauge also rises and falls. The rollover column changes from white to red as the diesel rises. The column turns from red to white when the liquid level drops. The red and white junction of the indicator is the actual height of the liquid level inside the container. Thus, the actual result of the measurement can be displayed correctly.

Stainless Steel Level Sensor-Pressure Guided Submersible Level Transmitter is a good choice for diesel testing.
Its biggest advantage is simple installation and low cost. Professional commissioning and installation, setup, etc. are not required. Just put the stainless steel probe into the tank and the solid gauge head.

SI-U01 Float Level Sensor

Float Level Switches & Sensors with Magnetic Reed Switches for Continuous Level Measurement.

Float level sensor (float switch) is one type continuous level sensor for industrial level measurement. Float level sensor has a magnetic float that rises and falls as liquid level changes. The percentage of the liquid level, 4 ~ 20mA current and liquid level value, can be displayed on site. Applications like: water tank, fuel tank, level measurement and level control. Vertical, horizontal, and side mounted, all can be satisfied.

Ultrasonic Level Sensor for Diesel Tanks

Ultrasonic level sensor for diesel tank includes top mount and external mount. Oil tanks are storage equipment commonly used in oil depots, oil terminals, oilfield refineries and petrochemical enterprises. For the liquid medium (petrochemical products) in the tank, the liquid level, temperature, density and pressure (pressure storage tanks) are mainly measured. ) and other parameters. Calculate the volume and weight of the liquid storage.
Industrial diesel storage tanks are available in large and small tanks. Ultrasonic liquid level sensors can well meet the liquid level measurement of diesel tanks of various sizes and installation methods.

Non-Contacting Radar Level Measurement

Radar level transmitters use radar technology to perform the non-contact continuous level measurement. The radar level indicator converts the level into an electrical signal. The level signal output can then be utilized by other instrumentation to monitor or control. Liquids and solids are commonly measured with this measuring technique. Like: Fly ash silo. Radar level sensors are divided into Pulsed radar technology and frequency modulated continuous wave (FMCW) radar level sensors.

Sino-Inst produces a 120GHz FMCW radar level sensor, 26GHz radar level meter, 6GHz level meter.

Magnetostrictive Level Transmitters are level sensors for continuous level measurement. It is the best technology for monitoring and controlling liquid level interface.

Magnetostrictive Level Transmitters

Magnetostrictive Level Transmitters are used for continuous measurement of liquid level and interface. Magnetostrictive level measurement is currently the best liquid level measurement and control technology.Sino-Inst’s Magnetostrictive Level Transmitters can provide two independent outputs: interface; overall level. It can be applied when the difference in specific gravity drops to 0.02. Magnetostrictive Level Sensors Commonly used for the measurement of the oil-water interface. And others include acid tanks, propane containers, desalter and sewage tanks. Magnetostrictive Level Transmitters are composed of three parts: probe rod, circuit unit and magnetic float. The flexible cable type and the outer buoy type are derived from the basic model. And has a variety of communication modes 4~20mA, 0~5V, 0~10V, HART, RS-485 and so on.

Fuel-Diesel-Water Tank Level Sensor Monitoring

The oil depot liquid level monitoring system is a multi-functional management system applied to the oil depot, which can effectively manage the inflow, sales and storage of oil products in the oil depot by accurately measuring the oil level, temperature and other data of the oil tank.

Sino-Inst oil depot storage tank monitoring system is based on high-precision Fuel Tank Diesel Level Sensors. Combined with a dedicated regulatory information system. Realize automatic oil measurement and supervision for oil depots.

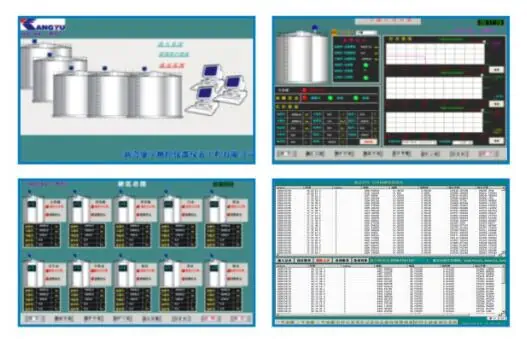

Fuel-Diesel-Water Tank Level Sensor Monitoring

The system can complete the automatic measurement of the oil in the oil storage tank through each Fuel Tank Diesel Level Sensors when the oil storage tank is closed. Complete the on-site controller to realize the operation, display and remote transmission of the data measured by the liquid level sensor in the entire storage area.

The remote computer combines the received data and passes it through its internal dedicated management software. Realize the analysis of oil parameters in the oil tank, and directly reflect the operation of the storage tank.

Managers can grasp and understand the operation of each storage tank in time through their own computers. So as to reasonably carry out the production arrangement and scheduling.

Extended reading: Advantages of Oval Gear Mechanical Diesel Flow Meters

Water Tank Level Sensors

The Water Tank Level Sensor is an important part of the water tank level control system. Using a level sensor for the water tank, solenoid valve, control box, liquid level switch and other accessories can effectively form a Water Tank Level control system. Monitor the materials stored in the water tank. Master important data such as its liquid level, reserves, and quality. A reasonable liquid level can ensure the safe, reliable, and efficient operation of the storage tank.

Water Tank Level Sensors for Level Control

Read more about: Water Tank Level Sensors Types

Propane Level Sensors

Industrial Propane Tank Level Indicators for Industrial Tank Level Measurement

Propane tank level indicator is also called propane tank gauge level indicator, or propane tank level gauge. What kind of level gauge is used for Industrial propane level measurement?

Propane is a gas that can be liquefied. Chemical formula CHURCH, colorless, liquefiable gas. Slightly soluble in water, soluble in ethanol and ether.
Common Industrial Propane Tank Level Indicators for Industrial Tank Level Measurement include radar level sensor; magnetostrictive level sensor; float level gauge; magnetic flap level gauge; ultrasonic level gauge.

Read More about: Large Propane Tank Level Indicator

Frequently
Asked
Questions

The liquid level of diesel in the tank can be measured by various liquid level sensors.
The selection of Level Sensors for diesel and gasoline tanks should be determined according to the design results of the oil tank. Different structures choose different liquid level instruments.

Different kinds of fuel level sensors are based on different working principles.

Here is an example of a commonly used capacitive fuel level sensor:

The sensing part of the capacitive oil level sensor is a coaxial container. When the oil enters the container, it causes a change in the capacitance between the sensor housing and the sensing electrode. This variation is converted by the circuit and is precisely linear and temperature compensated. Output 4-20mA standard signal for display instrument.

Fuel level sensor is applied to the oil depot, by accurately measuring the level data of the oil tank. It can effectively manage the inflow, sales and storage of oil in the oil depot. Therefore, the fuel level sensor is very important for industrial and civil industries.

Fuel Level Sensor Monitoring & Measurement Solution

Ultrasonic Level Sensor for Diesel Tanks | 5~150cm,0-30m

Ultrasonic level sensor for diesel tank includes top mount and external mount. Oil tanks are storage equipment commonly used in oil depots, oil terminals, oilfield refineries and petrochemical enterprises. For the liquid medium (petrochemical products) in the tank, the liquid Read More

External Tank Level Indicator

External Mounted Tank Level Sensors External Tank Level Indicator refers to an externally mounted level sensor. It is used to install on the outside of the liquid storage tank to measure the liquid level of the tank. When measuring with Read More

80GHZ Radar Level Transmitter

80 GHz Radar Level Measurement 80GHZ Radar Level Transmitter refers to a frequency modulated continuous wave (FMCW) radar product operating at 76-81GHz. It can be used for level measurement of solids and liquids. Since it operates at a higher frequency, Read More

Tank Level Gauges & Indicators

Tank level gauges are instruments used to indicate and control the height of the liquid level in the tank. Commonly used in water storage tanks, oil storage tanks, and underground tanks. Tank level gauges are also often called Tank level Read More

Capacitive Fuel Level Sensor

The capacitive fuel level sensor refers to a capacitive liquid level transmitter used to measure the oil level. According to the principle of capacitance sensing, when the height of the measured electrode dips and changes, the capacitance of the measured Read More

Powder Silo/Bin level measurement and control system

The Silo/Bin level measurement and control system solves the problem of frequent dumping accidents in the powder silo of the mixing station during the feeding process. It avoids the problems of dust flying, waste of cement, and environmental pollution. It Read More

Oil-water Interface Level Measurement Guide

Interface level measurement is very important for oil and gas, chemical tanks. At the same time, Interface level measurement is also a measurement and control challenge. In today’s increasingly modernized oilfield production, automated crude oil processing has become a guarantee Read More

Diesel fuel tank level gauges & Indicators

Diesel fuel tank level gauges for industrial oil storage tanks are very important, for level monitoring. Can be divided into mechanical and electronic. Featured Diesel fuel tank level gauges for Sale Read more about 7 Level Senors for Tank Level Read More

5 Industrial Propane Tank Level Indicators

Propane tank level indicator is also called propane tank gauge level indicator, or propane tank level gauge. What kind of level gauge is used for Industrial propane level measurement? Sino-Inst offers a variety of  Level Transmitters for level measurement. If Read More

Level Measurement: Liquid Chlorine Storage Tanks

Monitoring the level of liquid chlorine storage tanks is a common problem in the chlor-alkali industry. This article combines the application and comparison of the actual use of the liquid chlorine storage tank level measurement level gauge, which has practical Read More

Sino-Inst is Manufacturer of diesel level sensors. We supply more than 20 kinds of diesel level sensors for Tanks. 40% submersible level meters, 40% External Ultrasonic Liquid Level Meters and 20% other types level sensors.

Diesel level sensors for Tanks are mainly used for level measurement of various oils.
It can measure even liquids such as water, seawater, oil, and slurry.

diesel level sensors for Tanks enable stable level measurement without tank modifications. This greatly meets the measurement needs of many applications. Can be used from small to large tanks.

Sino-Inst’s diesel level sensors for Tanks, made in China, Having good Quality, With better price. Our level measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s a diesel level sensors for Diesel Tanks, flow sensor, or other device, give us a call.
