Ultrasonic Water Flow Meter is a new type of water meter designed for water resource monitoring. Using ultrasonic time difference measurement technology.

Insertion Ultrasonic Water Flow Meter

Insertion Ultrasonic Water Flow Meter (Model: 2000K) is a card type digital water meter. Using ultrasonic time difference measurement technology. A new type of water meter designed for agricultural irrigation, garden management, and water pipe monitoring of water resources. The thickness of the water meter is only 50mm to save installation space.

Ultrasonic Water Flow Meter Reference price: USD 270.00/pc

Sino-Inst offers a variety of  Ultrasonic flow meters for flow measurement. If you have any questions, please contact our sales engineers.

Features of Insertion Ultrasonic Water Flow Meter

  • Small and compact all plastic, IP68 protection level
  • High accuracy 100:1 turndown ratio
  • Pipe body probe, not easy to scale
  • Adaptive ultrasonic signal can measure water with impurities
  • Single chip SOC digital time difference processing
  • Multi-line with status display, touch key operation
  • Optional built-in Lora or NB-iot function
  • Dual interface RS485 and MBUS
  • MODBUS, MBUS, CJ188 and other multiple communication protocols
  • Can work with external power supply
  • 10 years working life of built-in battery
  • Reliable and low price suitable for mass application

How much is a 2 inch water flow meter? Let’s find out.

Specifications of Insertion Ultrasonic Water Flow Meter

Perfomance

Specification

Measurement Range Ratio
100 : 1
Working Pressure
<1.6 MPa
Temperature
T30
Working Environment -25°C~55°C,≤100%RH
Display Range Multi-lines show 9-bit cumulative flow, 6-bit instantaneous flow, signal strength flow direction, error, communication status
Unit m³, USG, Liter, cubic foot, Acre Feet
Operating Mode Two capacitive touch keys support sliding operation.
Communication Interface Physically independent RS485 and infrared interface. LORA/ NB-IOT, WIFI, USART are optional.
Output 2 way of OCT output is optional, can simulate dipulse output of mechanical water meter.
Communication Protocol MBUS, MODBUS, ASCII, CJ188
Power Supply 3.6V 4Ah lithium battery (battery life>10 years). It will operate power save functions when there is no water and flow in pipe
Other Data saving time after power failure: 10 years
Protection IP68

Extended reading: What is Modbus Protocol?

Flow Rate:

Nominal
Diameter
(mm)

Flow Meter Dimensiom Flange Dimension Weight(Kg)
L H1 H2 W1 W2 Outside Diameter D Diameter of Bolt Circle
D1
Bore Diameter
×Quantity
φ×n
Ralsed Face
Outside Diameter D2 Height f
DN50 50.8 52 91 58 58 102 125 16.5×2 102 2 0.7
DN65 50.8 60.5 97 63.5 63.5 120 145 16.5×2 120 2 0.7
DN80 50.8 70 132 68 68 135 160 16.5×2 135 2 0.9
DN100 50.8 80 140 79 79 158 180 16.5×2 158 2 1.0
DN125 50.8 95 145 94 94 188 210 16.5×2 188 2 1.2
DN150 50.78 107 157 106 106 212 240 20.5×2 212 2 1.4

Extended Reading: Inline Ultrasonic Flow Meter

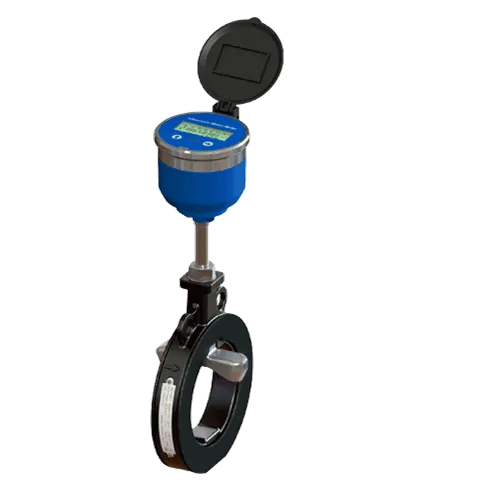

Insertion Ultrasonic Water Flow Meter-Old Style
Insertion Ultrasonic Water Flow Meter-Old Style
Insertion Ultrasonic Water Flow Meter-New Style
Insertion Ultrasonic Water Flow Meter-New Style

Extended reading: Industrial VS Residential inline water flow meters

Ultrasonic Water Meter Working Principle

The ultrasonic water meter adopts the time difference method to measure the flow. That is to say, an ultrasonic transducer is installed in the upstream and downstream of the measurement channel (pipe section) for mutual transmission and reception of ultrasonic signals.

Because the ultrasonic signal is superimposed with the water flow signal. Make the sound waves travel at different speeds in the forward and reverse flow. Therefore, the ultrasonic signals emitted by different transducers have different running times in water. By measuring the difference in time, the flow rate of the fluid can be calculated. And then converted into flow, so as to achieve flow measurement.

There are two transducers on top of the flow tube. Transducer A transmits an ultrasonic signal (downstream) to transducer B. At the same time, the B transducer transmits an ultrasonic signal (countercurrent) to the A transducer. A certain time difference is formed in the transmission process of the ultrasonic signals in the upstream and downstream.

In the case of calibrated pipe diameter cross-sectional area and standard measuring pipe length. The flow rate of the meter is calculated by the calculation chip on the integrator.

Frequently
Asked
Questions

Non-intrusive flow meters are also known as clamp-on flow meters. The clamp-on ultrasonic flowmeter consists of a host and a clamp-on sensor. With the clamping technology, the ultrasonic sensor can be easily clamped on the outer surface of the pipe. Flow measurement can be performed without cutting the pipe or interrupting the flow.

Just stick the external clamp sensor on the surface of the pipe to complete the flow measurement of various liquids. Compared with the traditional flowmeter, it does not need to cut off the pipe. The installation is convenient and fast. It truly realizes non-destructive installation.

This not only has the advantage of always guaranteeing the sterility and integrity of the system and that personnel are not exposed to any substances harmful to health. It also ensures quick and easy installation of the measuring device.

Water flow meters are flow meters that can diaplay the flow rate of industrial water pipe.

A water flow meter measures the amount of water flowing through a pipe. We have several kinds to choose from, depending on the application, maintenance needs, and budget.

Extended reading: 2 inch Water Flow Meter

There are four common water flow meter types:

Turbine (also called mechanical), Vortex, Ultrasonic, and Magnetic. We will tell you everything you need to know about them and help you choose one for your application.

Read more about: Digital Water Flow Meters

At present, in the Chinese market, high-precision ultrasonic flowmeters are all multi-channel or tube-segment type. Medium and small-diameter tube-segment ultrasonic flowmeters are usually calibrated in real flow, with an accuracy of 0.5%.

The currently widely used domestic monophonic ultrasonic flow rate has a nominal accuracy of 1%. However, in practical applications, due to the inability to accurately measure the inner diameter, wall thickness, and roundness of the on-site pipeline and many other factors, the measurement accuracy will exceed the nominal accuracy. There are many degrees. For the measurement of the water supply industry, the actual measurement error of the ultrasonic flowmeter can be controlled within 3%, even if the accuracy is high.

Featured ultrasonic clamp-on water flow meter

Clamp on flow meter (Model: 2000) is composed of an integrated host and ultrasonic clamp on sensor. Clamp on flow meter is widely used in online flow measurement of various liquids. Just stick the external clamp sensor on the pipe surface. Compared with the traditional flowmeter, it does not need to cut off the pipe and flow. The installation is convenient and quick, and the non-destructive installation is truly realized.

Clamp on Ultrasonic Flow Meter ( Model: 3000S) is composed of a host and an external clamp sensor. The flow measurement of various liquids can be completed by simply sticking the external clamp sensor on the surface of the pipeline. Compared with the traditional flowmeter, it does not need to cut off the pipe and flow, the installation is convenient and quick, and it truly realizes the lossless installation. Compared with the common TDC algorithm of other manufacturers, TGA measurement technology is an algorithm for measuring process time with higher speed and higher accuracy.

Read more about: Digital Water Flow Meters

Related Blogs

10 Ways to Water Flow Measurement

Water flow measurement is common in both industry and life. You may often hear about the use of electromagnetic flowmeters to measure wastewater. Water flow velocity meter used at home. The clamp-on ultrasonic flowmeter measures large water pipes. The establishment Read More

Mechanical Water Flow Meters

Mechanical water flow meters refer to a type of flow meter suitable for clean water processes or applications. The working principle of a mechanical water flow meter is to measure the speed of water flowing through a pipe. This causes Read More

Irrigation Flow Meters for Agriculture Water System

What is an irrigation flow meter? The irrigation flow meter is a flow meter designed for agricultural irrigation water counting. Agriculture, horticulture, etc. require water for irrigation. And water is becoming more and more expensive. The installation of flow measurement Read More

How does a residential water meter work?

What does a residential water meter look like? A residential water meter is a legal meter for measuring water consumption in residential communities, residential buildings, bungalows, and other places. What are the commonly used residential water meters? In terms of Read More

Chilled Water Flow Meter

Application What is a Chilled Water Flow Meter? A chilled water flow meter refers to a flow meter that can be used to measure low-temperature water. Common chilled water flow meters include electromagnetic flow meters, turbine flow meters, and ultrasonic Read More

3 inch (3″) Water Meter

Low cost 3″ Water Meter 3″ water meter is also DN80 water meter. Easy to read. Totalizing water volume. Intelligent large-caliber remote water meter includes wired remote transmission and wireless remote transmission. RS485 communication equipment, MODBUS, etc. Features of 3″ Read More

Hot Water Flow Meters

Hot Water Flow Meters Improve Heating-Boiler System Hot water flow meters refer to flow meters that can measure and indicate the flow of high temperature water. Hot water is widely used in industry and civil use. Such as heating systems, Read More

PD Flow Meters Selection and Application | Oil-Liquid

What is PD flow meter? PD flow meters (positive displacement flow meters) are the only flow measurement technology that directly measures the volume of fluid passing through the flow meter.Rotating components within a high precision chamber capture the fluid. The Read More

Guess you like: Insertion Magnetic Flow Meter-Large diameter online install

Sino-Inst, Manufacuturer for Insertion Ultrasonic Water Flow Meters. It can measure a single sound-conducting liquid medium of DN 25—150mm. It can measure even liquids such as water, sea water, oil, and slurry.

Sino-Inst’s Insertion Ultrasonic Water Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.
