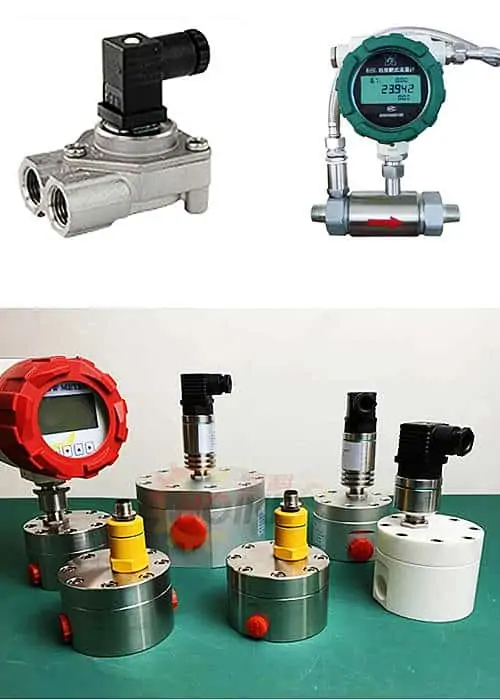

What is a low flow meter?

Low Flow Meters refer to those flow meters that can be used to measure micro-flow-low-flow rate media. Including metal rotor type, gear type, electromagnetic type microflow meter, microturbine type, and thermal type small mass flow meter. It can measure the Low flow rate of a variety of liquids and gases. For example, it needs small volume, high-temperature resistance, low-temperature resistance, or medium viscosity. etc. We all have suitable product recommendations.

What is a low flow meter?

Sino-Inst specializes in low flow meters for micro to low flow rates. We offer:
Ultrasonic flowmeter can measure low flow rates from 0.1m/s to 5.0m/s.
The gear flowmeter can measure the microflow rate from 0.01 to 0.83.
Coriolis mass flow meters and controllers from 10SCCM~30SLM.
Below, we also introduce a lot of flow meters. based on vortex, electromagnetic, ultrasonic, and positive displacement, etc.

Flow range of flow meters

First, let’s take a look at the low flow rate measurement range of conventional flow meters.

Flow meterMediaDNFlow Range (m³/h)L/min
Electromagnetic Flowmeterliquid150.19~3.18 3.166~53
Turbine flowmeterliquid40.04~0.250.666~4.166
Vortex FlowmeterGas; liquid153~15;0.3~550~250; 5~83.30
Precession Vortex Gas Flowmetergas151~716.66~116.666
Ultrasonic Flow Metersliquid150~±12m/s
Differential Pressure Flow MetersLiquid; gas150.8m/s
Oval gear flowmeterliquid100.03-0.2  0.5~3.33
Gear flow meterliquid20.0006~0.0500.01~0.833
Coriolis Mass FlowmeterLiquid; gas30~96~144 kg/h
Thermal gas mass flow metergas60.1~120Nm/s
Metal rotor flowmeterGas; liquid150.07~0.7; 2.5~251.166~ 11.66;41.666 ~416.66

Low flow meters for Liquids

Model Measure Range    L/HMeasure Range L/min
GF020.6-500.01~0.83
GF045-2500.083~4.16
GF0610-5000.167~8.33
GF1050-12000.83~20
GF15200-30003.33~50
GF251000-1200016.67~200
GF322000-2000033.33~333
ProductStrap on Flowmeter
ModelX3
Flow range0.1m/s~5.0m/s
Accuracy±2.0%
Repeatability0.80%
Pipe sizeφ6.35~φ90
MoeldX3-φ6.35X3-φ9.53 X3-φ12.7X3-φ15X3-φ20X3-φ25
Weight(KG)0.910.910.90.90.840.84
MoeldX3-φ32X3-φ40X3-φ50X3-φ63X3-φ75X3-φ99
Weight(KG)0.820.880.981.431.521.95

Mini Turbine Flowmeter
Mini Turbine Flowmeter
Caliber
(mm)
Measuring range
(L/min)
Factor
1.15mm0.035-1.60.5
1.3mm0.01-1.860.6
1.5mm0.045-2.080.67
2.0mm0.085-2.321.02
2.5mm0.12-2.41.44
MaterialShell: brass nickel plated/brass/plastic
Bearing: INO×18/8 (1.4305) stainless steel
Impeller: PVDF (polyvinylidene fluoride)
Magnet: SrFeO ceramic, ultrasonic welding
sealMVQ (silicone rubber “O” ring)
temperature range-10℃~+100℃
Accuracy class±2%
Repeat accuracy±0.20%
Pressure rangeMaximum 2MPa
Installation methodHorizontal installation
Dimensions (L×B×H)40×55×40mm
connectMPM connector
Provide power4.5~24VDC
OutputOpen collector
Maximum (extra) voltage output25VDC
Maximum current output25mA
ThreadG1/8 or G1/4
Threaded micro flow target type flowmeter
Threaded microflow target type flowmeter
Pipe diameter:DN6mm—50mm (threaded type)
Accuracy:±0.2/ ±0.5/ ±1.0 (liquid flow meter);
±0.5/ ±1.0/ ±1.5 (gas flow meter)
temperature:-196°C to +700°C.
pressure:Negative pressure -70Mpa
Measuring range ratio:1:100 times; 1:50 times; 1:30 times; 1:10 times
Flow range:Liquid: DN6 to DN80 starting at 0.1L/h (ultra-small flow);
Gas: DN6 to DN80 starting at 15L/h (ultra-small flow);
Measuring rangeLow range: 10SCCM~30SLM
Medium range: 30SLM~300SLM
Large range: 500SLM~3000SLM
Accuracy (under standard conditions after zero adjustments)±1%F.S
Repeatability±1%F.S
Zero drift & full-scale drift0.02%F.S/C/Atm
Working range/range adjustable ratio2%~100%F.S/50:1
Maximum measurable flow100%F.S (controllable)
Typical response time200 milliseconds (adjustable)
Start-up warm-up time<5 seconds

Extended reading: Micro flow meters for low flow liquids

Low flow meters for Gas

ModelCaliberMechanical interfaceFLow Range: SLPMFLow Range: NCMH
MF57066mm1/4″10
25
0.6
1.5
MF571212mm1/2″20012

Measuring medium:Various gases (except acetylene gas and mixed gas)
Measuring pipe diameter:DN3, 6, 8, 10
Flow range:30, 60, 80, 100, 300, 600, 800, 1000 sccm;
10, 20, 30, 50, 80, 100 SLPM
Flow measurement accuracy:±1.5%FS; ±2.5%FS
range of working temperature:-25℃-55℃
Working pressure range:0.3MPa, 0.6MPa, 1.0MPa
Power supply:24VDC±10%;
output signal:4-20mA, RS485 communication;
