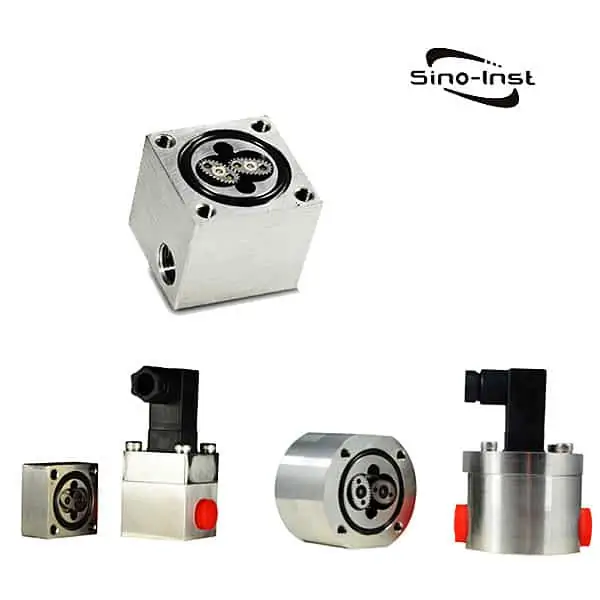

Micro Flow Meter is a micro oval gear flow meter. It is a kind of positive displacement flow meter. Suitable for flow measurement of micro liquid flow rate.

Micro Flow Meter for liquid low flow rate

  • Micro flow 0.5ml/min
  • All stainless steel 316L material
  • 0.5% high precision, quantitative control
  • Standard pressure 32Bar, high pressure can be customized, maximum pressure 1000Bar
  • Suitable for various chemical liquids

Sino-Inst offers a variety of Oval Gear Flow Meters for flow measurement. If you have any questions, please contact our sales engineers.

Micro Flow Meter Specifications

Micro flow meter for low viscosity liquid

MediumSuitable for liquids, weakly corrosive chemical media
For example: water; oil; glue; polyurethane, etc.
PrecisionStandard accuracy +/-0.5%
High viscosity accuracy can reach 0.2%
pressureStandard withstand pressure 32Bar
Accept high pressure customization, high pressure up to 1000Bar
temperatureStandard temperature range -30~80℃
The highest temperature of stainless steel series is 200℃
OutputHall & dry reed tube pulse output
powered by4~26VDC power supply
Stainless steel series
MaterialShell: SS316L
Gear: SS316L
Bearing: SS316L
mediumSuitable for weakly corrosive liquids; such as: water; polyurethane
Aluminum alloy series
MaterialShell: Anodized Aluminum
Gear: Anodized aluminum
Bearing: SS316L
mediumNon-corrosive liquid; such as: gasoline; aviation kerosene

Micro flow meter for high viscosity liquid

MediumSuitable for liquids and high-viscosity media
For example: water; oil; glue; polyurethane, etc.
PrecisionStandard accuracy +/-0.5%
pressureWithstand pressure 200Bar
temperatureStandard temperature range -30~80℃
The highest temperature of stainless steel series is 250℃
OutputHall & dry reed tube pulse output
BearingBall bearing or PEEK bearing
powered by4~26VDC power supply
Stainless steel series
MaterialShell: SS316L
Gear: SS316L
Bearing: SS316L
mediumSuitable for high-viscosity liquids; such as glue; polyurethane
Aluminum alloy series
MaterialShell: Anodized Aluminum
Gear:  SS316L
Bearing: SS316L
mediumNon-corrosive liquid; such as: gasoline; aviation kerosene
Model CX-M2  CX-M3  CX-M5  CX-M6
Flow range 0.5~150mL/min  3~300mL/min  5~1000mL/min  0.5~100L/H
connection G1/8 Female thread G1/8 Female thread G1/8 Female thread G1/4 Female thread
medium Suitable for various chemical liquids
Precision 0.50%
temperature -30℃ to 80℃
pressure 32Bar (high pressure can be customized)
Output Square wave pulse
powered by 4~26VDC
Material Stainless steel material, aluminum material
Model CX-M9 CX-M12 CX-M25 CX-M40 CX-M50
Flow range 6~600L/H 0.3~30L/min 0.5~100L/min 10~250L/min 15~500L/min
connection G1/4 Female thread G1/2 Female thread G1 Female thread G1.5 Female thread G2 Female thread
medium Suitable for various chemical liquids
Precision 0.005
temperature -30℃ to 80℃
pressure 32Bar (high pressure can be customized)
Output Square wave pulse
powered by 4~26VDC
Material Stainless steel material, aluminum material

Features of Micro Flow Meter

Quantitative control of micro liquid flow & flow monitoring.

The standard minimum flow rate of the micro flowmeter is 0.5ml/min.

The standard accuracy of the micro flowmeter is 0.5%. The cutting accuracy of the CNC machining center is 0.001mm.
For high viscosity media, such as glue, the accuracy can reach 0.2%.

The maximum range ratio of the standard product is 1:200, and the minimum range ratio is 1:100
The new M2.1 is the latest research and development. The flow range is 1~800ml/min, and the turndown ratio reaches 1~800.
To meet more working conditions, it is more suitable for test bench working conditions.

Two materials of stainless steel and aluminum alloy are available.

Extended reading: Micro flow meters for low flow liquids

Micro Flow Meter Dimension

Micro Flow Meter Dimension 1
Micro Flow Meter Dimension 2
Micro Flow Meter Dimension 3

Extended reading:
What is the K-factor in a flow meter?
Cryogenic Flow Meters|Liquid Nitrogen-Liquid Oxygen-LNG fluids

The Micro Flow Meter we supply is a gear flow meter.

Gear flow transmitter belongs to volumetric flowmeter and measure volume and flow precisely. The flowing medium makes the gear engage and rotate.

Under the flowing effect of fluid, pressure difference is formed between the inlet and outlet of instrument. One pair of gears can rotate freely without the need of power supply. The empty cavity between gears is filled with liquid, which is discharged through rotation.

The liquid flowing through instrument and liquid flow can be known through measuring the number of revolutions of gear.

Micro Flow Meter working principle

Extended reading: Cylinder Gear flow meter for micro flow measurement.

The rotation speed of the transmitter is detected by the sensing coil inside the signal amplifier on the case.

The signal amplifier cannot touch the measured medium. Due to the cutting of the transmitter gear, the magnetic field lines generated inside the permanent magnet inside the housing will cause the magnetic flux inside the induction coil to change.

The sensing coil sends the signal of flux change cycle detected to the pre-amplifier so as to amplify and shape the signal.

The impulse signal which is in direct ratio with flow velocity will be sent to the unit conversion and flow integration circuit. To obtain and display the accumulative flow valve.

At the same time, it will also send the impulse signal to frequency current conversion circuit. To convert the impulse signal to simulation amperage so as to display the instantaneous flow value.
The transmitter has high processing precision and can be installed precisely.

The gear rotation undergoes non-contact scanning. One impulse is generated by one gear with very high resolution. The column gear transmission can measure the liquid with very small flow and small quantitative volume.

Read more about: Positive Displacement Flow meter Technology

High temperature oil measurement

The micro flowmeter can be customized for high temperature.

Since the material is all stainless steel 3161, the maximum temperature can be customized to 200°C.

The commonly used custom temperature is 120°C.

Applicable working conditions: hot melt adhesive; heat transfer oil and other high-temperature working conditions.

Extended reading: Sanitary Positive Displacement Flow Meter

High-pressure measurement

The micro flowmeter can be customized for high pressure.

By strengthening the shell, more bolts are added to achieve the function of high-pressure resistance.

The material itself is stainless steel is also a prerequisite for achieving high pressure.

The maximum high pressure of 1000Bar can be customized.

In the case of high pressure resistance, the service life and low-cost after-sales service are guaranteed at the same time.

Applicable working conditions: hydraulic oil; hydraulic system; high-pressure working conditions such as lubricating oil

Extended reading: Stainless steel flow meters|304-316 optional

The products described in this article are not suitable for measuring oxygen or liquid oxygen.
If you need to measure oxygen (O2) or liquid oxygen (LO2), perhaps you can refer to:

For oxygen gas flow measurement

Gear flow meter for Micro flow

The gear flow meter is a micro digital positive displacement flow meter. Can measure very small flow rates and quantify small volumes of liquid. High and low-temperature resistance (-196℃-200℃).

For liquid oxygen flow measurement

Precession vortex flowmeter is a new type of gas flowmeter. It can be used for the measurement of natural gas, propane, air, nitrogen, and other gases.

Read more about Liquid Flow Meters Guide

Nitrogen Gas Flowmeters-Liquid Nitrogen Flowmeters

Digital Air Mass Flow Meter

This flowmeter is also called a handheld digital air flow meter. Suitable for small gas flow monitoring.

  • MEMS flow measurement technology application
  • Battery-powered, portable design
  • RS485 communication mode can realize centralized network management
  • Real-time monitoring of instantaneous flow and calculation of cumulative flow
  • Password management, over-limit alarm
  • Small size, easy to install
  • Low cost and maintenance-free

Converter Tool: Volumetric Flow Rate & Pipe Diameter to Flow Speed Calculator

Performance parameterMF5706MF5712Unit
Range0~10,250~200L/min
Precision+(2+0.5FS)+(2.5+0.5FS)%
Repeatability0.5%
Response time≤2sec
Power supply4 AA batteries or external adapter power supply
Power consumption≤10mW
Output FS485 (Optional)
DisplayLCD
Display unitInstantaneous flow SLPM (L/min), cumulative flow NCM (M3)
display resolution0.010.1L/min
keyboardThree button
Function descriptionPassword setting.
Set the total amount and clear it.
Alarm function
Work pressure≤0.8mpa
Operating temperature-10~+55
Pressure loss≤600≤2000pa
Working time period (battery)>60days
Standard calibration gasNitrogen
Lead wireDedicated minUSB connection communication cable (optional)
Caliber6mm12mm
Mechanical interfaceNPT-1/4NPT-1/2
WeightAbout 300g

Extended reading: What is Modbus Protocol?

ModelCliberMechanical interfaceFLow Range: SLPMFLow Range: NCMH
MF57066mm1/4″10
25
0.6
1.5
MF571212mm1/2″20012

Guess you like: Understand The Background Of Gas Mass Flow Meter Now

Micro Motion Coriolis Flow Meter is a flow meter made according to the Coriolis acceleration theory. Z-Series Straight Tube Micro Motion Coriolis Flow Meter simultaneously measures mass flow, density, temperature and viscosity.

Liquid Accuracy / Repeatabilityup to ±0.2± of rate (up to ±0.1± of rate)
Gas Accuracy / Repeatability±0.20± of rate
Density Accuracy / Repeatability±0.002 g/cm3 (±0.0005 g/cm3)
Line Size1/4″ (DN8) – 2″ (DN50)
Pressure Rangeup to 1450 psig (100 barg)
Temperature Range-60 to 300 F (-51 to 149 C)

Clamp-on Micro Flow Sensor

Strap on flow meter X3

Strap on flow meter X3 is a kind of ultrasonic external clamp-on flow meter. Strap on flow meter X3 is easy to install. Suitable for measuring pipe diameter Φ9.53~Φ90.

Strap on flow meter X3 can meet the needs of different pipe materials: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe, PVC, PVDF, PPH, PPE, etc.

Strap on flow meter X3 almost meets the measurement of different clean fluids: various acids, alcohols, chemical solvents, alcohol, drinking water, Coca-Cola water… etc.

ProductStrap on Flow meter
ModelX3
Flow range0.1m/s~5.0m/s
Accuracy±2.0%
Repeatability0.80%
Pipe sizeφ6.35~φ90
Data storageDaily, monthly, and Annual. Flow Totalizer
Analog output4~20mA, Maximum load: 600Ω
Alarm outputDCT, Upper and lower limit alarm function(optional)
CommunicationRS485,support Modbus communication protocol
Power supply24VDC
Cable length2.0m
KeypadFour light touch buttons
ScreenOLED 128*64 displayscreen
UnitsMetric and imperial units are available, Cubic Meters(m3), Liters(L), USA Gallons(GAL)/hour,/min,Default unit setting:m3/h
TotalizerSix bit digit
Piper materialStainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Case materialAluminum alloy
Environment temp.0℃~50℃(32°F~122°F)
Medium temp.0℃~50℃(32°F~122°F)
Environment humidit0-95% relative humidity, without condensation
IP GradeIP54

Read more about: Strap on flow meter X3

More Featured Liquid Flow Meters

Frequently
Asked
Questions

If the flowmeter is classified according to the measuring medium. Then flow meters can be simply divided into two categories: gas flow meters and liquid flow meters.

However, according to other criteria, it can be divided in more detail:

  1. According to the measurement principle, there are:

Principles of mechanics, thermal principles, acoustic principles, electrical principles, optical principles, atomic physics principles, etc.

  1. According to the structural principle of the flowmeter, it is classified into:

Volumetric flowmeters, differential pressure flowmeters, rotameters, turbine flowmeters, electromagnetic flowmeters, vortex flowmeters, mass flowmeters and insertion flowmeters, probe flowmeters in fluid oscillating flowmeters.

Extended reading: How to choose a high viscosity flow meter?

Micro flow sensor refers to a type of flow meter that can be used to measure micro flow monitoring.

Extended reading: High Pressure Hydraulic Flow Meter

The difference between a flow meter and a flow sensor. The main points are as follows:

  1. It can be said that the flow sensor is part of the flow meter. The sensors include flow sensors and flow meters, which belong to a broad category.

Specifically: the flow sensor can measure the specific flow value. For example, a water meter, which is actually a flow meter. But there is a flow sensor in the flow meter. A flow meter is a combination of a flow sensor and a meter display. When the water flow passes through the flow sensor, the flow sensor transmits the record to the meter head. The header displays it in front of the user according to the data.

  1. The flowmeter generally refers to those sensors that can be read directly, and specifically refers to those measuring elements that can convert the measured flow value into an electrical signal for processing by the processor.
  2. The flow meter is used for measurement, and it gives the quantity of medium flowing through per unit time (flow rate such as ton/hour). Flow sensors determine the fluid flow state, and some (but not all) of the sensor signals can be processed to generate a flow signal. If this sensor is integrated with other components, it is a flowmeter.
  3. According to the professional method, the functional flow meter is for measurement. It mainly measures the flow, and the accuracy is the main parameter of the flowmeter. Flow sensor is signal output, electrical signal, pulse signal. Also known as analog output. is for flow control.

Extended reading: What is an air pressure transducer?

Different types of flowmeters work differently.

  • Differential Pressure Flowmeters
  • Velocity Flowmeters
  • Positive Displacement Flowmeters
  • Mass Flowmeters
  • For Open Channel Flowmeters – weirs, flumes, submerged orifices, current meters, acoustic flow meters and more

For different working principle, We offer different types of flow meters, like:

  • Differential Pressure Flow Meters
  • Orifice Plate
  • Venturi Tube
  • Flow Nozzles
  • The Sonic Nozzle – Critical (Choked) Flow Nozzle
  • Calorimetric Flowmeter
  • Ultrasonic Doppler Flowmeter
  • Positive Displacement Flowmeter
  • Variable Area Flowmeter or Rotameter
  • Velocity Flowmeters
  • Pitot Tubes
  • Electromagnetic Flowmeter
  • Turbine Flowmeter
  • Vortex Flow Meter
  • Thermal Flowmeter
  • Coriolis Flowmeter
  • Mass Flowmeters
  • Open Channel Flowmeters

Extended reading: High Temperature Flow Meter

Related Blogs

Industrial Petrol Flow Meters | Selection Guide

Petrol flow meters are often used for inline monitoring of gasoline flow rates. Positive displacement & Turbine flow meters are commonly used industrial fuel flow meters. Sino-Inst offers a variety of petrol flow meter for flow measurement. If you have Read More

Totalizer Flow Meters

Totalizer flow meter is also called Totalizing flow meter. It refers to the totalizing function of the flow meter, or an instrument that can realize flow display and flow totalization. Sino-Inst offers a variety of Totalizer flow meters for flow Read More

Industrial Oxygen Flow Meters

Oxygen Flow Meters are digital flow meters that can measure industrial oxygen. It is very important to choose a suitable flow meter to measure and monitor the oxygen flow. Sino-Inst offers a variety of Industrial Oxygen Flow Meters for flow Read More

Industrial CO2 flow meters

CO2 flow meters are instruments that can measure the flow of gaseous or liquid carbon dioxide. CO2 is a common industrial gas, and effective measurement is very important. Sino-Inst offers a variety of CO2 flow meters for flow measurement. If Read More

Biogas Flow Meters Selection Guide

Biogas Flow Meters are instruments that can measure the flow of biogas. Could be a vortex flow meter, thermal mass flow meter, etc. Commonly used in biogas stations, biogas production fermentation tanks, etc. Sino-Inst offers a variety of Biogas Flow Read More

Digital Beer Flow Meters

Sino-Inst offers a variety of Digital Beer Flow Meters for flow measurement. If you have any questions, please contact our sales engineers. Featured Beer Flow Meters for Sale More about: Sanitary Flow Meters for Sale The Use of Beer Flow Read More

Industrial LPG/Propane flow meter

Featured Inline Propane Flow Meter Propane is also generally referred to as liquefied petroleum gas (LPG). So what is the difference and connection between propane and LPG? Next, let’s take a look together. Propane VS LPG Because propane is one Read More

Clamp on flow meters for liquid pipes

Clamp on flow meters refers to the non-contact flow meter, or strap-on flow meters, which clamps the ultrasonic sensor outside the pipeline for measurement. Sino-Inst offers a variety of  Clamp on flow meters for flow measurement. If you have any Read More

Cryogenic Flow Meters for Sale

Cryogenic Flow Meters for Highly Accurate and Reliable Cryogenic Fluids Flow Measurement. Sino-Inst offers a variety of  Cryogenic Flow Meters for Cryogenic fluids flow measurement. If you have any questions, please contact our sales engineers. Featured Cryogenic Flow Meters Cryogenic Read More

Sanitary Flow Meters for Sale

Common sanitary flow meters are sanitary magnetic flow meters and sanitary turbine flow meters. Composed of 304/316 stainless steel. A Sanitary flowmeter with Tri-Clamp fittings is easier to install and disassemble. Suitable for the food hygiene industry. Sino-Inst offers a Read More

Sino-Inst, Manufacuturer for Micro Flow Meters. For example: crude oil flowmeter, diesel flowmeter, gasoline flowmeter.

Sino-Inst’s Micro Flow Meters, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

Request a Quote

Micro Flow Meter for Low&high Viscous liquids, oils-low flow

Micro Flow Meter is a micro oval gear flow meter. It is a kind of positive displacement flow meter. Suitable for flow measurement of micro liquid flow rate.

Product SKU: Micro Flow Meter

Product Brand: Sino-Inst

Product Currency: USD

Product Price: 200

Price Valid Until: 2059-09-30

Product In-Stock: PreOrder

Editor's Rating:
5

Leave a Reply

Your email address will not be published. Required fields are marked *
