ULT-100 Ultrasonic level transmitter

Ultrasonic Level Transmitter, also called Ultrasonic level sensor, or ultrasonic level Indicator. Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. ULT-100 Ultrasonic level transmitter is an explosion-proof product specially suitable for measuring flammable and explosive liquids.

Learn About: Magnetostrictive level transmitter

Magnetostrictive level sensor

Features of ULT-100 Ultrasonic level transmitter

  1. Provides reliable, accurate, and non-contact level measurement of compatible liquids
  2. Non-contact technology offers no moving parts to wear, jam, corrode or get coated like contact technologies
  3. Mapping software makes effective measuring surface only a 3″ (76.2 mm) diameter column.with no concerns of ladders, pipes, or other tank intrusions in the remaining sound cone
  4. FM approved explosion-proof making it ideal for use in hazardous locations
  5. Easy programming with 6 digit LCD display and simple menu structure
  6. Output range is adjustable with choices of inputting tank dimensions. or by filling and emptying the tank. while calibrating and it automatically and scaling to levels it senses
  7. Window cover allows easy viewing of the display
  8. Fail-safe output options and diagnostic capabilities

Specifications of Ultrasonic Level Transmitter

Wire System Two-wire system
Installation mode Intergrated
Basic parameters Maximum measuring range
(High temperature, fluid)
30m
Maximum measuring range
(high temperature, moisture)
20m
Maximum measuring range
(particle > 4mm solid)
10m
Blind area 0.25-0.5m
measurement accuracy ±0.3%FS(Standard conditions)
Resolution ±1mm
Input Power supply 12~36VDC/85~265VAC
Max electric current >22mA
Ripple requirement less than ±20mA
Output Analog signal 4-20mA
Digital signal RS485, HART 5.0, Modbus RTU
Switch 4 way
Material Transmitter Die Casting Aluminum Alloy
Probe Waterproof ABS/Corrosion Resistant PTFE
Flange Flange standard needs to be provided by customers. Size is related to installation method.
Various kinds of PVC, PP, PTFE, carbon steel and stainless steel flanges can also be customized.
Environment condition Ambient temperature -20°C~60°C. If temperature less than 20°C, LCD display will be limited.
Outdoor instruments should be protected against ultraviolet rays if they are exposed to direct sunlight.
Protection level IP67
Explosion proof level Flamproof type ExdIICT4
Intrinsically safe type ExiaIICT4
Process condition Process temperature -40℃~100℃, High temperature probe is required when exceed 70℃
Process pressure 0.8~3bar or 0.08~0.3MPa, Below 3000m altitude.
Product characteristics Analog and digital output can be shared
High level of protection
Strong anti-interference ability
Comprehensive function
Drawings of ultrasonic level transmitter
Drawings of ultrasonic level transmitter

Applications of Ultrasonic Level Transmitters

  • Chemical
  • Mining
  • Aggregate
  • Power generation
  • Pulp and paper
  • Iron and steel
  • Wastewater
  • Food and beverage
  • Quarries
Applications of  Ultrasonic Level Transmitters
Applications of Ultrasonic Level Transmitters

Extended reading: Guide to Ultrasonic Level Transmitters

Ultrasonic level transmitter working principle

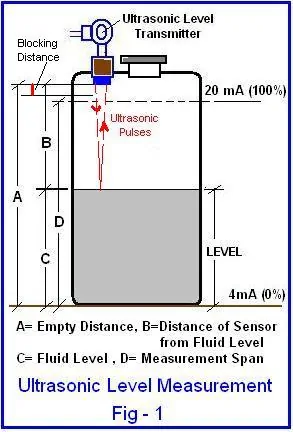

Ultrasonic Level Measurement Fig1
Ultrasonic Level Measurement Fig1

Ultrasonic waves propagate in gases, liquids, and solids and have a certain propagation speed. Ultrasonic waves will be absorbed and attenuated when propagating in the medium. The attenuation of propagation in gas is the largest. The attenuation of propagation in solids is the smallest.

Ultrasound will reflect and refract when passing through the interface of two different media. For interfaces with large acoustic impedances, it is almost totally reflected. The time interval from transmitting the ultrasonic wave to receiving the transmitted signal is related to the position of the interface. The ultrasonic liquid level meter uses this feature of the ultrasonic wave for level measurement.

The transmitter and receiver of the Ultrasonic level transmitter can be installed on the bottom of the container or on the top of the container. The transmitted ultrasonic waves are emitted at the phase interface and received by the receiver. The time interval between the ultrasonic waves received from the transmitter is measured. You can measure the level of the level.

Ultrasonic level transmitters can be divided into three types: solid-medium, air-medium, and liquid-medium according to different sound transmission media. According to the working mode of the probe, it can be divided into the self-transmitting and self-receiving single probe method and the dual-probe method with separate transmission and reception. Combine with each other to get 6 kinds of ultrasonic level gauges.

In the actual measurement, sometimes there will be bubbles, suspended matter, waves or liquid boiling on the liquid surface, causing confusion in reflection and measurement errors. Therefore, solid-medium level gauges should be used in complex situations. Figure 1 is a single-probe ultrasonic level gauge. It uses a transducer, which is controlled by a control circuit, and alternately works as a transmitter and a receiver in time-sharing.

Suppose the distance from the ultrasonic wave to the liquid surface is H, the wave propagation speed is c, and the propagation time interval is △t, then: H=c△t/2

Extended reading: Radar level sensor for solids – Dust solid level measurement

Ultrasonic level transmitter calibration procedure

The propagation speed of ultrasonic waves in the air is 340m/s. If the propagation time of ultrasonic waves in the air can be measured, the distance of propagation can be calculated.

Ultrasonic measurement of liquid level is to measure the distance of sound wave transmission by measuring the time gap of ultrasonic wave propagation.

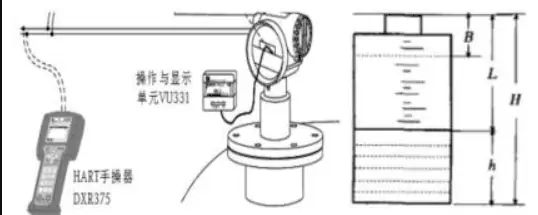

Ultrasonic level transmitter calibration procedure

Specific method: see the picture above.

An ultrasonic probe mounted on the top of the container under test emits a beam of ultrasonic waves to the liquid surface. After the sound wave is reflected by the liquid surface, it is received by the probe.

The controller measures the propagation time t, according to the speed of sound v=340m/s. The spatial distance L from the liquid level to the probe can be obtained. The distance between the probe and the bottom of the container is H, and the height of the liquid level in the container is h.

ultrasonic level transmitter
ultrasonic level transmitter

The calculation formula is: h=H-L where L=v×t/2

Since temperature has an effect on the speed of sound, the air temperature T needs to be measured to correct the speed of sound.

The correction formula is: v=331.46×T (℃)

B is the blind zone. The blind zone means that the reflected echo cannot be detected normally at a short distance from the bottom of the ultrasonic probe. This small distance is called the blind zone of the ultrasonic level gauge.

The reflected wave cannot be detected normally within this small distance. That’s because the ultrasonic level gauge emits ultrasonic pulses. The reflected echo cannot be detected at the same time.

And because the transmitted ultrasonic pulse has a certain time width. And the sensor still has after-vibration after transmitting the ultrasonic wave. During this period, the ultrasonic level gauge cannot detect the reflected echo.

When measuring the liquid level, if the highest liquid level to be measured enters the blind zone. The ultrasonic level gauge will not be able to correctly detect the actual height of the liquid level. There will be errors. When encountering similar situations, you can install the level gauge higher or lower the liquid level as needed.

So the ultrasonic liquid level measurement range is: 0~(H-B)

Featured ultrasonic level sensor for tanks

What is the advantage of ultrasonic level measurement system?

Ultrasonic level transmitter is an ideal measurement tool for corrosive, junctional or acid-base wastewater. Ultrasonic level transmitter can measure the media including hydrochloric acid, sulfuric acid, hydroxide, waste water, resin, paraffin, mud, lye and bleach and other industrial agents.

Compared with other level gauges, Ultrasonic level transmitter also has the following advantages:

  • Non-contact measurement.
  • No moving parts, simple structure and long service life.
  • Corrosion resistance (most of the probes are made of PVDF, PP and other materials).
  • Automatic temperature compensation function.
  • Not affected by the humidity and viscosity of the medium.
  • Not affected by dielectric constant, electrical conductivity, and thermal conductivity of the medium.
  • Excellent cost performance.

What is the difference between ultrasonic and radar level transmitters?

Ultrasonic level transmitter VS Radar level transmitter

Radar level transmitter and Ultrasonic level transmitter are both liquid level measuring instruments. The most obvious difference is that one uses electromagnetic waves and the other uses ultrasonic waves. So, besides that, what is the difference between a Radar level transmitter and an Ultrasonic level transmitter?

Read More about Ultrasonic level transmitter VS Radar level transmitter

Extended reading: Radar Liquid Level Sensor|Corrosive, steam, volatile liquids

How to choose explosion-proof Ultrasonic level transmitter?

The ultrasonic level transmitter has explosion-proof and non-explosion-proof. Then the model selection of ultrasonic level gauge is different according to different working conditions. The explosion-proof type is subdivided into two types: intrinsically safe explosion-proof and explosion-proof. Explosion-proof means to assemble and fix the components, and use a stainless steel host outside. Intrinsically safe explosion-proof is to seal all the components and isolate the explosive gas outside the cavity.

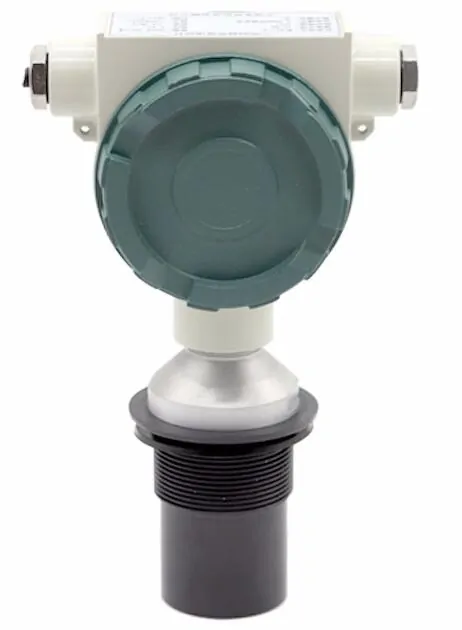

Ultrasonic Level Transmitters4
Ultrasonic Level Transmitters

v is a level gauge that is more commonly used to measure various material levels and liquid levels. It is divided into two types: one-piece and split-type. One-piece ultrasonic level gauge, optional two-wire or four-wire, two-wire The system can only supply 24VDC, 4-20mA current loop. Non-contact continuous measurement reduces maintenance and is cost-effective.

  1. The measured medium is flammable and explosive, mostly liquid and gas. For example: gasoline, alcohol, toluene, xylene, acetone, biogas, gas, hydrogen, etc., most of which are organic compounds. Solid: There are metallic magnesium, metallic sodium, yellow phosphorus and so on.
  2. Underground mines, including coal mines, iron mines, etc., almost all mines need explosion-proof ultrasonic level gauges.
  3. Places with heavy dust, such as wood processing workshops; coal processing workshops; dusts reaching a certain concentration can also cause explosions.
  4. Although there is no direct contact with flammable and explosive liquids and gases, but in explosion-proof areas, explosion-proof ultrasonic level gauges and ultrasonic level gauges are also required. For example: the fire-fighting pool in the tank farm.

In the above four cases, it is necessary to install an explosion-proof Ultrasonic level transmitter, so as to avoid the existence of potential safety hazards.

Read more: Guide: Non-contact Ultrasonic Level Sensing transmitters

Ultrasonic level transmitter price

Ultrasonic level transmitter price is determined by the following parameters.

  1. The type of medium being measured: liquid or solid.
    Specific name: clean water, sewage, mud, gasoline, diesel, toluene, sulfur dioxide, etc.
    If it is a liquid: whether there is steam, mist, foam, waves, stirring, or floating objects on the liquid surface.
    If it is solid: whether there is dust.
  2. The minimum to maximum temperature and the minimum to maximum pressure of the medium.
  3. The corrosiveness of the medium. If it is placed in a tank, it is necessary to know the material of the tank and whether there is an anticorrosive lining.
  4. 4.Whether explosion-proof and anti-corrosion are required.
  5. The measurement range is a few meters, and what is the required blind zone.
  6. Working environment: such as open pools, pools with lids, horizontal tanks, standing tanks, spherical tanks, whether the tanks are at atmospheric pressure, etc.
  7. Working voltage: 24VDC or 220VAC
  8. Output signal: 4~20mA current 485 communication output relay output
  9. Equipment form: integrated

More tank level measurement solutions

How does a capacitive liquid level sensor work?

What is a capacitive liquid level sensor? The capacitive liquid level sensor is a liquid level sensor based on the principle of capacitive sensing. It is also called the capacitance level gauge. When the height of the measuring electrode changes Read More

Capacitive Fuel Level Sensor

What is a capacitive liquid level sensor? The Capacitive liquid level sensor is based on the principle of capacitance sensing. When the height of the measuring electrode changes by the measured medium, the capacitance changes. It can convert the changes Read More

Ultrasonic level transmitter VS Radar level transmitter

Ultrasonic VS Radar level transmitter- working principle Radar level transmitter Radar level transmitter adopts the circuit design of a high-frequency microstrip line structure, and the internal circuit generates a 25GHz microwave pulse signal. Based on the design principle of the Read More

Laser Level Transmitter

The laser level transmitter is a non-contact level gauge. The product is powerful, sturdy and durable. It has excellent accuracy and high stability. It achieves accurate, non-contact and uninterrupted real-time monitoring of material height. Industrial site and process, river water Read More

Diesel fuel tank level gauges & Indicators

Diesel fuel tank level gauges for industrial oil storage tanks are very important, for level monitoring. Can be divided into mechanical and electronic. Featured Diesel fuel tank level gauges for Sale Read more about 7 Level Senors for Tank Level Read More

Sino-Inst offers 20 Ultrasonic level transmitters. About 13% of these are explosion-proof ultrasonic level transmitters, 4% are ultrasonic level sensors.

A wide variety of ultrasonic level transmitter options are available to you, such as free samples, paid samples.

Sino-Inst is ultrasonic level transmitter suppliers, located in China.

Ultrasonic level transmitter products are most popular in North America, Mid East, and Eastern Europe.

The United States, and India, which export 99%, 1%, and 1% of ultrasonic level transmitter respectively.

You can ensure product safety by selecting from a certified supplier,

with ISO9001, ISO14001 certification.

Request a Quote

Please provide your measurement parameters or details. Sino-Instrument support customer customization and OEM
