22 Static Torque Transducer with Internal Square-Flange Connection

22 Static Torque Transducer, one end flange, one end square key connection. It has been praised by users for its excellent stability, higher measurement accuracy, higher cost performance and simpler monitoring methods. The measuring elastic body of the sensor does not participate in the relative motion. The testing elastic body is subjected to the relative reaction force. During installation, one end is fixed and the other end is subjected to force.

RFQ Torque Sensors

Features of 22 Static Torque Transducer with Internal Square-Flange Connection

  • Suitable for detecting torque values of non-rotating bodies. Suitable for measuring static torque;
  • It can enter the working state when it is turned on, without the preheating process;
  • The forward and reverse torque can be continuously measured without repeated zero adjustment;
  • Small size, light weight and easy installation;
  • The sensor can be used independently from the secondary instrument. As long as the +24V power supply is provided according to the pin number of the socket, it can output current, voltage or frequency signals whose impedance is proportional to the torque;
  • Measuring range: 0-0.2-10KNm optional;
  • One end is a key (through slot) link and one end is a flange link;

Technical Parameters

ParametersTechnical indicators
Measuring range0-1,2,5,10KNm
Sensitivity1.5±10% mV/V
Zero output±1% F.S.
Non-linear±0.1, 0.3% F.S.
Hysteresis≤±0.05% F.S.
Repeatability≤±0.05% F.S
Creep≤±0.03% F.S/30min
Temperature Sensitivity Drift0.03% F.S. / 10℃
Zero temperature drift0.03% F.S. / 10℃
Input resistance350,750±10Ω
Input resistance350,700±5Ω
Response frequency100μS
Insulation resistance≥5000MΩ/100VDC
Excitation voltage10VDC (9-15VDC)
Temperature Compensation Range-10 ~ 60℃
Range of working temperature-20 ~ 65℃
Safe overload150% F.S.
Extreme overload200% F.S.
Cable sizeØ5.2×3m
Electrical connectionsRed/E+, Black/E-, Green/S+, White/S-
MaterialAluminium, stainless or alloy steel
Other requestCustomizable

Dimensions

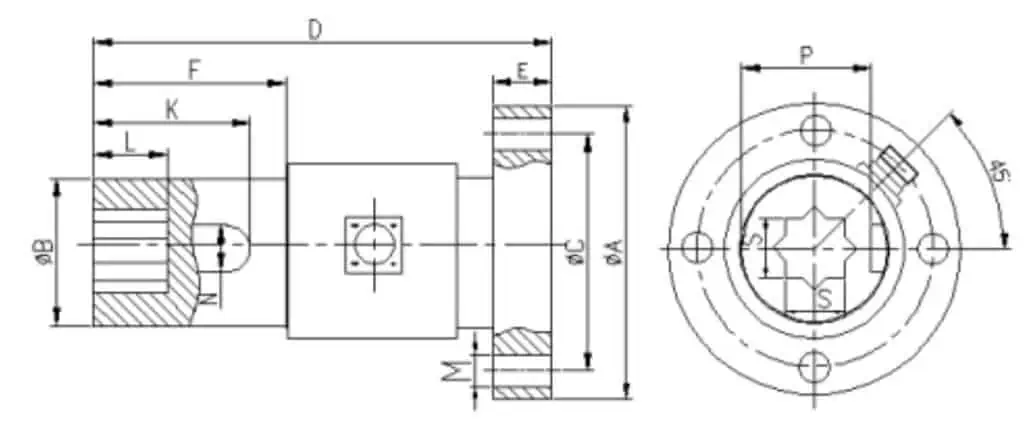

22 Static Torque Transducer with Internal Square-Flange Connection Dimensions
ModelRangeφAφBφCDEFKLNSPM
22A0-1000Nm995080155206553251620444-φ10.5
22B0-1000Nm98508090153333251620444-φ10.5
22C0-2000Nm12575105150206260302025.567.58-φ12.5
22D0-5000Nm12575105150206260302040.567.58-φ12.5
22E0-10000Nm1909816022030120110702-2855788-φ19

Learn More About 22 Static Torque Transducer with Internal Square-Flange Connection

The static torque sensor is an instrument that converts the strain generated by the torsional moment into an electrical signal with a linear relationship according to the principle of resistance strain. The product has mature manufacturing technology, complete varieties, wide range, high precision, and stable and reliable performance.

This static in a static torque sensor means that the measuring elastomer of the sensor does not participate in relative motion.

It is widely used in testing machines, static torque detection and other test systems. It is praised by users for its excellent stability, high measurement accuracy and high cost performance.

What is the difference between static data and dynamic torque sensors? In fact, the difference between the two is relatively large, mainly in the sampling rate of the instrument panel.

Dynamics is often where strong changes in torque are detected. Thereby a capture torque or torque estimation needs to be performed. It is usually common in electric wrenches, motor output torque, and diesel engine output torque.

Static data torque sensors are used to detect sluggish changes in torque. The sampling rate is generally less than 50 times/sec. Often used to check the static load torque of a manual torque wrench. This sensor is not widely used. It is only suitable for system testing software such as testing machine and static torque detection.
  
In contrast, dynamic torque sensors are widely used. It can be applied to large tractors, trolleys, airports and various types of ships. It is also possible to terminate the measurement of torque in mining equipment.

In addition, it can also be used in wastewater treatment system software. In industrial production, there are also various output torque and power detection of rotating electromechanical equipment. Common ones are electric motors, gas turbines, etc.

It can be seen that there is still a significant difference between the static data and the dynamic torque sensor. Especially in terms of scope of application, products that are basically dynamic are better and more diversified in use.

Of course, different sensors naturally have their own characteristics. Therefore, it is necessary to decide according to the actual use when choosing. With the development and continuous improvement of the automatic control system, there will be higher requirements for the accuracy requirements, corresponding speed and reliability of the torque sensor.

Torque sensors are divided into two categories: dynamic and static. It is the detection of torsional moment perception on various rotating or non-rotating mechanical parts.

Before selecting a torque sensor, it is first necessary to have a rough judgment on the torque to be measured. Static torque sensors are only suitable for static, non-continuous rotation torque measurement.

For torque measurements that rev too quickly or rotate beyond the 360-degree range, only dynamic torque sensors can be selected.

Another problem is that the price of static and dynamic torque sensors is very different. Therefore, if the static torque sensor can be used for measurement, the static torque sensor is preferred.

After selecting the category of the torque sensor, the rest is the selection of the sensor range and measurement accuracy.
There are many kinds of torque sensor ranges, which can be divided into three types: micro range, medium range and large range. Sino-Inst torque sensor has 0 to ±5, ±10, ±20, ±50, ±100, ±200, ±300, ±500, ±1000, ±2000, ±3000, ±5000, ±10000, ±20000, Various ranges of torque sensors such as ±30,000, +50,000, +60,000 are available, covering almost all torque measurement ranges.

Again, the choice of sensor accuracy. There are generally ±%F·S, ±%F·S, ±%F·S several kinds of precision to choose from. Likewise, accuracy is proportional to price.

Another point to note is how the torque sensor outputs. There are also three kinds of analog output, namely current output, voltage output and frequency output. These can be debugged before leaving the factory according to the customer’s choice, which is convenient for customers to use on site.

If you cannot find an answer to your question in our 22 Static Torque Transducer with Internal Square-Flange Connection, you can always contact us and we will be with you shortly.
