Flat Pressure Sensor is a type of pressure sensor that specifically refers to the measurement diaphragm without pressure holes. Also known as a flat film pressure sensor.

Flat Pressure Sensor is a special pressure sensor most commonly used in industrial automatic control. It is widely used in the pressure measurement and control of viscous media such as chemical coatings, paints, mud, asphalt, crude oil, etc. It solves the problem that conventional products are easy to block and cannot be used continuously, etc. defect.

The Flat Pressure Sensor elastomer adopts imported materials, diaphragm isolation technology, no pressure holes in the test head, and no viscous medium clogging during the measurement process.

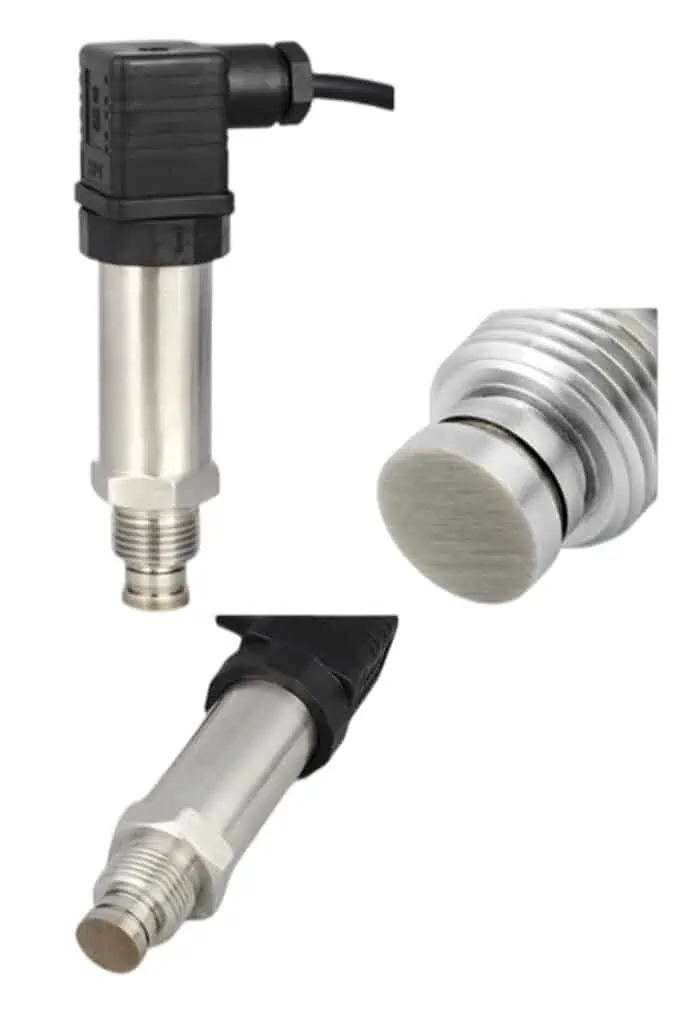

Flat Pressure Sensor for High Viscosity Fluids

Main parameters of Flat Pressure Sensor

Range: 0-0.6, 1, 5, 10, 20, 30, 40, 50~200MPa
Comprehensive accuracy: 0.1%FS, 0.2%FS, 0.5%FS
Output signal: 4-20mA (two-wire system), 0-5/1-5/0-10VDC (three-wire system)
Supply voltage: 24VDC (10-30VDC)
Medium temperature: -20~85℃~450℃
Ambient temperature: -20~85℃
Load resistance: current output type: maximum 800Ω; voltage output type: greater than 50KΩ
Insulation resistance: greater than 2000MΩ (100VDC
Sealing class: IP65
Long-term stable performance: 0.1%FS/year
Vibration influence: within the mechanical vibration frequency of 20Hz ~ 1000Hz, the output change is less than 0.1%FS
Electrical interface: metal sealed terminal, four-core aviation connector
Mechanical connection: M20×1.5, G1/2-14, etc. Other threads can be customized according to customer requirements

Extended Reading: Fluid pressure sensor

Principle of Flat Pressure Sensor

The flat membrane pressure sensor test head adopts the pressure-free mode to ensure that there is no blockage of viscous media during the measurement process, and to ensure that the pressure detection works normally.

It adopts super-large diaphragm design, the core adopts highly sensitive material, diaphragm isolation technology, and integrated structure design.

The medium and high temperature pressure-sensitive chip and heat pipe structure are used in the measurement of high temperature medium, which effectively solves the drawbacks that the electronic components inside the sensor cannot withstand high temperature.

Extended Reading: Resistive Pressure Transducer

Application of Flat Pressure Sensor

  • Pressure measurement and control of viscous media such as chemical coatings, paints, mud, asphalt, and crude oil;
  • Viscous liquid, fluid;
  • It is suitable for pressure measurement and control in harsh working environment, explosion-proof and explosion-proof occasions;

Extended reading: LCD Display Oval Gear High Viscosity Flow Meter

More Featured Pressure Transmitters

Frequently
Asked
Questions

pressure transducer often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal.

Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer.

The conversion of pressure into an electrical signal, is achieved by the physical deformation of strain gauges, which are bonded into the diaphragm of the pressure transducer, and wired into a Wheatstone bridge configuration.

Pressure applied to the pressure transducer produces a deflection of the diaphragm, which introduces strain to the gages.

The strain will produce an electrical resistance change proportional to the pressure.

Extended reading: Pressure transmitter working principle

Fluid Pressure Sensors refers to sensors that can be used to measure the pressure of liquid media. Such as measuring pressure of Oil, Fuel and other fluid systems (select a sensor with the appropriate range for your system). Fluid Pressure Sensors have important uses. For example, the direct measurement of pressure in a fluid line. For example, put Fluid Pressure Sensors into the liquid, measure the liquid pressure, and estimate the liquid level. For example, by measuring the differential pressure of Fluid, the flow rate of the pipeline can be calculated.

Extended reading: How do fluid pressure sensors work?

There are many types of pressure sensors. Such as resistance strain gauge pressure sensors, semiconductor strain gauge pressure sensors, piezoresistive pressure sensors, inductive pressure sensors, capacitive pressure sensors, resonant pressure sensors, etc.

Extended reading: wireless pressure transmitter working principle

Currently, the most widely used pressure sensors include:

  • Diffused silicon piezoresistive pressure sensor,
  • Ceramic piezoresistive pressure sensor,
  • Sputtering thin film pressure sensor,
  • Capacitive pressure sensor,
  • Sapphire pressure sensor with high temperature resistance.
  • But the most widely used is the piezoresistive pressure sensor, which has a very low price, high accuracy and good linearity.

Extended Reading: Electronic Pressure Switch for Air Compressor

More Liquid and Gas Pressure Measurement Solutions

What Is Resistive Pressure Transducer?

What Is Resistive Pressure Transducer? Resistive pressure transducers are also called resistance pressure transducers. It is a commonly used pressure sensor. Pressure sensors are generally distinguished by principle: capacitive pressure transmitters, resistive pressure transducers, inductive pressure transmitters, semiconductor pressure transmitters, Read More

What Is a Smart Pressure Transmitter?

What Is a Smart Pressure Transmitter? Smart pressure transmitter is also called Smart pressure sensor or Smart pressure transducer. Smart pressure transmitter is the best pressure measuring instrument. It is also used to measure flow, liquid level, etc. Smart pressure Read More

What Is a Fluid Pressure Sensor?

What Is a Fluid Pressure Sensor? Fluid Pressure Sensors refers to sensors that can be used to measure the pressure of liquid media. Such as measuring pressure of Oil, Fuel and other fluid systems (select a sensor with the appropriate Read More

High Temperature Pressure Transducer with Best Price

High Temperature Pressure Transducer is also called High Temperature Pressure Sensor, or High Temperature Pressure Transmitter. The High Temperature Pressure Transducer is used for applications where the medium temperature exceeds the temperature limits of standard pressure transmitters. By assembling Cooling Read More

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion resistance, wear resistance, impact, and vibration resistance. Ceramic has good thermal stability characteristics. High-temperature sintering Read More

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at a constant speed. Static Water Pressure is also called hydrostatic Read More

Static Pressure/Hydrostatic Pressure Transmitter

The Hydrostatic Pressure Transmitter measures the hydrostatic pressure exerted by a hydrostatic head. Use these hydrostatic pressure transmitters to measure the liquid level in storage tanks, processing vessels, collection tanks, pump inlet heads. And other applications use hydrostatic pressure to Read More

How to convert a 4-20mA to 0-10V /1-5V signal?

4-20mA to 0-10v voltage, this is I/V conversion. That is current-voltage conversion, usually used for long-distance signal transmission in the industry. How to convert a 4-20mA to 0-10V /1-5V signal? There are two methods: one is to do it yourself Read More

What Is an Air Pressure Transducer?

An Air pressure transducer is a sensor that converts the mechanical signal of air pressure into a current signal. Pressure has a linear relationship with voltage or current, and it is generally proportional. Therefore, the output voltage or current of Read More

Cryogenic Pressure Transducers

Cryogenic pressure transducer for low temperature pressure measurement.  -196℃~+125℃、-260℃/-350c(especial). Sino-Inst offers a variety of Pressure Sensors for pressure measure and control. If you have any questions, please contact our sales engineers. What is Cryogenic pressure transducer? The Cryogenic pressure sensor Read More

High Frequency Dynamic Pressure Sensor

Dynamic pressure sensor, the transmitter is a high frequency sensor. Sino-Inst offers a variety of  Dynamic Pressure Sensors for pressure measurement. If you have any questions, please contact our sales engineers. Features of High Frequency Dynamic Pressure Sensor Wide measuring Read More

Differential Pressure Transmitter Installation Guide

Differential pressure transmitter installation guide helps you solve the installation problem of DP Transmitters. Sino-Inst offers a variety of  differential pressure transmitters for pressure/level/flow measurement. If you have any questions, please contact our sales engineers. Featured DP Transmitters Working principle Read More

Extended Reading: Selection of pressure transmitter

Sino-Inst is Manufacturer of Flat pressure sensors. For High Viscosity Fluids-Chemical Coatings – Paints – Slurry – Asphalt – Crude Oil. We supply more than 20 kinds of Flat pressure sensors.

Flat pressure sensors are mainly used for highly viscous media.
It can measure even liquids such as water, seawater, oil, and slurry.

Extended reading: High accuracy pressure transducers

Flat pressure sensors are also called:
Sludge flat film pressure sensor, sludge flat film pressure transmitter, glue level film pressure sensor, glue level film pressure transmitter, paint flat film pressure sensor, paint pressure transmitter, chemical paint flat Mask type pressure sensor, chemical paint pressure transmitter, mud pump pressure sensor.

These high viscosity fluid pressure sensors can be cleaned if residue builds up around process connections because there are no hidden voids and all surfaces in contact with the viscous fluid are accessible.

Sino-Inst’s Flat pressure sensors, made in China, Having good Quality, With better price. Our pressure measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s a Flat pressure sensor, level sensor, or other device, give us a call.
