What is non contact flow meter?

Non Contact Flow Meters refers to flow meters that can achieve flow measurement without contacting the fluid medium. No need to destroy the pipeline. Easy to install and remove. This is a good choice for many pipes with strict hygiene requirements or only temporary measurements.
Non Contact Flow Meters supplied by Sino-Inst are suitable for various pipe material requirements: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe (PVC, PVDF, PPR, PPH, HDPE, etc.). It can also meet the measurement of different clean fluids: various acids, chemical solvents, alcohol, beverage water, Coca-Cola, etc.

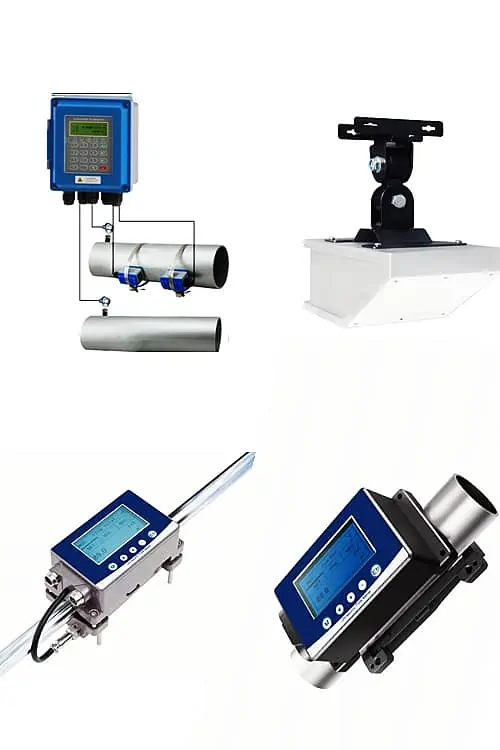

Non Contact Flow Meters Measure Liquid Flow

Featured Non Contact Flow Meters

Types of Non Contact Flow Meters

Currently, the main Types of Non Contact Flow Meters on the market are ultrasonic flow meters and radar flow meters.

Non-contact ultrasonic flowmeters account for 90% of non-contact measurement applications. Mainly used for flow measurement of various pipeline fluids.

Non-contact radar flowmeter is suitable for non-contact flow measurement of rivers, channels, pipelines, etc.

Clamp-on ultrasonic flowmeters utilize ultrasonic technology for easy and quick installation. Applicable to a variety of materials and pipes of different diameters. Delivers incredible measurement results even when compared to electromagnetic flow products.

The non contact ultrasonic flow meter only needs to install a very small ultrasonic sensor on the outside of the pipe without destroying the pipe. It can provide completely reliable measurement results while saving a lot of installation costs.

The transducer and the converter are connected by a special signal transmission cable. In the case of fixed measurement, a junction box should be installed in an appropriate place. Clamp-on transducers usually also require mounting clamps and couplant.

Extended reading: Totalizing flow meter water

Non-contact radar flowmeters are used for flow measurement in drains, drains, and rivers. Suitable for surface flow velocity for easy measurement. It can be used for long-term flow monitoring of various non-full drainage pipes, open channels (rectangular, trapezoidal, etc.), weirs, grooves, etc. and surface runoff. Instantaneous liquid level, flow rate and flow can be automatically recorded.

It can work stably in complex environments such as inspection wells that are wet, full of toxic and harmful, flammable and explosive gases. Due to non-contact, it is suitable for monitoring of fast flow monitoring points. And compared to contact equipment, installation and maintenance are simpler. But it cannot work under long-term immersion and overflow conditions.

It can meet the needs of system monitoring and data transmission without AC power and network access. And has excellent sealing performance, with anti-corrosion, explosion-proof function.

It can be maintenance-free on a daily basis, run regularly for inspection, and no need for manual on-duty. Measurement information can be stored locally and sent wirelessly. With early warning and cloud management functions, it can be set remotely.

Read more about: Shop 101: Key Factors In Selecting A Pipe Flow Meter

Strap on Flow Meter for Small Pipes Φ9.53~Φ90

Strap on flow meter X3 is widely used in flow measurement and monitoring in the production process.

Strap on flow meter X3 can meet the needs of different pipe materials: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe (PVC, PPR, PPH, HDPE), etc.

Strap on flow meter X3 almost meets the measurement of different clean fluids: various acids, alcohols, chemical solvents, alcohol, drinking water, Coca-Cola water… etc.

ProductStrap on Flow meter
ModelX3
Flow range0.1m/s~5.0m/s
Accuracy±2.0%
Repeatability0.80%
Pipe sizeφ6.35~φ90
Data storageDaily, monthly, and Annual. Flow Totalizer
Analog output4~20mA, Maximum load: 600Ω
Alarm outputDCT, Upper and lower limit alarm function(optional)
CommunicationRS485,support Modbus communication protocol
Power supply24VDC
Cable length2.0m
KeypadFour light touch buttons
ScreenOLED 128*64 displayscreen
UnitsMetric and imperial units are available, Cubic Meters(m3), Liters(L), USA Gallons(GAL)/hour,/min,Default unit setting:m3/h
TotalizerSix bit digit
Piper materialStainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Case materialAluminum alloy
Environment temp.0℃~50℃(32°F~122°F)
Medium temp.0℃~50℃(32°F~122°F)
Environment humidit0-95% relative humidity, without condensation
IP GradeIP54

Extended Reading: Types Of Crude Oil Flow Meters

More Featured Liquid Flow Meters

Flow Meter Selection Guide 101: Find the Perfect Fit for Your Application

Non Contact Liquid Measurement Solutions

Clamp on Water Flow Meter

What is Clamp on Water Flow Meter? Clamp on Water Flow Meter is also known as the clamp-on ultrasonic flowmeter. Using an ultrasonic flowmeter to measure water flow rate is a great choice. Clamp on Water Flow Meter measures liquid Read More

Strap on Ultrasonic Flow Meters

What is Strap on Ultrasonic Flow Meters? Strap on Ultrasonic Flow Meter is also often called Clamp On Type Flow Meter. The unique feature of Strap on Ultrasonic Flow Meter is that the sensor does not need to be in Read More

Ultrasonic Flow Detectors

Ultrasonic flow detectors are an important part of ultrasonic flow meters. Ultrasonic flow detectors are also called ultrasonic transducers. Ultrasonic flow detectors measure the volumetric flow of liquid within closed conduits. Ultrasonic flow meters use transit-time differences for measuring flow Read More

How to Select Ultrasonic flow detectors?

What is an ultrasonic flow detector? An ultrasonic flow detector is often understood as an ultrasonic flow meter or ultrasonic transducer. In fact, an Ultrasonic flow detector refers to the probe part of the ultrasonic flow meter or sensor part. Read More

Cheap flow meters-Low Cost measurement solutions

Cheap flow meters means to choose the lowest cost flow meter while satisfying your measurement needs. How to choose the lowest cost flow meter? Cheap flow meters are not equal to any flow meter. Different flowmeters are required to measure Read More

Clamp on Flow Meters for Liquid Pipes

Clamp on flow meters refers to the non-contact flow meter, or strap-on flow meters, which clamps the ultrasonic sensor outside the pipeline for measurement. Sino-Inst offers a variety of  Clamp on flow meters for flow measurement. If you have any Read More

Ultrasonic flow measurement

Ultrasonic flow meters, using the ultrasonic principle, measure the velocity of flow. We can use a different type of ultrasonic flow meters, like: Portable ultrasonic flow meter, Handheld ultrasonic flow meter, Clamp-on Ultrasonic Gas Flow Meter. For airflow, natural gas, Read More

Gas and Liquid Measurement Solutions

Mechanical Oil Flow Meters

What is mechanical oil flow meter? Mechanical oil flow meter refers to a flowmeter that can detect the volume flow of oil inline. Most importantly, this type of flowmeter is a mechanical measurement. It is common to use an oval Read More

Kerosene Gasoline/ Kerosene Flow Meter

A kerosene flow meter is a flow meter that can be used to measure the flow of kerosene. Kerosene is a common oil in industrial production. It is an organic solvent and has no electrical conductivity. Similar to diesel gasoline. Read More

Slurry Flow Meter

Flow Meter for Slurry Application Slurry is a product of domestic sewage and industrial wastewater treatment. Slurry consists of solid impurities, a slurry of suspended substances. The main characteristic of Slurry is high moisture content, and industrial wastewater sludge contains Read More

Digital Flow Meter for Argon Gas

What is Digital Flow Meter for Argon Gas? Digital flow meter for argon gas refers to a flow meter that can be used for detection, display, transmission, and signal output. Digital argon flowmeter and argon regulator are different. Argon regulator Read More

PD Flow Meters Selection and Application | Oil-Liquid

What is PD flow meter? PD flow meters (positive displacement flow meters) are the only flow measurement technology that directly measures the volume of fluid passing through the flow meter.Rotating components within a high precision chamber capture the fluid. The Read More

Guide for Digital Fuel Flow Meter

Digital Fuel Flow Meter is a flow meter dedicated to measuring fuel, diesel, gasoline, and petroleum. Digital Fuel Flow Meter generally has a digital display or signal output. Such as pulse or 4-20mA. Such as turbine flow meters, gear flow Read More

Mechanical Water Flow Meters

Mechanical water flow meters refer to a type of flow meter suitable for clean water processes or applications. The working principle of a mechanical water flow meter is to measure the speed of water flowing through a pipe. This causes Read More

Explore Oil and Gas Flow Meters

An oil and Gas Flow Meter is A device installed in a pump manifold or treating line to measure the fluid flow rate. Oil and Gas Flow Meters can be used to measure the flow rates of liquid or gas Read More

Molasses Flow Meters-High Viscosity Liquids Solution

Molasses flow meters are a type of flow meter used for molasses flow measurement. Molasses are common high viscosity liquids. So Molasses flow meters are flow meters that can be used to measure various high viscosity liquids. Can common electromagnetic Read More

Solvent flow meters

The solvent flow meter is a flow meter that can measure solvent volume or mass flow. In the industrial production process, it is very important to accurately measure the amount of solvent. Solvents are divided into organic solvents and inorganic Read More

Grease Flow Meters

What is a Grease Flow Meter? Grease Flow meters are meters dedicated to measuring the volume or mass flow of industrial grease fluids. The most common Grease Flow meters are elliptical gear flow meters, also called positive displacement flowmeters. There Read More

How does a residential water meter work?

What does a residential water meter look like? A residential water meter is a legal meter for measuring water consumption in residential communities, residential buildings, bungalows, and other places. What are the commonly used residential water meters? In terms of Read More

Frequently
Asked
Questions

If you let me answer this question. I would like to divide flow meters into two categories: mass flow meters and volumetric flow meters.

Of course, it can also be divided according to the measurement medium. There are two types of flow meters for measuring gas and measuring liquid.

Perhaps, we can also divide into closed pipeline measurement and open channel measurement according to the situation of the pipeline.

Finally, we may also be able to divide into contact and non-contact measurements according to the contact situation of the medium.

Non-invasive flow meter is also known as non-contact flow meter. When measuring the fluid flow of the pipeline, there is no need to cut and open the pipeline. easy to use.

If the flowmeter is divided into 5 categories. Then the five commonly used flowmeters are:

  1. Electromagnetic flowmeter
  2. Differential pressure flowmeter
  3. Turbine flowmeter
  4. Ultrasonic flowmeter
  5. Volumetric flowmeter (PD)

Extended reading: How to choose a high viscosity flow meter?

Sino-Inst is Manufacturer of Non Contact Flow Meters. We supply more than 20 kinds of Non Contact Flow Meters. 90% ultrasonic flowmeters, and other types of flowmeters.

Non Contact Flow Meters are mainly used for flow measurement of various liquids.
It can measure even liquids such as water, seawater, oil, and slurry.

Non Contact Flow Meters enable stable flow measurement without piping modifications. This greatly meets the measurement needs of many applications. Can be used from small to large tubes. For efficient non-contact flow measurement of flexible and rigid plastic pipes.

Sino-Inst’s Non Contact Flow Meters, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s a non-contact flow sensor, level sensor, or other device, give us a call.
