Water Tank Level Sensors for Level Control

Water Tank Level Monitoring and Control Systems

Water Tank Level Monitoring and Control Systems are a sophisticated set of technical devices used to track and manage water levels in water tanks in real time. Such systems typically include key components such as level sensors, controllers, displays, and actuators (such as pumps or valves).

  • Water Tank Level sensors are the core of the system, responsible for measuring and transmitting water level data. These sensors can be of various types such as float type, pressure type, ultrasonic type, capacitive type, etc., selected according to different application scenarios. They convert water level changes into electrical signals and send them to the controller in real time.
  • The controller is the brain of the system. It receives signals from the sensors and makes judgments based on the preset water level range. For example, when the water level is below the minimum limit, the controller will start the water pump to fill the water. When the water level reaches the maximum limit, the water pump will be stopped or the drainage valve will be opened to avoid overflow.
  • The display provides the operator with an intuitive interface showing current water levels, as well as system status and alarm information. This information helps operators understand whether the system is functioning properly or if manual intervention is required.
  • Finally, actuators, such as pumps and valves, are the actual devices that respond to controller commands and are responsible for physically regulating the flow of water. The system can automatically or manually adjust these mechanisms as needed to maintain water level stability.

Therefore, with Water Tank Level Monitoring and Control Systems, automatic management and control of water tank level can be achieved.

When the water level of the water tank drops to the set lower limit water level value, the liquid level controller sends a command to instruct the pump valve to open the water supply.

When the water level reaches the set upper limit water level value, the controller will issue an instruction to instruct the pump valve to close and stop the water supply.

In the same way, if necessary, the liquid level controller can also instruct the water pump or electric valve to perform the opposite operation.

Extended reading: Magnetostrictive Hydraulic Cylinder Position Sensor

Extended Reading: How to Measure Volume of Liquid

Water Tank Level Sensors Types

The water tank level sensor is a key device to ensure the accuracy of water level monitoring. According to their working principles and application environments, they can be mainly divided into the following types:

  • Float level sensor: This is a traditional liquid level sensor that detects water level changes by moving the float up and down. When the water level rises, the float floats up and drives the switch through the mechanical device to control the opening and closing of the water pump or valve. This kind of sensor is suitable for environments with relatively clean water and no large amounts of impurities and chemicals.
  • Pressure level sensor: also called submersible level sensors. This sensor determines the water level by measuring the pressure exerted by the liquid on the sensor. It is suitable for deep water environments such as deep wells and storage tanks, and can work stably under high pressure conditions.
  • Ultrasonic level sensor: An ultrasonic sensor calculates water level height by emitting ultrasonic waves and receiving their echoes. It is suitable for situations that are corrosive or polluting to contact sensors, such as wastewater and chemical storage tanks.
  • Radar water level sensors: Radar water level sensors have absolute advantages in large-range non-contact measurement. Radar Water Level Sensor can be 0.05m~35m ~70m~120m. Commonly used to measure water level monitoring in dams, reservoirs, rivers, etc.
  • Capacitive level Sensors: Capacitive sensors use changes in capacitance to detect fluid levels. They are ideal for level detection of viscous liquids or powdery substances, as these materials may interfere with other types of sensors.
  • Photoelectric level Sensor: Photoelectric sensors determine water level by detecting the obstruction or reflection of light by the liquid. This sensor is suitable for water level monitoring in small containers or cleaning liquids.

Comparison of digital sensors and traditional mechanical sensors:

Digital level sensor: Using advanced electronic technology, it can provide continuous, high-precision water level readings. And it can be seamlessly integrated with computer systems to facilitate remote monitoring and data analysis. They generally have better long-term stability and immunity to interference.

Traditional mechanical level sensors: usually refer to float sensors, which sense water level changes through a simple mechanical structure. Although these sensors are simple and low-cost, they are often less accurate than digital sensors and are susceptible to mechanical wear and water quality.

When selecting a water tank level sensor, it is important to select the most appropriate type based on factors such as the actual application environment, accuracy requirements, and whether remote monitoring is required.

Extended reading: Industrial Tank level indicators and Tank Level Gauges

We, Sino-Inst, are a professional manufacturer of Water Tank Level Sensors. Provide users with more than 50 types of Water Tank Level Sensors and switches.

Featured Water Tank Level Sensors

SI-U02 Multi-Point Liquid Level Float Switch
SI-U01 Float Level Sensor
SI-U03 Float Switch Water Level Controller

PLC liquid level display alarm

Programmable Logic Controller, PLC for short. A digital electronic device with a microprocessor. A digital logic controller used for automatic control. Control instructions can be loaded into the memory for storage and operation at any time.

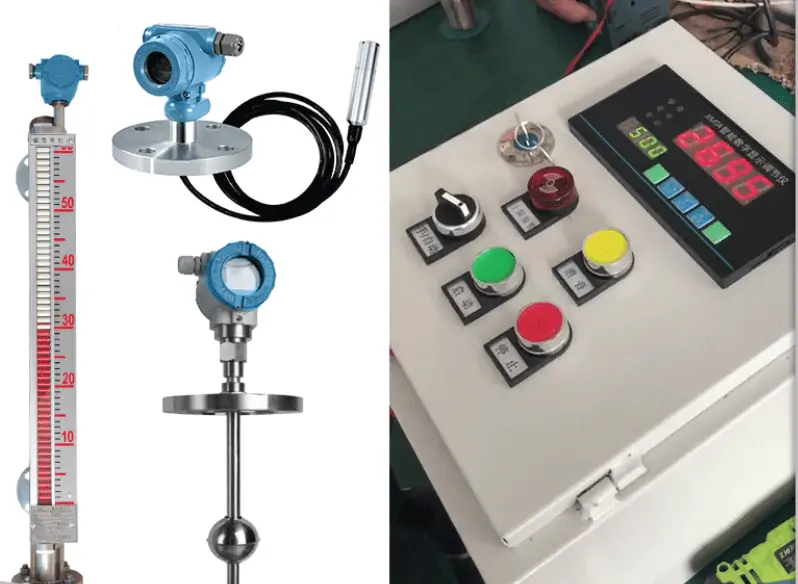

PLC liquid level display alarm

The programmable controller is modularized by internal CPU, instruction and data memory, input and output unit, power supply module, digital-analog, and other units.

PLC can receive (input) and send (output) many types of electrical or electronic signals. And use them to control or supervise almost all types of mechanical and electrical systems.

Extended reading: ultrasonic level sensor for diesel tank

Program through the PLC system to realize the automatic level control system. It is composed of hardware and software. The hardware mainly includes PLC touch screens and related modules such as CPU, storage, output and input, power supply. On-site measurement includes various types of adaptation to different sites Conditional sensors, switches, etc. Also include sound and light warning lights, control buttons, and other related equipment.

By configuring the PLC liquid level display alarm device, it can realize the display of industrial site liquid level measurement, high and low liquid level alarms. As well as the opening and closing of pumps, valves, and other equipment. Unattended automatic workflow can be realized. Greatly improve production The efficiency, saving human cost. This brings about an increase in corporate benefits. It lays the foundation for the company to take the lead in severe competition in the future.

Therefore, in the current situation, whether it is a newly established project or a modified project, it is recommended that PLC equipment is the first choice when conditions permit.

Extended reading: Magnetostrictive Hydraulic Cylinder Position Sensor

Extended Reading: How many types of level transmitters are there?

Wireless water tank level sensor-Future Trends

Wireless GPRS liquid level alarm device, can be configured with eight channel alarm device, liquid level display alarm device, LED display. It can support liquid level meter switch, float level switch, pressure transmitter, thermocouple, thermal resistance, voltage, Current and transmitter input. Suitable for monitoring of industrial process quantities such as temperature, pressure, flow, and liquid level.

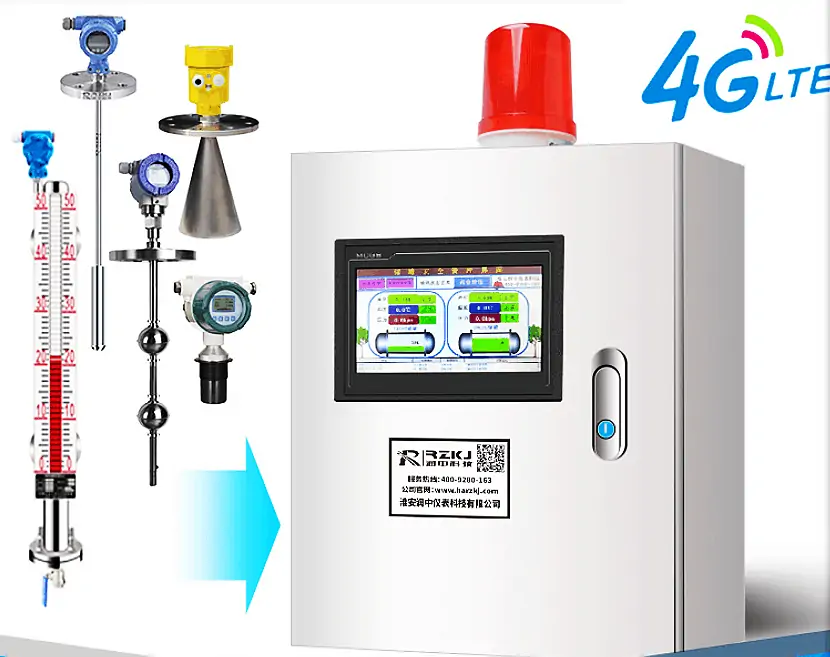

Wireless water tank level sensor
Extended Reading: 3 inch (3″) Water Meter

Construction-free installation: It can replace the connecting cable, and the transmission distance is long, eliminating the trouble of cable construction.

Support 8-channel alarm function, power supply 220VAC or 24VDC switching power supply. For explosion-proof occasions, explosion-proof sensors and explosion-proof instrument boxes can be used.

On-site measurement end. Configuration:

  1.  Level gauge (can be equipped with level gauge, pressure gauge, temperature gauge)
  2.  Signal acquisition instrument meter box (common type and explosion-proof type are optional)
  3.  The switch quantity acquisition module is included in the instrument box
  4.  DTU module in the instrument box

Extended reading: Ultrasonic Level Switch-External Mounted

FAQ

The function of the liquid level sensor is to detect the liquid level. The liquid level sensor is widely used in electrical appliances and industrial equipment that require water level control. The liquid level sensor can realize the function of water shortage protection.

Principle of water level sensor:
The water level sensor has a sensor. Transform the sensed water level signal into a current signal.

There are many types of water level sensors, so their specific measurement principles are different.
If you need to learn more. You can refer to:
Differential pressure type liquid level measuring instrument;
Float level measuring instrument;
Electric liquid level measuring instrument;
Ultrasonic liquid level measuring instrument;
Radar liquid level measuring instruments, etc.

Extended reading: Capacitive water level sensor

According to the situation of the tank, different types of water level sensors can be selected to monitor the water level of the water tank. Such as static pressure type liquid level sensor. It can be digitally displayed locally and the liquid level value can be displayed. It can also be output by a 4-20mA signal. Connect the signal to the secondary display instrument to monitor the level of the water tank.

Extended reading: Radar Non Contact Water Level Sensor

Extended reading: Radar Water Level Sensor Applications

Common water level sensors can be used for water level control. There are also sensors that can output switching signals, such as float level switches, and can also be used for water level control.

Extended reading: PID Controller Working Principle

The liquid level switch, as the name implies, is a switch used to control the liquid level. In terms of form, it is mainly divided into contact type and non-contact type.

Non-contact type such as capacitive liquid level switch.

Contact type such as: float type liquid level switch, electrode type liquid level switch, electronic liquid level switch.

The capacitive liquid level switch can also be realized by a contact method.

Extended reading: Float Switch Water Level Controller

Installing a tank level sensor is a process that requires precision and care. Specific installation steps may vary depending on sensor model and functionality, so be sure to carefully read the manufacturer’s operating manual and installation guide before installation. If necessary, consult a professional or contact the manufacturer’s technical support. Here are the basic steps and recommendations for installing a water tank level sensor:

Determine the installation location:
For float sensors, choose a location inside the tank that is not disturbed by the incoming and outgoing water flows.
For ultrasonic or capacitive sensors, the top center position of the water tank should be selected to ensure that there is a certain vertical distance between the sensor and the water surface (usually at least 30cm).

Install fixtures:
Depending on the sensor type and tank material, install the fixing bracket or mounting plate.
Make sure all fixings are securely attached to the tank to prevent the sensor from moving or falling off.

Connect power and output:
Connect the power and signal cables (e.g. 2-wire 4-20mA) according to the instructions provided by the manufacturer.
If the sensor has special power requirements (such as DC24V), please make sure the power adapter meets the requirements.

Debug the sensor:
Turn on the power and follow the instructions for preliminary settings and calibration.
For sensors that require calibration, a standard water level can be used to set upper and lower thresholds.

Check system operation:
Check that the sensor accurately reflects changes in water level.
Make sure there is no water leakage at all connections and the signal output is stable.

ltrasonic-level-sensor-wastewater-

How to choose right Water Tank Level Sensor for your System

When selecting a tank level sensor and monitoring system, you need to consider the following specific recommendations and reference values:

Application Environment:

  • Water quality: If the water contains corrosive chemicals, sensors made of corrosion-resistant materials should be selected.
  • Temperature: Make sure the sensor’s operating temperature range covers your application environment, such as -20°C to 80°C. If 80°C~150°C, you can refer to high temperature level sensors.
  • Pressure: If used in deep wells, the sensor should be able to withstand a pressure of at least 2MPa.

Accuracy requirements:

  • If the water level needs to be accurately controlled (error range ±1mm), high-precision sensors such as ultrasonic or capacitive sensors should be used.
  • For general agricultural irrigation systems, the error range can be relaxed to ±5mm.

Installation and maintenance:

  • Choose a sensor that is easy to install and configured with appropriate mounting dimensions. Such as threads, flanges, clamps, etc.
  • Maintenance frequency: Choose sensors with high reliability (such as MTBF (mean time between failures) greater than 100,000 hours) to reduce the number of maintenance times.

Ease of use:

The user interface should have clear numerical or graphical displays to ensure easy operation.

Integration and Compatibility:

Choose sensors that support standard signal output and communication protocols (such as 4-20 mA, 0-10V, Modbus, etc.) to ensure compatibility with remote monitoring systems.

Budget and Cost Effectiveness:

  • Calculate the total cost of ownership, including purchase, installation, scheduled maintenance and potential breakdown repairs.
  • Consider sensors with energy-saving features, such as low-energy designs (power consumption less than 0.5W) to reduce operating costs.

Supplier technical support and services:

Choose sensors that offer at least a one-year warranty, and make sure the supplier has service points in the country for quick response.

By considering the specific recommendations and reference values above, you can select a tank level sensor and monitoring system that meets your technical requirements while being cost-effective.

Submersible-Level-Transducer-First-Choice-for-Water-Level

More level monitoring solution

Extended reading: Fuel-Diesel-Water Tank Level Sensor Monitoring

When choosing a suitable water tank level sensor and monitoring system, we must consider a variety of factors, such as application environment, accuracy requirements, ease of installation and maintenance, and budget.

At the same time, we also provide other types of measuring instruments, such as wastewater flow measurement, liquid level measurement and pressure measurement equipment. These high-quality instruments can help you build a more comprehensive monitoring system.

Our Sino-Inst offers over 20 Water Tank Level Sensors for level measurement. About 50% of these are liquid level meters, 40% is the tank level sensor. A wide variety of Water Tank Level Sensors options are available to you, such as free samples, paid samples.

We offer a variety of measurement solutions and support customization to meet your specific needs. If you need professional advice or customized services, please contact us!
