Ultrasonic fuel tank level sensor, also called non-contact fuel meter,
is an electronic level transmitter,
measuring continuous liquid level, fluid level, or oil level.
ULT-200A Ultrasonic Level Transmitter,
taking the advantages of various many levels measuring instruments is a universal one characterized,
by total digitalized and humanized design.
This ultrasonic level transmitter has perfect level monitoring,
data transmission, and man-machine communication.
By continuously monitoring the time between the reflected return of these pulses,
the current fluid level can be accurately gauged.
Even if your fluids are stored in tanks or containers with complex or unique geometries,
the analog output signal of our ultrasonic tank level sensor technology
ensures precise readings every time.
Features of Ultrasonic fuel tank level sensor
- Sensor: Low power consumption, easy to install and locate, standard 4-20mA output, can be used as level gauge alone.
- The probe can be made for IP68, anti-corrosion, explosion, small blind, low power consumption, large range 16 key operation.
- Human-Machine communication can be more efficient.
- Backup and recovery parameter set.
- Measure for level, volume, weight.
- Set a filter value to remove
- Output HART, it can be direct communication with other instruments.
- (Optional) Mini SD data collection and GPRS communication are optional.
Specifications of ULT-200A Ultrasonic fuel tank level sensor
|Item||Split Type Ultrasonic Level Transmitter|
|Sense Range||3m; 5m; 8m; 10m; 12m; 15m; 20m; 25m; 30m|
|Output||4~20mA（standard）; 0~20mA; 1~5V; 0~5V; 0-10V; 1-10V; RS485; HART; |
4 relays (Contact capacity AC:5A 250V DC:10A 120V)
|Secondary Meter Dimension||240mm×184mm×110mm|

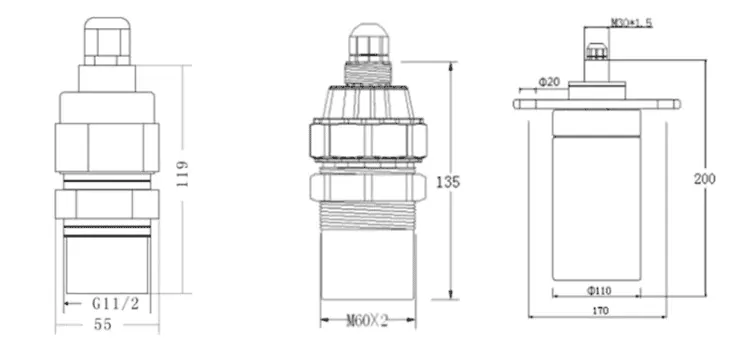

|Sensor Size||Φ41×100×Φ30 (for range:1 m); |
Φ55mm×119mm×G1 1/2 (for range:3 m);
Φ74mm×135mm×M60 (for range:3~15 m)’
Φ109mm×200mm×M30 (for range: 16~35 m)
|Installation Size||G1 1/2(3m); M60x2 (5-15m); M30X1.5 (20-30m)|
|Sensor Cable||10m (optional)|
|Operating Surroundings||normal temperature, normal pressure|
|Protection Degree||IP53 for instrument/ |
normal temperature, normal pressure
Working Principle of the ultrasonic level transmitter<
Ultrasonic fuel level sensors for challenging applications
All Sino-Instrument ultrasonic fuel level sensor models provide continuously,
non-contact measurement (like radar),
making them ideal for measuring fluids found in machine tools,
like oil or hydraulic fluid,
that cannot be tainted by the introduction of foreign materials.
Our ultrasonic fuel level measurement modules can be programmed to account,
for oscillations and turbulence,
that could otherwise lead to incorrect readings.
Measurement clear to the bottom of the tank can be realized.
Sino-Instrument’s ultrasonic tank level sensors feature an extremely broad operating temperature range.
They can operate in outdoor applications or extreme environments like commercial car washes,
or outdoor fuel generators with no loss of performance or accuracy.
Tank Level Measurements
Sino-Instrument’s ULT series level transmitters offer cost-effective,
continuous level measurement and a wide range of features,
to handle almost any tank level management task.
Chemical Level Measurement
Many common chemicals can damage level sensors.
Even stainless steel sensors can be quickly corroded by some chemicals.
Transducer elements and the adhesives that bond them to housings are especially susceptible to corrosive liquids and gases.
Special chemically resistant polymer housings are necessary for these environments.
Simply coated transducers or partially protected sensor housings may not offer enough protection.
Tank Level Display
A simple display will provide tank level in feet or meters.
With more advanced displays,
you can convert simple level measurements to engineering units like gallons, liters, pounds or kilograms.
Tank Level Alarms
Many tank level applications require alarms to be sounded when levels get above or below a certain point.
Tank Level Control
Ultrasonic level sensors may send measurements to a tank level controller,
or ToughSonic sensors may control tanks directly using switches and relays.
Advanced Tank Level Measurements
Tank level measurements are sometimes complicated by conditions in the tank.
Structural obstacles such as supports or mixing equipment might be in the sensor measurement path.
Similarly, spray or foam can obscure the air-to-liquid interface that ultrasonic sensors detect.
These applications require more advanced sensor capabilities.
How many types of level sensors are there?
There are many different kinds of level measurement transmitters, including:
- Guided Microwave
Each of these transmitters works in different ways, making them useful for different types of processes.
These transmitters use liquid stored in a tank or container,
as a dielectric medium between two or more electrodes.
The energy capacity of the capacitor circuit increases,
when there is more liquid and decreases if there is less liquid. By measuring the variations in the capacitance value,
capacitance level transmitters can calculate the current fill level of the tank or container.
Also known as pressure level transmitters,
these transmitters help in determining fluid contents of a container,
by measuring the pressure of the resting body of the fluid within it. The greater the force of liquid, the greater the volume of fluid.
These transmitters use a magnetic object,
which is suspended in a buoyant float.
This is usually in a narrow auxiliary column,
to restrict lateral movements of the float.
While the float is on top of the liquid,
the movement of the float is measured by a different magnetic device.
This allows a precise and stable fill level to be transmitted.
This method is suitable for continuous measurement,
owing to the tendency of the float to rise or sink based on the liquid level.
These transmitters work on the principle of radar by using radio wave emissions.
These transmitters are normally mounted at the top of a tank filled with a liquid.
The transmitter sends a radar signal into the liquid and receives a reflection of the signal.
The transmitters then analyze the current fill level of the tank based on the time taken by the transmitted signal to return.
In this type of transmitter, an ultrasonic transducer is mounted at,
or near the top of a container containing liquid.
The transducer sends out an ultrasonic pulse.
The pulse hits the surface of the liquid and gets reflected.
The sensor then calculates the fill level based on the time between the transmitted and received signal.
- Guided Microwave Level Transmitters:
These transmitters work by sending a microwave pulse,
through a sensor cable or rod.
The signal hits the surface of the liquid,
and travels back to the sensor,
and then to the transmitter housing.
The electronics integrated into the transmitter housing determine the filling level based on the time,
taken by the signal to travel down the sensor and back up again.
These types of level transmitters are used in industrial applications,
in all areas of process technology.
