The Small Pressure Transducer/Sensor is characterized by its small size, the shortest can be 5CM. In some occasions where the installation location is small, it has an irreplaceable volume advantage.
Small Pressure Transducer is that the pressure of the measured medium acts directly on the diaphragm of the sensor (stainless steel or ceramics). Make the diaphragm produce a micro-displacement proportional to the medium pressure. The resistance value of the sensor is changed, and the change is detected by the electronic circuit. And convert and output a standard measurement signal corresponding to this pressure.
The interface, casing and electrical interface of the transmitter can be adapted according to the requirements of the user’s industry.

Small Pressure Transducer

Featured Small Pressure Transducers/Sensors for Sale

How small can a pressure sensor be?

The Small Pressure Transducer/Sensor is characterized by its small size, the shortest can be 5CM. The interface, casing and electrical interface of the transmitter can be adapted according to the requirements of the user’s industry. The size of Small Pressure Transducer/Sensor also supports customization.

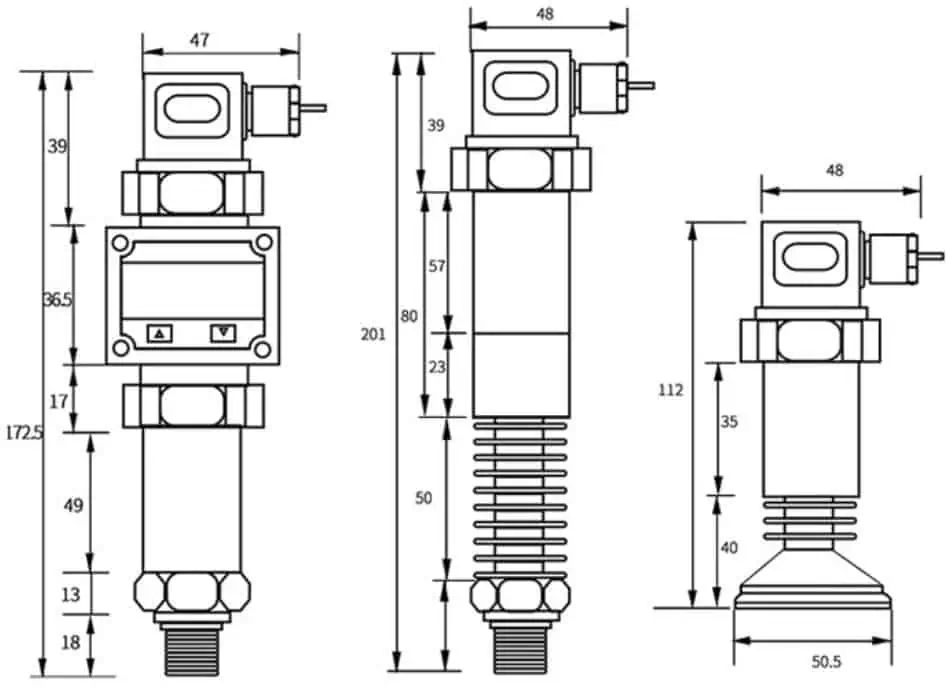

For example, the following product dimensions:

How small can a pressure sensor be 1
How small can a pressure sensor be 2
Small Pressure Transducers

Miniature Pressure Sensor/Transducer

SI-51 Miniature Pressure Sensor
SI-51 Miniature Pressure Sensor/Transducer

Miniature Pressure Sensor is also called Miniature Pressure Transducer. The miniature pressure sensor is a miniature solid-state silicon force sensor integrated with MEMS technology. One-piece miniature stainless steel package. Make it have excellent dynamic performance. Small size, streamlined, strong, compact shape structure.

  • Product size Φ3, Φ5, M6, M8, M10. Can be specially designed according to specific working conditions;
  • Small size, streamlined appearance;
  • split structure. Optional standard voltage, current, digital signal output. Meet the requirements of various working conditions;
  • High dynamic frequency response, steep rising edge;
  • Wide measuring range. Any range between -100Kpa~0-10KPa…60MPa;

Frequently
Asked
Questions

Low-pressure pressure transmitter is the application of conventional pressure sensor technology extended to the field of ultra-low pressure. While maintaining the original high performance, the pressure range can be as low as 0-5KPa. The advanced design makes this ultra-low pressure transmitter have the characteristics of fast response and good long-term stability.

The pressure transducer is used to measure various pressures.

The basic structure of its measurement part can be regarded as a space divided into two parts by the sensor. Including the case where one space is the entire universe.

When the pressures of these two parts are not equal, the force acting on the sensor causes the sensor to generate displacement or displacement tendency (force), and the pressure can be measured by detecting the displacement or displacement tendency.

Common sensors include diaphragms, spring tubes, and bellows, among which diaphragms are most widely used in transmitters.

There are many types of pressure sensors. Such as resistance strain gauge pressure sensors, semiconductor strain gauge pressure sensors, piezoresistive pressure sensors, inductive pressure sensors, capacitive pressure sensors, resonant pressure sensors, etc.

Extended reading: wireless pressure transmitter working principle

Currently, the most widely used pressure sensors include:

  • Diffused silicon piezoresistive pressure sensor,
  • Ceramic piezoresistive pressure sensor,
  • Sputtering thin film pressure sensor,
  • Capacitive pressure sensor,
  • Sapphire pressure sensor with high temperature resistance.
  • But the most widely used is the piezoresistive pressure sensor, which has a very low price, high accuracy and good linearity.

Extended Reading: Electronic Pressure Switch for Air Compressor

What’s the Difference Between a Pressure Transducer and a Pressure Switch? Simply put, the Pressure Transducer is a signal conversion and transmission device, and the pressure switch is a control switch device. This is the difference between a Pressure Transducer and a Pressure Switch. Let’s look at their differences in detail. And learn how to choose a pressure transmitter and pressure switch.

More Featured Pressure Measurement Solutions

What does SCADA stands for?

What does SCADA stand for? SCADA is the abbreviation of Supervisory Control And Data Acquisition. Namely data acquisition and monitoring control system. SCADA system is also called monitoring configuration software, which is widely used in enterprise equipment management of equipment Read More

What does intrinsically safe mean?

Intrinsically safe type is an explosion-proof type of electrical equipment. When purchasing electrical equipment, do you often hear about intrinsic safety? For example, when ordering pressure transmitters or flow meters. Intrinsically safe instruments are intrinsically safe instruments. Also called safety Read More

How to convert a 4-20mA to 0-10V /1-5V signal?

4-20mA to 0-10v voltage, this is I/V conversion. That is current-voltage conversion, usually used for long-distance signal transmission in the industry. How to convert a 4-20mA to 0-10V /1-5V signal? There are two methods: one is to do it yourself Read More

Static Pressure/Hydrostatic Pressure Transmitter

The Hydrostatic Pressure Transmitter measures the hydrostatic pressure exerted by a hydrostatic head. Use these hydrostatic pressure transmitters to measure the liquid level in storage tanks, processing vessels, collection tanks, pump inlet heads. And other applications use hydrostatic pressure to Read More

The Myth of Ceramic Pressure Sensor

What is a ceramic pressure sensor? Ceramic pressure sensors are sensor diaphragms made of ceramic alumina (Al2O3). Ceramic is a material with high elasticity, corrosion resistance, wear resistance, impact, and vibration resistance. Ceramic has good thermal stability characteristics. High-temperature sintering Read More

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at a constant speed. Static Water Pressure is also called hydrostatic Read More

High Temperature Pressure Transducer with Best Price

High Temperature Pressure Transducer is also called High Temperature Pressure Sensor, or High Temperature Pressure Transmitter. The High Temperature Pressure Transducer is used for applications where the medium temperature exceeds the temperature limits of standard pressure transmitters. By assembling Cooling Read More

Small Pressure Transducer/Sensor-Low Cost-High Performance

Sino-Inst is a manufacturer of Small Pressure Transducer/Sensor. Small Pressure Transducers/Sensors have a lower cost than other industrial pressure transmitters. At the same time, Small Pressure Transducer/Sensor can customize high-performance parameters. Such as ultra-high temperature, ultra-high pressure, or micro-scale. Or special anti-corrosion materials, etc.

Sino-Inst is a manufacturer that produces and sells various types of automatic measurement and control instruments. The main products are: hydraulic pressure sensor, liquid level/water level sensor, Miniature Pressure Sensor/Transducer, micro pressure/negative pressure/vacuum pressure sensor, temperature transmitter, load cell and other pressure, differential pressure, liquid level, temperature , weighing sensors and various special pressure sensors and intelligent control systems.

If you need to purchase a Small Pressure Transducer/Sensor, or have any technical questions about Small Pressure Transducer/Sensor, please feel free to contact our engineers.
