Water Pressure Sensors

Water Pressure Sensors refers specifically to instruments used to measure the pressure of tanks, pipes or underground water. Also called Water Pressure Transducers, or Water Pressure transmitters. Commonly used Water Pressure Sensors generally purchase diffused silicon. Convert the measured water pressure into an electronic signal. Local digital display, or analog signal or digital signal output. It is convenient for people to monitor water pressure.

Water Pressure Sensors for Measurement of Water Pressure

Sino-Inst, as a manufacturer of Water Pressure Sensors. We provide water pipe pressure sensors, water tank pressure sensors, drinking water pressure sensors, groundwater pressure sensors, deep well pressure sensors, etc. Guarantee accurate, stable and reliable pressure measurement. 0~300psi, 1000psi, 2000psi and other customizable pressure ranges. Parameters such as materials, output signals, and pressure ports can be customized as required.

Featured Water Pressure Sensors and Transducers

The so-called water pressure refers to the pressure of water.

It is generally believed that 0.1Mpa=10 meters of water, and the supply pressure at the end of the pipe network is 0.14Mpa. More intuitively, 0.1MPa is equivalent to a standard atmospheric pressure. The supply pressure at the end of the pipe network is 0.14Mpa, which is equivalent to a height of 14 meters from the tap to the water supply tower (pool).

Sino-Inst’s water pressure sensors are used in various industries and fields. Such as hydropower stations, hydrology, environmental monitoring, etc.

For example, they measure water depth, monitor seawater pressure in dams, calculate flow rates and control water levels.

Due to the rich experience in water pressure sensors installed in pipes, water tanks, etc., Sino-Inst can provide you with extensive professional advice in various fields.

Water pressure sensors are used to measure the static pressure of water in pipelines, storage tanks, and many other applications.

Underwater pressure sensors can also be used to measure groundwater depth in boreholes and wells, as well as agricultural irrigation, etc.

The domestic water industry will collect and send parameters such as pressure, flow, and temperature of the pipeline to the platform. The platform will process the data. Real-time control of the operation of each point. Quick repair of equipment failure, greatly reducing equipment operating costs,

Pressure sensors are also being gradually installed on fire hydrants. Prevent losses caused by fire hydrant leakage.

Water pressure transmitter is the most commonly used pressure transmitter in the field of industrial automation. Widely used in water supply equipment, building water supply system. Residential, factory buildings, water conservancy and other pressure measurement and control. Water pressure transmitters will play an inestimable role in the future automation industry.

Industrial water supply, water treatment and other industries need to pump and pressurize continuously to send water to high places or increase water pressure. Installing a water pressure sensor can effectively monitor changes in water pressure. Even realize the control of the switch.

The water pressure sensor has gradually replaced the old pressure gauge. When you choose a pressure sensor, please pay attention to learn more about the actual working conditions. Choose a more suitable pressure sensor. To ensure long-term stable operation.

Extended reading: High accuracy pressure transducers

Featured Water Level Sensors

Pressure sensors can also be used as Water Level Sensors. Tank pressure sensors detect changes in the volume or level of water in a container.

The application of pressure transmitters to measure liquid levels has its own unique features. For the liquid level deviation caused by temperature changes, we can indirectly convert the density through the temperature compensation operation according to the corresponding relationship between density and temperature, and then calculate the height of the liquid column. And these are not difficult to realize in the control software. In particular, some smart transmitters have their own temperature compensation function.

In this way, the application of the pressure transmitter can be extended to the measurement of the liquid level of open containers such as oil level and chemical liquid.

After the sensor and converter of the pressure transmitter are separated and arranged in the installation form, it can also be applied to the water level measurement of deep wells, groundwater and borehole water levels, sewage pools and other containers, and has a good application prospect.

Sino-Inst offers a range of liquid level sensors for water pressure measurement applications.

Extended reading: Troubleshooting For 4-20ma Pressure Transmitter

How to choose a water pressure sensor?

  1. Absolute or gauge pressure measurement
  2. Cable or flying lead pressure transmitter wiring
  3. Media compatibility for pressure transmitters
  4. Moisture resistance in pressure transmitters
  5. Pressure transmitter accuracy and errors
  6. Radiofrequency (RFI) and electromagnetic interference (EMI) in pressure transmitters
  7. Standard or flush diaphragm pressure transmitters
  8. Vibration resistance in pressure transmitters

Read more about: What is industrial pressure transmitter?

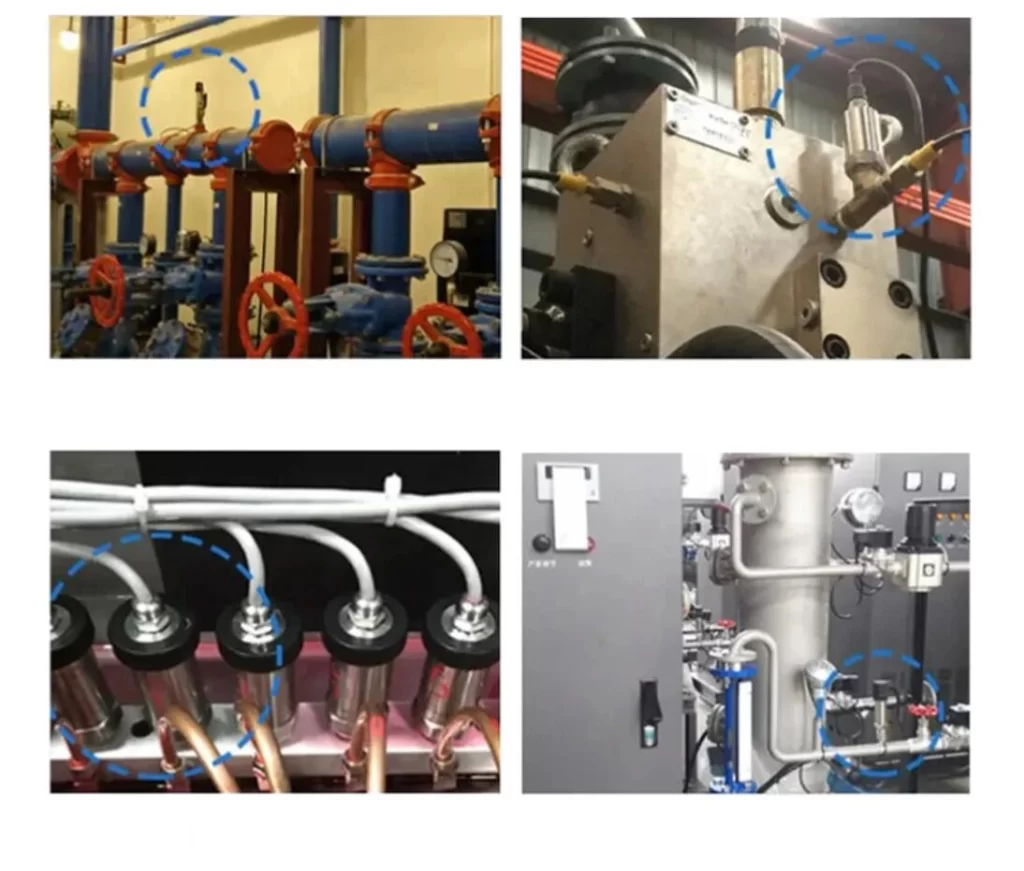

More Water Pressure-Water Level-Water Flow Monitoring Solutions

Extended Reading: Fluid pressure sensor

More Water Pressure-Water Level-Water Flow Monitoring Solutions

Water is important in every industry. Including agriculture, industry, fire protection, etc. How to effectively, stably, and low-cost monitor water resources is very important.

Sino-Inst provides a variety of solutions, including water pressure, water level, water flow monitoring in seawater solutions such as sewage treatment, seawater desalination, etc.

And:

Frequently asked questions

Water pressure sensors, also known as water pressure transmitters and transmitters, are widely used in water pressure measurement in many fields such as water tank pressure sensors, water pipeline pressure sensors, and water container water pressure sensors.

The core of the water pressure sensor is usually made of diffused silicon. The working principle is that the pressure of the measured water pressure acts directly on the diaphragm of the sensor. Make the diaphragm produce a micro-displacement proportional to the water pressure. Change the resistance value of the sensor. and electronically detect this change. And convert and output a standard measurement signal corresponding to the pressure.

Extended Reading: 3 inch (3″) Water Meter

A pressure sensor is a device or device that can sense a pressure signal and convert the pressure signal into a usable output electrical signal according to a certain rule.
A pressure sensor usually consists of a pressure-sensitive element and a signal processing unit. According to different test pressure types, pressure sensors can be divided into gauge pressure sensors, differential pressure sensors and absolute pressure sensors. A pressure sensor is the core part of pressure transmitter. More.

Pressure Transmitter Calibration

Water Pressure Sensors calibration is what you need to do before you install the pressure transmitters. Also called pressure transducer calibration, or pressure sensor calibration.

In this article, we will share pressure transmitter calibration using hart communicator.

Pressure transmitters used in the process industries are very durable and reliable instruments.

Even so, they still require periodic maintenance and calibration to ensure optimal performance.

A pressure sensor is a device or device that can sense pressure and convert the pressure signal into an electrical signal output according to certain rules.

Pressure sensors usually refer to component-level products with non-standard mV signal output. They are the core components of pressure transmitters.

Pressure transmitters measure the liquid level, density and pressure of liquids, gases or vapors, acting on sensitive diaphragms. In general, a pressure transmitter is mainly composed of three parts: a load cell sensor (also called a pressure sensor), a measurement circuit, and a process connection.

It can convert physical pressure parameters such as gas and liquid felt by the load cell sensor into a standard electrical signal (such as 4~20mADC, etc.). It can be used to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement and indication. and process regulation.

Extended Reading: Resistive Pressure Transducer

Water level transducers are also called Water Level Sensors, or water level transmitters. Water level transducers are used to monitor water usage and quality. The water level signal is output through 4-20mA and other signals, which is convenient for people to monitor the water level.

There are many types of water level transducers. Common ones are input type, ultrasonic, radar and so on.

Sino-Inst offer a wide range of solutions with various pressure ranges, cable lengths and output options.

For remote monitoring and recording of water level data in groundwater pumping and sludge testing, stormwater flood analysis and runoff, and surface water irrigation canals, streams and river measurements.

Extended Reading: MEMS Pressure Sensors

Water level transducer is an instrument that can convert the water level parameter of the measured point into the corresponding electric quantity signal in real time.

The working principle of the Water level transducer is that when it is put into a certain depth in the liquid to be measured. The pressure on the sensor’s front surface is converted into the liquid level height.

The calculation formula is Ρ=ρ.g.H+Po.

In the formula P is the pressure on the liquid surface of the sensor;
ρ is the density of the liquid to be measured;
g is the local acceleration of gravity;
Po is the atmospheric pressure on the liquid surface;
And H is the depth at which the sensor drops into the liquid.

Extended reading: How to convert a 4-20mA to 0-10V /1-5V signal?

By installing a water pressure sensor, we can monitor the water pressure of the pipeline or tank.

  1. The water pressure sensor can be configured with a local display to directly display the water pressure.
  2. Water pressure sensor can be configured with analog signal output. Such as 4-20mA. 0-10V, 0-5V, etc. Users can connect the signal to their own monitoring system. Easy to manage water pressure data.
  3. The water pressure sensor can be configured with RS485 communication protocol. Can be connected to a computer. Transfer water pressure data to computer software.
  4. The water pressure sensor has begun to be equipped with a wireless transmitter. Water pressure data can be transmitted wirelessly.

Extended Reading: LORA water meter

If you cannot find an answer to your question in our Water Pressure Sensors for Measurement of Water Pressure, you can always contact us and we will be with you shortly.

More Pressure Measurement Solutions

Pressure Sensor Applications-Featured Industry Applications

Pressure Sensor Applications refer to industrial pressure transmitters that convert gas, liquid and other pressure parameters into standard electrical signals (such as 4~20mADC, etc.). For on-site or remote measurement and control. Pressure sensors are arguably the most widely used sensors Read More

Flow Pressure Transducers for Fluid Pipelines

Flow Pressure Transducers are measurements of fluid pressure within a pipeline. When fluid flows through a pipe, pressure acts on the pipe wall. The medium in the pipeline can be liquid or gas.Measure the pressure of the fluid, on the Read More

Pressure Transducer Wiring: 2 Wire-3 Wire-4 Wire

Pressure Transducer Wiring refers to the electrical connection of the pressure transmitter. A pressure transmitter is a conversion device that converts pressure signals into analog signals or digital signals. Generally, except for wireless pressure transmitters, the others are used for Read More

High Accuracy Pressure Transducers

High Accuracy Pressure Transducers are also called high precision pressure transducers or high accuracy pressure sensors. Sino-Inst manufactures various types of High Accuracy Pressure Transducers. From the perspective of accuracy, the accuracy of conventional pressure transmitters is 0.5%. Therefore, pressure Read More

Flat Pressure Sensor for High Viscosity Fluids

Flat Pressure Sensor is a type of pressure sensor that specifically refers to the measurement diaphragm without pressure holes. Also known as a flat film pressure sensor. Flat Pressure Sensor is a special pressure sensor most commonly used in industrial Read More

What Is Resistive Pressure Transducer?

What Is Resistive Pressure Transducer? Resistive pressure transducers are also called resistance pressure transducers. It is a commonly used pressure sensor. Pressure sensors are generally distinguished by principle: capacitive pressure transmitters, resistive pressure transducers, inductive pressure transmitters, semiconductor pressure transmitters, Read More

What Is a Fluid Pressure Sensor?

What Is a Fluid Pressure Sensor? Fluid Pressure Sensors refers to sensors that can be used to measure the pressure of liquid media. Such as measuring pressure of Oil, Fuel and other fluid systems (select a sensor with the appropriate Read More

What is Static Water Pressure?

What Is Static Water Pressure? Definition of Static Water Pressure: Static Water Pressure refers to the pressure on water when it is stationary or moving in a straight line at a constant speed. Static Water Pressure is also called hydrostatic Read More

High Temperature Pressure Transducer with Best Price

High Temperature Pressure Transducer is also called High Temperature Pressure Sensor, or High Temperature Pressure Transmitter. The High Temperature Pressure Transducer is used for applications where the medium temperature exceeds the temperature limits of standard pressure transmitters. By assembling Cooling Read More

Sino-Inst is a manufacturer of Water Pressure Sensors for Measurement of Water Pressure. We offer more than 50 types of Water Pressure Sensors.

Water Pressure Sensors pressure sensor is mainly used to measure the pressure and liquid level of the medium. In industrial production, it is widely used.

Sino-Inst Water Pressure Sensors adopt high-quality diffused silicon type, and the pressure transmitter adopts a dedicated integrated module. Fine temperature, zero point, full scale and nonlinear compensation. Realize accurate measurement and transmission of pressure changes in liquid, gas, steam and other media. Realize the ideal monitoring of changes in pressure and vacuum media in various places for enterprises, scientific research institutes and other departments.

Sino-Inst’s Water Pressure Sensors are the most commonly used sensors in industrial applications. Widely used in water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military industry, petrochemical industry, oil well, electric power, ship, machine tool, pipeline and other industries.

Sino-Inst’s entire team is well trained, so we can ensure that each customer’s needs are met. If you need any help with your product requirements, whether it is a Water Pressure Sensor, level sensors, or other equipment, please give us a call.
